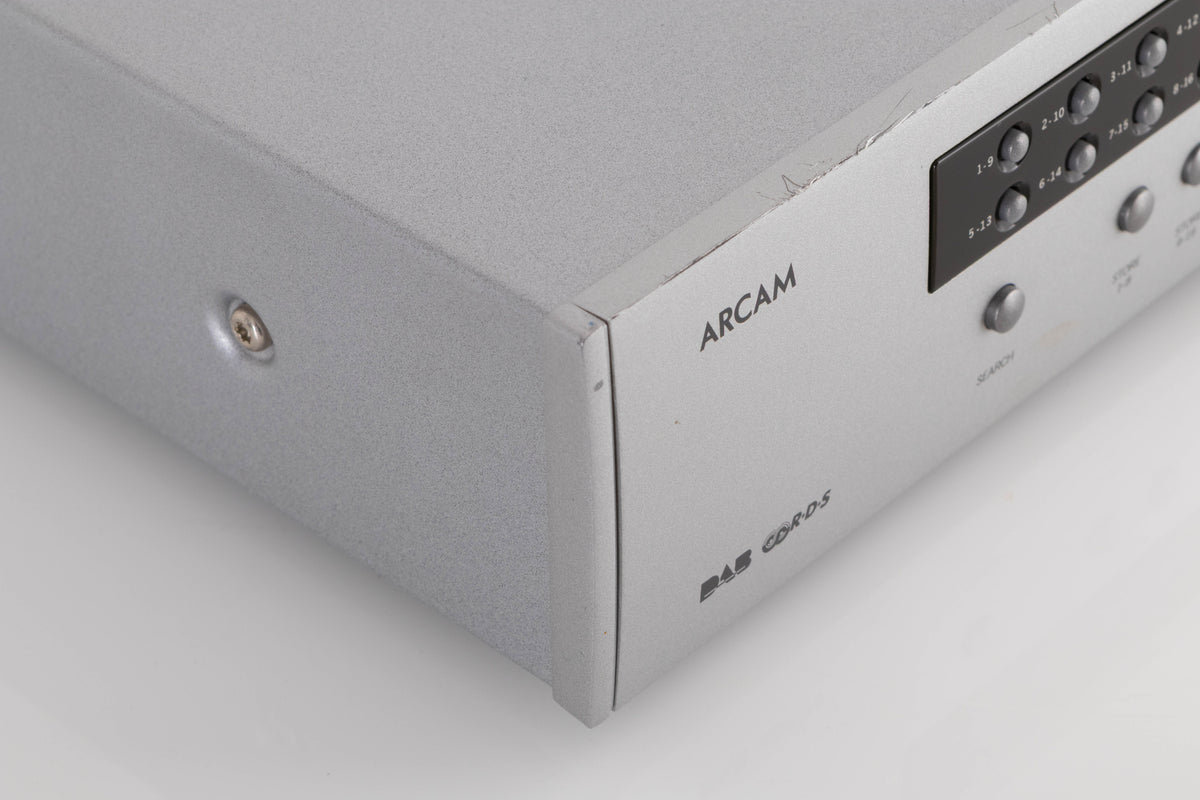

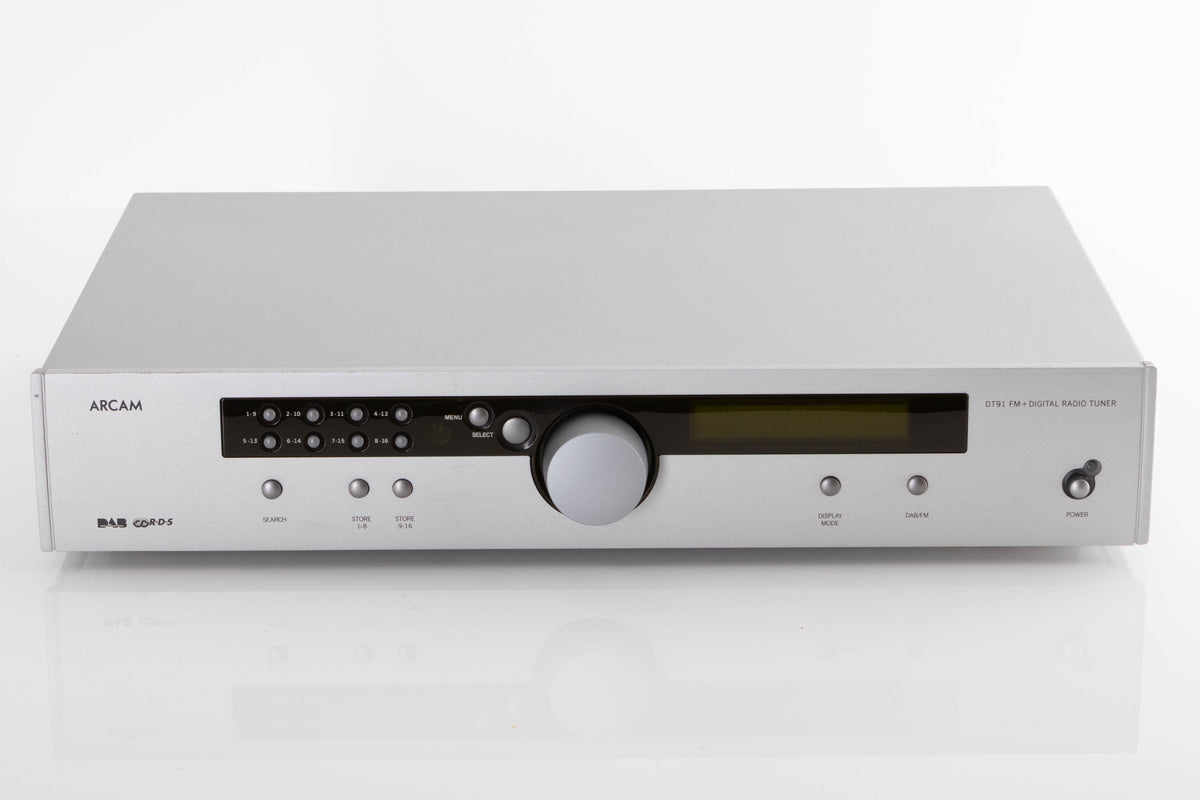

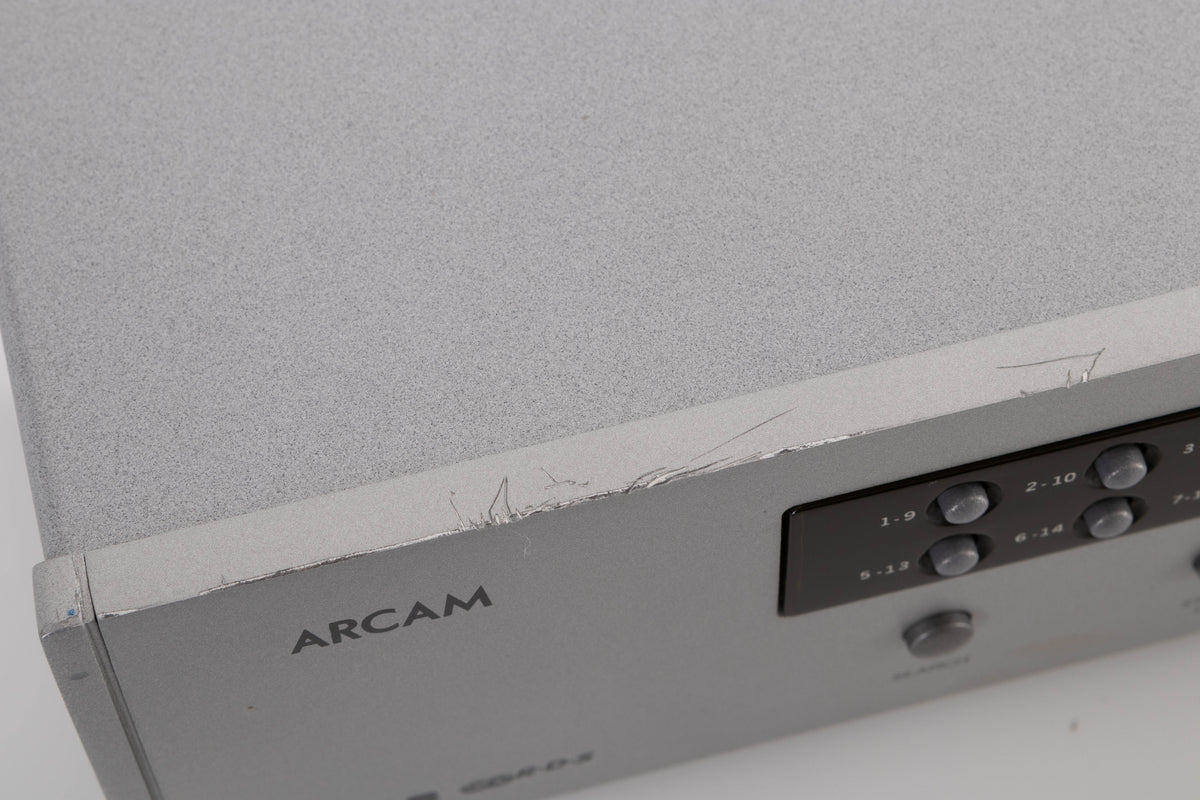

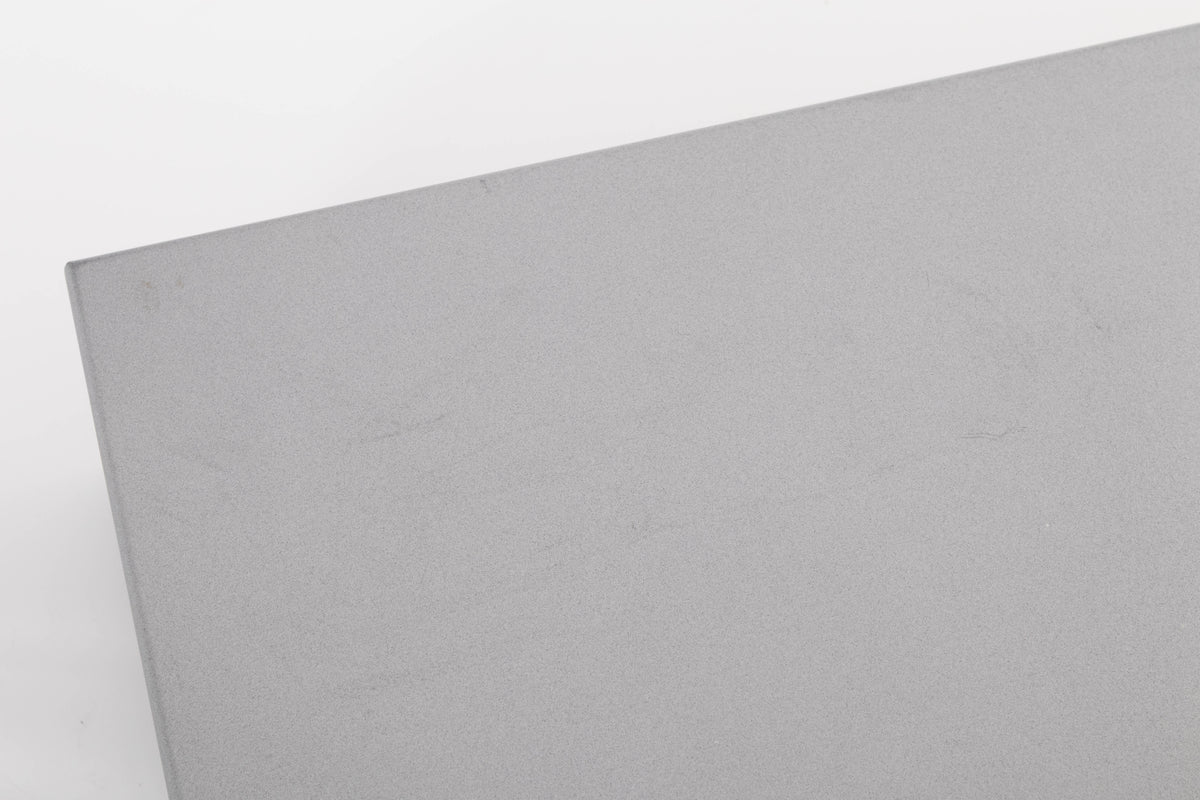

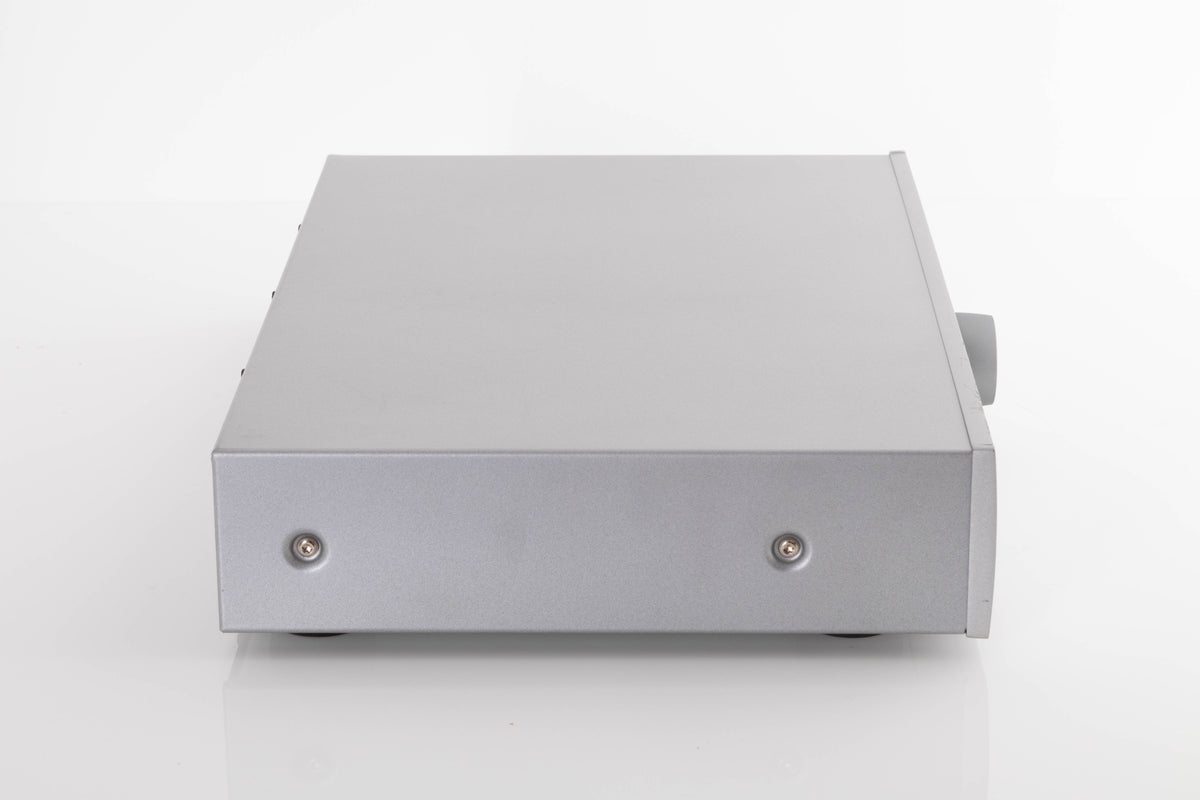

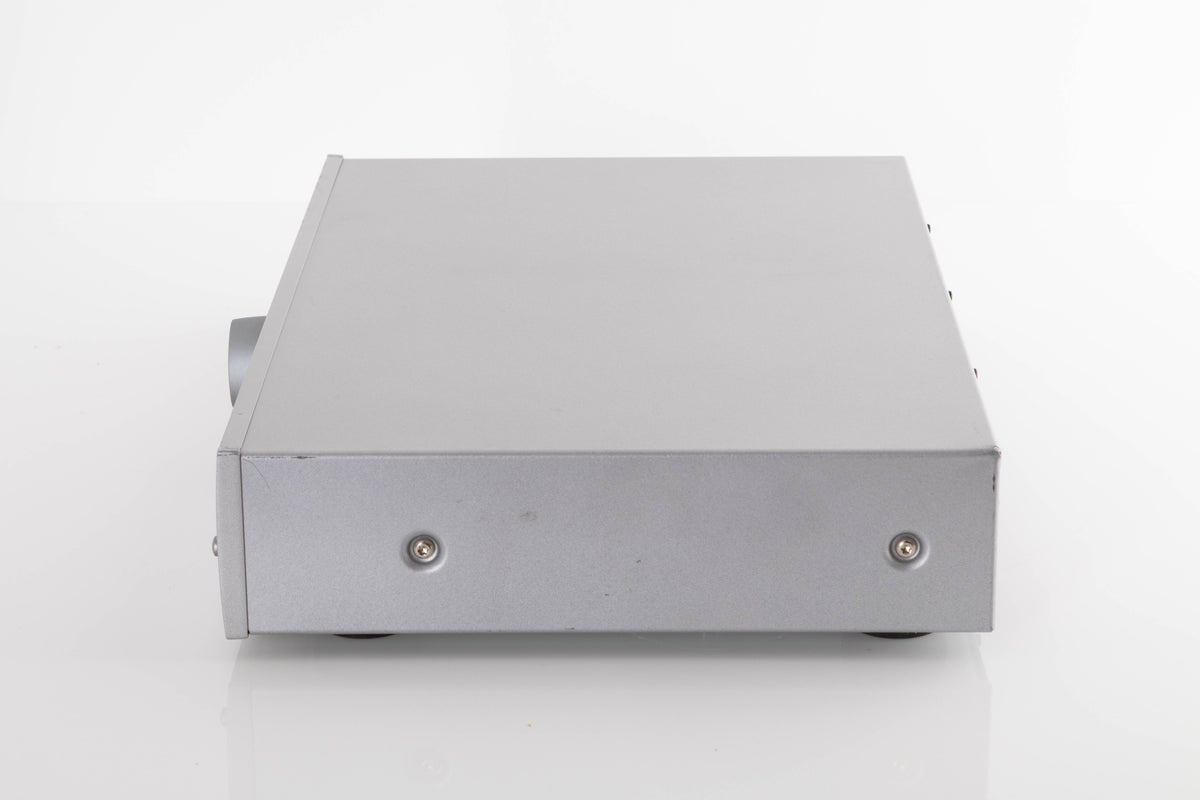

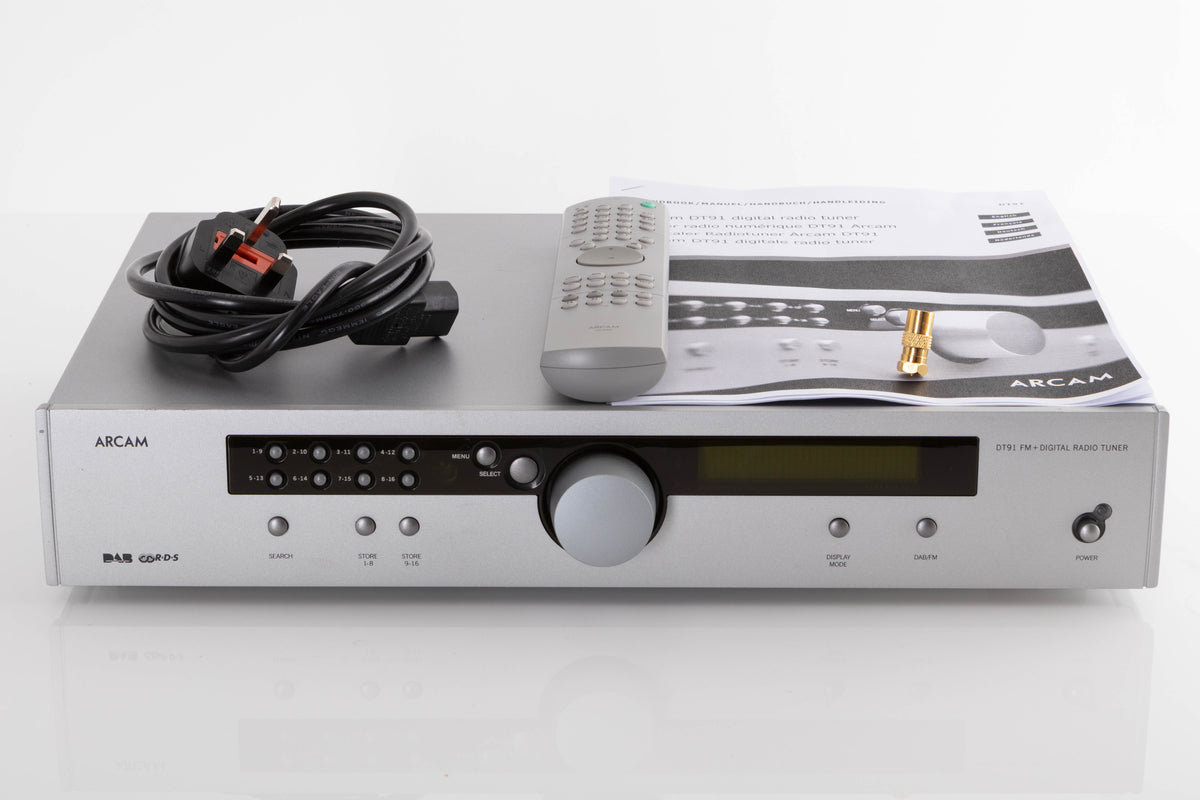

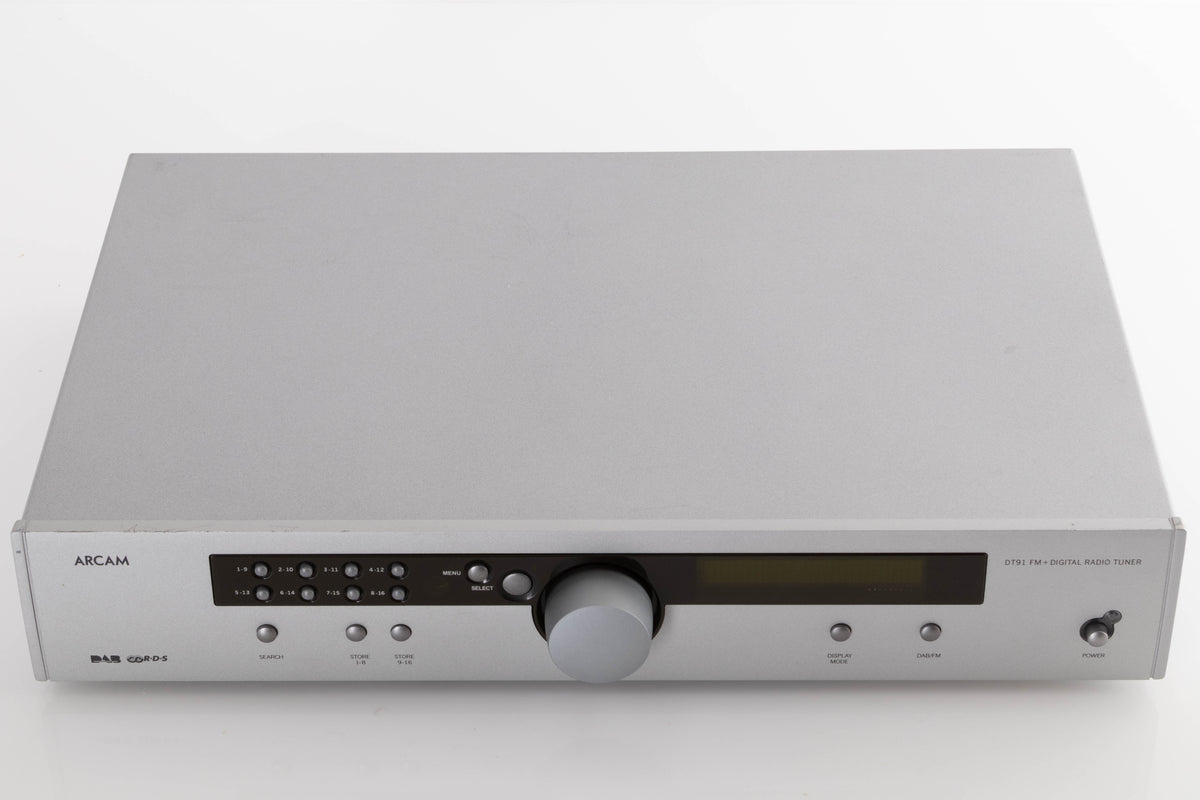

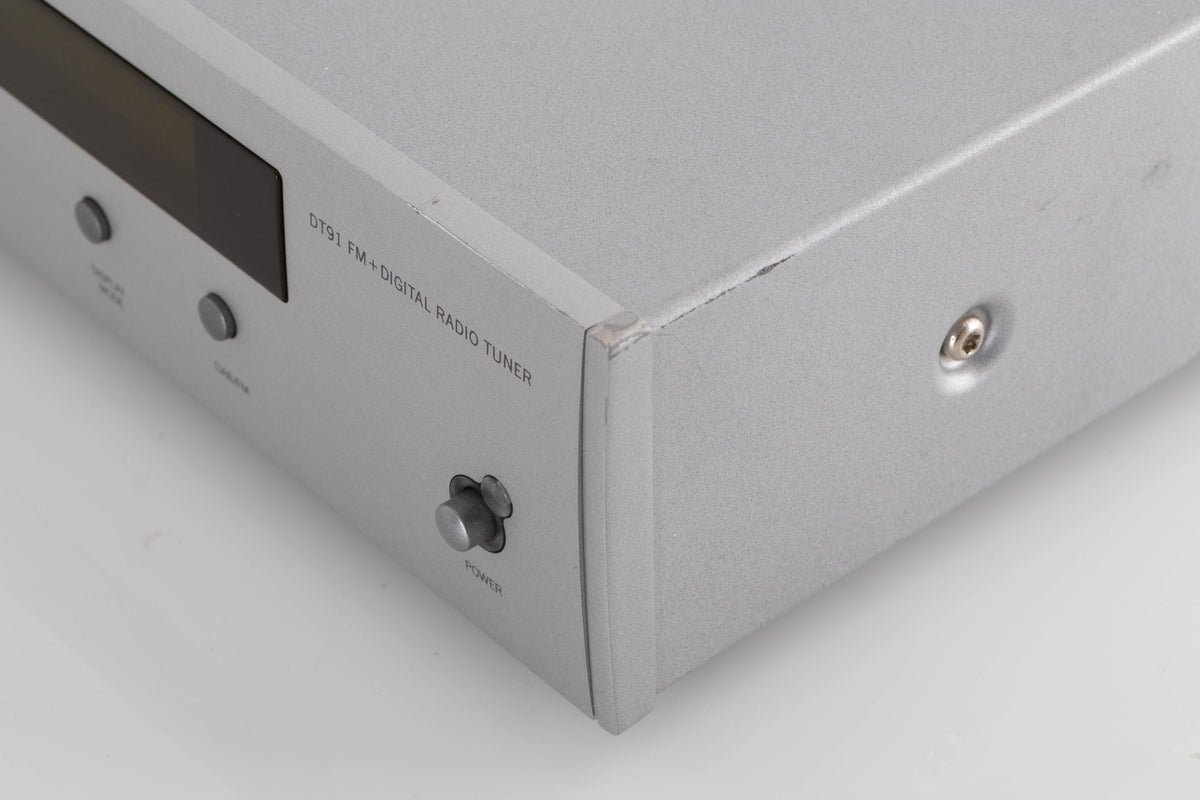

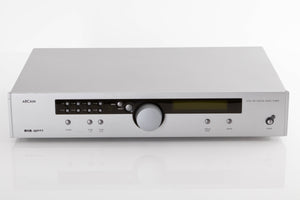

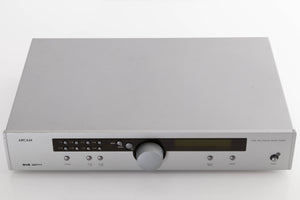

Arcam DiVA DT91 Digital Radio Tuner - Silver

As the first company in the world to produce a domestic Digital Radio tuner, Arcam played a pioneering role in the rollout of DAB digital radio. Its digital radio receivers, all engineered and produced in the UK, have gained a reputation as some of the best sounding in the world and now, with the introduction of the DT91 are the most controllable too!
The DT91 uses state-of-the-art technologies to deliver the very best radio quality from DAB and FM broadcasts. All digital processing using a powerful DSP delivers crystal clear reception regardless of the broadcast method. The DAC and output stage designs use Arcam’s audiophile methodology and are fed from a toroid based power supply.

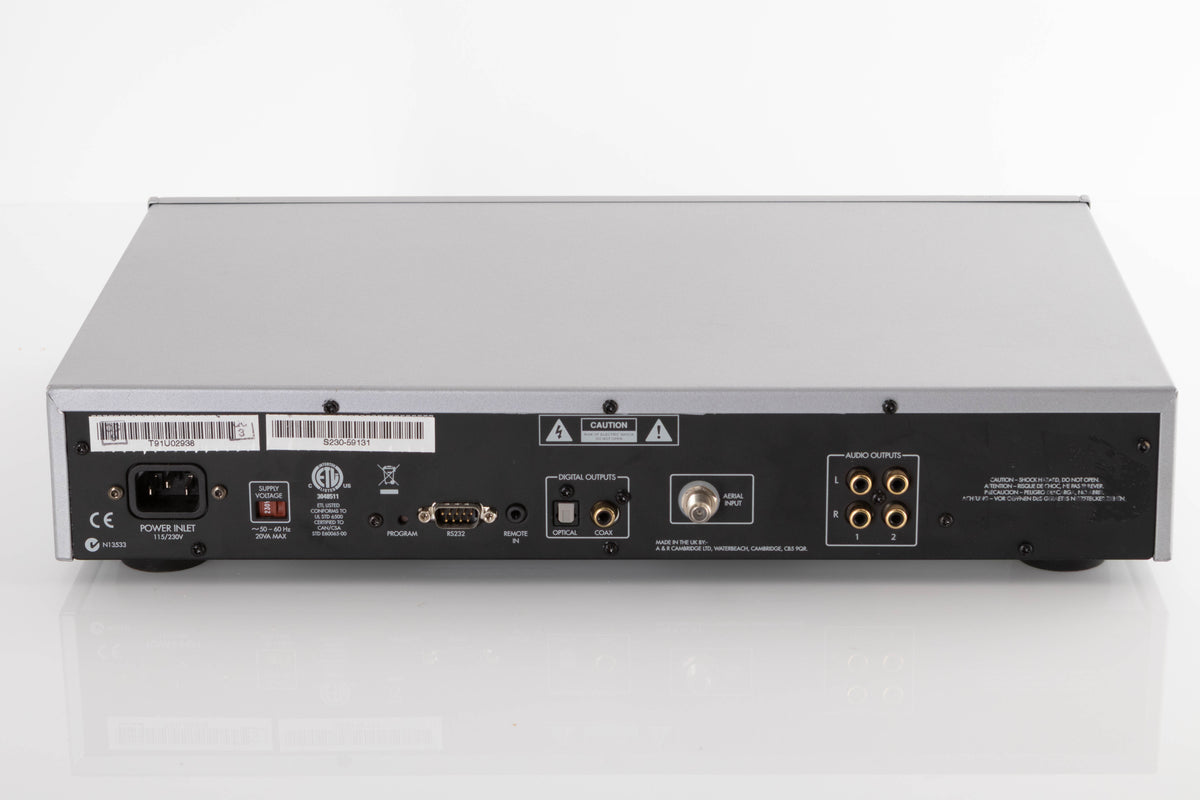

In addition to its world-class audio performance, the DT91’s connectivity and control features are also state of the art. It’s fully duplex RS232 control input, a first for domestic DAB radios, makes the DT91 perfect for custom installations using Crestron or AMX style control. For simpler systems the unit also features an IR jack input on the rear panel plus a fully featured remote handset. Outputs include two pairs of RCA phono sockets plus coaxial and optical digital outputs active with both DAB and FM.

Features

• Combined DAB & FM-RDS radio tuner
• Attractive easy-to-read graphics display
• All digital processing for FM
• DAB coverage for both band III and L-band
• 16 pre-sets, randomly assignable to DAB or FM
• Audiophile design using 24-bit Wolfson DACs
• Full remote control via RS232 or IR
• Digital output from DAB or FM

Digital audio output
Format: SPDIF co-axial to gold-plated phono sockets; SPDIF optical to TOSlink
Sample Rate: 48 kHz (DAB mode); 32 kHz (FM mode)
Output Impedance: 75 Ω unbalanced (co-axial)
Analogue Audio Output
Connectors:

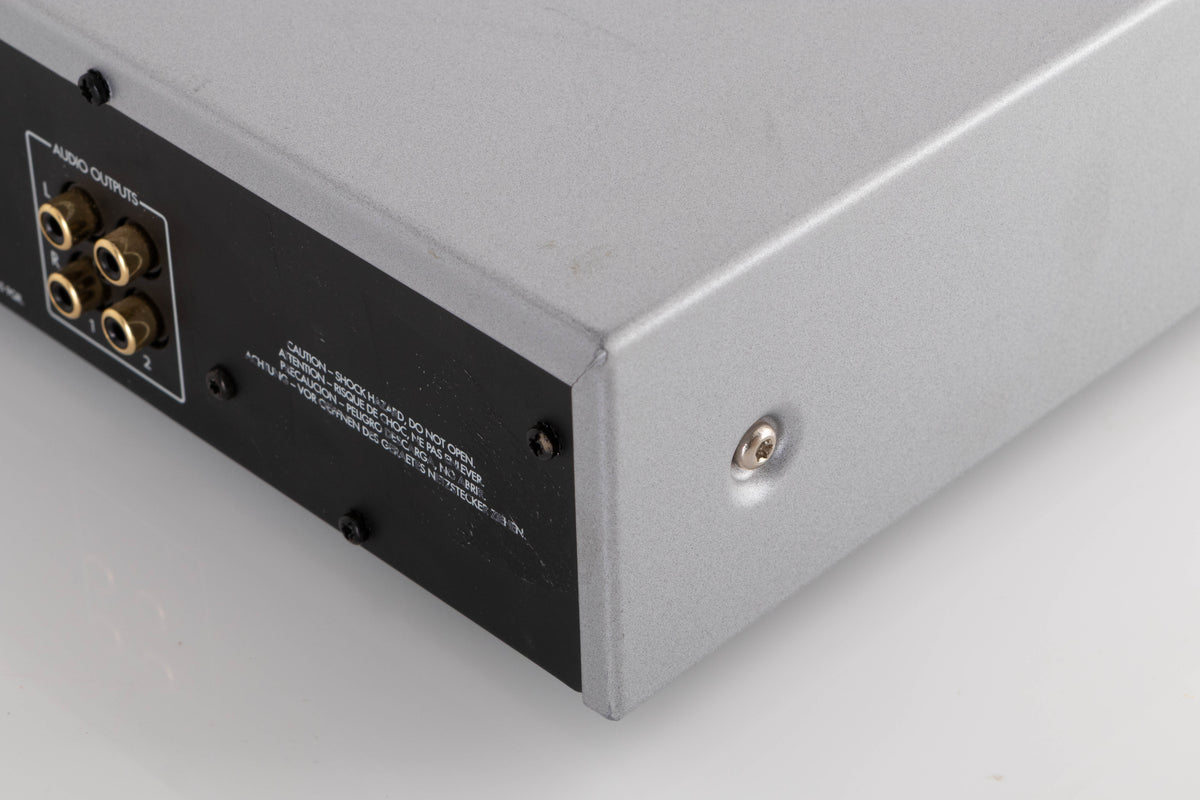

Two pairs of stereo outputs to gold-plated phono sockets
Output Level:
2.4 Vrms at 0 dBfs (DAB); 0.9 Vrms at full modulation (FM)
Output impedance: < 100 Ω
Minimum Load: 600 Ω
Frequency response: 20 Hz - 20 kHz (± 0.5 dB)
RF performance (DAB mode)
Tuning range: 174 - 240 MHz (Band III); 1452 - 1492 MHz (L band)
Sensitivity: Better than - 91 dBm, typically - 97 dBm
Audio Data Rate: 224 kbits/s at MPEG protection level 3 (Maximum):
RF Performance (FM mode)
Tuning Range: 87 - 108 MHz
Sensitivity (IHF): 3 μV typical
Signal To Noise Ratio: 65 dB at full modulation, 1 kHz
Total Harmonic Distortion + Noise: 0.1% at full modulation, 1 kHz
General

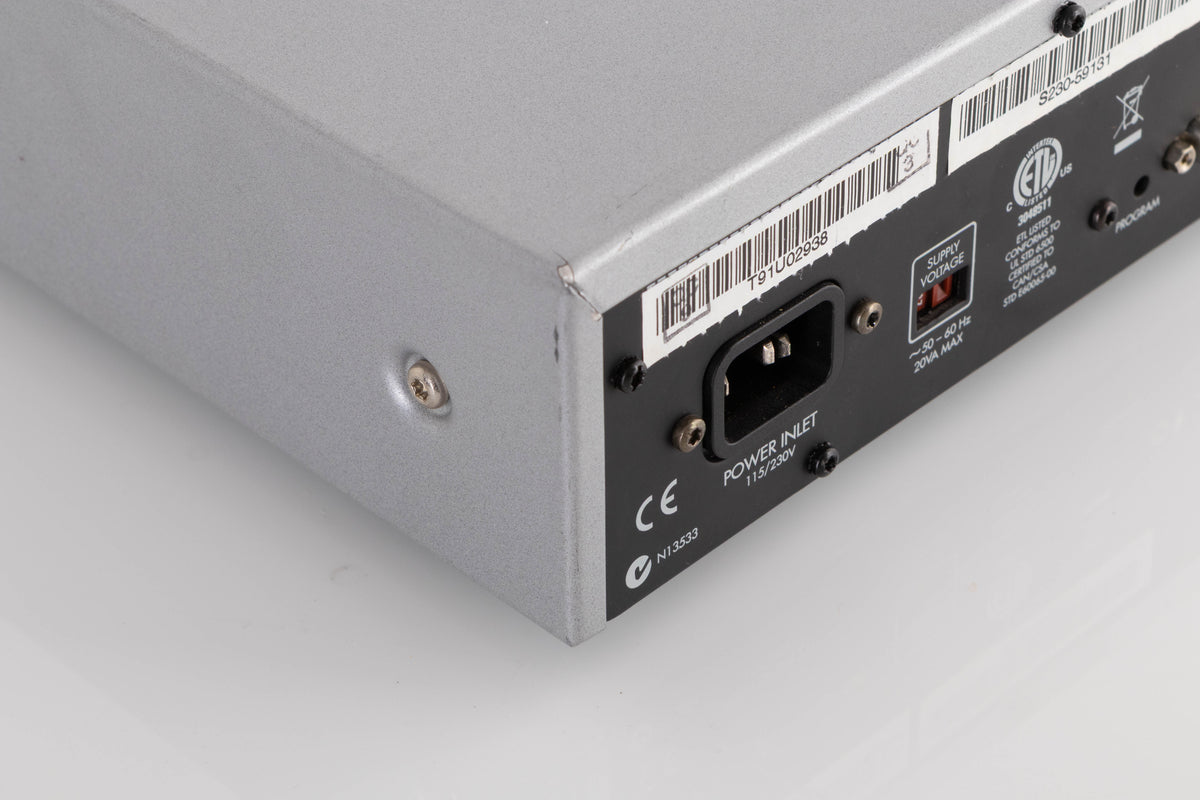

Power Supply Voltage: 115 or 230 Vac
Power Consumption: < 20 W
Dimensions: 435 (W) x 320 (D) x 83 (H) mm
Weight: 3.6 kg
