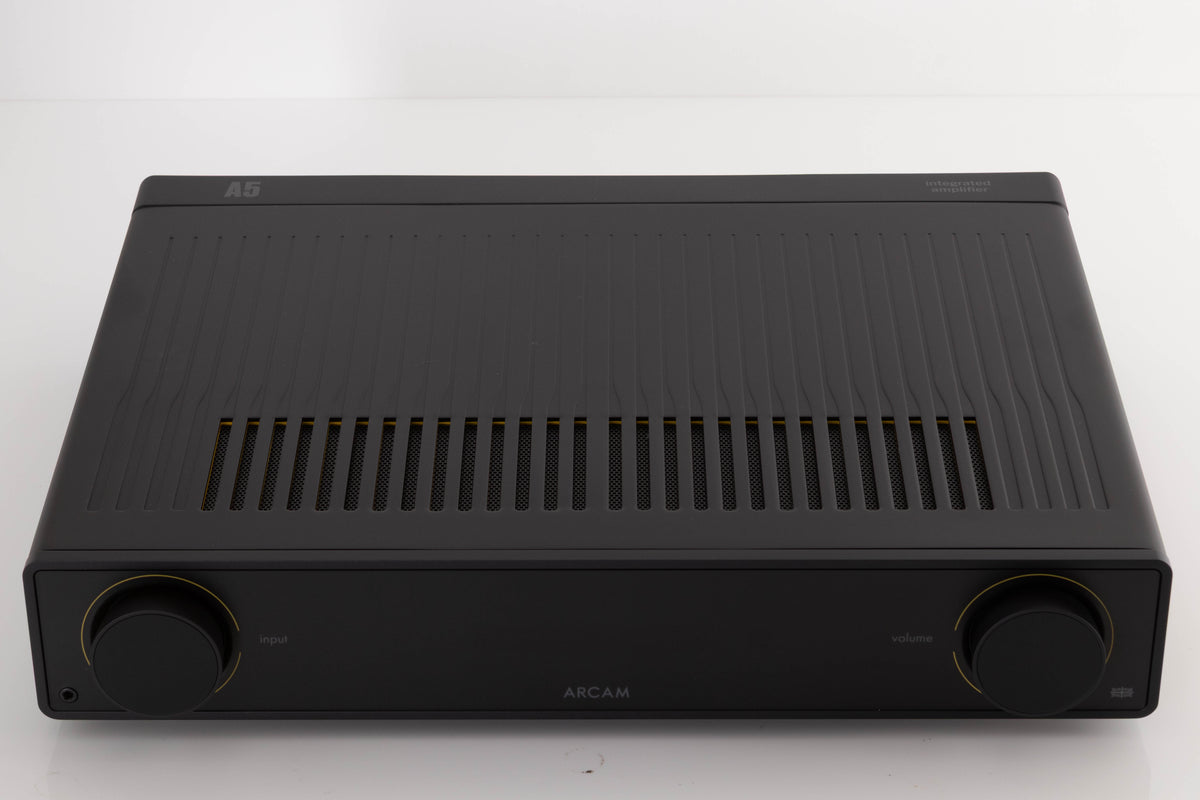

Arcam Radia A5 Integrated Amplifier

The ARCAM A5 is for those intimate listening experiences with your favourite music.
The “A” in ARCAM stands for Amplification - this is our core competence. The A5 is the latest in more than 45 years of amplifier design and manufacture, going back to our first product in 1976 - the A&R Cambridge A60 amplifier. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any ARCAM integrated amplifier, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.

Features

• 2 x 50 Watts into 8 ohms
• Bluetooth 5.2 with AptX Adaptive
• Connect wired or wireless headphones
• Hi-res audio digital inputs
• ESS ES9018 DAC
• Class AB amplification

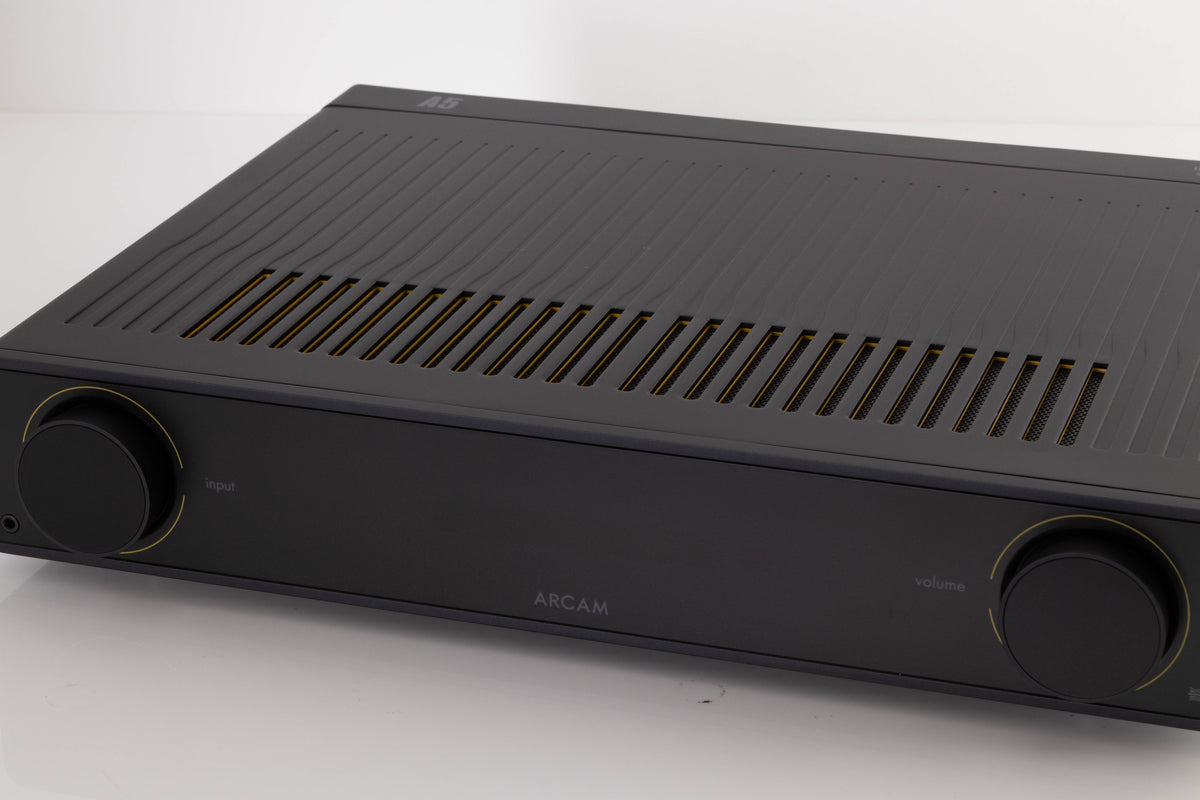

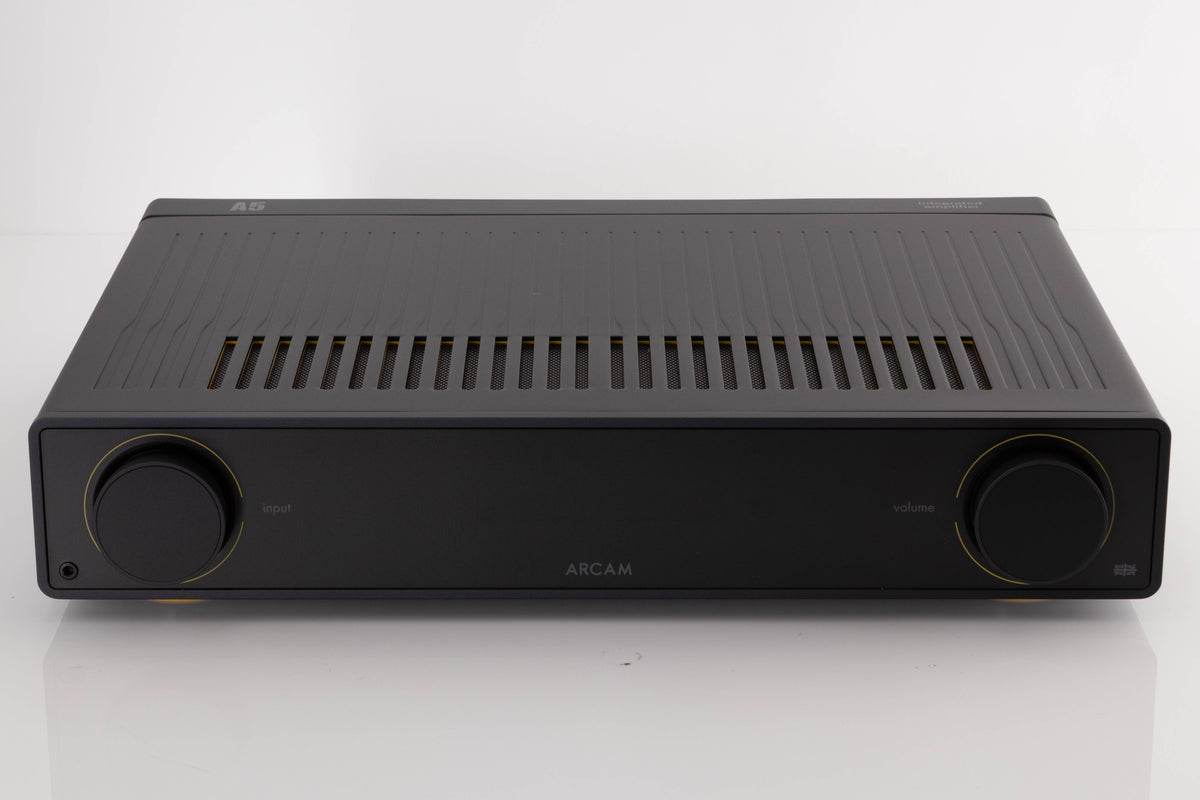

• Solid aluminium dials
• Aluminium front, top, sides and rear panels

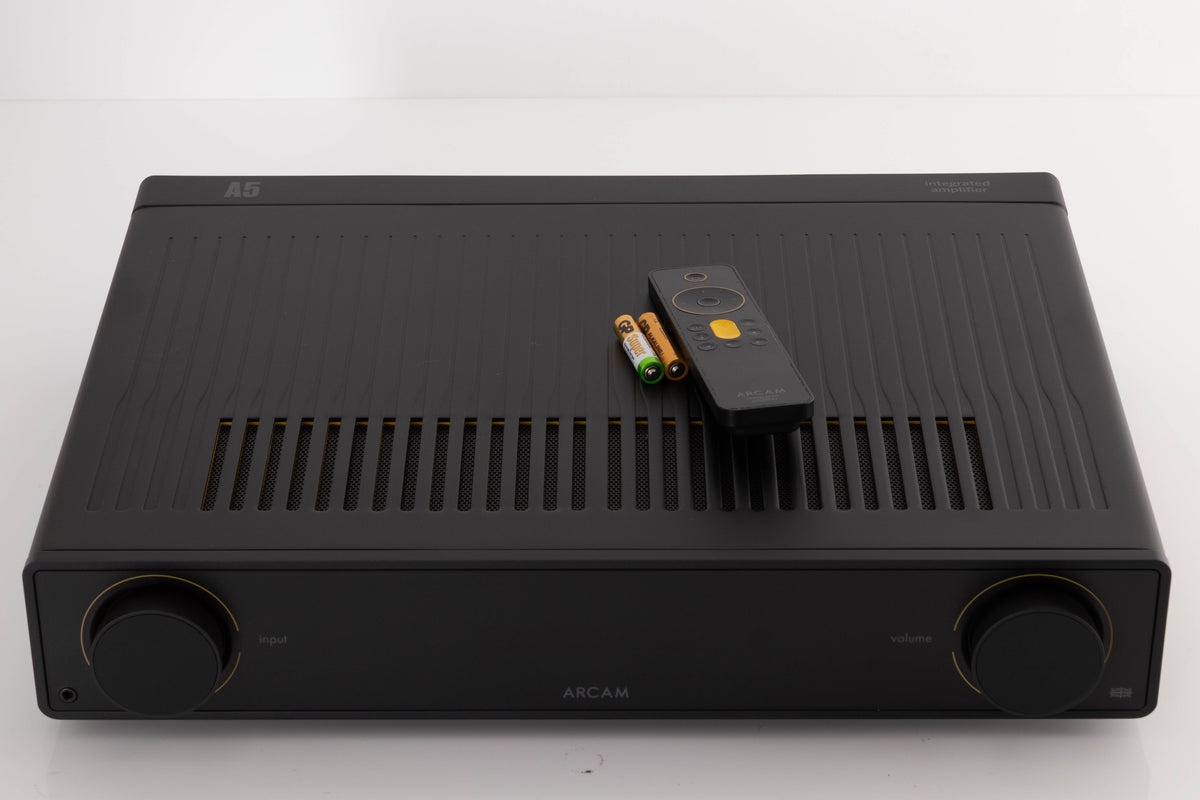

• Compact remote control
• Plastic free packaging

Continuous Power Output:
50 W into 8 Ω (20 Hz - 20 kHz, 0.5% THD)
75 W into 4 Ω (1 kHz)
Harmonic distortion: 0.003%, 8 Ω at 1 kHz @ 80% power

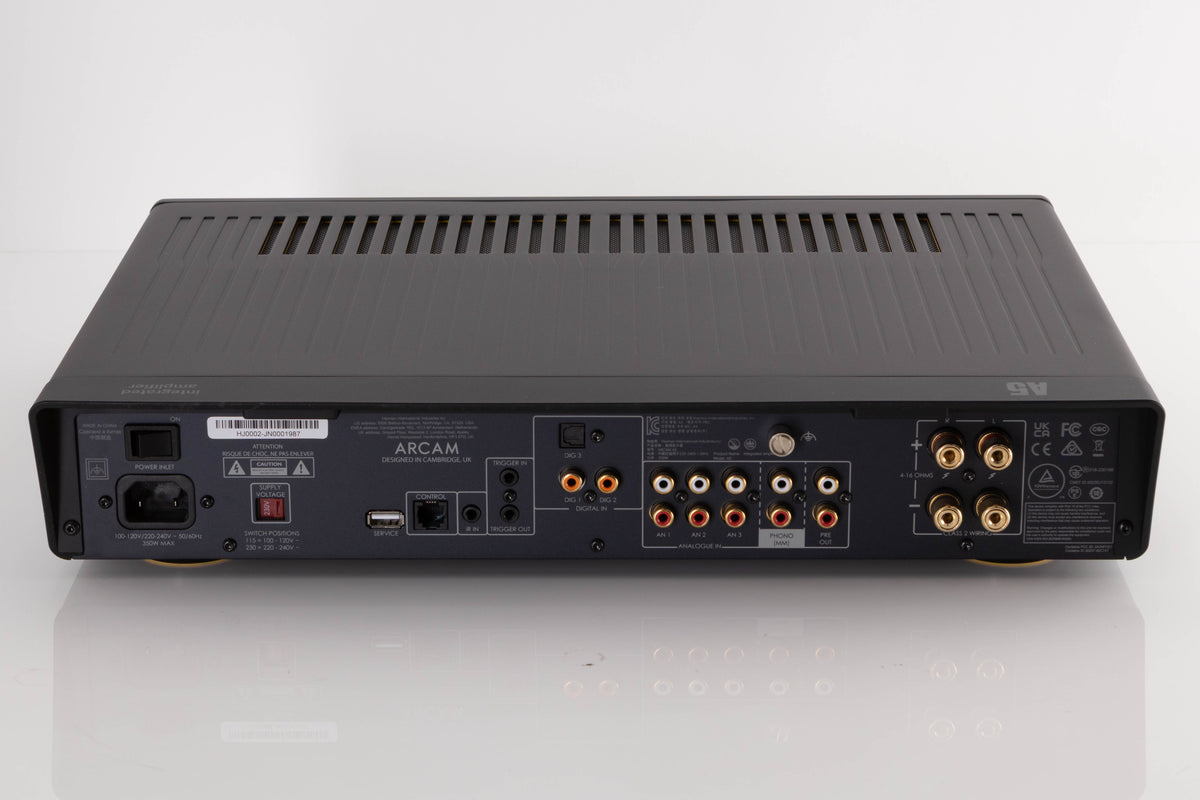

Analogue Inputs:
Number of inputs: 3 (RCA pairs)
Signal/Noise Ratio: 106 dB (A-wtd, ref. 50 W, 1 V input)
Frequency Response: 20 Hz - 20 kHz, ± 0.2 dB
Phono (MM) Input:
Input Impedance 47 kΩ + 100 pF
Frequency Response (ref. RIAA curve) 20 Hz - 20 kHz ± 1 dB
Digital Inputs:
Bluetooth Version Bluetooth 5.2 with AptX™ Adaptive technology and AAC
Supported Sample Rates:
Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1 (kHz)
Optical (TOSlink) 192, 176.4, 96, 88.2, 48, 44.1 (kHz)
Bit Depths: 24, 16 (bit)
Frequency Response: 20 Hz - 20 kHz ± 0.2 dB
Signal/Noise Ratio: 109 dB (A-wtd, ref. 50 W, 0 dBfs)
Headphone Output:
Maximum Output Level: 2.5 V/5 Vrms into 32 Ω/300 Ω
Load Range 16 Ω - 2 kΩ
General:
Mains Voltage 100 V or 110 - 120 V or 220 - 240 V, 50 - 60 Hz
Power Consumption: 350 W (maximum): < 0.5 W (standby)
Dimensions: 431 (W) x 344 (D) x 83 (H) mm
Weight: 8.14 kg
