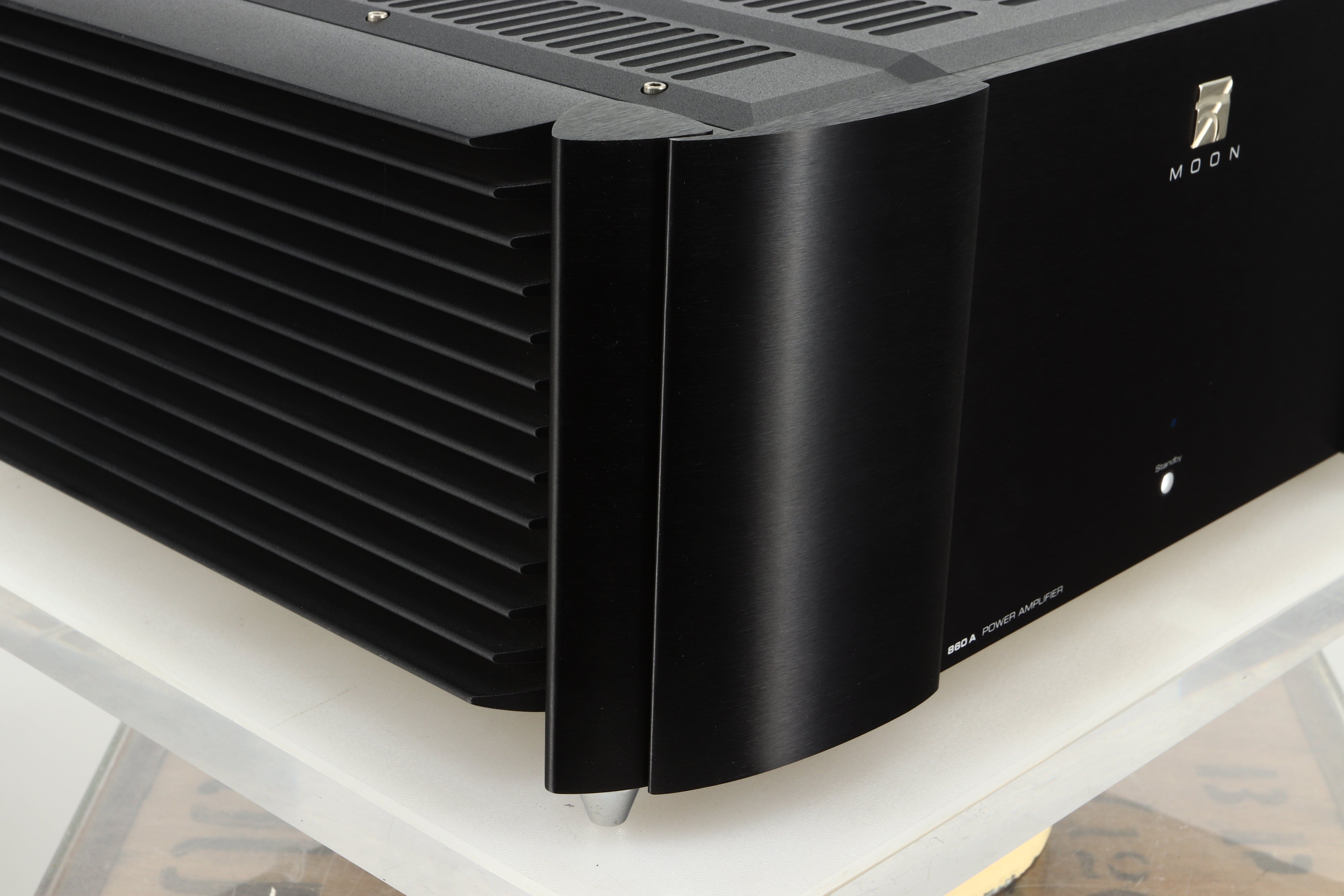

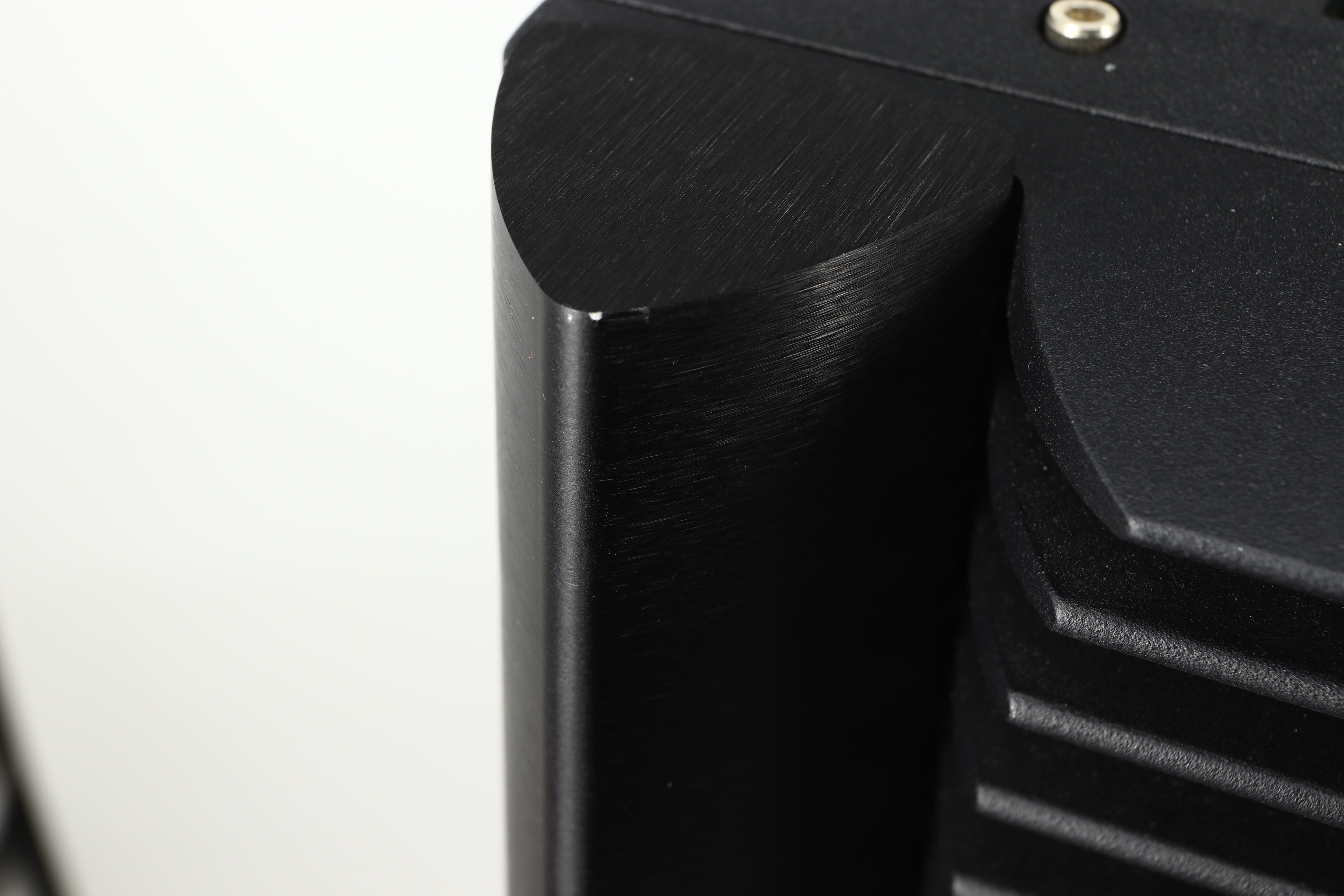

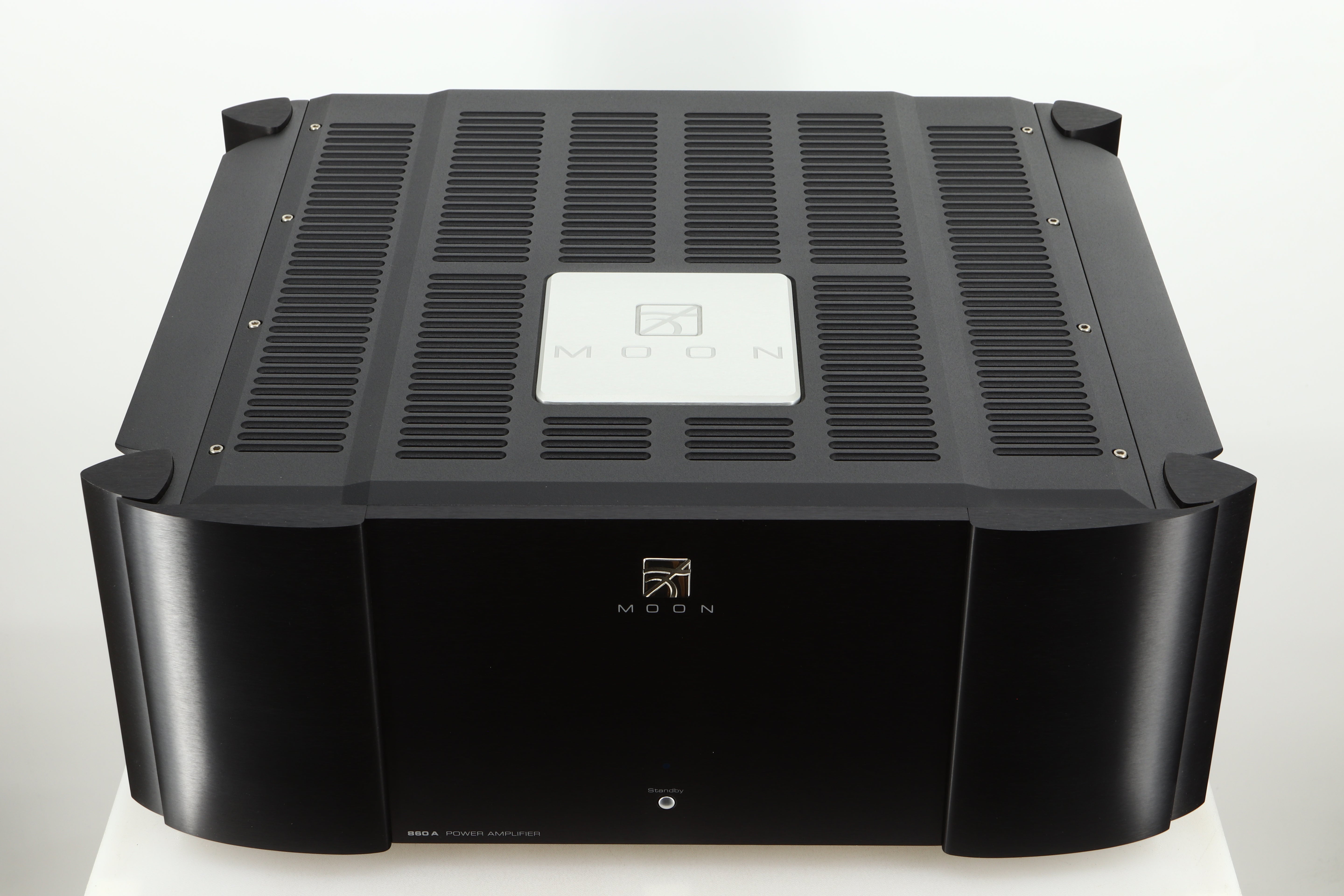

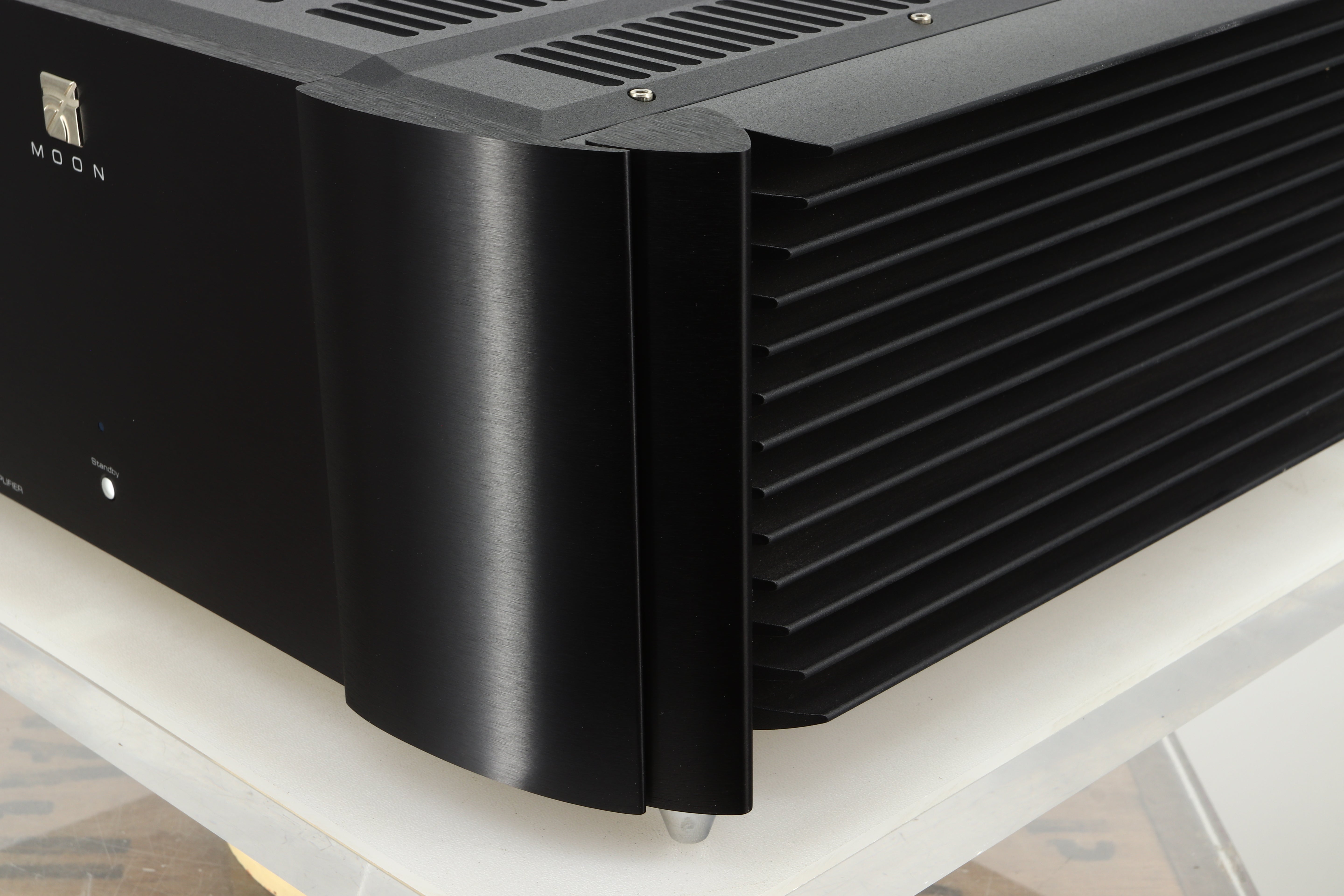

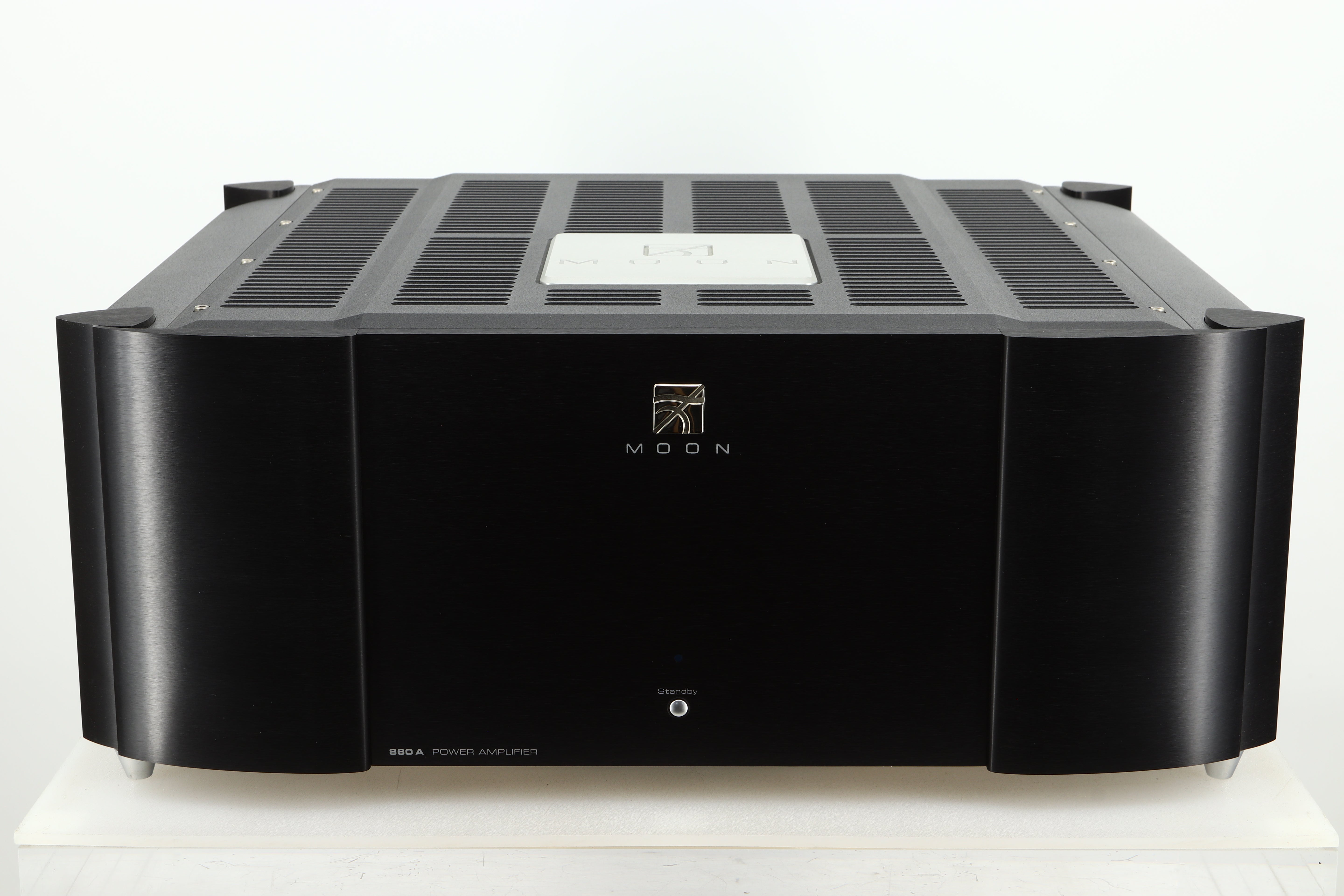

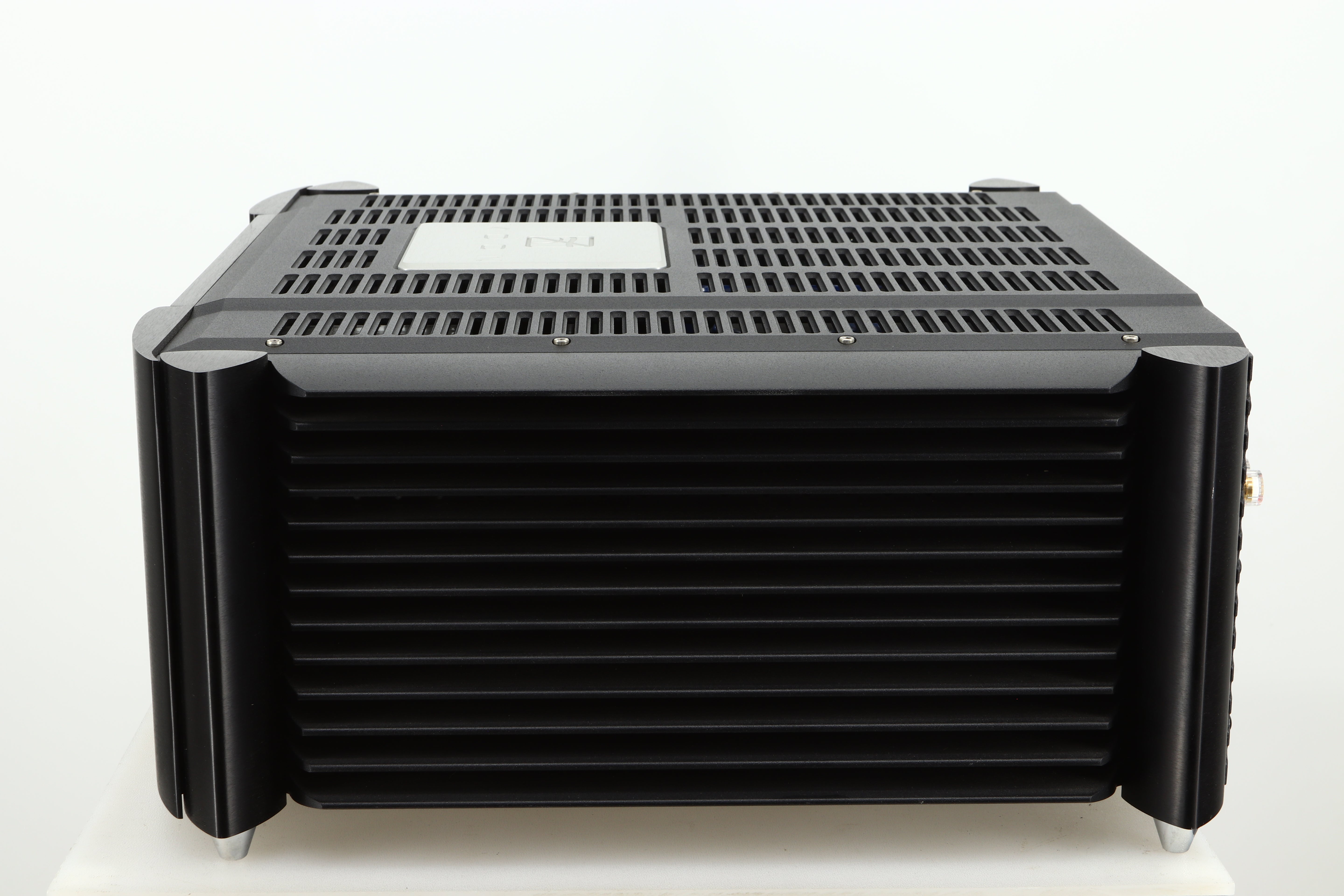

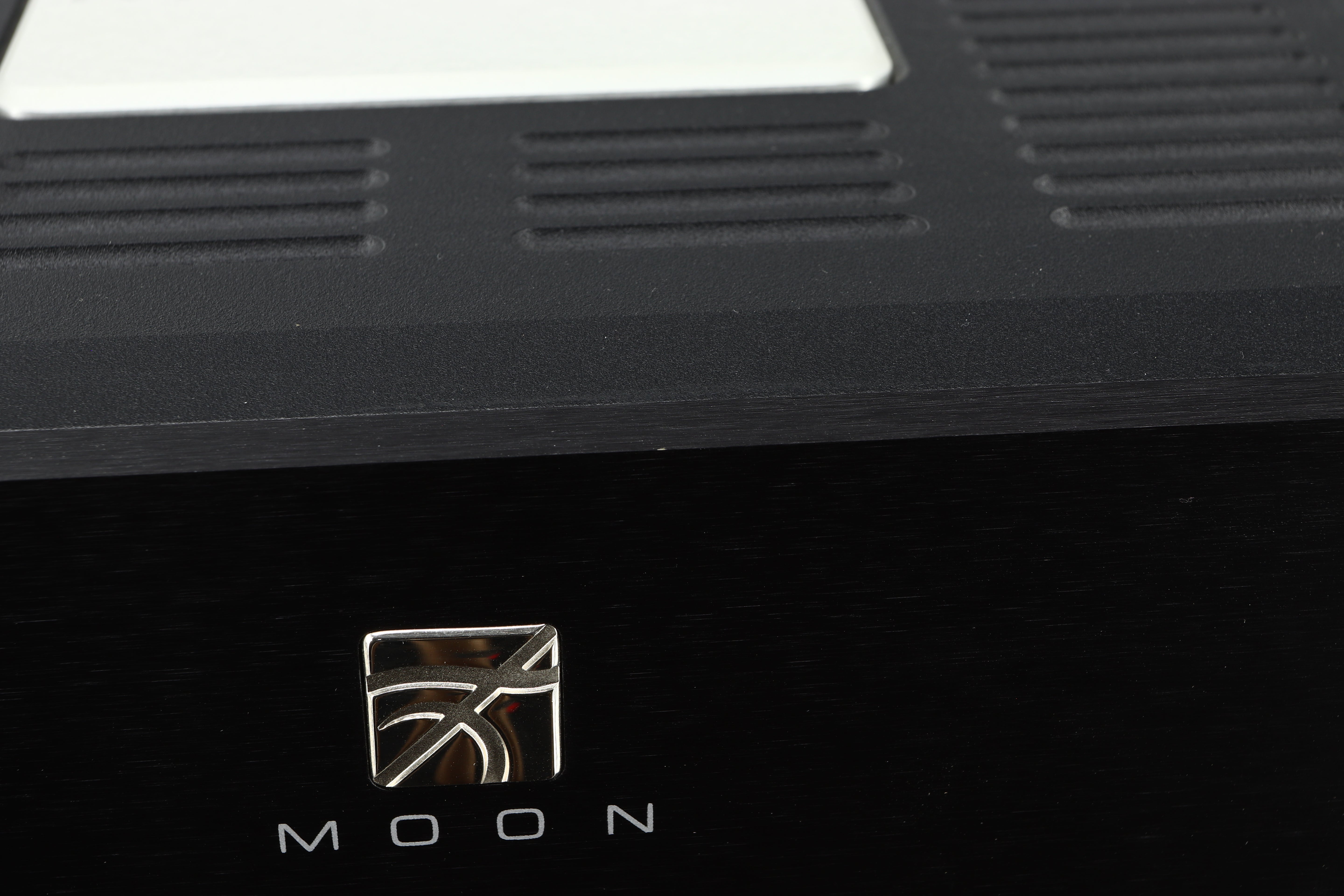

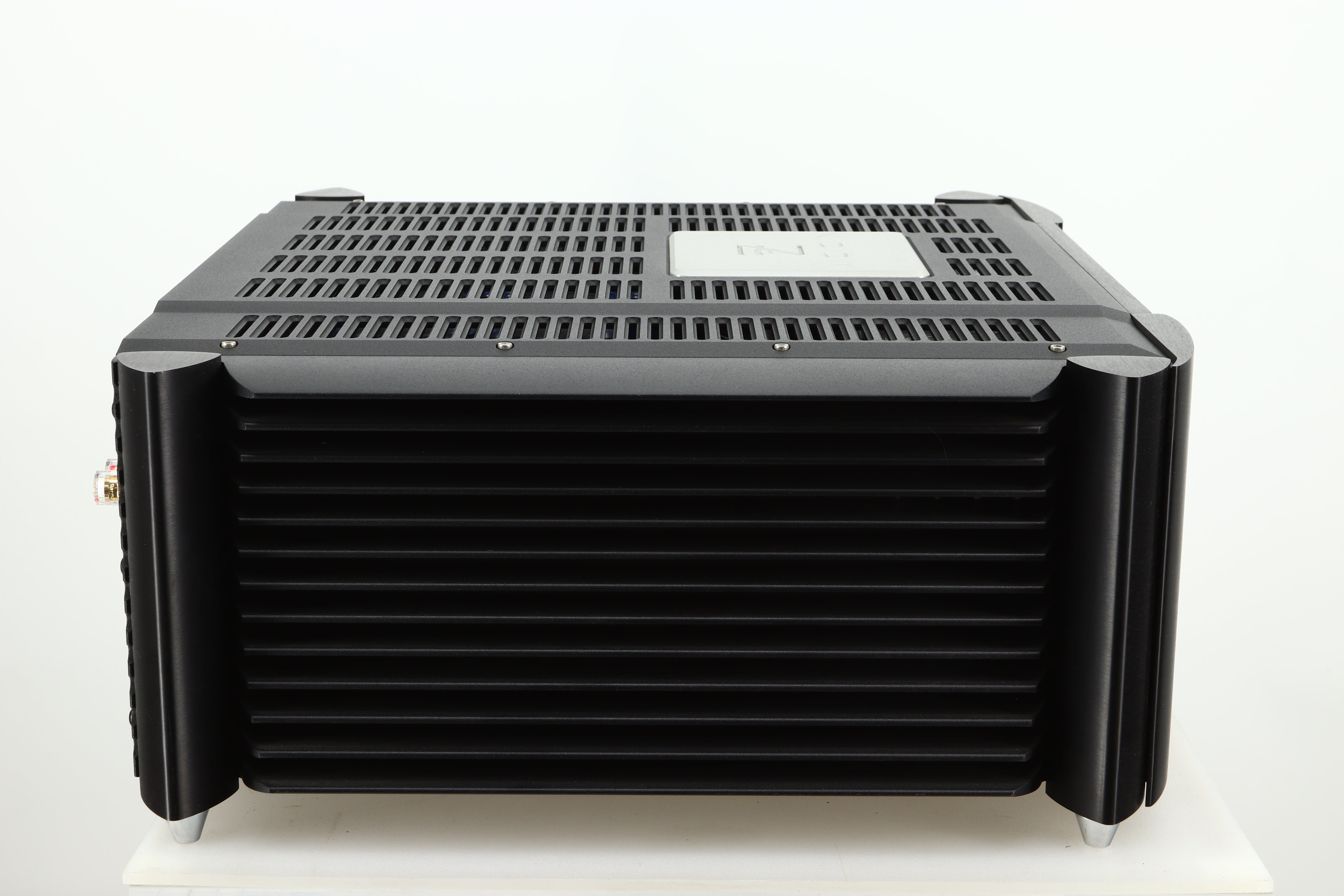

SimAudio Moon 860A V2 Power Amplifier - Black

The MOON 860A v2 Power Amplifier is a balanced differential dual-mono Power Amplifier that provides both exceptional transparency and a remarkable musical soundstage.
The 860A v2 is a true evolution on earlier designs, and incorporates trickle-down technologies from the massive 888 Power Amplifier. MOON custom transistors, in conjunction with our award winning zero- global feedback amplifier topology are key factors behind the fabulous sonic attributes of the 860A v2. Rated at 225W per channel in dual-mono mode, or 750W in monaural mode, the 860A v2 will mate seamlessly with virtually any loudspeaker, allowing it to reach its full sonic potential. Paired with a MOON preamplifier, the results are transparent, detailed and accurate with huge dynamics and an effortless bottom end.

Features

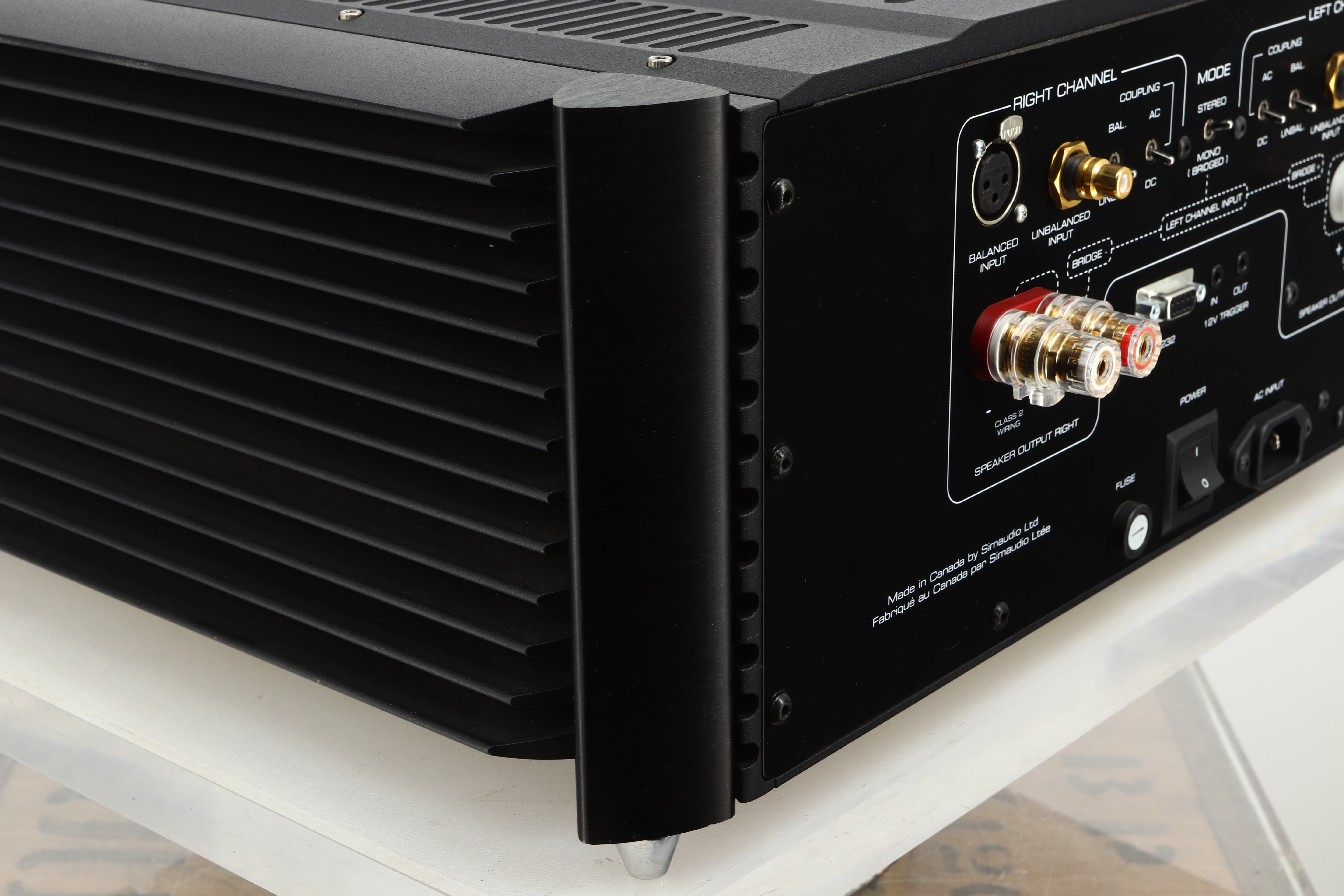

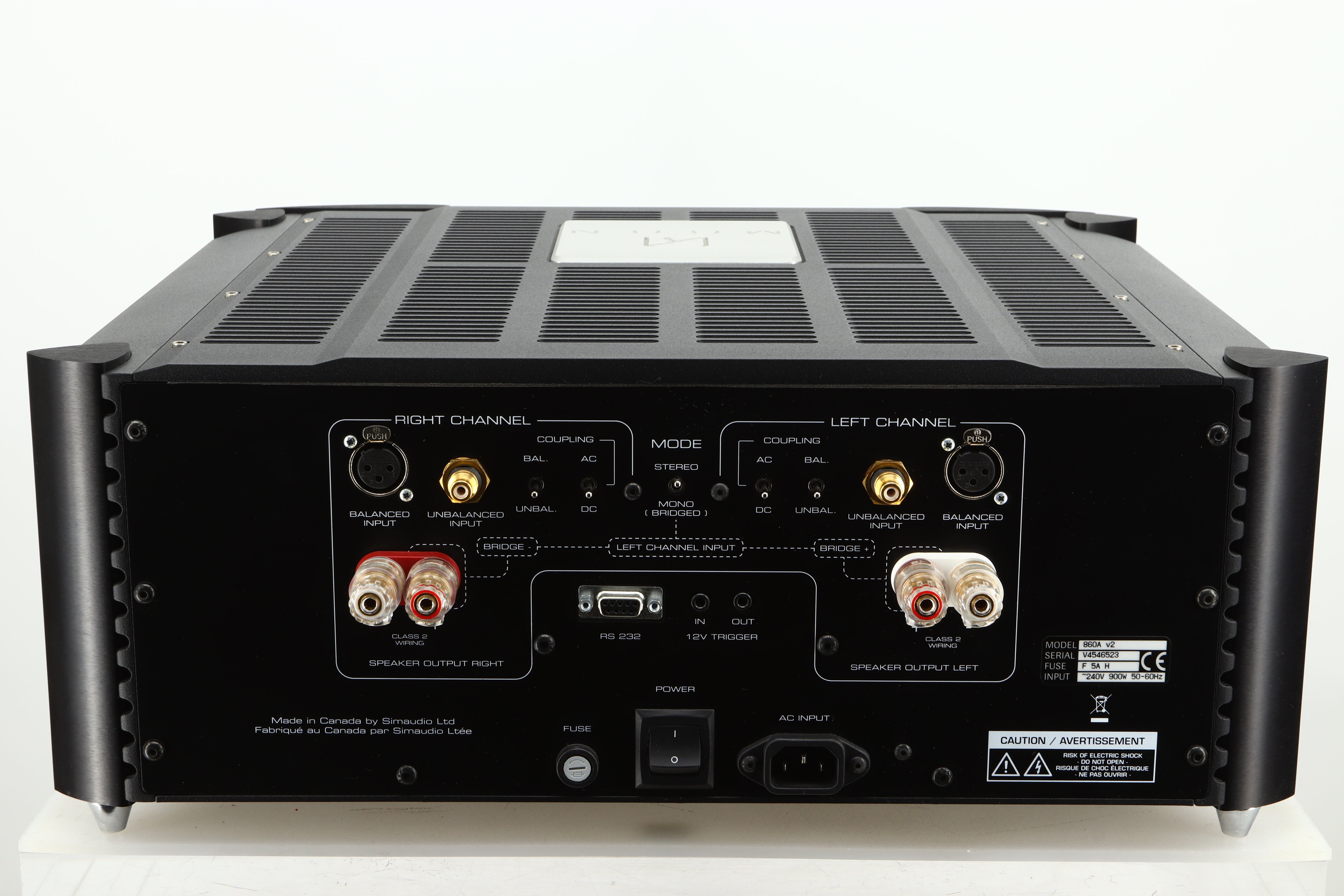

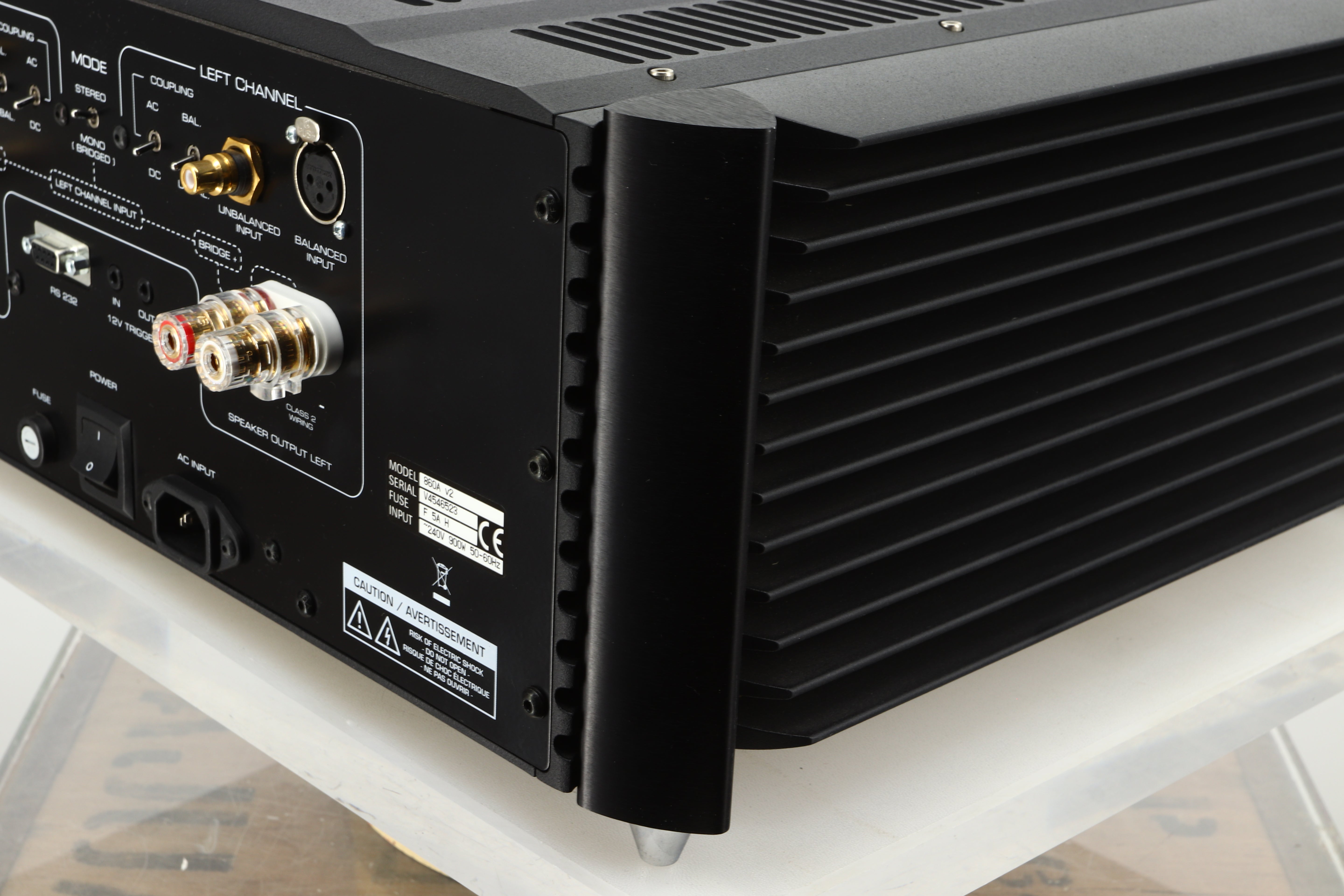

Monaural operation via rear-panel switch
DC-coupled design with DC-servo control for greatest transparency
Switchable AC-coupling for best match with a variety of preamplifiers
Output stable into any load impedance
Class A power output up to 5 watts
Very high damping factor for superior musical dynamics, speaker control and refined harmonic accuracy and timbre

Output Power: 225 W per channel at 8 Ω; 450 W per channel at 4 Ω; 750 W - Monaural mode at 8 Ω
Input Sensitivity: 1.2 V
Input Impedance: 47,500 Ω
Gain: 31 dB
Signal-to-Noise Ratio: 110 dB @ full power
Frequency Response: 10 Hz - 100 kHz + 0/- 3.0 dB (full range)
Crosstalk: - 110 dB @ 1 kHz
THD: 0.005% (20 Hz - 20 kHz @ 1 W)
THD: 0.03% (20 Hz - 20 kHz @ 200 W)
Intermodulation distortion: 0.006%
Power Supply Capacitance: 240 000 μF
Shipping Weight: 40.0 kg
Dimensions: 476 (W) x 445 (D) x 191 (H) mm
