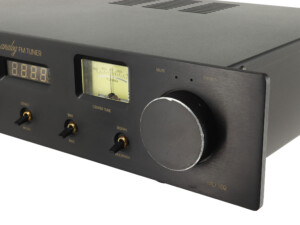

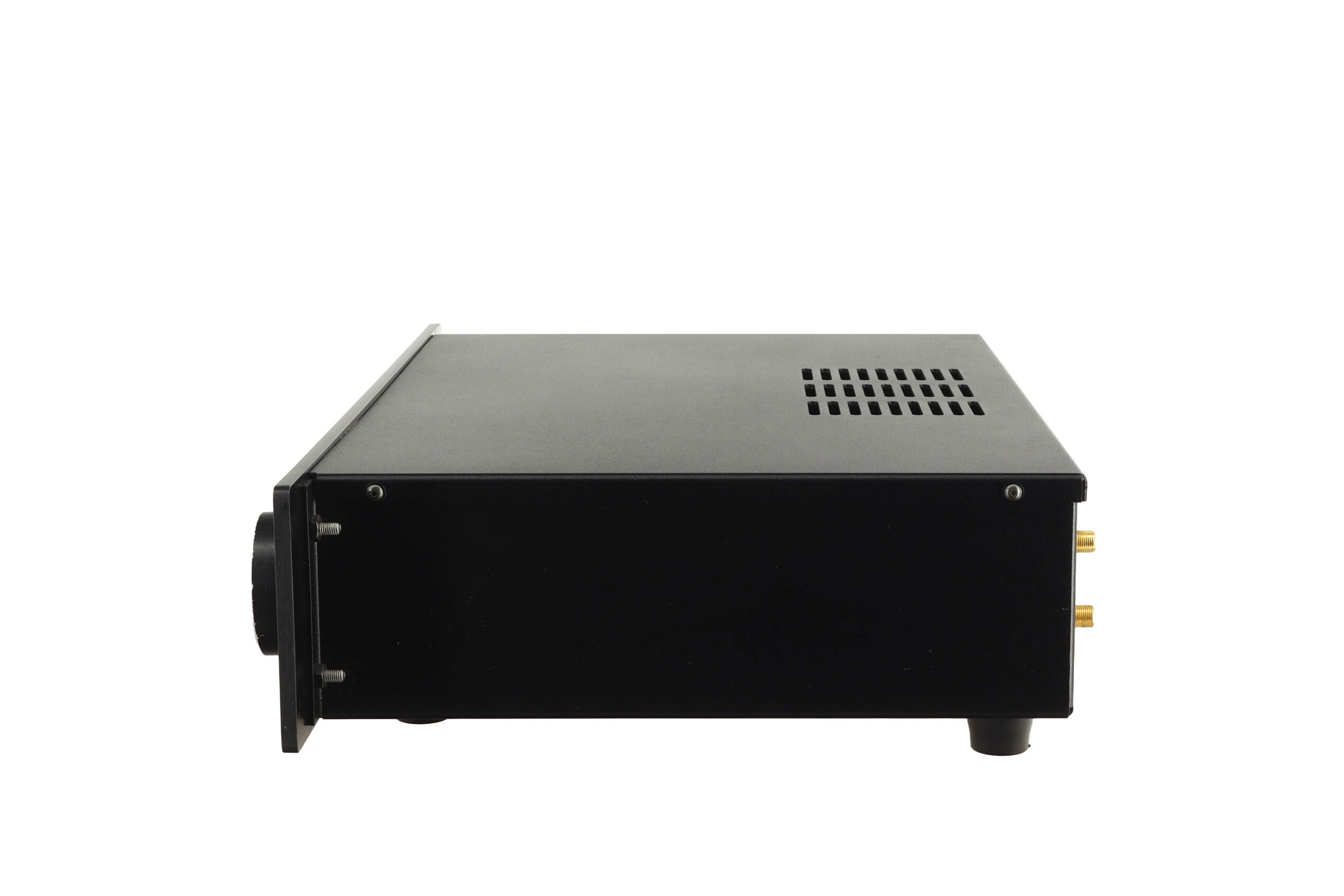

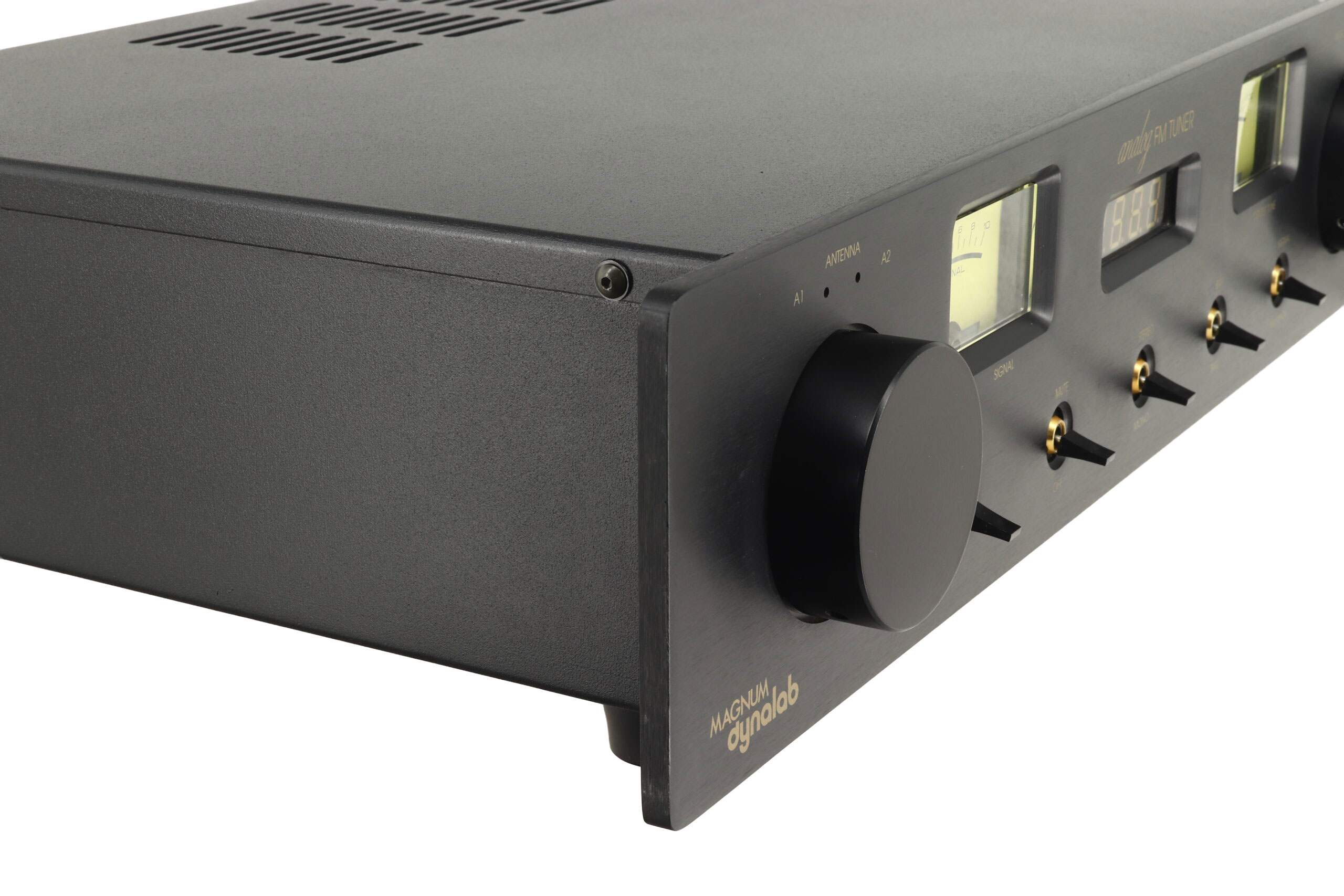

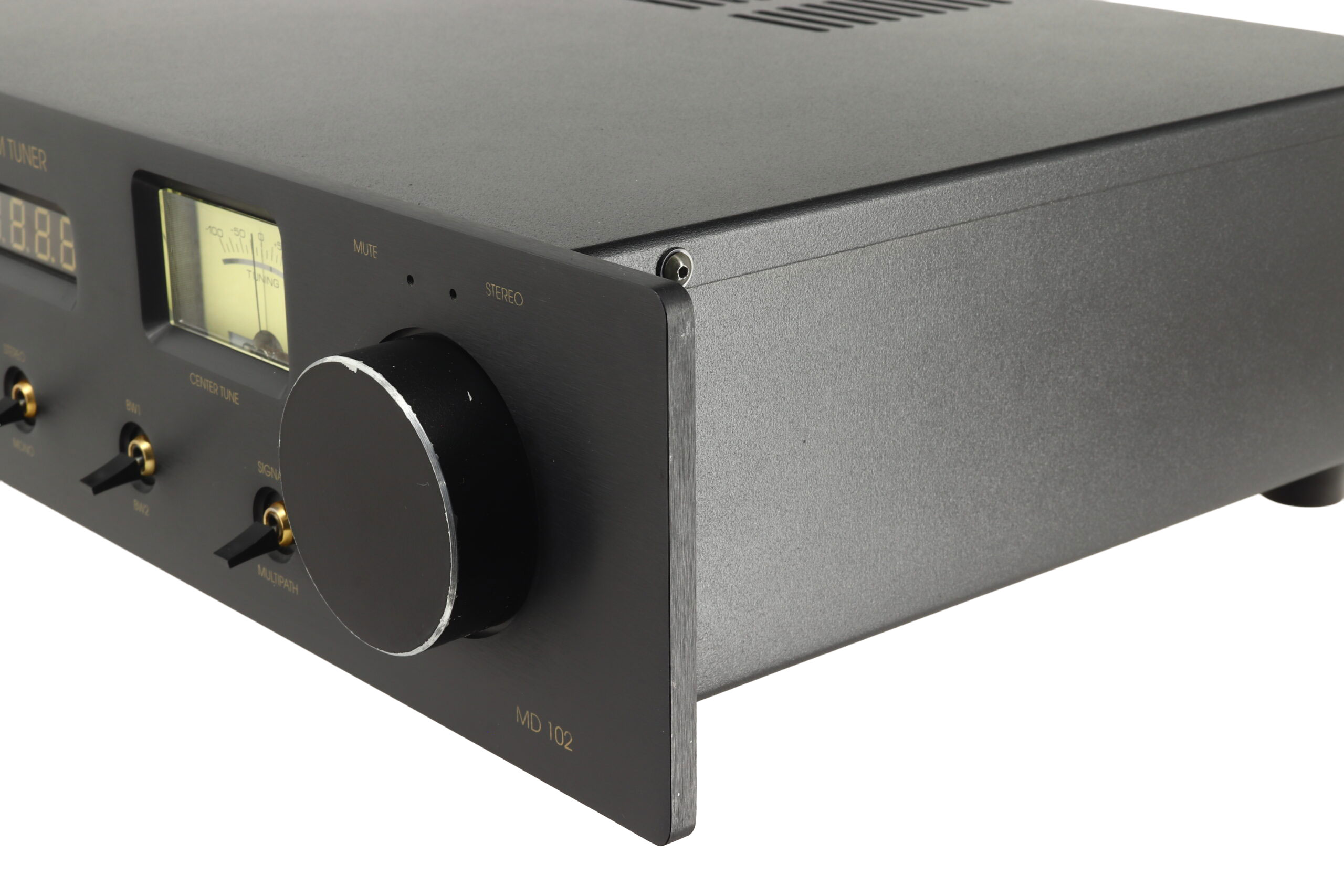

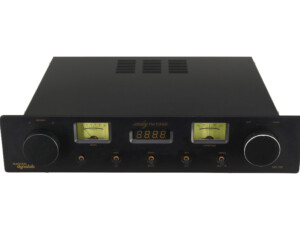

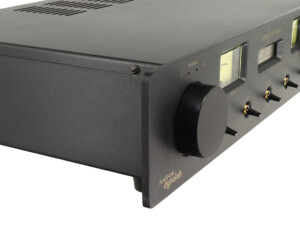

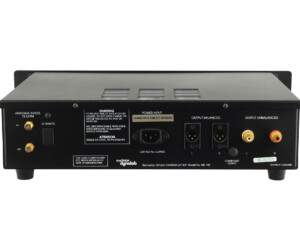

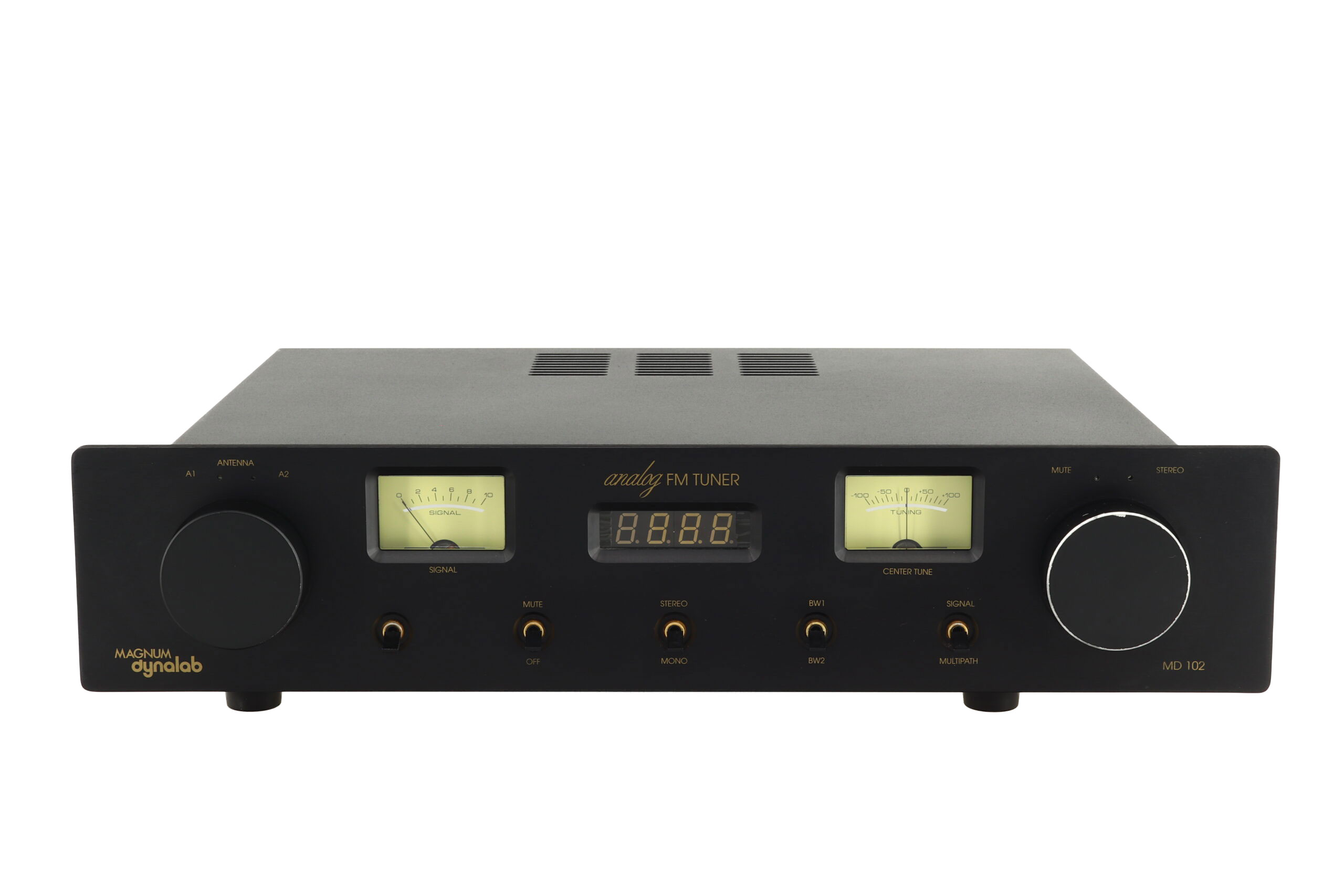

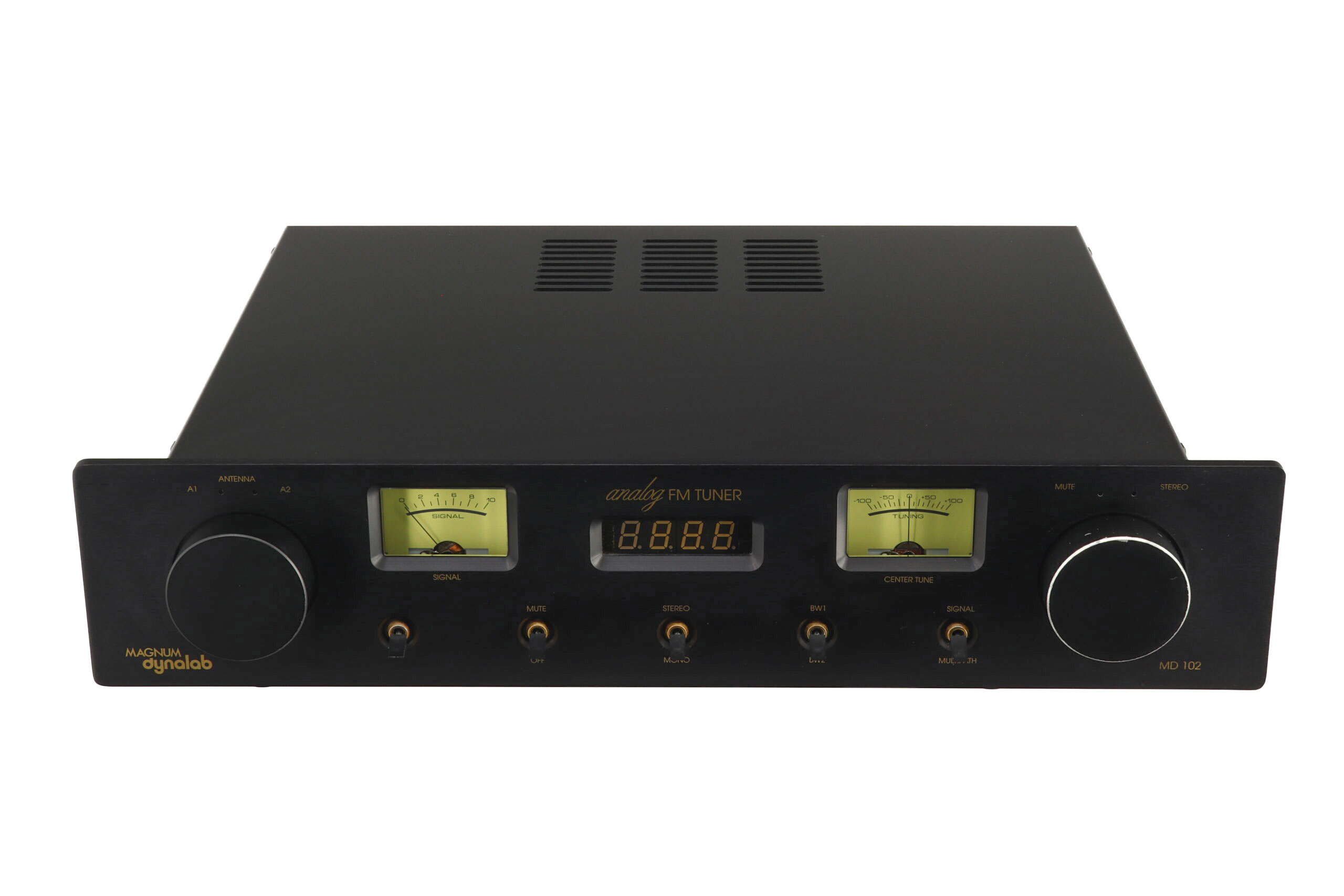

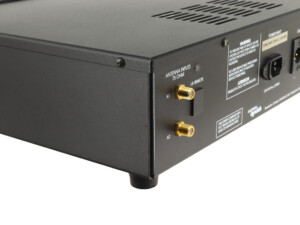

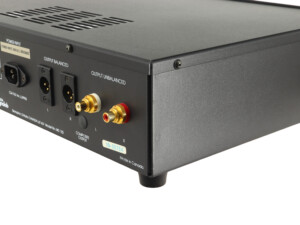

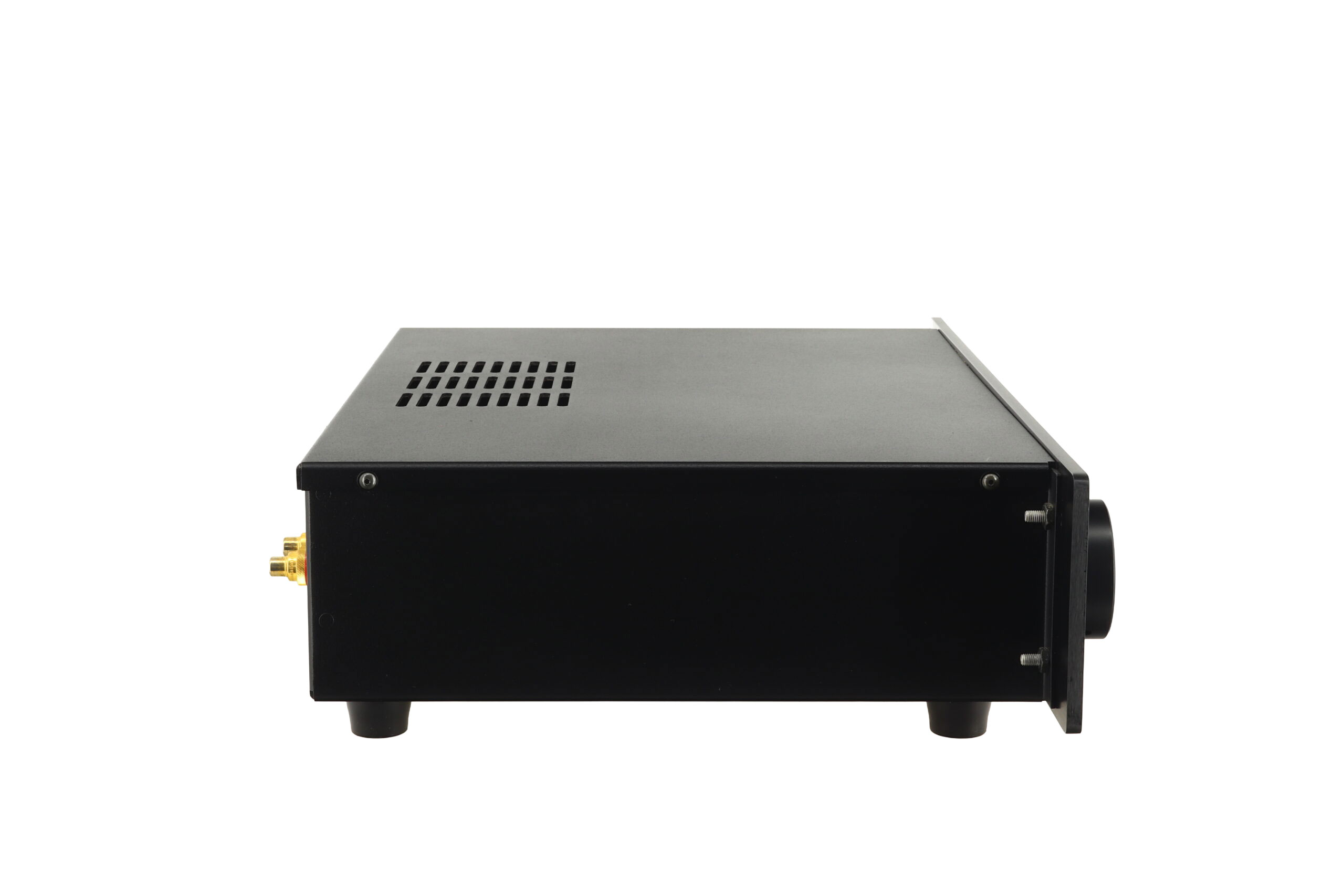

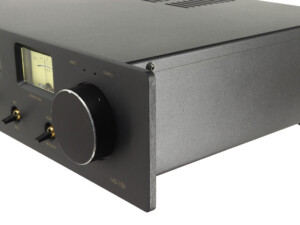

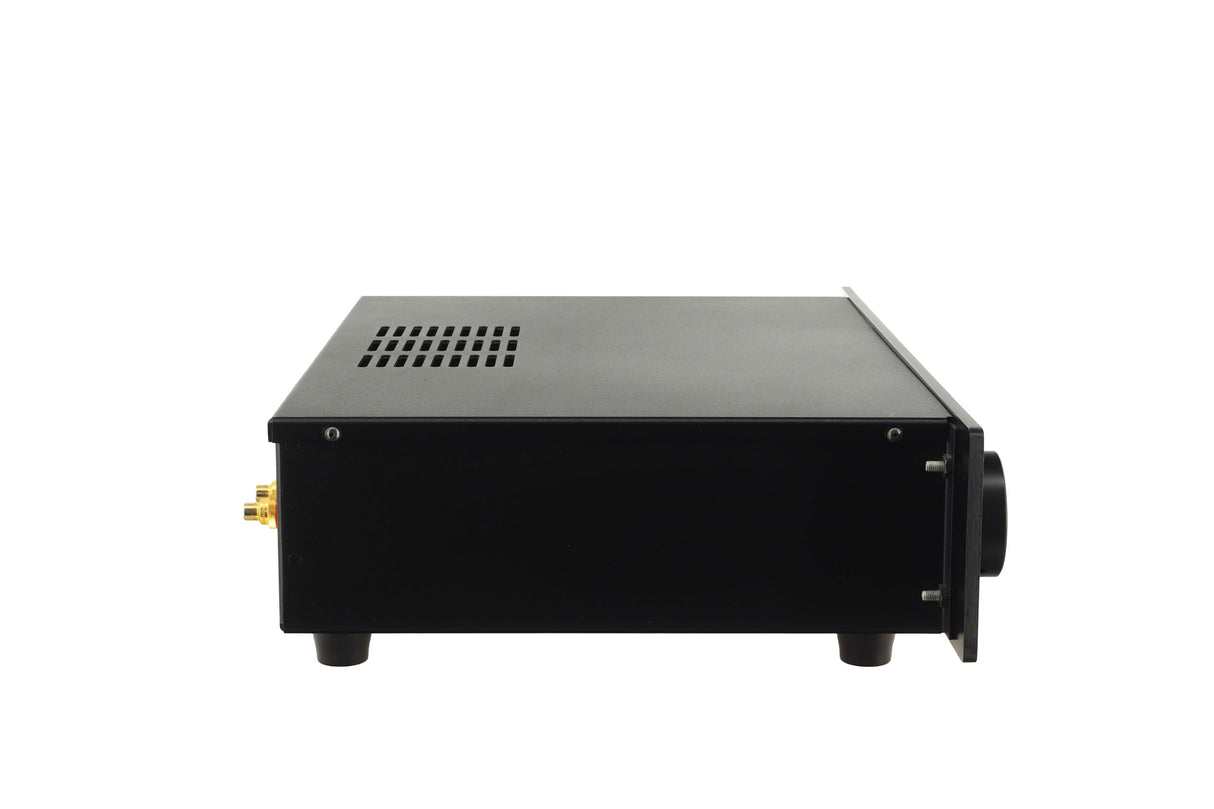

Magnum Dynalab MD102 Tuner – Black

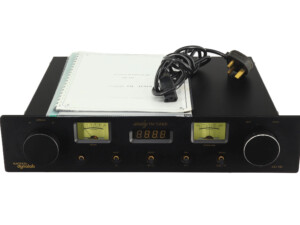

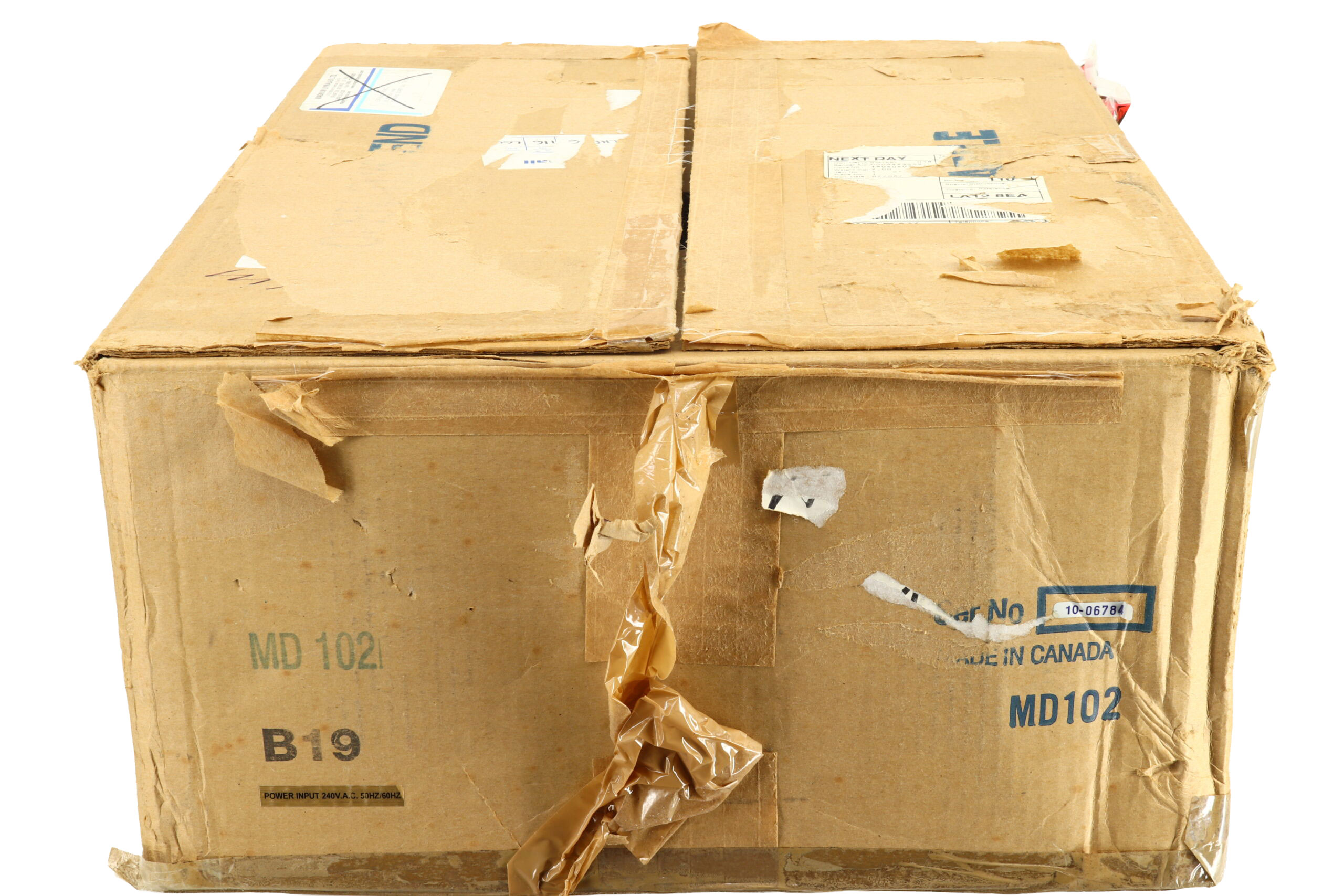

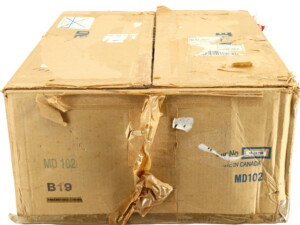

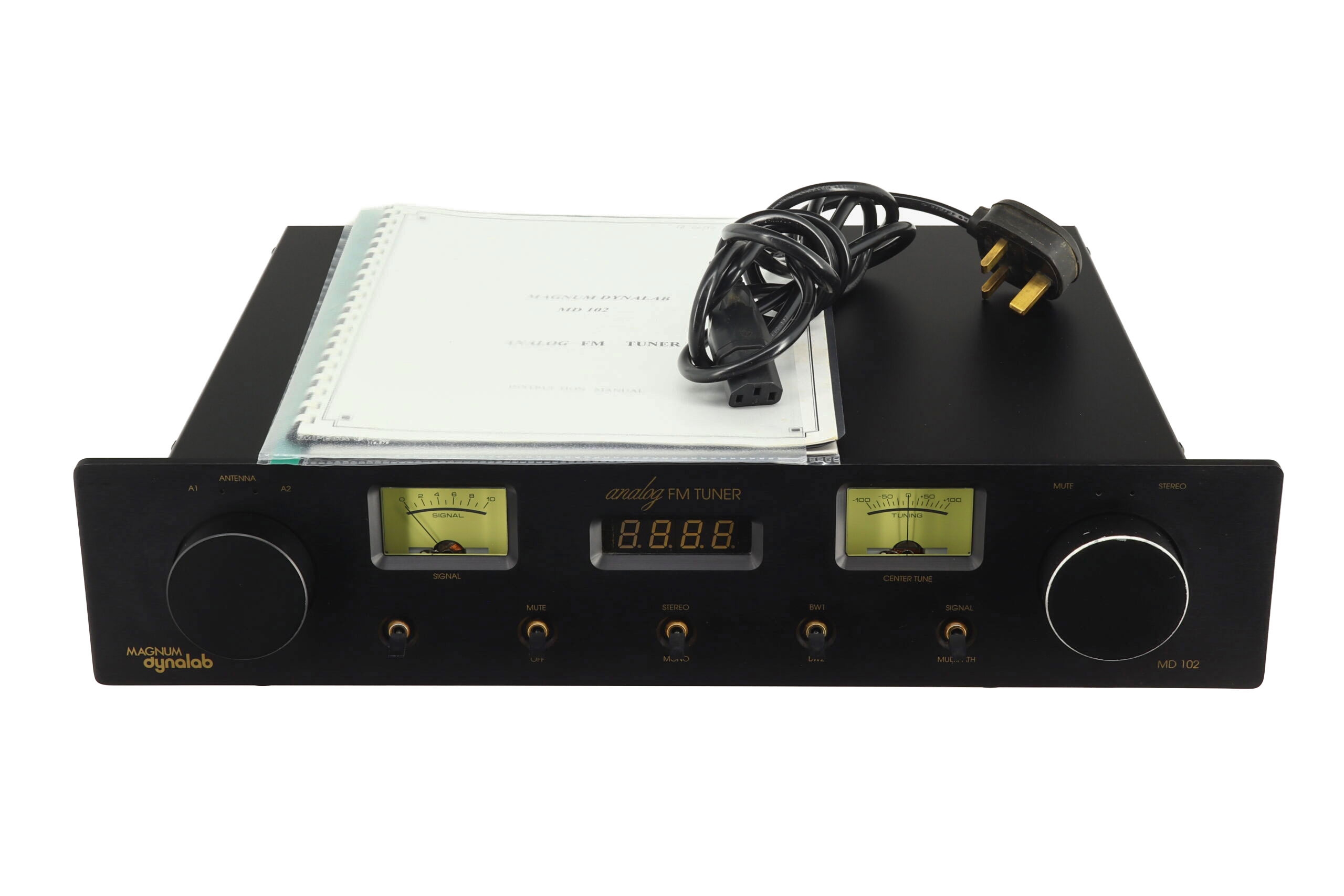

Here we have a highly respected FM Tuner from US company Magnum Dynalab. It comes in good fully working condition with a few minor marks only and is supplied in original factory packaging along with manual, mains cable plus our standard three month warranty.
Magnum Dynalab Said….
Great care has been dedicated to the design, manufacturing and selection of components for the MD 102 FM Tuner. This complete process insures optimum listening enjoyment for many years.
The RF ‘front- end’ of all Magnum Dynalab tuners is an exclusive in-house designed and manufactured component. We are the only audio company in the world that manufacturers their own front-end, for the sole reason that no other manufacturer can build one that meets our exacting specifications. The importance of a front-end to the tuner is the equivalent of a high performance laser mechanism to a CD transport. The front-end must gather the FM signal and isolate it from the extraneous aberrations inherent in the environment as well as the FM stations adjacent to it. Our rigid criteria for our tuners and their front- ends insure that you get the most out of your FM reception with the highest degree of consistency available in the industry.
To insure that all specifications on our tuners are met at ALL frequencies, we manually align our tuners front-end at three frequencies (92 MHz, 101.5 MHz and 106 MHz). This process optimizes tuning performance across the entire FM band, so that you attain the same levels of quality regardless of where you are tuned.
These procedures also ensure that the balance between Sensitivity, Selectivity and Musicality are maintained. Your tuner is now optimized to reject strong adjacent channel noise, provide more consistent levels of tuning performance across the FM band and to have a superior ability to isolate the station you wish to listen to from the extraneous interference of the surrounding FM signals.
Specifications:
Usable Sensitivity: Mono – 0.7 μV 9.0 dBf
50 dB Quieting: Mono – 2.0 μV 9.9 dBf
50 dB Quieting: Stereo – 2.3 μV 25.0 dBf
Capture Ratio: 1.5 dB
Image Rejection: 110.0 dB
Signal To Noise Ratio: 80.0 dB
Alternate Channel: Wide – 40.0 dB; Narrow – 70.0 dB
Adjacent Channel: Wide – 3.0 dB; Narrow – 35.0 dB
THD: Mono – 0.10 %; Stereo – 0.18 %
Stereo Separation: 50.0 dB
AM Suppression: 70.0 dB
SCA Rejection: 80.0 dB
IF Rejection: 80.0 dB
19 kHz and 38 kHz Component Rejection: 75.0 dB
Audio Frequency Response: 15 Hz – 17 kHz, ± 1 dB
Balanced Audio Output: 2.2 V, 600 ohms
Line Audio Output: 1.0 V (RCA)
Dimensions: 17.75” (W) x 13” (D) x 4.5” (H)
Weight: 7.96 kg
