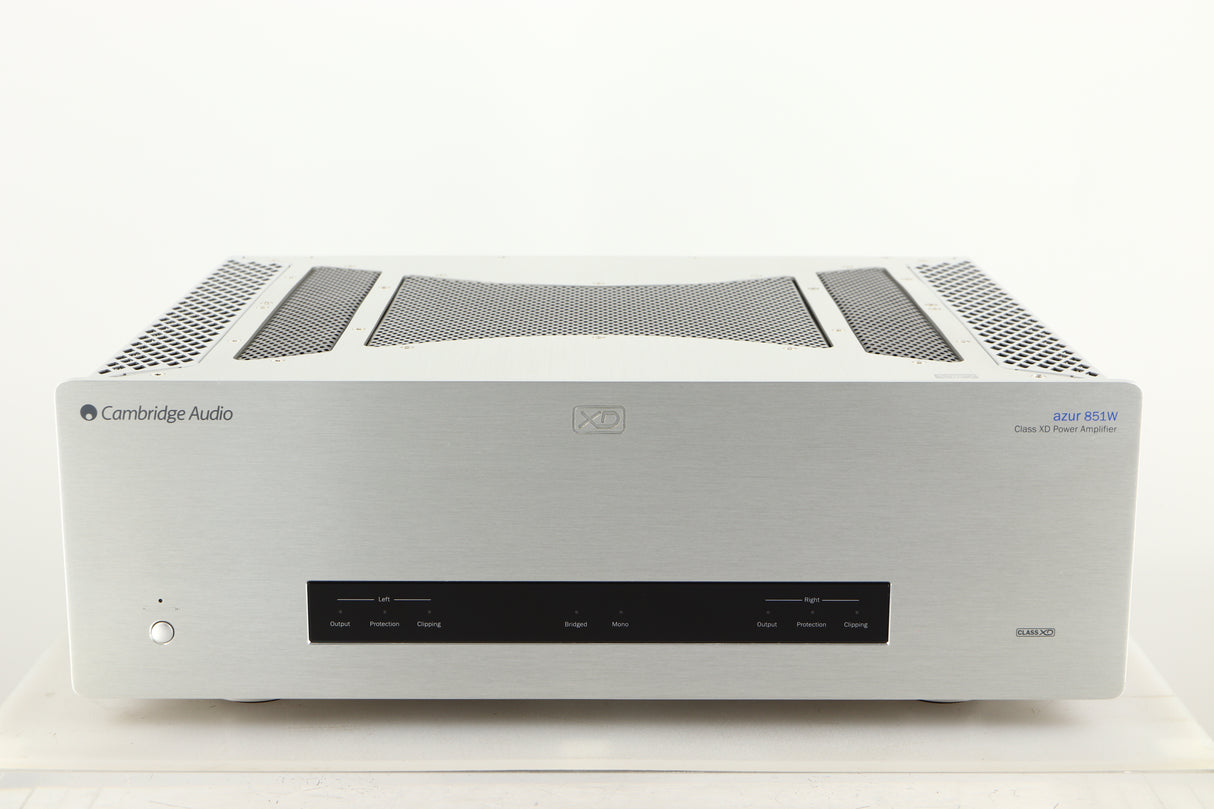

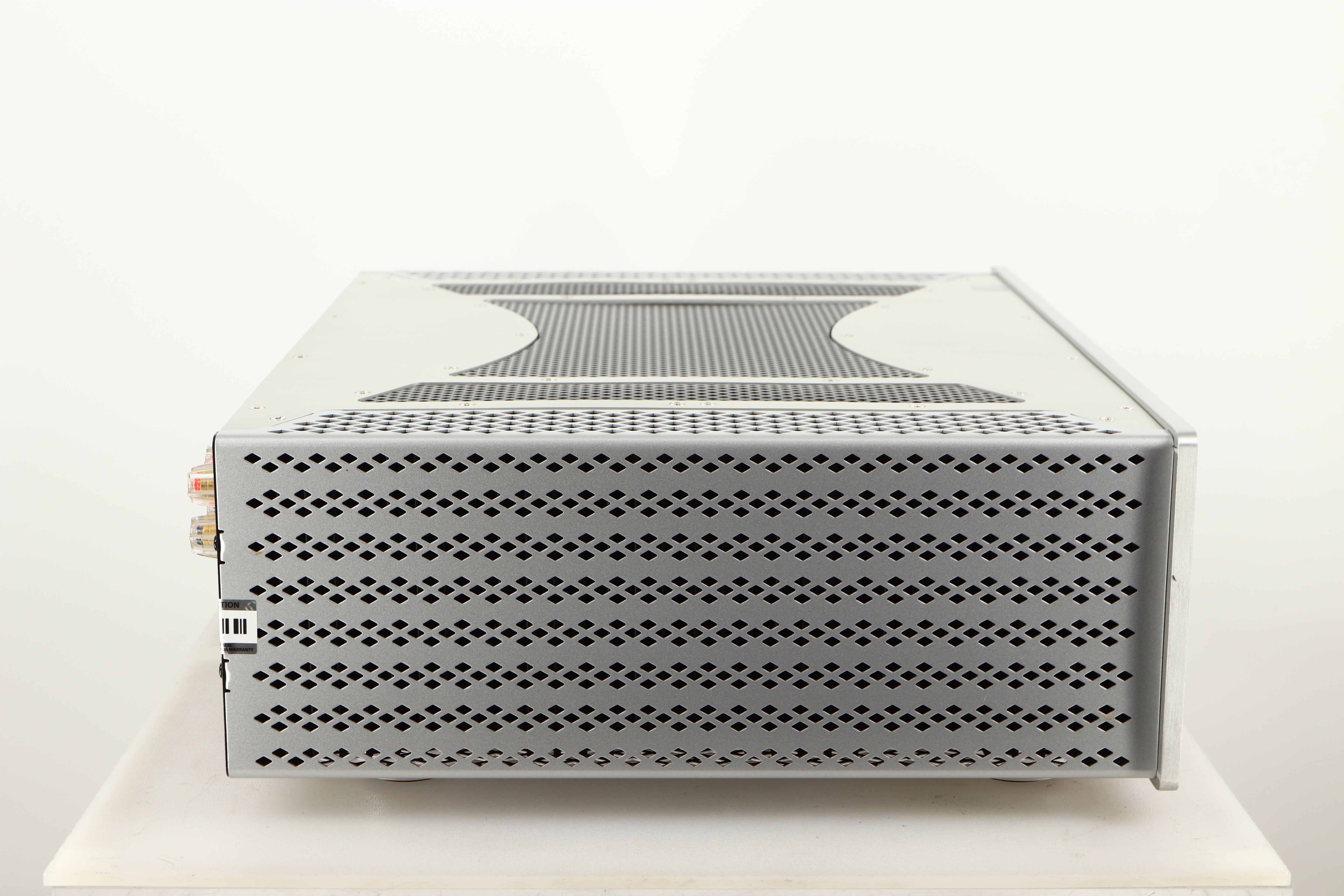

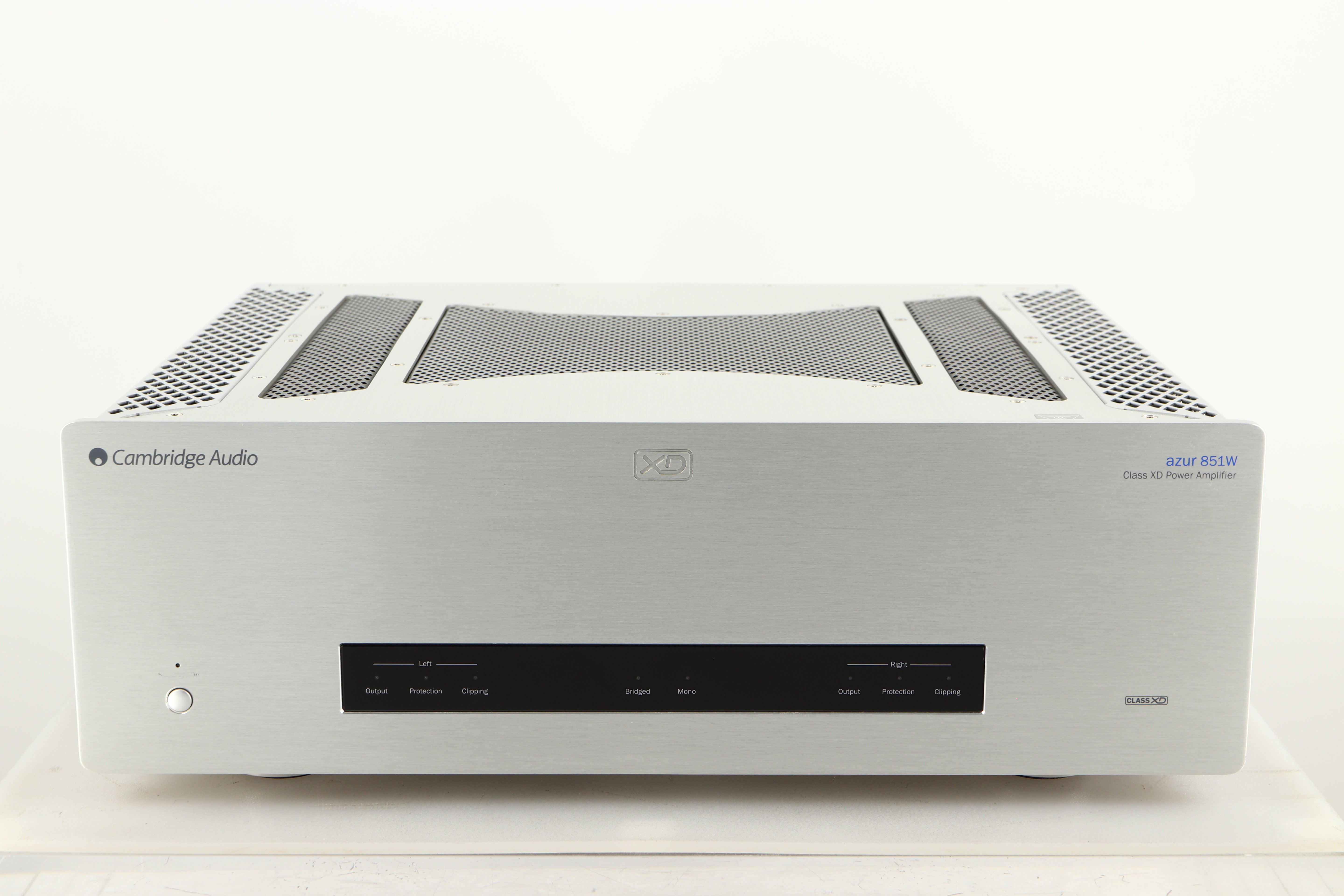

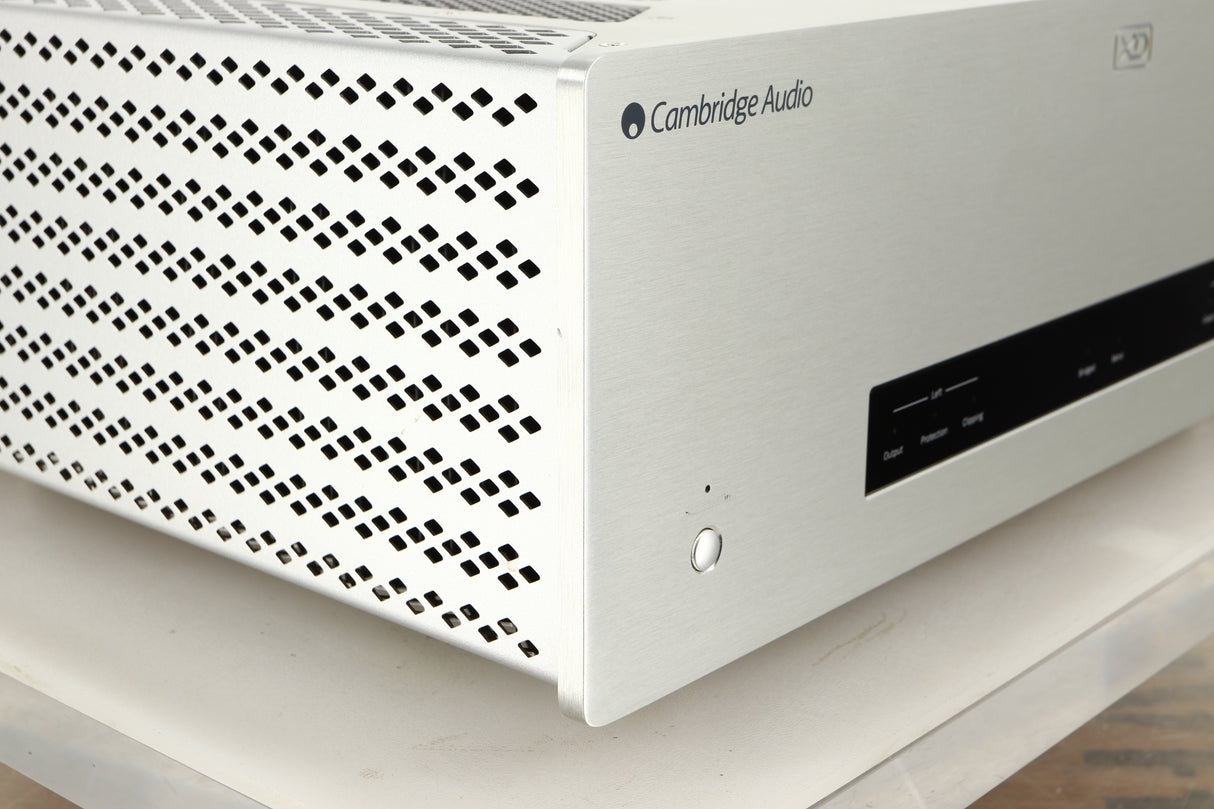

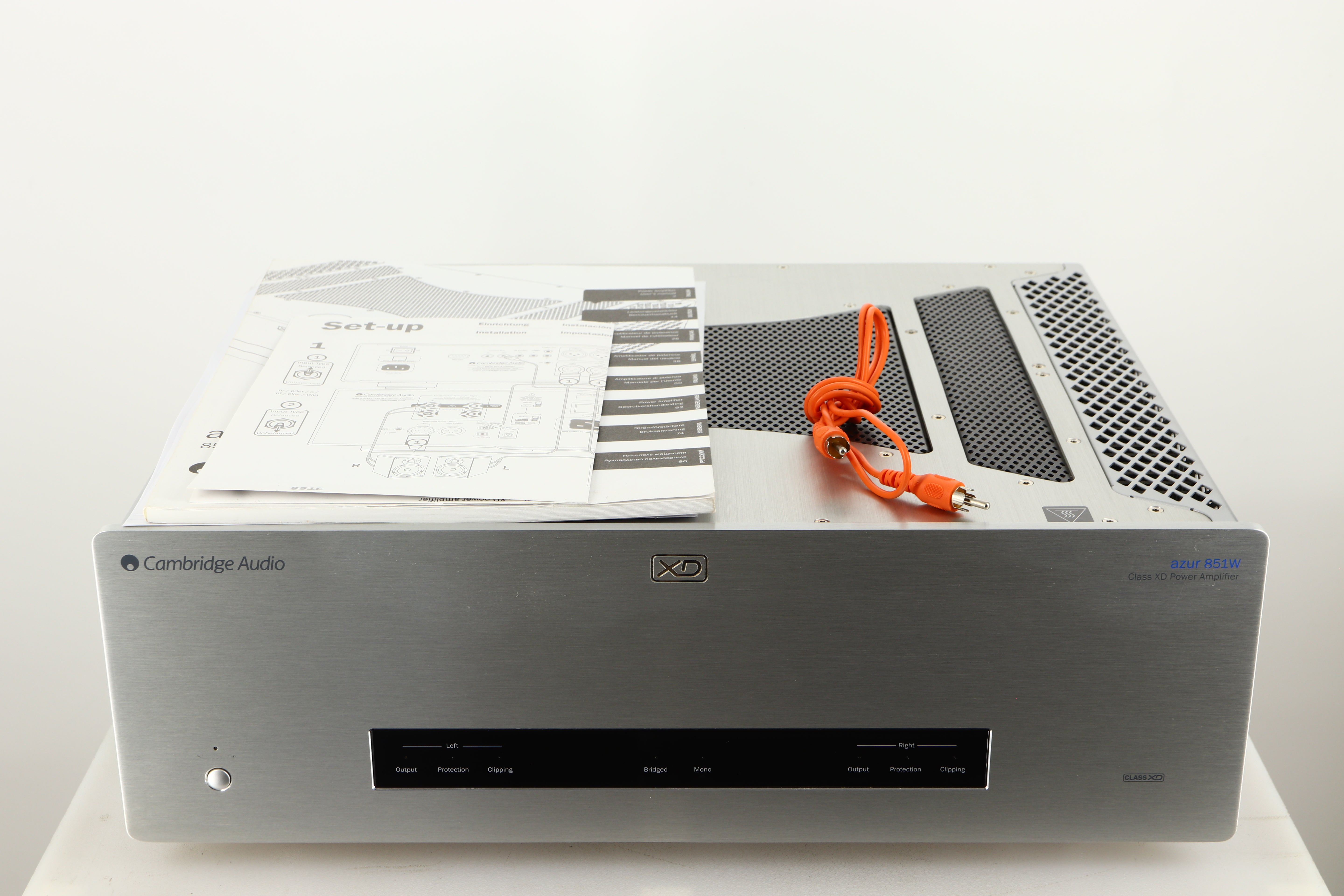

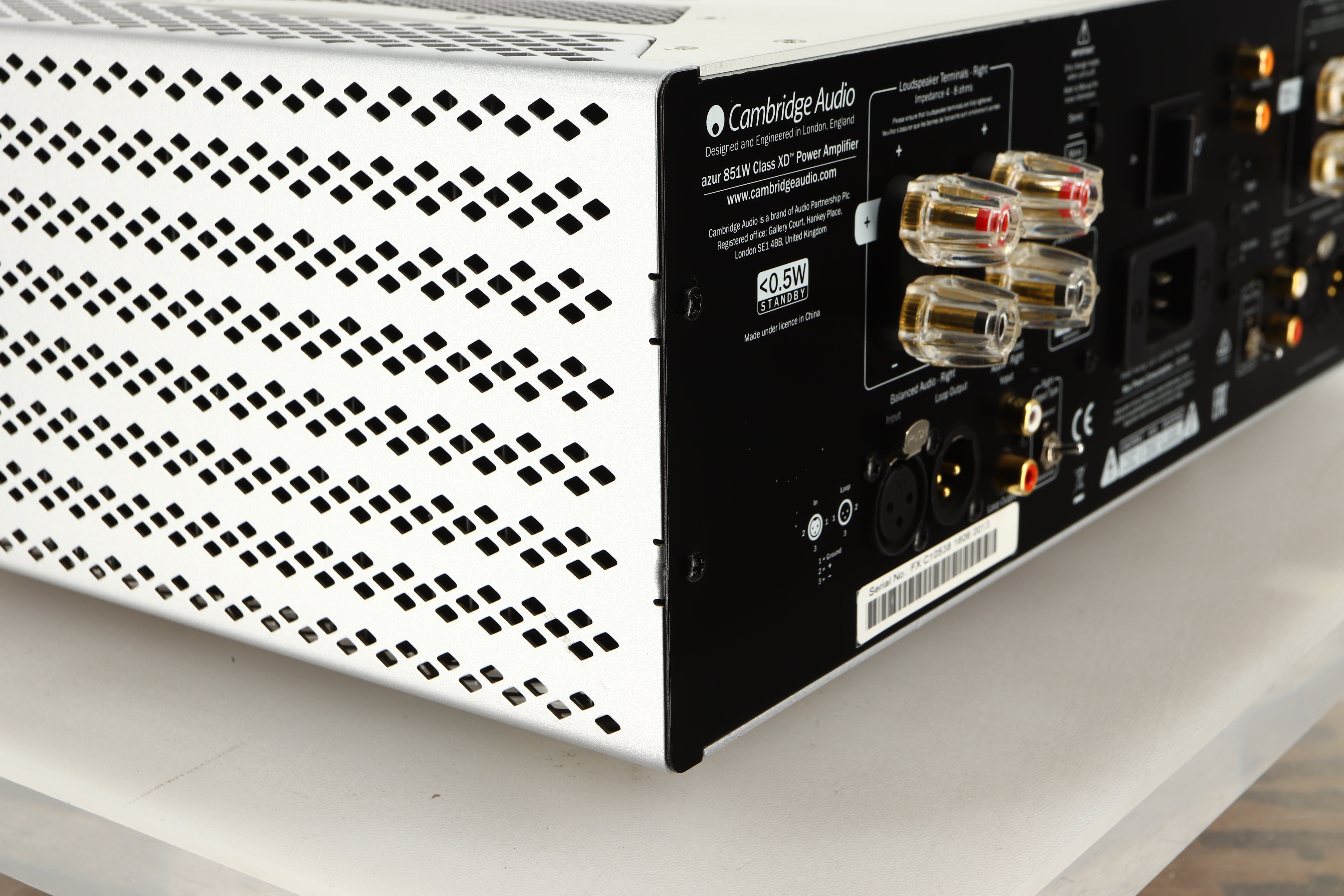

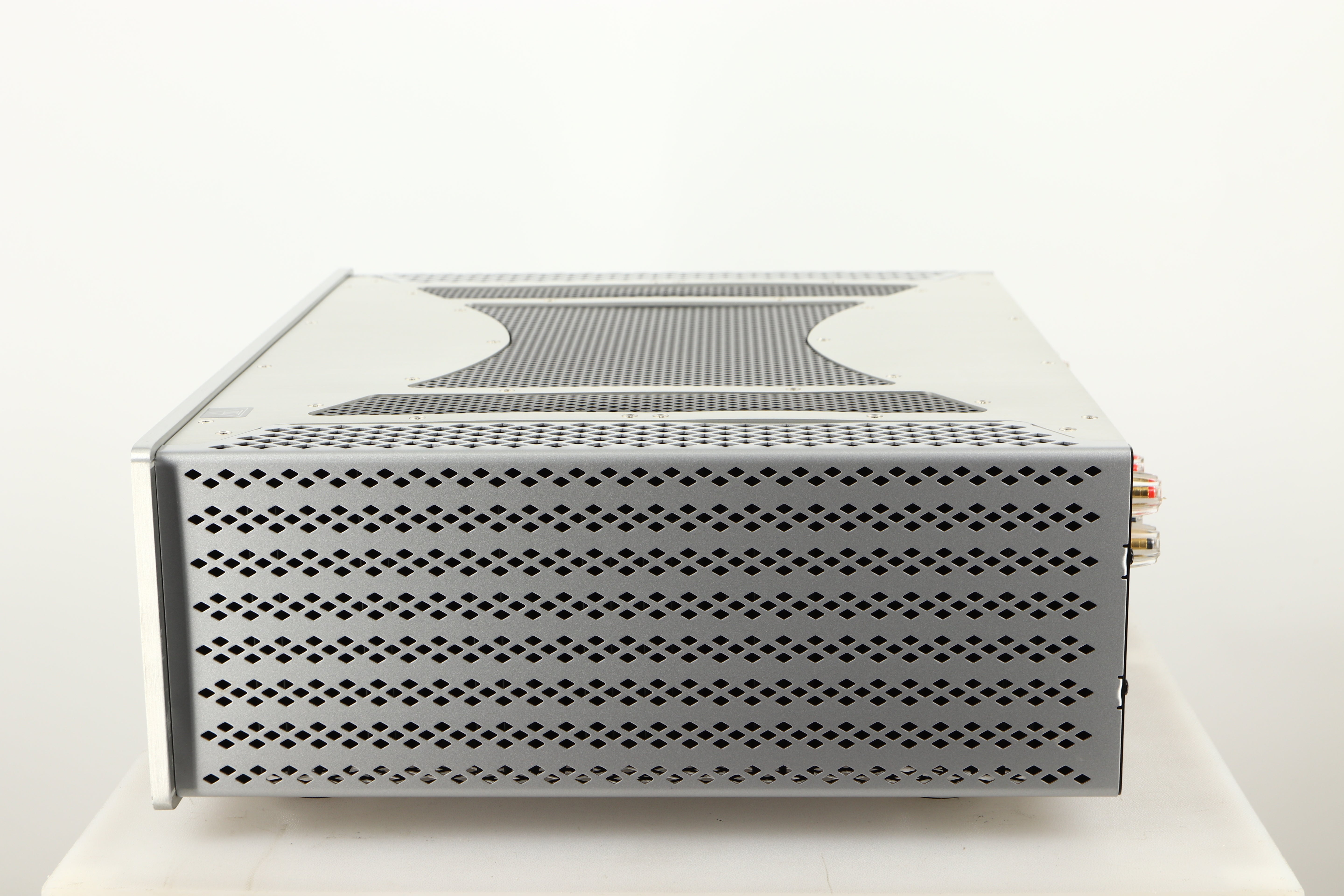

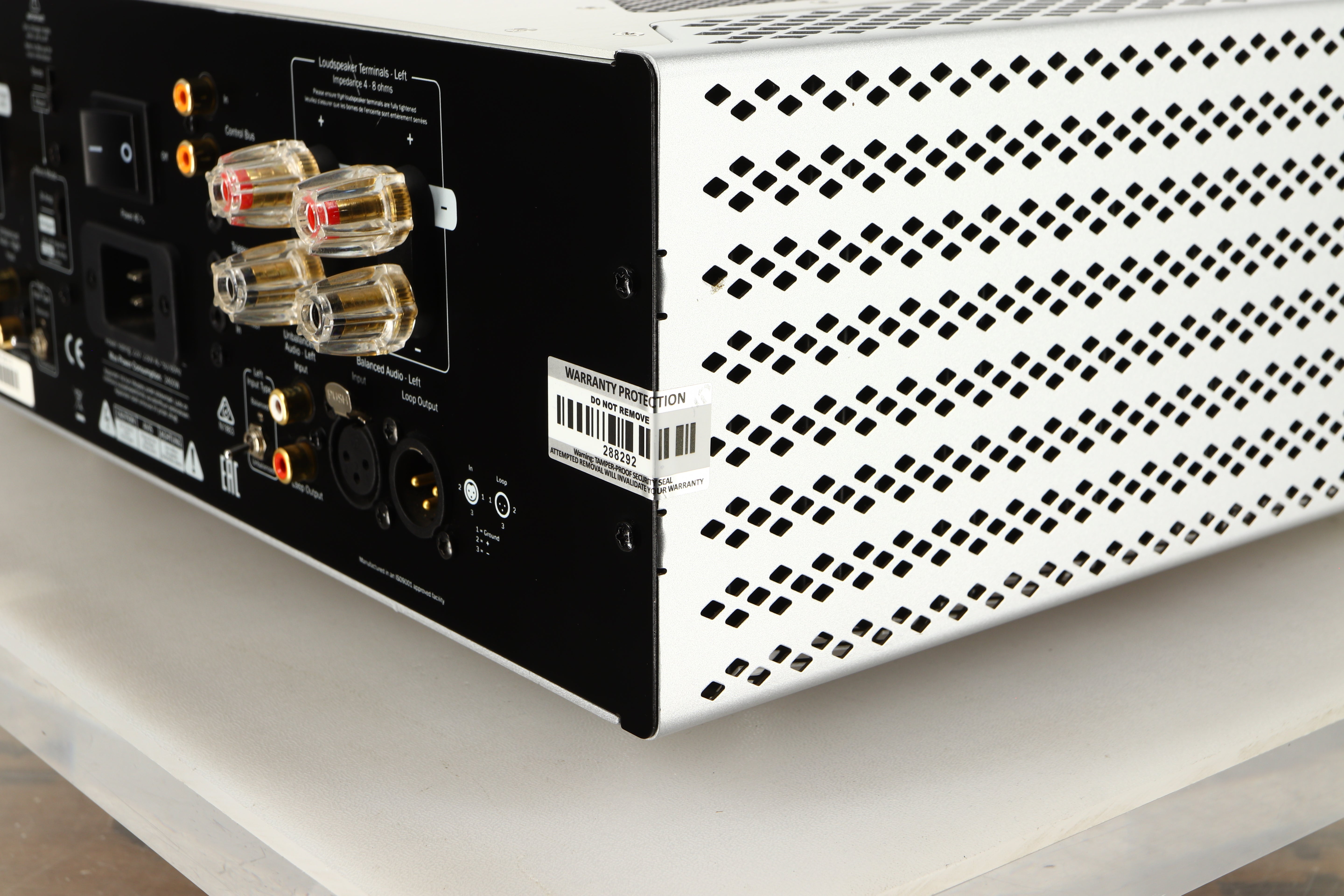

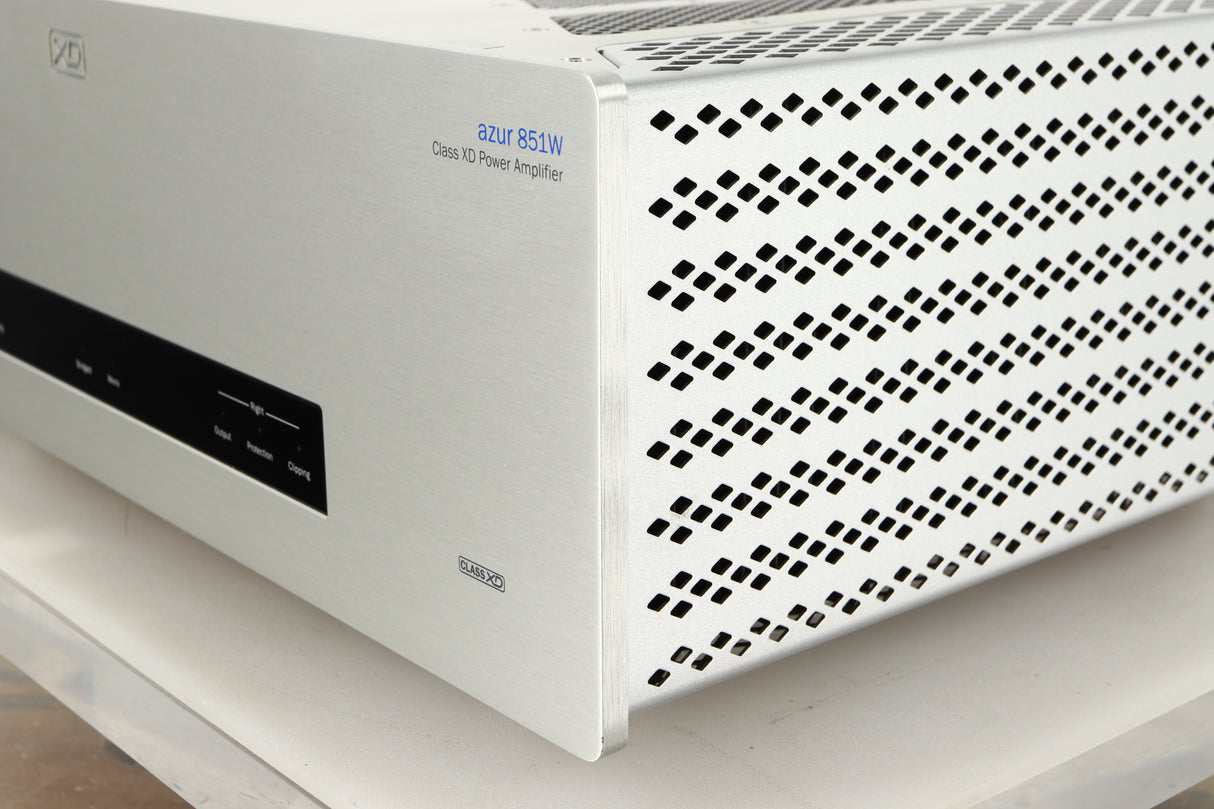

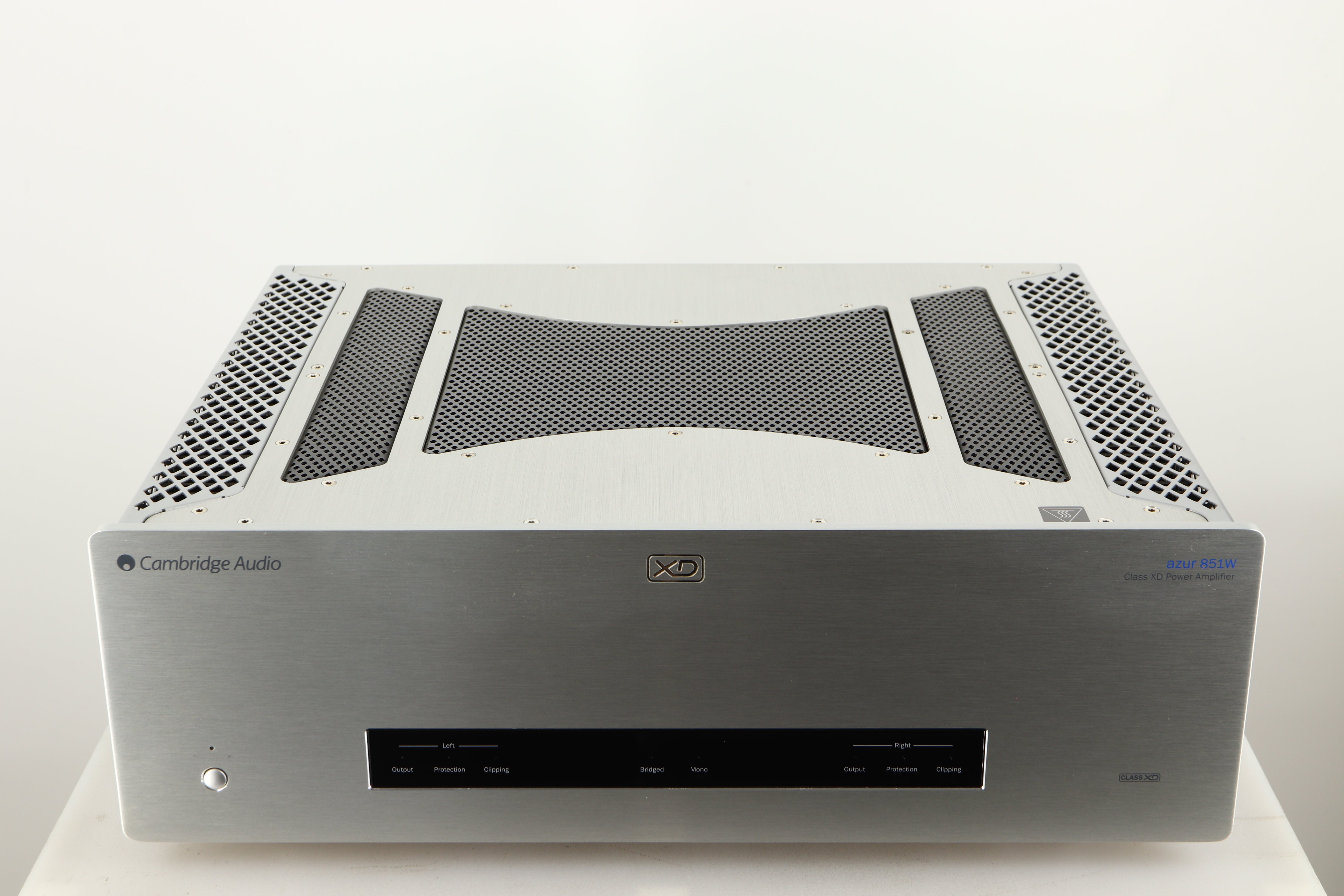

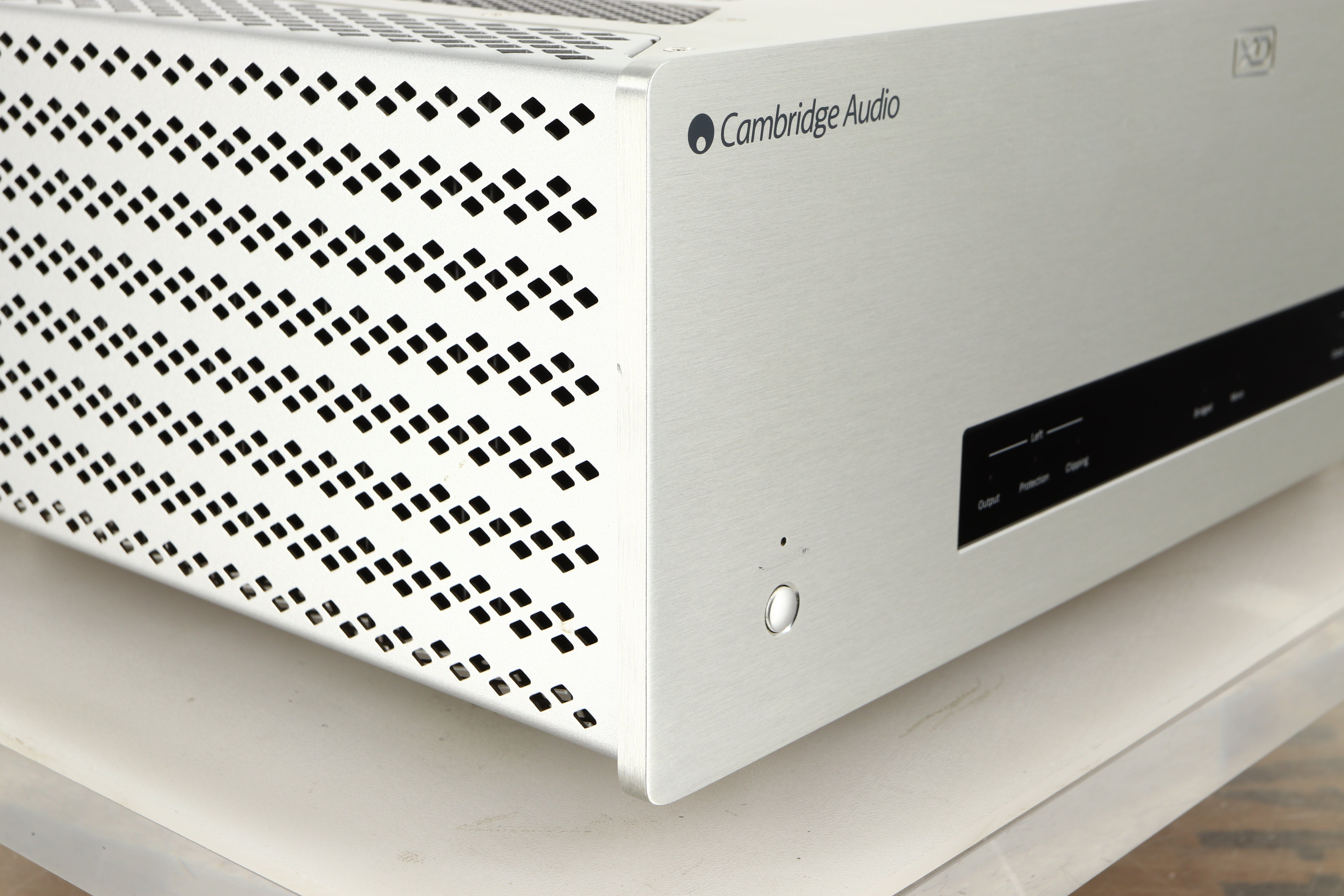

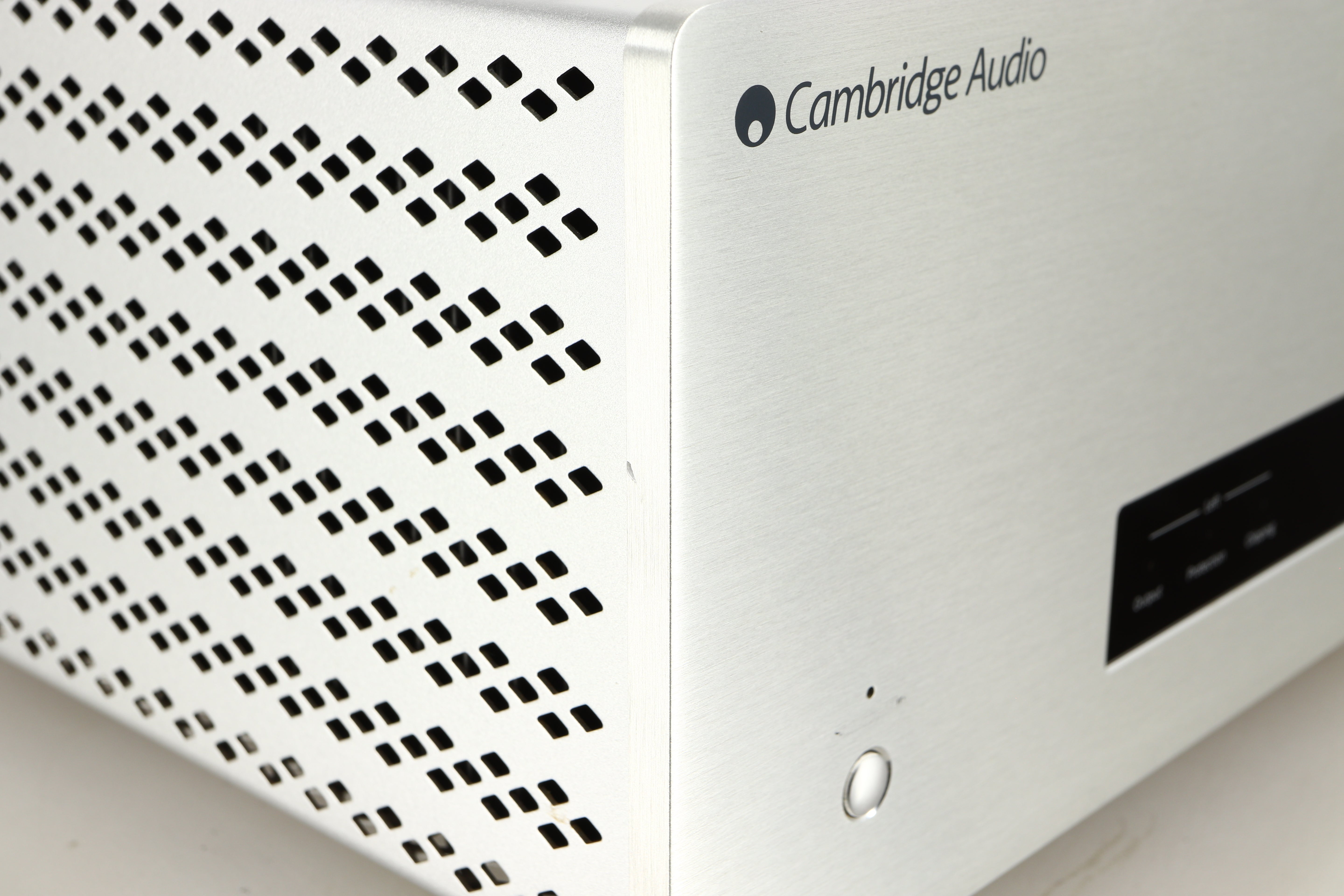

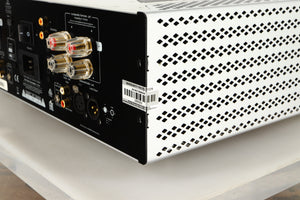

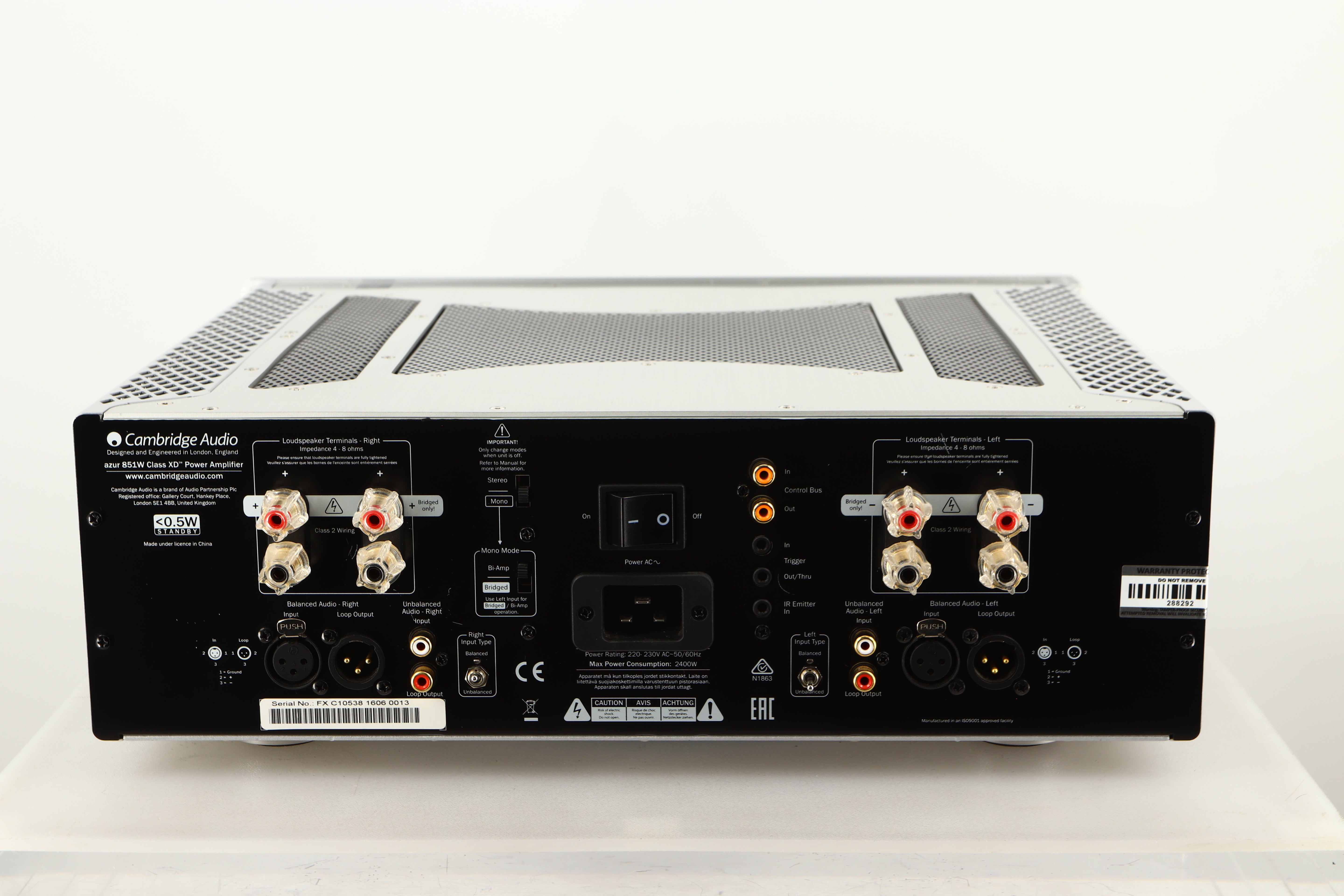

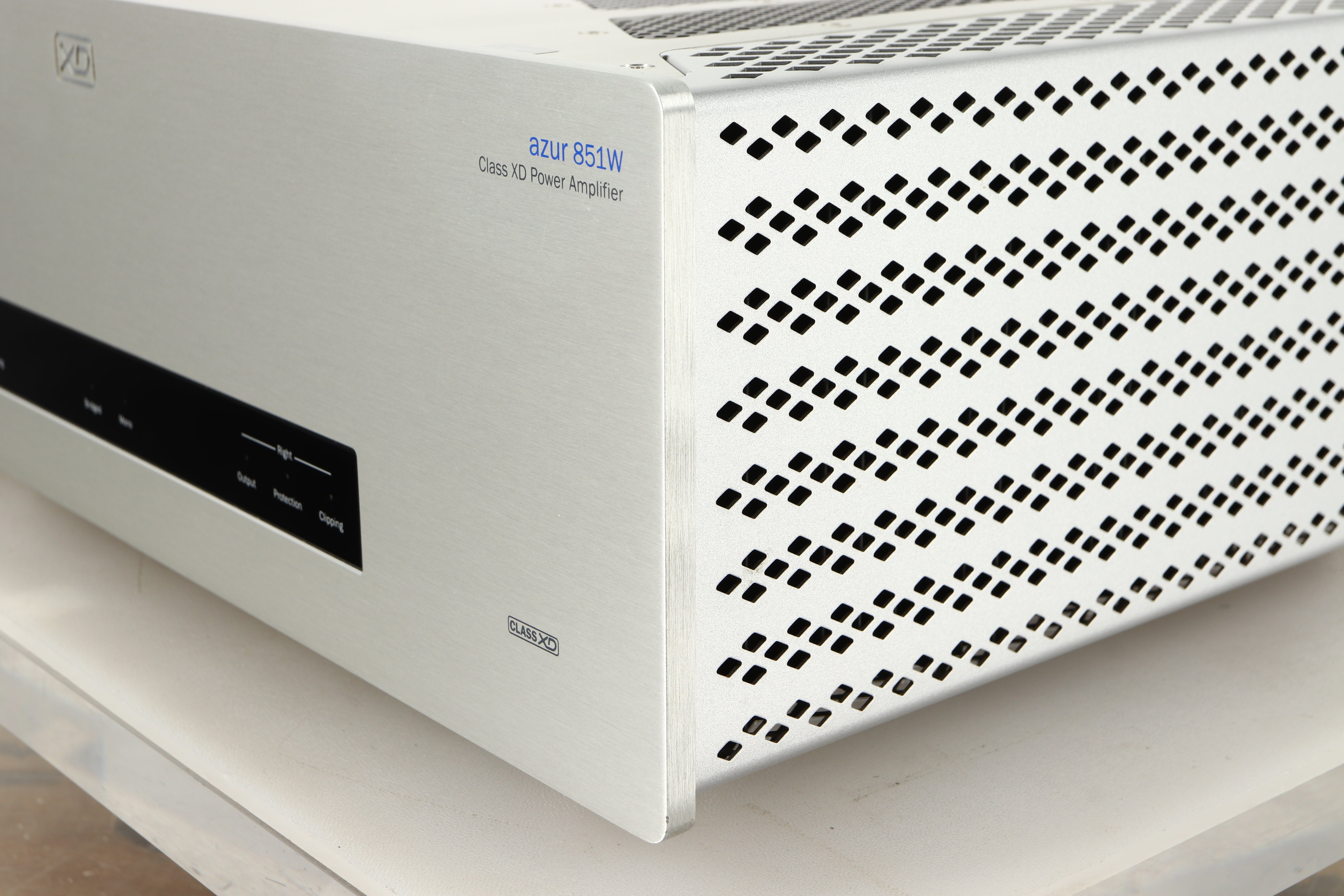

Cambridge Audio Azur 851W Power Amplifier - Silver (Faulty)

Rather than use a Class A design, which is sonically brilliant but generates vast amounts of heat, or a Class AB design, which is efficient but sonically limited, we developed our own Class XD amplifier design which the 851W takes advantage of. This has the sonic purity of Class A and the efficiency of Class AB for the best of both worlds.
When designing a stereo system, listeners are often encouraged to think about system matching, where components are handpicked to provide the best overall sound quality. People often assume this is due to the different audio characteristics, but frequently it is due to impedance (the relationship between voltage and current input/output) matching components. Products perform at their optimum when their input and output impedances match. This isn’t always possible though, so we decided to develop our unique Terrapin impedance buffering module. This enables the 851W to be paired with a huge variety of audio sources and pre-amplifiers of varying impedance without risking any sacrifice in musicality or overall audio performance.
To build the 851W to be the best toroidal transformers were essential. But rather than use one for everything we designated one for the sound amplification itself, and another for the input circuitry. This means the signal is unaffected by audio output volume, so always sounds fantastic. The primary toroidal transformer provides unrestricted power to the dual mono amplification blocks. It’s a true audiophile transformer that will operate without distortion and with no buzz, interference, or hum. The second smaller toroidal transformer takes care of pre-amplification processes.
The 851W can be used in stereo, bi-amped or bridged mono configurations. In bridged mono mode into 8 Ohms the 851W is a 500W monoblock amplifier. Into 4 Ohms, this figure increases to an incredible 800W. It can be paired with our 851E pre-amp, any of our digital pre-amps such as the 851N or CXN, or any other analogue pre-amps, and thanks to our Terrapin buffering module it will always sound perfectly matched.

Power Output: Stereo/mono: 200 W into 8 Ω; 350 W into 4 Ω
Power Output: Bridged mono: 500 W into 8 Ω; 800 W into 4 Ω
Total Harmonic Distortion: < 0.001% 1 kHz; < 0.005% 20 Hz - 20 kHz (unweighted)
Frequency Response: 5 Hz - 80 kHz
Signal to Noise Ratio: > 90 dB (unweighted)
Sensitivity:
Stereo or Mono: 1.5 Vrms unbalanced; 1.5 + 1.5 Vrms balanced
Bridged Mono: 0.775 Vrms unbalanced; 0.775 + 0.775 Vrms balanced
Input Impedances: Balanced input 38 kΩ; Unbalanced input 68 kΩ
Power Amp Damping Factor: > 110 at 1 kHz
Max. Power Consumption: 2400 W (Max); < 0.5 W (Standby)
Dimensions: 430 (W) x 365 (D) x 148 (H) mm
Weight: 19.1 kg
