Rega Elex Mk4 Integrated Amplifier

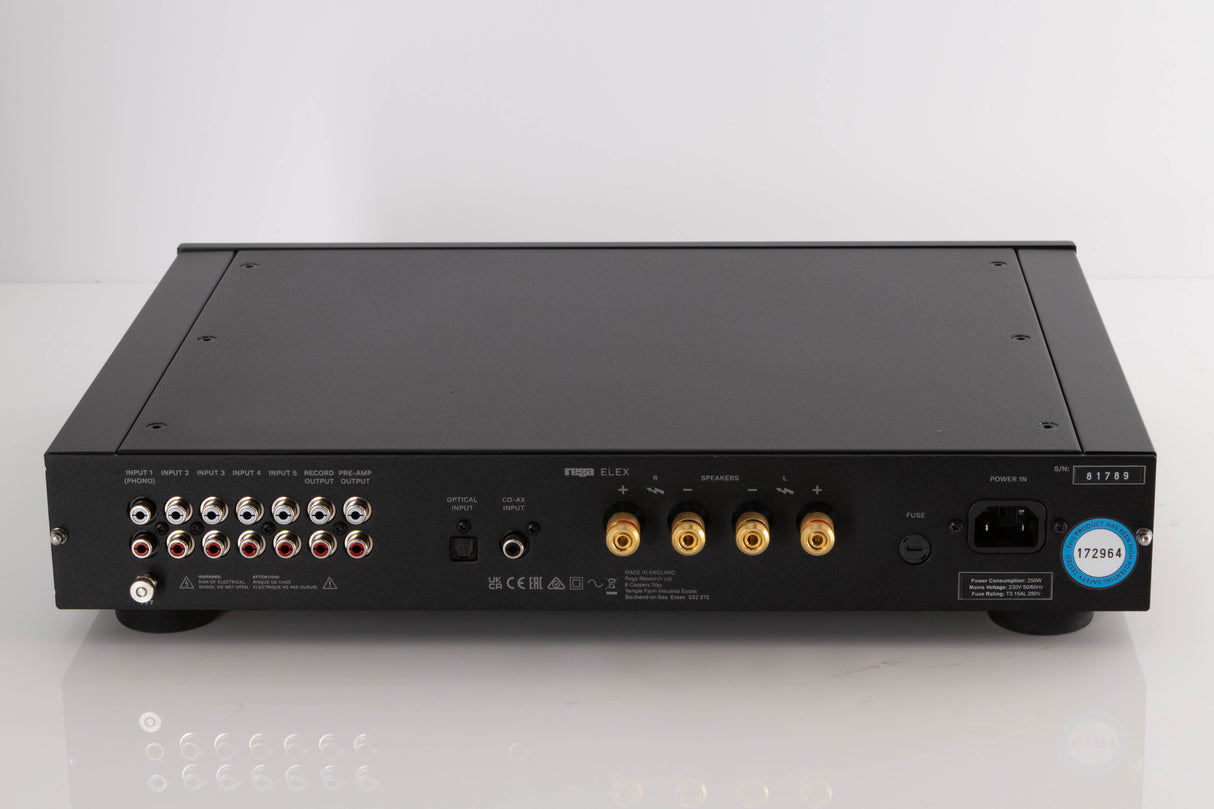

The Elex Mk4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the Mk4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex Mk4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

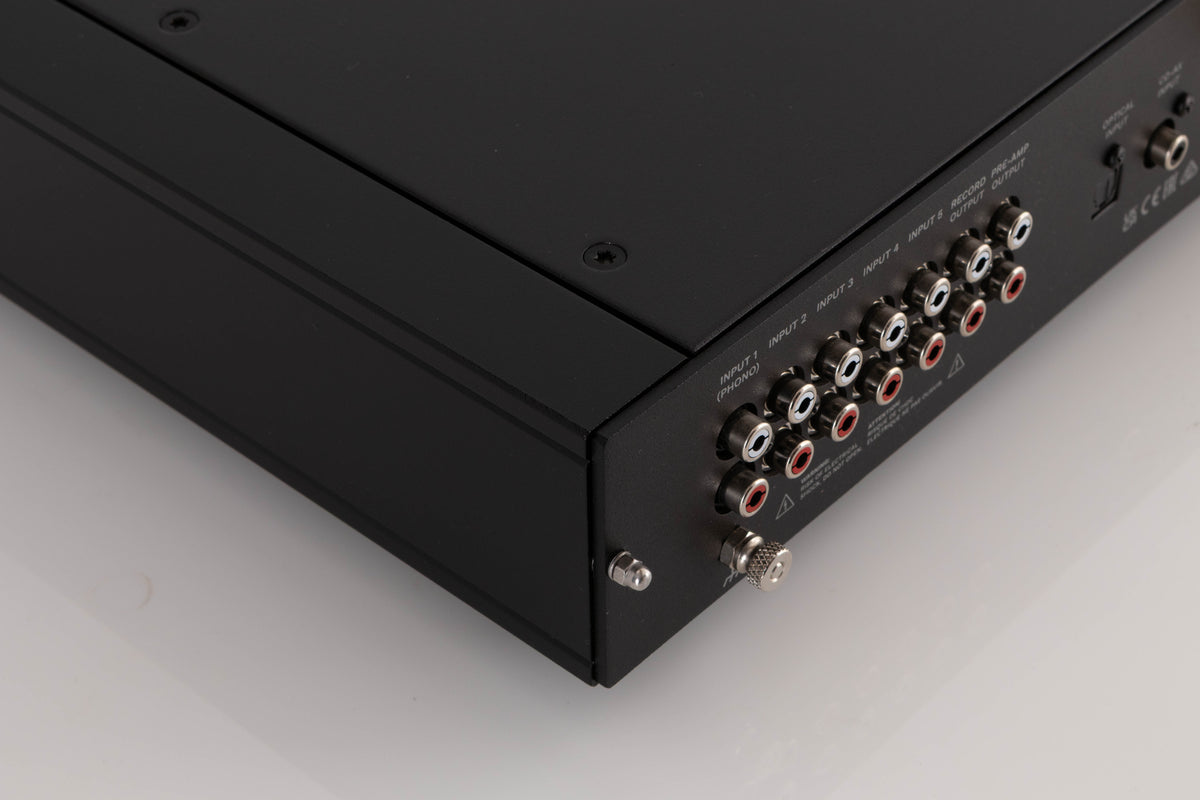

The Elex Mk4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs, and a high quality moving magnet phono stage, you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.
Our engineers have re-engineered the entire ELEX circuit board to optimise performance. Mk4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.
The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.
A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

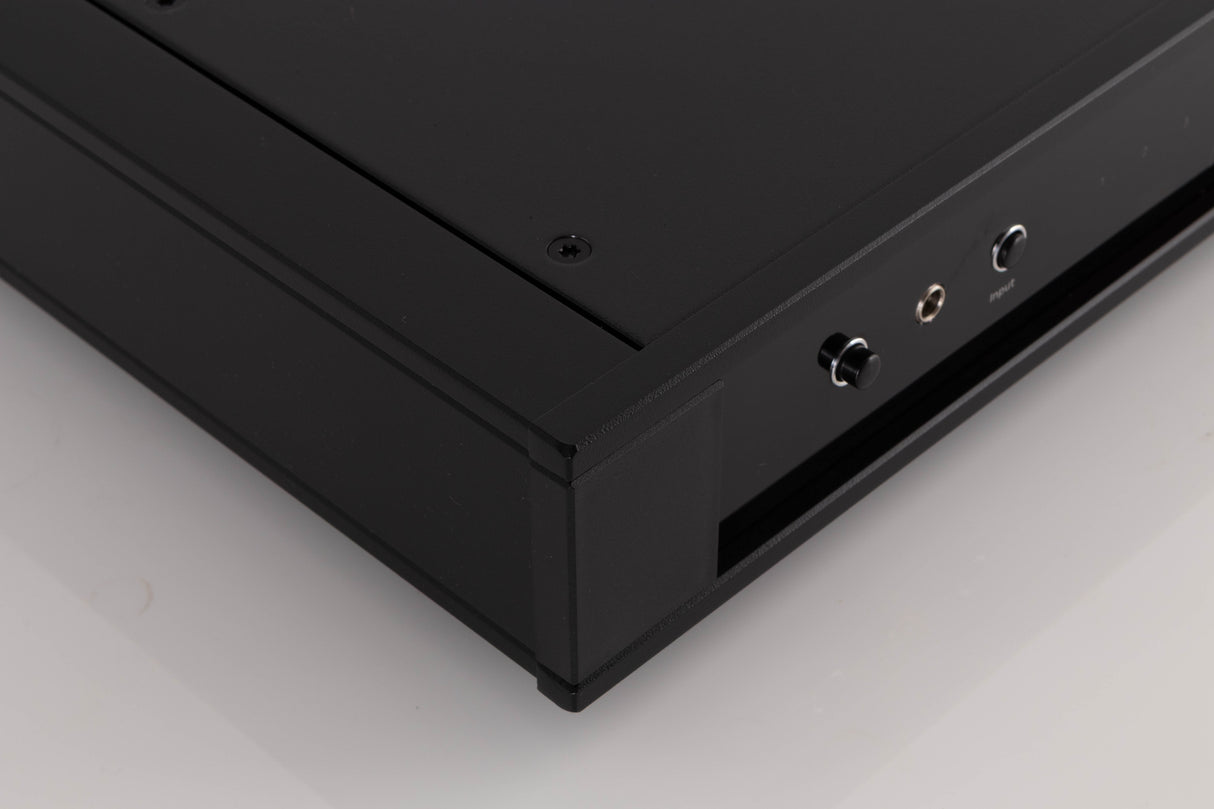

We have taken great care to incorporate the headphone socket on the Elex Mk4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.

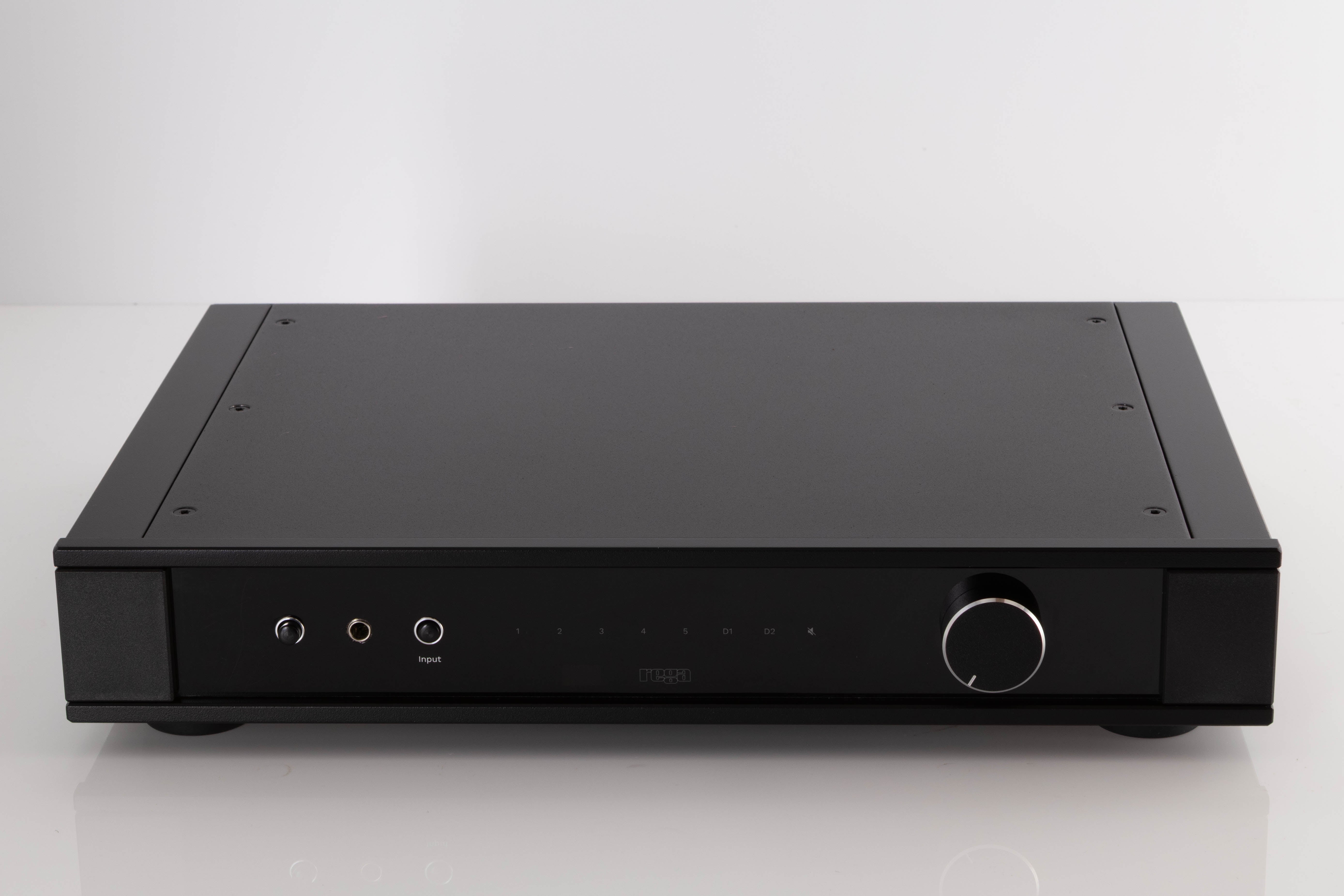

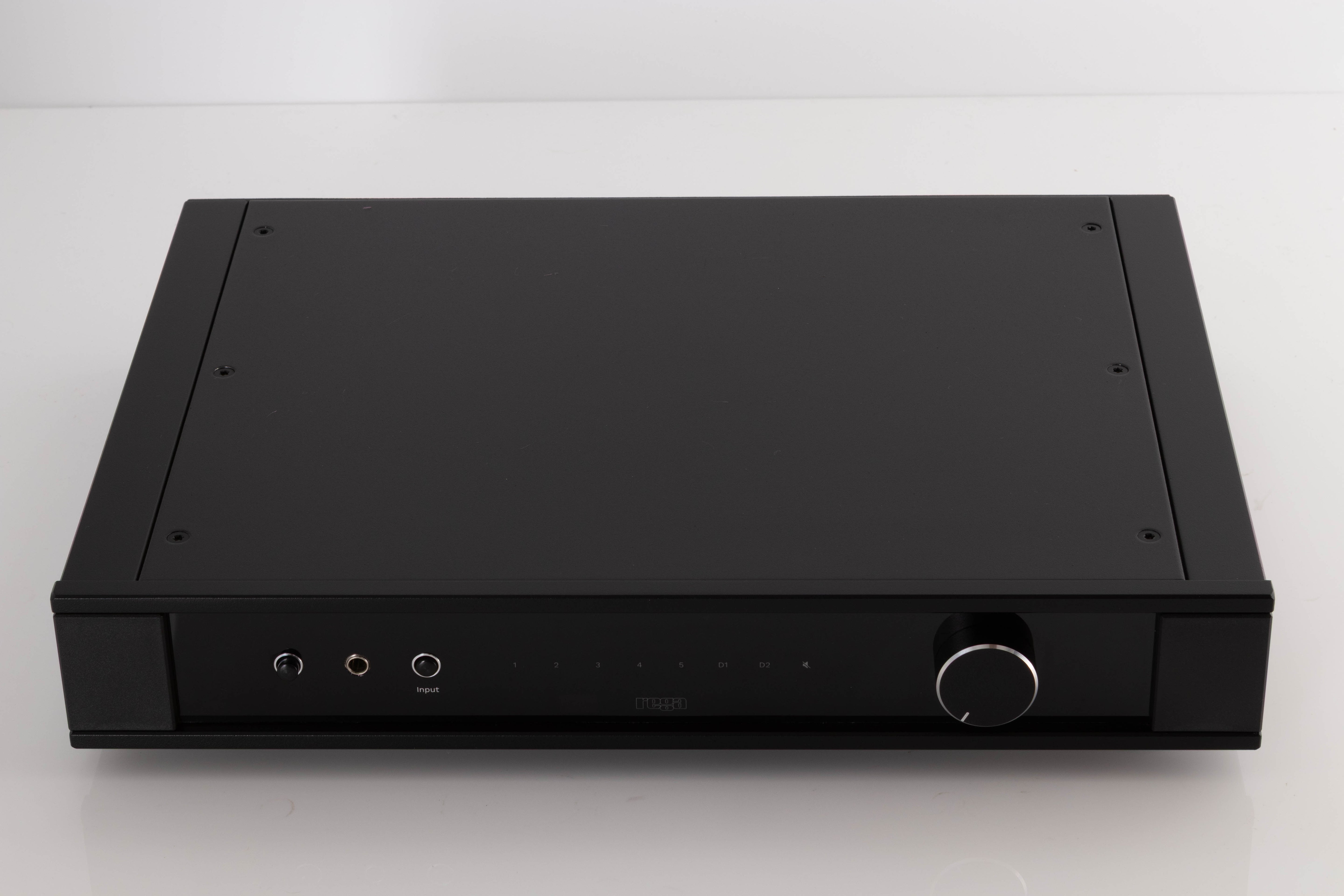

The new custom case design and construction brings the Elex Mk4 in line with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra-efficient heat sink.
The Elex Mk4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents, or short circuits.

Amplifier Power Output:
72 W into 8 Ω; 90 W into 6 Ω
Total Harmonic Distortion + Noise (22 Hz to 22 kHz):
Line Inputs: Typically 0.005% at 1 kHz
Preamplifier Output: Typically 0.002% at 1 kHz
Frequency Response - Bandwidth (at 80 W into 8 Ω):
Phono Input: 15 Hz (- 3 dB) to 65 kHz (- 3 dB)
Line Inputs: 10 Hz (- 1 dB) to 65 kHz (- 3 dB)
RIAA Accuracy: Better than ± 0.5 dB 100 Hz to 20 kHz
Input Sensitivity - for 72 W into 8 Ω:
Phono Input: 1.6 mV load 47 k in parallel with 220 pF
Line Inputs 2-5: 164 mV load 10 k
Power Amplifier Gain: 31.6 dB
Output Sensitivity - at rated inputs:
Record Output: 164 mV
Pre-amplifier Output: 625mV
Digital Inputs:
Input D1: S/PDIF Isolated 0.5V 75Ω Co-axial
Input D2: S/PDIF Optical TOSlink
Supported Sampling Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
Supported Bit Depths: 16 to 24 bit
Power Supply: 230 V / 220 V / 115 V / 100 V nominal ± 10%
Power Consumption: 250 W at 1 dB below clip into 8 Ω
Dimensions: 432 (W) x 340 (D) x 82 (H) mm
Weight: 11.0 kg
