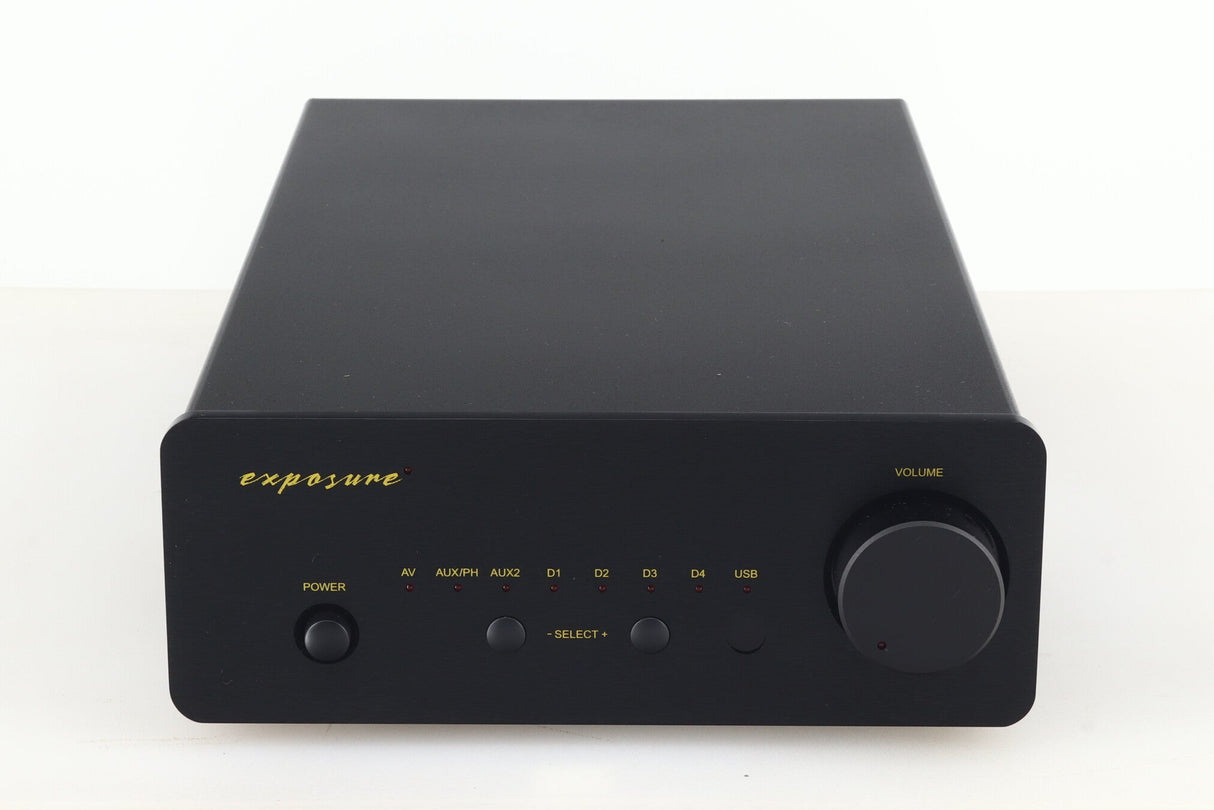

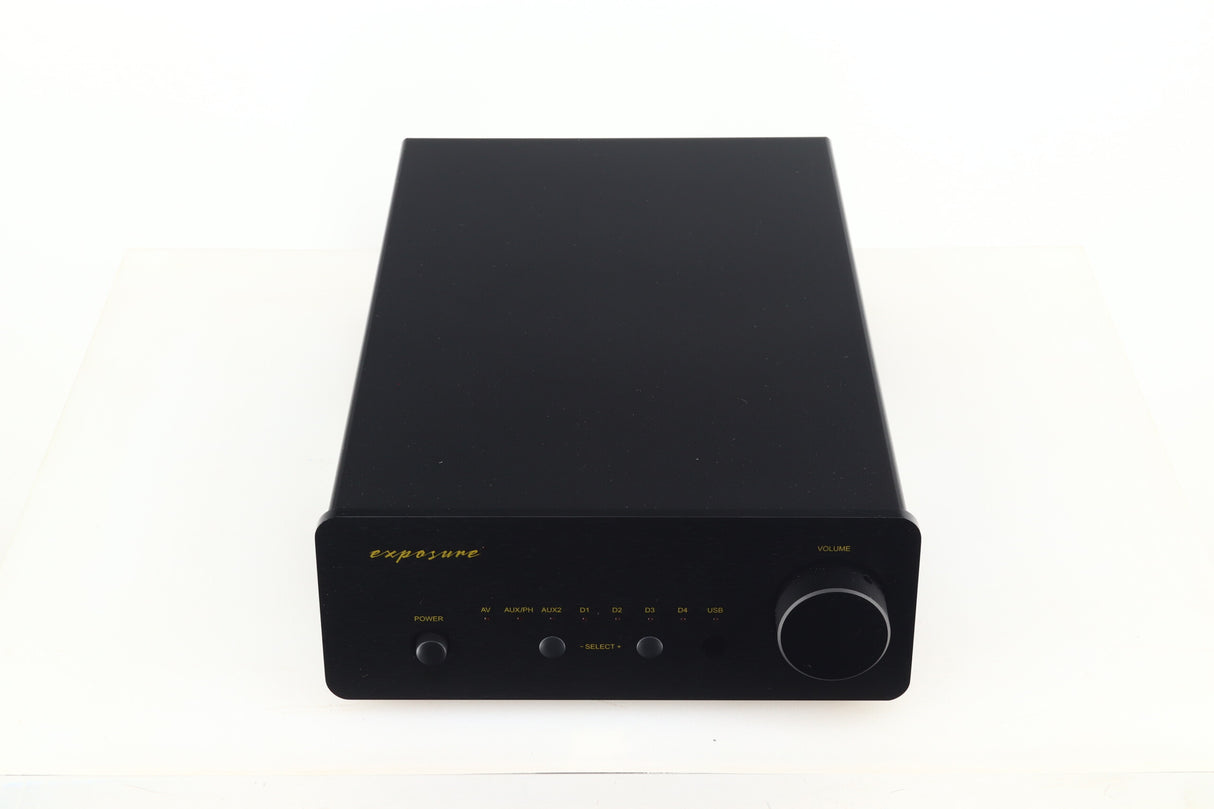

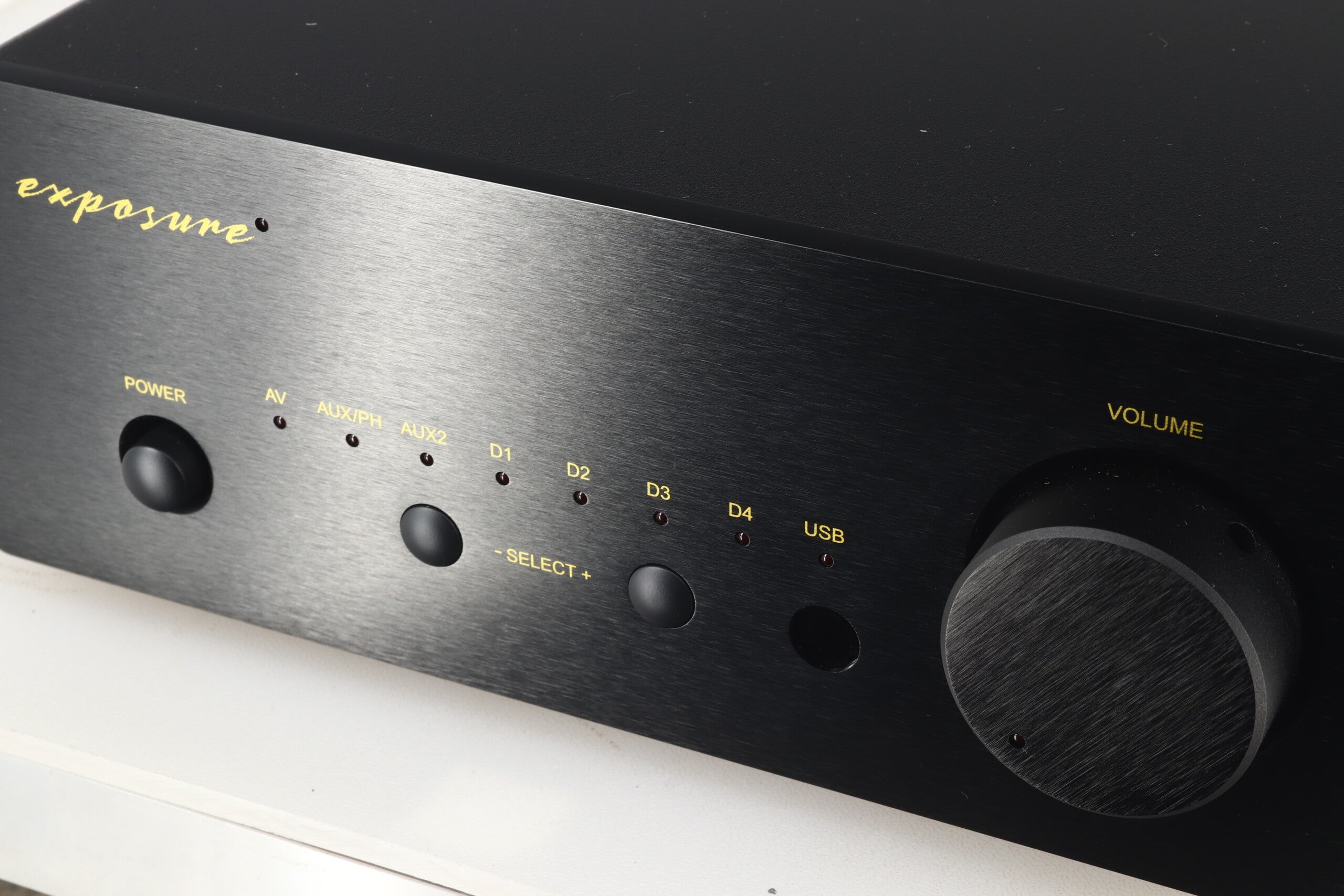

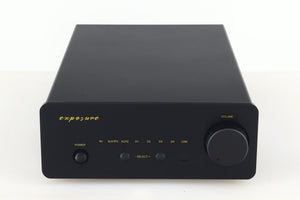

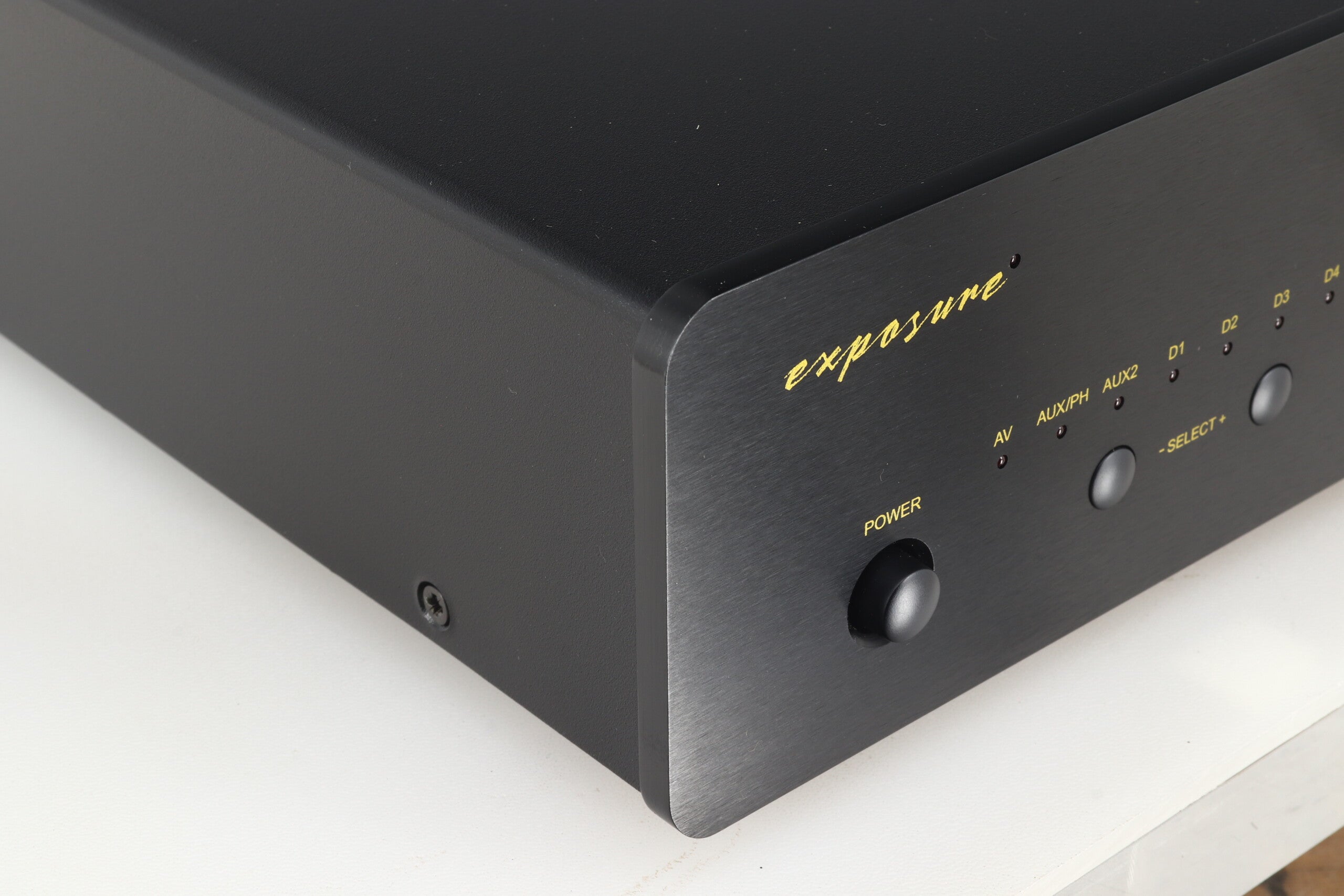

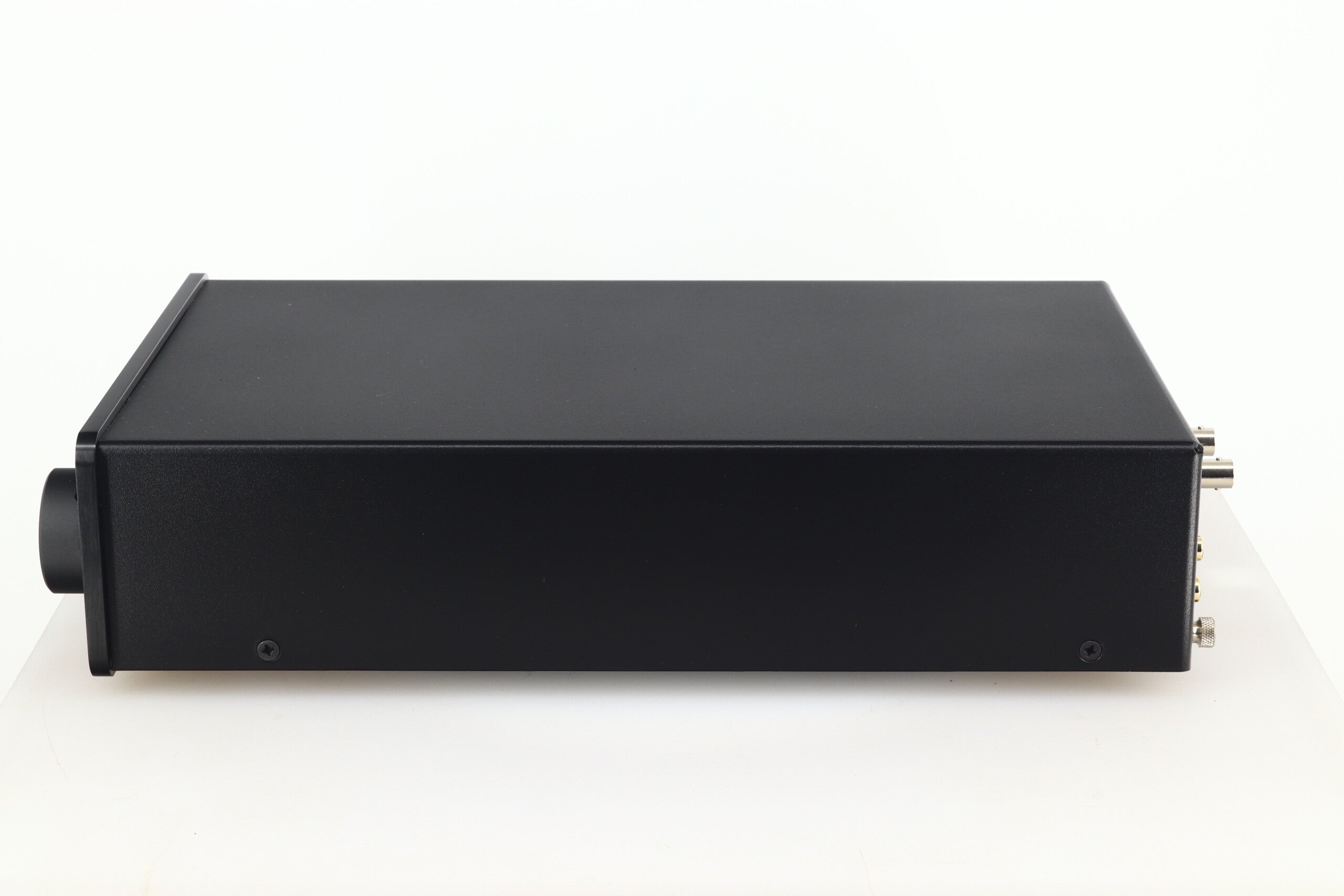

Exposure XM5 Integrated Amplifier - Black

The XM Series of components may be small in size but they’re big on features and performance. With unmatched levels of sound quality and clarity, the XM Series conveys the art of music replay with outstanding realism.
Features:
Large 200W custom-made toroidal power transformer
High quality all aluminium casework and extruded front panel
High quality resistors & capacitors used in the signal path
Cascode circuitry utilised for improved power supply immunity
Toshiba bipolar output transistors for dynamics and performance
60W per channel into 8 Ohms

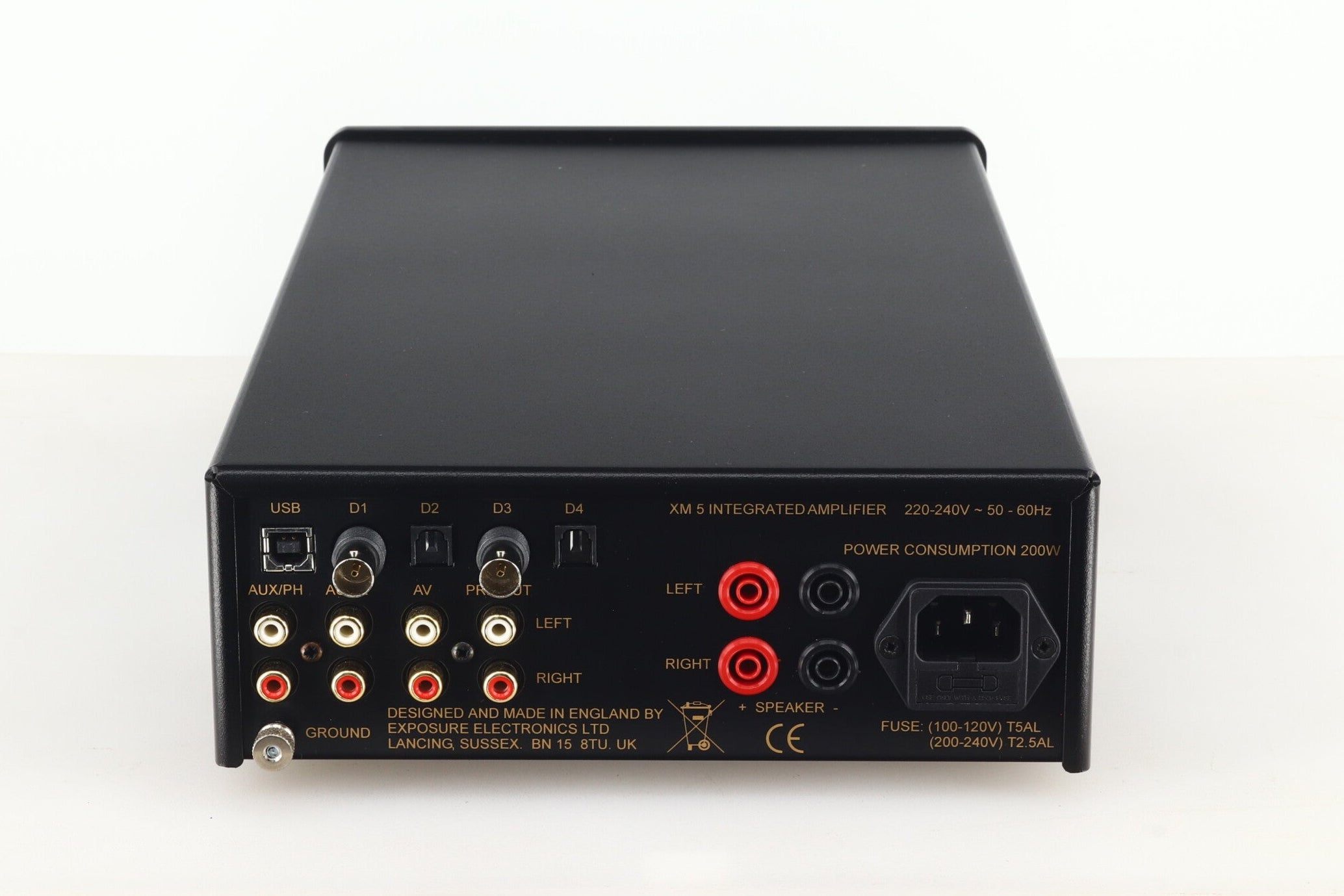

Moving magnet phono input, fixed level AV input and one line level input

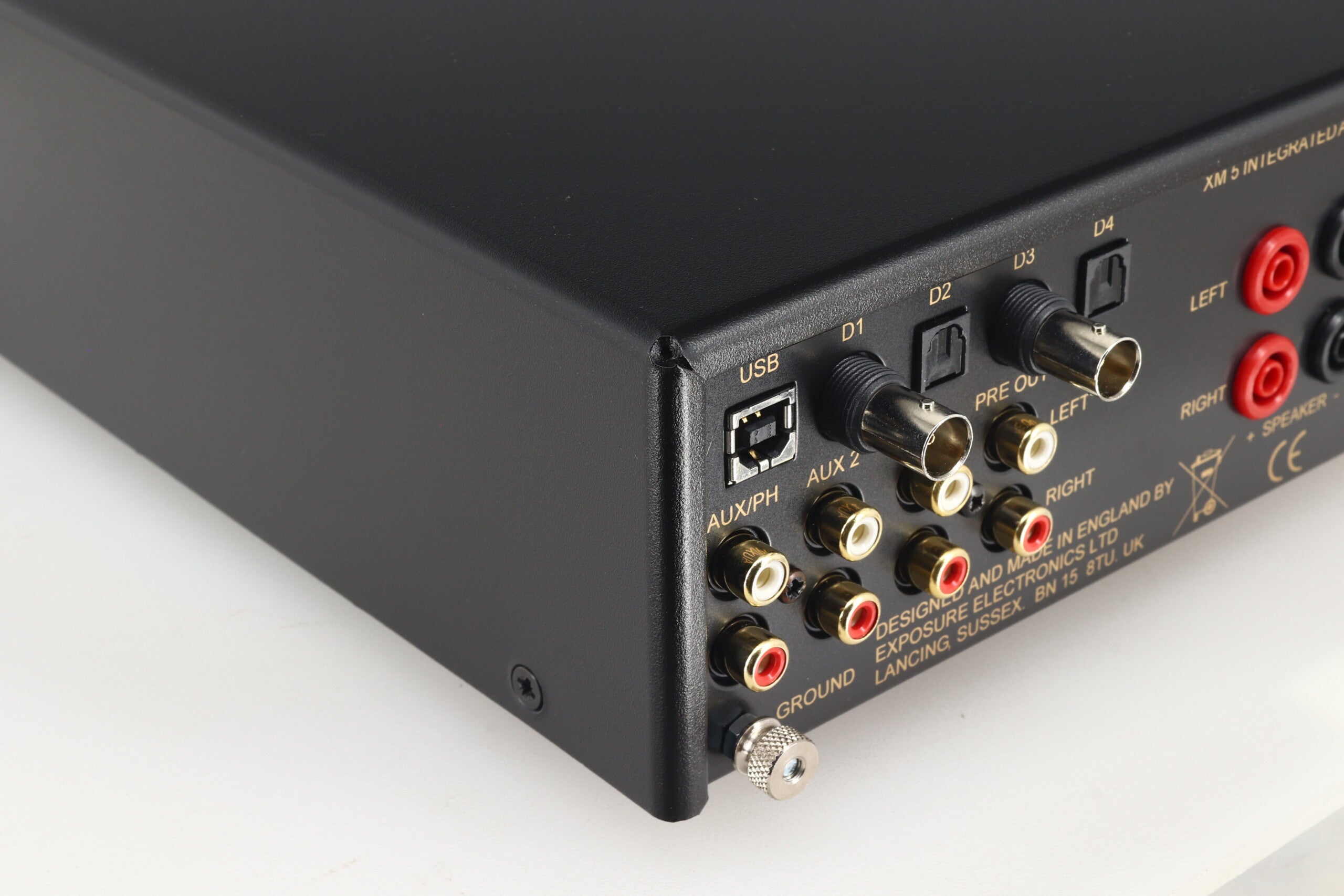

Two coax (BNC) and two optical inputs and one class 2 USB input with DSD
Separate pre-amp output

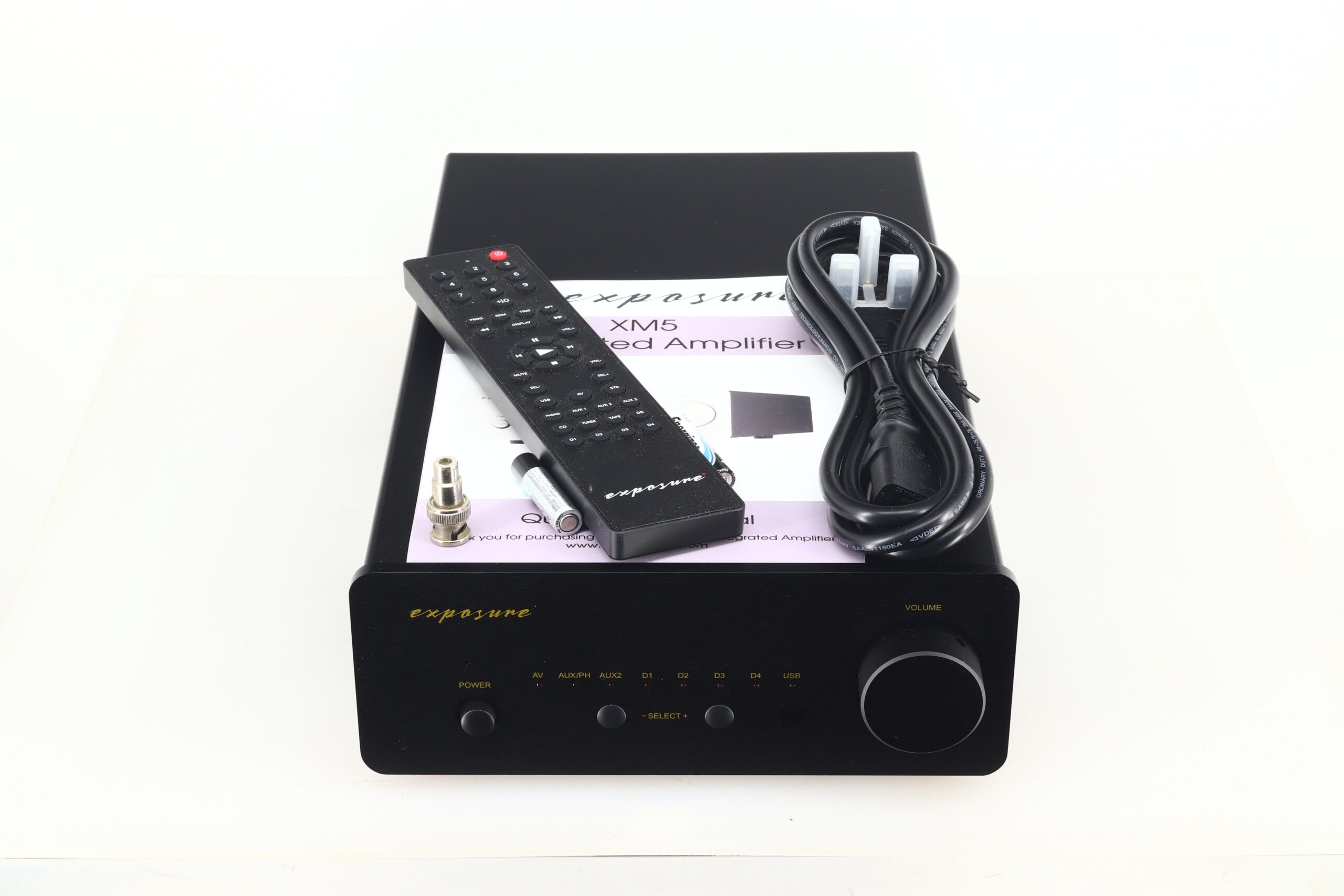

Remote control

Speaker Output Specifications:
Power Output (1KHz): 60 Watts per channel into 8 ohms
Total Harmonic Distortion: < 0.01% at 1 kHz, rated power
Frequency Response: 20Hz - 20KHz +/- 0.5dB
Channel Separation: > 60 dB @ 1 kHz AUX 2 input open (shorted > 80 dB); > 40 dB @ 20 kHz AUX 2 input open (shorted > 63 dB)
Pre Amplifier Specifications:
Pre Amplifier Output: Gain +12 dB
Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB
Total Harmonic Distortion: @ 1 kHz: & 1 V output: 0.002%
Signal to Noise Ratio ref 1 kHz & 1 V output: > 100 dB, A weighted
Channel Separation @ 20 kHz: > 62 dB input shorted > 41 dB input open AUX 2 input
Input Specifications:
AV Input Fixed Level: 450 mV @ 1 kHz > 12 kOhms S/N > 100 dB
AUX/PH Input MM: 2.5 mV @ 1 kHz, 47 kOhms S/N 70 dB
AUX 2 Input Line: 350 mV @ 1 kHz > 14 kOhms S/N > 100 dB
SPDIF Inputs BNC Coax & Optical: 32 – 192 kHz @ 16-24 bits
USB Input: Linear PCM 44 kHz – 192 kHz @ 16-24 bits, DSD x64 (DoP) Asynchronous transfer from host
General Specifications:

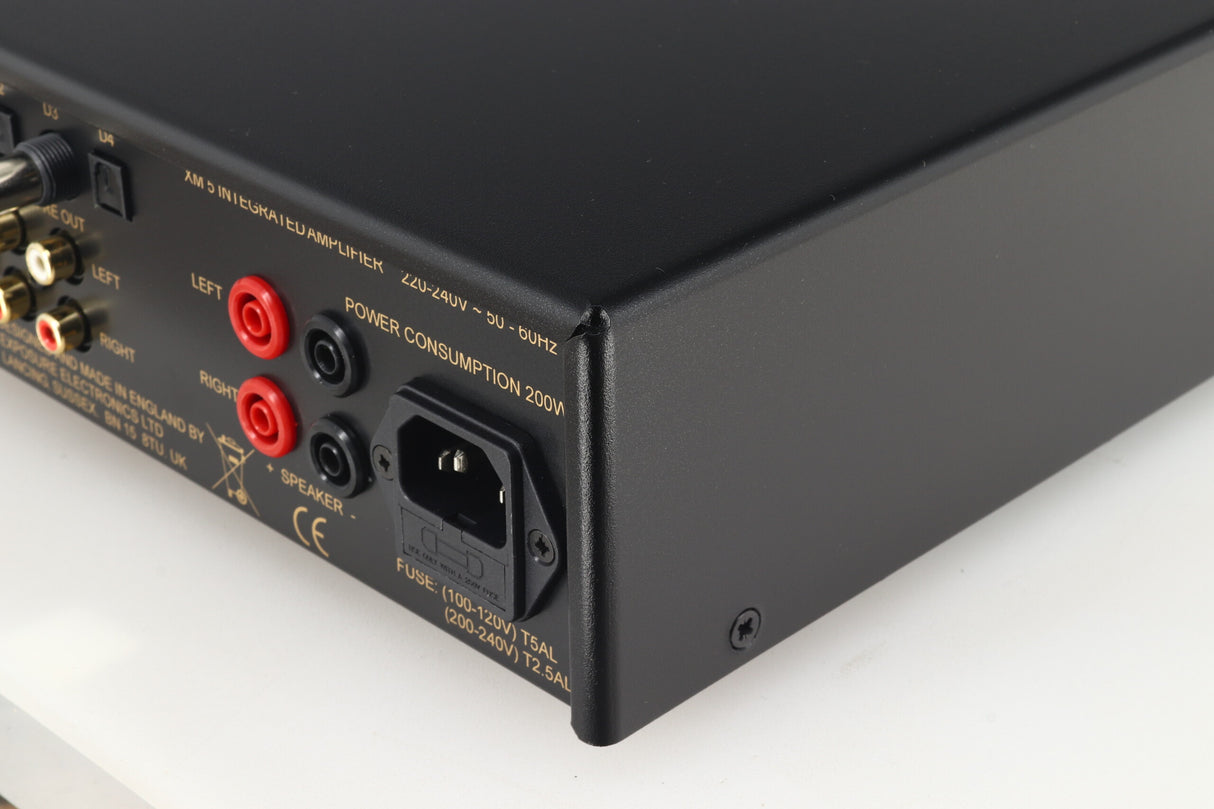

Mains Supply: 110/120 V or 220/240 V @ 50/60 Hz
Power Consumption: 200 W both channels driven, 8 ohms load
Dimensions: 218 (W) x 363 (D) x 89 (H) mm
Weight: 5.0 kg
