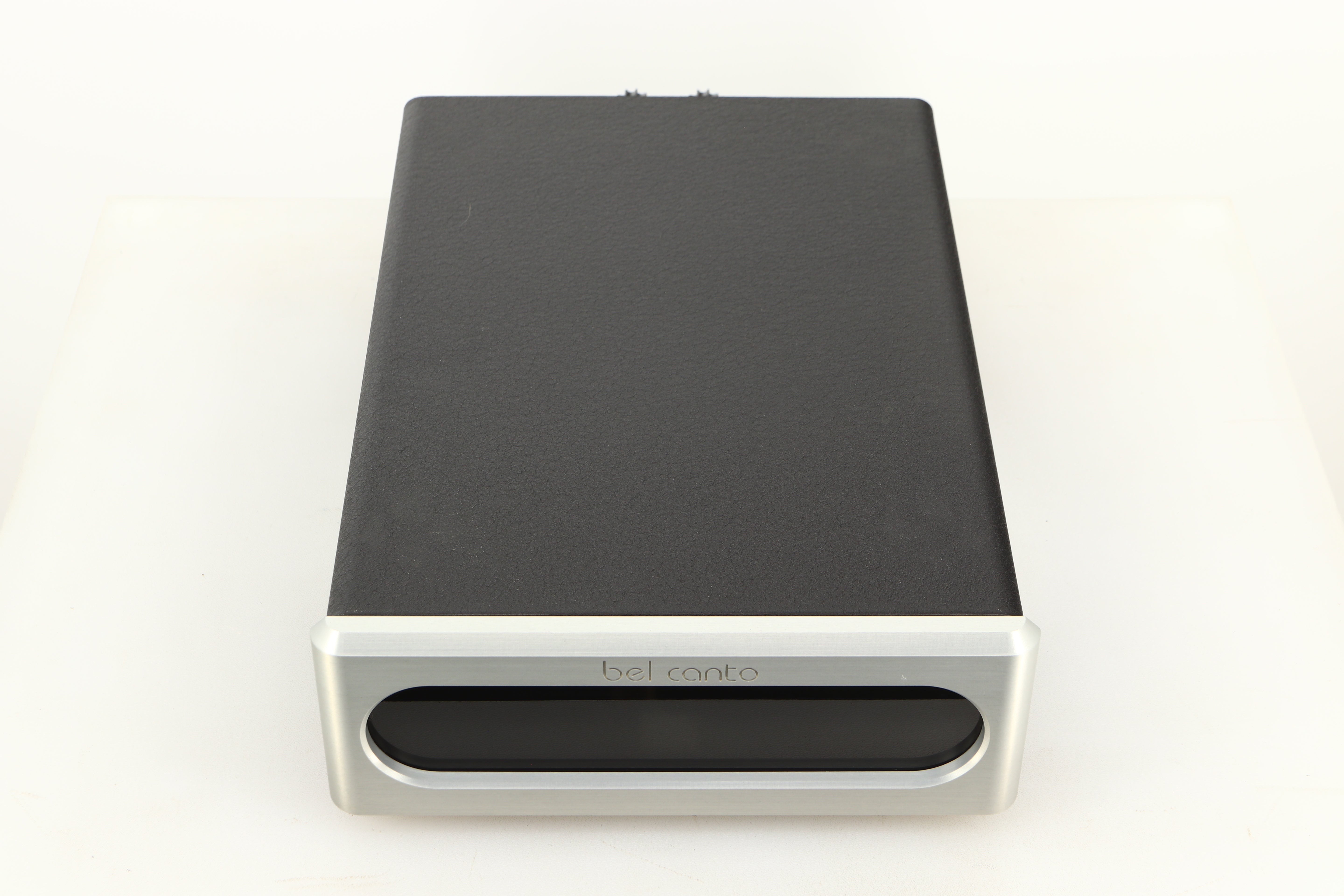

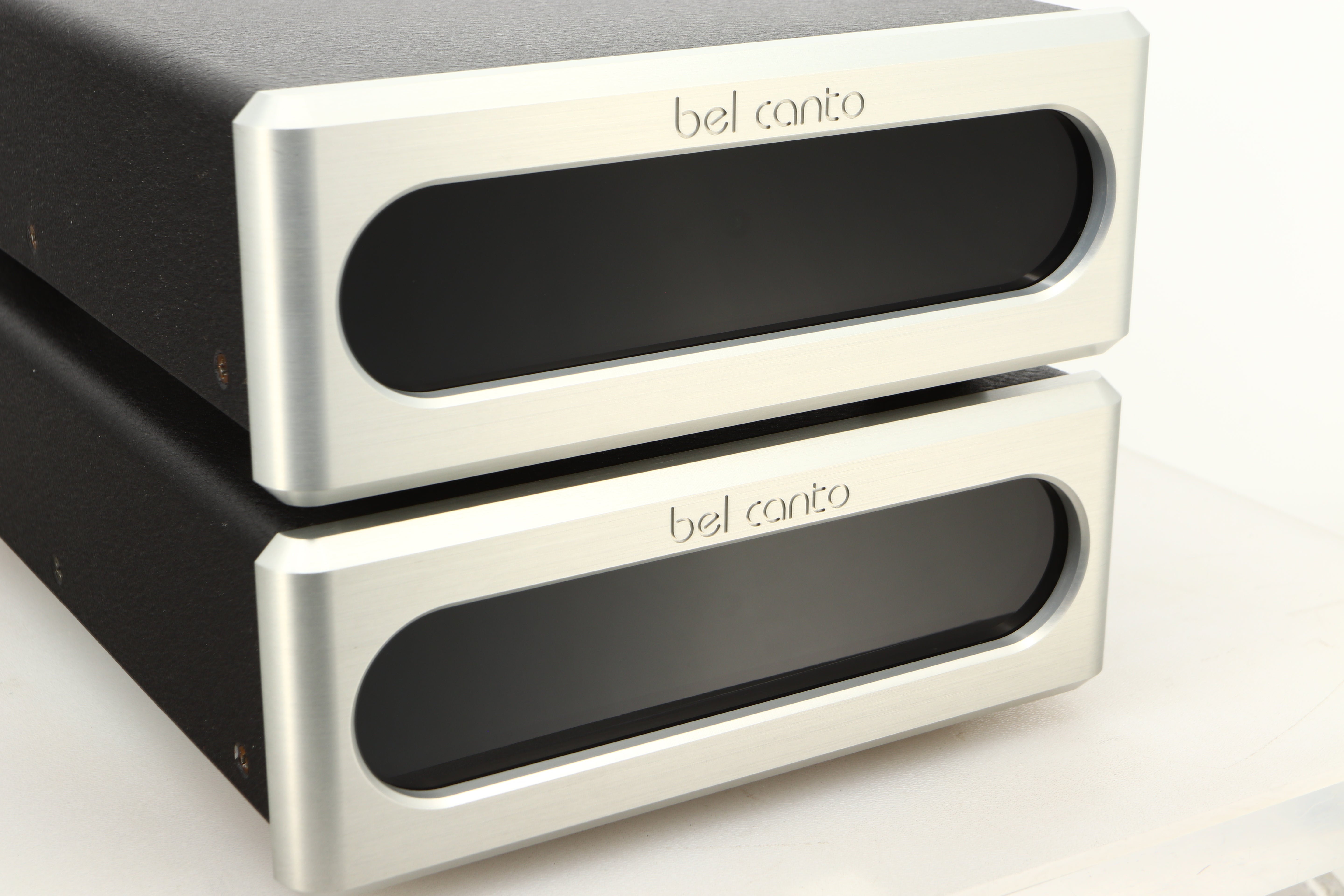

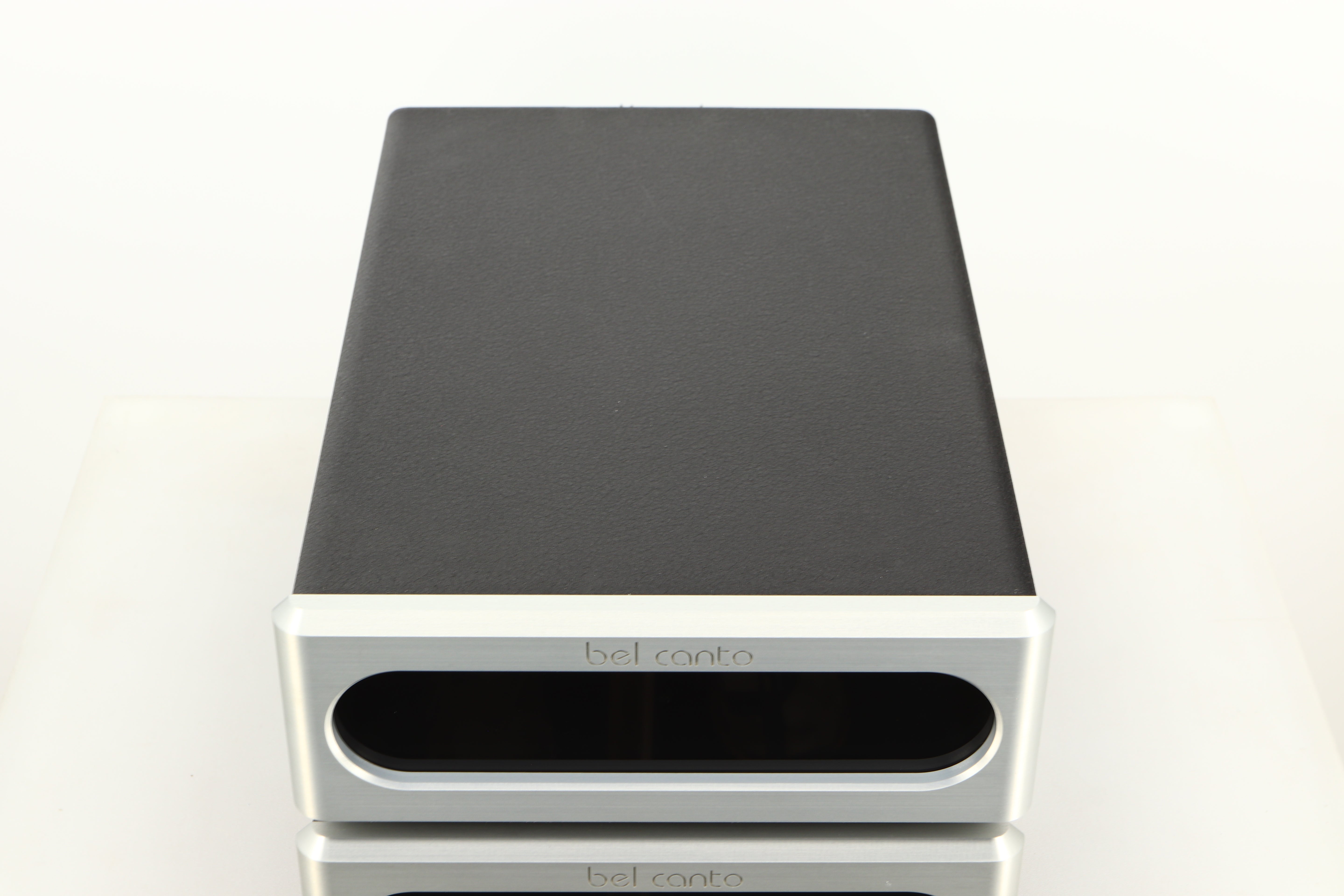

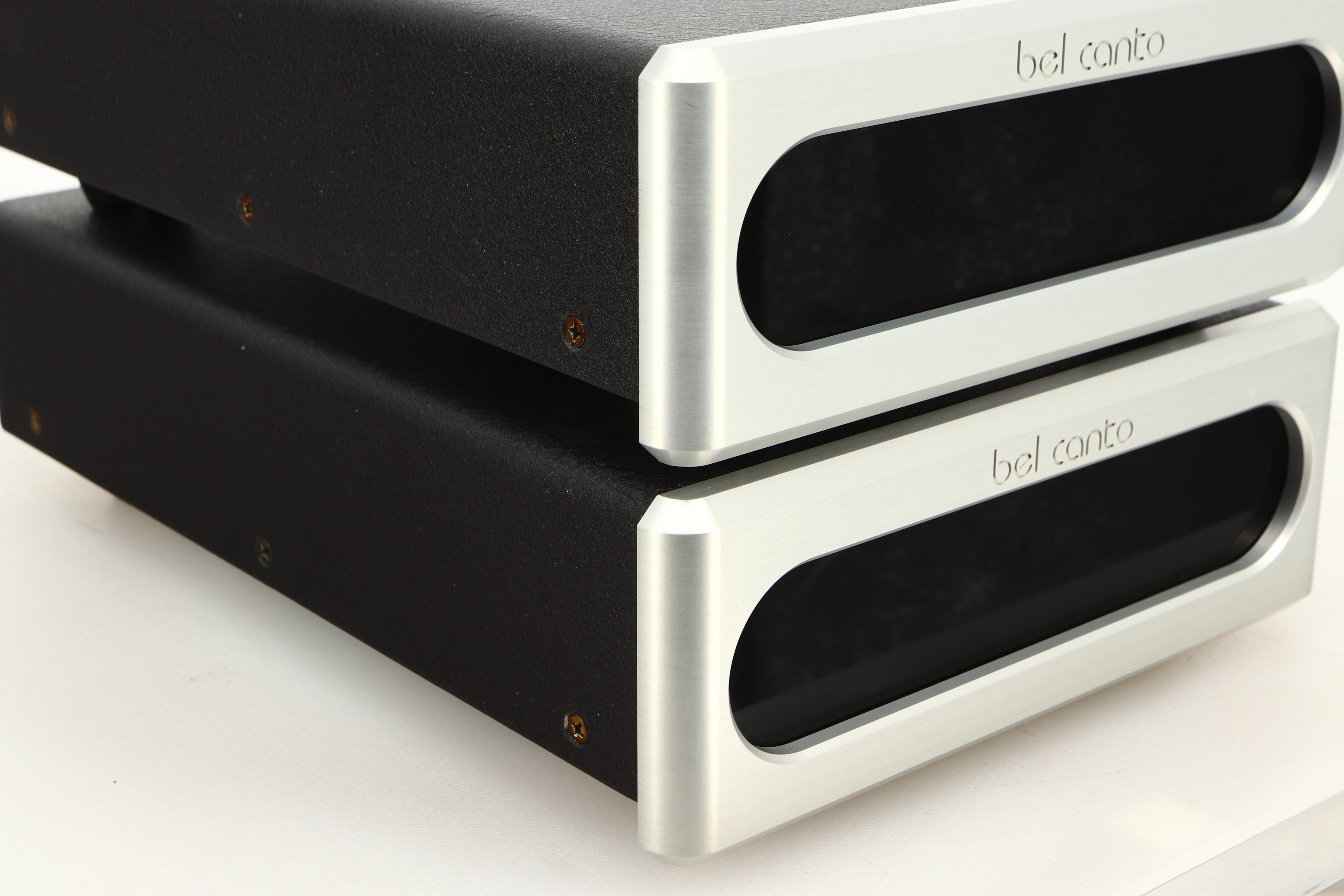

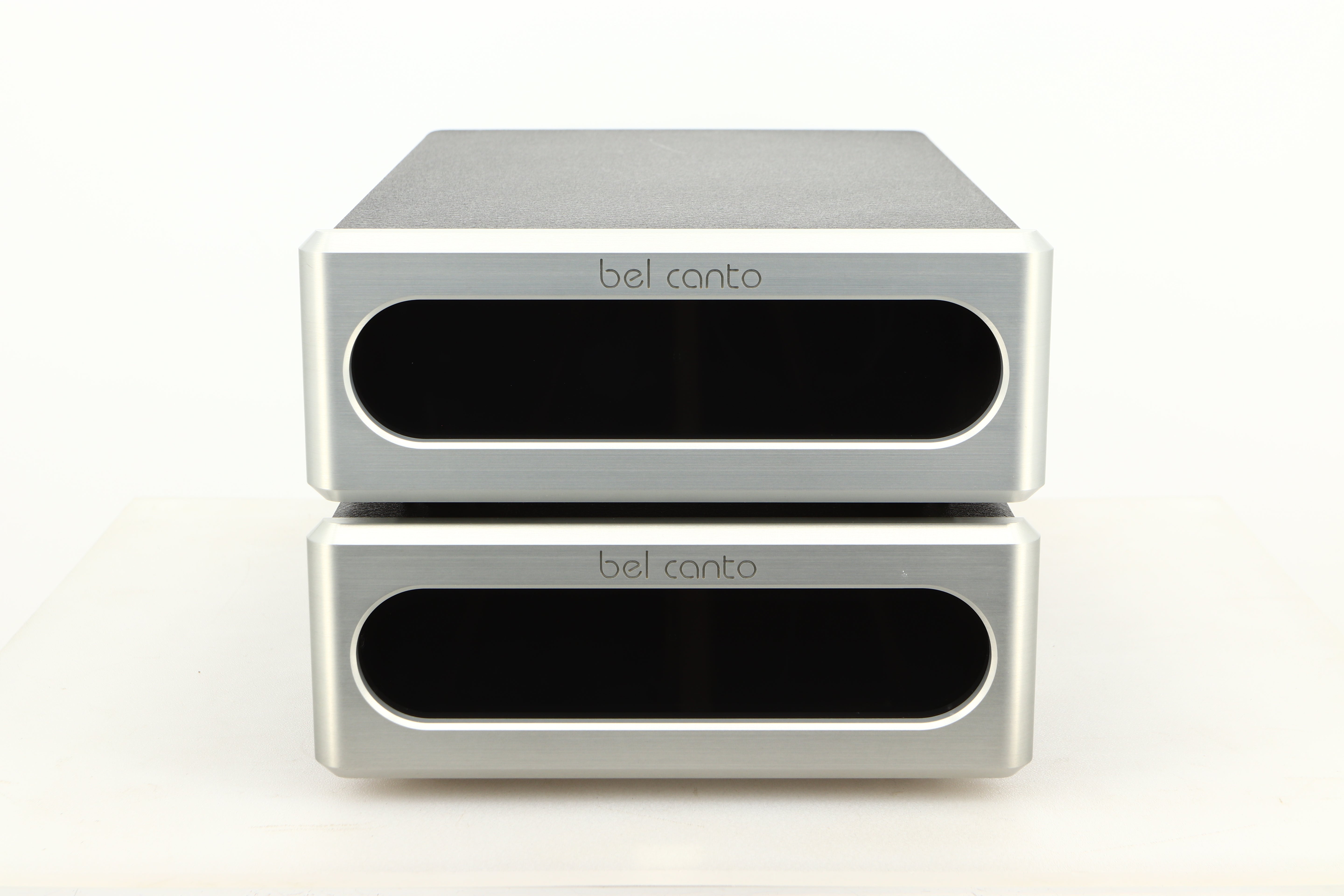

Bel Canto REF600M Monoblock Power Amplifiers - Silver

Now more than ever, audio amplification must deliver the pure treble of Class A, the slam of the best Class D architectures, and the mid band presence that brings life to your music. The REF600M maintains the sonic balance and delivers true-to-source, natural sound. John Stronczer says, “Never before have we seen this level of measurable performance from a switch mode amplifier that renders the musical note in space like our original SET amplifiers, and goes beyond with unprecedented low frequency control, yet retains the simplicity and ease of use expected in an e.One amplifier”. Bel Canto’s custom Impedance Optimized Input Stage uses low noise and low distortion amplifiers, precision film resistors, and audio grade power supply capacitors. DC Coupling with short audio signal paths and high quality output wiring into WBT Next-Gen connectors ensure that all of the amplifier’s potential is achieved. Dual gain mode option and 5/12V trigger increase system integration options for use with a wide range of loudspeakers and systems.

The NCORE® takes audio amplifier to unprecedented levels of performance through the use of an innovative 5th order loop filter. This new technology provides ultra-low noise and distortion performance over the entire audio bandwidth, allowing the musical message to come through unchanged and with remarkable purity. The Bel Canto REF600M design allows this sonic purity to be realized to the fullest extent.

The massive 1200 watt power supply in true mono-block architecture maintains stability and performance into any load, ensuring the amplifier will always respond to the dynamic demands of the music signal with a sense of ease and authority.

Power Output 1% THD: 600W 4 ohms, 300W 8 ohms Minimum Load: 2 ohmsbr Peak Output Current: 27 amperes
Frequency Response: +/-3 dB 0Hz-50KHz, all loads
THD+N: 0.003% 1W, 1KHz, 4 ohms
IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
Output noise: 35uVRMS A-weighted 10Hz-20KHz
Voltage gain: 27dB (internal switch select for 33dB)
Damping factor: >1000
Output Impedance at 100Hz: <8 milliohms
Dynamic Range: 121dB
Input Voltage for Max Output: 2.3Vrms at 27dB gain

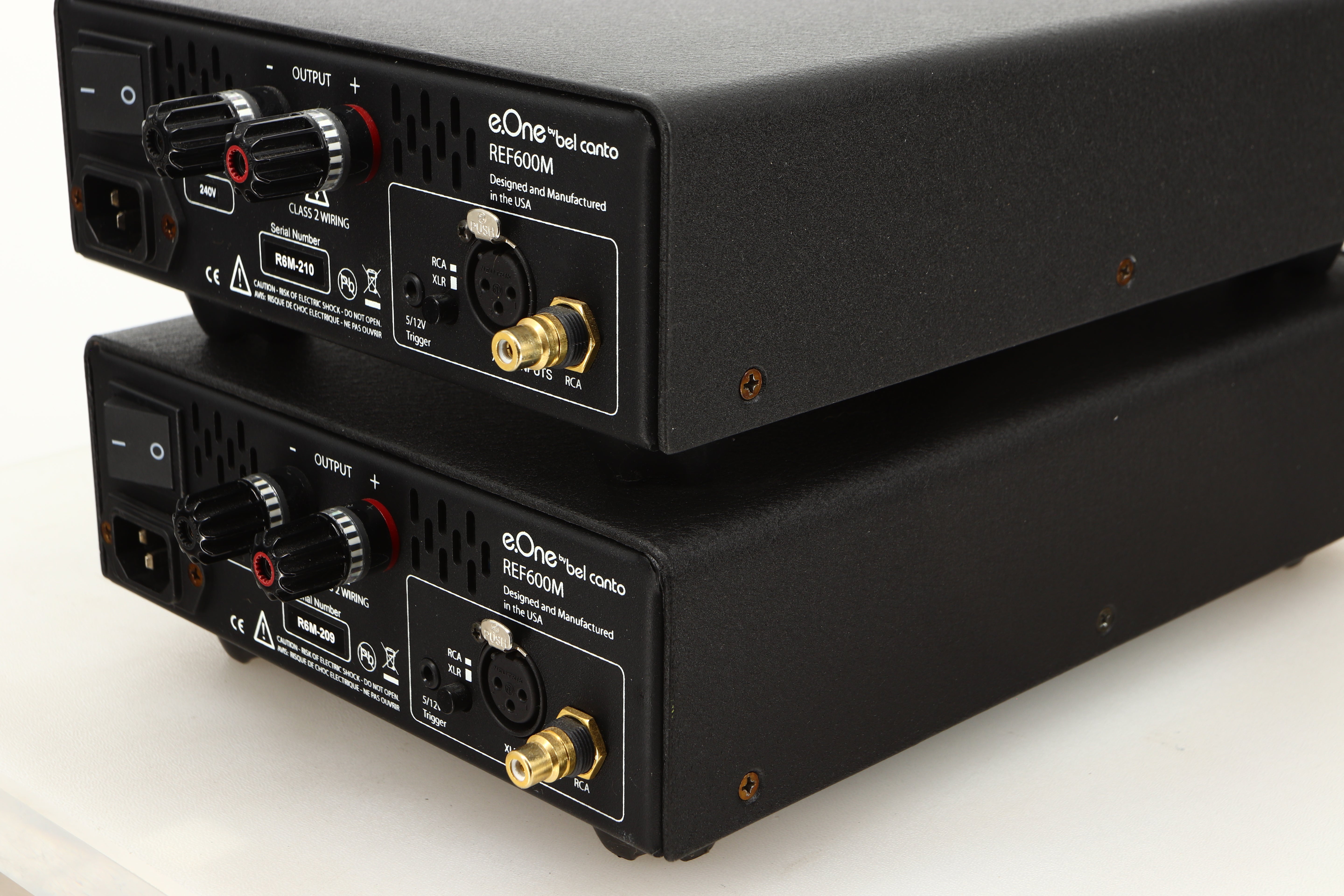

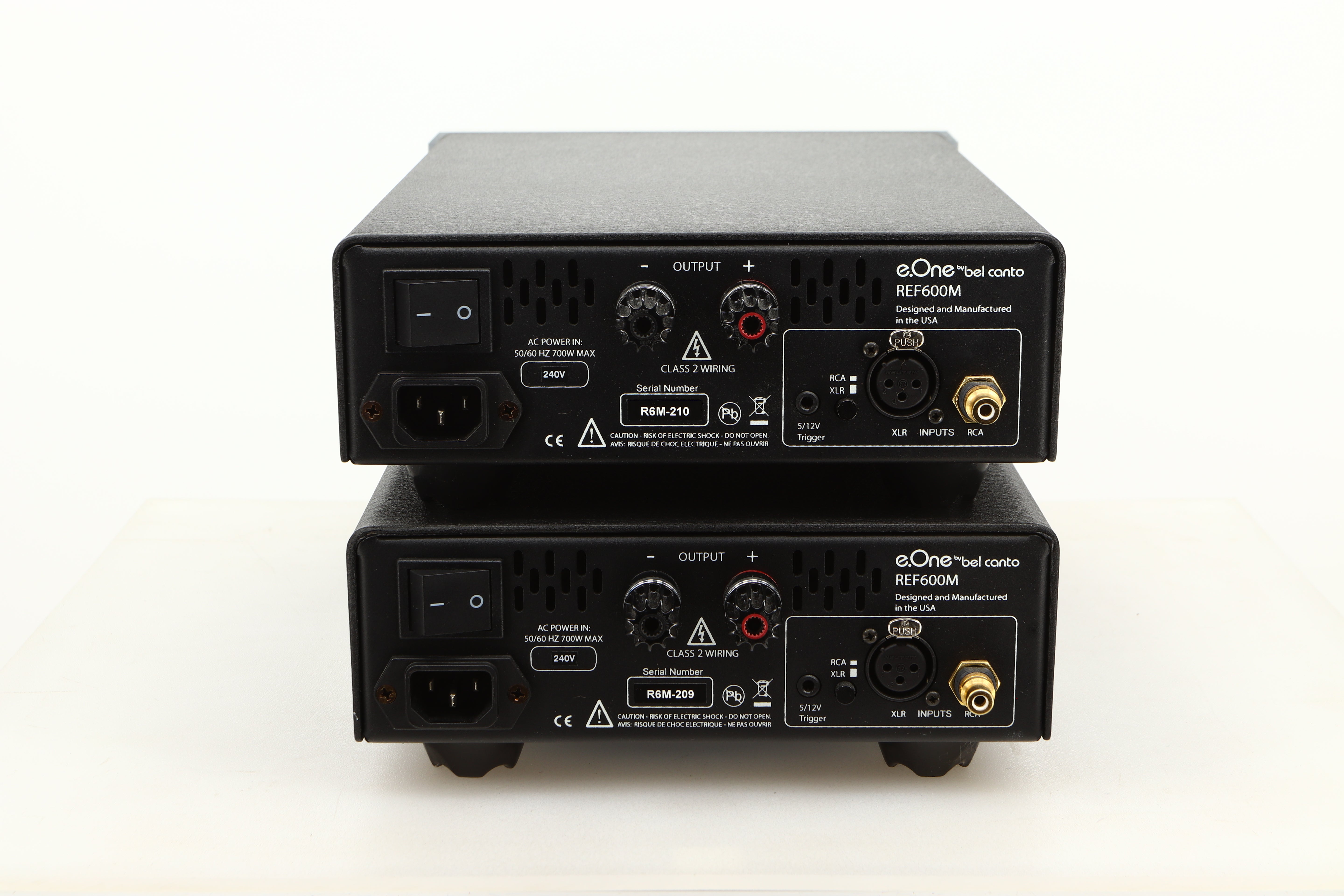

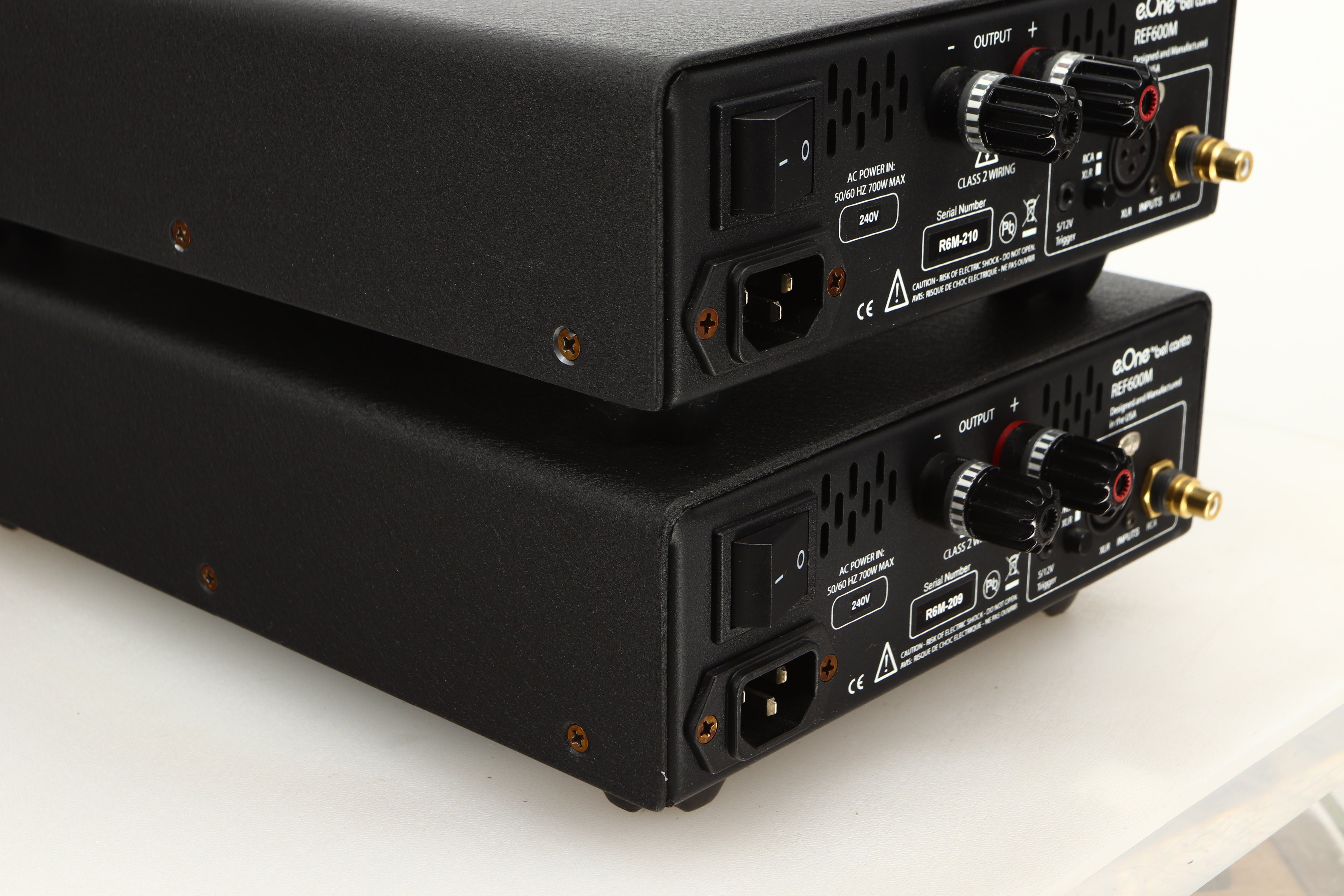

Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 200Kohms
Output connections: 1-set WBT Nextgen 5-way binding posts
Power On usage: 22W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)
Weight: 15 lbs, 7 Kg
