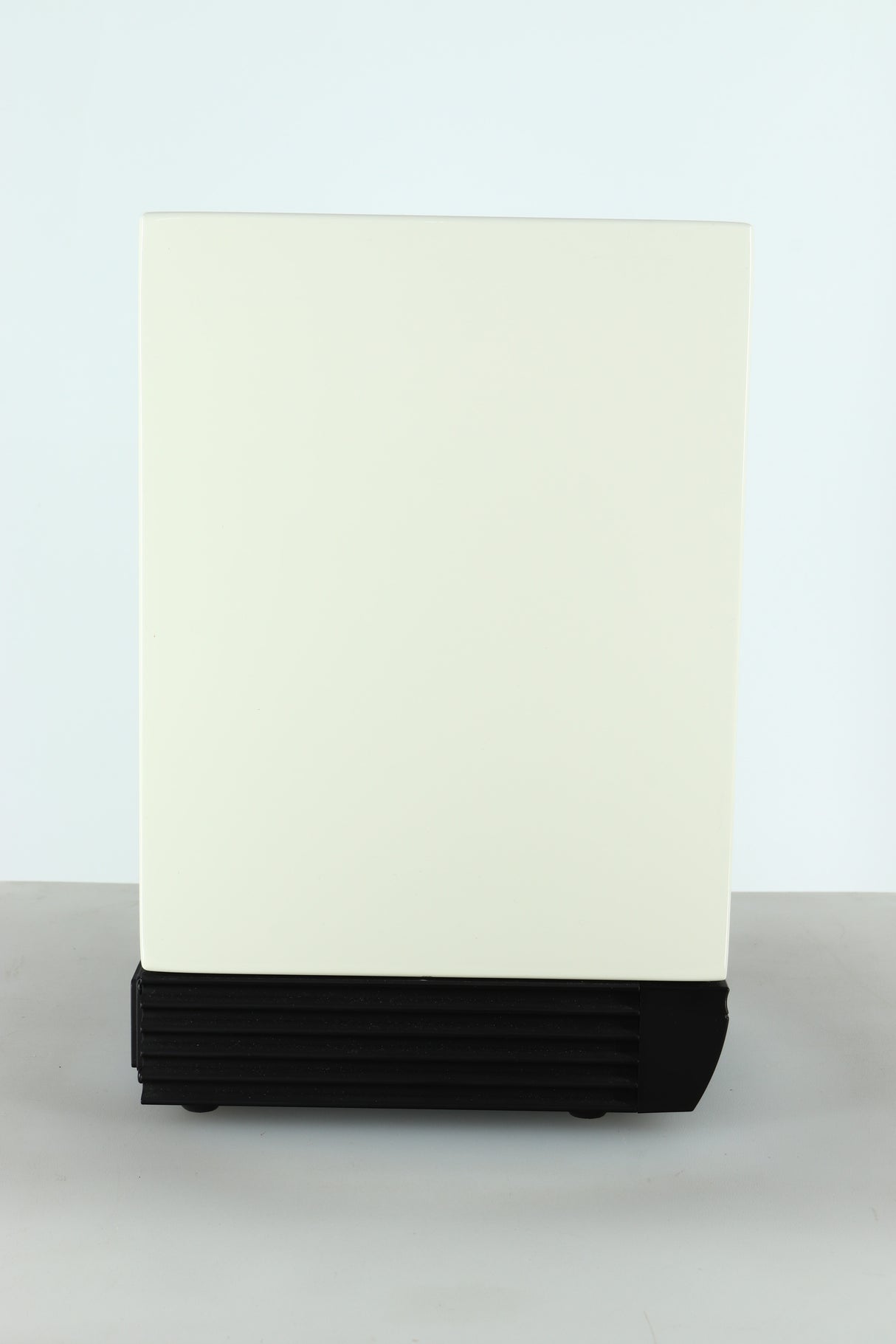

Quad 9AS Active Standmount Speakers - White

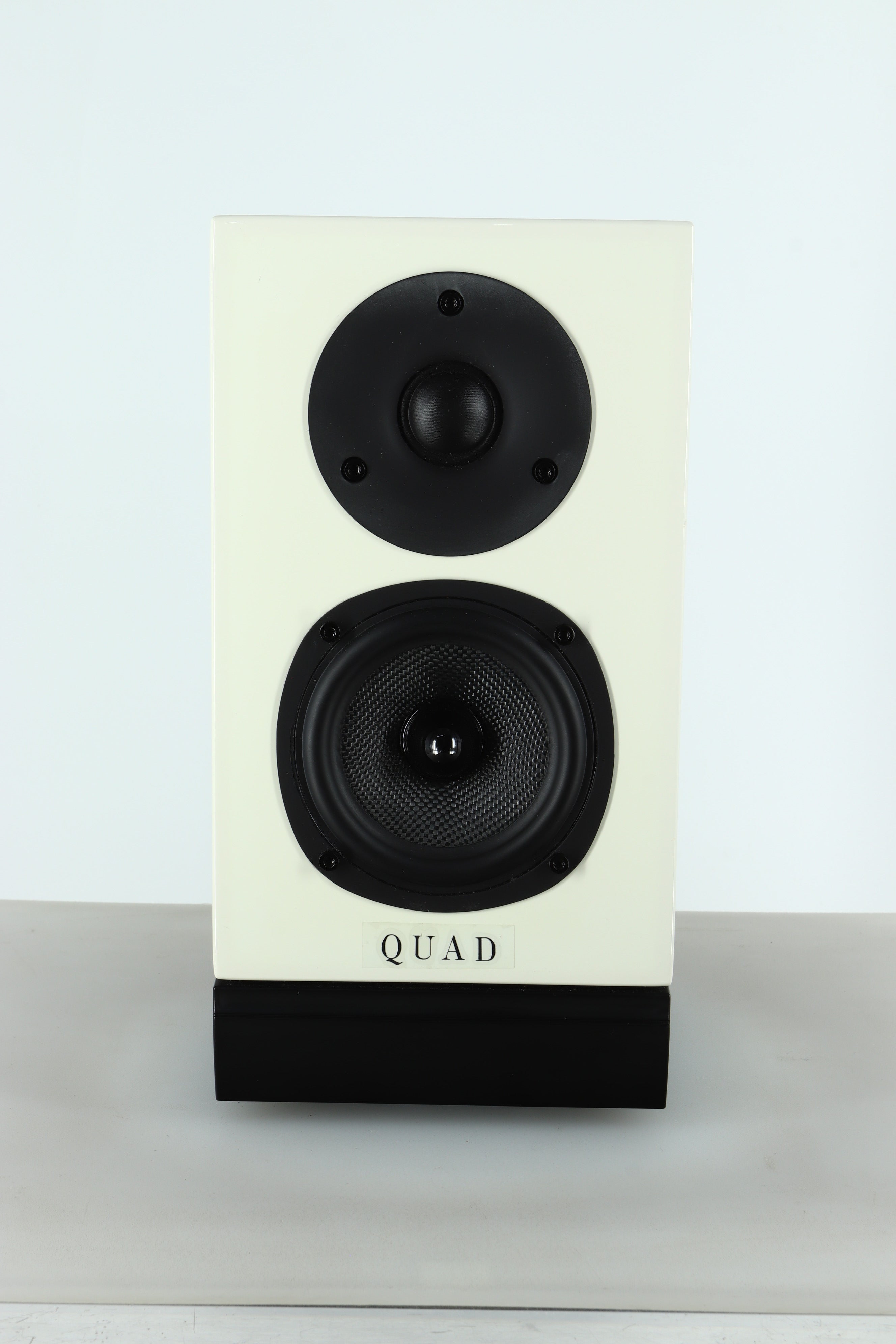

QUAD is proud to introduce the 9AS, based on the mini monitor concept of the deservedly popular Quad 9L. The 9AS is a brand new design featuring a new treble unit with associated waveguide front plate and the classic Quad woven Kevlar bass unit, both driven by low distortion Class AB amplifiers via a sophisticated active crossover.

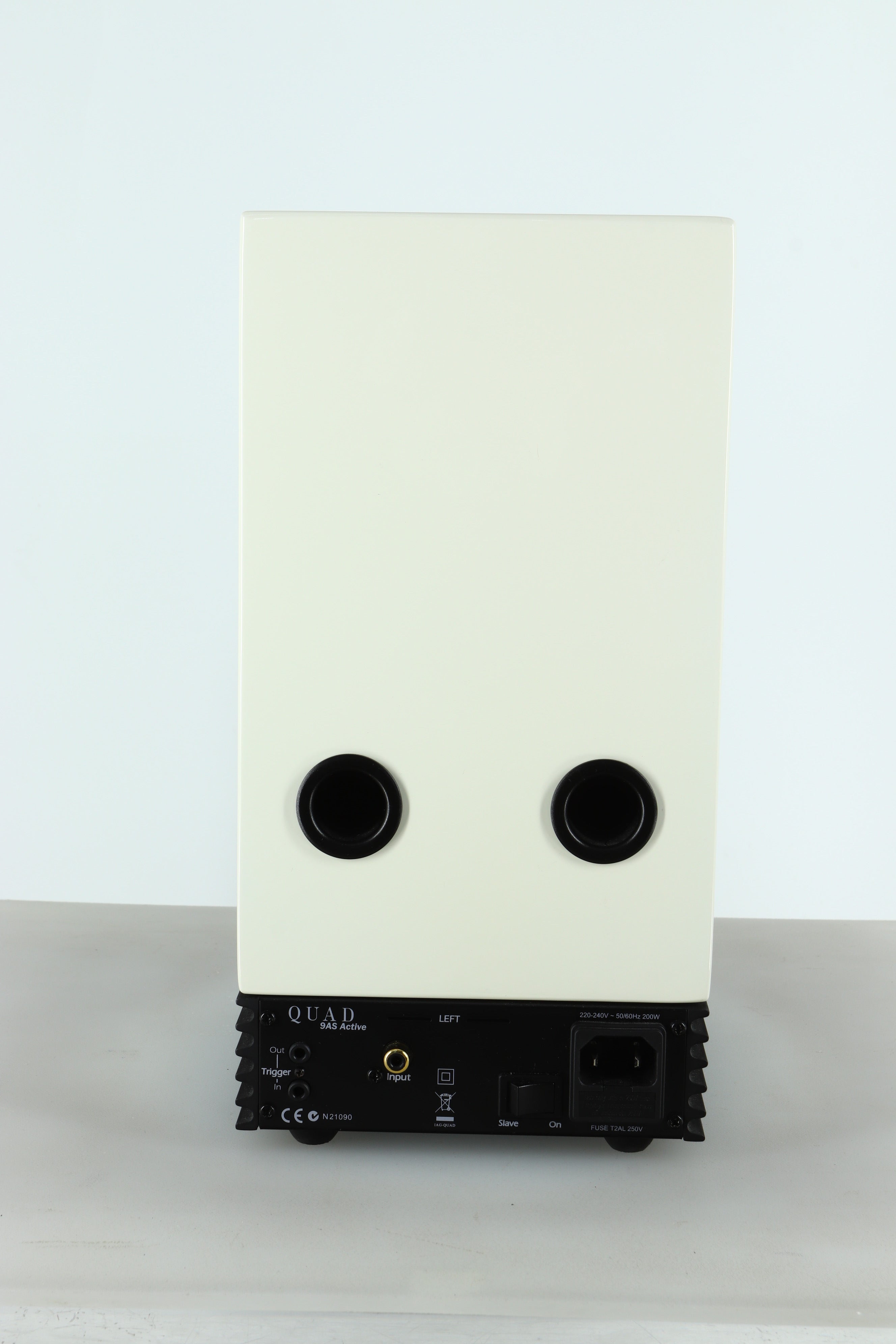

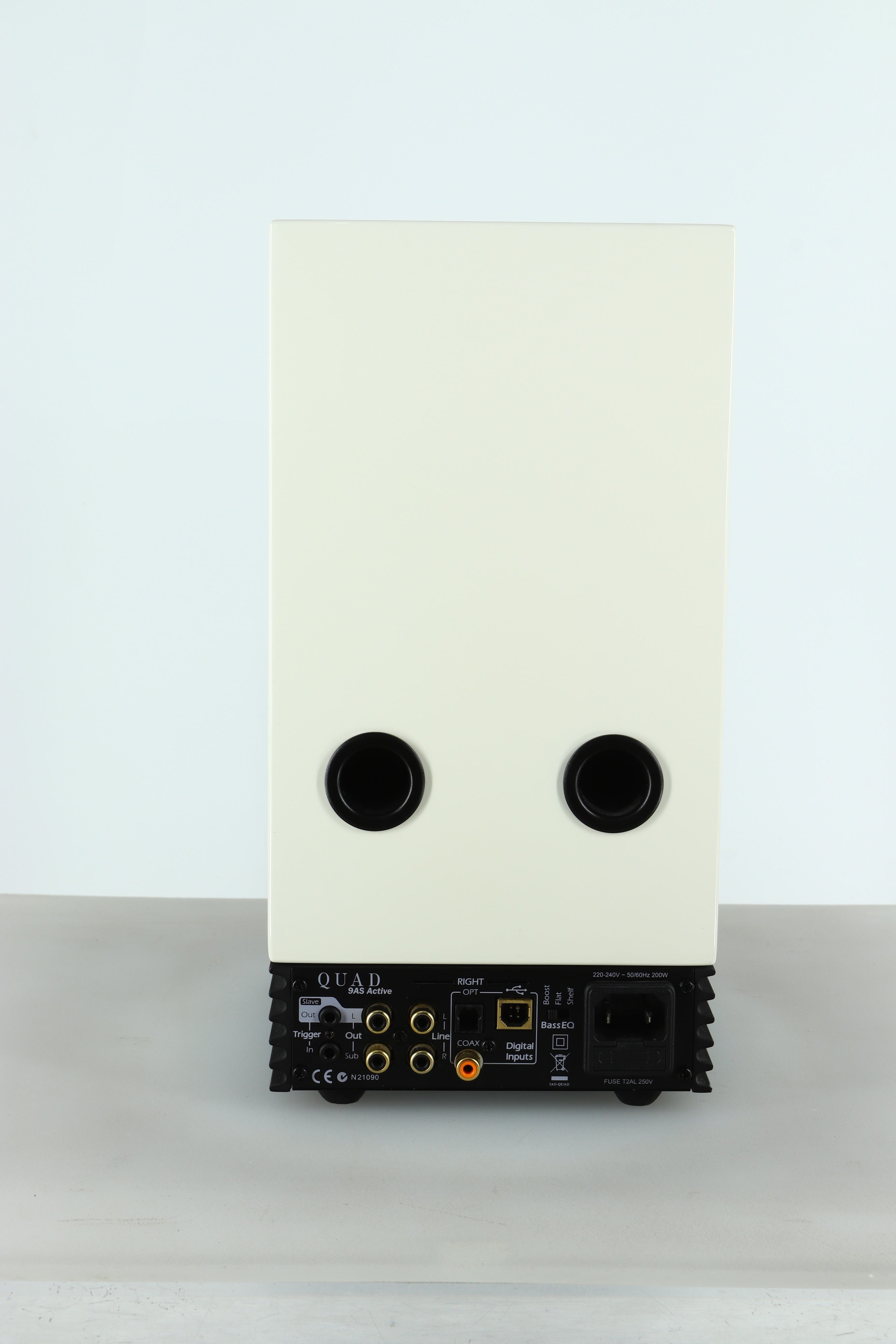

If that was all you might expect the 9AS Active mini monitor to be suitable for near field monitoring in the studio which, of course, it is. But 9AS offers more than just a standard active speaker. Look behind and you'll find inputs for a variety of digital sources making 9AS compatible with CD players, PCs, MacBooks, iPods or Smartphones as well as analogue sources. Switching between these inputs is handled simply by touching the requisite symbol on the front panel.
An ultra-high performance DAC, as found on Quad's Elite CD players, resolves digital inputs with up to 24 bit/192kHz accuracy. USB, Coaxial and Optical digital inputs allow a variety of ways to connect and switch between your digital sources. The 9AS thus becomes a full preamplifier and power amplifier plus loudspeaker combination that can be driven from multiple digital and analogue inputs. There is even a 3.5mm jack socket on the side for quick connection of the headphone output of an iPod or Smartphone. All this controlled by the master speaker, the slave is controlled by a 12V trigger.

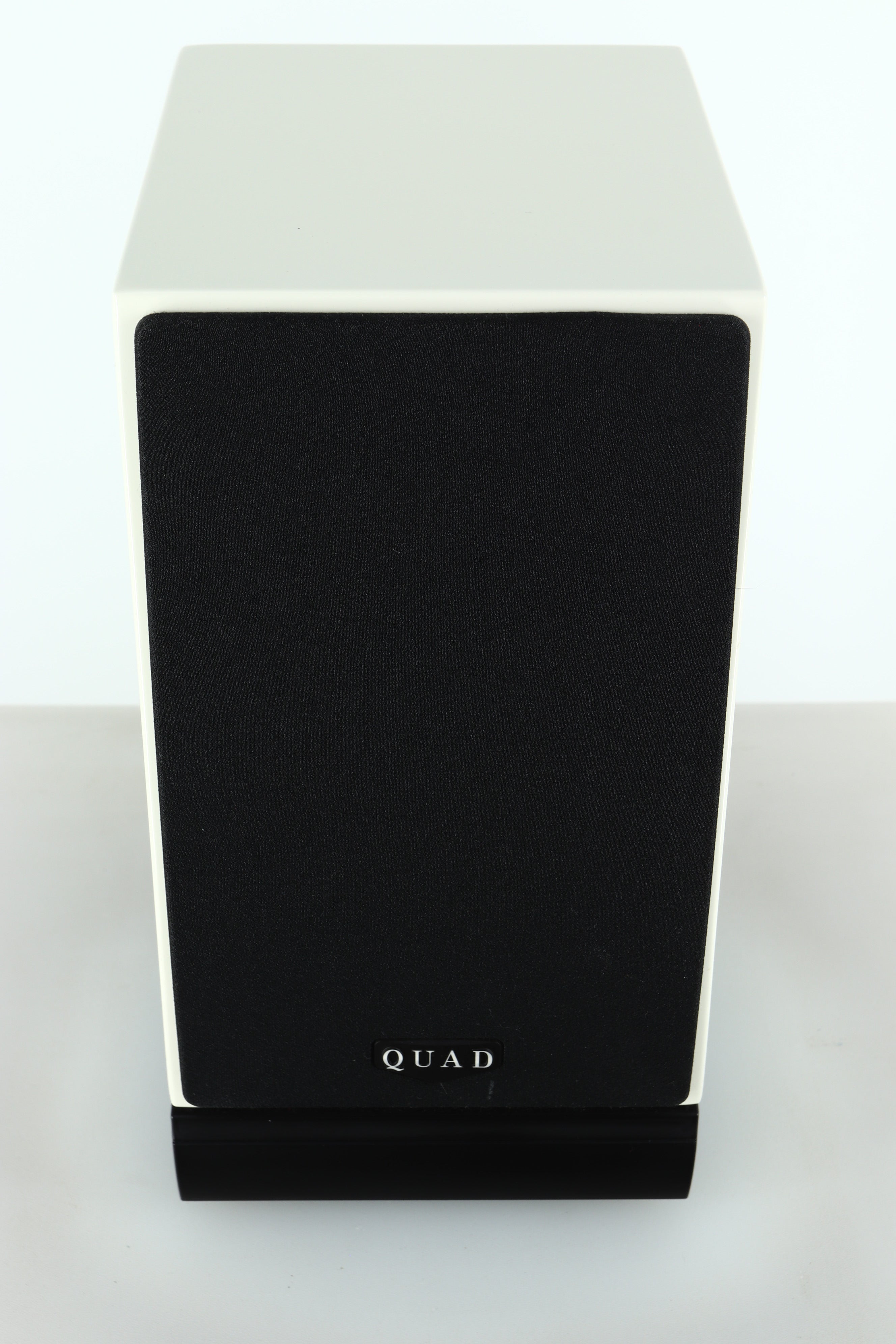

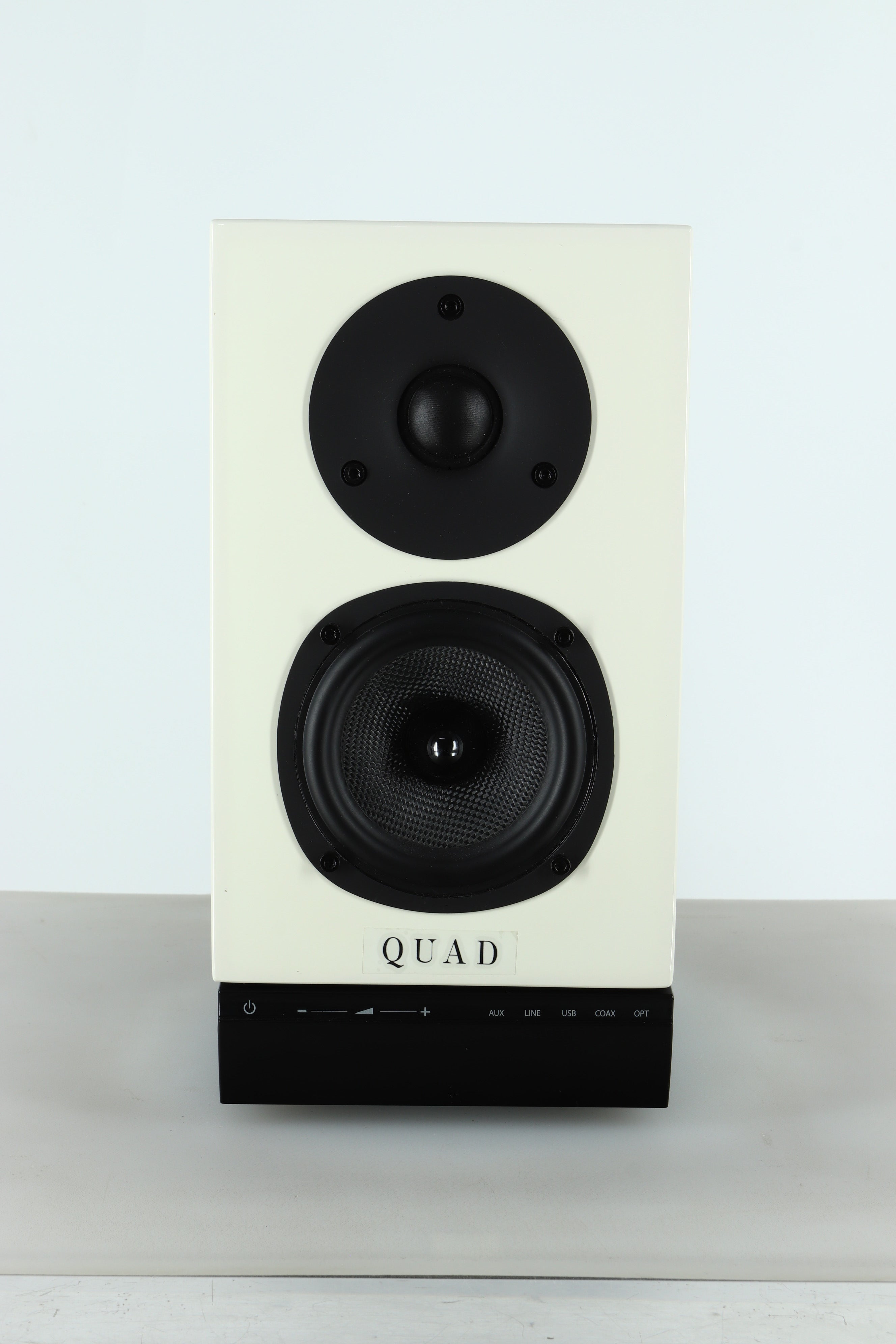

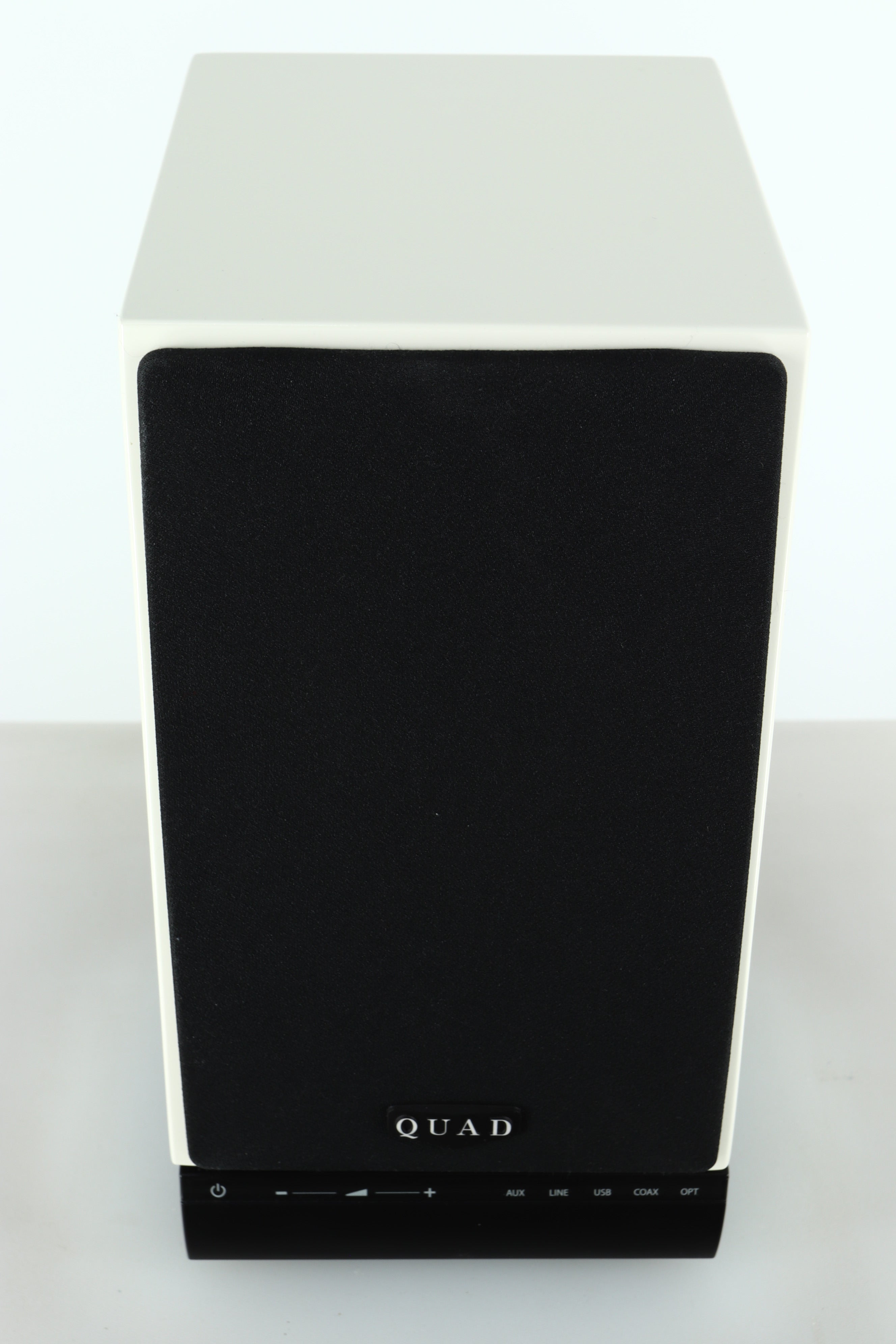

The amplifier can be controlled by discrete touch sensors, with associated indicators, on the front panel just below the magnetic grille. A simple swipe across the volume strip will immediately increase or decrease the volume, or you can touch to set the volume at a particular level.
In common with the versatility of input selection for the 9AS comes versatility of positioning too. A rear panel switch offers bass EQ suitable for free standing, desk mount and wall mounting, providing the perfect balance where ever you wish to use the speakers. In addition an optional foot extension tilts the speakers up if you wish to use them on your computer desk.

General description: 2 Way bookshelf active loudspeaker
Design Philosophy And Core Technology: Digital Input (USB, Optical, Coaxial) Supports sampling frequencies up to 24-bit / 192 kHz; Analogue Input (RCA Line + 3.5 mm AUX In)
Enclosure Type: Bass reflex
Mid/Bass Driver: 100 mm woven Kevlar cone
Treble Driver: 25mm fabric dome
Input Sensitivity: 400 mV
Rated Power Output: 65 W LF + 35 W HF
Peak Power Output: 130 W LF + 70 W HF
Standby Power: 0.5 W
Peak SPL: 110 dB
Frequency Response: 65 Hz - 23 kHz (+/- 3 dB)
Bass Extension: 47 Hz (6 dB)
Crossover Frequency: 2.5 kHz
Cabinet Volume: 4.3 litres
Dimensions: 302 (H) x 152 (W) x 215 (D)
Weight: 9.4 kg
