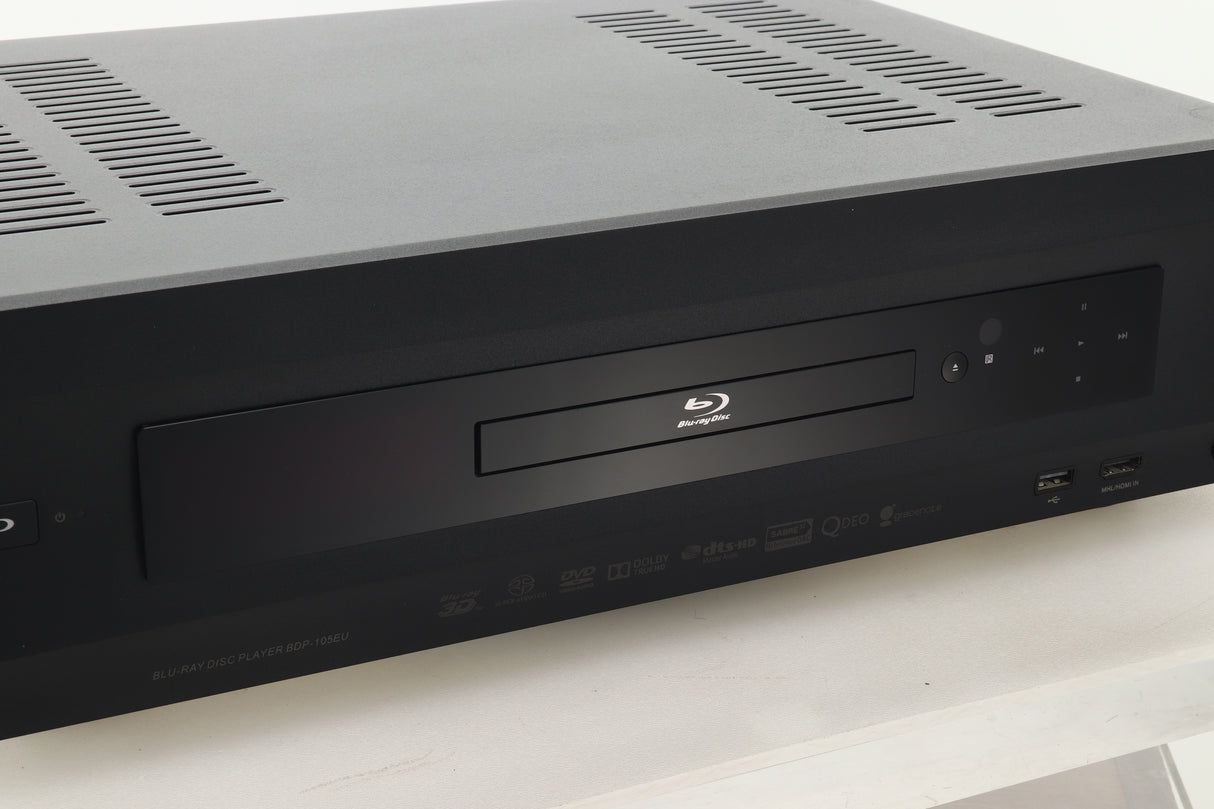

Oppo BDP-105EU Universal Player

The Oppo BDP-105EU is designed from the ground up with components optimised for enhanced analogue audio performance. The BDP-105EU features an all-new analogue audio stage powered by two ESS Sabre32 Reference Digital-to-Analogue Converters (DAC), balanced (XLR) & unbalanced (RCA) dedicated stereo outputs, a Toroidal linear power supply, and asynchronous USB DAC input. These high-grade components are housed in a rigidly constructed metal chassis and work together to deliver exceptionally detailed and accurate audio quality, along with reference quality video.
The DAC is one of the most important components for digital audio playback. The SABRE32 Reference ES9018 from ESS Technology is the world’s best performing 32-bit audio DAC solution targeted for high-end consumer applications and professional studio equipment. With the ESS patented 32-bit Hyperstream™ DAC architecture and Time Domain Jitter Eliminator, the SABRE32 Reference DAC delivers an unprecedented DNR (Dynamic Range) of up to 135dB and THD+N (Total Harmonic Distortion plus Noise) of -120dB, the industry’s highest performance level that will satisfy even the most demanding audio enthusiast. The BDP-105EU uses two ES9018 DAC chips - one for the 7.1-channel output, and another for the dedicated stereo output.

Features:

4k Video Up-scaling - Enhance the home theatre experience with four times the resolution of Full HD 1080p by up-scaling all video sources to 4K (3840 x 2160) output resolution (4K capable display required).
2D to 3D video conversion Take your standard DVD, Blu-ray, and other video content to the next dimension by converting them into 3D with the simple press of a button. The BDP-105EU can also adjust the depth and eye convergence levels to suit your personal preference (3D display required).
Dual HDMI inputs allow external devices to take advantage of BDP-105EU video processing - Connect external devices such as set-top boxes and network streaming devices to take further advantage of the excellent audio and video processing functions by the BDP-105EU. The BDP-105EU offers two HDMI inputs, one on the front and one on the back, and the front HDMI input doubles as an MHL input.
Coaxial and Optical digital inputs - For additional convenience and flexibility, the BDP-105EU can convert digital signals from cable and satellite boxes, televisions, video-game consoles and other digital transports with coaxial and optical digital outputs to analogue.
Asynchronous USB DAC input - By bypassing the low fidelity, poor quality DAC of traditional computer sound cards, the BDP-105EU turns any computer into a high performing multi-media source by converting digital audio to analogue through the ESS Sabre32 Reference DAC. If your computer can play it, the BDP-105EU can convert it to analogue.

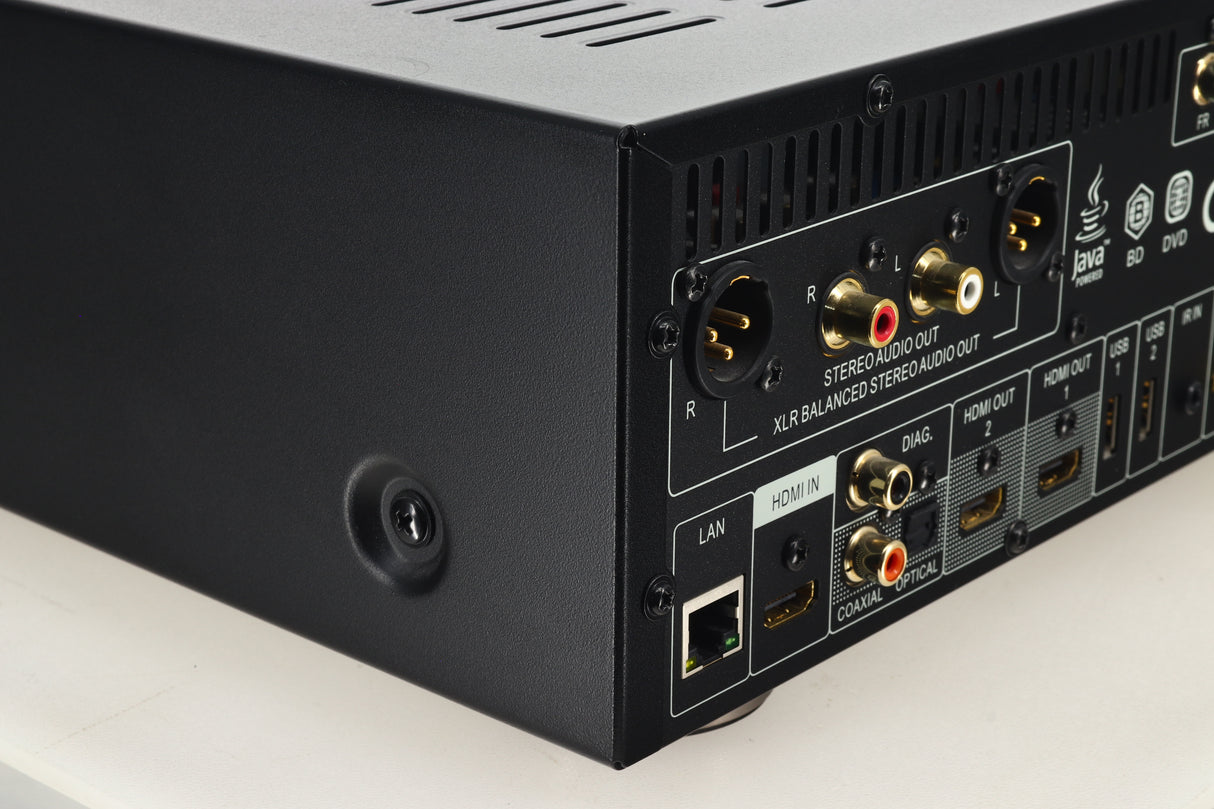

Dedicated Stereo Output with XLR Balanced Connectors - The BDP-105EU features a dedicated 2-channel analogue output with specially optimised ES9018 DAC and output driving stages. The stereo output offers both XLR balanced and RCA single-ended connectors. The balanced output features a true differential signal path all the way from the DAC to the 3-pin XLR connector. By transmitting a pair of differential signals, the balanced output provides better common-mode noise rejection and improves signal quality.
Individual analogue 7.1-channel surround outputs are ideal for connecting to a 7.1-channel or 5.1-channel surround sound system.
Dolby® TrueHD - Dolby TrueHD delivers lossless studio master quality audio designed specifically for high definition entertainment.
DTS-HD Master Audio™ - DTS-HD Master Audio delivers an auditory experience that matches the lifelike images of high-definition video with up to 7.1 channels that are bit-for-bit identical to the studio master. The BDP-105EU supports bit-stream output of DTS-HD Master Audio. It can also internally decode DTS-HD Master Audio and output via HDMI or the 7.1ch analogue audio output terminals. (DTS-HD High Resolution Audio and DTS Digital Surround are also supported.)

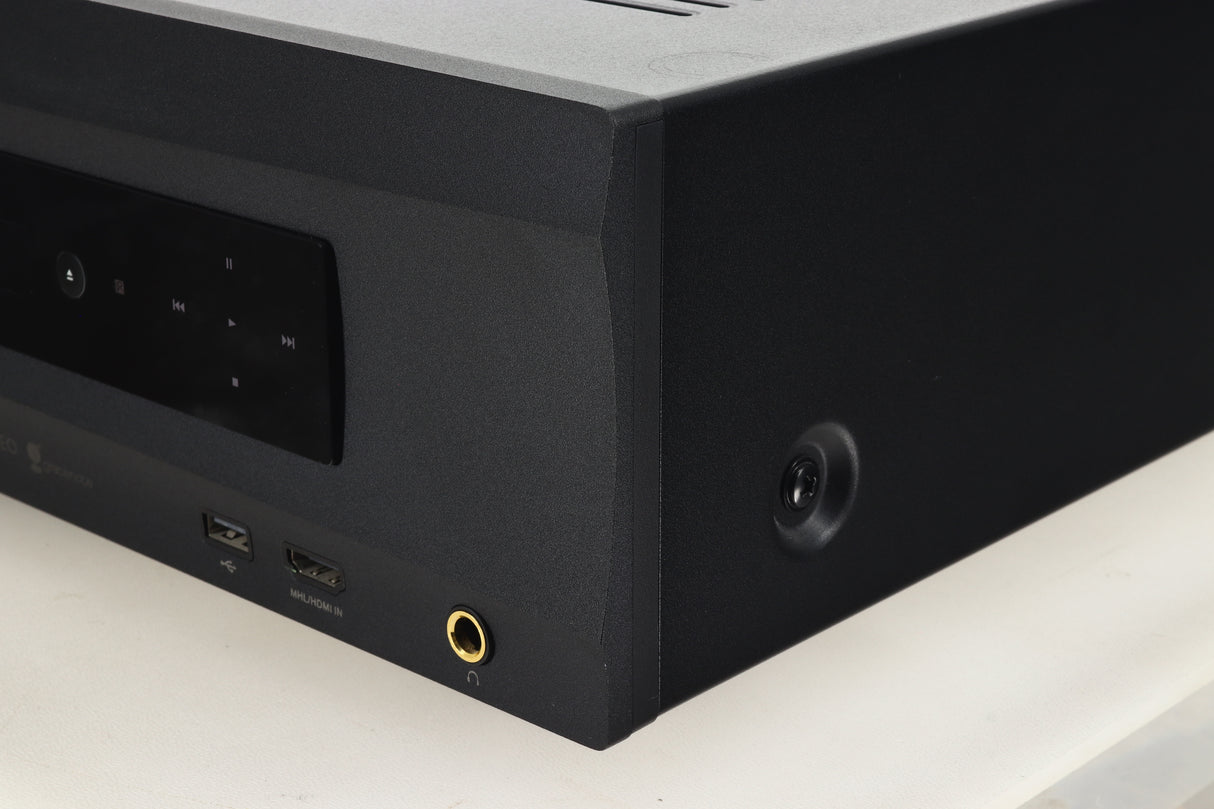

Headphone Amplifier - For a more intimate listening experience, a pair of headphones can be connected directly to the BDP-105EU’s built-in headphone amplifiers. The headphone amplifier is connected directly to one of the dual ESS Sabre32 Reference DAC's and offers a unique performance advantage over standalone headphone amplifiers.

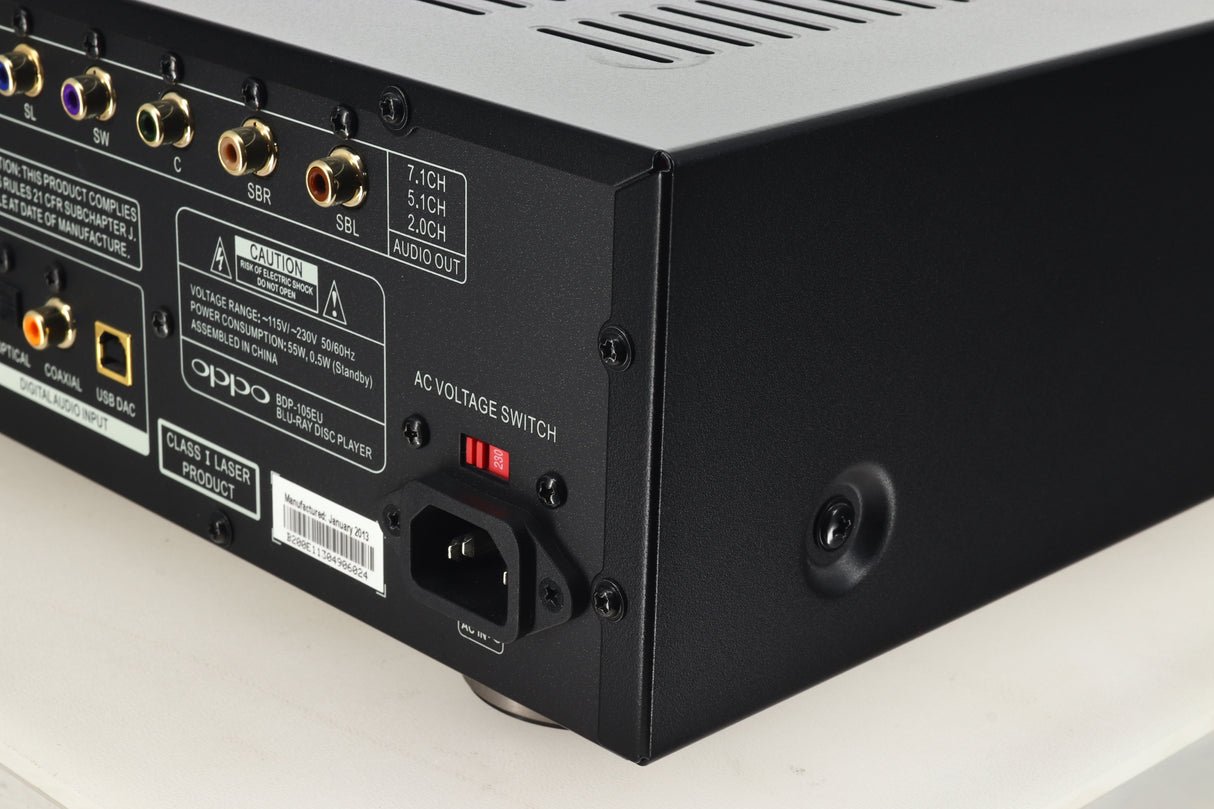

Toroidal Power Supply - A toroidal power transformer offers superior power efficiency and much lower exterior magnetic fields over traditional laminated steel core transformers. The BDP-105EU’s toroidal linear power supply provides a very clean and robust power source to the critical audio components.

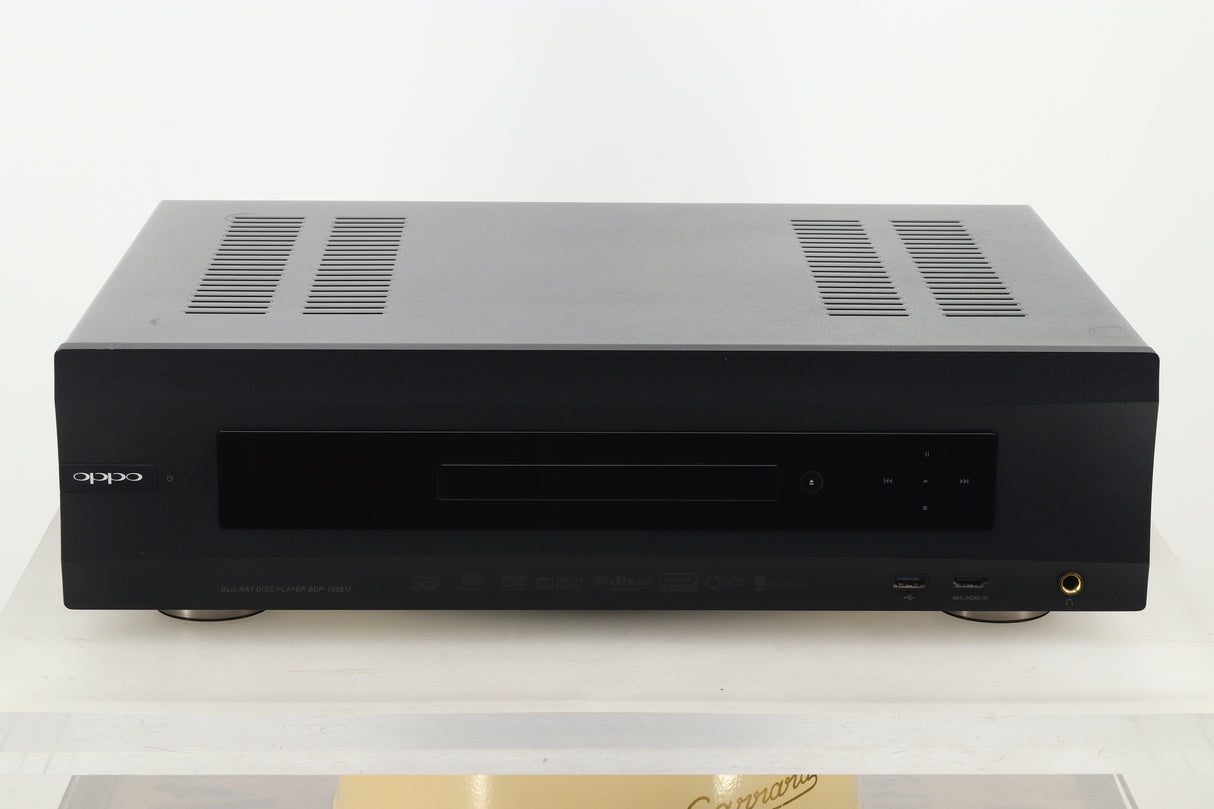

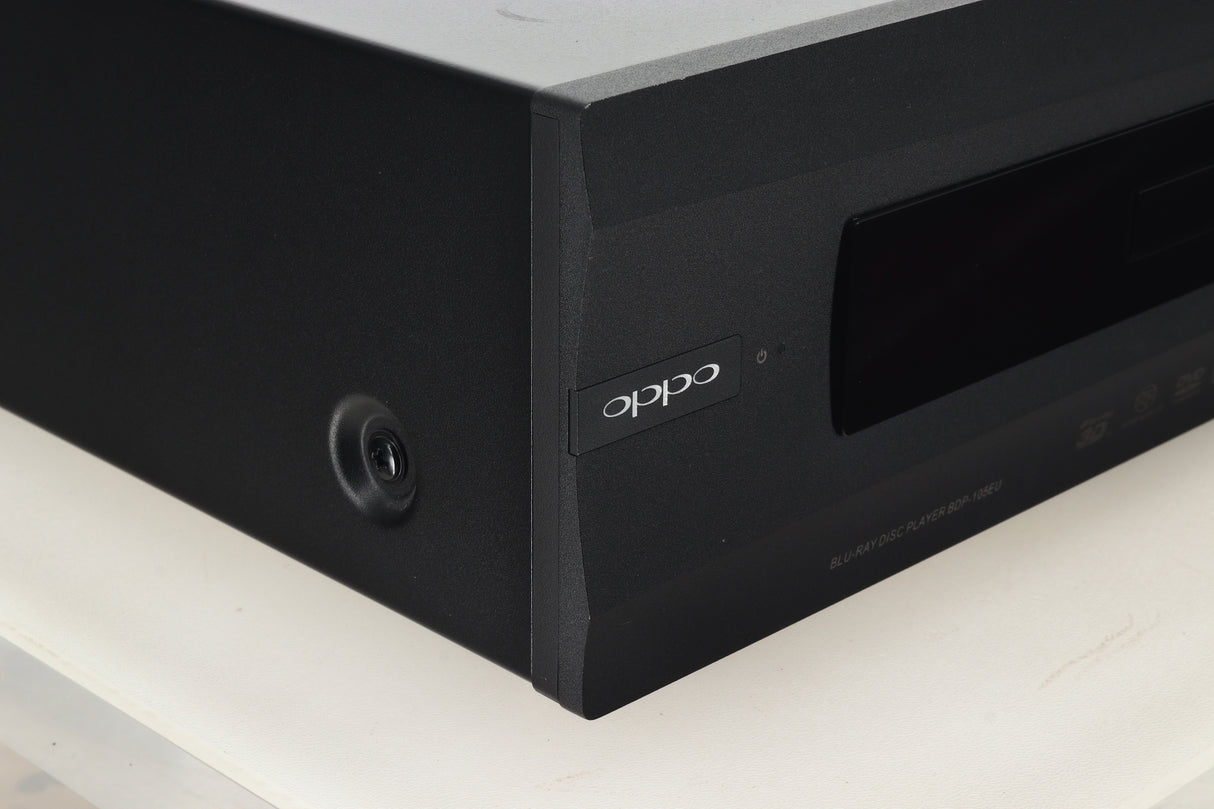

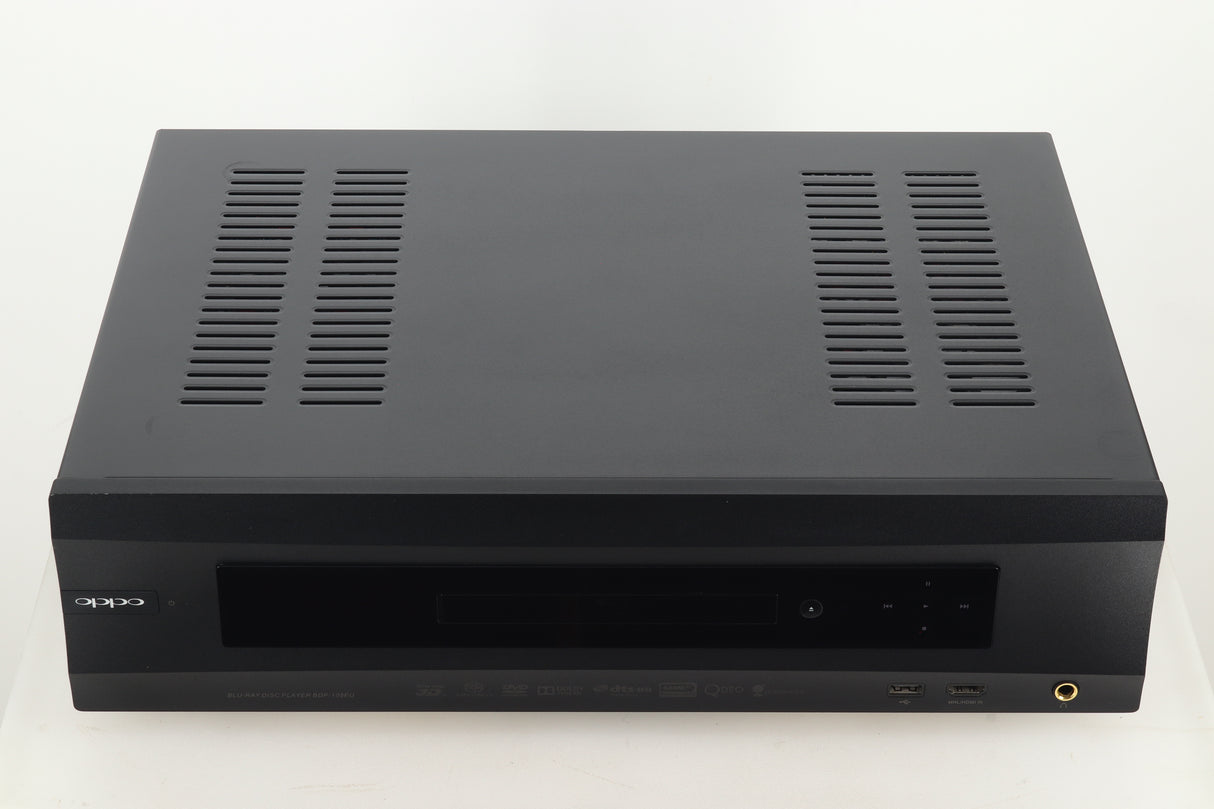

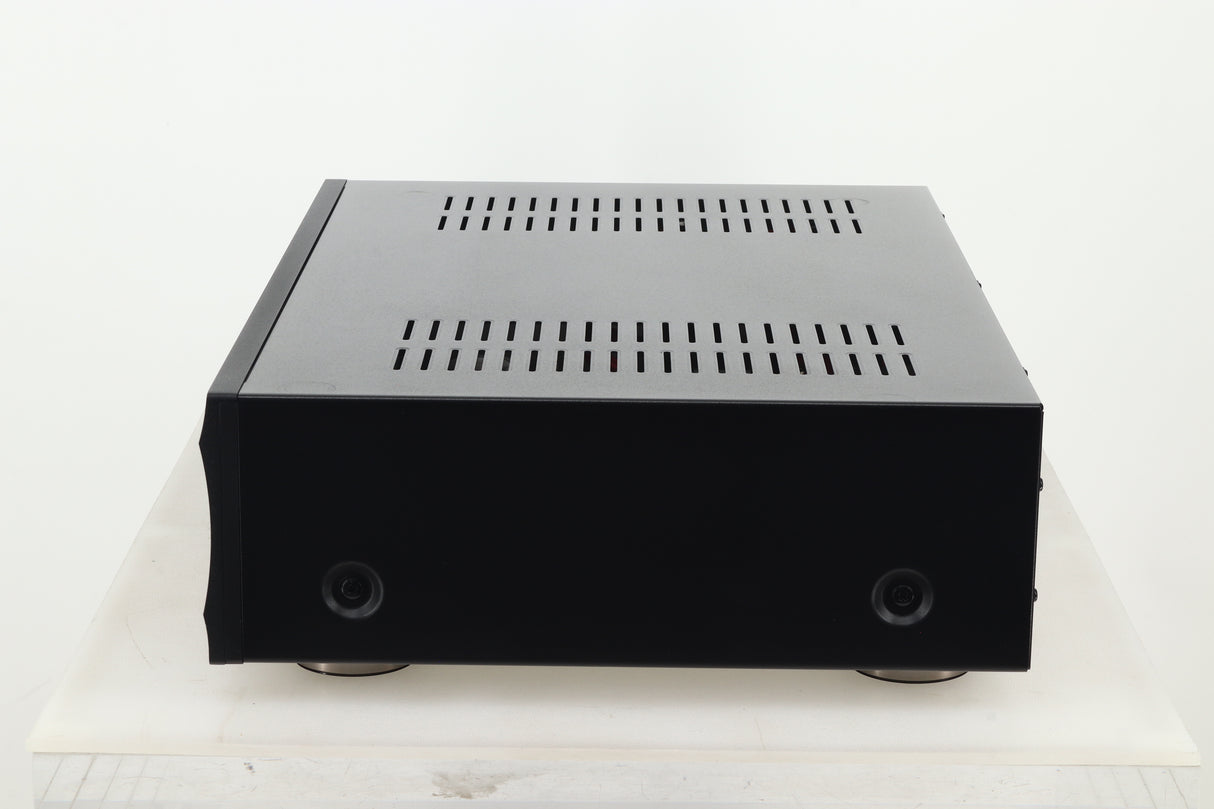

Rigid Chassis Construction - Built around a steel chassis, aluminium faceplate, and centre-mounted disc loader, the BDP-105EU is designed to impress as well as to provide a stable base for the highest quality reproduction of your favourite media.
Diversified Media Support
Blu-ray Disc - The high definition Blu-ray Disc™ format provides pristine video and audio quality for your home entertainment.
Blu-ray 3D - Experience high definition in all new dimensions. The BDP-105EU supports the Blu-ray 3D specifications and is fully compatible with Blu-ray 3D discs (3D capable display required).
SACD - The BDP-105EU plays Super Audio CD (SACD) and supports both stereo and multi-channel high resolution audio programs. Users can select whether to output the DSD (Direct Stream Digital) signal in its native format or convert it to PCM.
DVD-Audio - The BDP-105EU plays DVD-Audio and supports both stereo and multi-channel high resolution audio programs. Users can select whether to play the DVD-Audio or the DVD-Video portion of the disc.

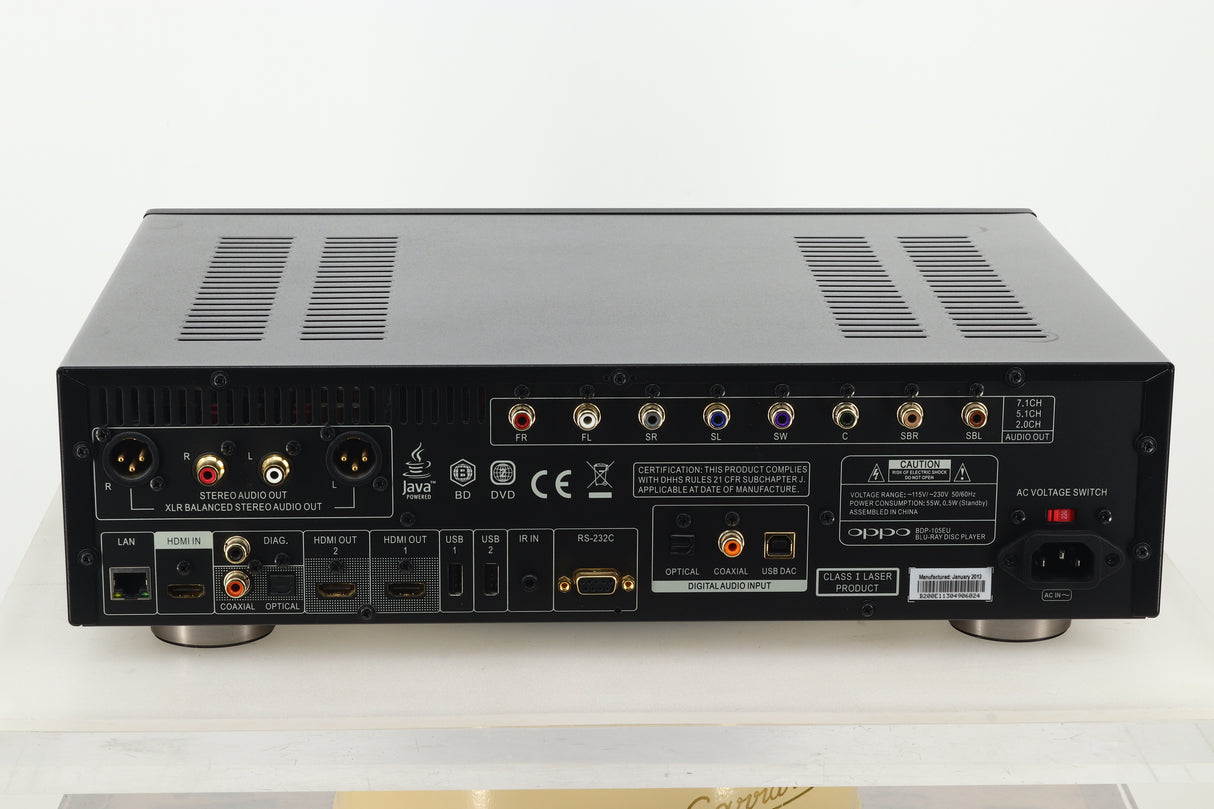

Output:
Analogue Audio: 7.1 ch, 5.1 ch, stereo
Dedicated Stereo Analogue Audio: XLR balanced, RCA single-ended
Coaxial/Optical Audio: Dolby Digital, DTS, up to 2 ch/192 kHz PCM
HDMI Audio: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution, DTS-HD Master Audio, up to 7.1 ch/192 kHz PCM, up to 5.1 ch DSD
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/4Kx2K, 3D frame-packing 720p/1080p24
Input
HDMI Audio: Dolby Digital, Dolby Digital Plus, DTS, AAC, up to 5.1 ch/192 kHz or 7.1 ch/96 kHz PCM
HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/1080p25/1080p30, 3D frame-packing 720p/1080p24
MHL Audio: Dolby Digital, Dolby Digital Plus, DTS, up to 5.1 ch/192 kHz PCM
MHL Video: 480i/480p/576i/576p/720p/1080i/1080p24/1080p25/1080p30, 3D frame-packing 720p/1080p24
USB Audio: up to 2 ch/192 kHz PCM
Coaxial/Optical Audio: Dolby Digital, DTS, AAC, up to 2 ch/96 kHz PCM
Analogue Audio Characteristics
Frequency Response: (RCA) 20 Hz - 20 kHz: ± 0.2 dB, 20 Hz - 96 kHz: - 1.5 dB. (XLR) 20 Hz - 20 kHz: ± 0.3 dB, 20 Hz 96 kHz: -1.5 dB
Signal-to-Noise Ratio: > 130 dB (A-weighted, auto-mute), > 115 dB (A-weighted, no auto-mute)
Total Harmonic Distortion + Noise: < 0.0003% or - 110 dB (1 kHz at 48 k/24-b, 0 dB FS, 20 kHz LPF), < 0.0017% or - 96 dB (1 kHz at 44.1 k/16-b, 0 dB FS, 20 kHz LPF)
Output Level: 2.1 Vrms (RCA) or 4.2 Vrms (XLR) at 0 dB FS
Dynamic Range: > 110 dB V
Channel Separation: > 110 dB
Headphone Audio Characteristics
Frequency Response: 20 Hz - 20 kHz: ± 0.3 dB into 300 Ohm
Signal-to-Noise Ratio: > 98 dB into 300 Ohm (A-weighted, no auto-mute)
Total Harmonic Distortion + Noise: < 0.001% or - 100 dB into 300 Ohm (1 kHz at 48 k/24-b, 0 dB FS, 20 kHz LPF)
Output power: 12 mW into 600 Ohm, 23 mW into 300 Ohm, 44 mW into 150 Ohm, 53 mW into 120 Ohm, 91 mW into 60 Ohm, 137 mW into 32 Ohm (1 kHz at 48 k/24-b, 0 dB FS, 20 kHz LPF, one channel)
Dynamic Range: > 110 dB
Channel separation: > 90 dB
General Specification
Power Supply: AC ~ 240 V, 50/60 Hz
Power Consumption: 55 W (Standby: 0.5 W in Energy Efficient Mode)
Dimensions: 430 (W) x 311 (D) x 123 (H) mm
Weight: 7.9 kg
