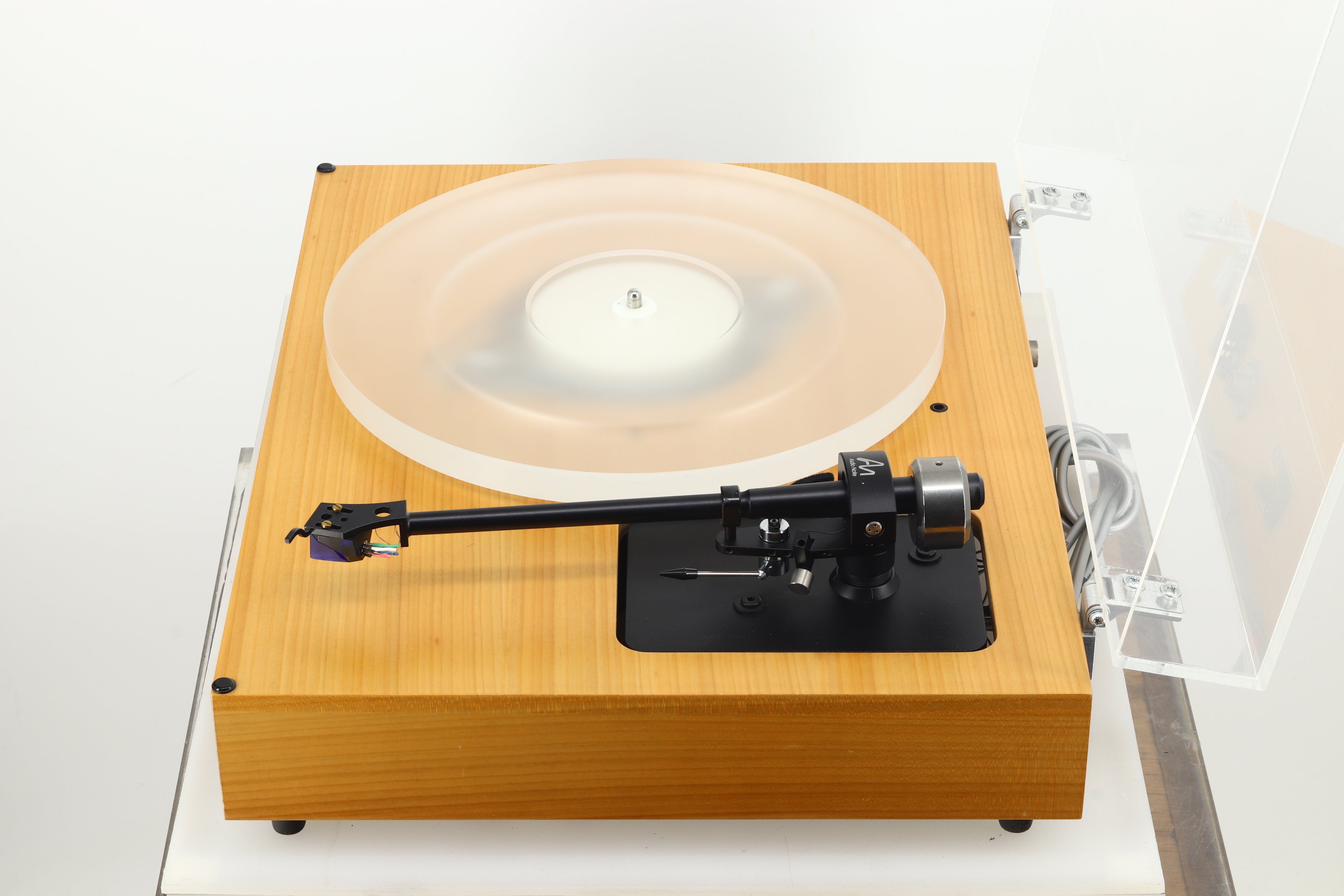

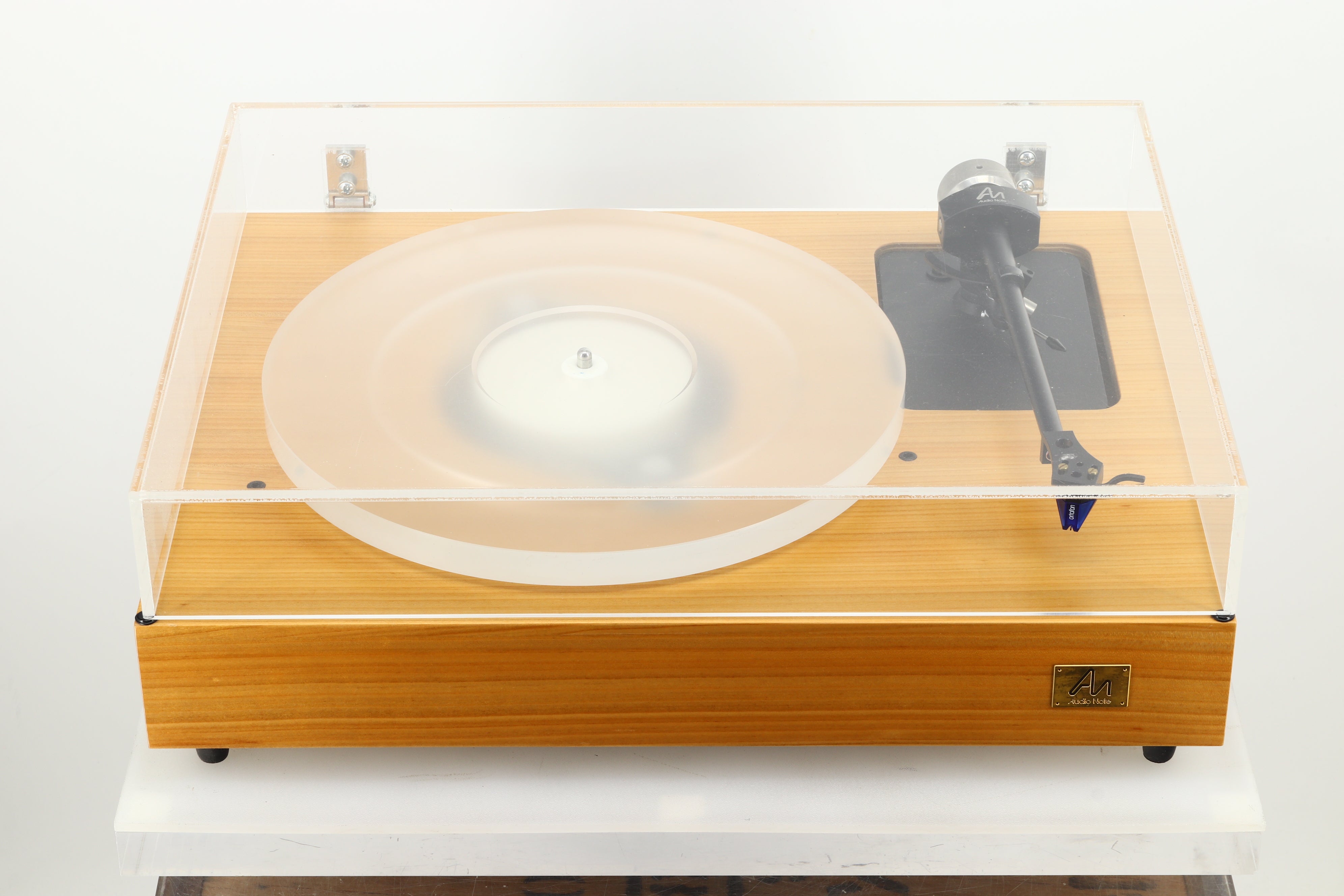

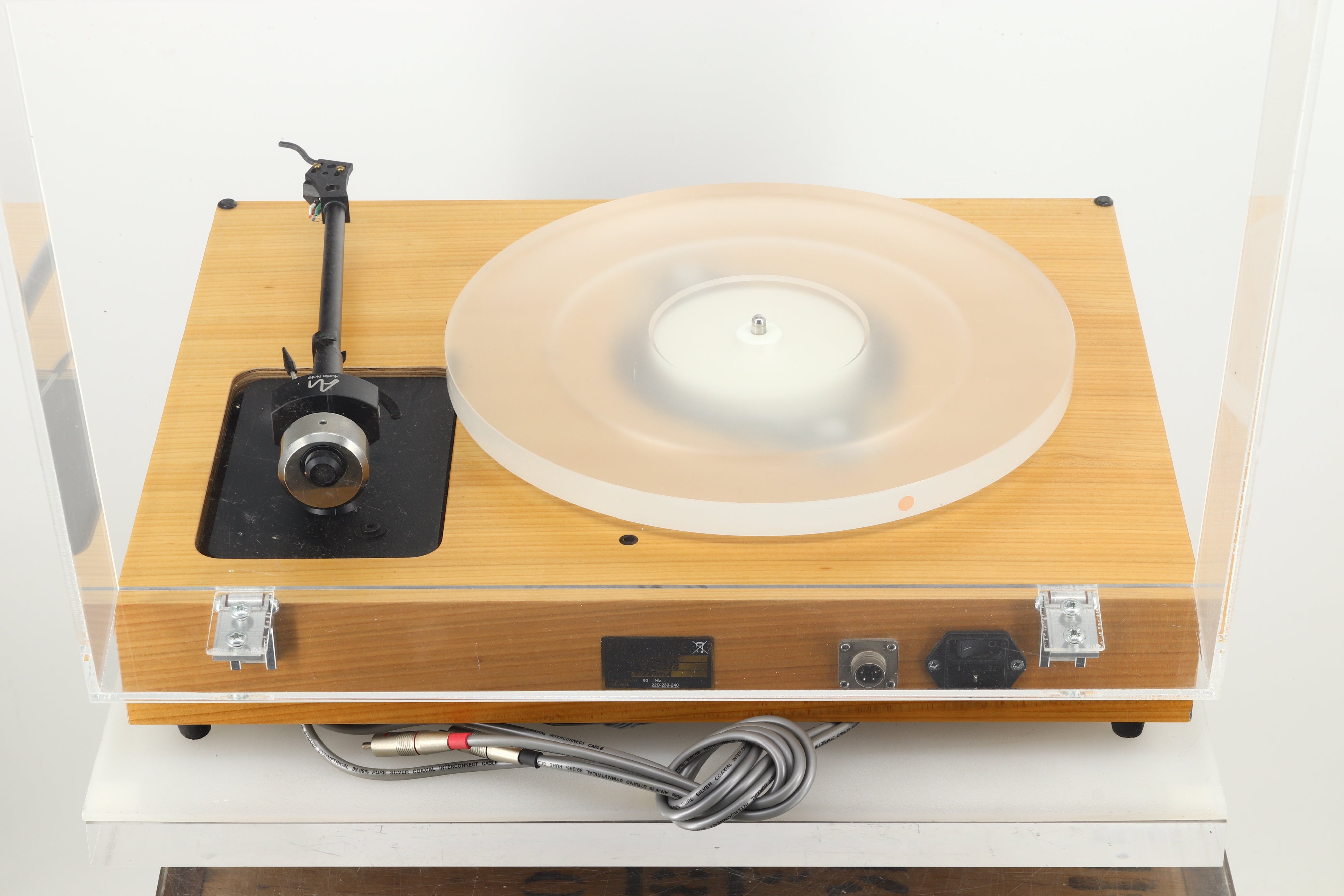

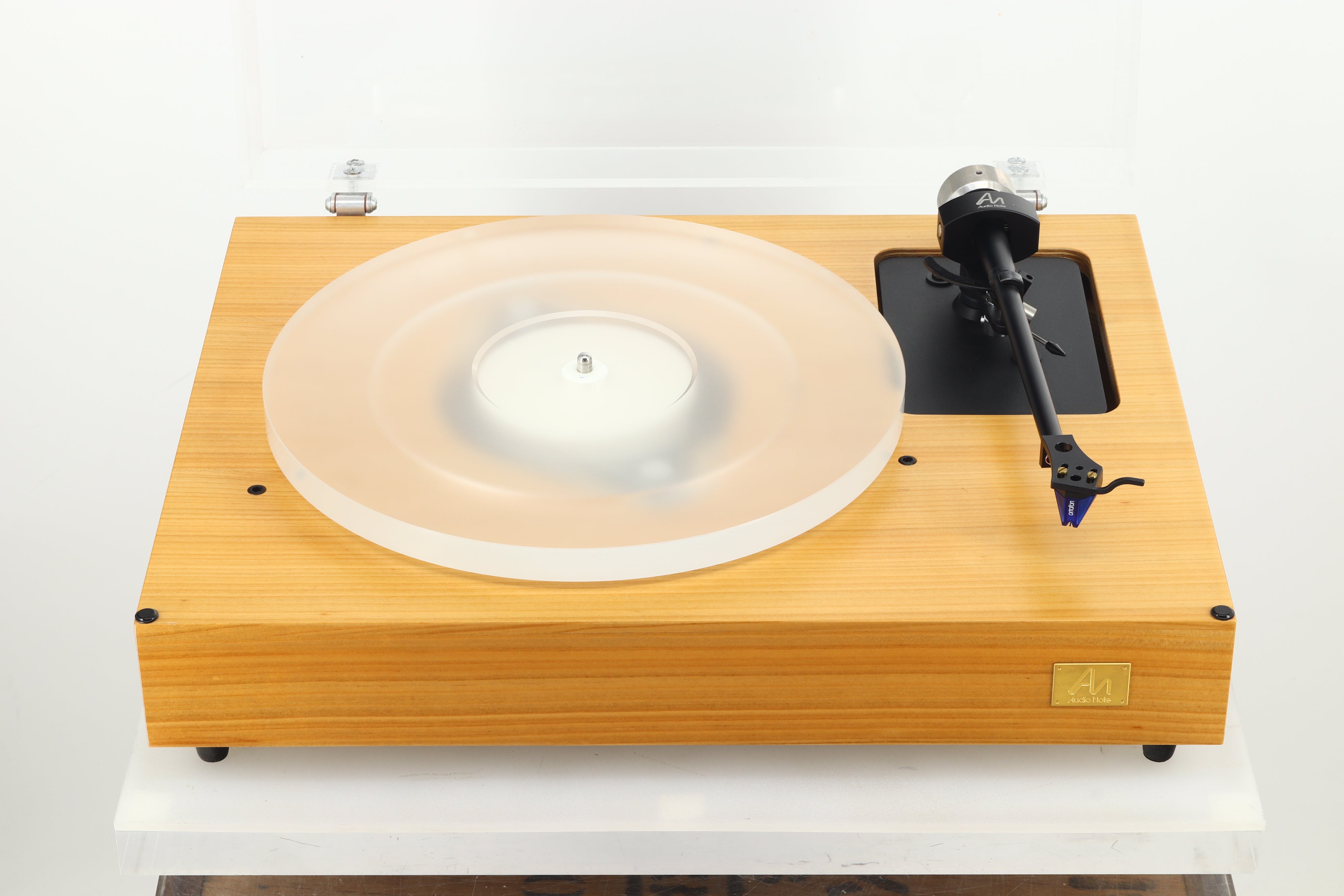

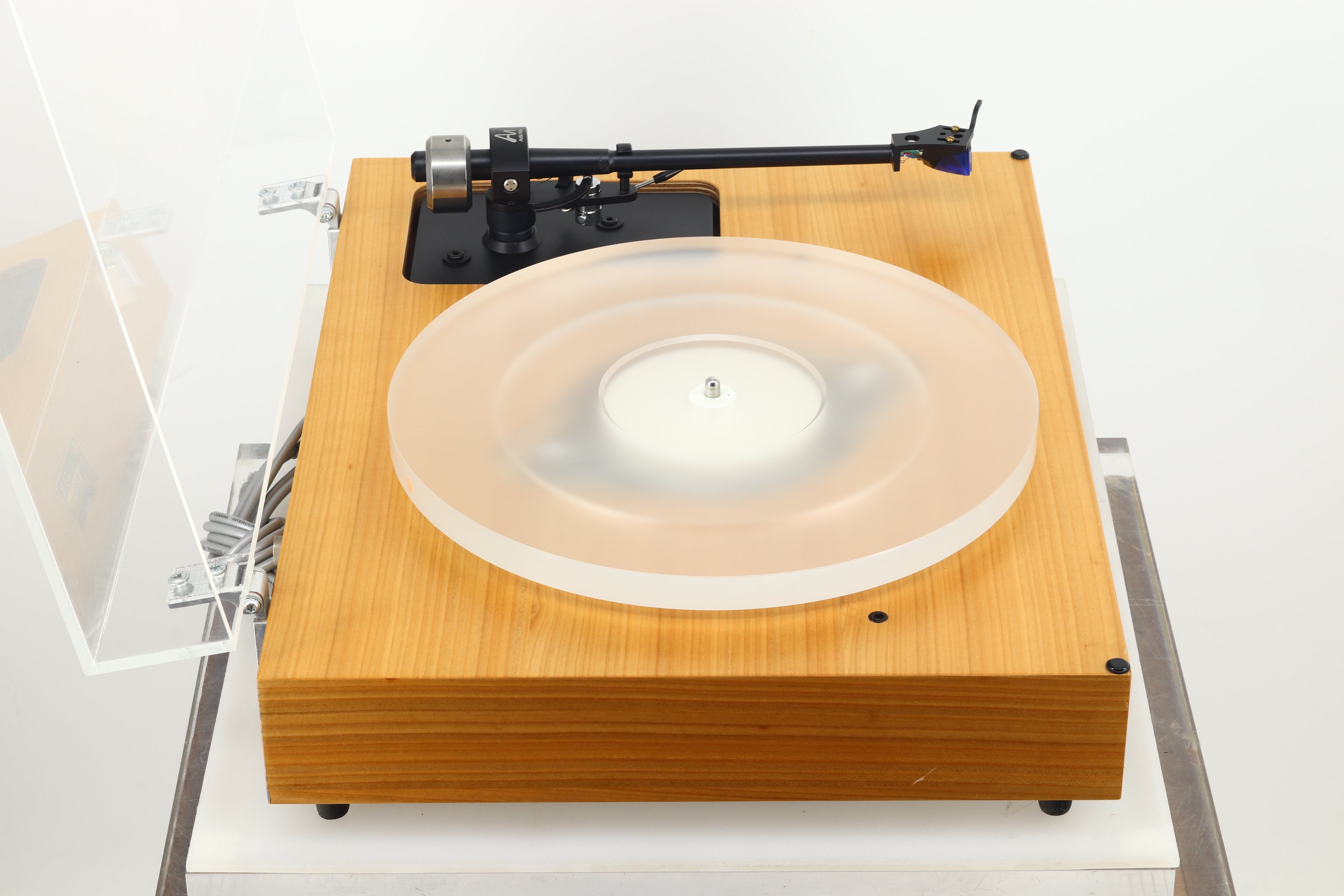

Audionote TT2 Turntable / Arm 3 Tonearm / Ortofon 2M Blue Cartridge

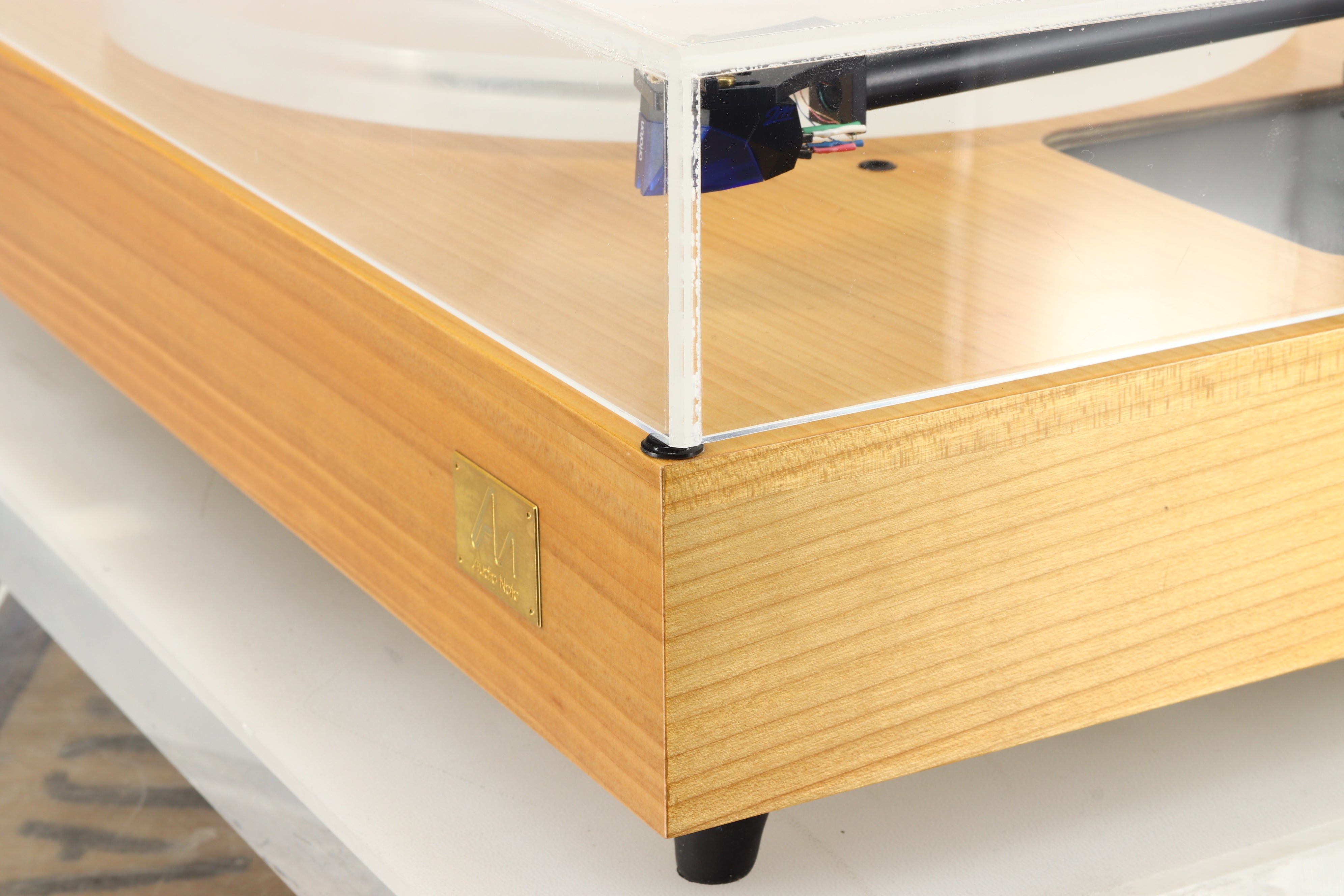

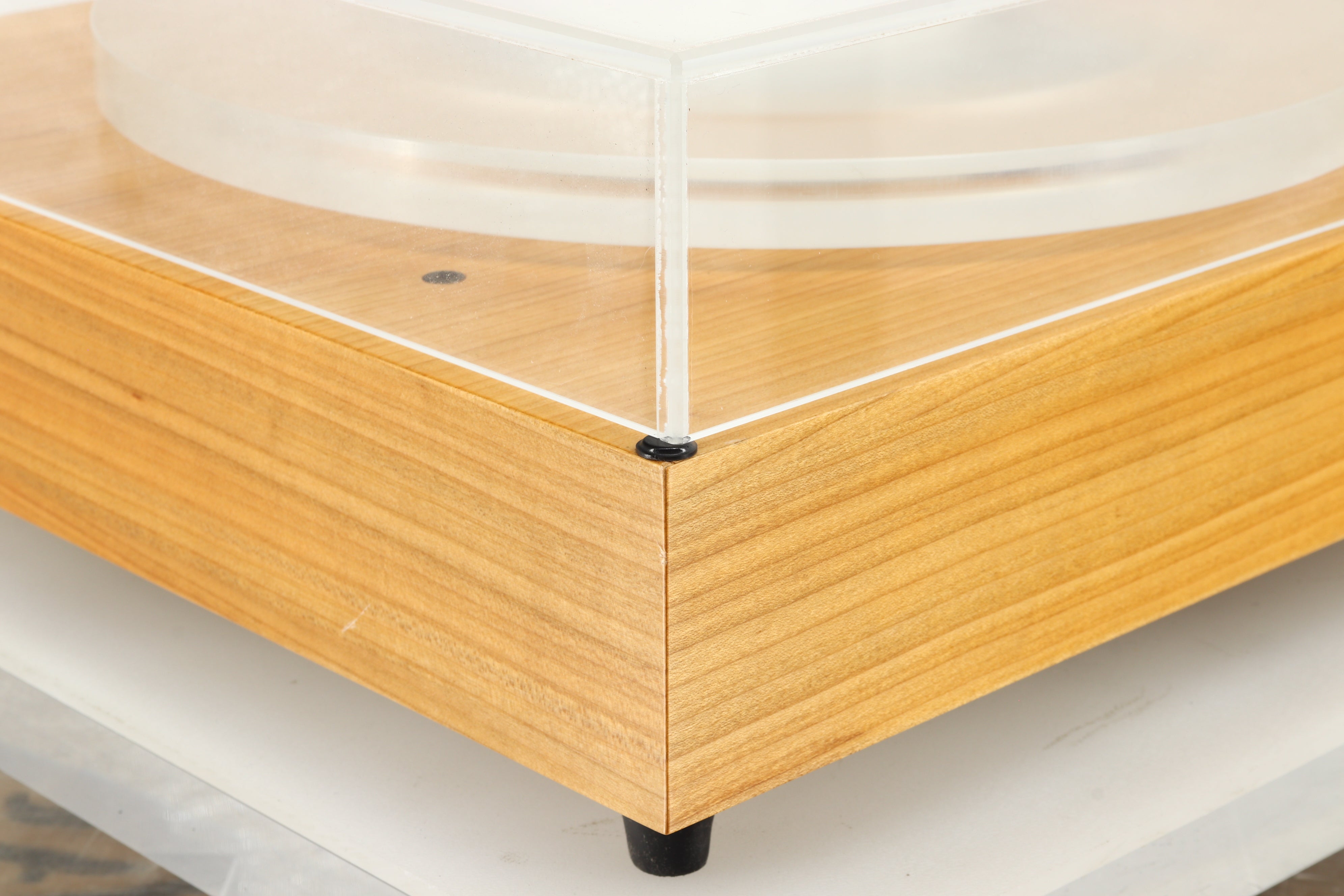

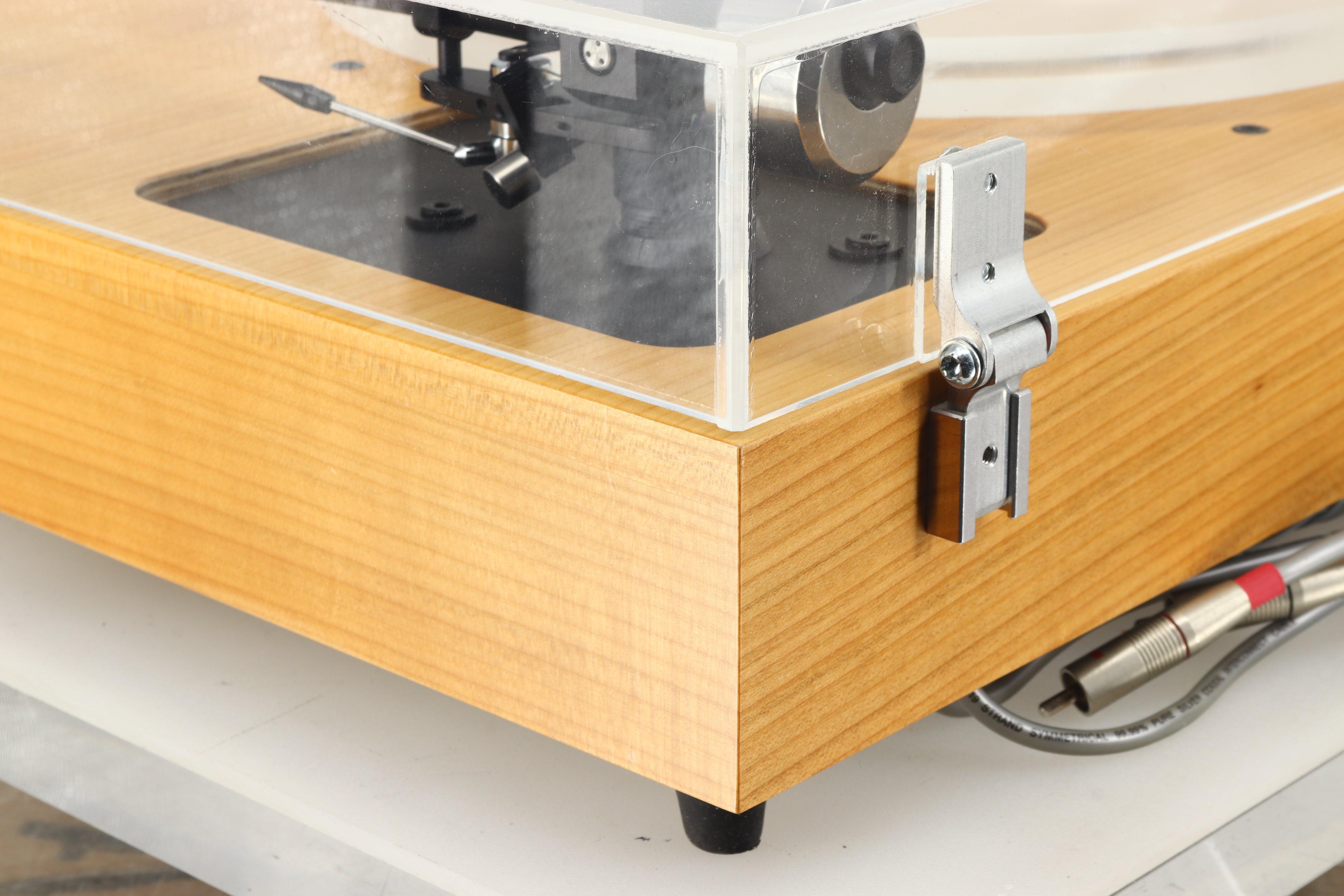

Plinth
The unit is a full plinth-type design with a high-quality aluminium sub-chassis with optimised three-point suspension geometry. Where the TT-Two Deluxe differs from many other record decks is in the use of a pair of AC motors to spin the acrylic platter, instead of one. The two opposed AC motors offer twice the torque to the low-mass acrylic platter and also have the benefit of further stabilising the suspension. This is a difficult engineering process because if there is any variation in the motors, instead of improving playback, they will cause oscillation. So, Audio Note pair-match every set of motors to ensure that they behave exactly the same, whilst paying equally close attention to the chassis design, ensuring that the two work in harmony.

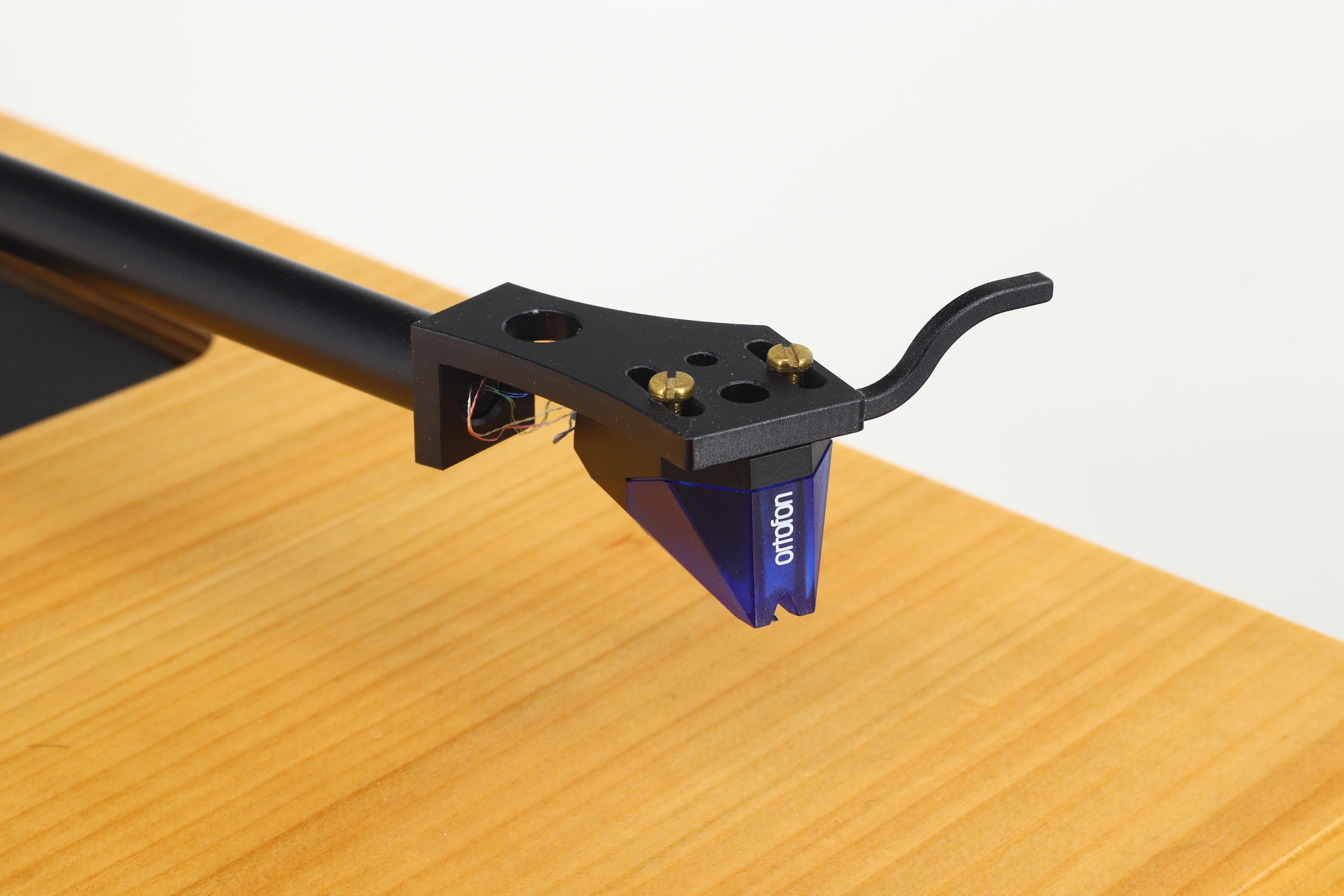

Tonearm
The Arm Three/II is situated at the top of the Audio Note range and is a very solid and easy-to-set up tonearm, specifically designed by Audio Note. The tonearm cable is UK–Silver Litz inside the tube and AN-Vx silver from the base to the AN GP RCA plugs. The arm itself is machined from a solid aluminium billet, tapered. The arm’s bearing design is described as “captured unipivot” due to its unique vertical and horizontal bearings. This 9″ arm complies with the original Rega arm board configuration, which makes it a compelling potential choice for turntables from other brands.

Audionote TT2
MOTOR 24 pole precision, high torque motor mounted on an anti-vibration assembly.
​ POWER SOURCE 240V 50Hz / 110V 60Hz, depending on country
POWER CONSUMPTION 3.3VA
SPEEDS 33 & 45 rpm
DRIVE SYSTEM Precision moulded round section rubber belt
UNIT DIMENSIONS 170mm (h) x 470mm (w) x 360mm (d) , including feet and lid.

​ ​ ​ Arm Three
Length 9 inches
Wiring 99.99% pure Silver Litz
Cable AN-Vx Silver Interconnect, AN GP RCA Plugs
Capaticance 320pF
Effective Mass 11.5g
Spindle to Pivot Distance 222mm
