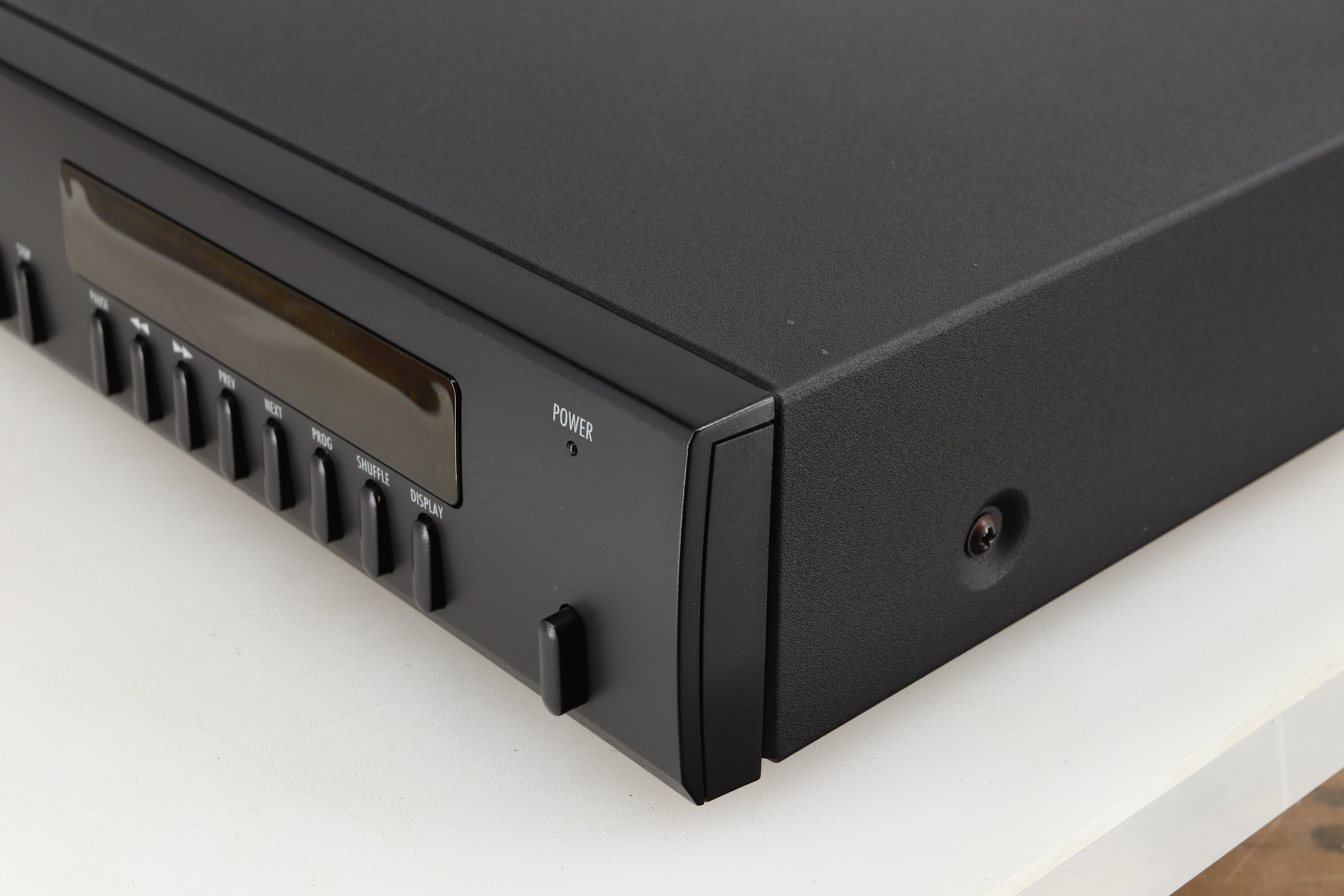

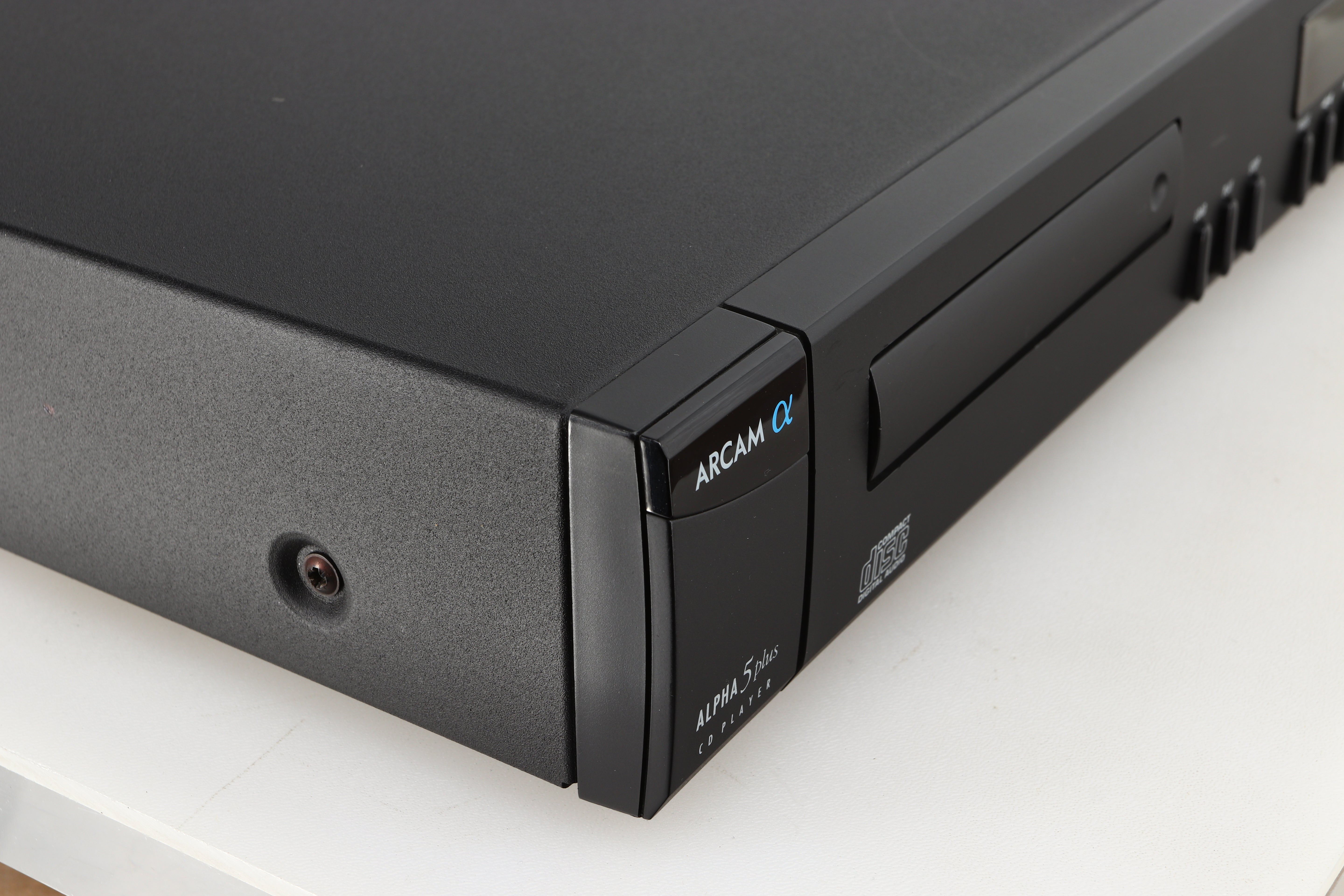

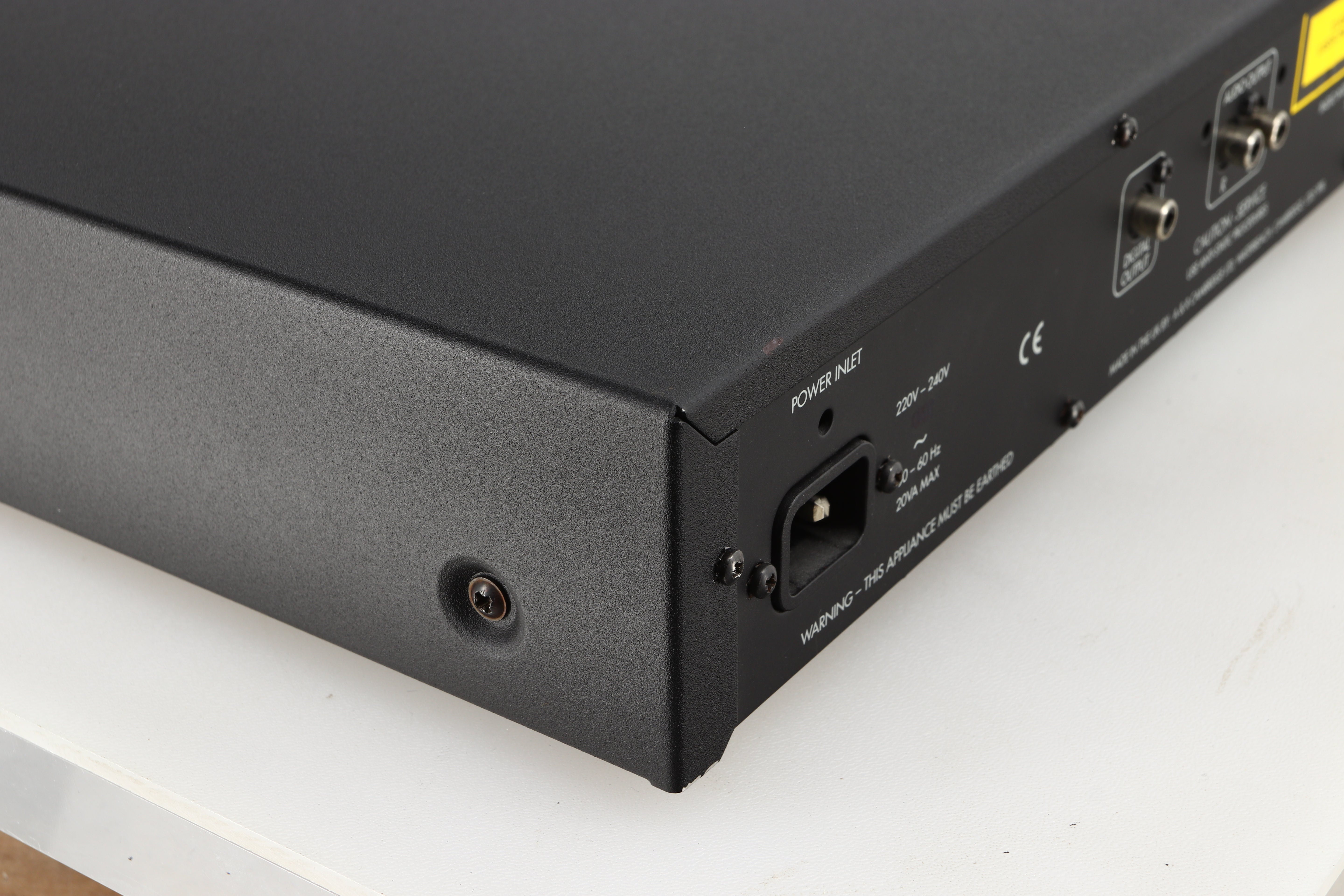

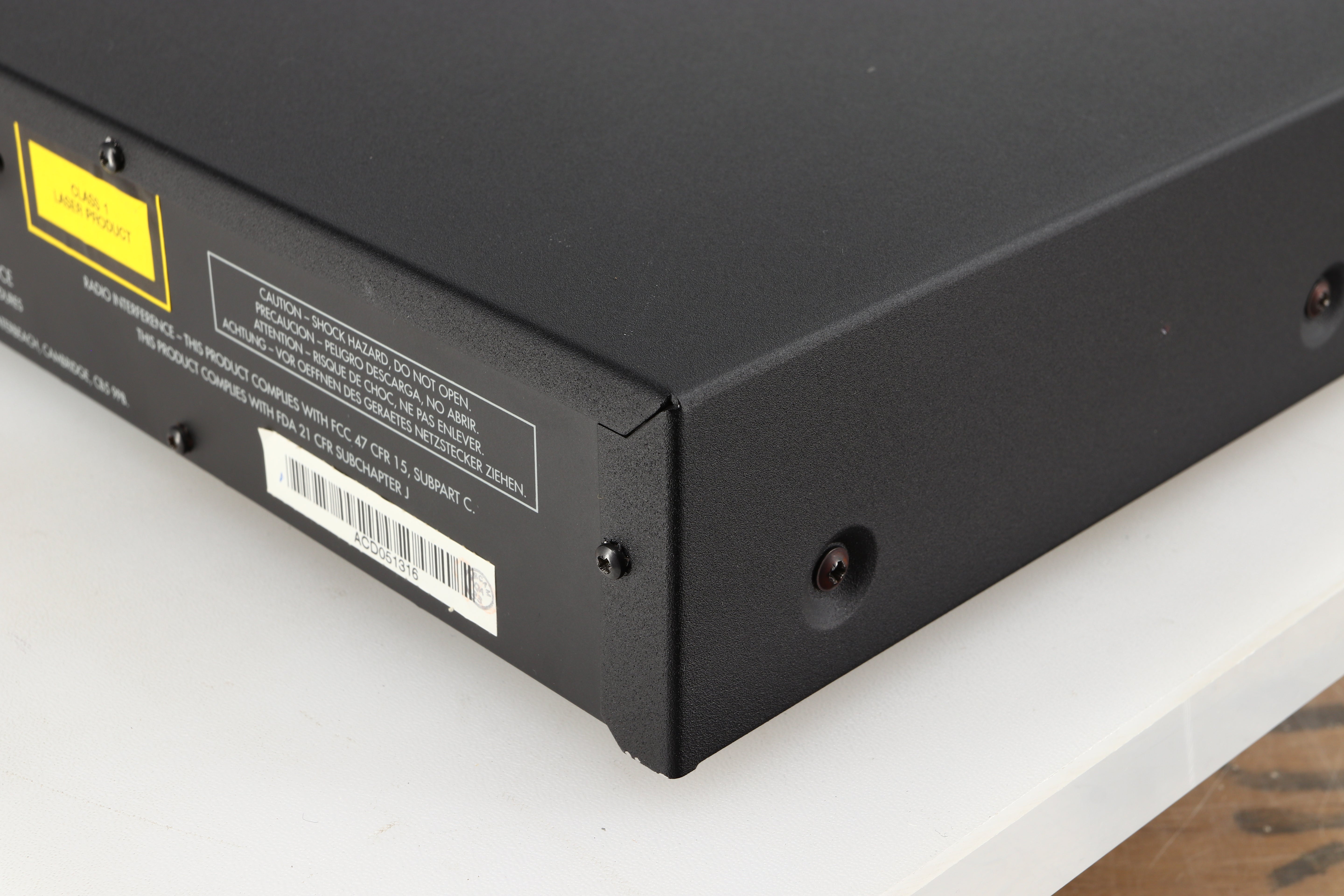

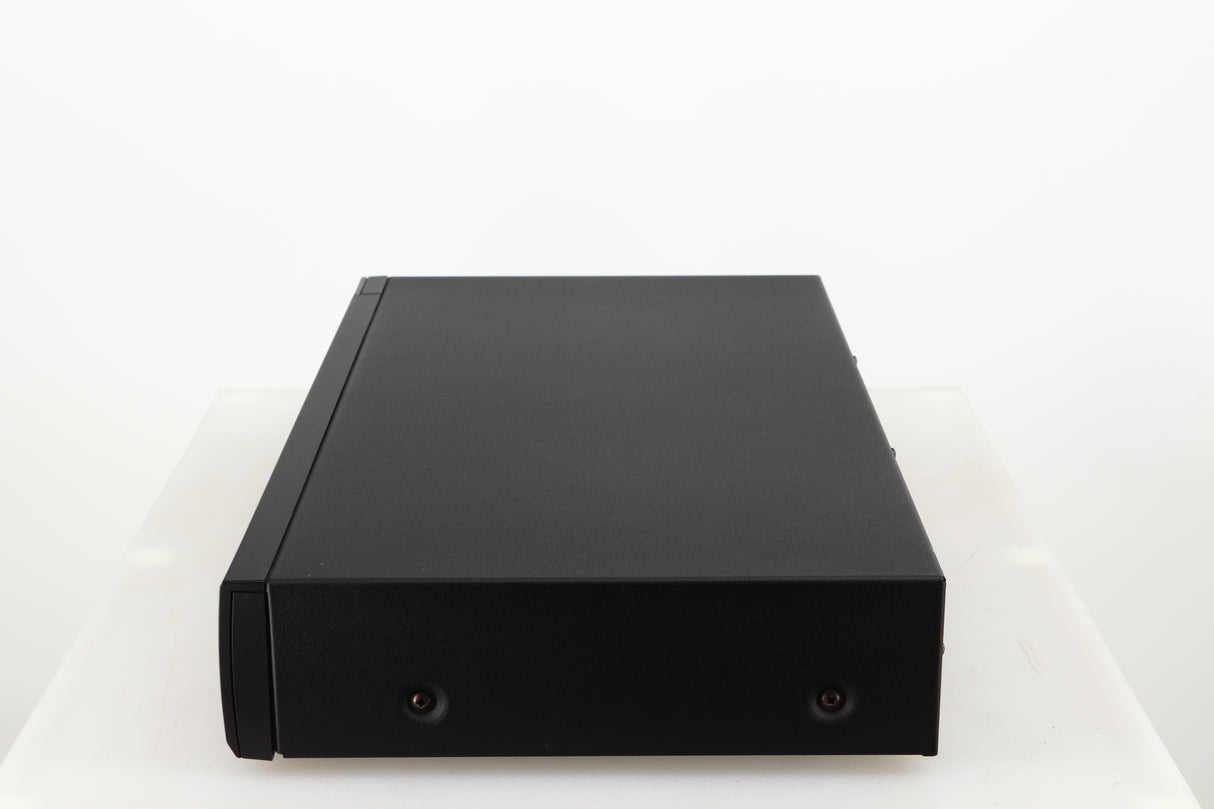

Arcam Alpha 5 Plus CD Player
Serial Number: ACD051316

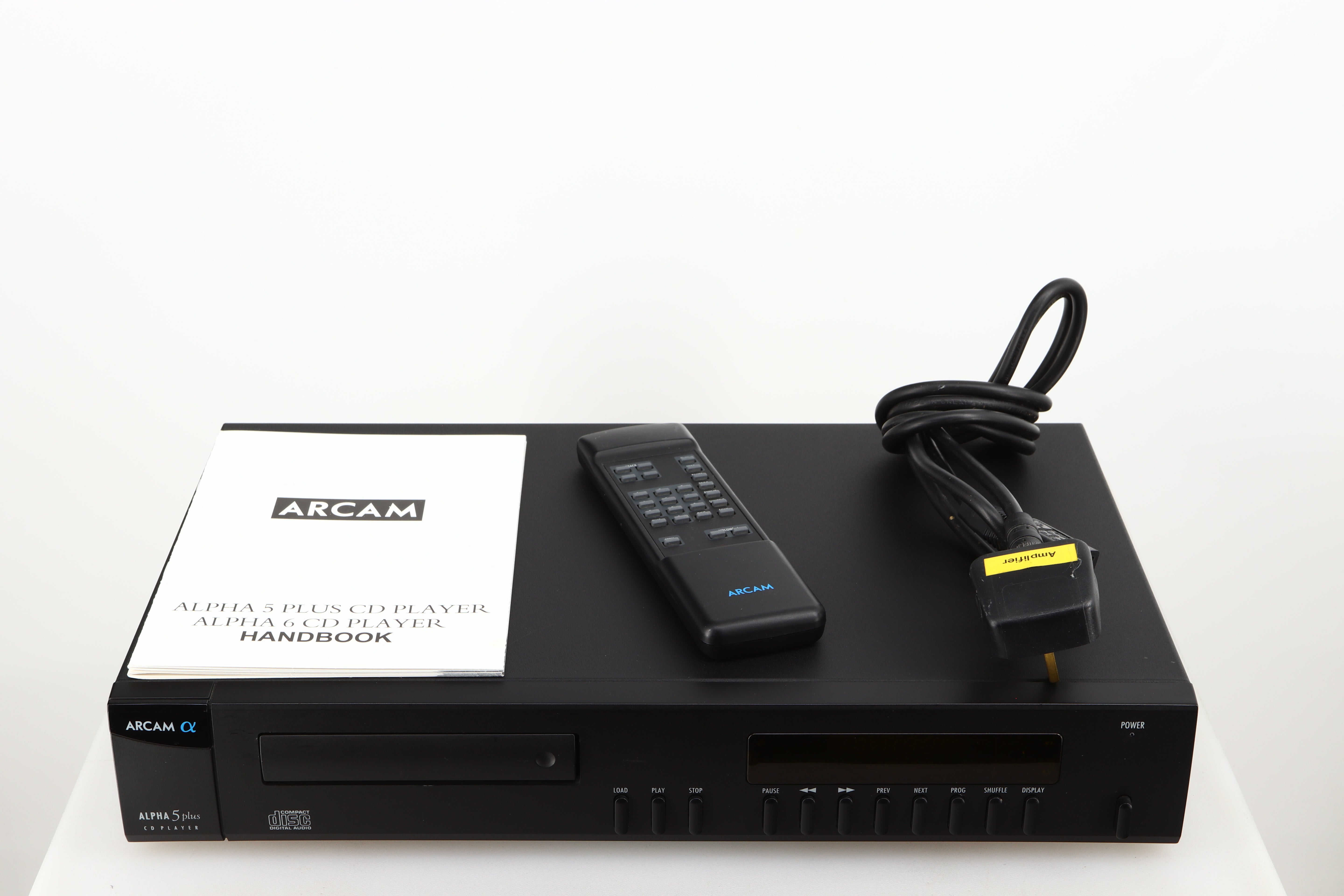

Packaging & Accessories:
Arcam Alpha 5 Plus CD Player is backordered and will ship as soon as it is back in stock.

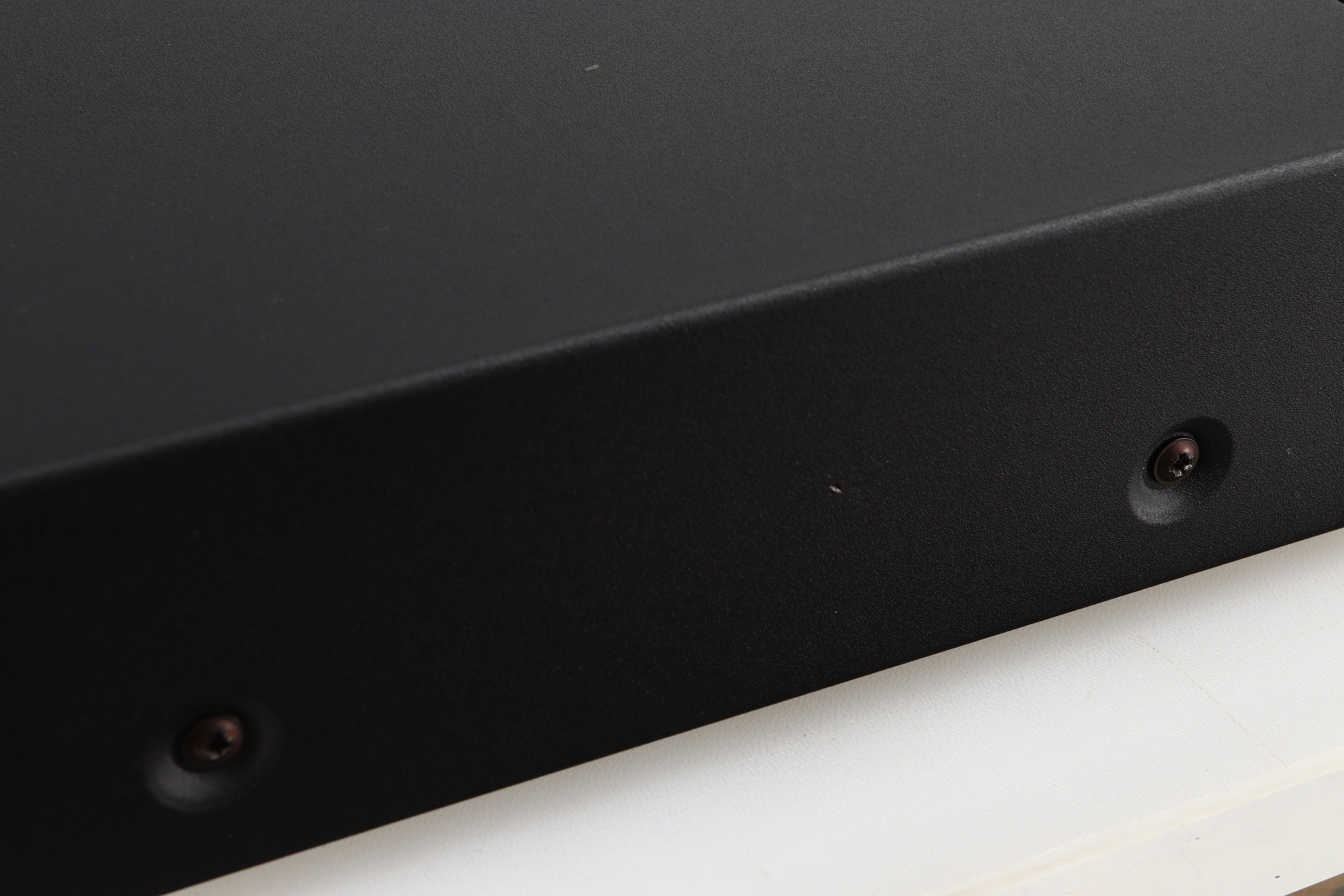

Here we have a classic Alpha 5 Plus Compact Disc player from British company Arcam. Our example of this well regarded player is in good fully working condition noting a few little blemishes. It will be supplied professionally packaged along with our standard warranty.
Couldn't load pickup availability
Arcam Says
Arcam Says

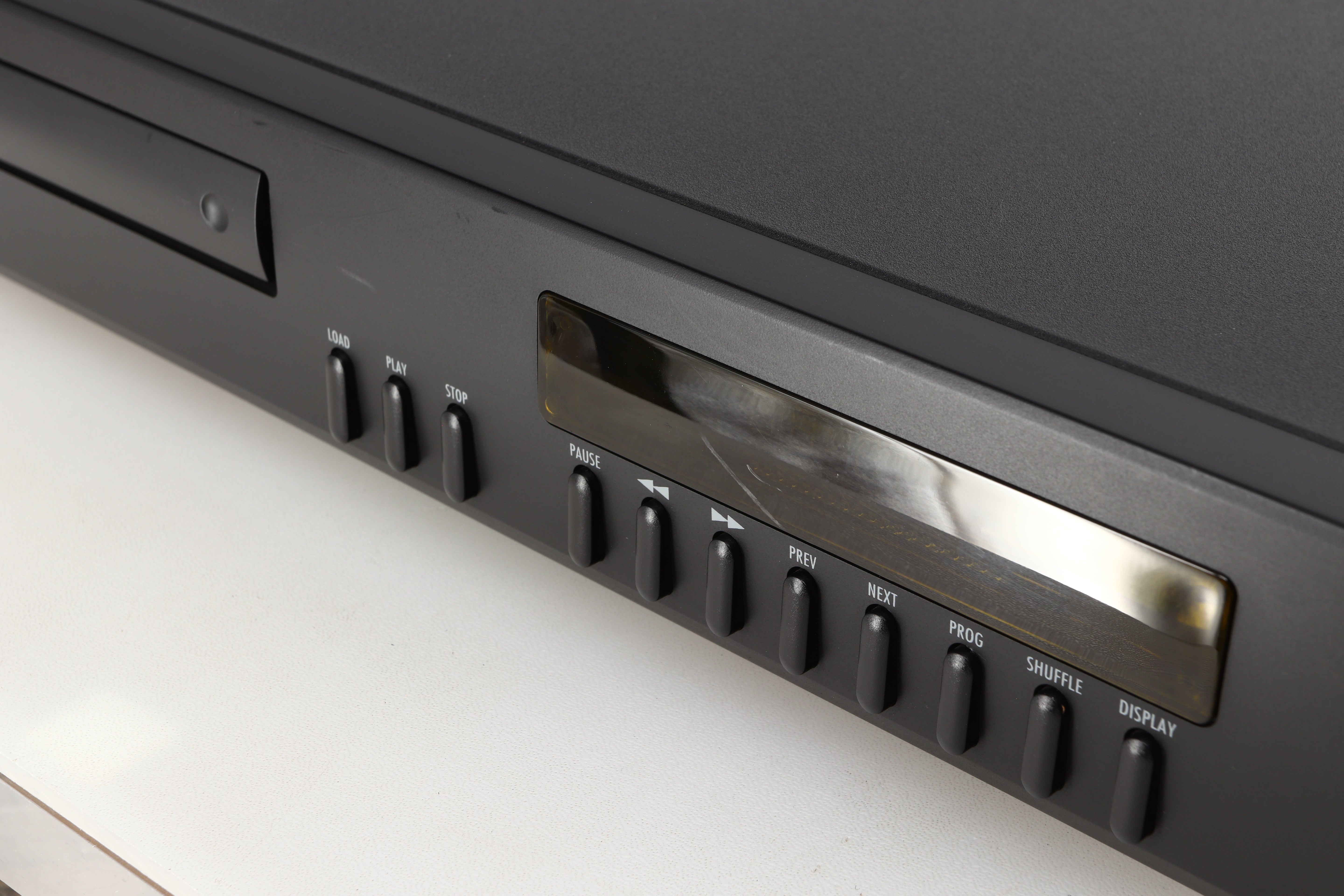

The Alpha 5 Plus and Alpha 6 CD players utilize the same basic chassis and mechanics and the controls are identical in function.
The Alpha 5 Plus uses a highly developed Philips 16 bit chipset which provides a clean, powerful and dynamic sound which has become the benchmark for mid-priced CD players.
Specifications
Specifications
Alpha 5 Plus Playback System: 16 bit Compact Disc Digital Audio, using ultra linear 16 bit dual DACs and high performance analogue filter and output stages.
Optical read-out system Laser type: Semiconductor Al Ga As
Numerical Aperture: 0.45
Wavelength: 800 nm
Typical Audio Performance (20 Hz - 20 kHz unless otherwise stated)
Frequency Response: ± 0.1 dB 10 Hz - 10 kHz; ± 0.2 dB at 20 kHz
Channel Balance: ± 0.2 dB
Channel Phase Balance: ± 0.5 deg.
Total Harmonic Distortion: 0.007% at 1 kHz, 0 dB
Signal To Noise Ratio: 105 dB CCIR/ARM weighted
Dynamic Range: 96 dB
Channel Separation: 90 dB at 1 kHz
Output Level: 2.4 Vrms at MSB (0 dB)
Output Impedance: 22 Ω
Minimum Load Impedance: 5 kΩ
Power Consumption: 20 VA
Dimensions: 430 (W) x 260 (D) x 77 (H) mm
Weight: 3.8 kg
