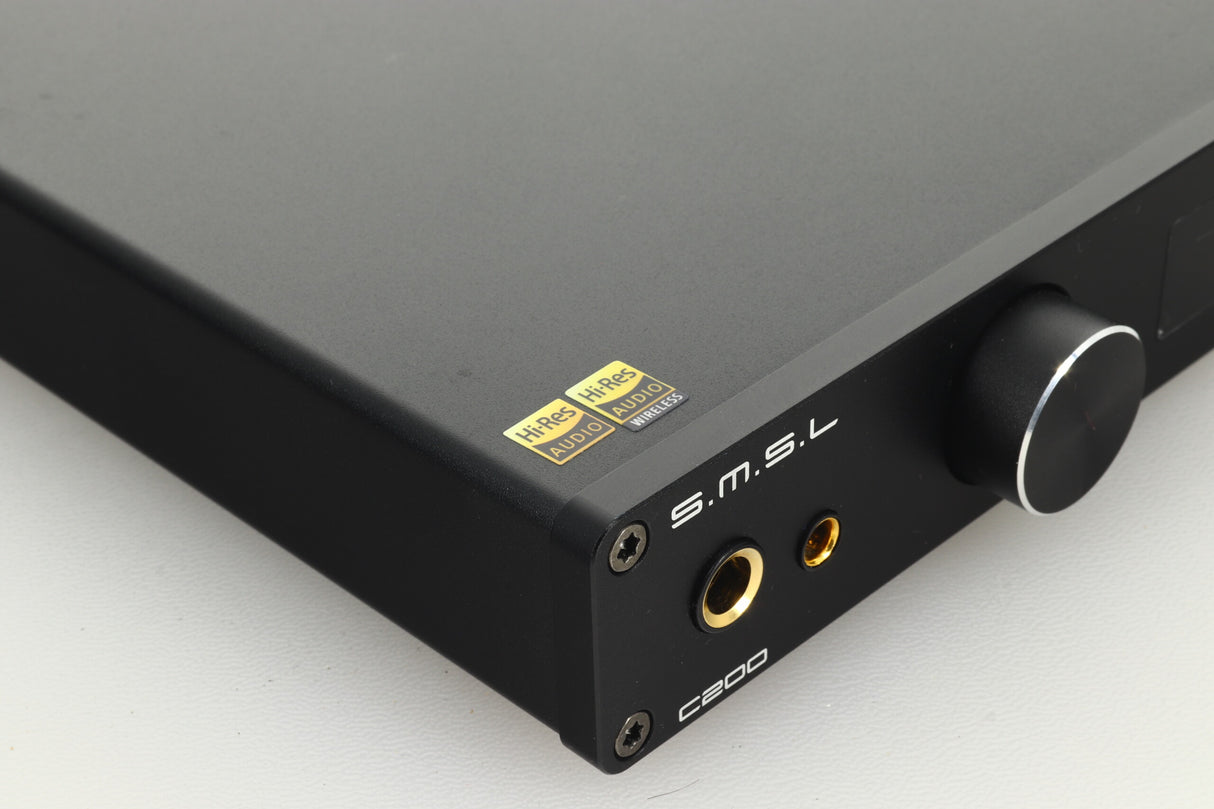

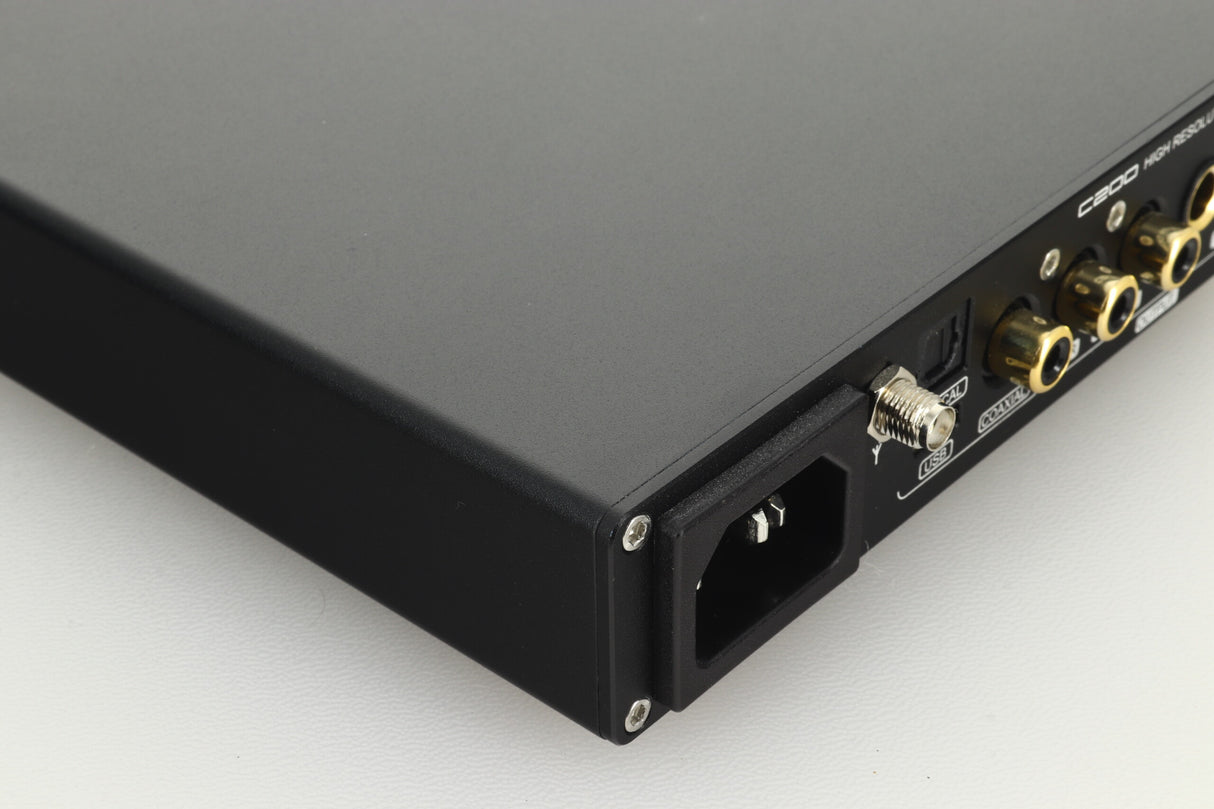

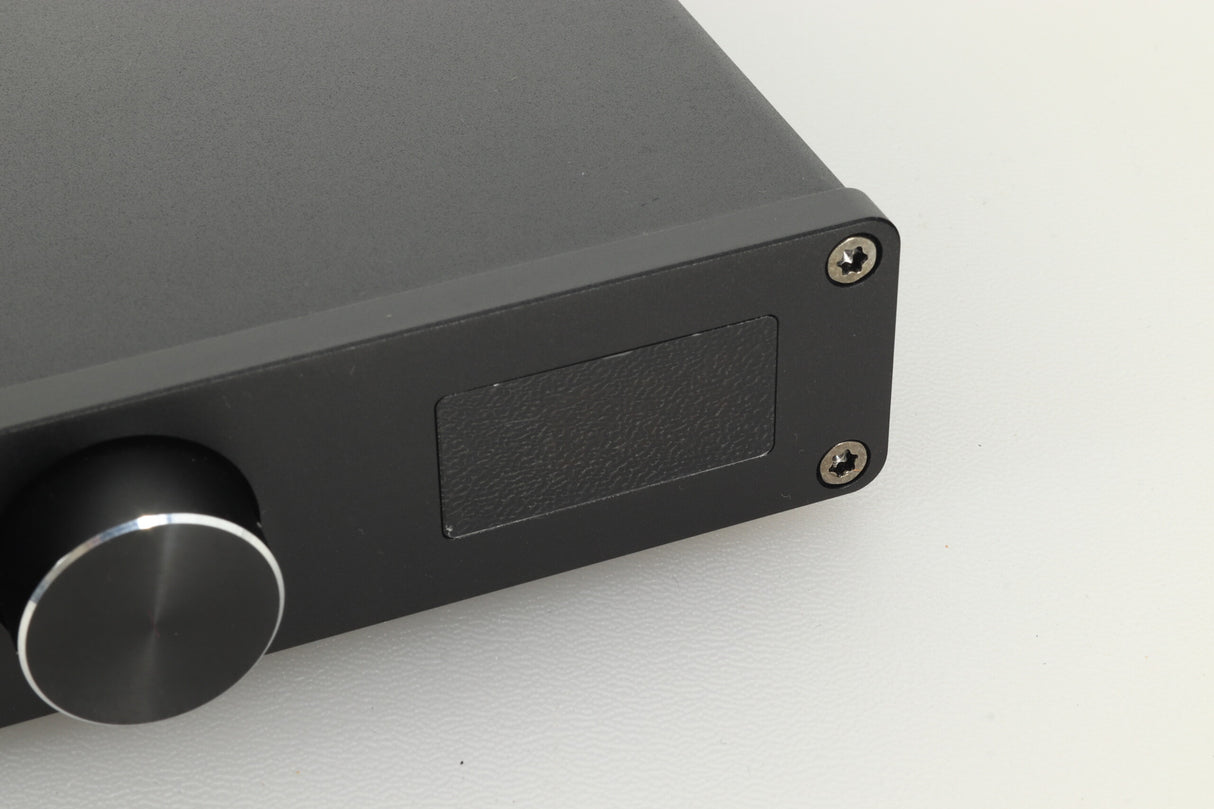

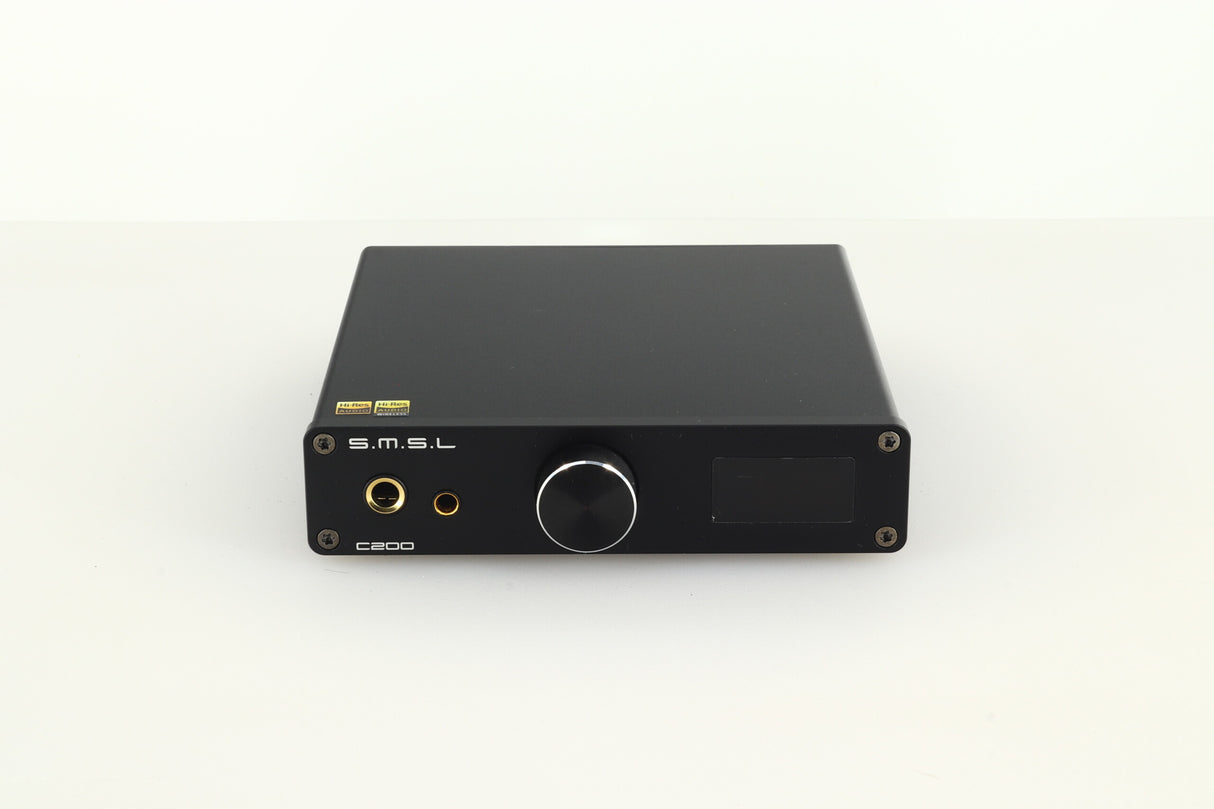

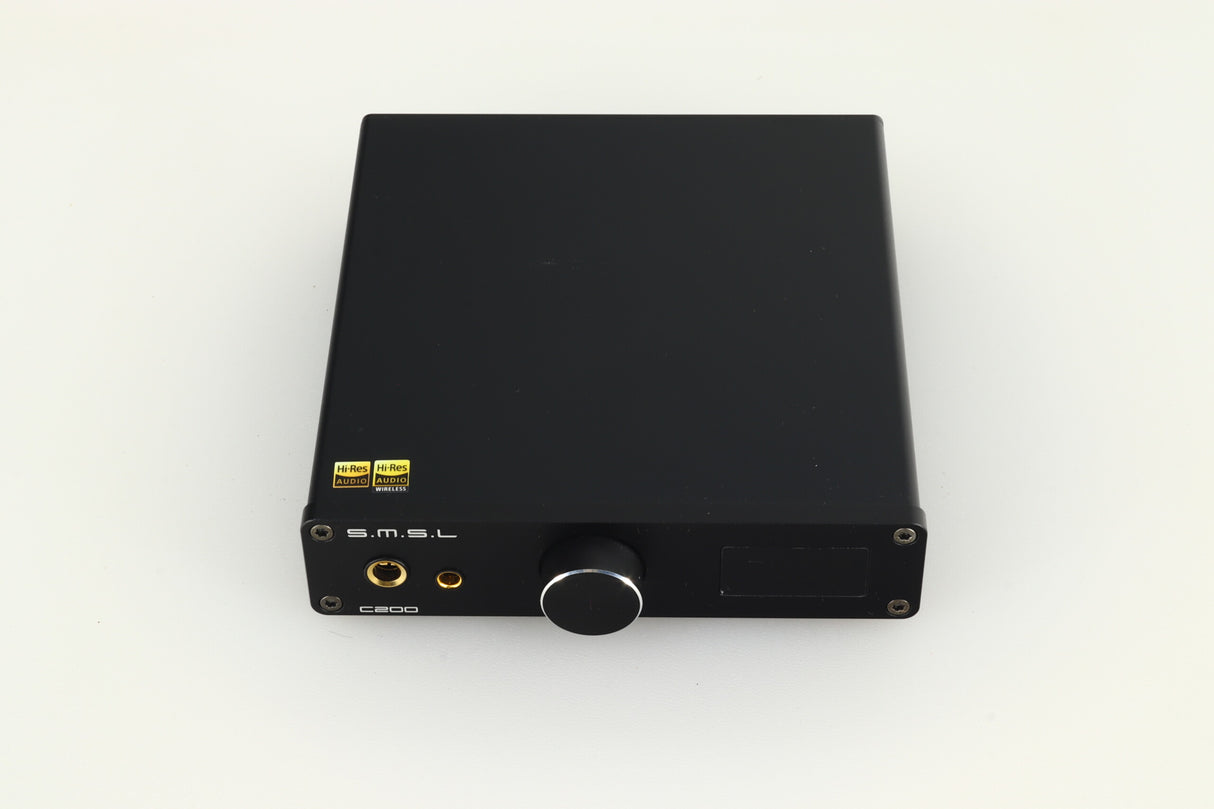

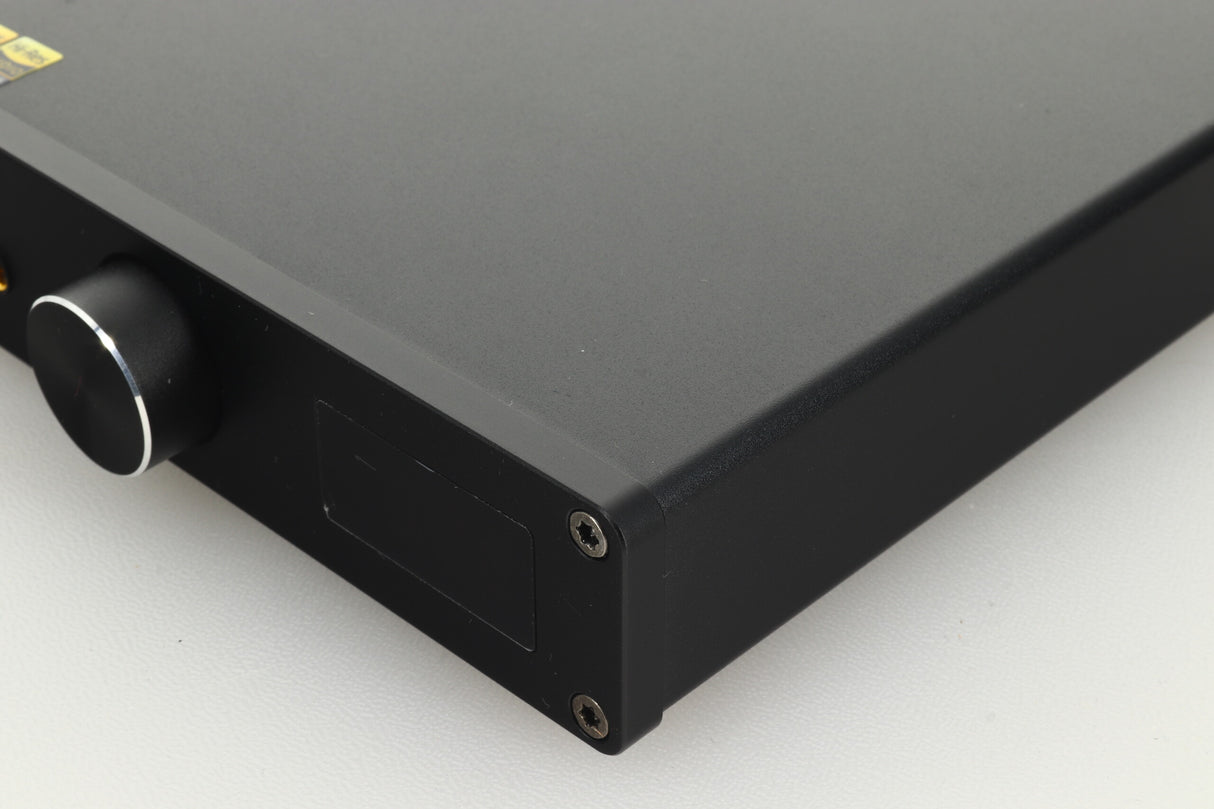

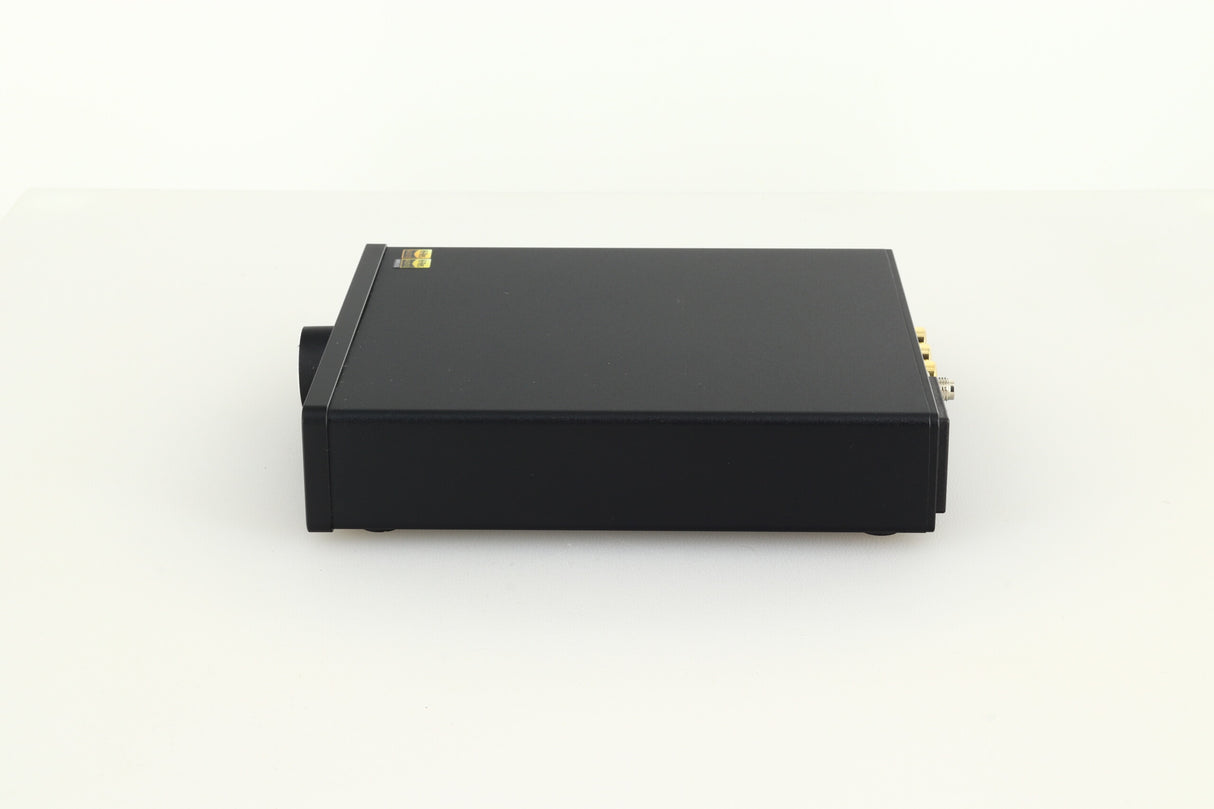

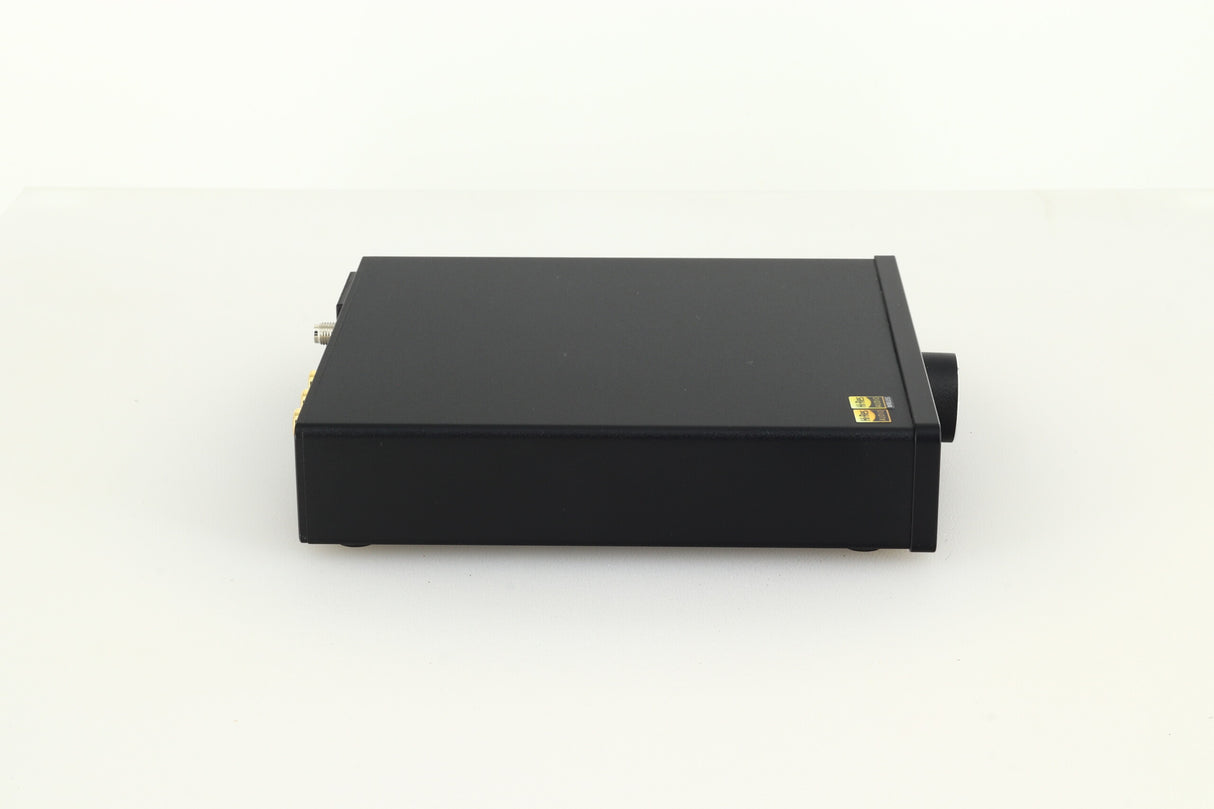

SMSL C200 Digital To Analogue Converter / Headphone Amplifier

£160.00

Manufacturer : SMSL
Model : C200
Serial Number : 42622370040
Packaging : Original

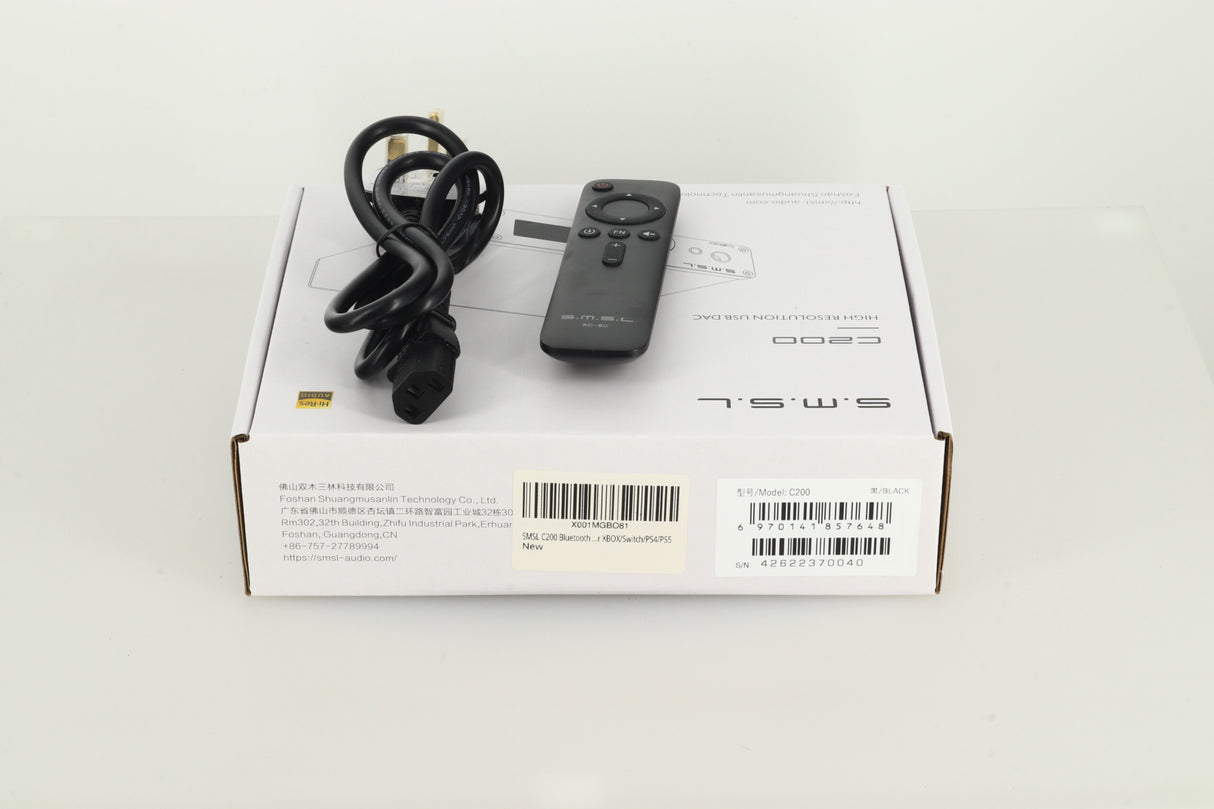

Accessories Included : Mains Cable / Remote
Price When New :

1 in stock

SKU: 42622370040 Category:
Description

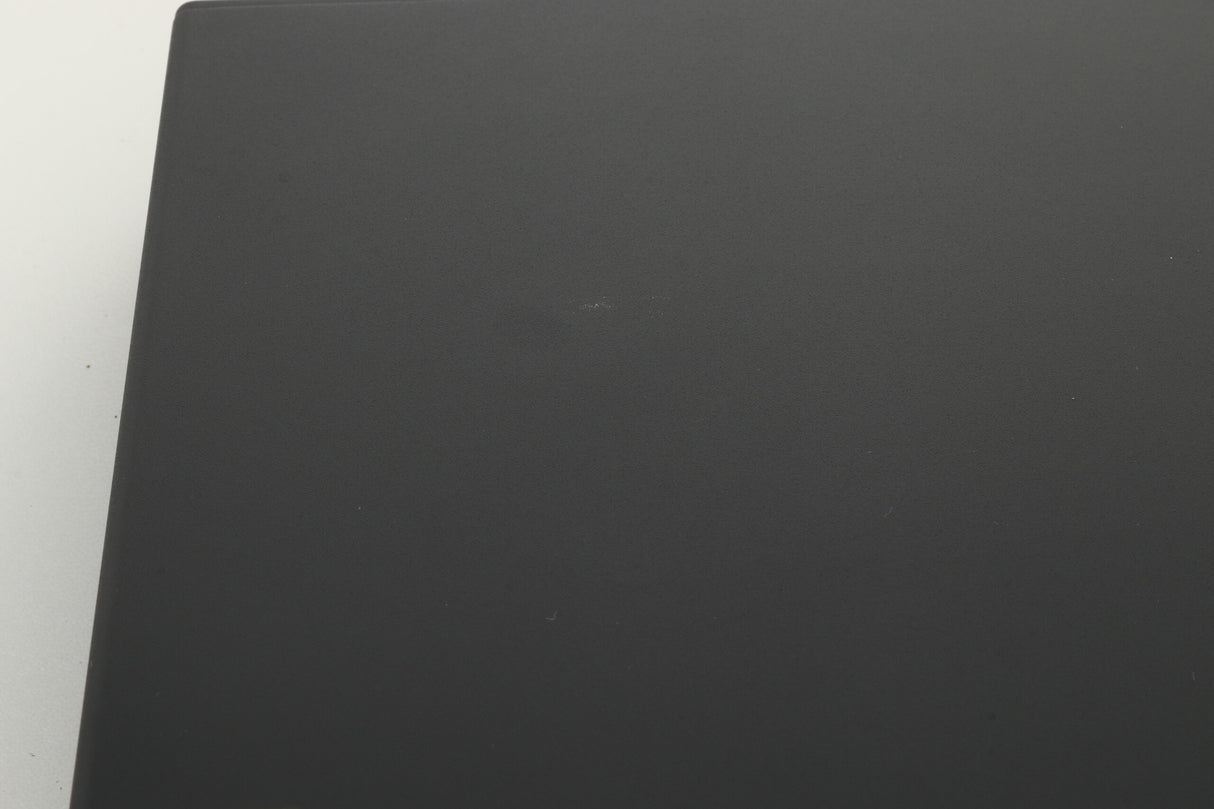

Here we have a fully featured digital to analogue converter and headphone amplifier from SMSL. It comes in good condition and is supplied in original factory packaging along with remote control, mains cable, plus our normal three month warranty.
SMSL Say…
Features:
Mini size design, very suitable for desktop use
CNC integrated milling process, simple and stylish
ESS Technology high-end D/A chip ES9038Q2M
Qualcomm latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC
4x high-end dual op amp OPA1612 and a large number of audio grade components;
The 2nd generation XMOS solution supports DoP64 and native DSD512, and PCM supports up to 32bit/768kHz
Audio clock processing circuit, greatly reducing the clock jitter
Input ports (except Bluetooth) support DSD transmission, coaxial and optical supports DoP64
Built-in specially designed low-noise switching power supply
Built-in discrete component linear power supply and multiple low-noise power supplies for analogue circuits
High-quality gold-plated input and output connection terminals
Japan Audio Association (JAS) Hi-Res certification
Equipped with full-function remote control.
Specifications

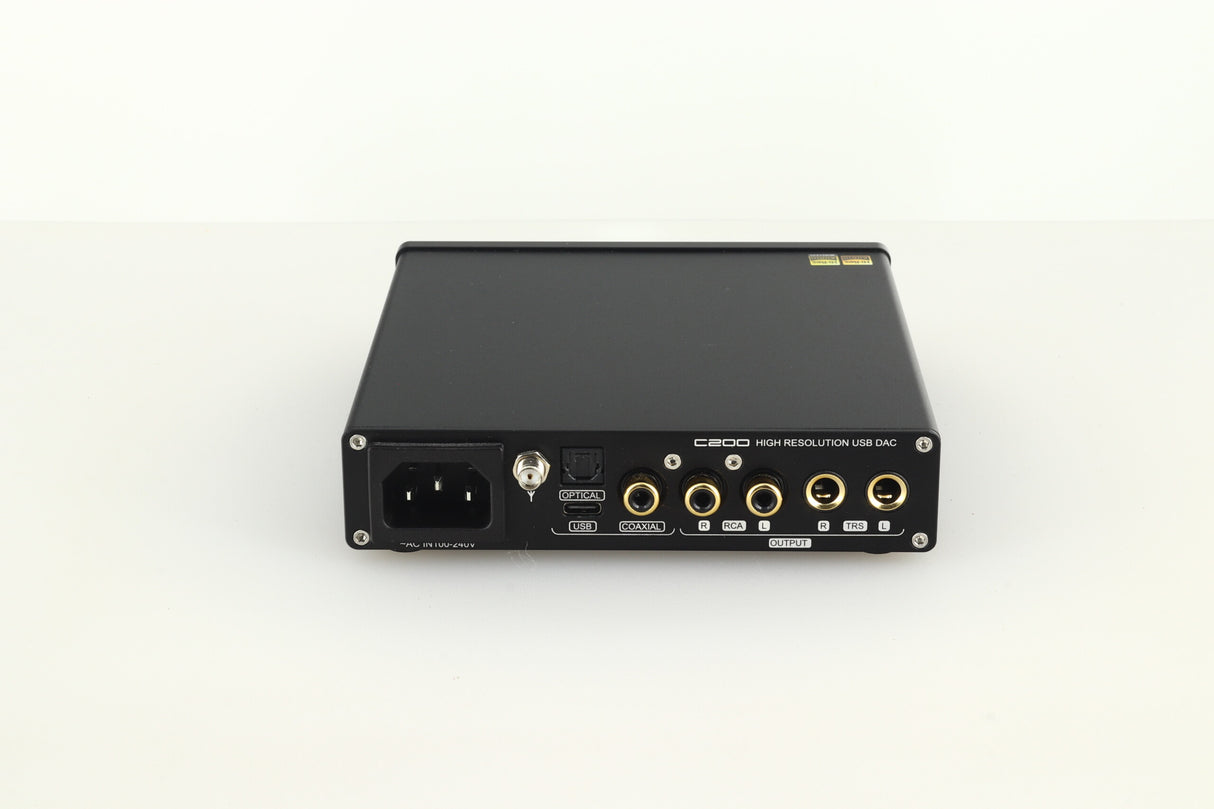

Input: USB / Optical / Coaxial / Bluetooth

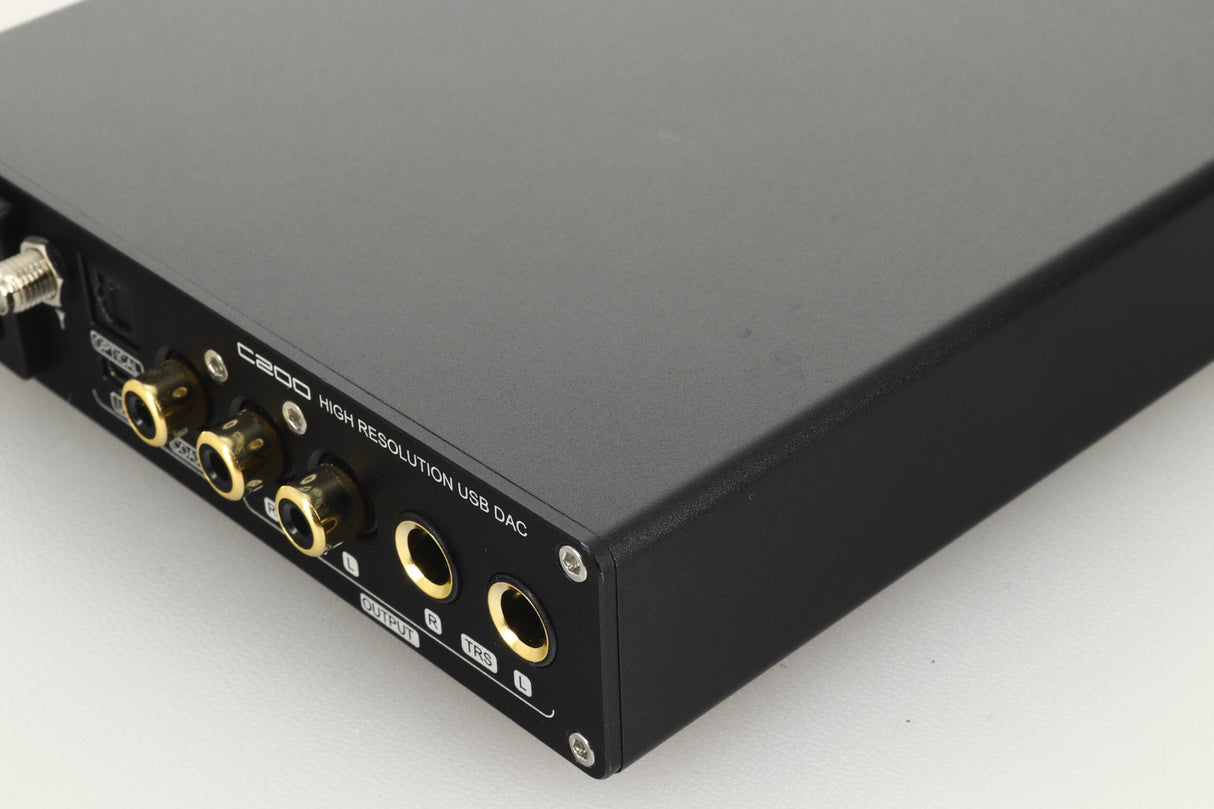

Output: 6.35 mm headphone / 4.4 mm headphone / TRS / RCA
Output Level: TRS 4.0 Vrms; RCA 2.0 Vrms
Headphone Output Power: 16 Ω 2.6 W; 32 Ω 1.3 W
Headphone Gain: low gain 0 dB; high gain 11 dB
THD+N: Line Out 0.0001% (- 120 dB); HP out 0.00013% (- 117 dB)
Dynamic Range: TRS 126 dB; RCA 125 dB; HP out 123 dB
SNR: TRS 126 dB; RCA 124 dB; HP out 123 dB
Output Impedance: Line out 100 Ω; HP out Near 0 Ω
USB Transmission: USB 1.1, USB 2.0 (Asynchronization)
USB Compatibility: Windows 7/8/8.1/10/11 (Needs Driver); Android, Mac OSX 10.6 or Later, Linux (Driverless)
Bit Depth: USB 1-bit: 16~32-bit; Optical / Coaxial 1-bit: 16~24-bit
Sampling Rate: USB PCM 44.1~768 kHz; DSD 2.8224~22.5792 MHz; Optical / Coaxial PCM 44.1~192 kHz; DSD DSD64 (DoP)
Bluetooth Specification: 5.0
LDAC: 24-bit/96 kHz (990 kbps/660 kbps/330 kbps)
aptX-HD: 24-bit/48 kHz_576 kbps
aptX: 16-bit/44.1 kHz_352 kbps
SBC: 16-bit/44.1 kHz_328 kbps
AAC: 16-bit/44.1 kHz_320 kbps
Power Consumption: 5 W
Standby Power: < 0.5 W
Size: 139 (W) x 147 (D) x 32 (H) mm
Weight: 510 g
