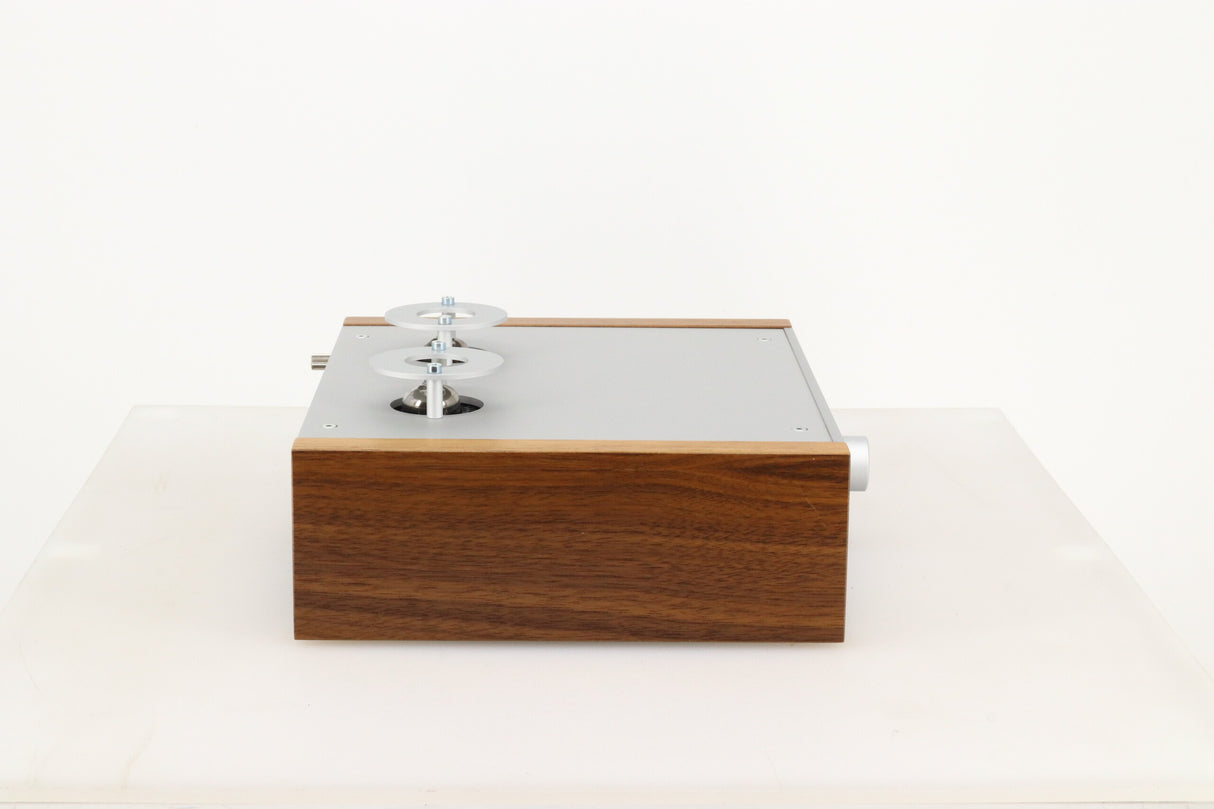

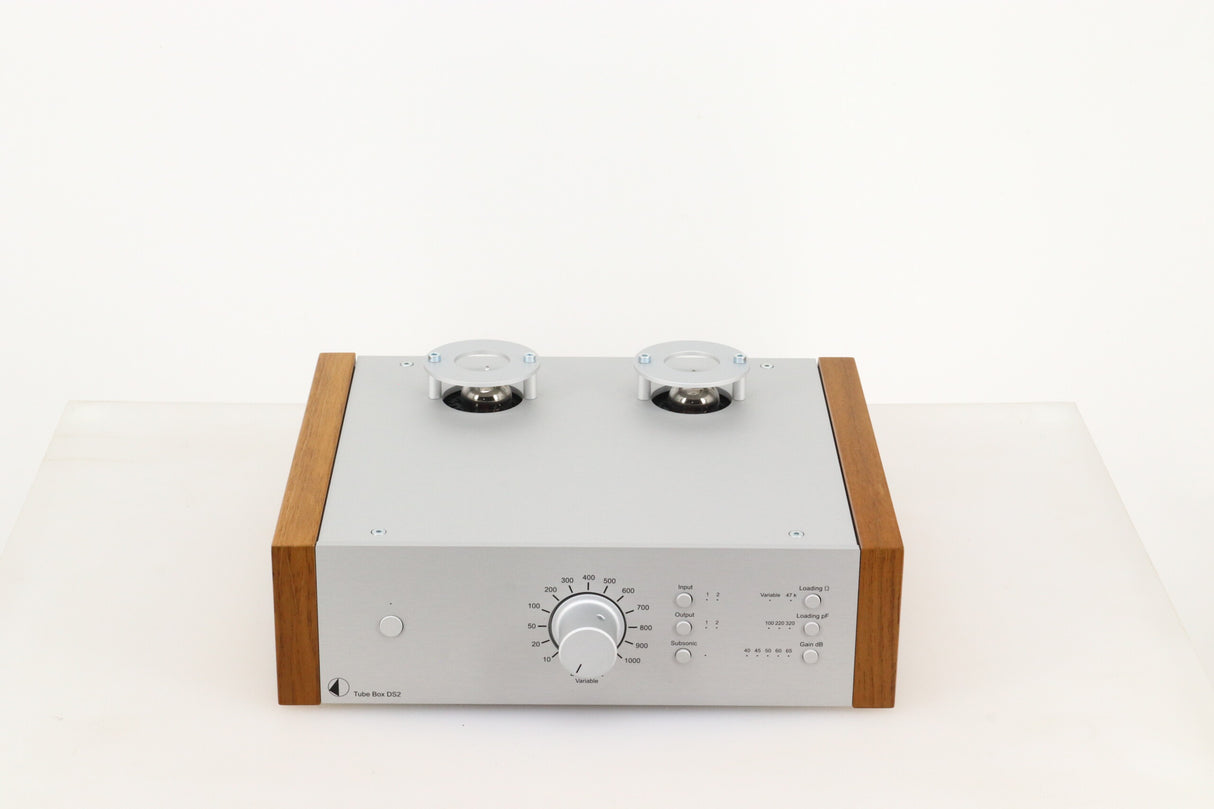

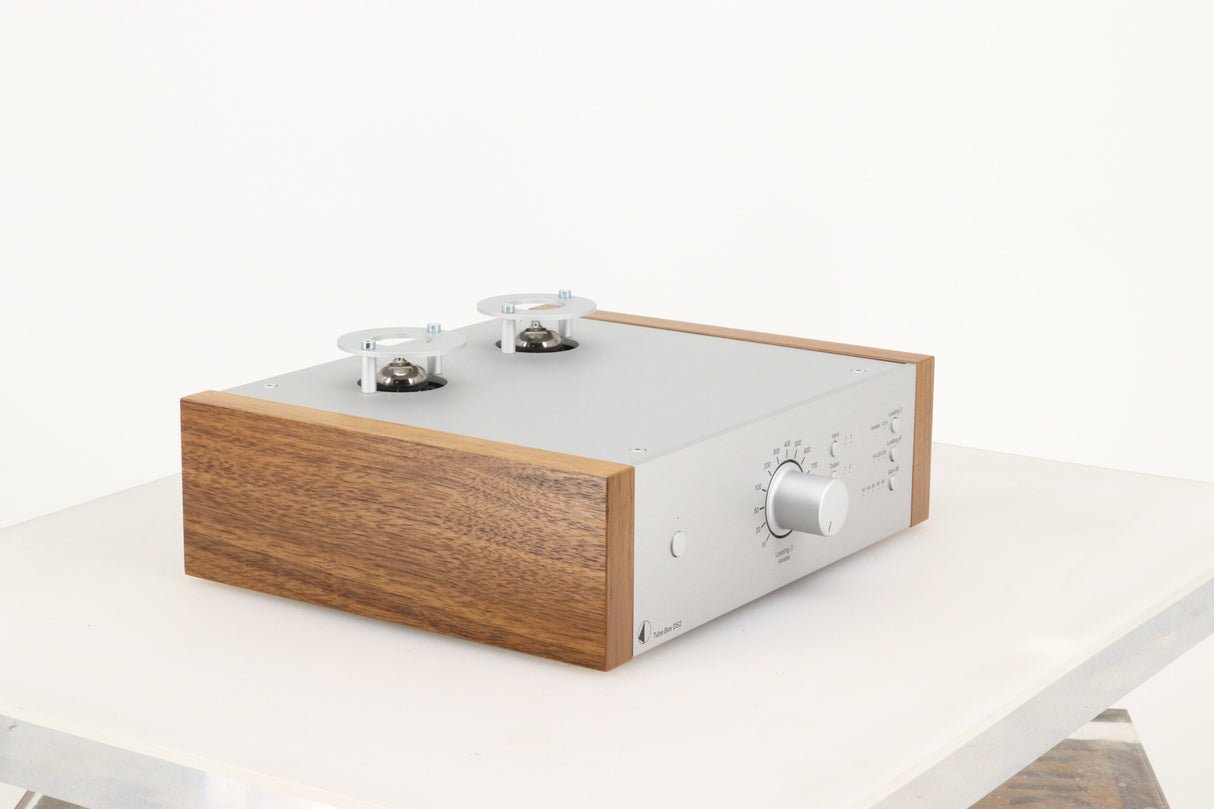

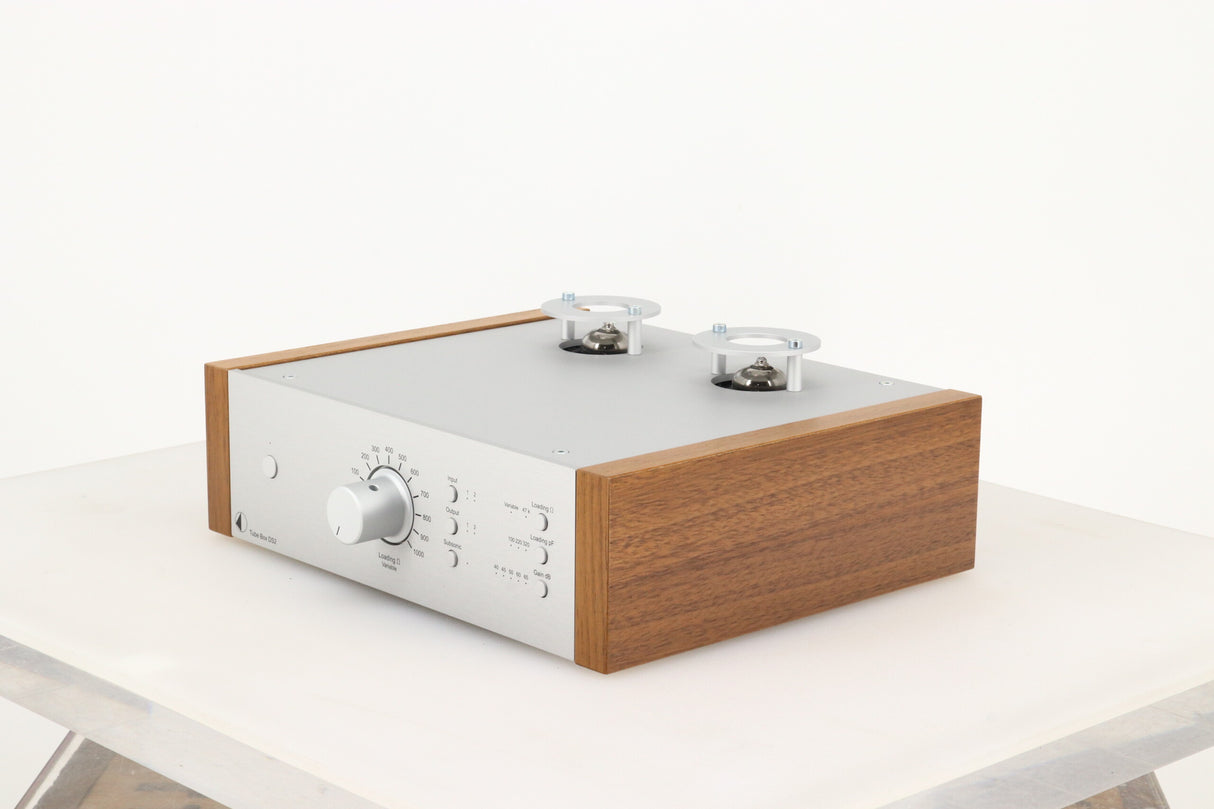

Project Tube Box DS2 Phonostage - Silver / Walnut

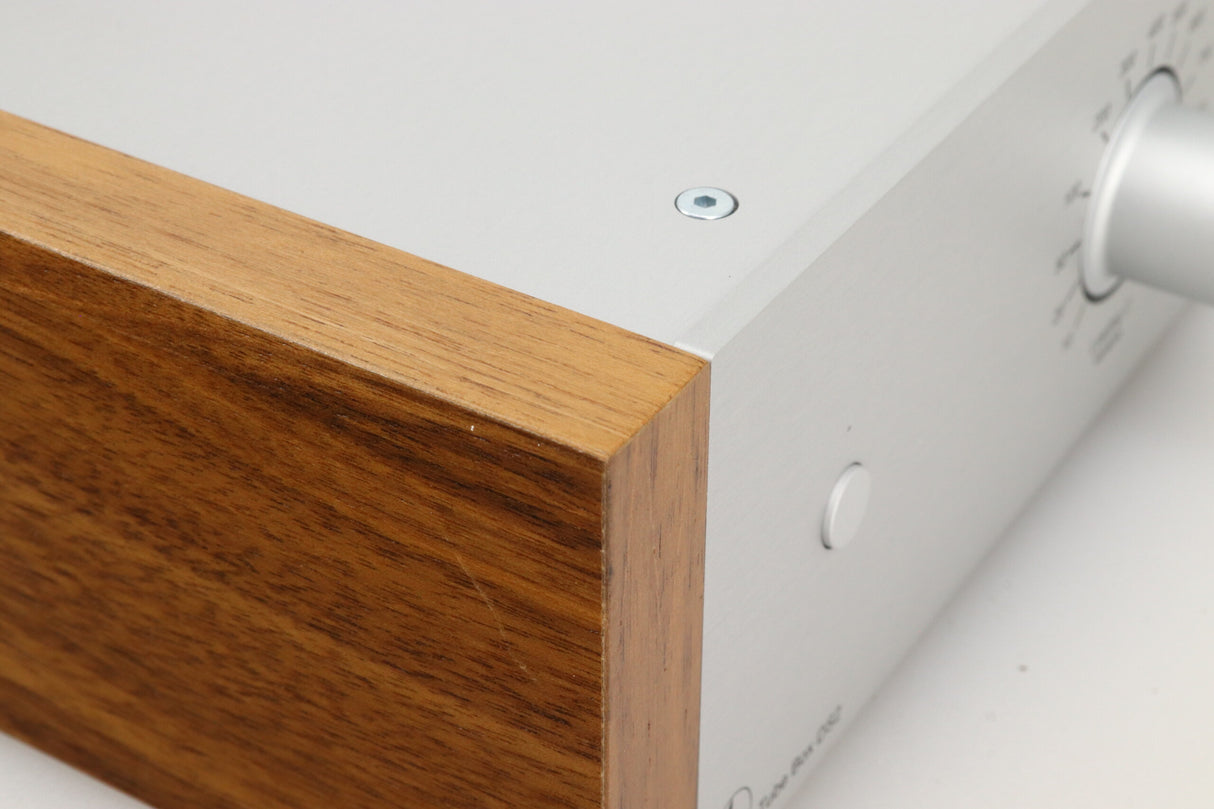

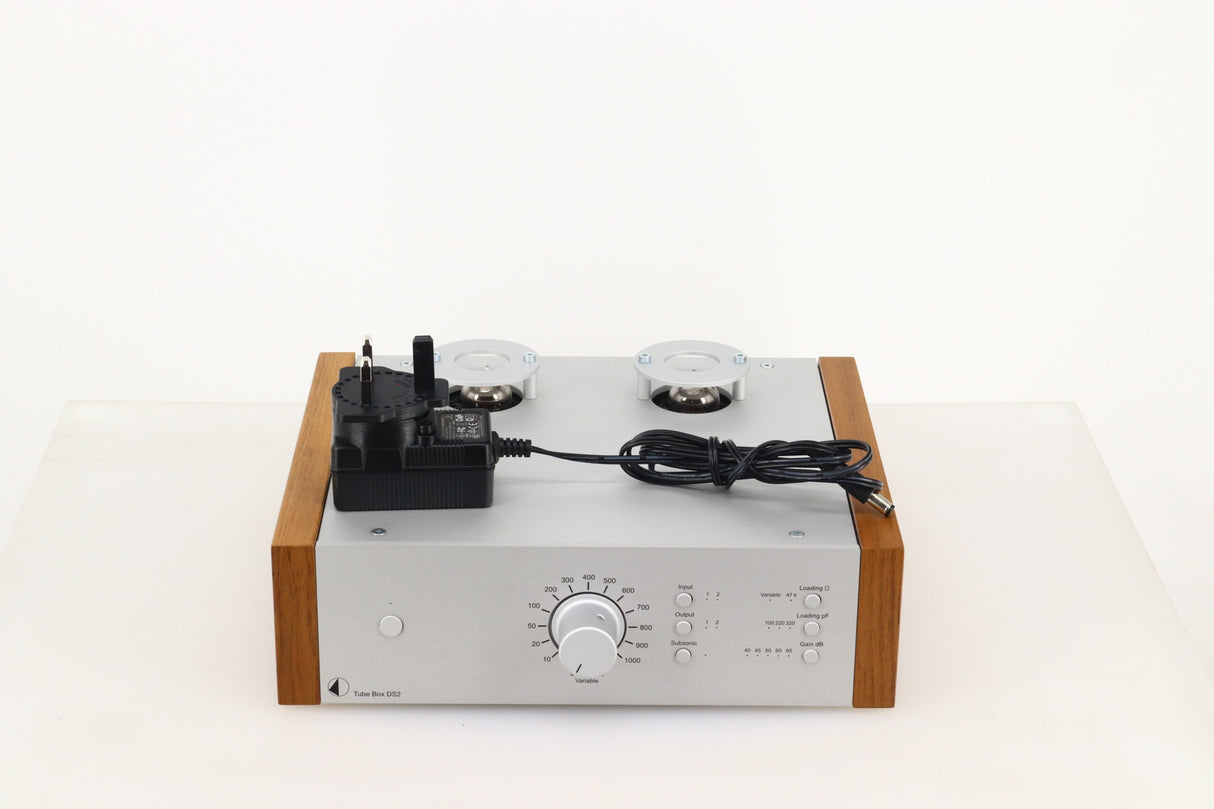

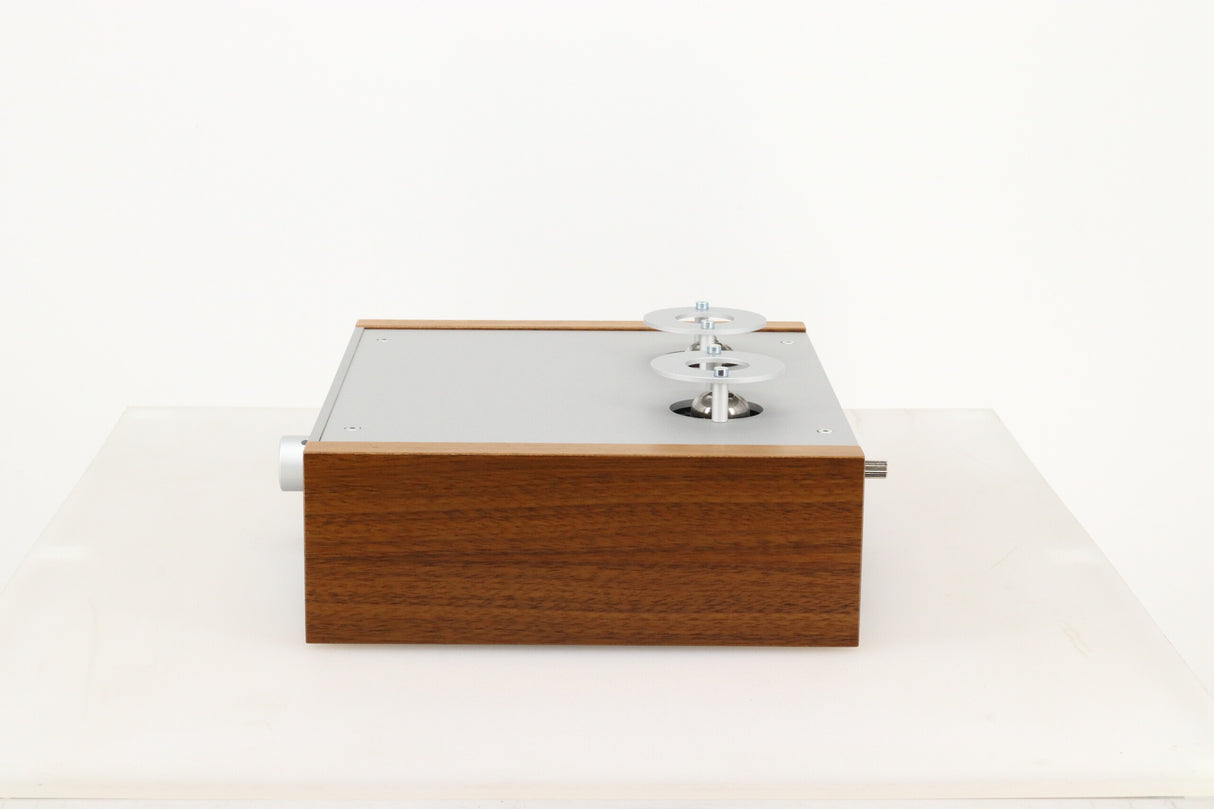

Here we have a neat solution for those wanting to add a phono stage to their amplification systems, with the extra benefit of adding a little bit of that smooth valve sound. Our Tube Box DS2 from Pro-Ject is in good condition noting a mark on the left side and comes suitably packaged with PSU, manual plus our usual three month warranty.
Pro-Ject Say….
The Tube Box DS2 is an audiophile-grade phono pre-amplifier with a valve output stage. Taking over from the hugely successful Tube Box DS model, the DS2 expands on its predecessor’s ability both technically and aesthetically.
The sophisticated, dual-mono internal design benefits from the outstanding circuit technology developed by Dr. Sykora, and uses superlative components. Combined with the ultra-low noise specification and precise RIAA equalisation, the Tube Box DS2 is a meticulously designed device.

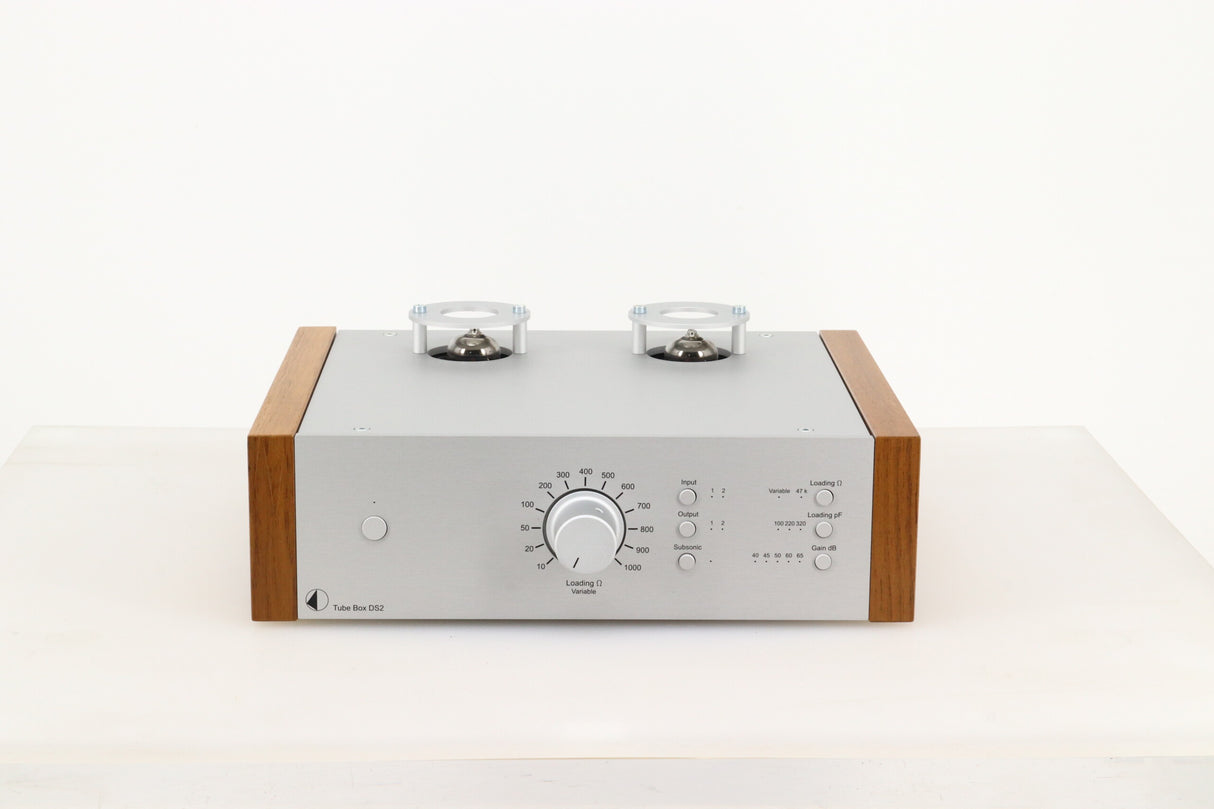

The Tube Box DS2 is compatible with both MM and MC cartridges, and is fully customisable for Gain and Capacitance settings, as well as boasting a continuously adjustable impedance dial – taken from the flagship Phono Box RS – that can be adjusted during playback. There is also a switchable subsonic filter, for greater room-matching abilities.
The Tube Box DS2 benefits from two selectable inputs and outputs, allowing vinyl aficionados to connect multiple turntables or tonearms to the input, and different amplifiers to the output. The Tube Box DS2 is a true vinyl lovers’ dream, allowing you to enjoy your records like never before.
Specifications:
Phono Stage Capacitance (MM): Switchable 100, 220 or 320 pF
Phono Stage Gain (MM): 40, 45, 50 dB; (MC): 50, 60, 65 dB
Input Impedance: (MM): 47 kΩ; (MC): Variable 10 - 1,000 Ω
Tubes: 2 x ECC83 (12AX 7A)
RIAA-equalisation curve accuracy: 20 Hz - 20 kHz / ± 0.2 dB
Total Harmonic Distortion (MM Input): < 0.04 %
Signal To Noise Ratio (MM Input): 88 dB

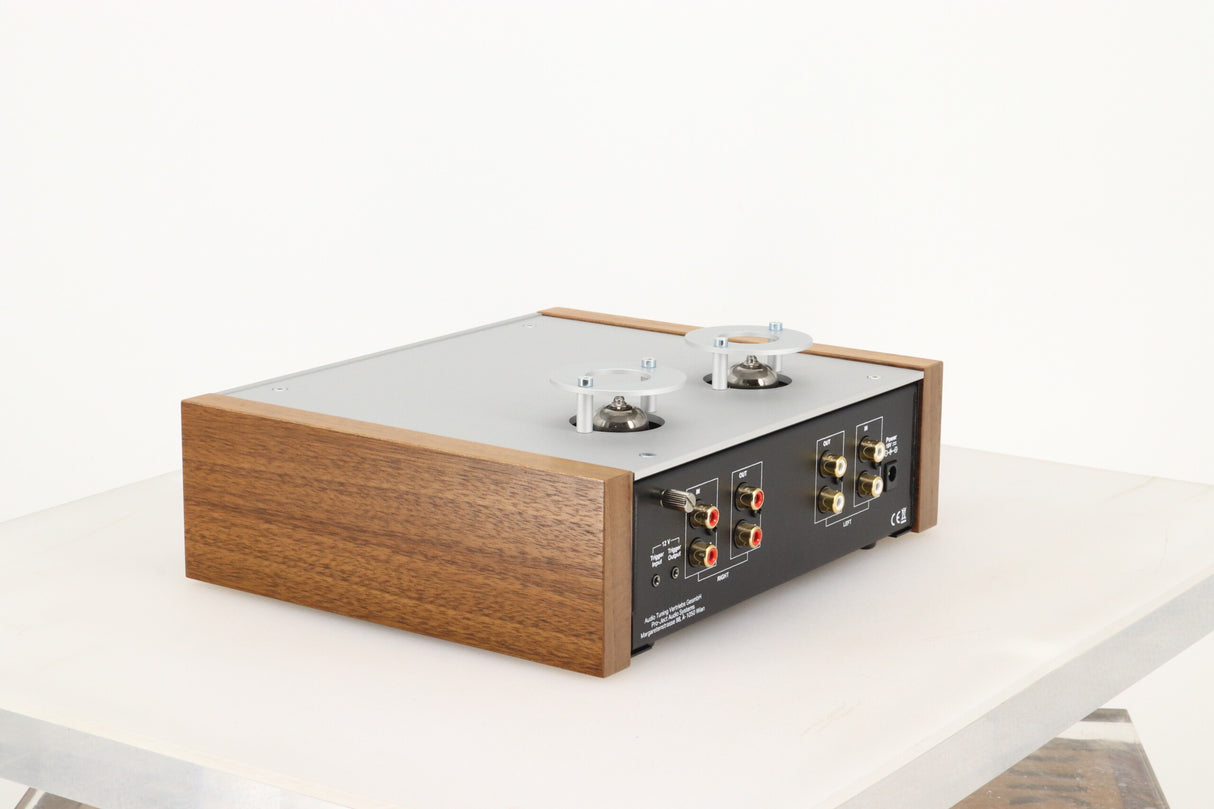

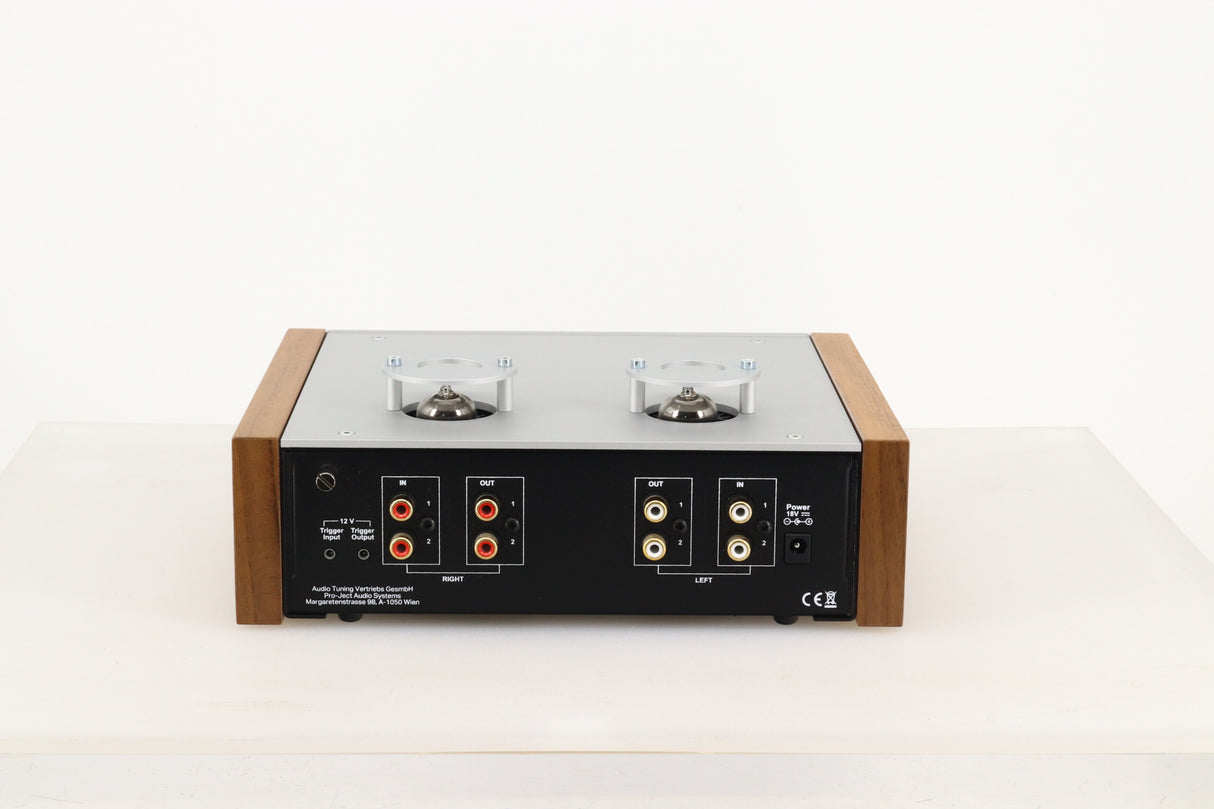

Input: 2 pairs RCA/phono sockets
Line-level output: 2 pairs RCA/phono sockets
External Power Supply Rating: 18 V-1000 mA DC
Power consumption: 490 mA DC, < 0.5 W in standby
Dimensions: 240 (W) x 227 (D) x 91 (H) mm
Weight: 1.96 kg
