Project Phonobox MM Phono Stage

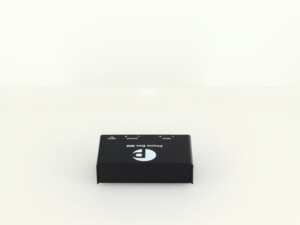

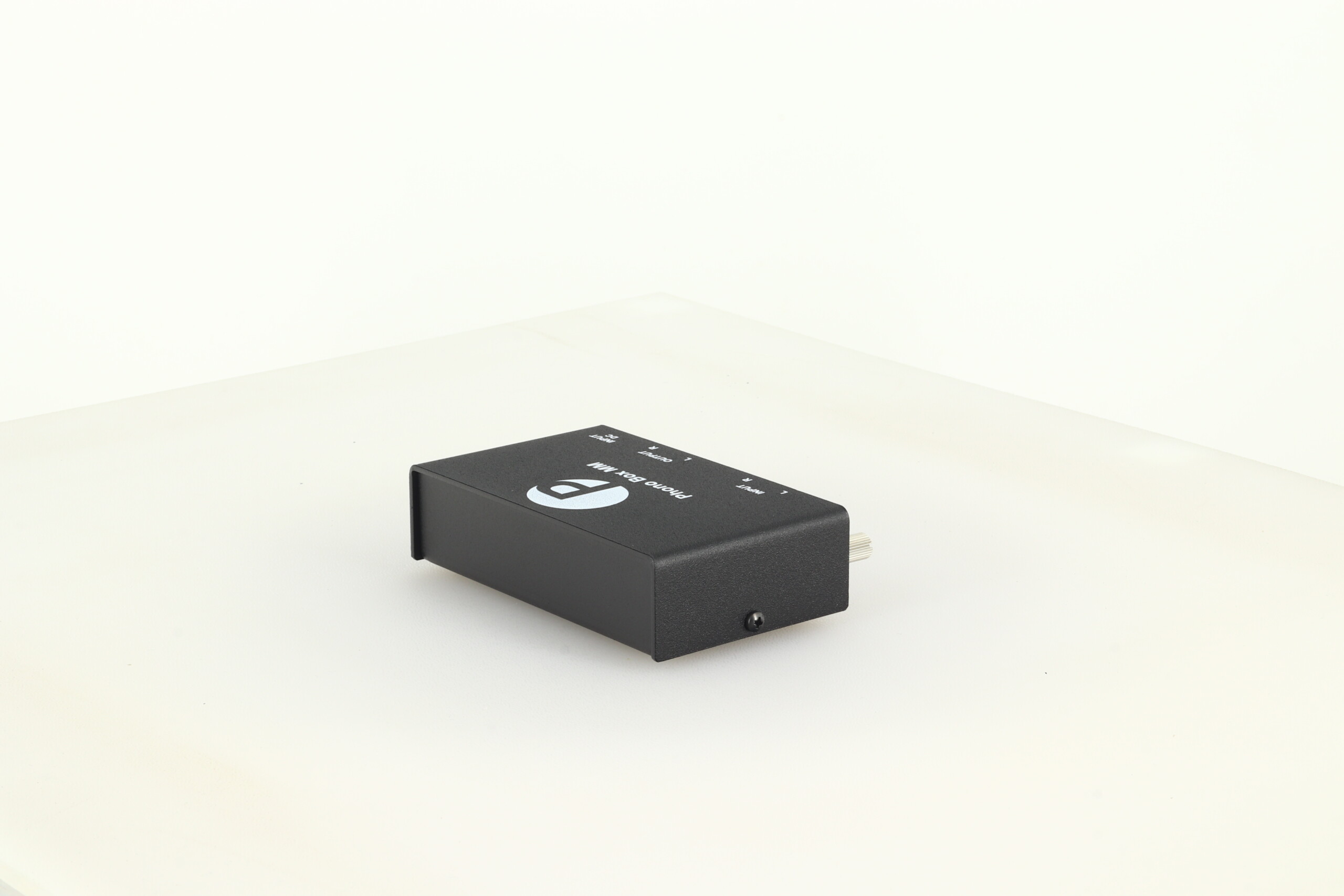

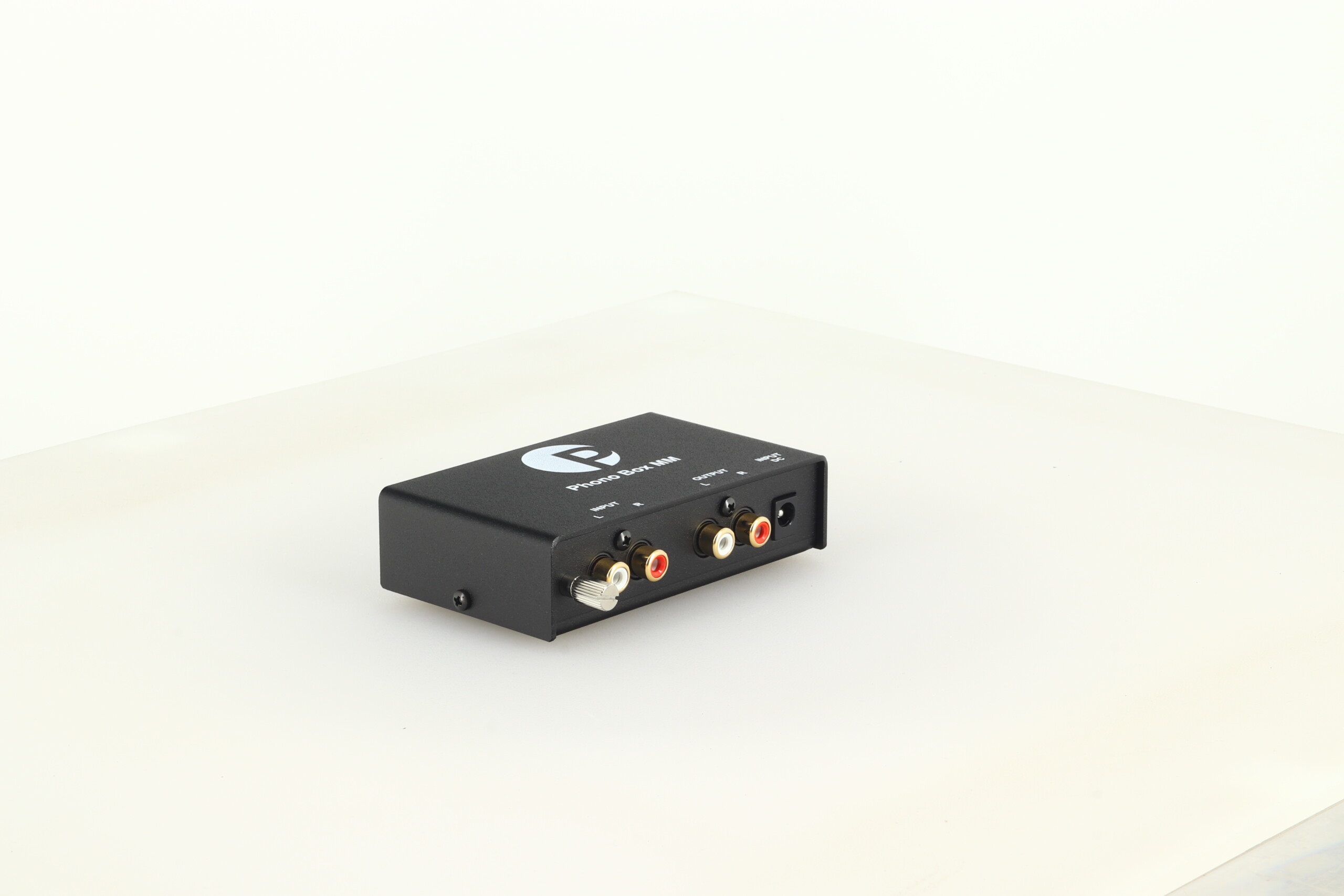

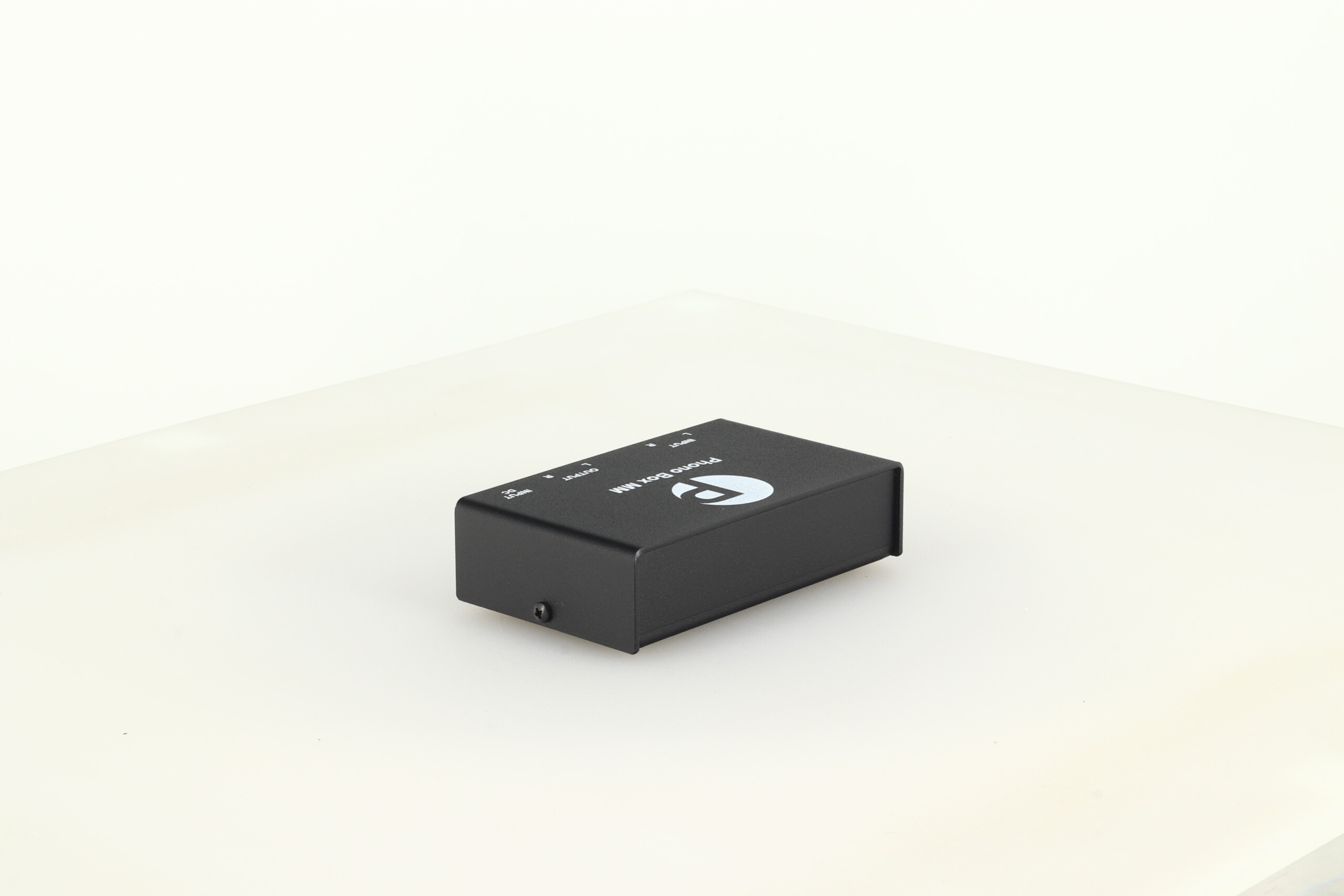

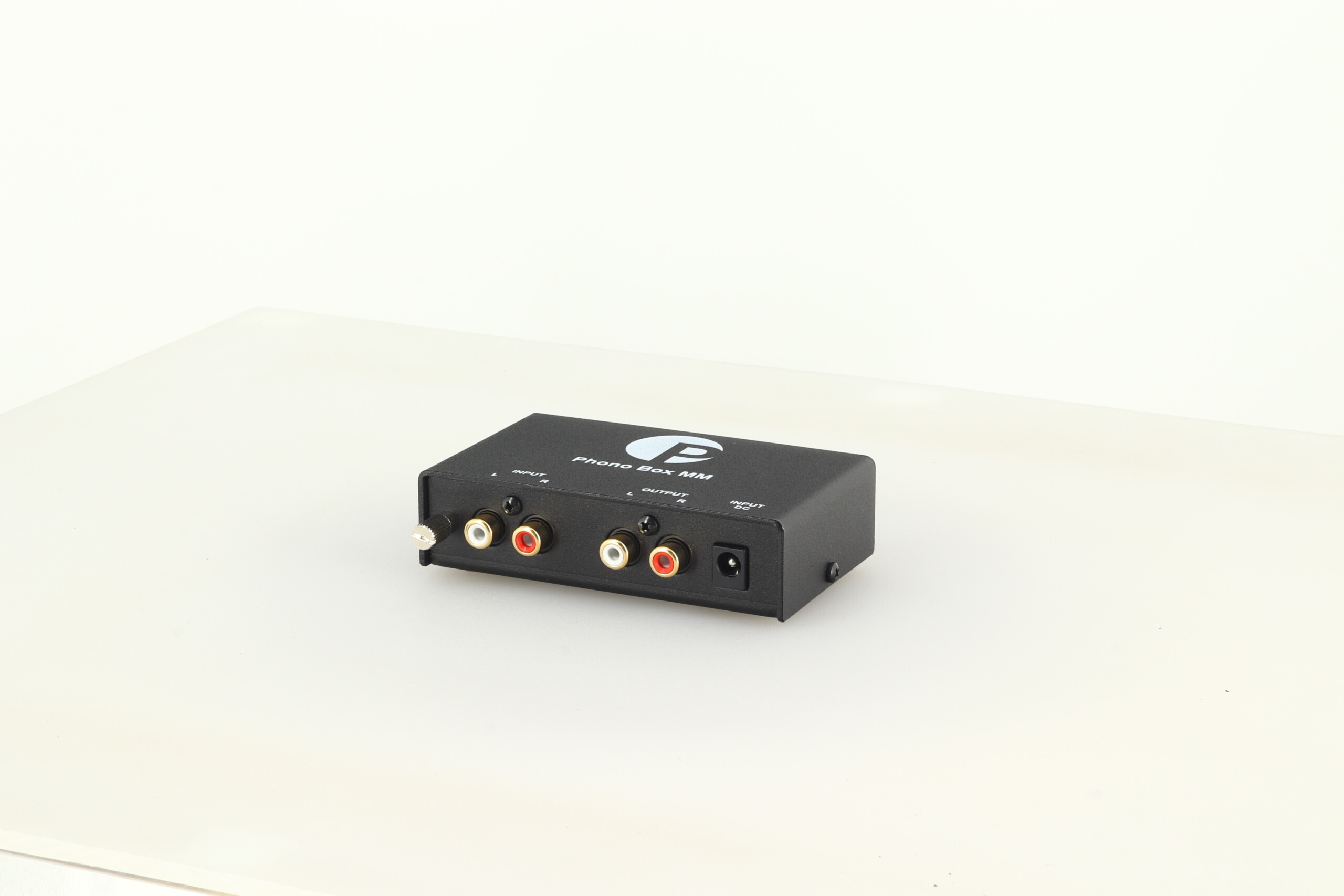

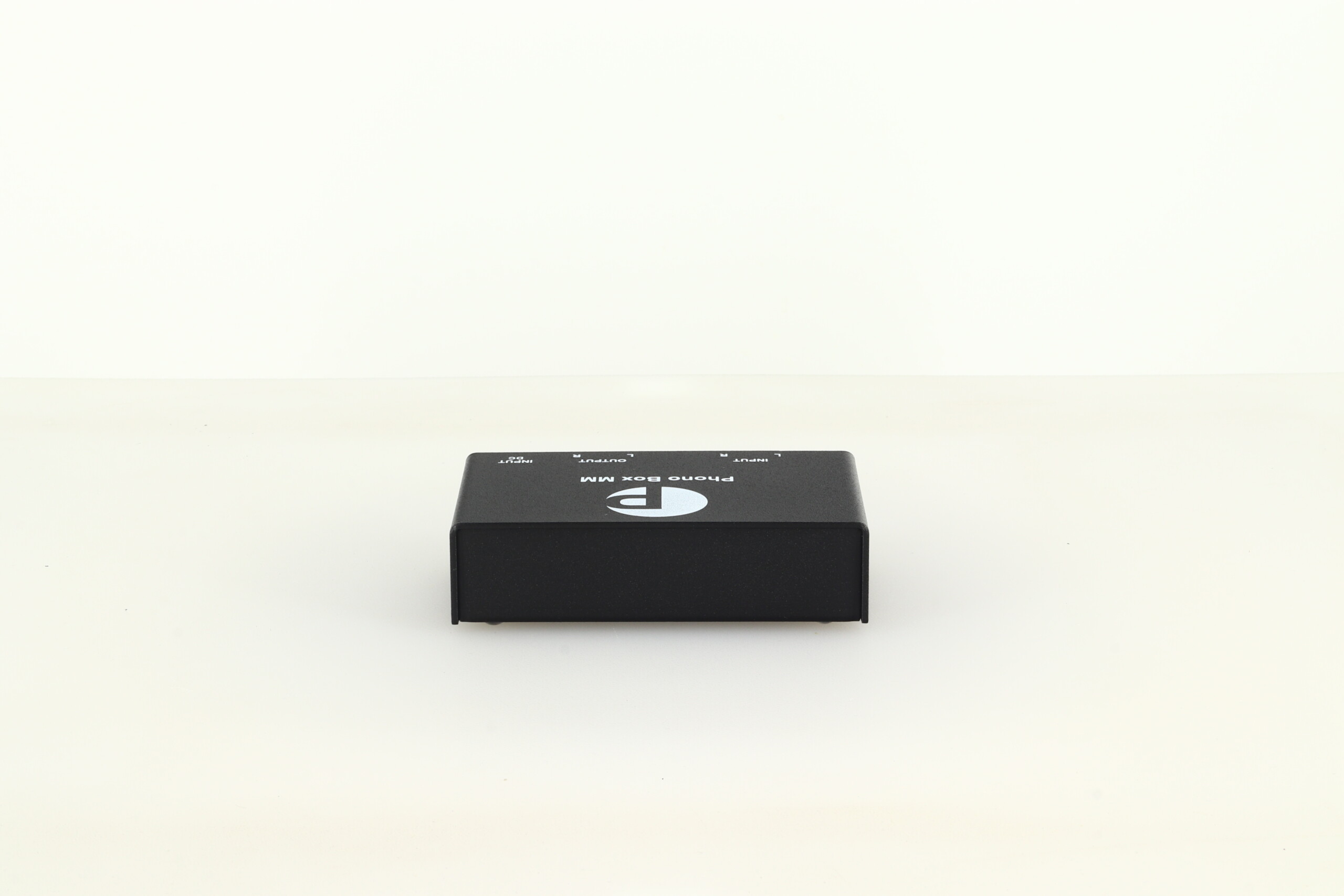

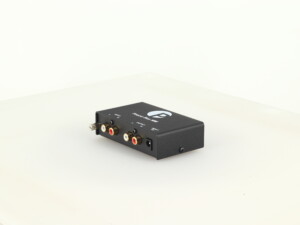

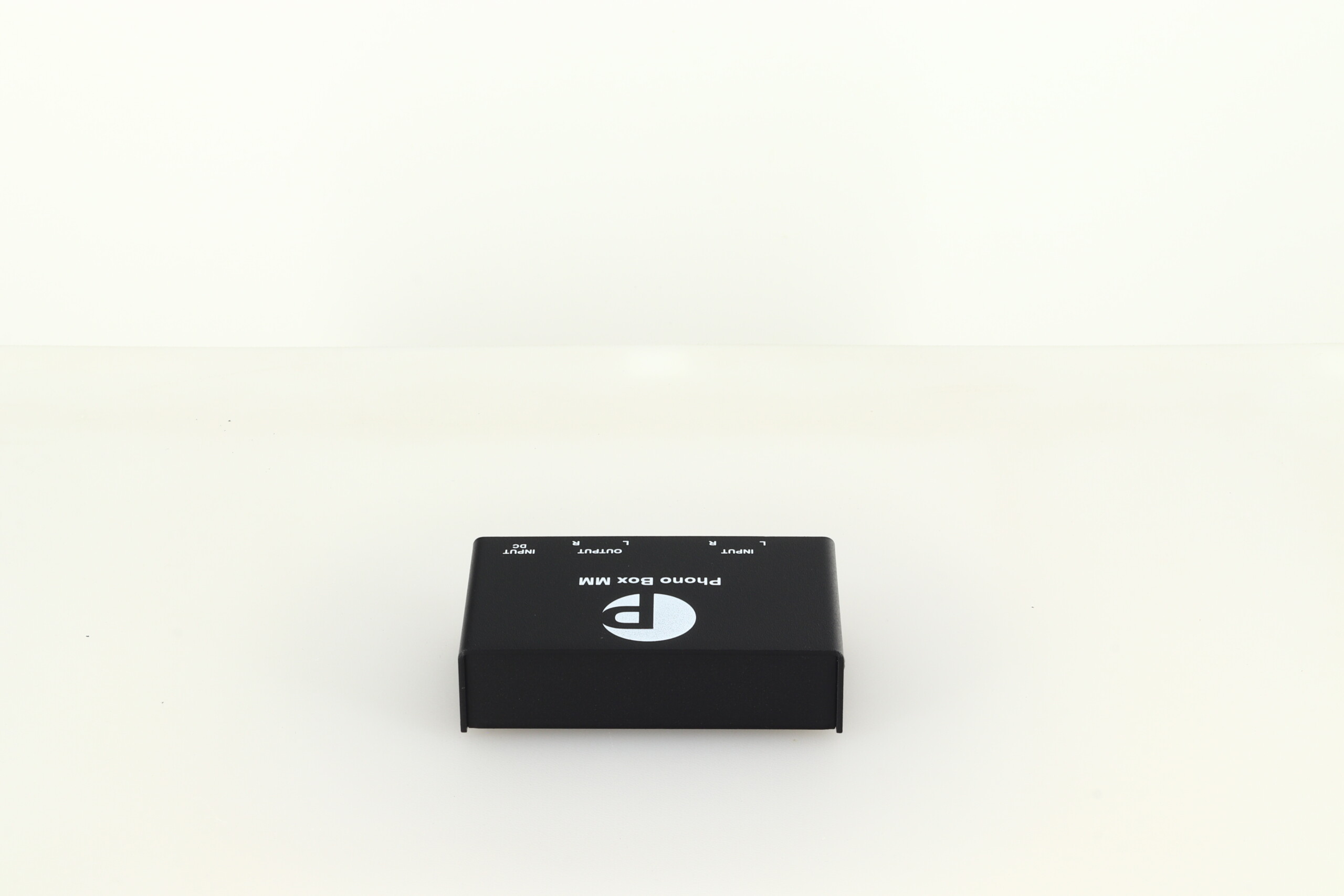

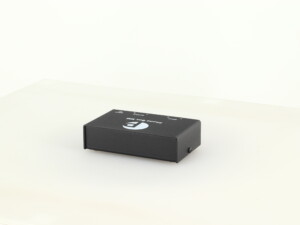

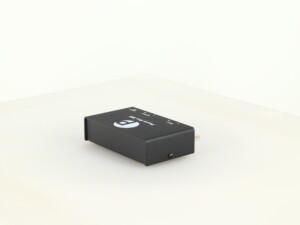

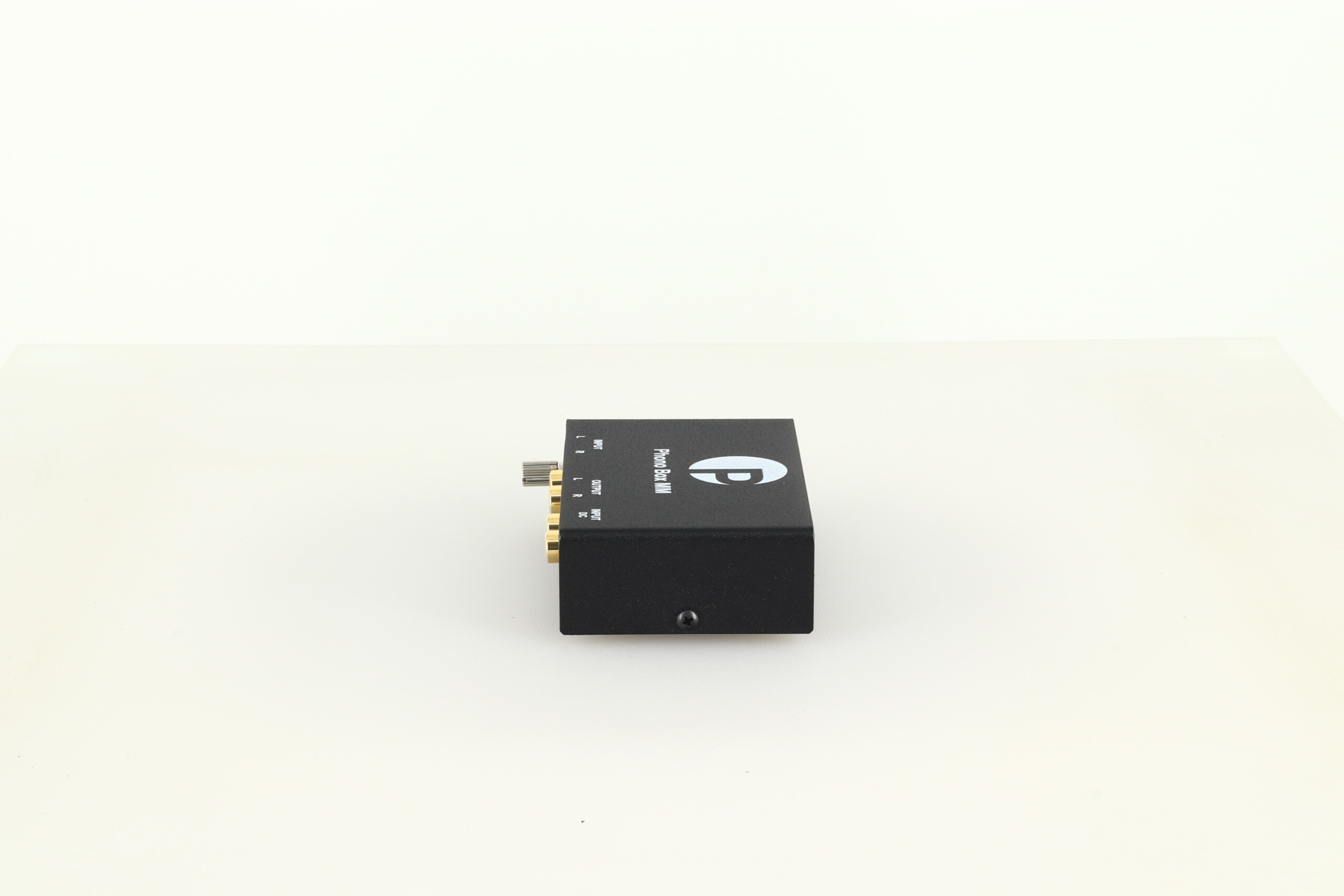

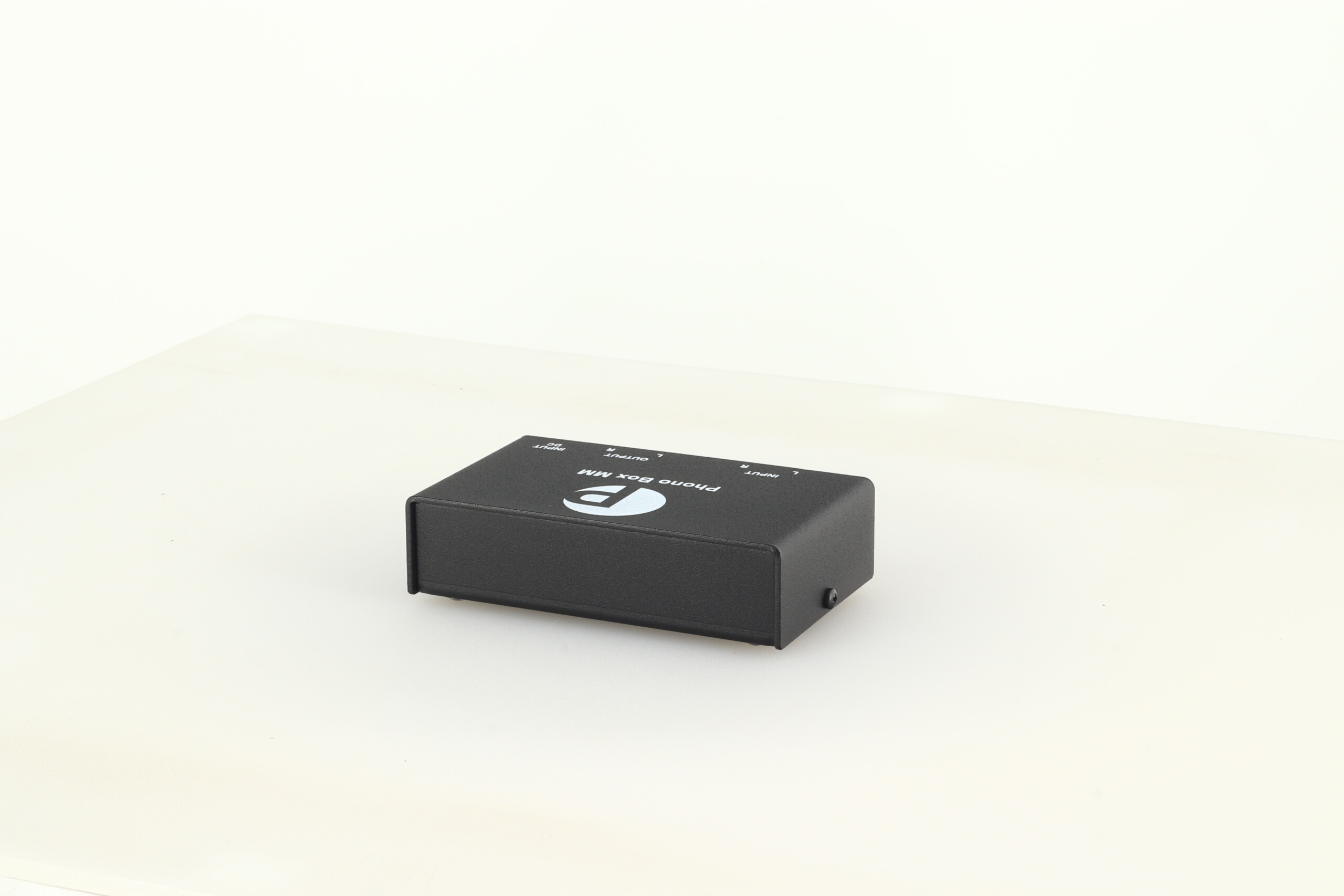

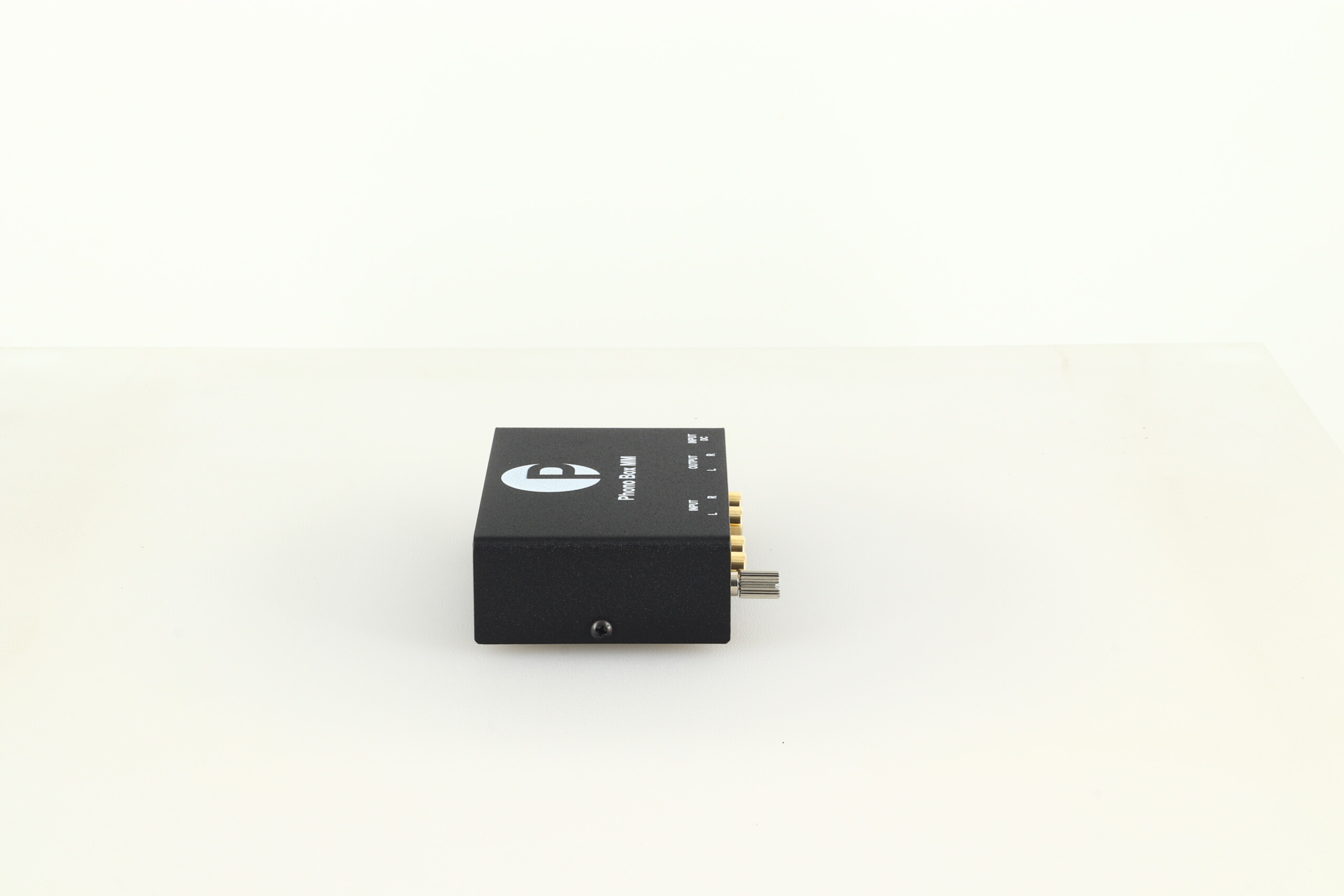

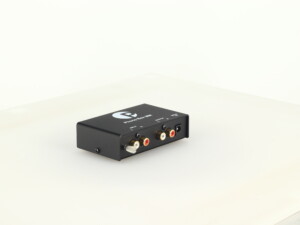

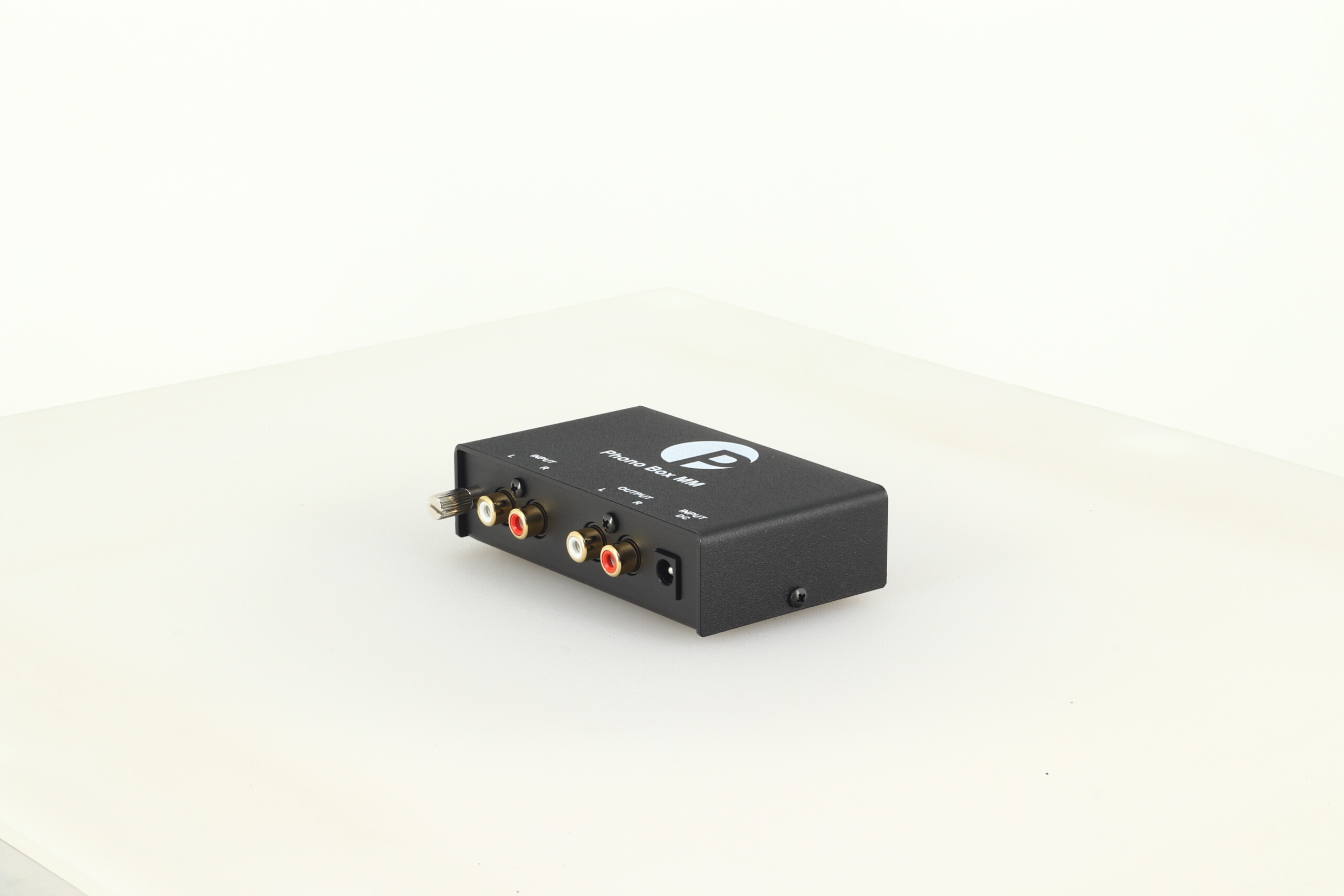

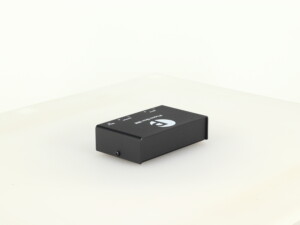

Here we have a Phono Box MM Phonostage from specialist audio manufacturer Pro-Ject. This little device is a very small and neat solution where space is at a premium and is ideal when you decide you want to get into vinyl again and bring that turntable down from the attic and try hooking it up to your system only to find the amplifier you bought a few years ago hasn’t got a “Phono” input! It is in very good condition, comes suitably packaged along with mains PSU, and our 3-month warranty.
Pro-Ject Say….
Good sound from sound technology
Today, many amplifiers do not have a specific phono cartridge input. Phono Box MM is an ideal phono preamplifier for these hi-fi systems. Phono Box MM accepts MM and high-output MC cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry keeps noise and distortion at a surprisingly low level. The metal case shielding, and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box MM can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box MM can be connected easily to a line-input (AUX etc) of your amplifier.
Specifications
Input impedance: 47 kOhm / 120 pF
Gain: 40 dB
Output voltage: 500 mV / 1 kHz at 5 mV /1 kHz
Noise floor: 88 dB (A weighted)
THD: <0,04%

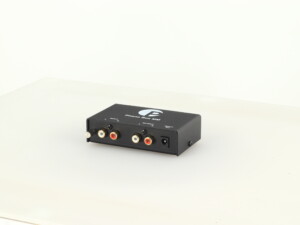

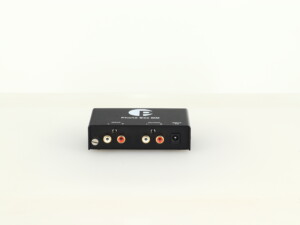

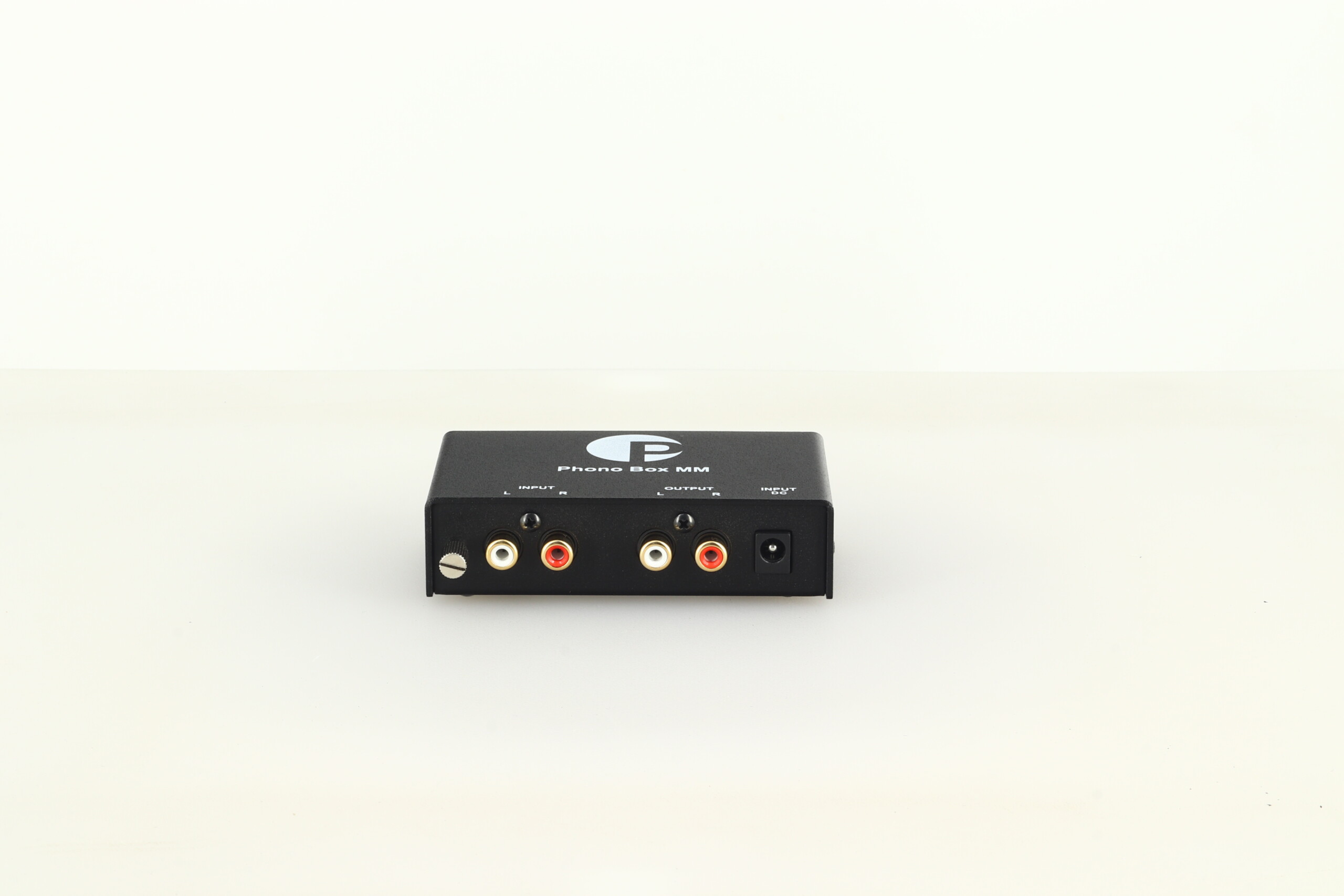

Input: 1 pair RCA/phono sockets
Line-level output: 1 pair RCA/phono sockets

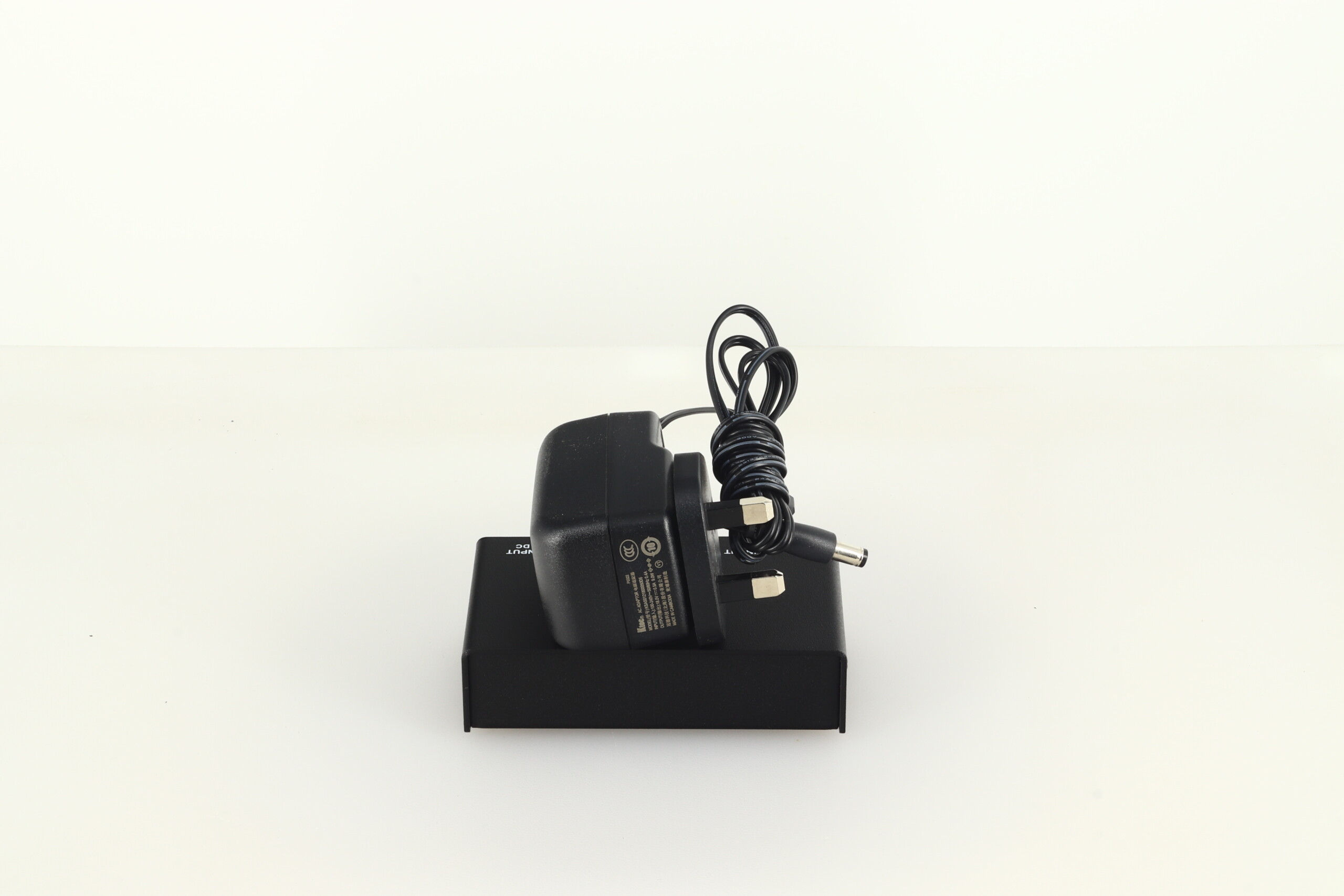

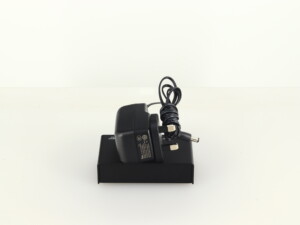

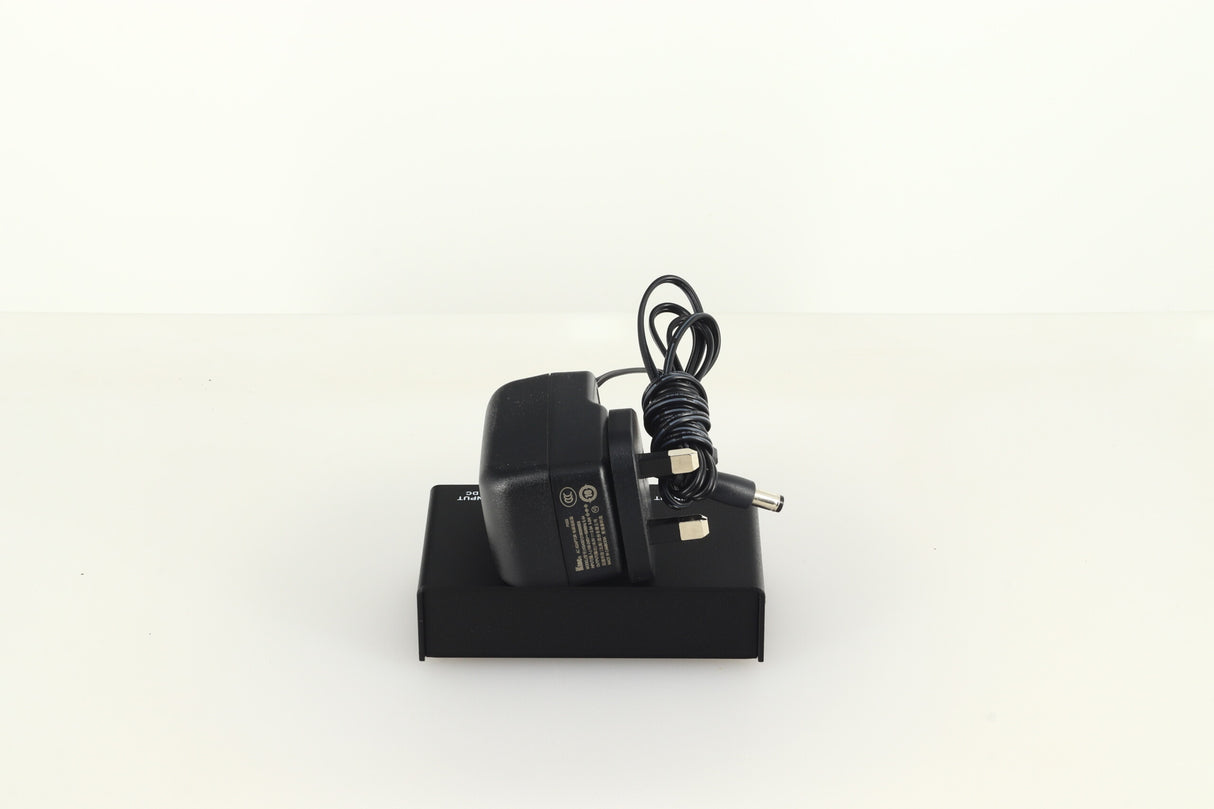

Outboard power supply: 18 V / 500 mA DC, suitable for your country’s mains supply
Power consumption: 20 mA DC
Dimensions: 107 (W) x 30 (H) x 75 (D) mm
Weight: 280 g
