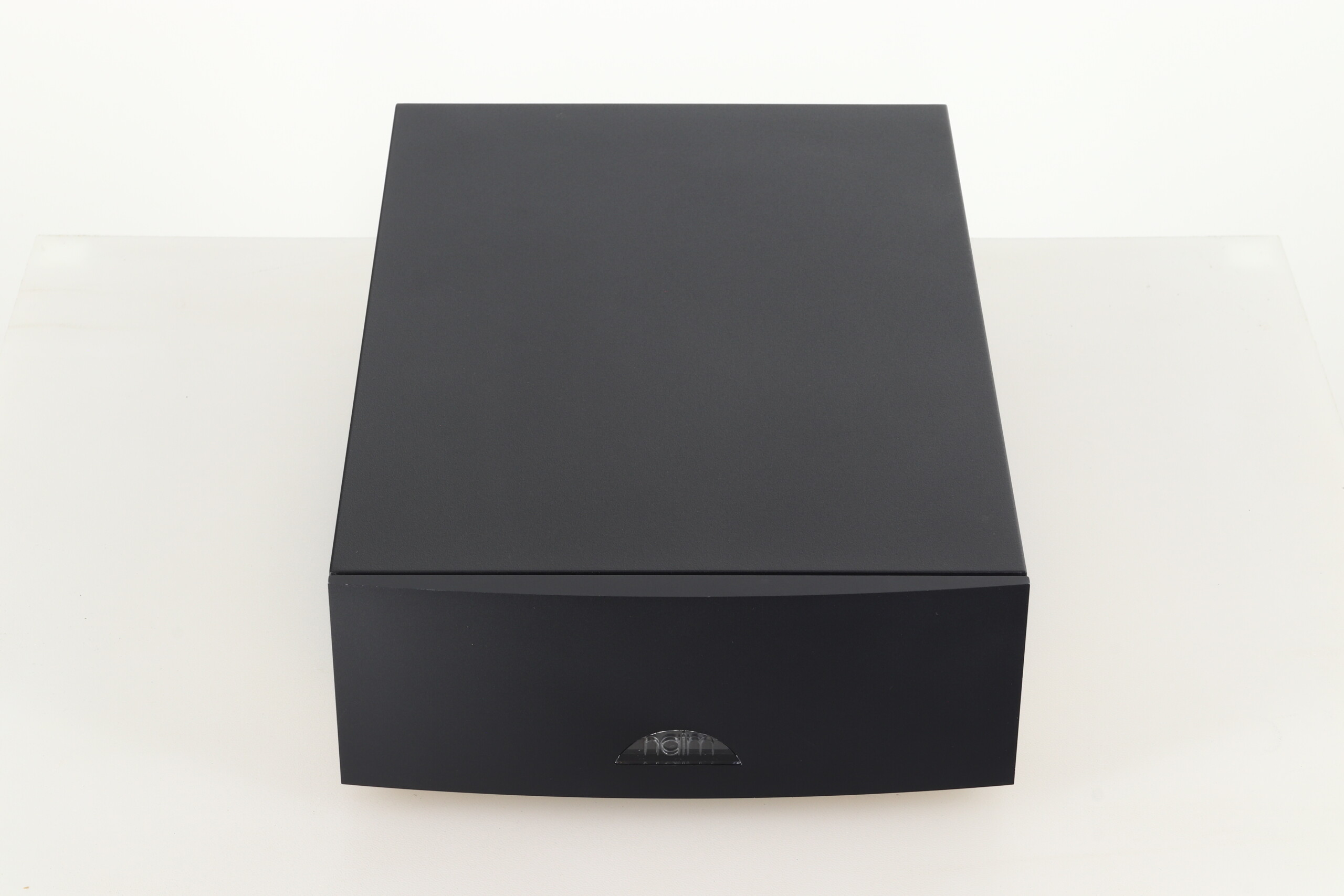

Naim SuperLine Phonostage (2008)

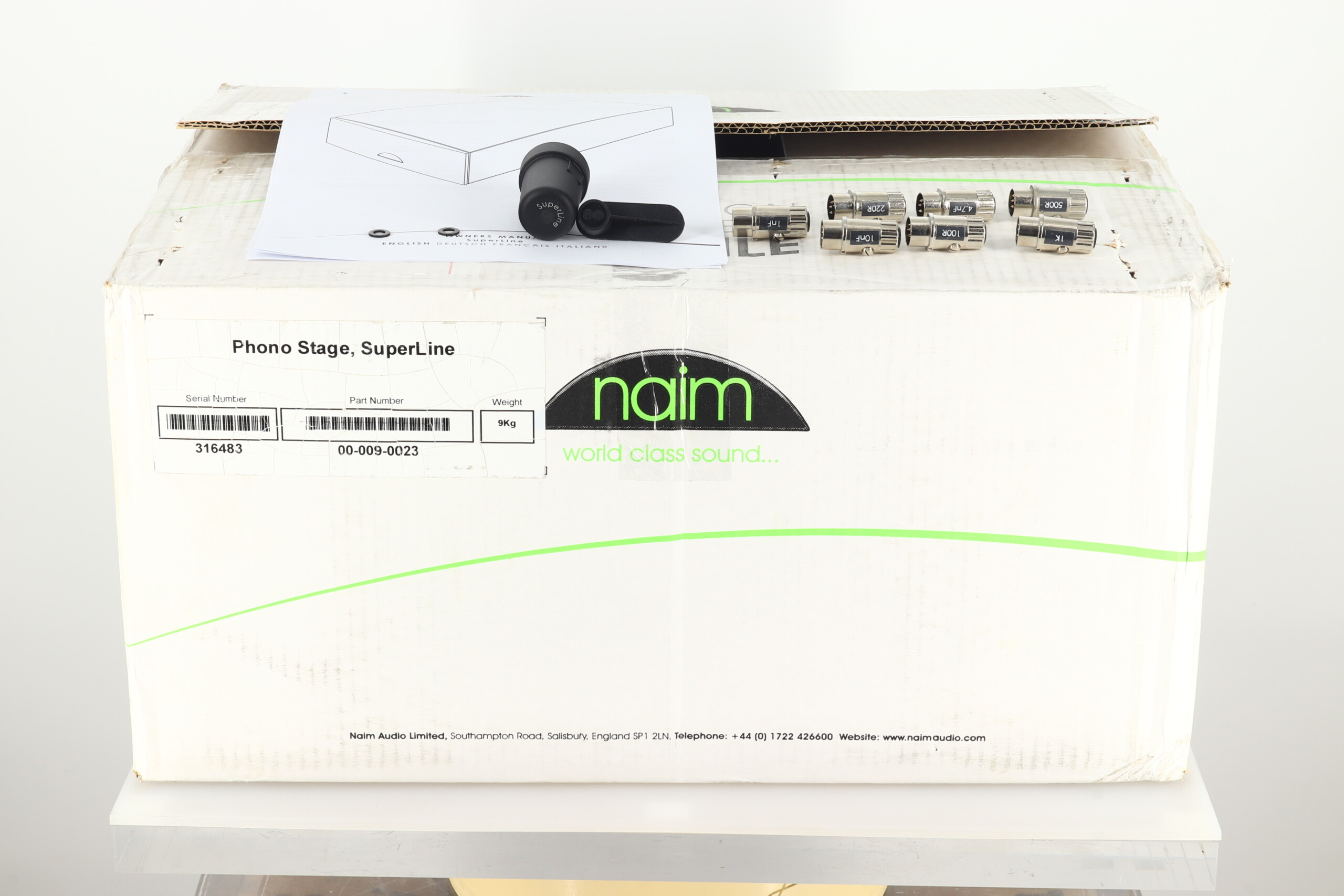

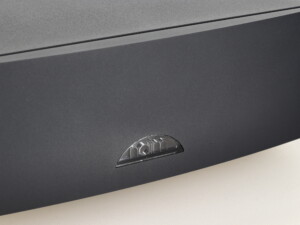

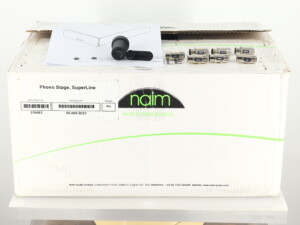

Here we have an example of the excellent SuperLine moving coil phonostage from British company Naim Audio. It is in very good condition, has had a new logo fitted and will be professionally packaged along with a manual, loading plugs, link plug, and as we (Hi-Fi Sound) are an authorised Naim dealer it will have our regular three month warranty.
Naim Say….
Vinyl replay makes a huge contribution to the enjoyment of recorded music. At its best, vinyl has a uniquely engaging and musical quality, and with the SuperLine phonostage, the best of vinyl just gets better.

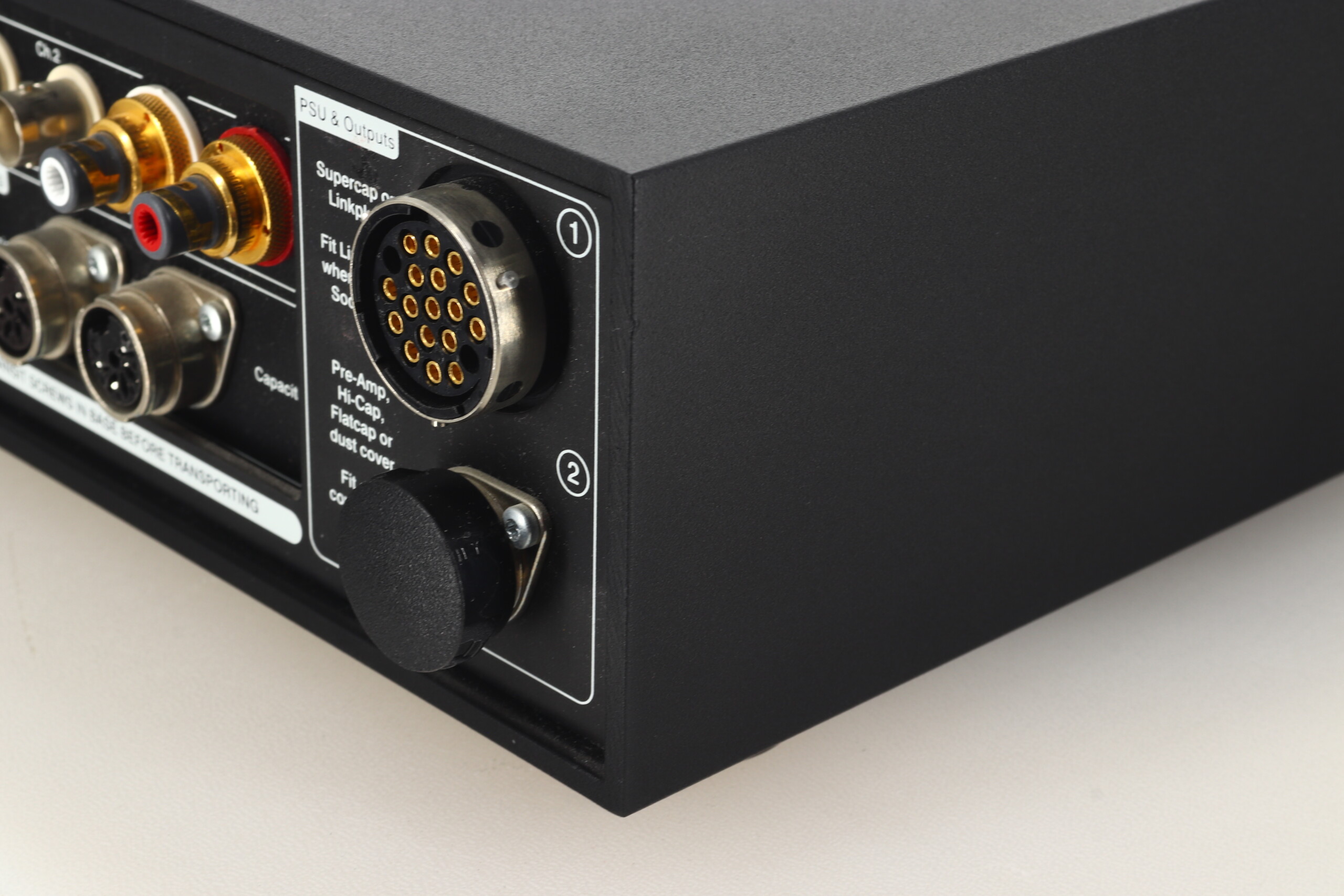

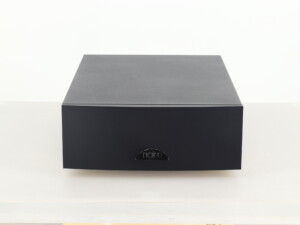

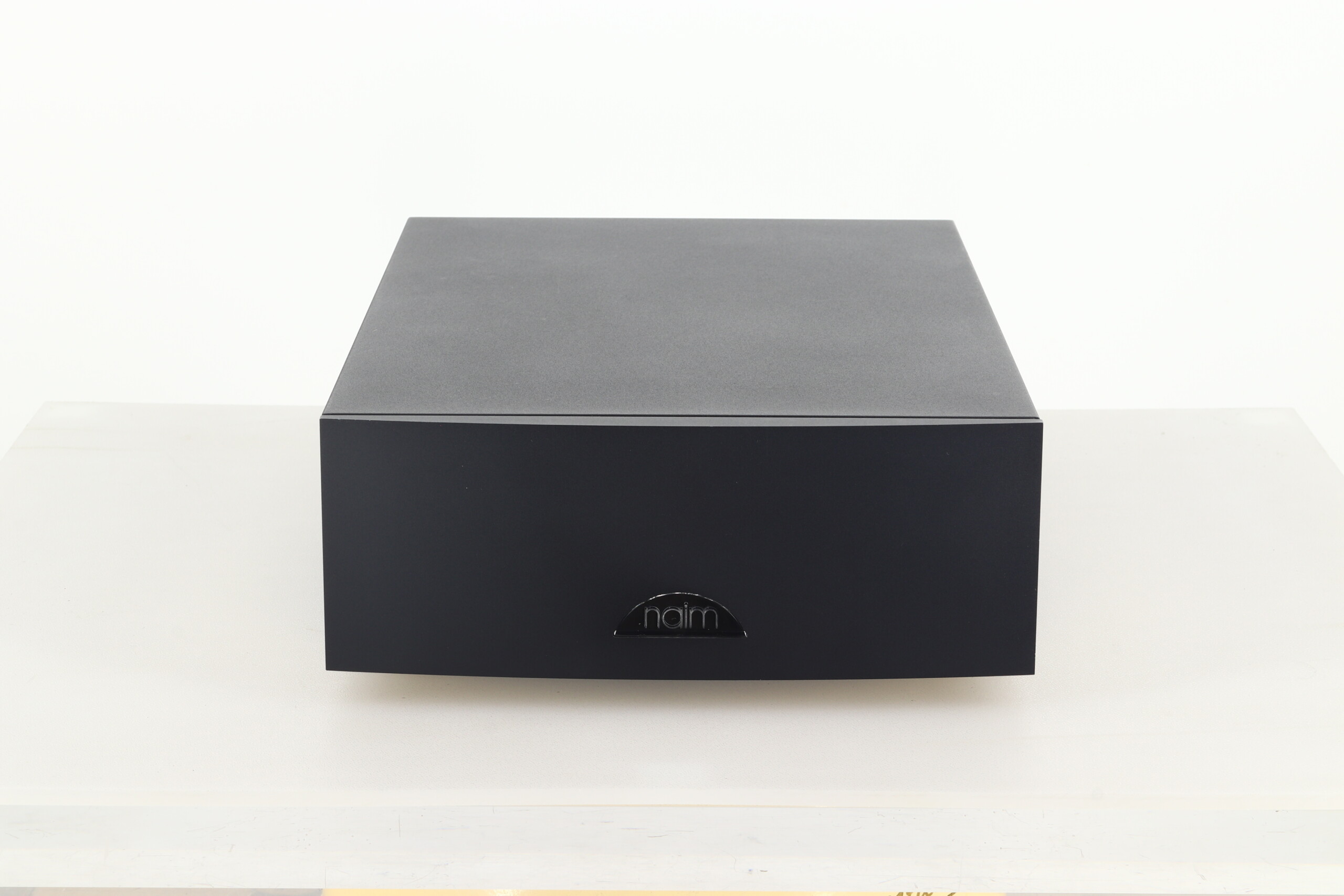

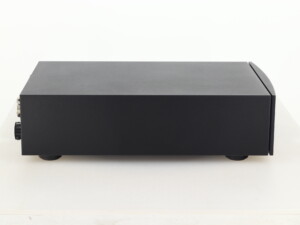

The SuperLine is a high performance moving-coil phono stage built in the Naim Audio aluminium reference enclosure with an anodised front panel. It brings all Naim Audio’s latest analogue electronic design and environmental isolation techniques to bear on the most delicate analogue element of any hi-fi system – the moving-coil phono signal. The SuperLine requires an external power supply – either the power supply output of an appropriate Naim Audio preamplifier or the SUPERNAIT and NAIT XS integrated amplifiers, or, for optimum performance, a dedicated FlatCap XS, HiCap or SuperCap.
SuperLine brings out all that’s best in vinyl replay – timing, pitch accuracy, clarity, detail, and the unmistakable naturalness that records can deliver in abundance.
The heart of the SuperLine is a new, two-stage single-ended Class A discrete amplifier with part-passive RIAA filtering that runs off 25 internally regulated power supplies and features the transistor “quiet room” thermal isolation technique originally developed for the NAP 500 power amplifier. Environmental isolation is also ensured by the SuperLine’s massive sub-chassis and high-Q spring suspension system – used here for the first time on a phono amplifier.

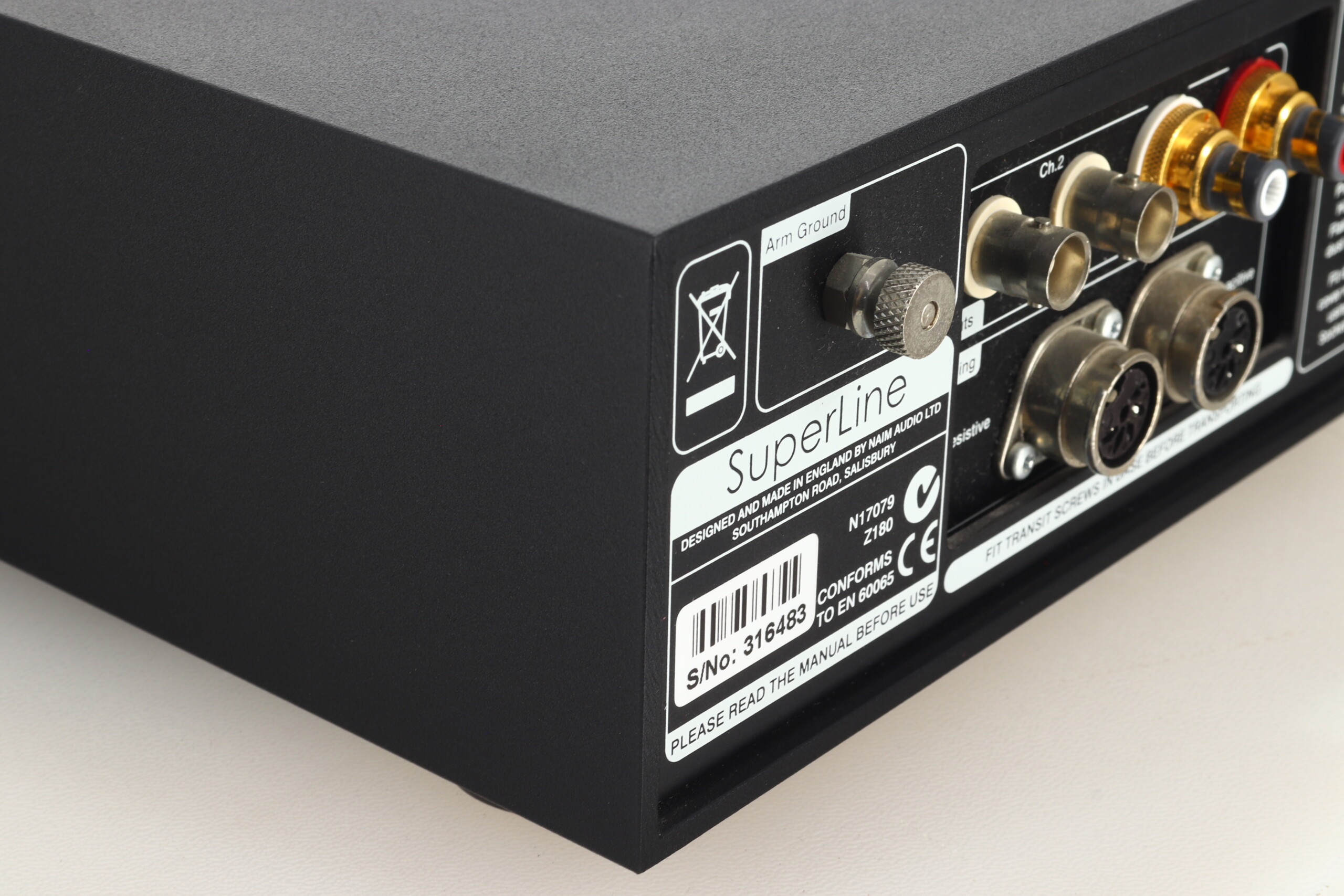

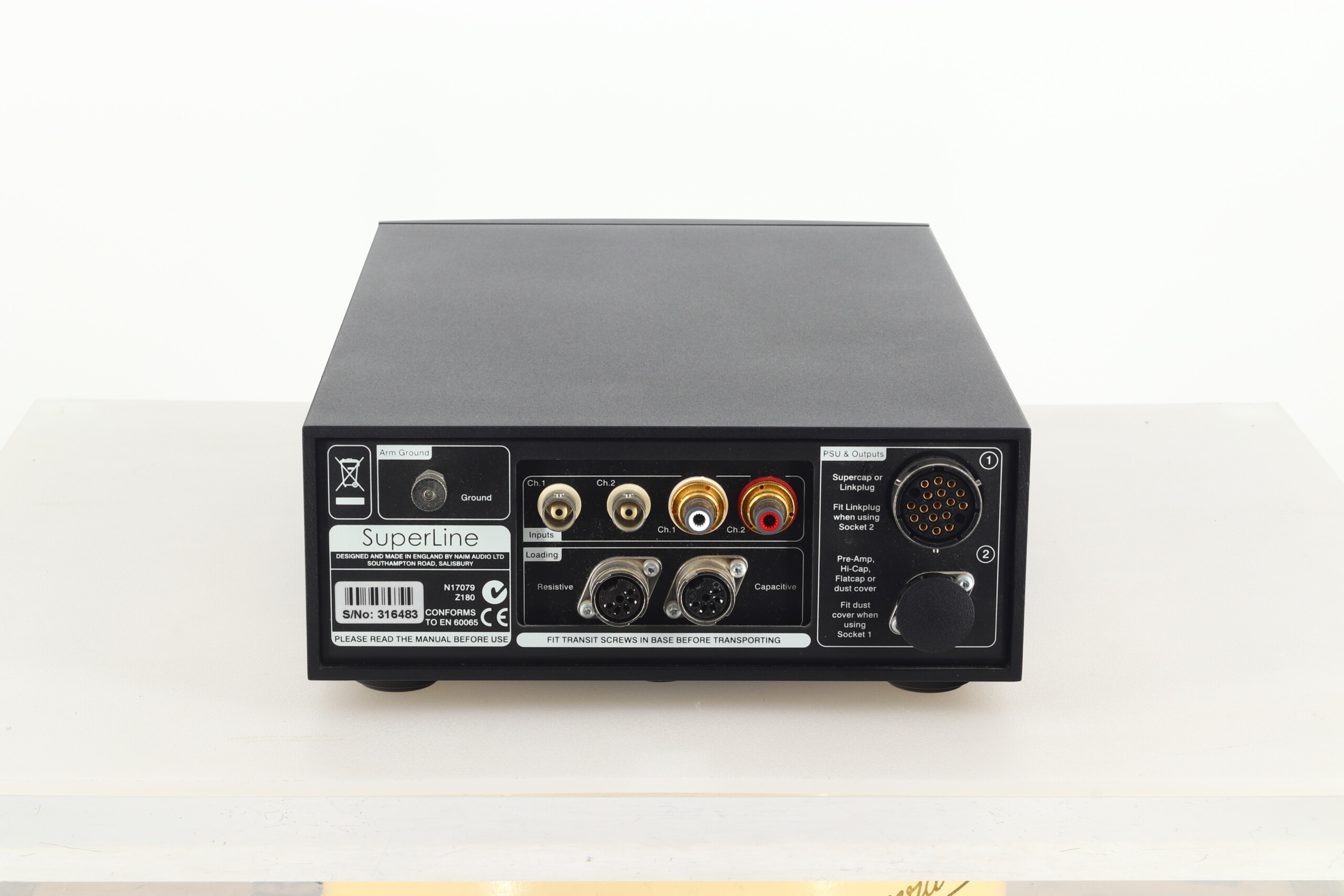

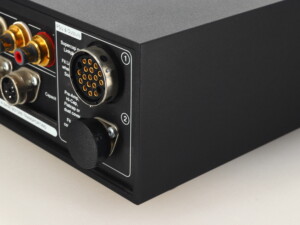

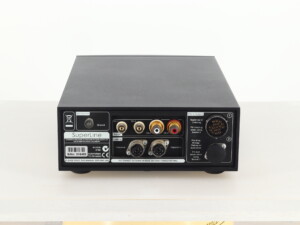

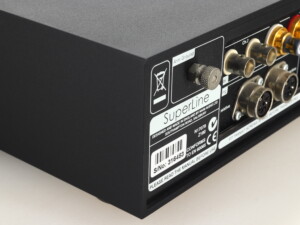

Duplicate phono and BNC sockets provide input versatility, and cartridge impedance matching adjustment is provided by four resistive and three capacitive load plugs. In combination with the SuperLine’s internal input load, twenty different standard load combinations are possible
The SuperLine is also available in a lower gain model, SuperLine E. The SuperLine E is identical to the standard SuperLine except that is has been designed for use with cartridges that have a higher output voltage than most popular moving coils: for example high output moving coils.
Features:
RCA and BNC inputs
Moving coil only, with cartridge impedance matching adjustment (20 different load combinations possible)
Suspension system for delicate electronics as used in 500 Series

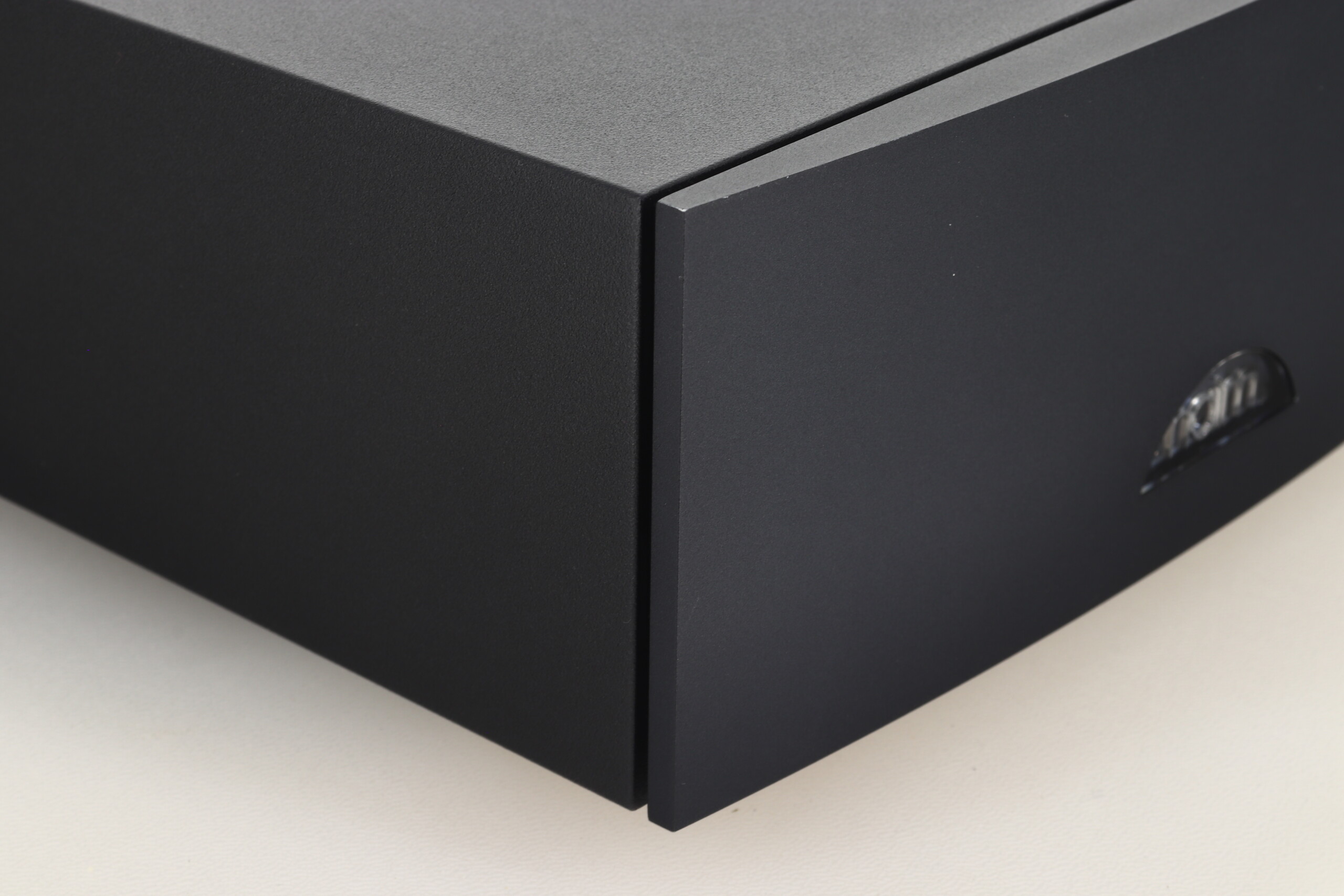

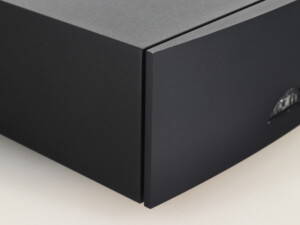

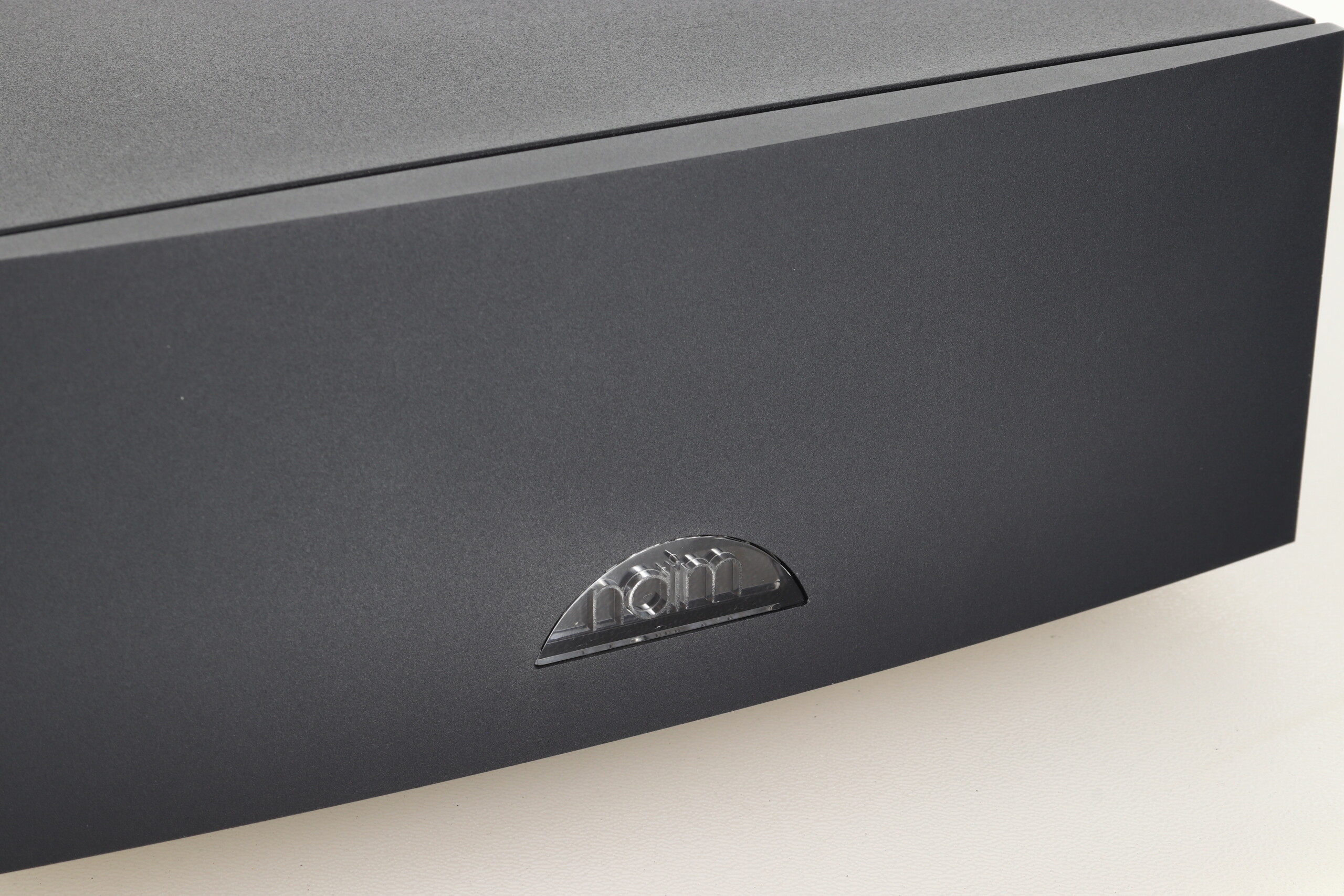

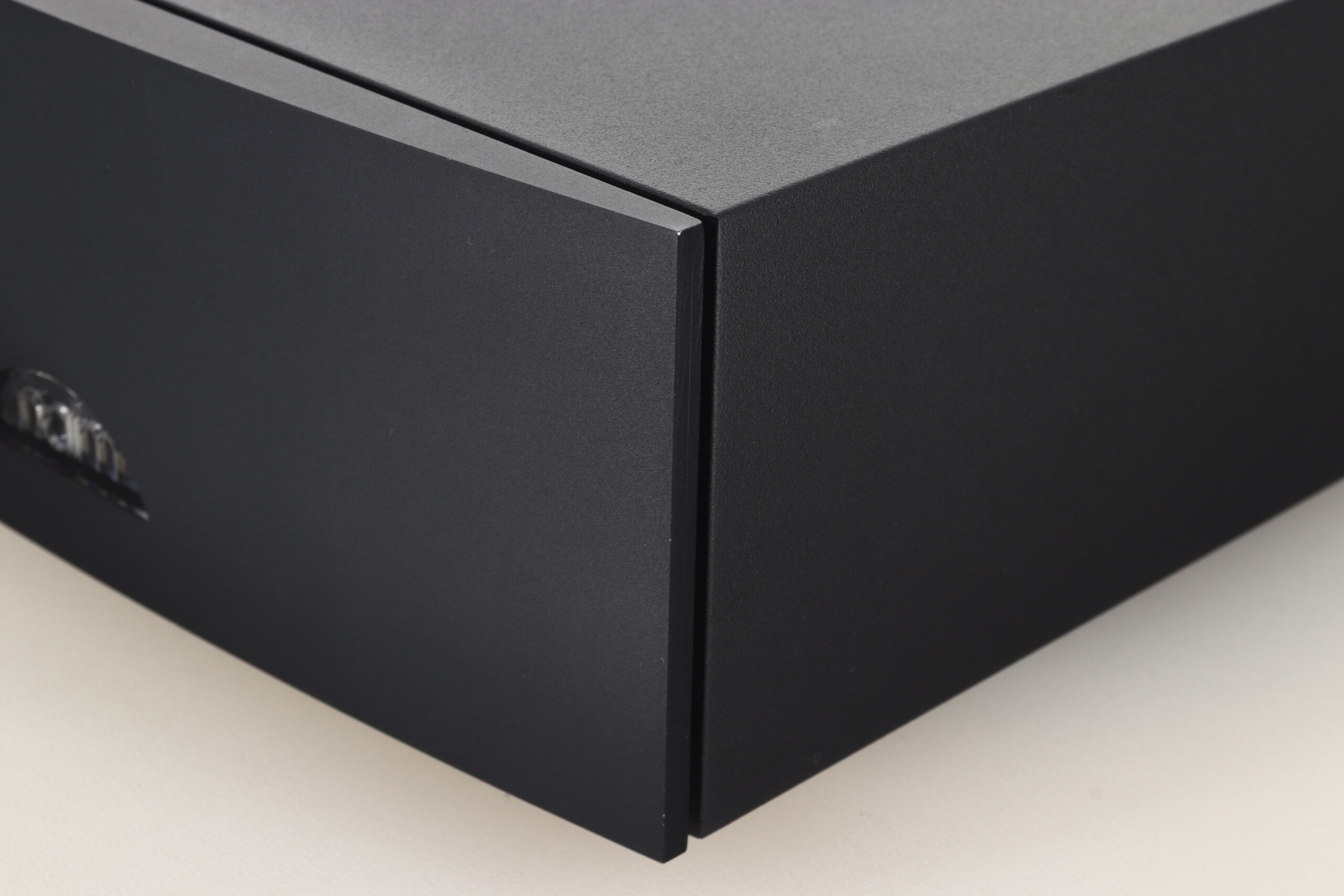

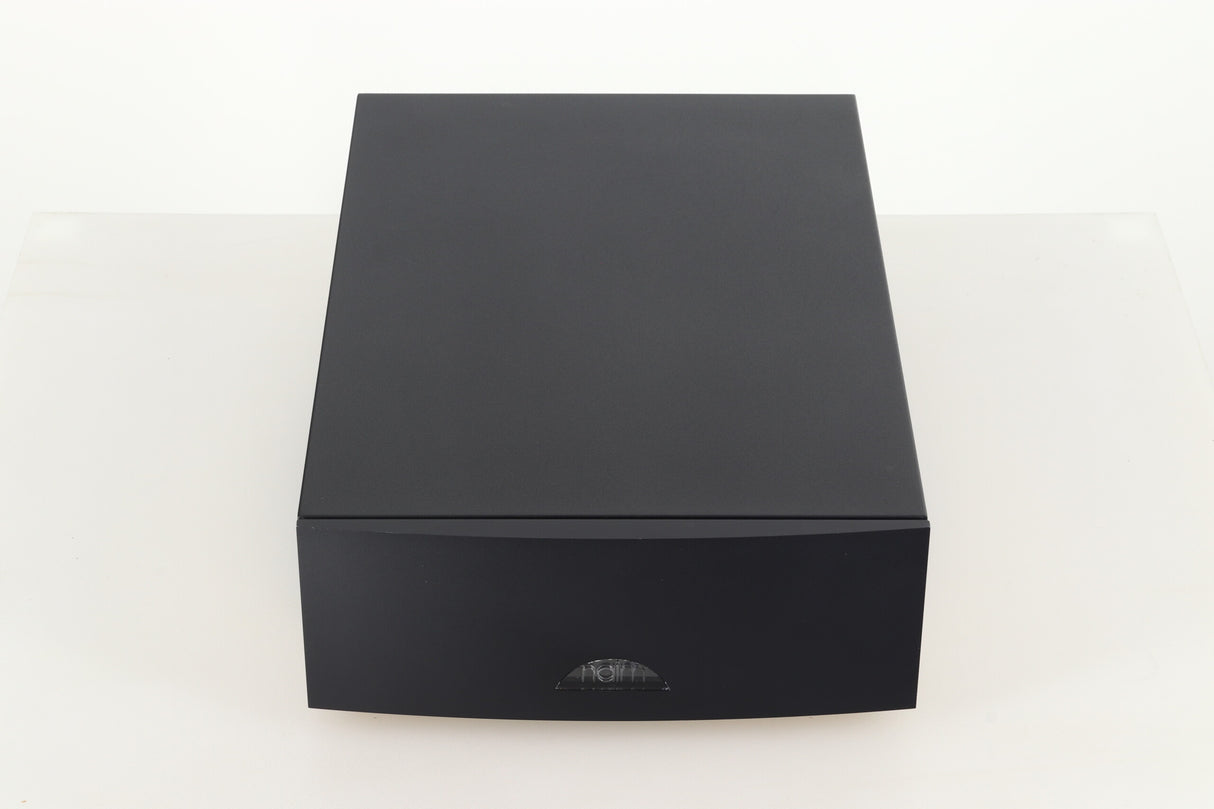

Bead-blasted, black anodised front panel
Specifications:
Audio Inputs
Analogue Input: BNC, RCA
Input Sensitivity : 100 μV – 500 μV, SuperLine E: 200 μV – 1 mV
Other Inputs: 2 x 5-pin DIN for loading plugs
Audio Outputs
Crosstalk: > 80 dB (20 Hz – 20 kHz)
THD + N: < 0.005% (500 μV at 1 kHz)
Signal-to-Noise Ratio: 82 dB ref 500 μV input, 0 μ(A-weighted), SuperLine E: 78 dB
Frequency Response: 10 Hz to >200 kHz – 3 dB
Gain: 64 dB at 1 kHz, SuperLine E: 58 dB
Finish: Case – Black powder coated; Front – Bead blasted and black anodised
Phono Specific
Input Load Options: 10k Ω, 1 k, 500 Ω, 220 Ω, 100 Ω, 100 pF, 1 nF, 5.6 nF, 10 nF
Input Overload: 5 mV rms (1 kHz), SuperLine E: 10 mV
High Pass Filter: 10 Hz
RIAA Accuracy: ±0.1 dB (20 Hz – 20 kHz)
Physical
Weight: 7.7 kg
Dimensions: 207 (W) x 314 (D) x 87 (H) mm
Power Supply Options: NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap
Supply Voltage: 24 V
