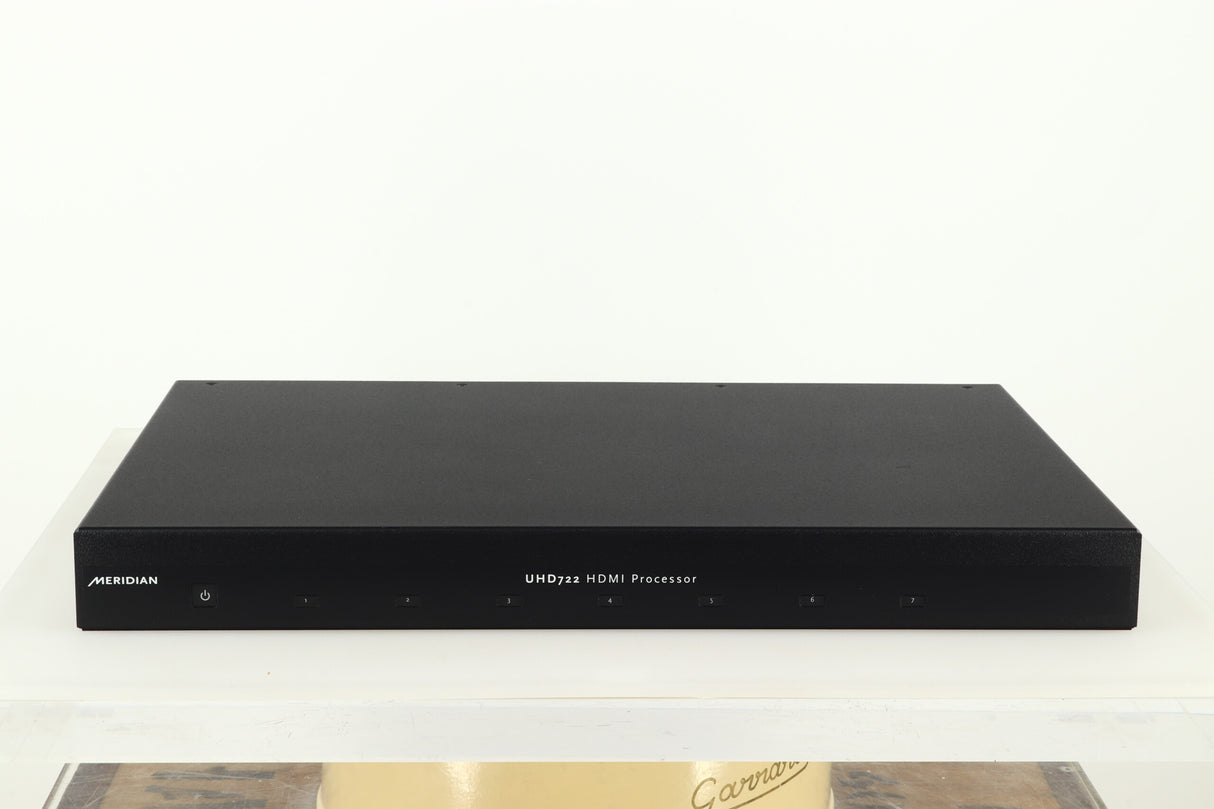

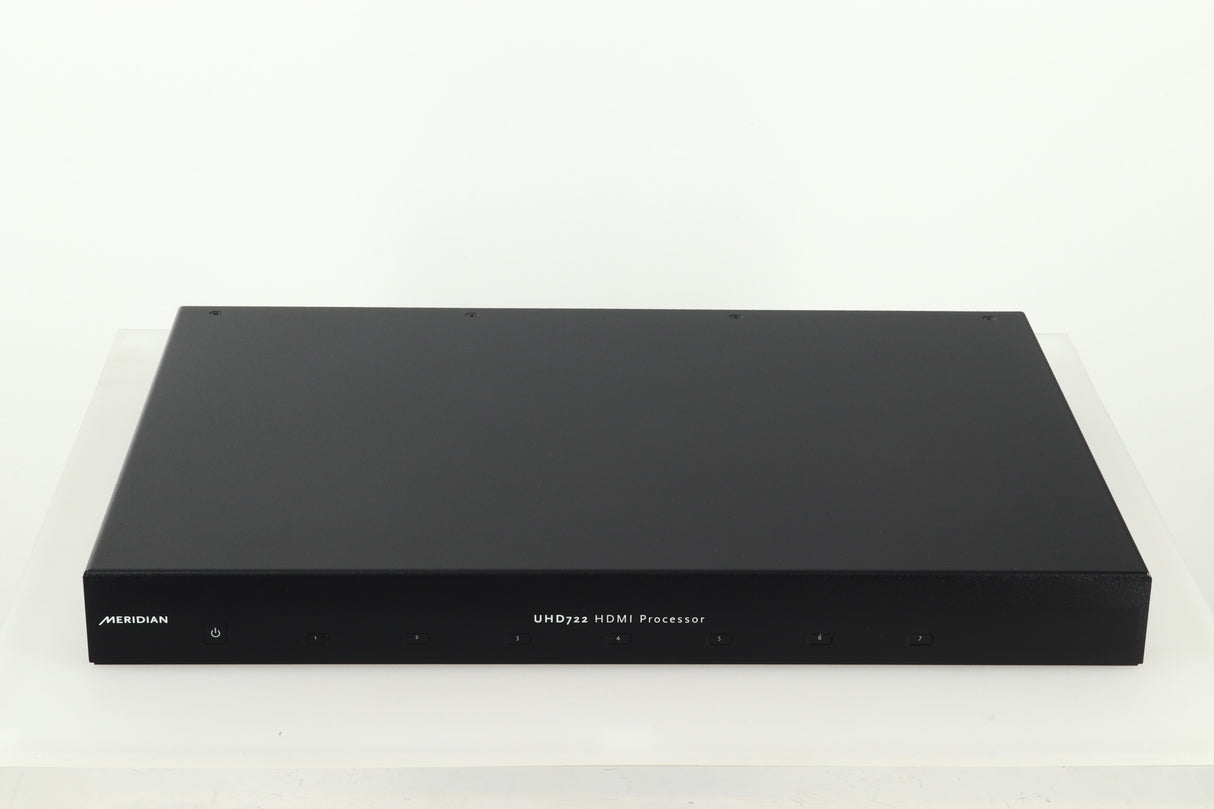

Meridian UHD722 4K HDMI Processor

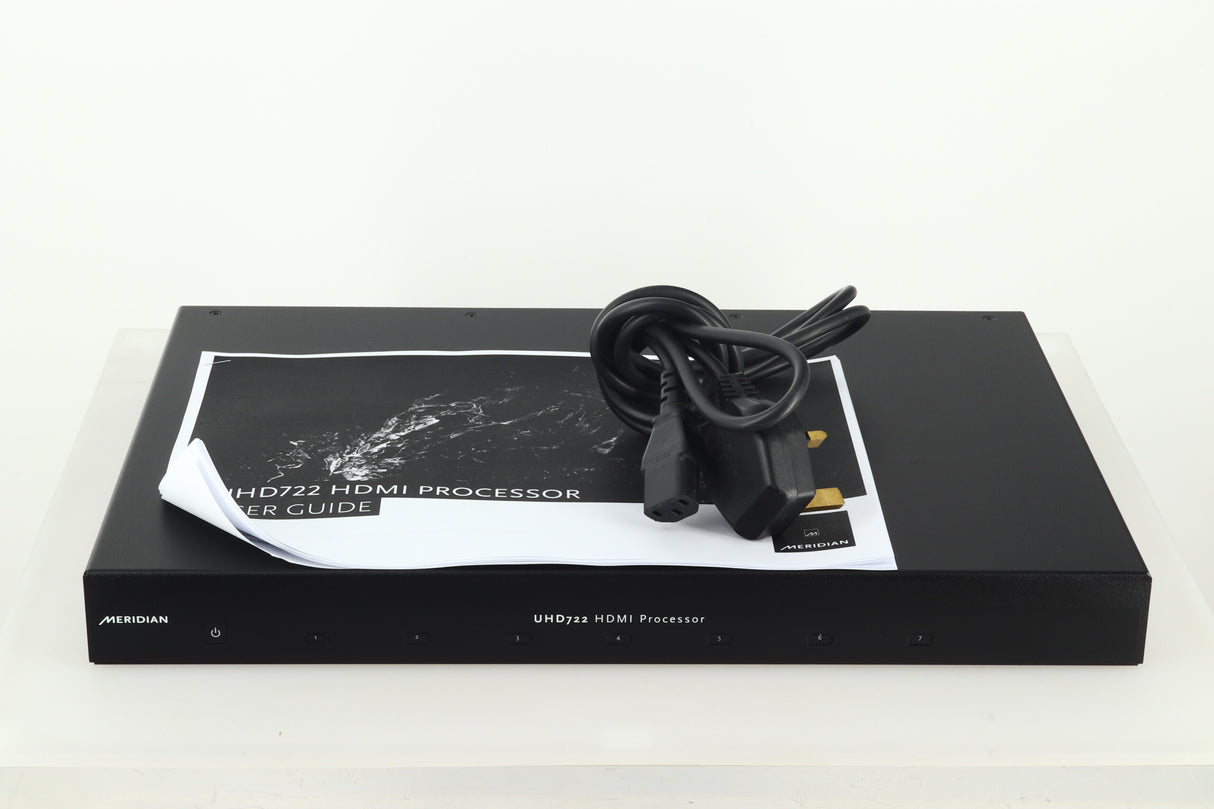

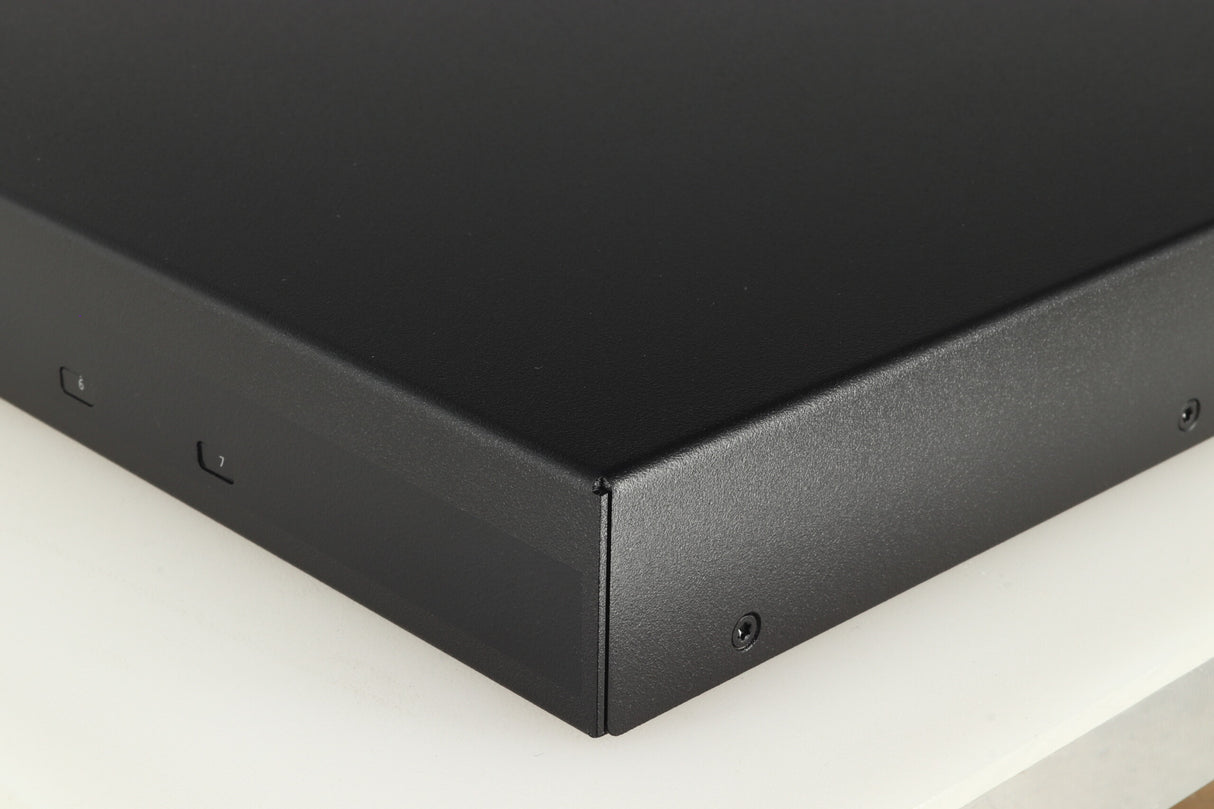

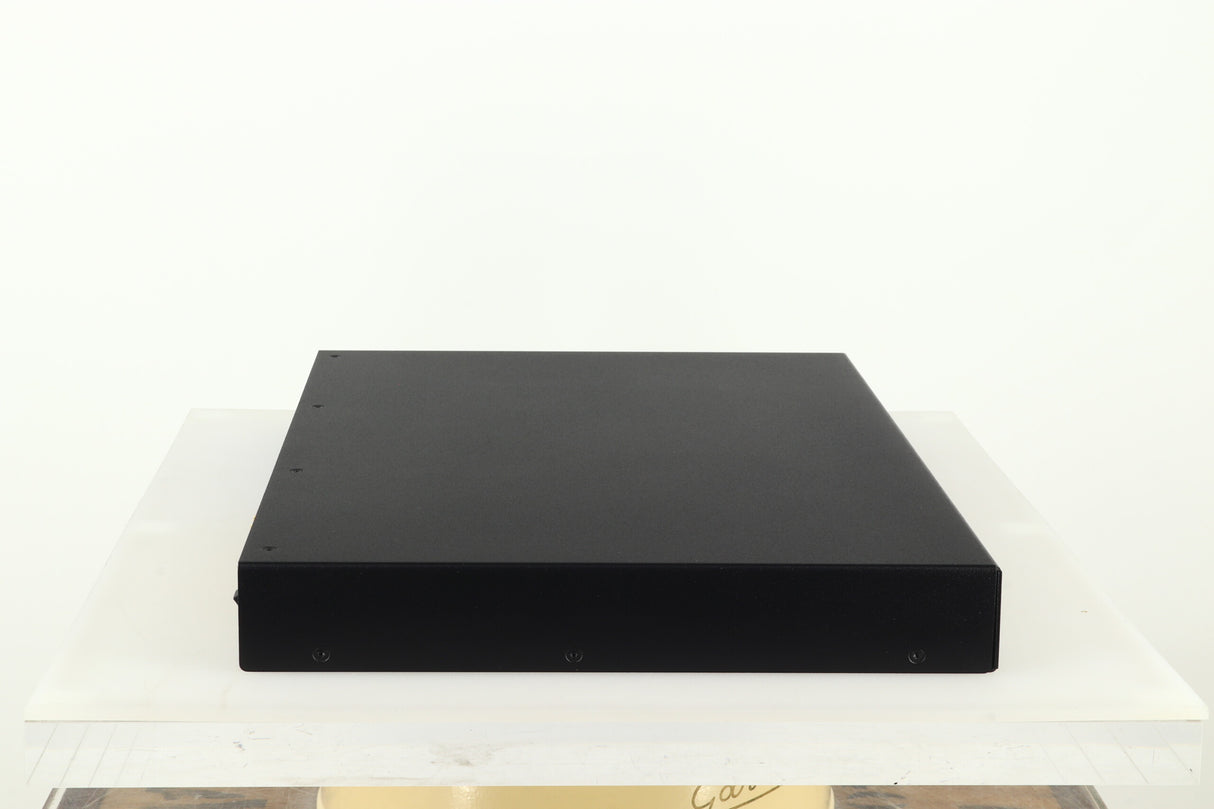

Here we have an example of the UHD722 4K HDMI Processor from British company Meridian. It is supplied in original factory packaging and is in very good condition noting a small mark on the top. It also comes with a reprinted manual, mains cable and our regular three month warranty.
Meridian Say….
The Meridian UHD722 HDMI Processor is the perfect link between your Meridian system and the latest HDMI-equipped video sources. The UHD722 supports UHD (Ultra High Definition), HD (High Definition) and SD (Standard Definition) video.
The UHD722 seamlessly integrates up to seven HDMI sources into your Meridian system. The UHD722 splits the HDMI datastream from the selected source into separate audio and video signals. The video signal can be sent to one or two display devices while the audio is sent out of the unit free from the risk of subsequent sonic degradation derived from the presence of digital video signals.
The UHD722 supports CEC (Consumer Electronics Control) and ARC (Audio Return Channel). CEC allows you to control volume, source selection, and standby on the UHD722 from other CEC-equipped devices. ARC allows you to return digital audio over the same HDMI cable used to connect to your display device, such as a television, sending the audio to a digital surround controller.
The UHD722 features our performance enhancement technologies, including digital audio upsampling and down-sampling, FIFO buffering, resolution enhancement, and lip-sync control.
The UHD722 extracts up to eight channels of high-resolution audio from the HDMI datastream, supplying them to separate audio-only outputs, thus minimising signal degradation caused by harmonic interference from high frequency video signals.
Clock variations, known as jitter, are one of the main causes of unpleasant “glare” in digital audio systems. The Meridian UHD722 solves this problem with our proprietary jitter reduction technique using a FIFO (first-in first-out) buffer that allows an independent output clock to deliver clock performance that does not rely upon on the incoming signal quality. This ensures that the audio extracted from the HDMI stream is of the highest quality.
The MMHR and SmartLink outputs can be set to deliver either standard (44.1/48 kHz) or high resolution (88.2/96 kHz) sample rate digital audio, with resolution enhancement of up to 24-bit. When set to standard rates, the output is either 44.1 or 48 kHz irrespective of the input rate. When set to high rates, the output is always either 88.2 or 96 kHz, irrespective of the input rate. Standard sample rates are upsampled using Meridian’s powerful apodising technology.
The processor also includes a configurable audio delay of up to 85ms to allow lip-syncing, allowing you to ensure that sound is always in perfect synchronisation with the picture.
Specifications:

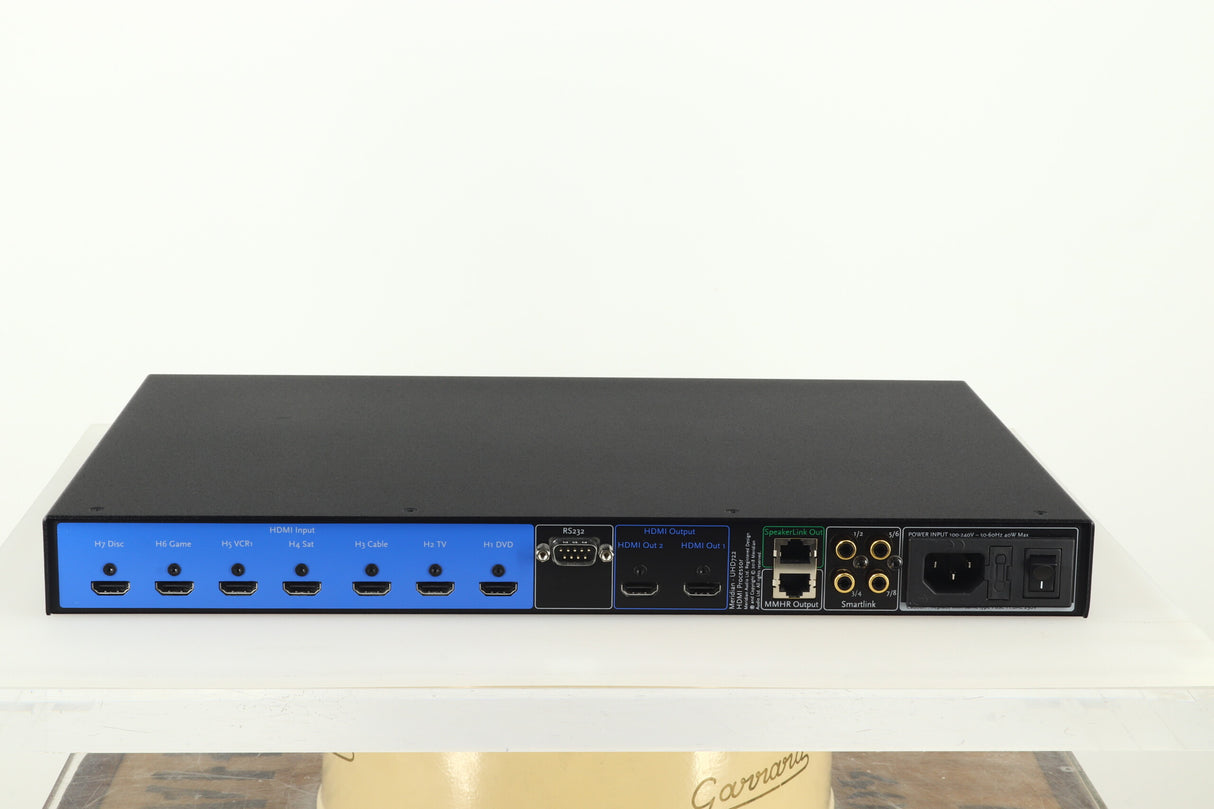

Connections -

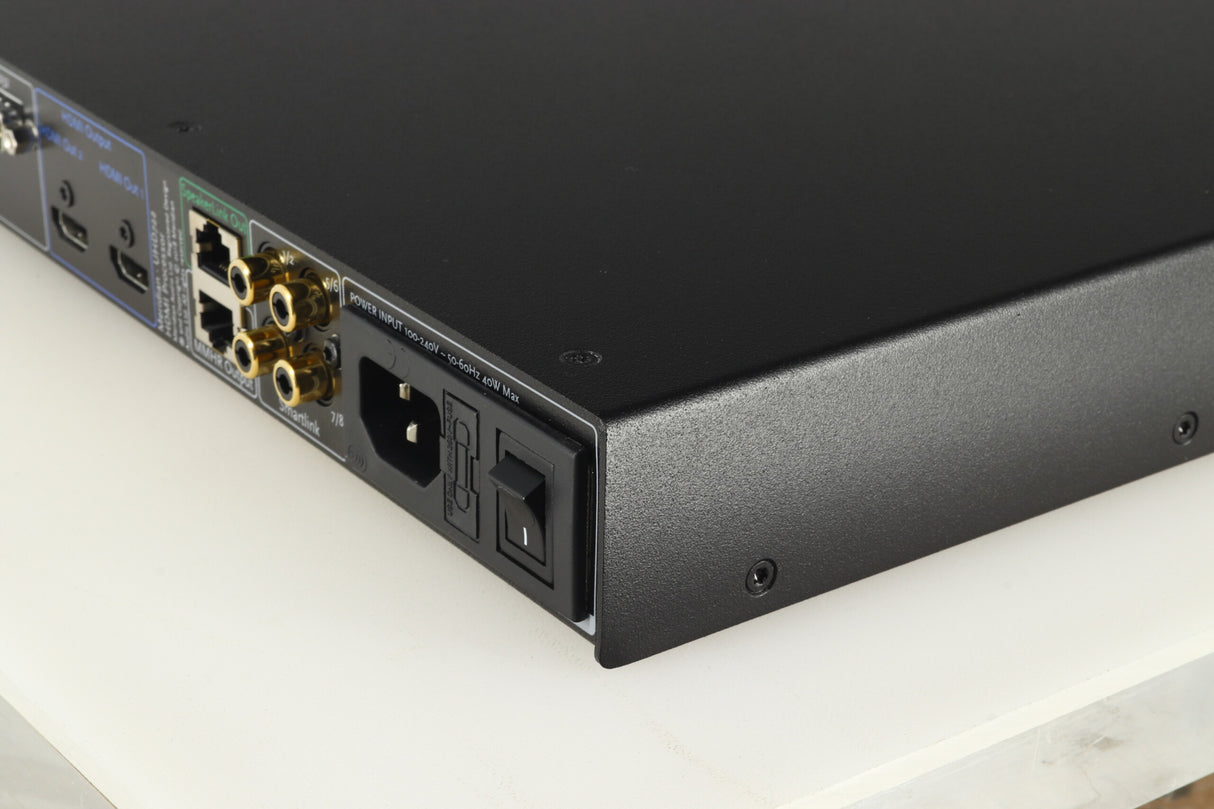

Power input (IEC Connector)
DB9M Sub RS232 serial connector
Meridian SpeakerLink output (RJ45)

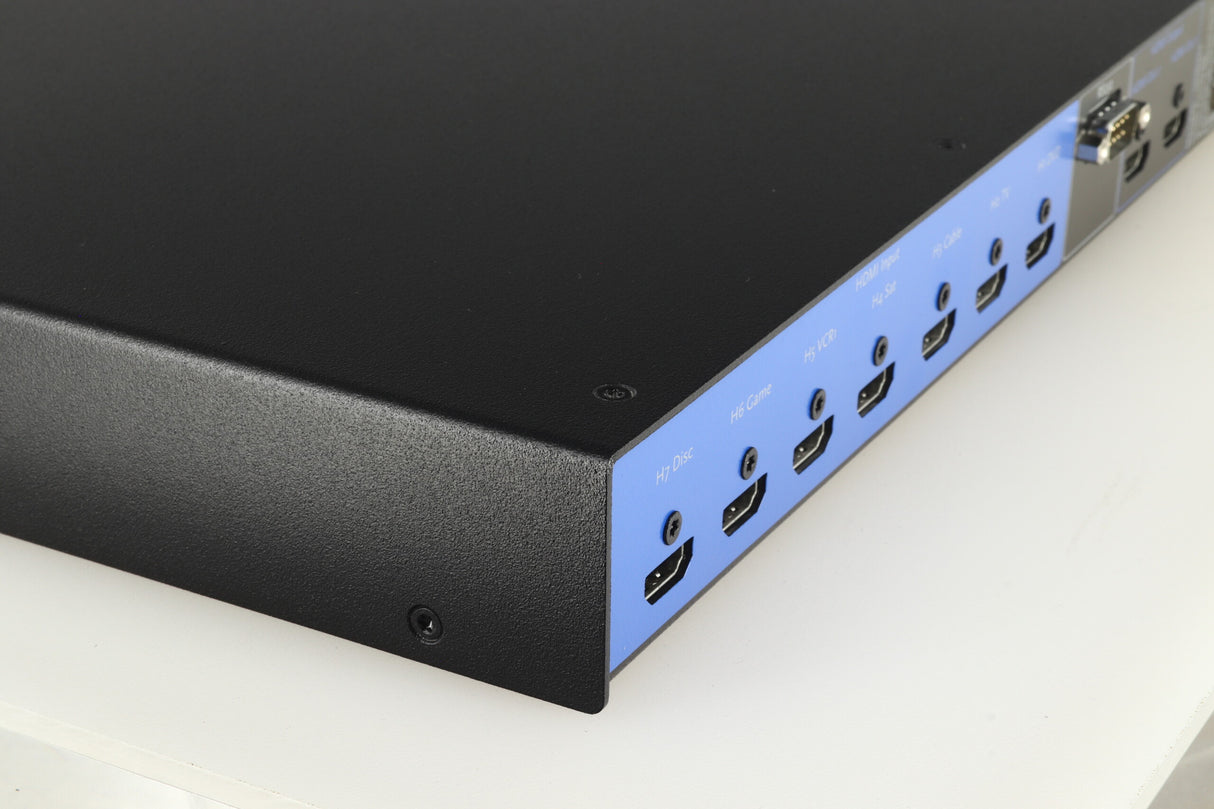

Seven HDMI inputs, five of which are HDCP 2.3 compatible, and all of which are CEC compatible
Two HDMI outputs; both of which are HDCP 2.3 compatible, and one of which supports ARC
8-channel MMHR digital audio out (RJ45)
8-channel coax digital audio out (4 x phono)

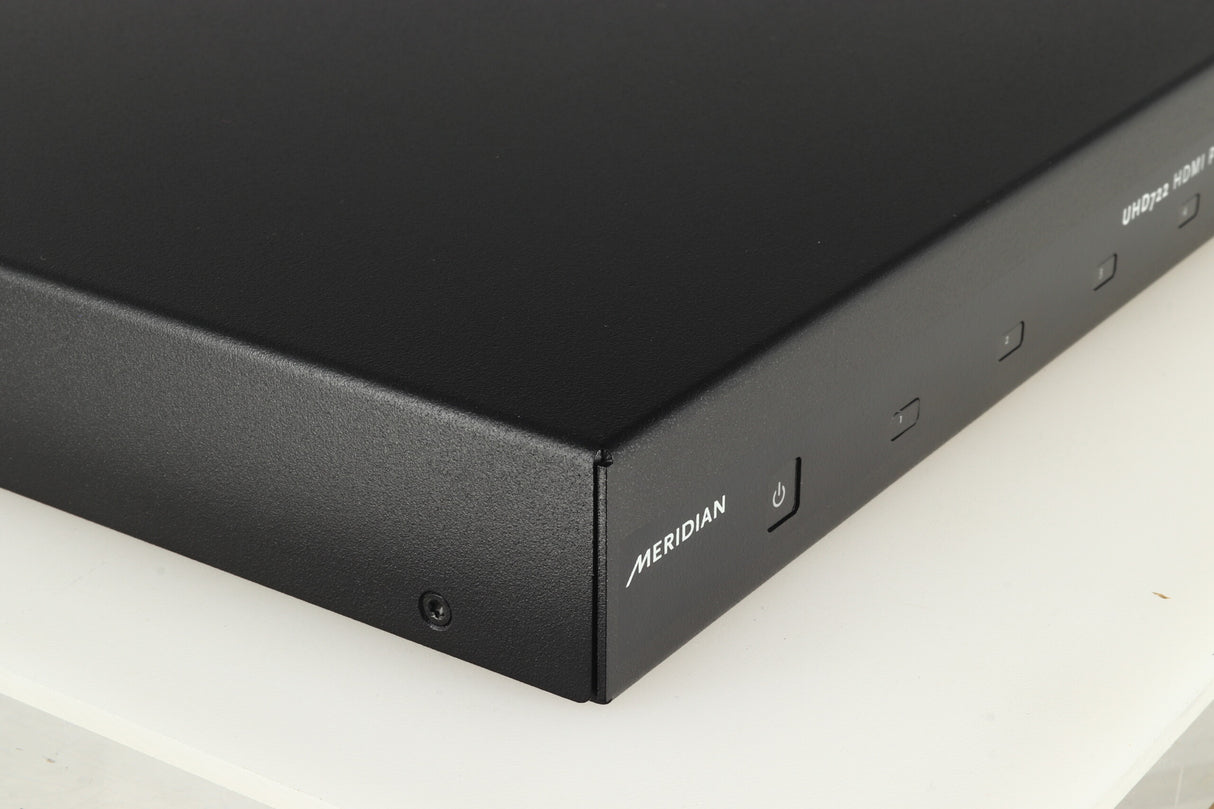

Display: Illuminated capacitive touch key for Standby/On, source selection
Internal Universal Power Supply: 100 - 250V AC
Maximum Power Consumption: < 10 W
Dimensions: 420 (W) x 285 (D) x 41 (H) mm
Weight: 2.0 kg
