Ayre P-5XE Phonostage – Silver

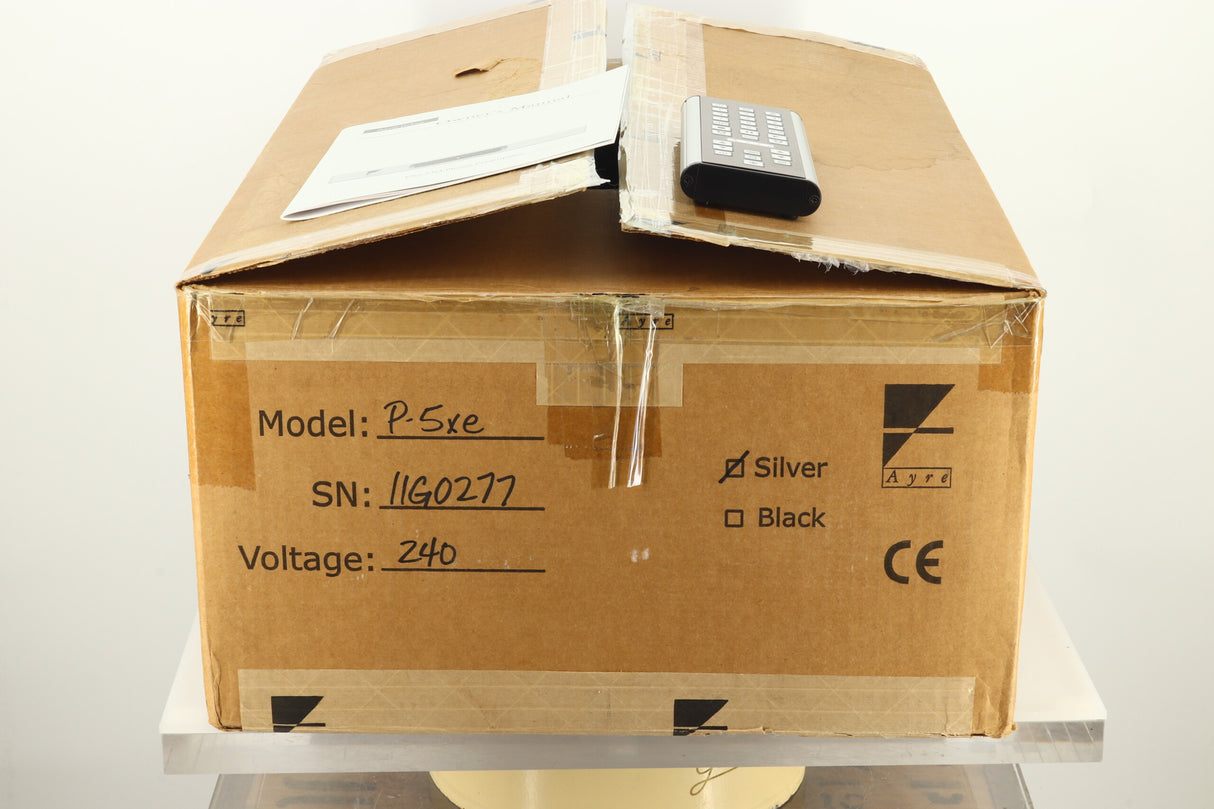

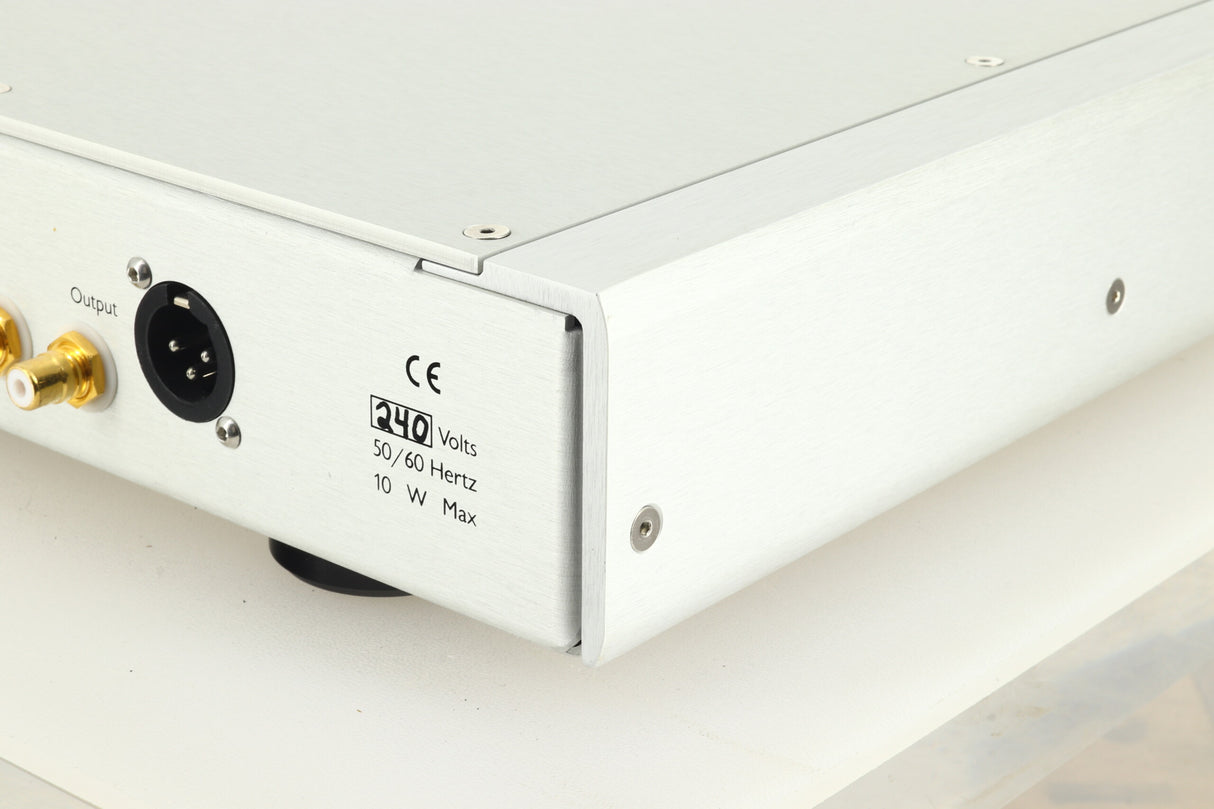

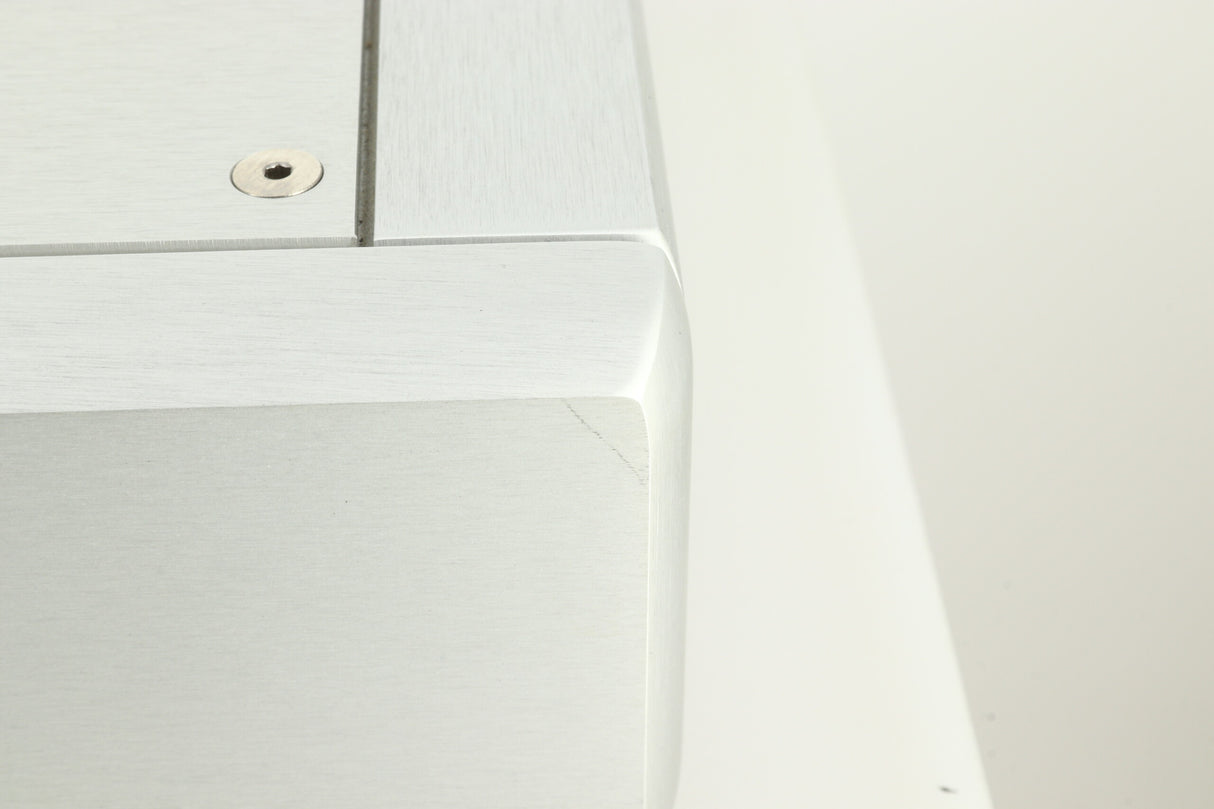

Arguably one of the very best phono stages ever built. This example of the P-5xe is in the silver finish and excellent physical condition. Full working order, factory packed and three months warranty.

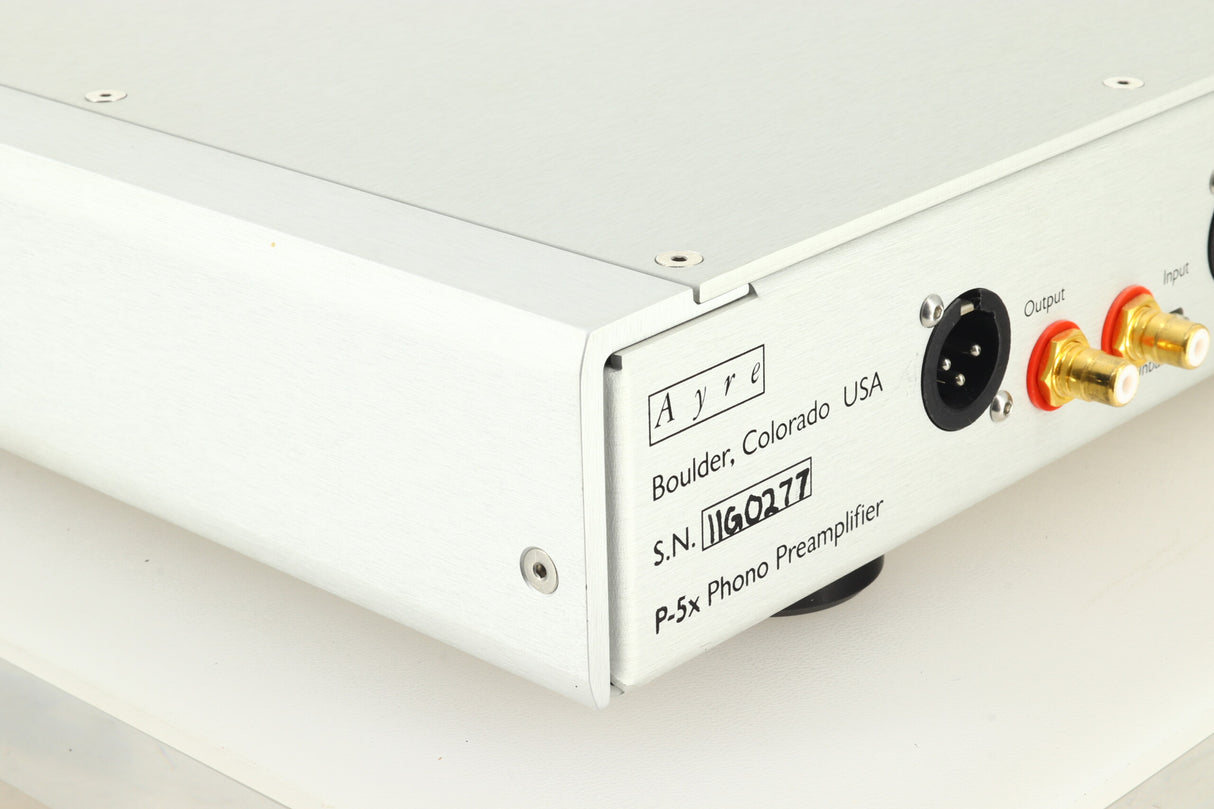

A fully balanced dual-mono phono stage. “There are two sets of impedance DIP switches on the back panel, one for each channel. These provide the most common choices of impedance — 100, 1000 and 47,000 ohms — but an infinite combination of settings is available by soldering resistors to the type of connector (RCA or XLR) that is not being used and plugging these connectors into the P-5xe.” “Gain is selectable via internal switches, with the choices being 50, 60 or 70dB for the balanced outputs, and 6dB less for the single-ended.”

Specification:

Input Impedance 47 kΩ, 1000 Ω , 100 Ω
(adjustable)
Gain 50 dB, 60 dB, 70 dB – balanced outputs
44 dB, 54 dB, 64 dB – unbalanced outputs
(adjustable)
Frequency Response RIAA Curve ± 0.05 dB
(20 Hz – 20 kHz)
Output Impedance 110 Ω– balanced outputs (55 Ωper phase)
55 Ω– unbalanced outputs
XLR Input Polarity Pin 1 – Ground
Pin 2 – Non-inverting (Positive)
Pin 3 – Inverting (Negative)
Power Consumption 10 watts
Dimensions 17-¼” W x 13-¾” D x 2-¾” H
44 cm x 35 cm x 7 cm
Weight 12 pounds
5.5 kg
