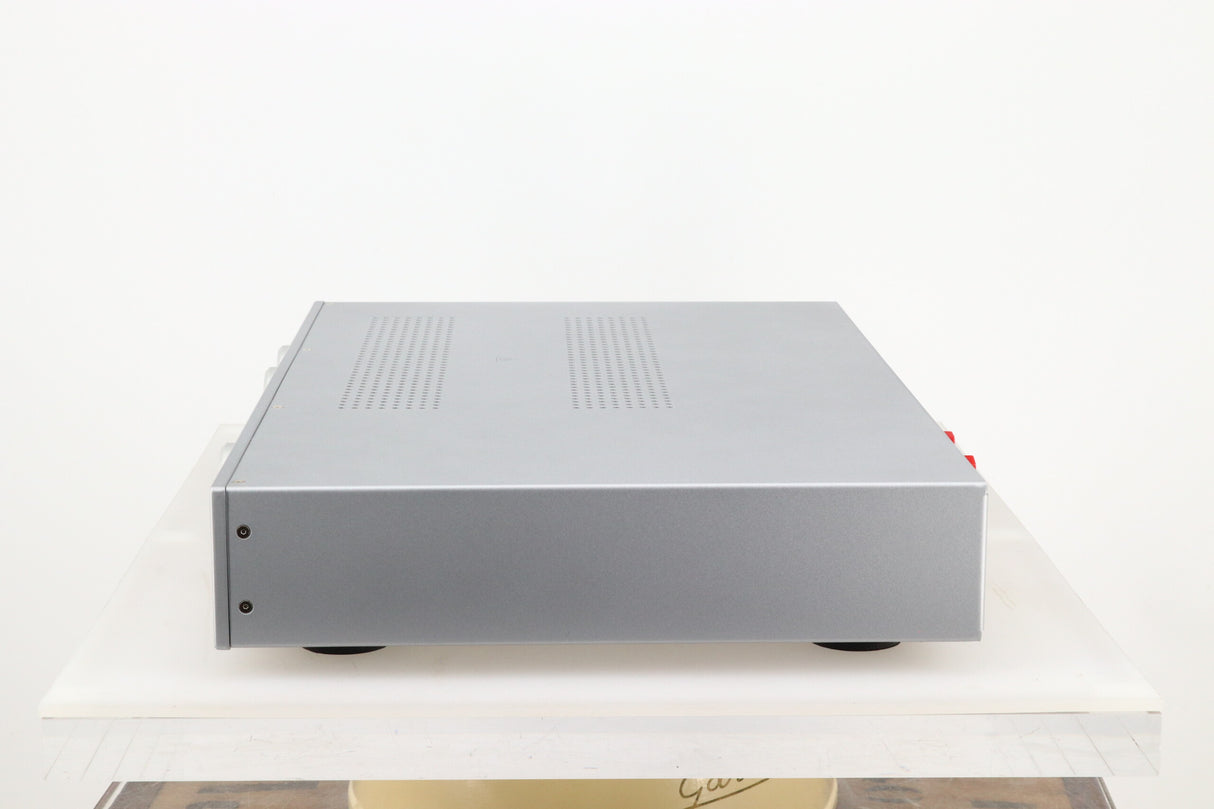

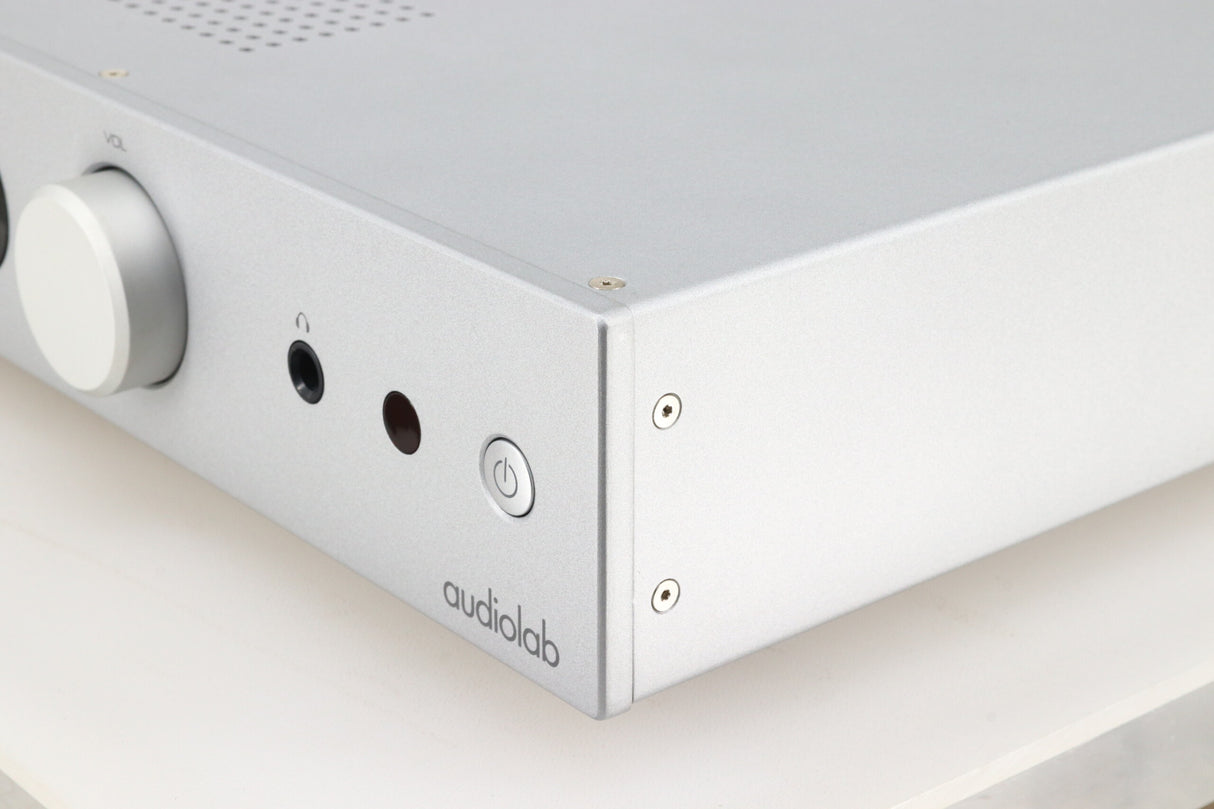

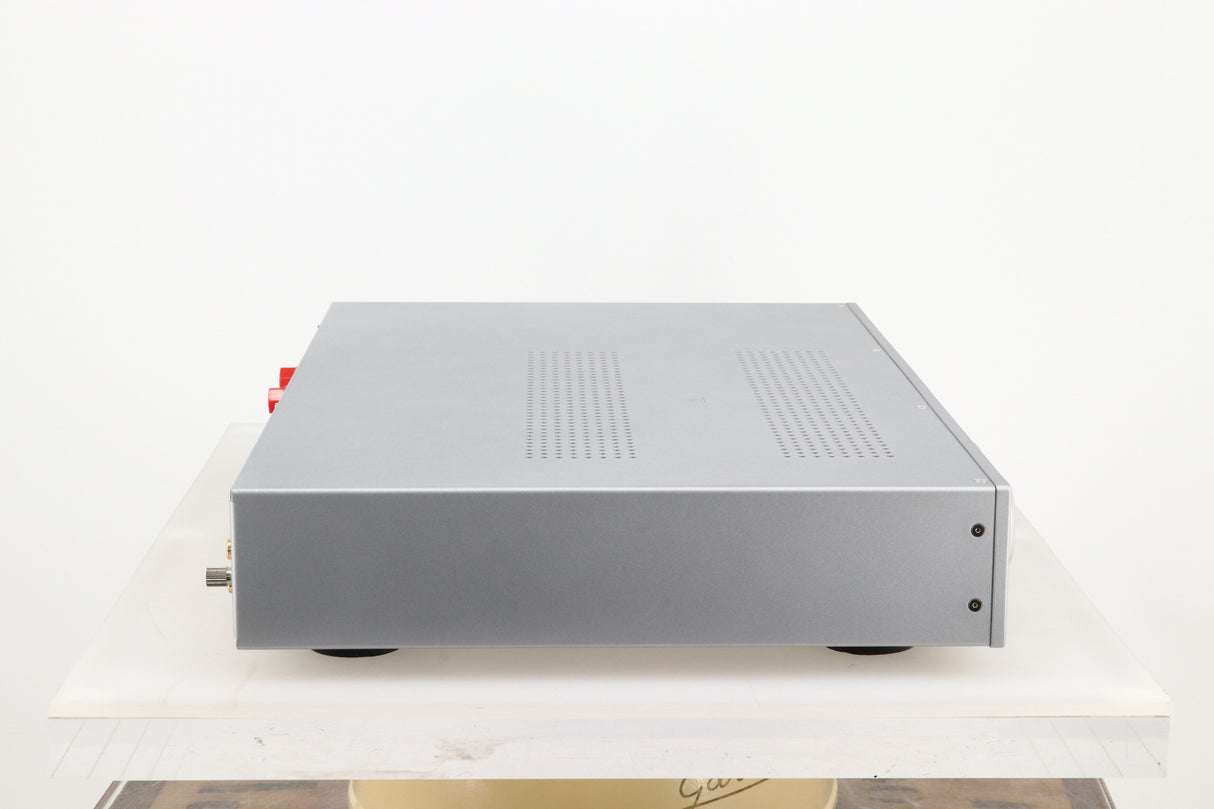

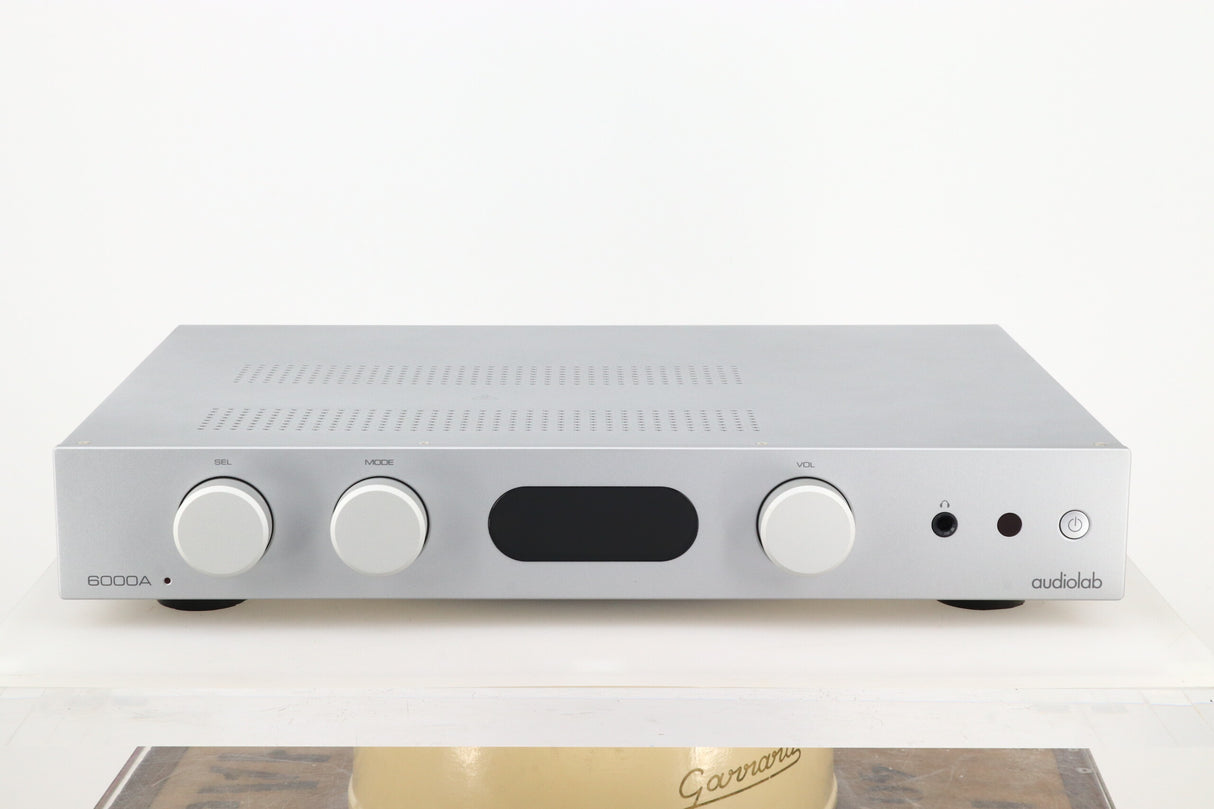

Audiolab 6000A Integrated Amplifier - Silver

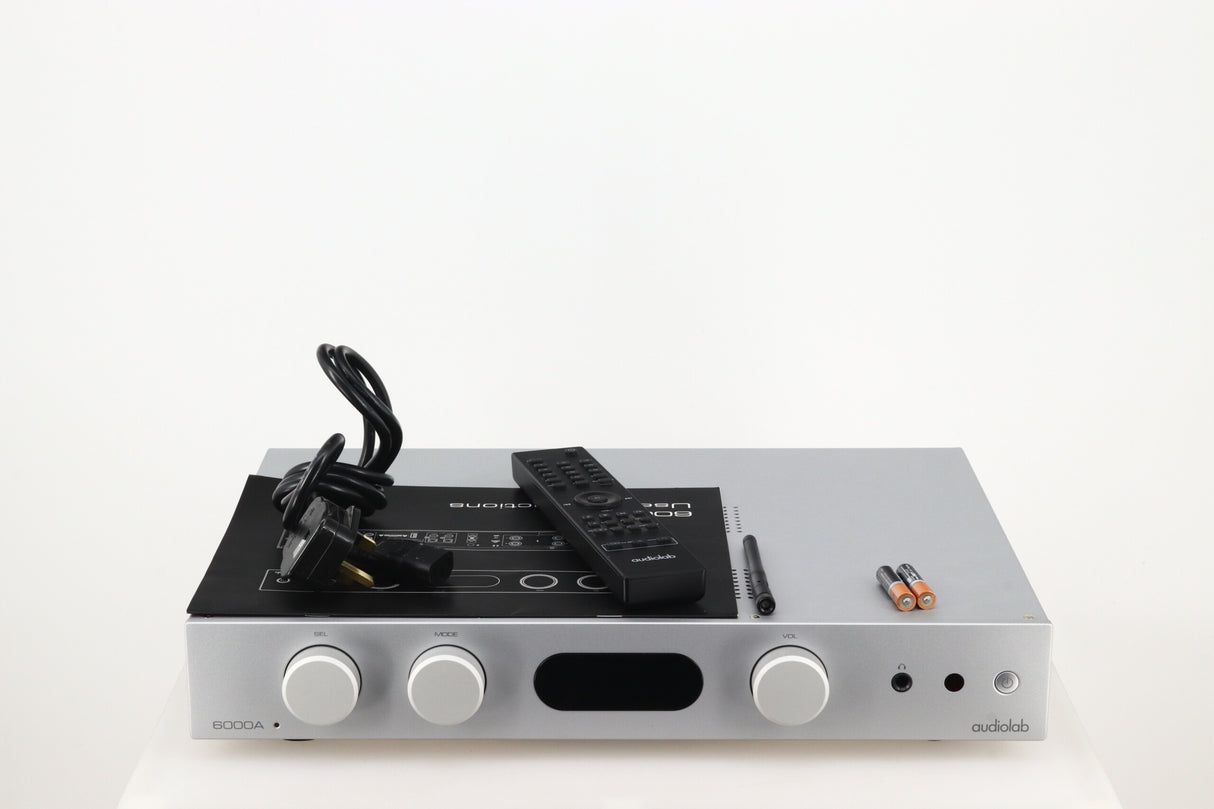

Audiolab is one of a number of former British brands owned by the IAG Group, based in China. It’s aim these days is to create “well-engineered components that offer high performance sound quality and offer exceptional value” and the 6000A amplifier is a perfect example of this. A very nice example of their entry level integrated amplifier that also comes with a built in DAC and a phono stage – so no extra boxes required – just plug your turntable and digital sources in and away you go! It is in very good condition, and it comes supplied in its original packaging with remote control, manual, mains cable, Bluetooth aerial, plus our usual three month warranty.
Audiolab say….
An amplifier remains the beating heart of any high-performance audio system, but in 2018 a truly versatile integrated amp needs to cover many bases – digital and analogue sources, wireless connectivity for portable devices, a phono stage to cater for vinyl playback, amplification for headphones as well as speakers… That’s a lot to pack in, whilst keeping performance high and the price tag affordable – and yet, that’s exactly what the 6000A delivers.

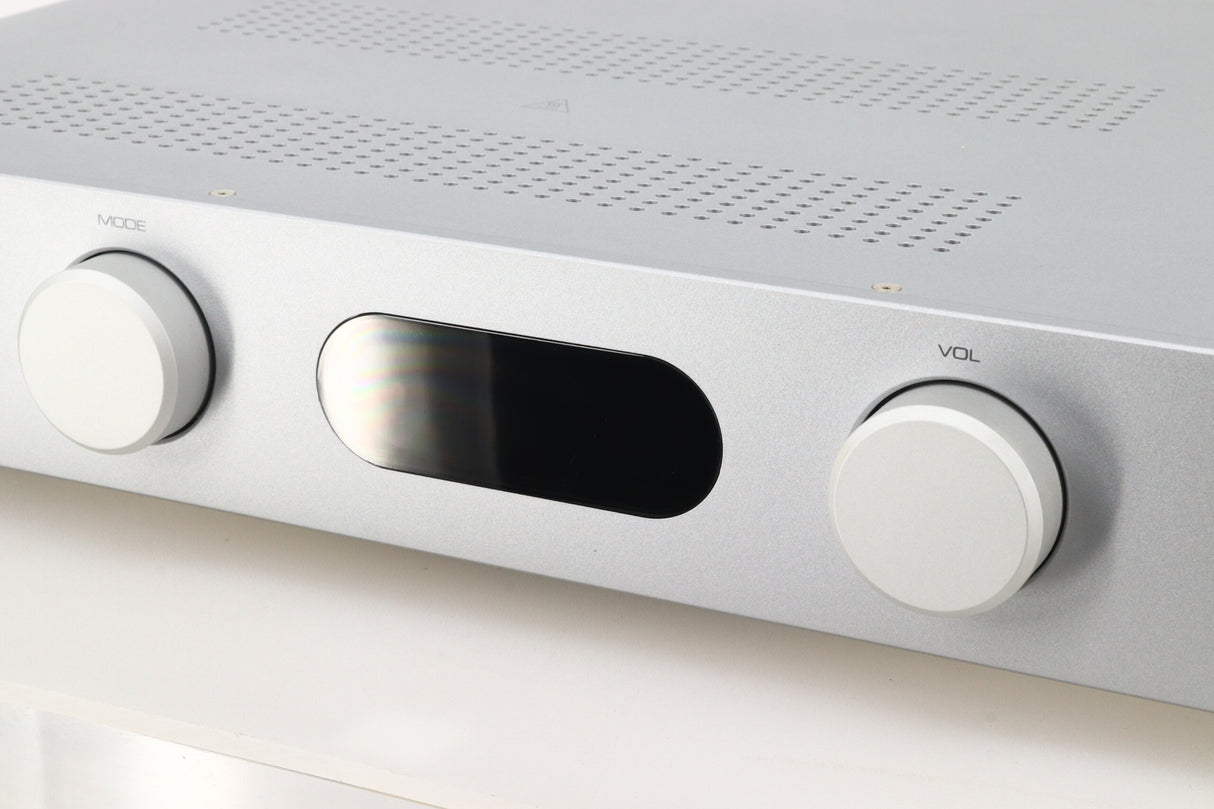

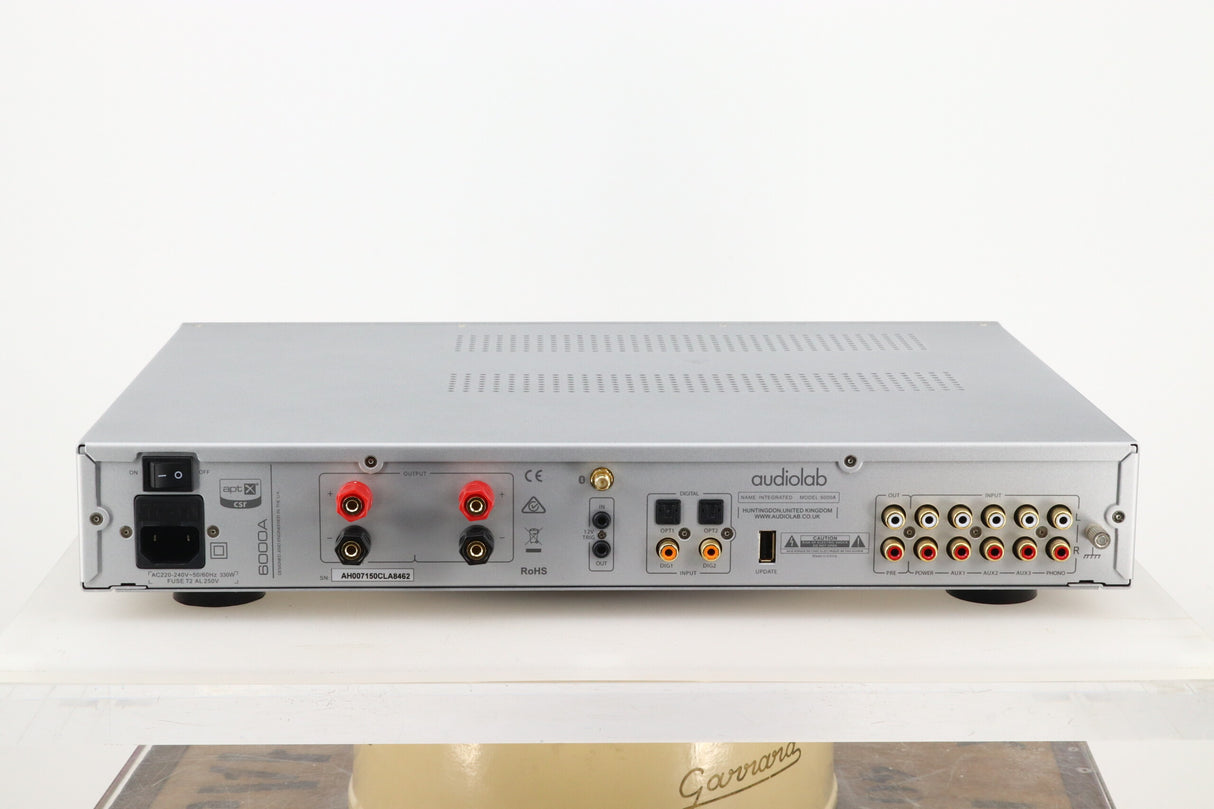

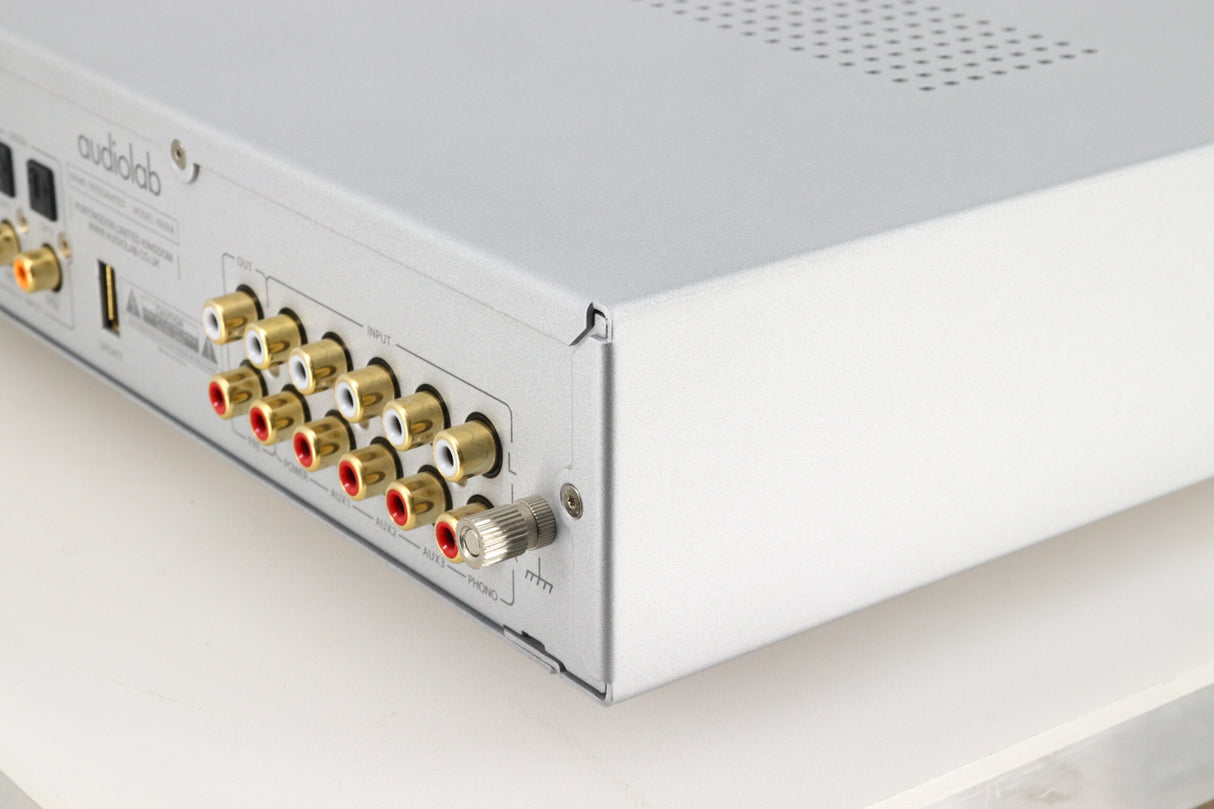

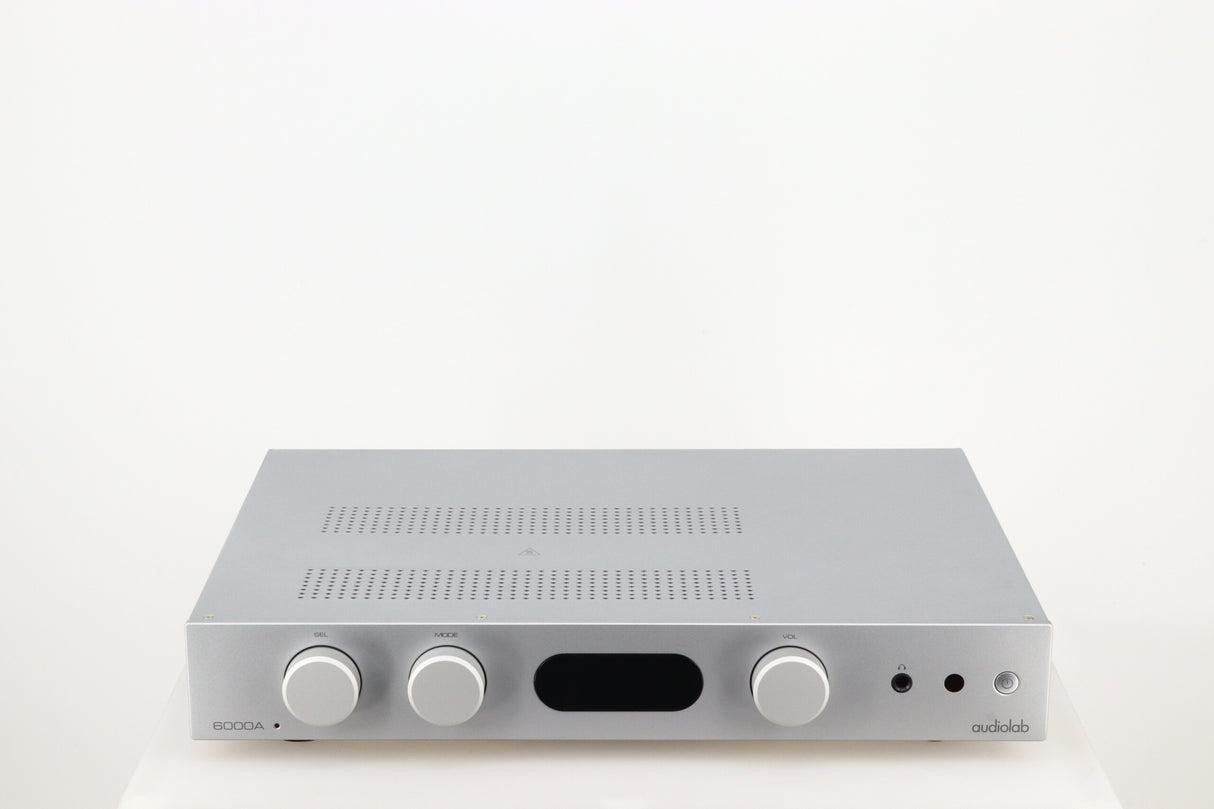

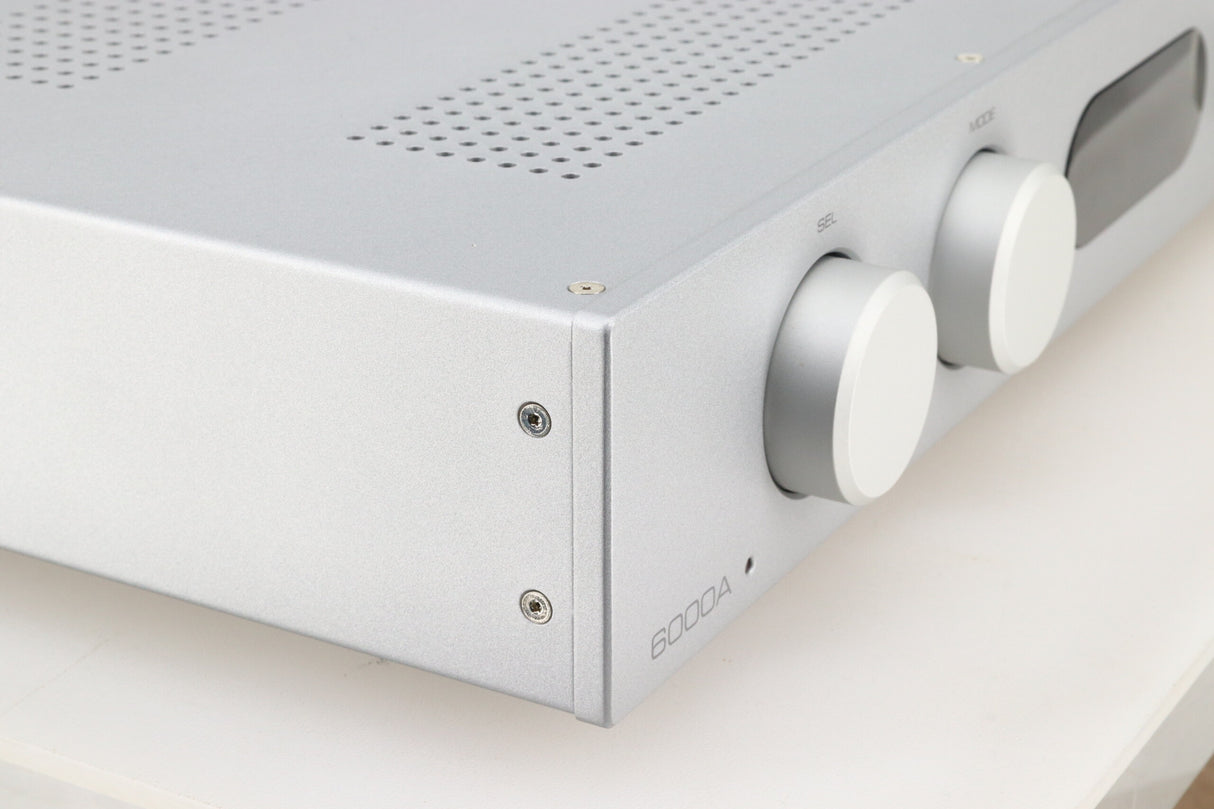

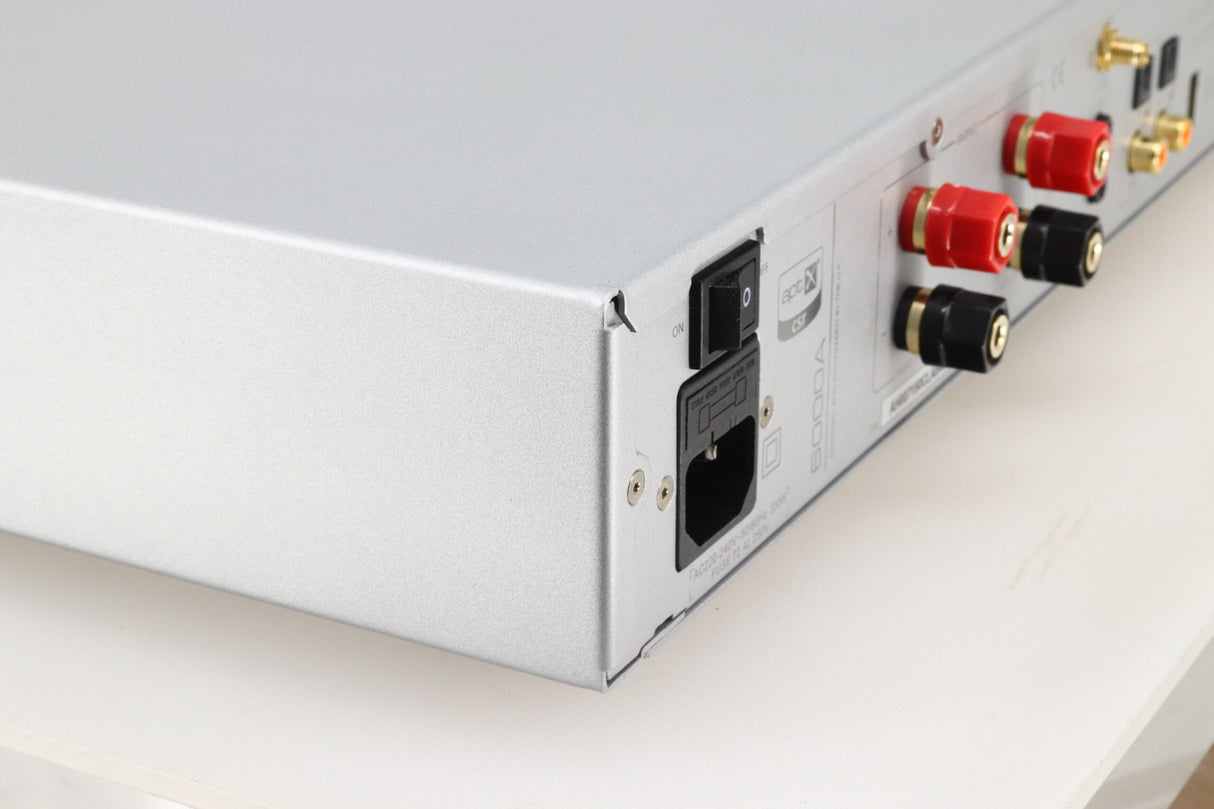

Outwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Digital Circuitry
Much effort has been made to ensure the 6000A’s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
No company knows more about making the most of this technically excellent, but challenging, DAC technology than Audiolab.
Analogue Circuitry
The 6000A’s discrete Class AB power amp stage delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors.
A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
The preamp section is kept as simple as possible to maintain signal purity, with line input signals passing to a precision analogue volume stage. The latter covers the range from -80dB to +8dB in steps of 2dB and 1dB (step resolution increases with volume position). Much effort has gone into the physical layout of the 6000A’s circuitry, protecting the sensitive preamp section from noise interference.
Specifications:
Gain (max.): +8 dB (Line); +55 dB (Phono MM)
Input Sensitivity: 720 mV (Line, Volume = 0 dB); 3.1 mV (Phono MM, Volume = 0 dB)
Input Impedance 10 K (Line); 47 K//100 pF (Phono MM)
Total Harmonic Distortion (THD): < 0.0004% (Line, 1 kHz @ 2 V, Volume = 0 dB)
Frequency Response: 20 Hz - 20 kHz (+/- 0.1 dB)
Output Voltage: 2.3 V max. (Volume = 0 dB)
Output Impedance 120 Ω
Signal-to-Noise Ratio (S/N): > 110 dB (Line, A-weighted); >76 dB (Phono MM, A-weighted)
DAC:
D to A converter: ES9018K2M
Total Harmonic Distortion (THD): < 0.0006% (1 kHz @ 0 dB FS)
Output level (0 dB FS, 1 kHz): 2.05 V
Max. Sampling Frequency: 192 kHz
Signal-to-noise ratio (S/N): > 112 dB (A-weighted)
Digital Filters: Fast Roll-off , Slow Roll-off , Minimum Phase
Power Amplifier Section:
Gain: +29 dB
Rated Max. Power Output: 2 X 50 W (8 Ω, THD < 1%); 2 X 75 W (4 Ω, THD < 1%)
Frequency Response: 20 Hz - 20 kHz (+/- 0.3 dB)
Input Sensitivity: 720 mV
Total Harmonic Distortion (THD): <0.003% (1 kHz @ 40 W/8 Ω)
Signal-to-Noise ratio (S/N): > 110 dB (A-weighted)
Max. Output Current: 9 A
Headphone Amplifier:
Total Harmonic Distortion (THD): < 0.01% (1 kHz, 50 mW)
Output Impedance: 2.35 Ω
Load impedance: 20 - 600 Ω
General:
Standby Power Consumption: <0.5 W
Power Requirements: 240 V ~ 50 – 60 Hz; 230 V ~ 50 – 60 Hz; 115 V ~ 50 – 60 Hz; 100 V ~ 50 – 60 Hz
Dimensions: 445 (W) x 330 (D) x 80 (H) mm including feet, terminals and controls
Weight: 7.8 kg
