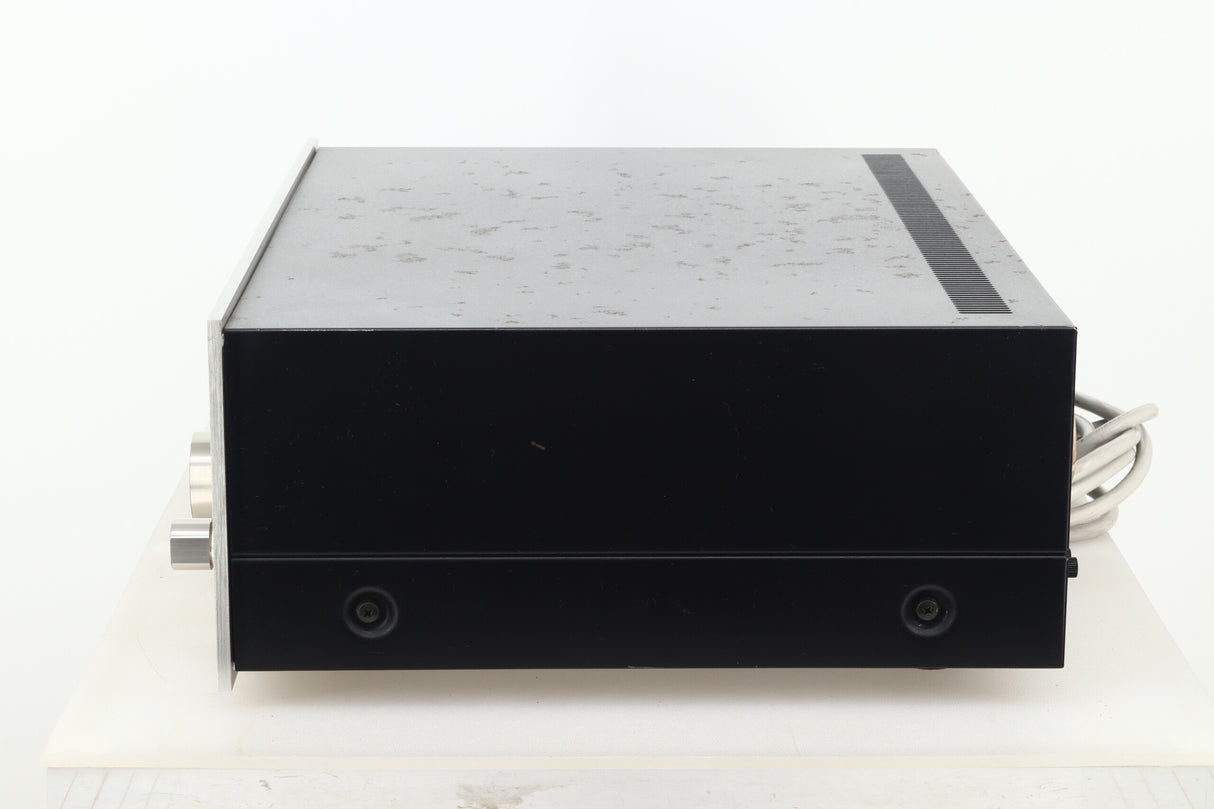

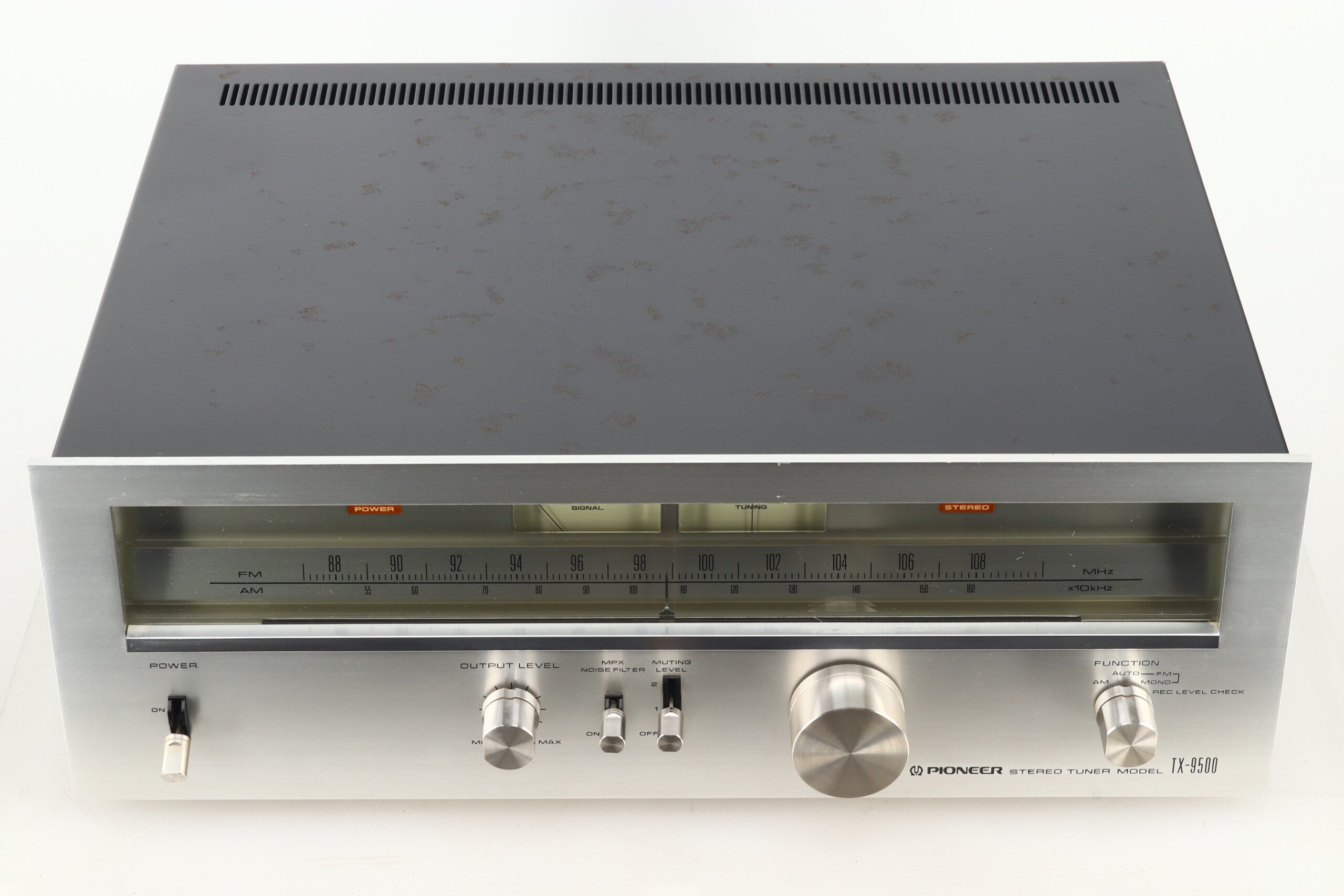

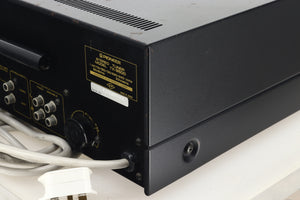

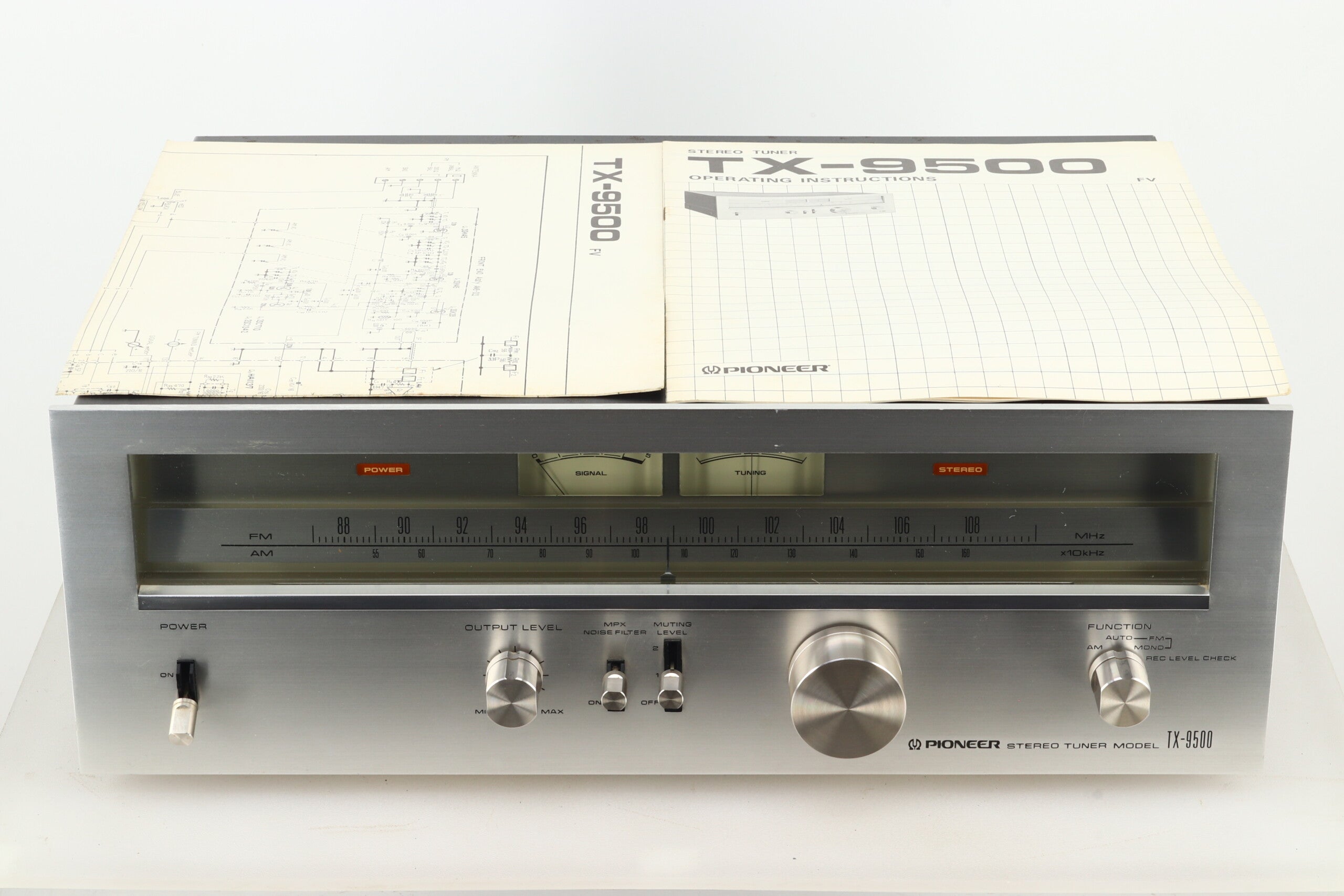

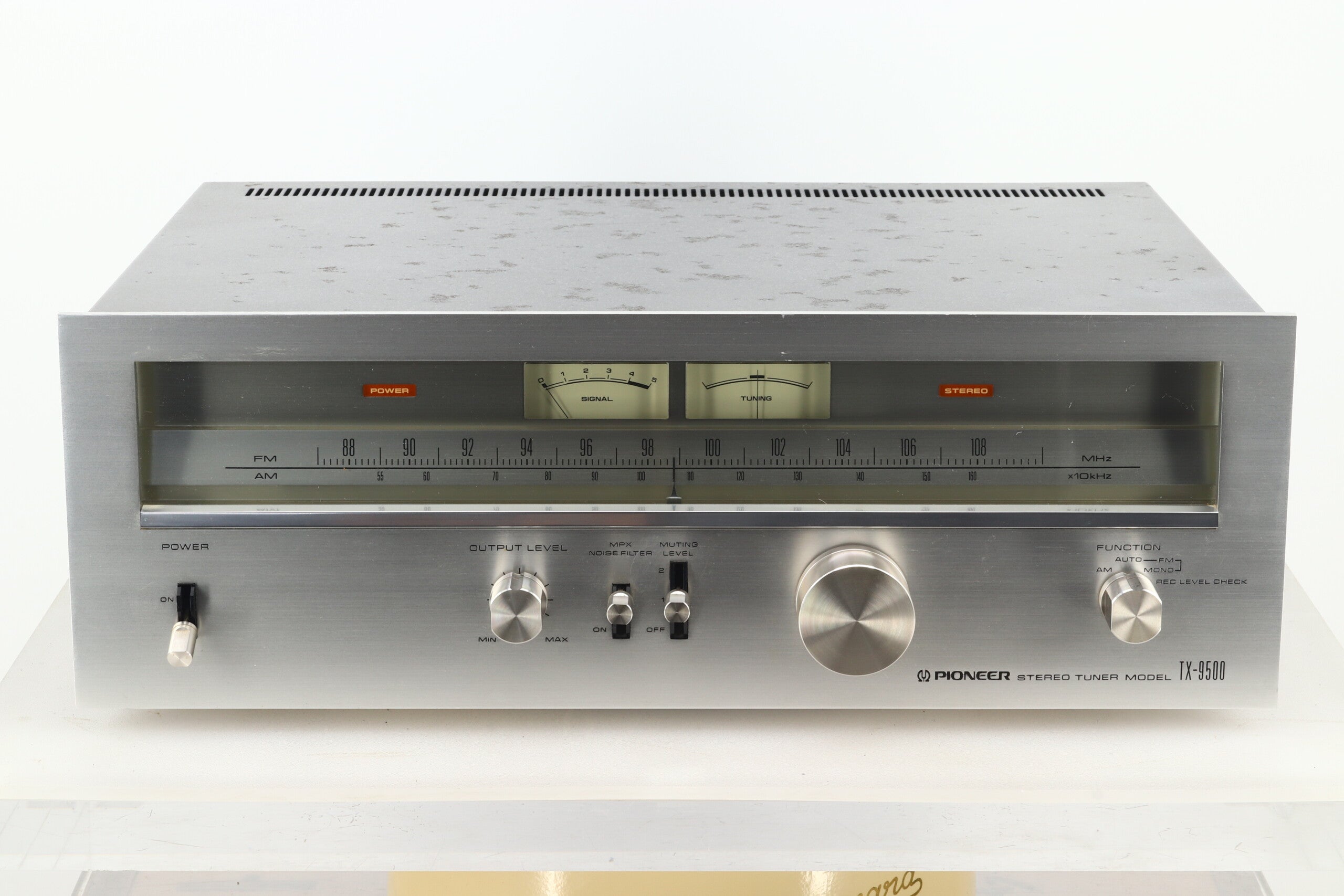

Pioneer TX-9500 Stereo Tuner

High-grade AM/FM stereo tuner for clear reception-high sensitivity front end, wide-band linear detector and built-in recording level check signal.
Inside it's one of the most circuit-packed AM/FM tuners we've ever built. And outside It's one of the cleanest and most simple to use. The new Pioneer TX-9500 has our new streamlined looks, logically-arranged switches and controls, and a scientifically designed tuning system that makes it all look so easy.
But It's what's Inside that counts: dual-gate MOSFETs and a 5-gang variable capacitor boost FM front end sensitivity to a superb 1.5V (IHF).The FM IF has 7 ICs with differential amps, 4 ceramic filters (with 2 elements each) and a wide-band linear detector to pinpoint selectivity at 85 dB or better and beef up the capture ratio to 1.0 dB (IHF). Even In stereo the S/N Is a superhigh 75 dB, with Total Harmonic Distortion of 0.2% at 1 kHz. Thanks to the PLL MPX (Phase-Lock-Loop Multiplex) demodulator, stereo separation stretches to a wide 35 dB over the 50 to 10,000 Hz range. Stability? Even In signal-weak or signal-strong areas your station comes In clean and fresh. Planning to record off the air? Hit the switch for the built-in 440 Hz test signal generator and check the output level against your deck's VUs for optimum adjustment before the music begins.

FM Section:
Circuitry: 3 MOSFETs, 2-stage RF amplifier, 5-gang variable capacitor, 8-stage limiter, P.L.L MPX
Sensitivity: IHF: 1.5 V; 50 dB Quieting: 2.5 V (mono), 35 V (stereo)
Signal to Noise Ratio: 80 dB (mono), 75 dB (stereo)
Total Harmonic Distortion -
100 Hz: 0.15% (mono); 0.2% (stereo)
1 kHz: 0.15% (mono); 0.2% (stereo)
10 kHz: 0.15% (mono); 0.5% (stereo)
Capture Ratio: 1.0 dB
Selectivity: 85 dB (± 400 kHz); 55 dB (± 300 kHz)
Frequency Response: 50 Hz to 10 kHz, + 0.2 dB, - 0.5 dB; 20 Hz to 15 kHz, + 0.2 dB, - 1.5 dB
Separation: 40 dB (1 kHz); 35 dB (50 Hz to 10 kHz)
IF Rejection: 110 dB
AM Suppression: 55 dB
Sub Carrier Suppression: 65 dB
Muting Threshold: 5 V/22 V

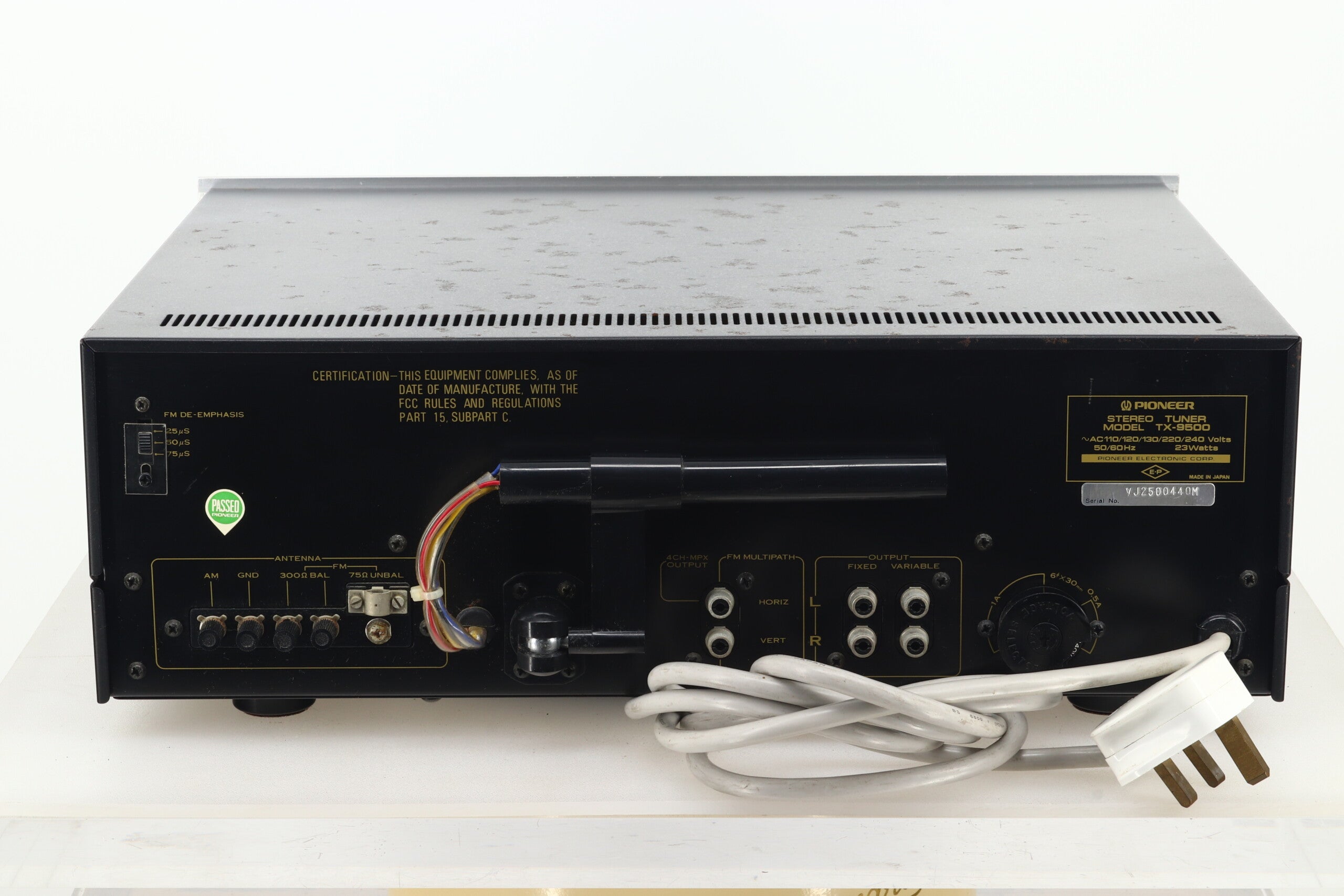

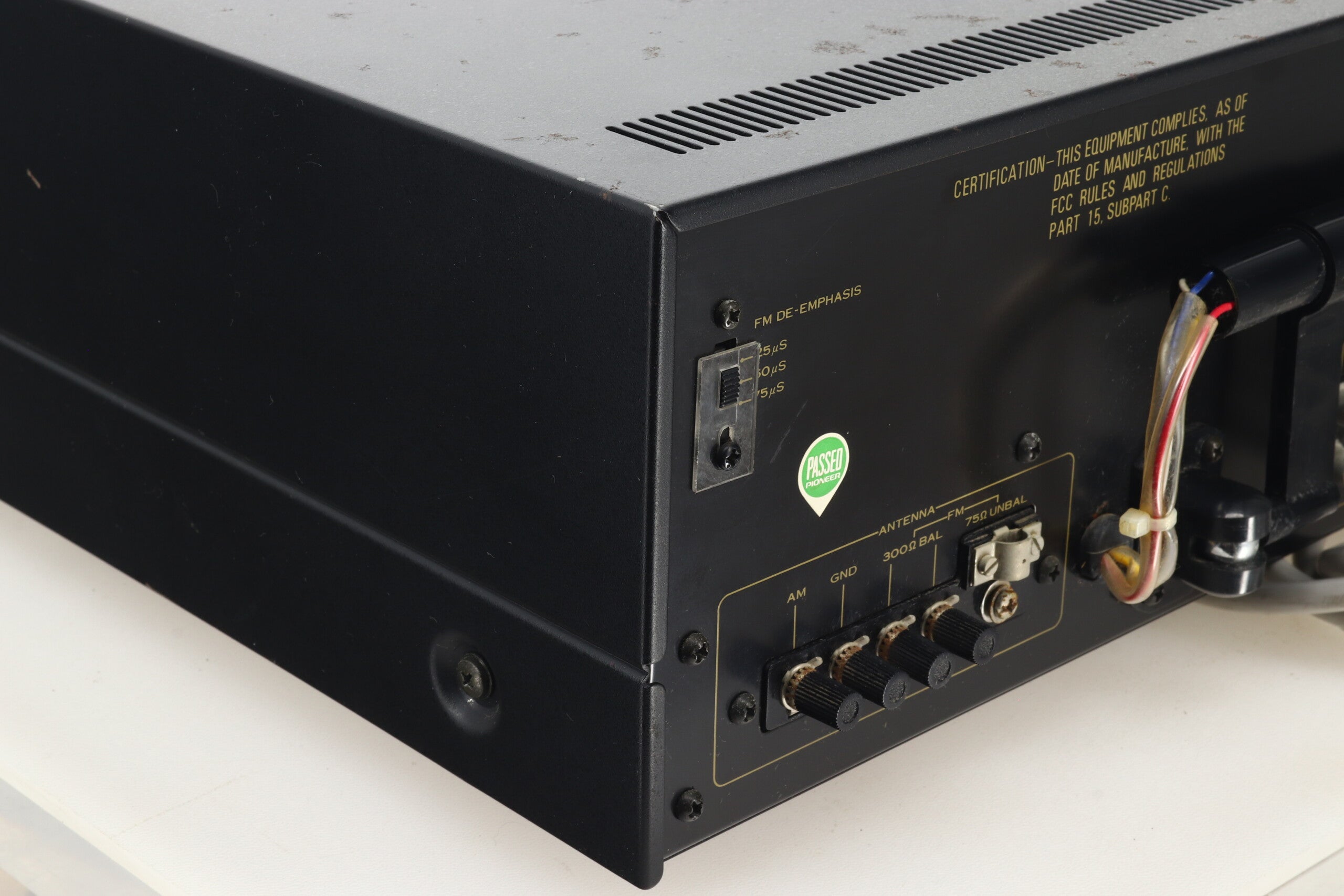

Antenna Input: 300 ohms balanced; 75 ohms unbalanced

AM Section:
Circuitry: 1 stage RF amplifier, 3-gang variable capacitor
Sensitivity: 300 V/m (IHF, ferrite antenna) 15V (IHF, external antenna)
Selectivity: 40 dB
Signal to Noise Ratio: 50 dB
IF Rejection: 85 dB
Antenna: Built-in ferrite loop antenna

Audio Section:

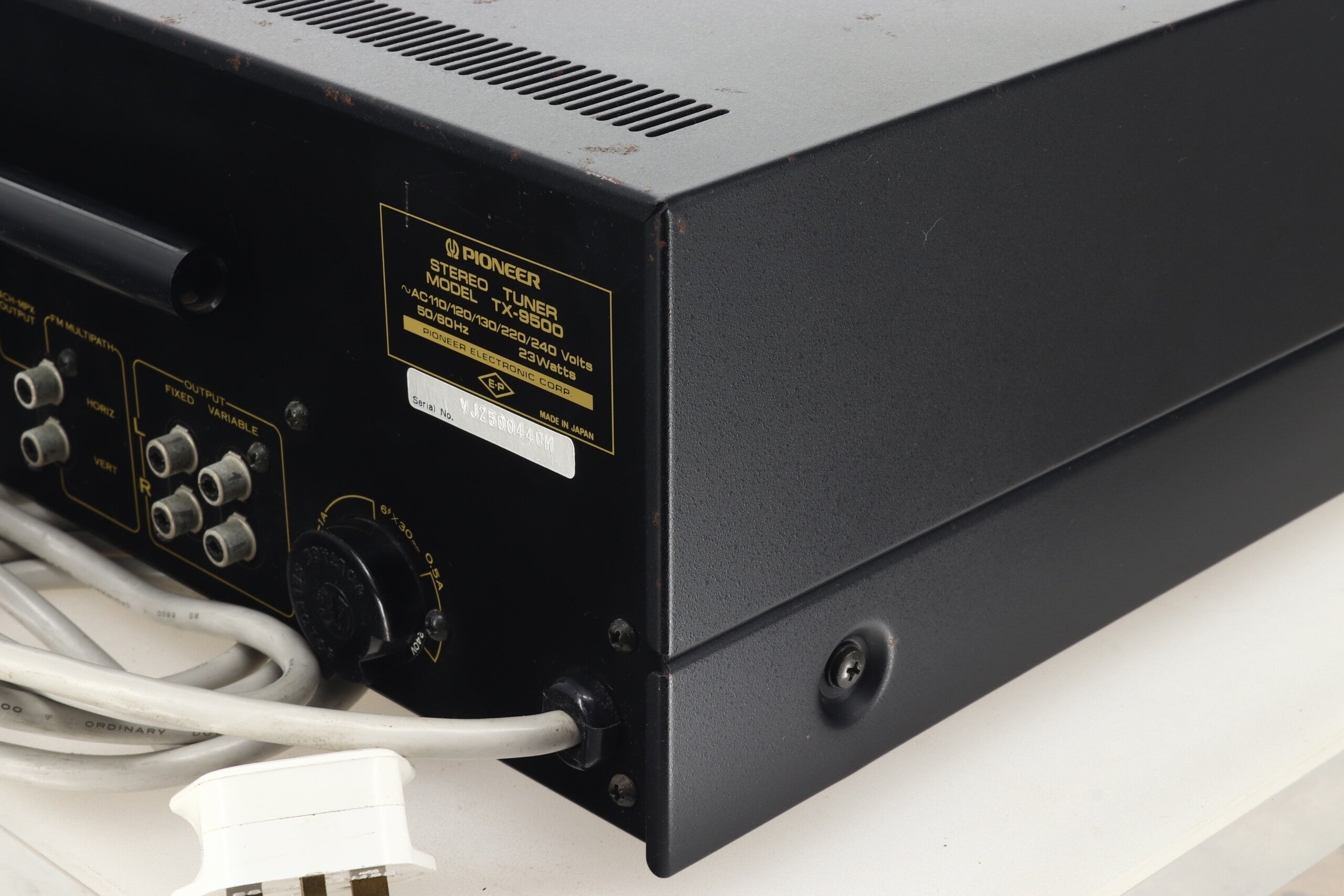

Output (Level/Impedance) -
Fixed: 650 mV/5 kOhms
Variable: 70 mV to 2 V/3.5 kOhms
4 CH. MPX: 400 mV/2.5 kOhms
Dimensions: 420 (W) x 365 (D) x 150 (H) mm
Weight: 9.1 kg
