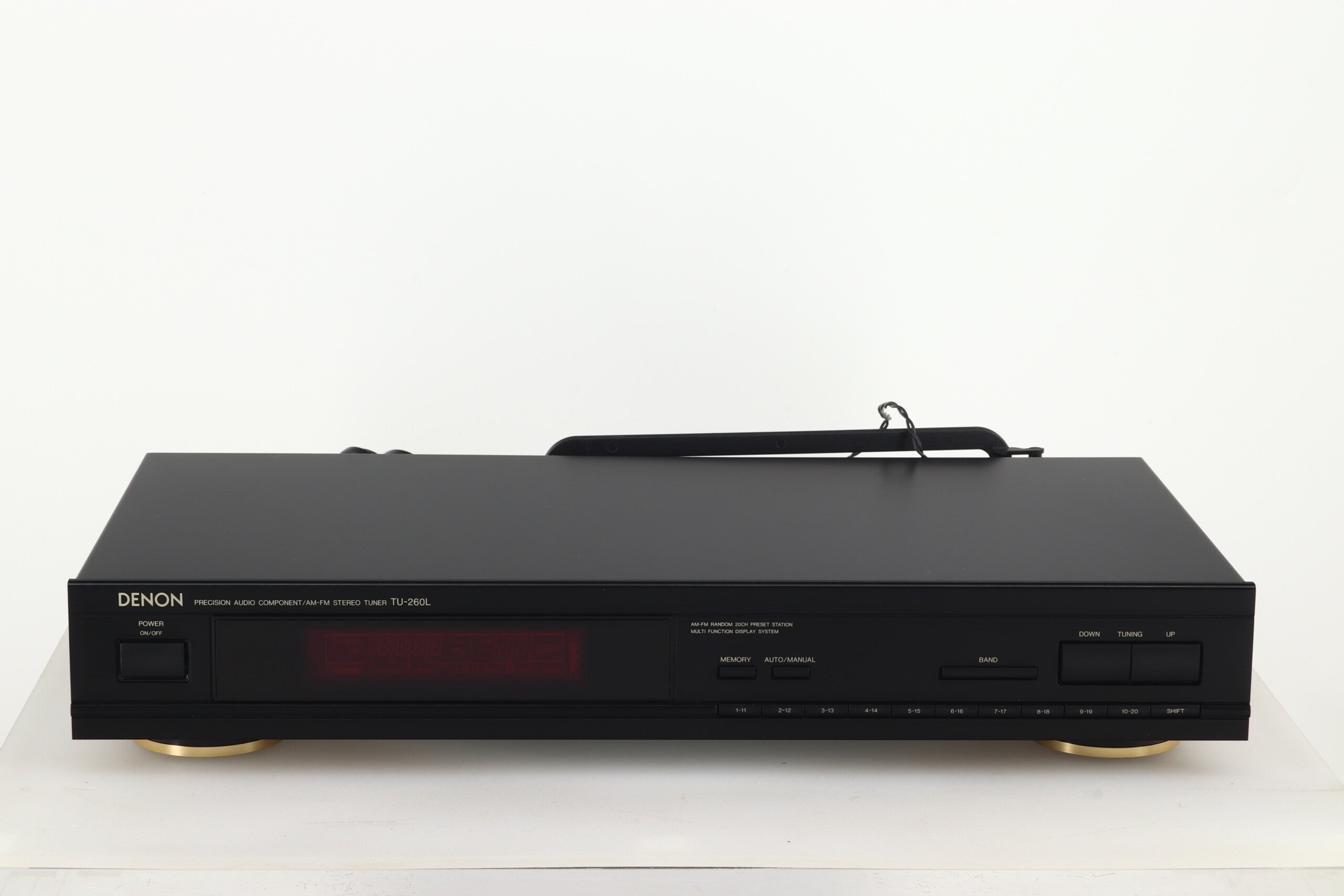

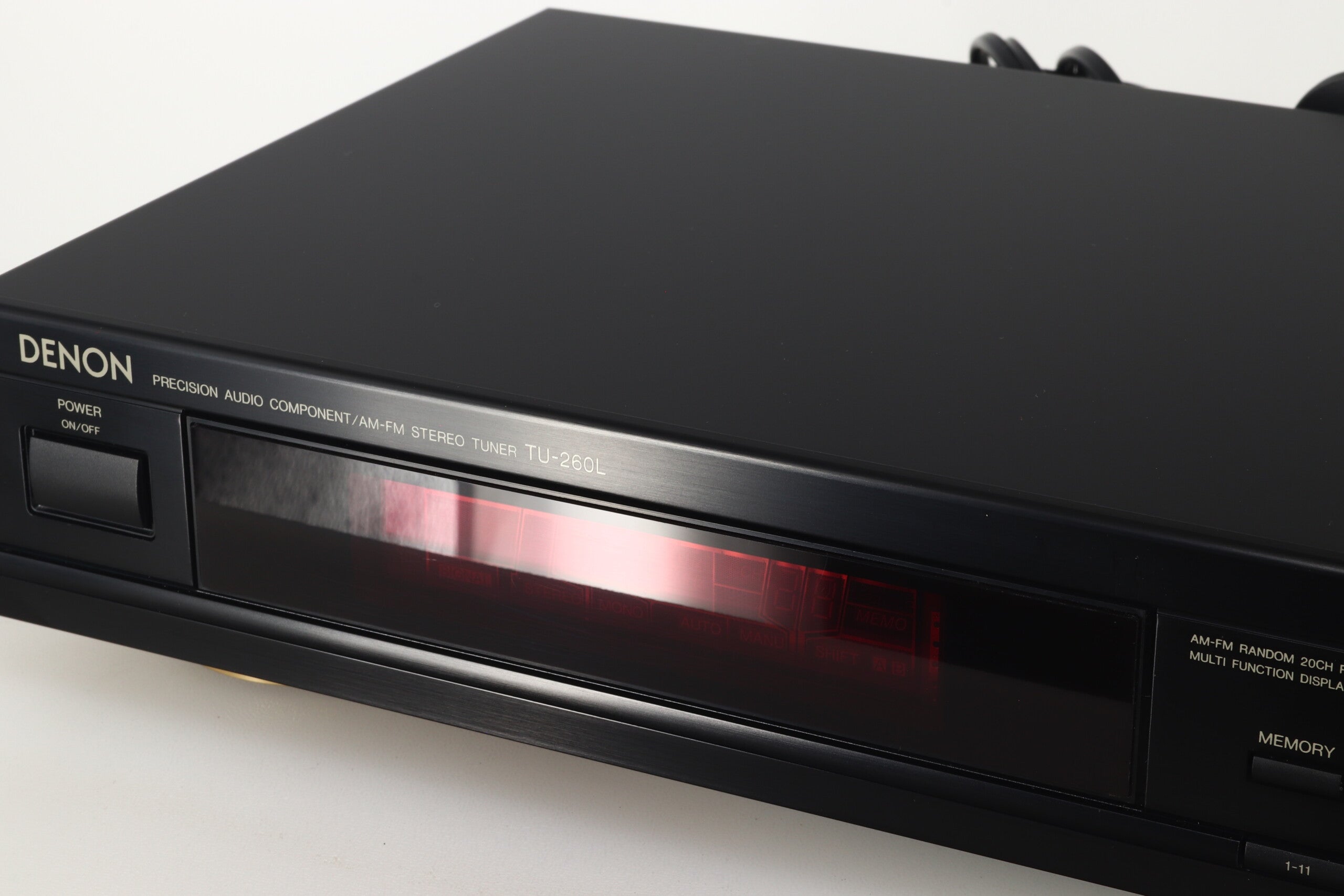

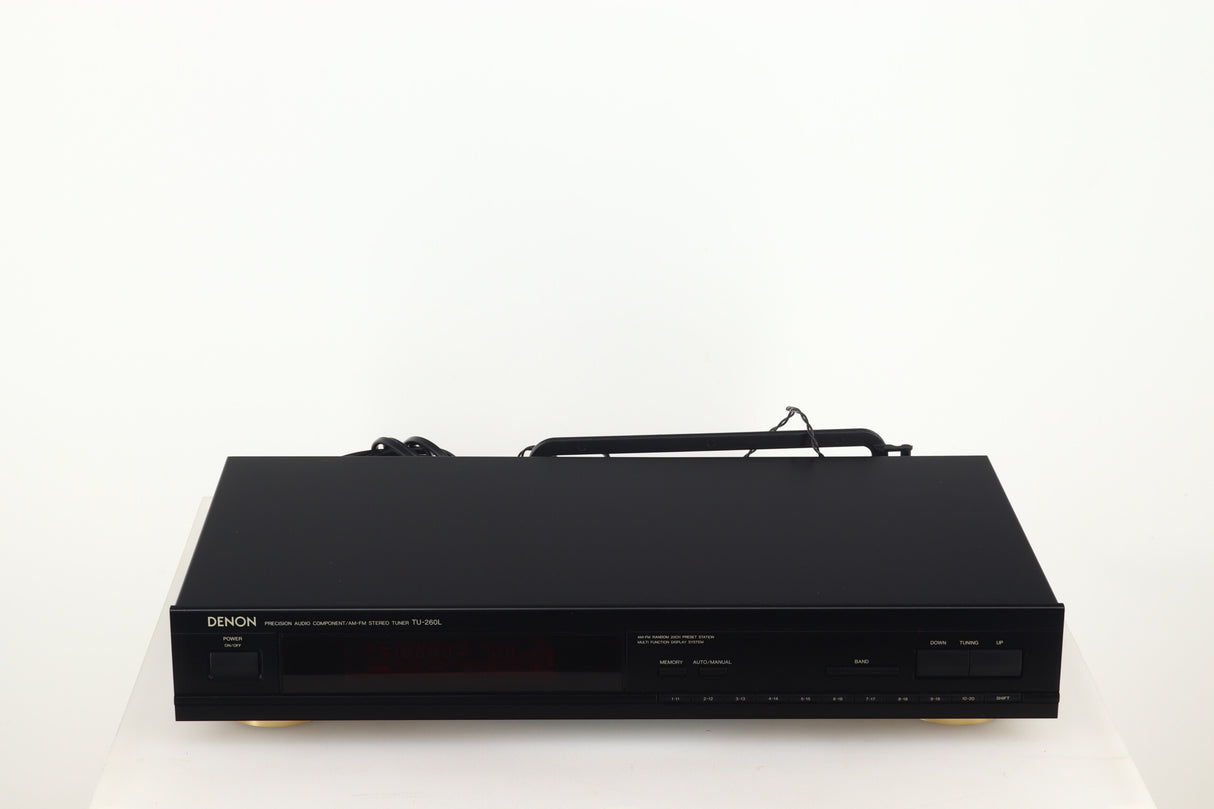

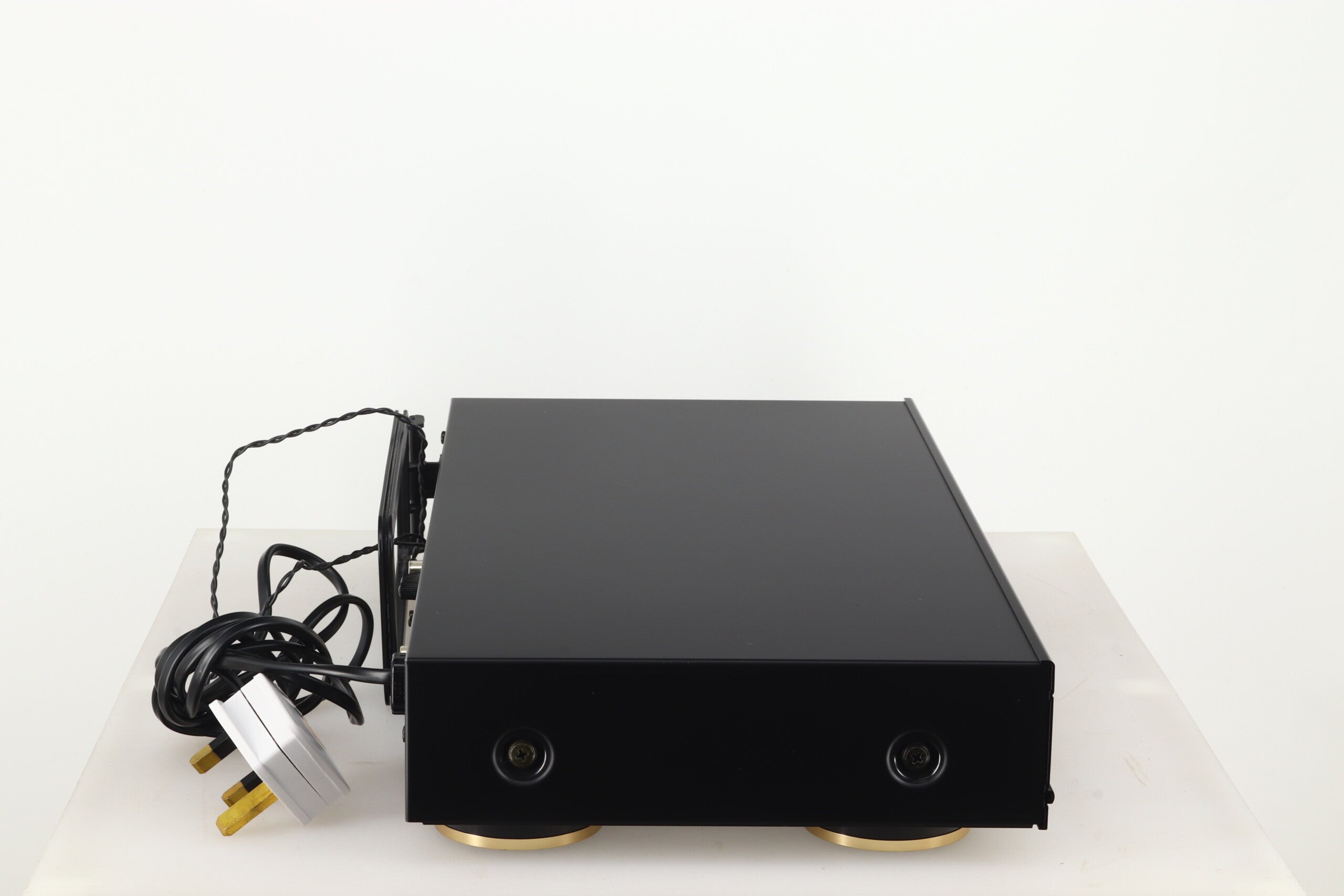

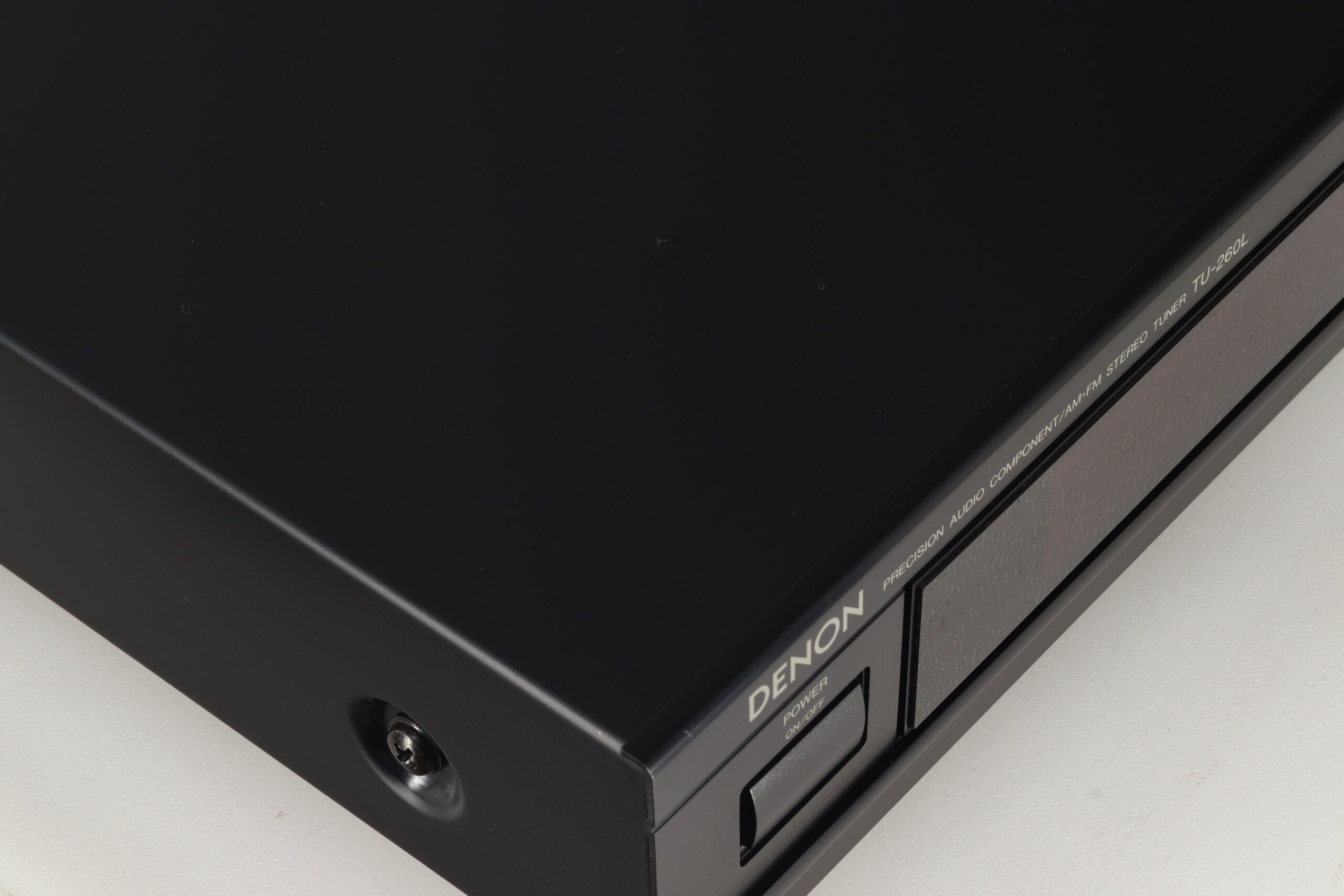

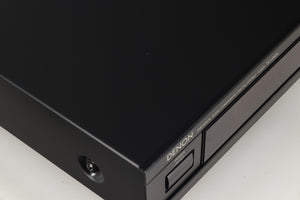

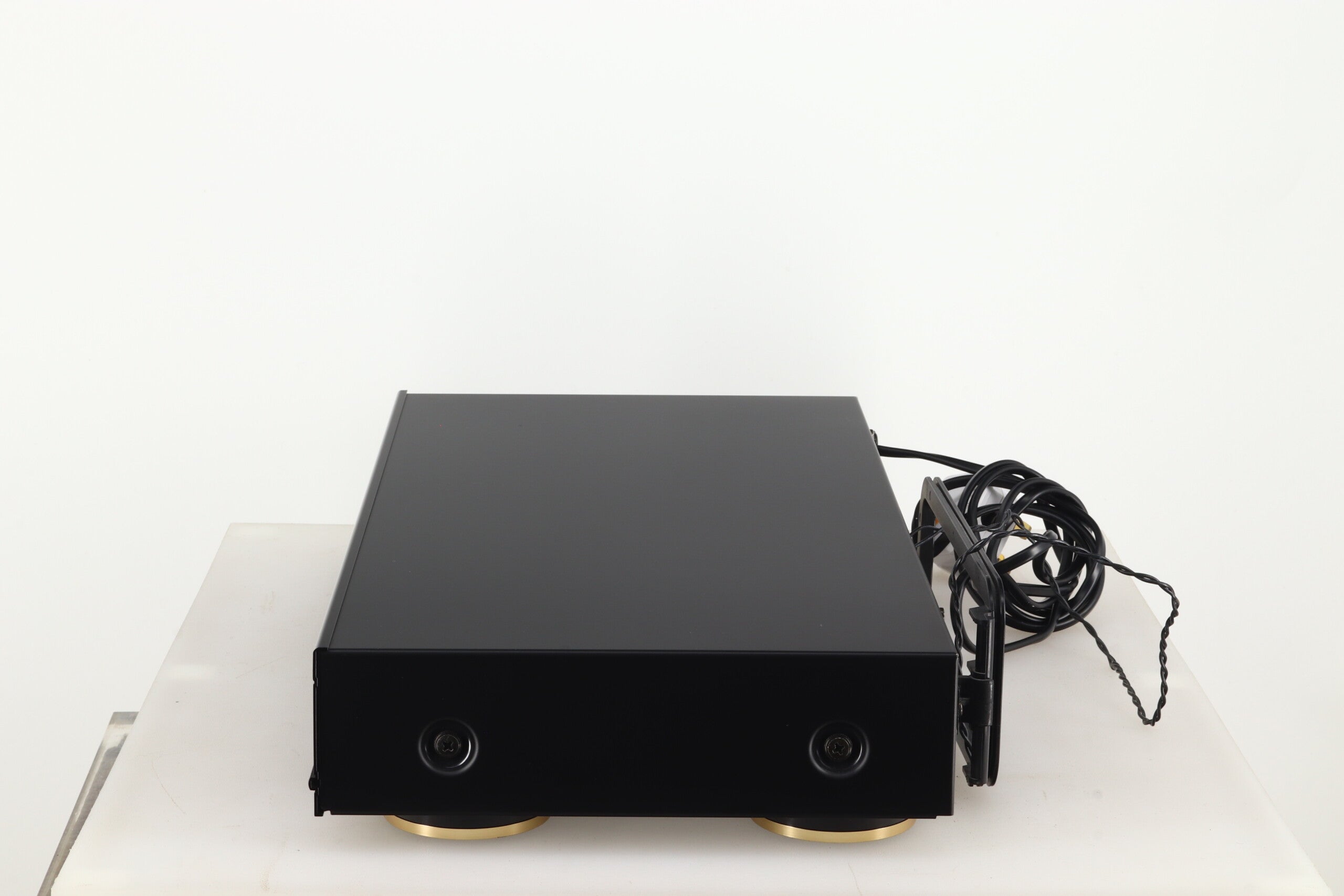

Denon TU-260L FM/AM Tuner

FM Section
Frequency Range: 87.5 MHz ~ 108.0 MHz
Antenna Terminals: 75 Ohm Unbalanced
Usable Sensitivity: 0.9 µV (DIN); 1.2 µV (IHF)
S/N: 50 dB Sensitivity
Monaural: 1.6 µV
Stereo: 23 µV (µV is at 76 ohm)
Image Interference Ratio: 70 dB
IF Interference Ratio: 85 dB
AM Suppression Ratio: 50 dB
Effective Selectivity: 75 dB (± 400 kHz)
Capture Ratio: 1.5 dB
Frequency Characteristics: 20 Hz ~ 12.5 kHz
Signal-to-Noise Ratio: Monaural: 77 dB; Stereo: 72 dB
Total Harmonic Distortion: Mono 1 kHz: 0.3% (at 75 kHz dev.); Stereo 1 kHz: 0.7%, 0.4% (DIN) (at 67.5 kHz dev.)
Stereo Separation: 40 dB (1 kHz)
AM Section (MW and LW)
Medium Wave
Frequency Range: 522 kHz ~ 1611 kHz

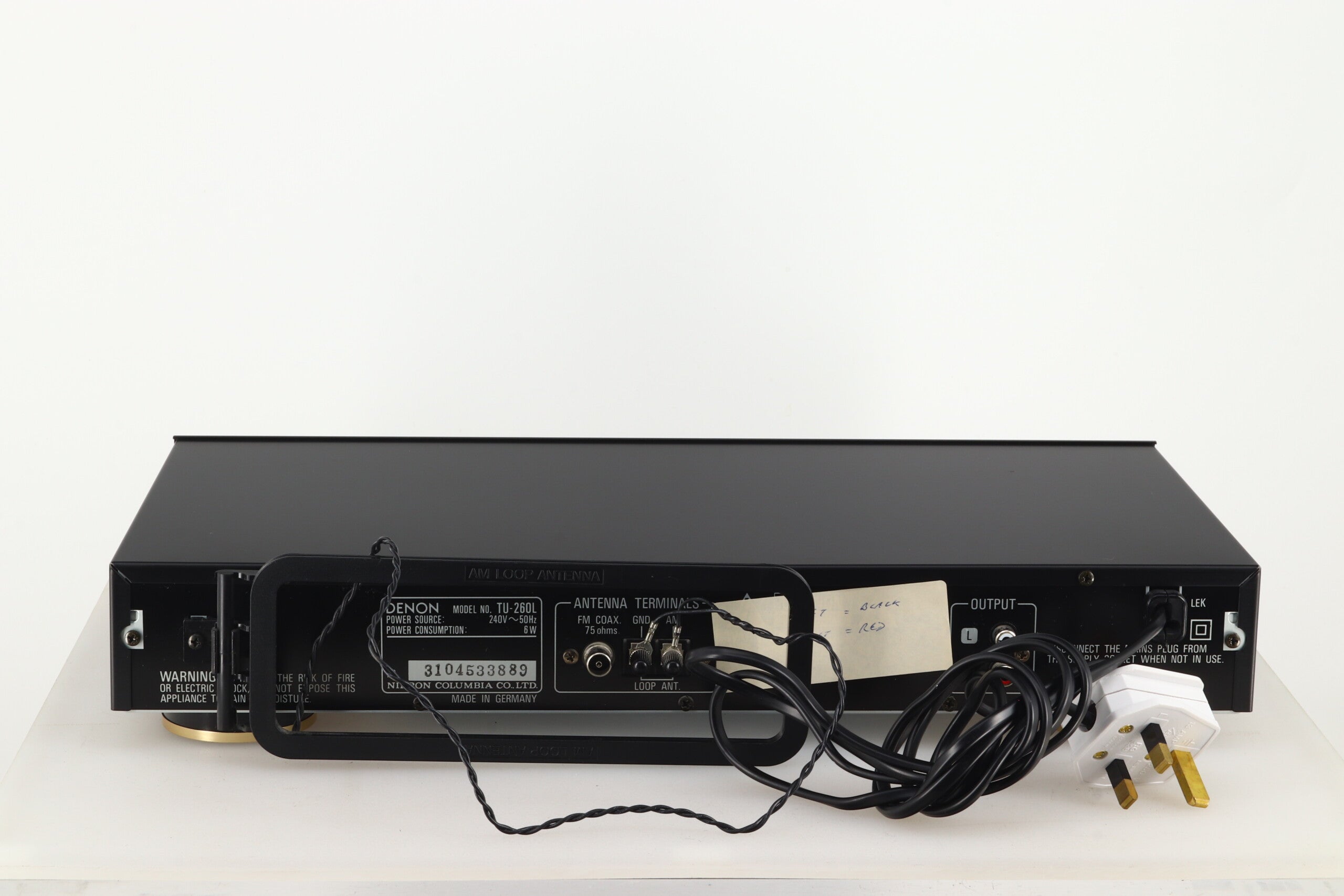

Antenna Terminals: Terminal Type with Loop Antenna
Usable Sensitivity: 18 µV
Signal to Noise Ratio: 53 dB
Long Wave
Frequency Range: 153 kHz ~ 279 kHz
Usable Sensitivity: 30 µV
Signal to Noise Ratio: 50 dB
General
Power Supply: : AC 220 V or 240 V 50 Hz
Power Consumption: 6 W
Dimensions: 434 (W) x 238 (D) x 75 (H) mm
Weight: 2.5 kg
