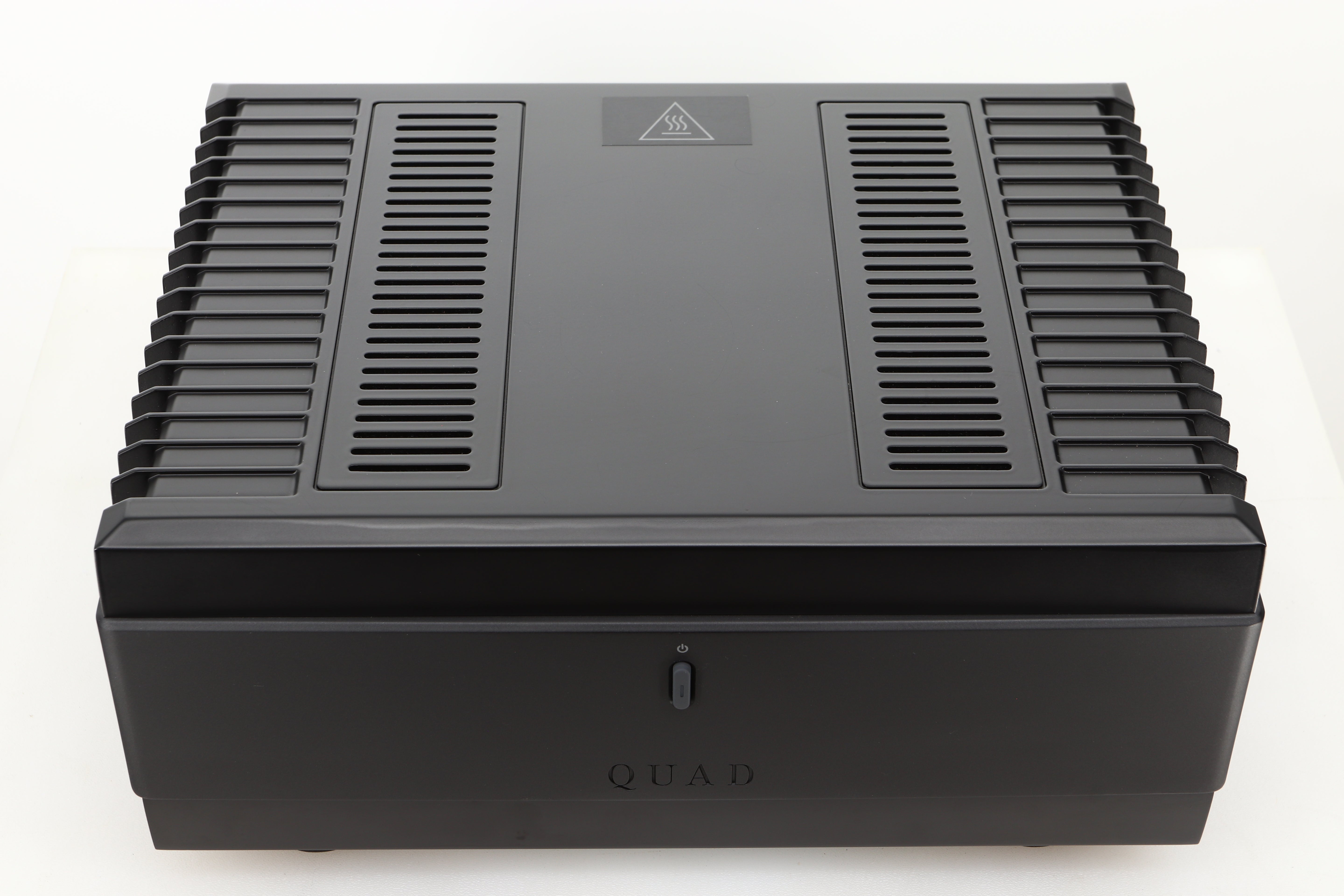

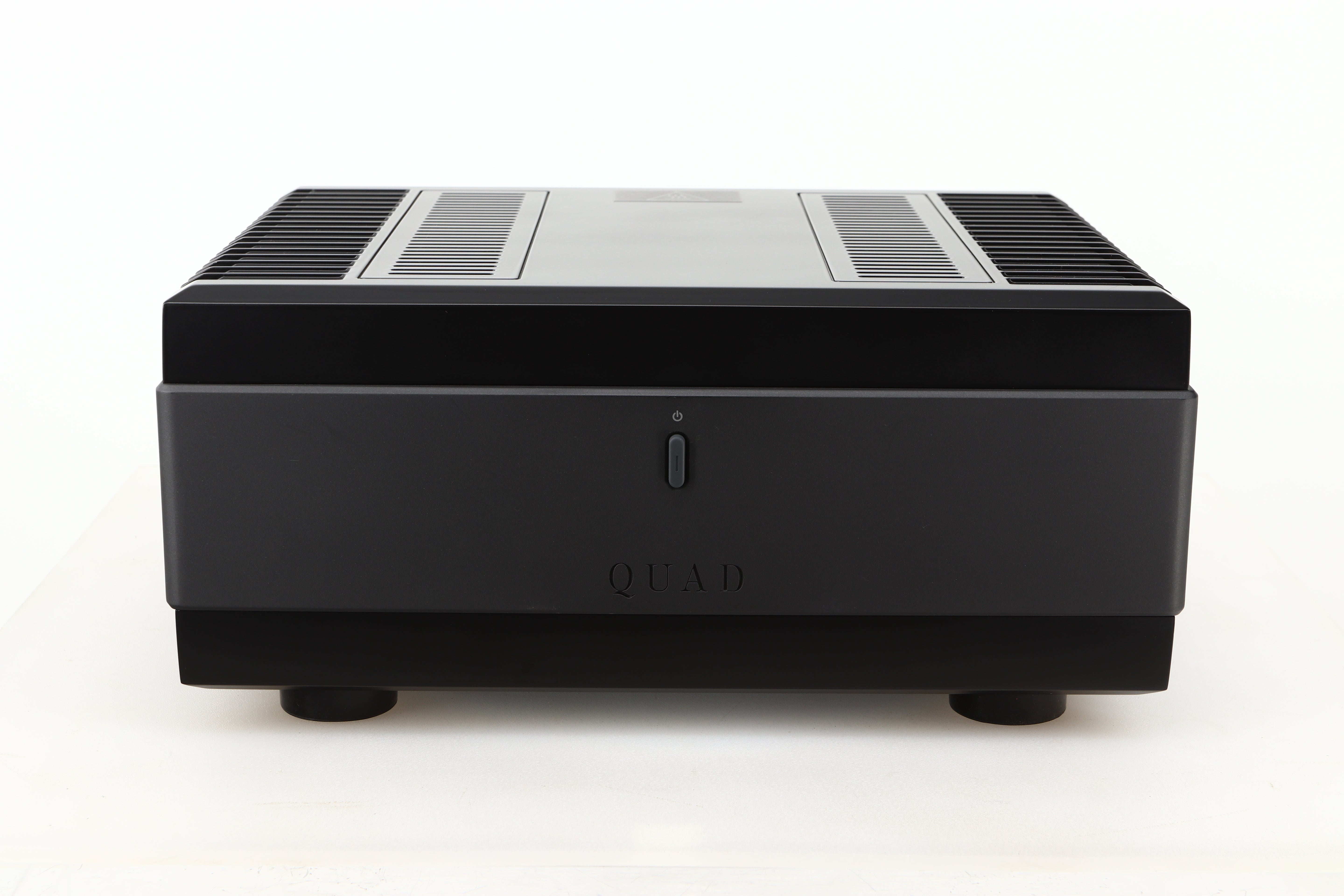

Quad Elite QSP Power Amplifier

The Elite QSP – which stands for Quad Stereo Power – replaces the much acclaimed 909 power amp in Quadʼs range, building upon its predecessorʼs blueprint with upgraded internal components and innovative new circuitry to deliver an even higher level of audio performance.
A key part of the design of the Elite QSP, and the 909 before it, is Quadʼs proprietary Current Dumping technology – originally devised in the 1970s by Quadʼs founder Peter Walker and still one of the few truly innovative amplifier topologies. It was first introduced in the seminal Quad 405, earning that amp both a Design Council Award and The Queenʼs Award for Technical Achievement, and has since been refined and modernised in successive amplifiers culminating in the Elite QSP.

Power output 140W into 8 ohms (<0.01% THD at 1kHz)
Total harmonic distortion <0.004% (100W at 1kHz); <0.025% (100W at 20Hz - 20kHz)
Output impedance 0.05 ohms in paralled with 1.5µH
Frequency response -1.0dB at 1Hz and 55kHz, ref. 1kHz
Power response 0.25dB at 20Hz and 20kHz, ref. 1kHz
Input sensitivity 760mV (RCA line input)
Input impedance 10kΩ (balanced); 15kΩ (unbalanced)
Crosstalk -90dB at 1kHz (input loaded with 600Ω)
Signal-to-noise ratio 108dB (20kHz measurement bandwidth)
Stability Unconditional with any load and input
Dimensions (WxHxD) 358x149.2x269.6mm
Weight 12.5kg
