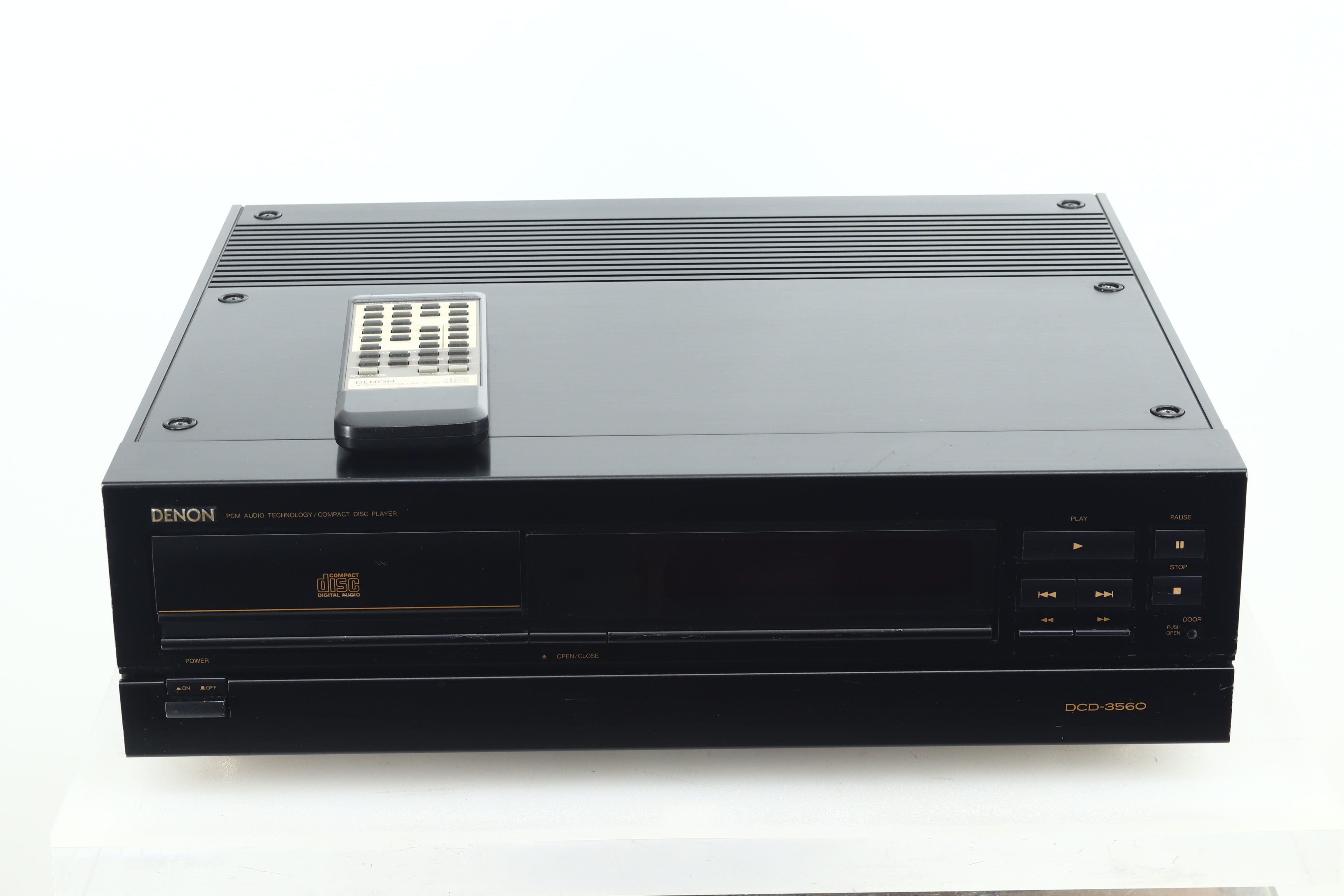

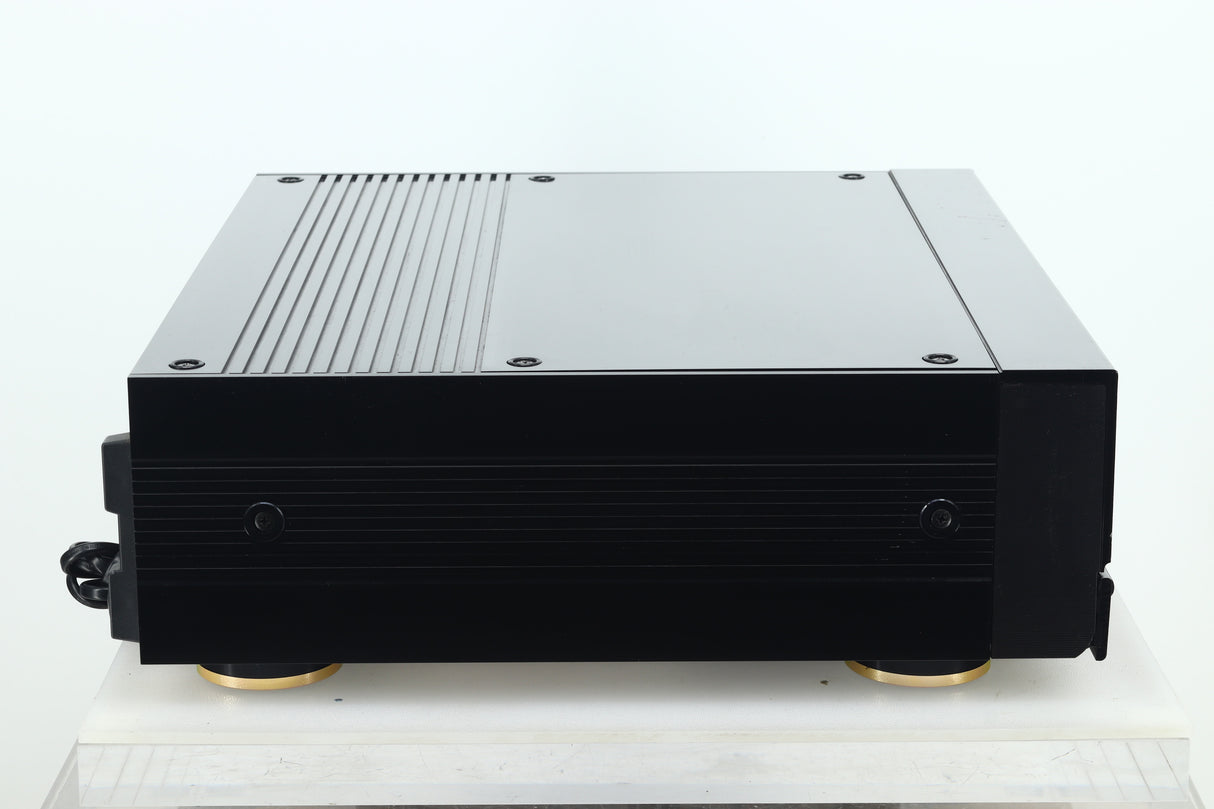

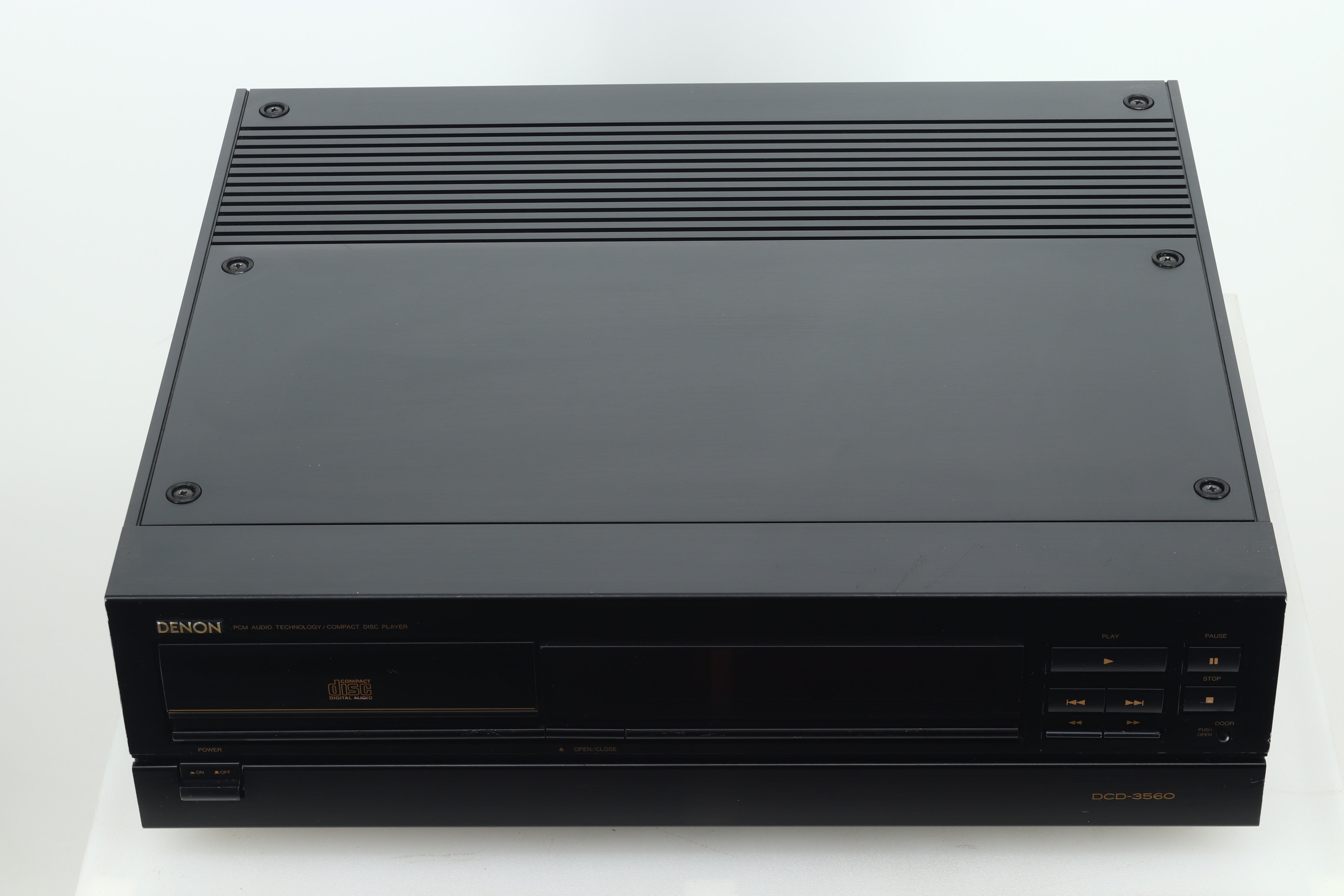

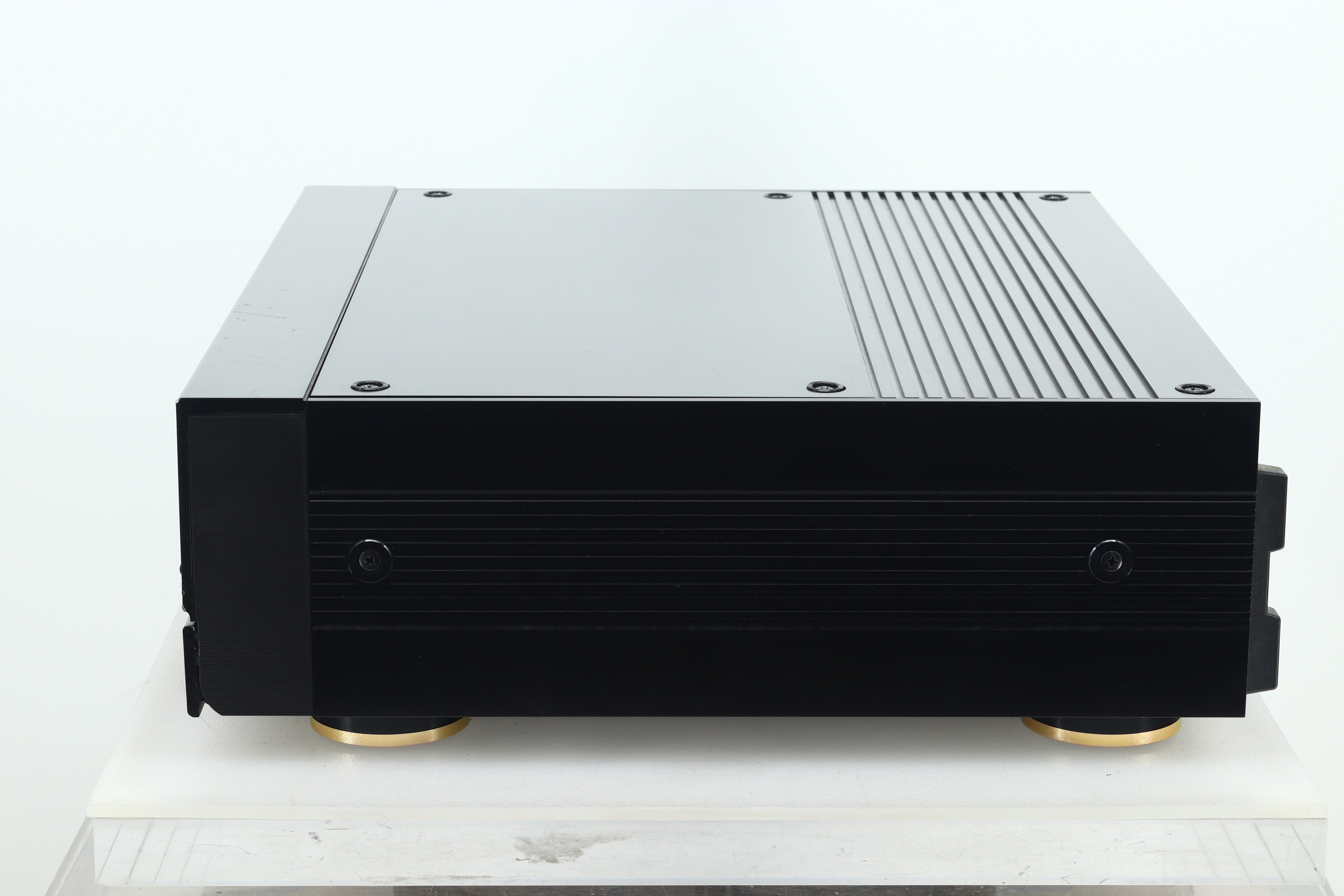

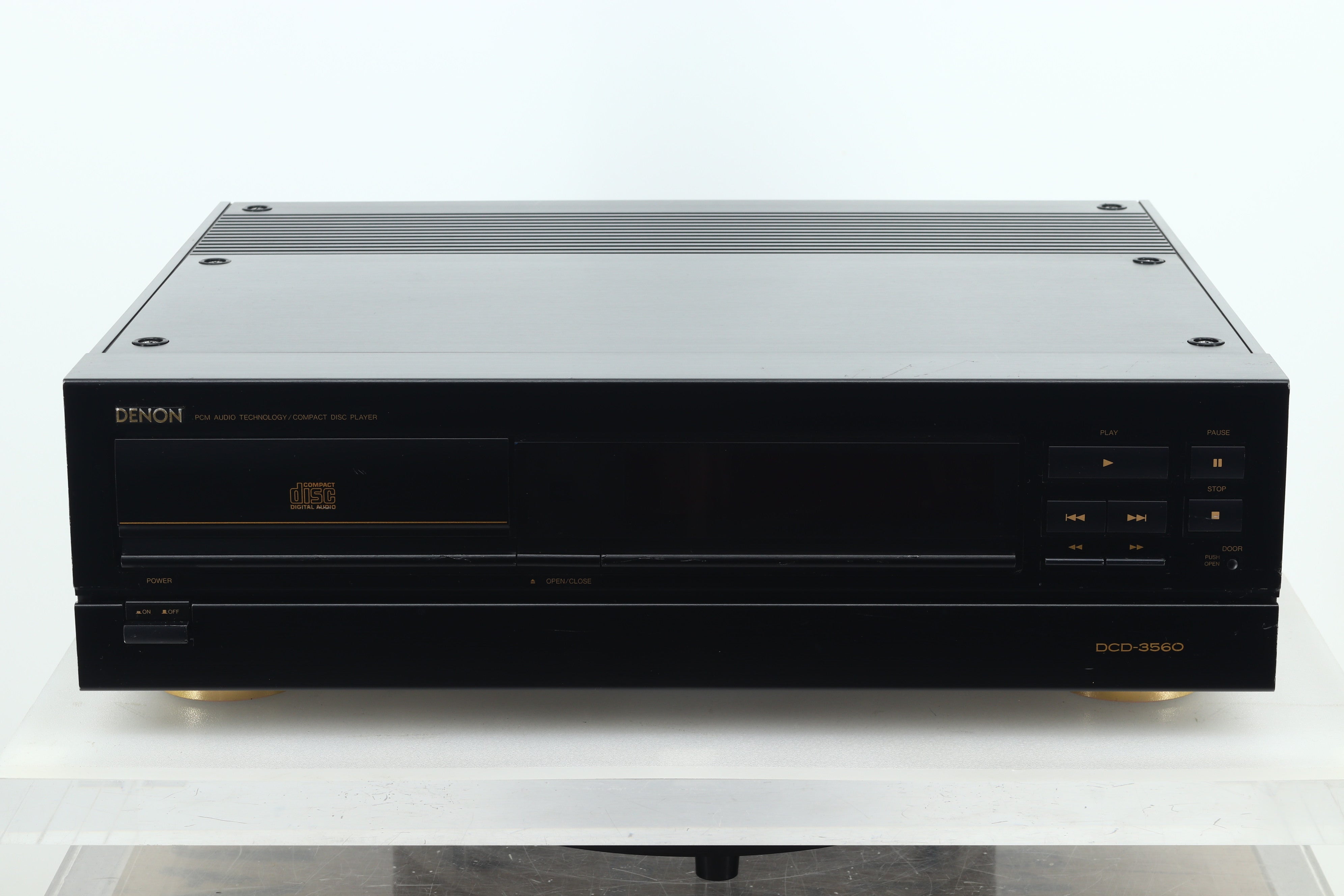

Denon DCD-3560 CD Player - Black

The DCD-3560 Compact Disc Player incorporates Denon's Super Linear Converter which prevents deterioration of sound quality in PCM playback systems. This assures accurate reproduction of the digital signals recorded on compact discs no matter whether they are pure studio recordings or "live"· performance recordings. All parts making up this CD player have been selected with the greatest care in order to produce high quality realistic playback of the full musical content on compact discs.
The use of Denon's unique system for preventing zero cross distortion, the main factor in loss of sound quality in the PCM playback section, plus real 20-bit D/A converters with superior resolution, offers reproduction of the original sound field with rich musical expression.
A high precision digital filter with 8 times oversampling brings out the best of the analogue filter to produce crisp, clear sound.
The optical pickup, which requires extremely high tracing precision, is installed on a BMC (Bulk Mold Compound) with high internal loss and excellent vibration absorption, and the interior of the optical pickup mechanism is also floated using rubber with low repellence elasticity and coil springs. The entire mechanism is installed on a BMC chassis giving it a thorough anti-vibration structure.
In addition to the power transformer for the digital servo circuit, the independent transformer is used exclusively for the audio circuitry, combining with the high capacity power capacitor to provide stability.

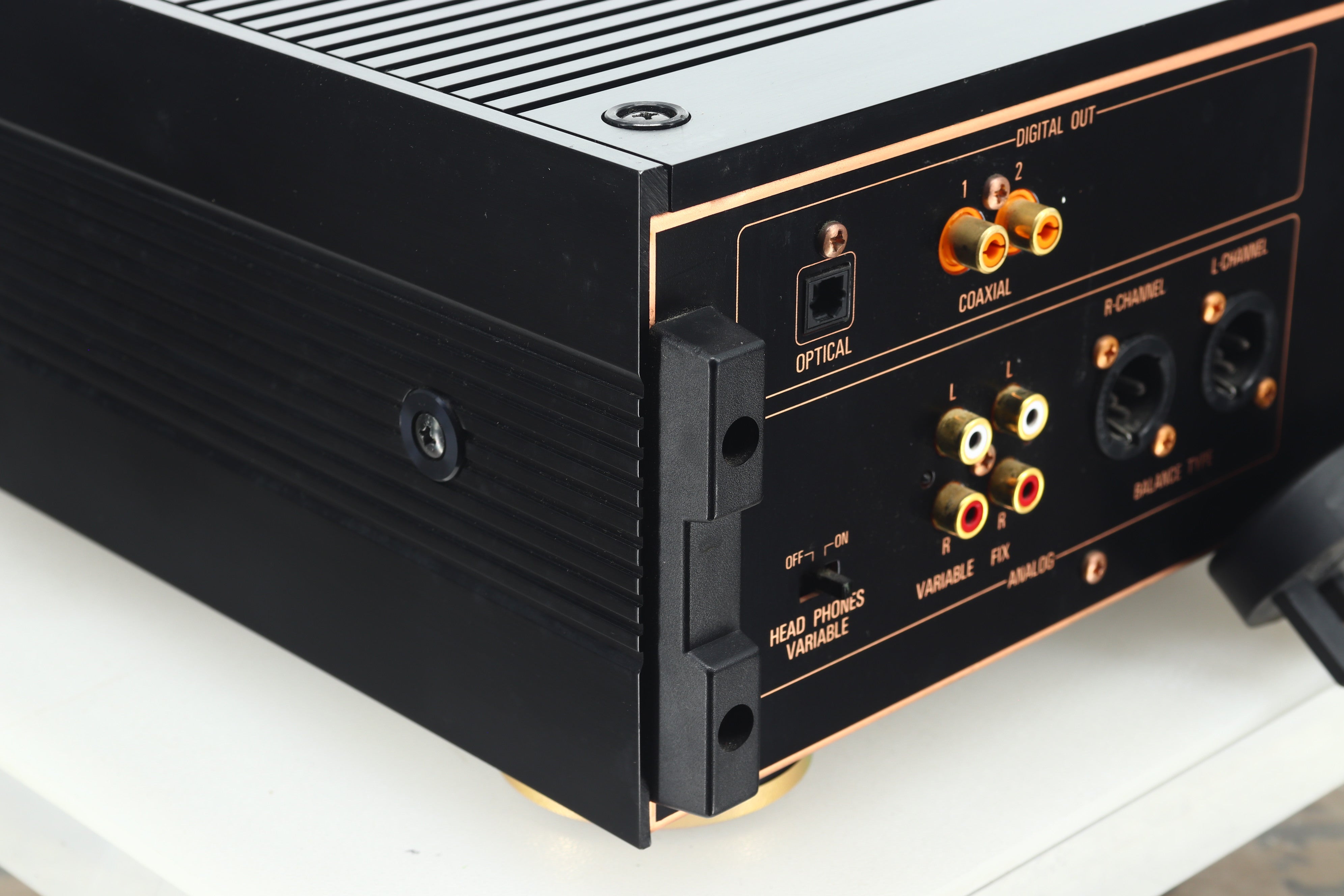

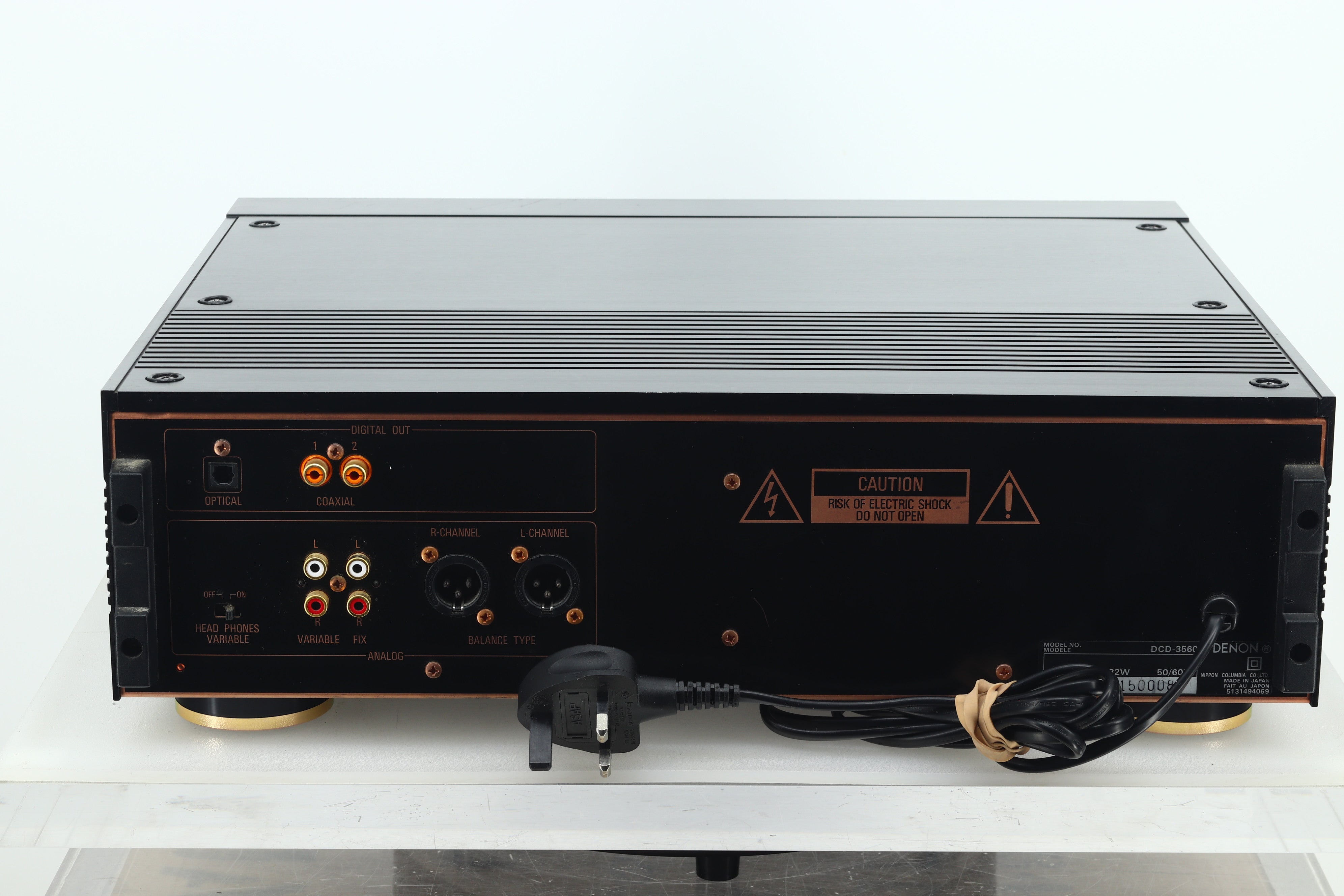

The DCD-3560 is equipped with balanced cannon connector outputs. There are total of three output systems, two fixed output systems (one unbalanced and one balanced) and one unbalanced variable output system, thus providing more than sufficient options even for professional use.
The data on the compact disc can be output III digital format to an external digital processor or D/A unit for playback. Aside from the two coaxial output systems, the DCD-3560 also includes an optical output which improves sound quality and eliminates noise interference.

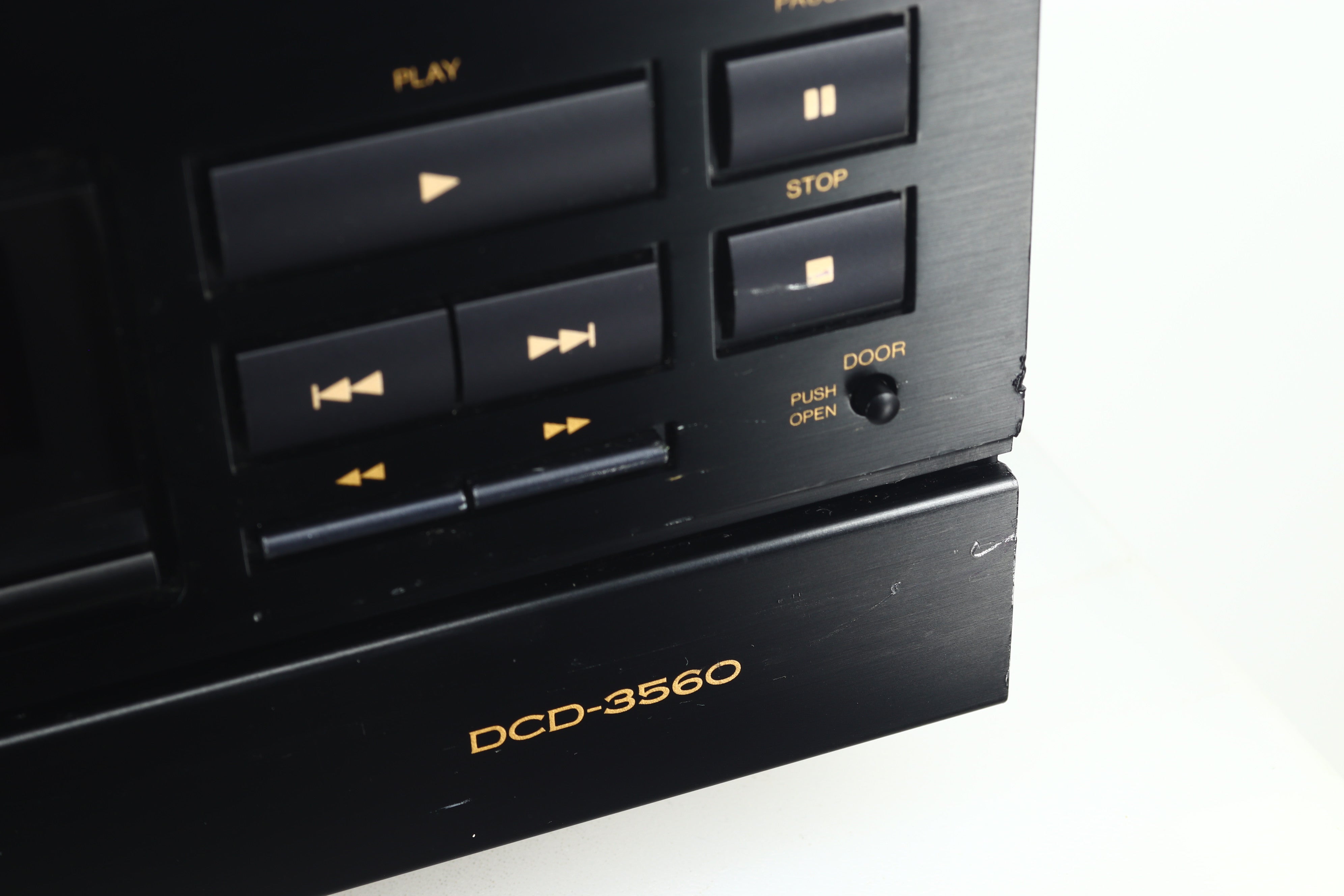

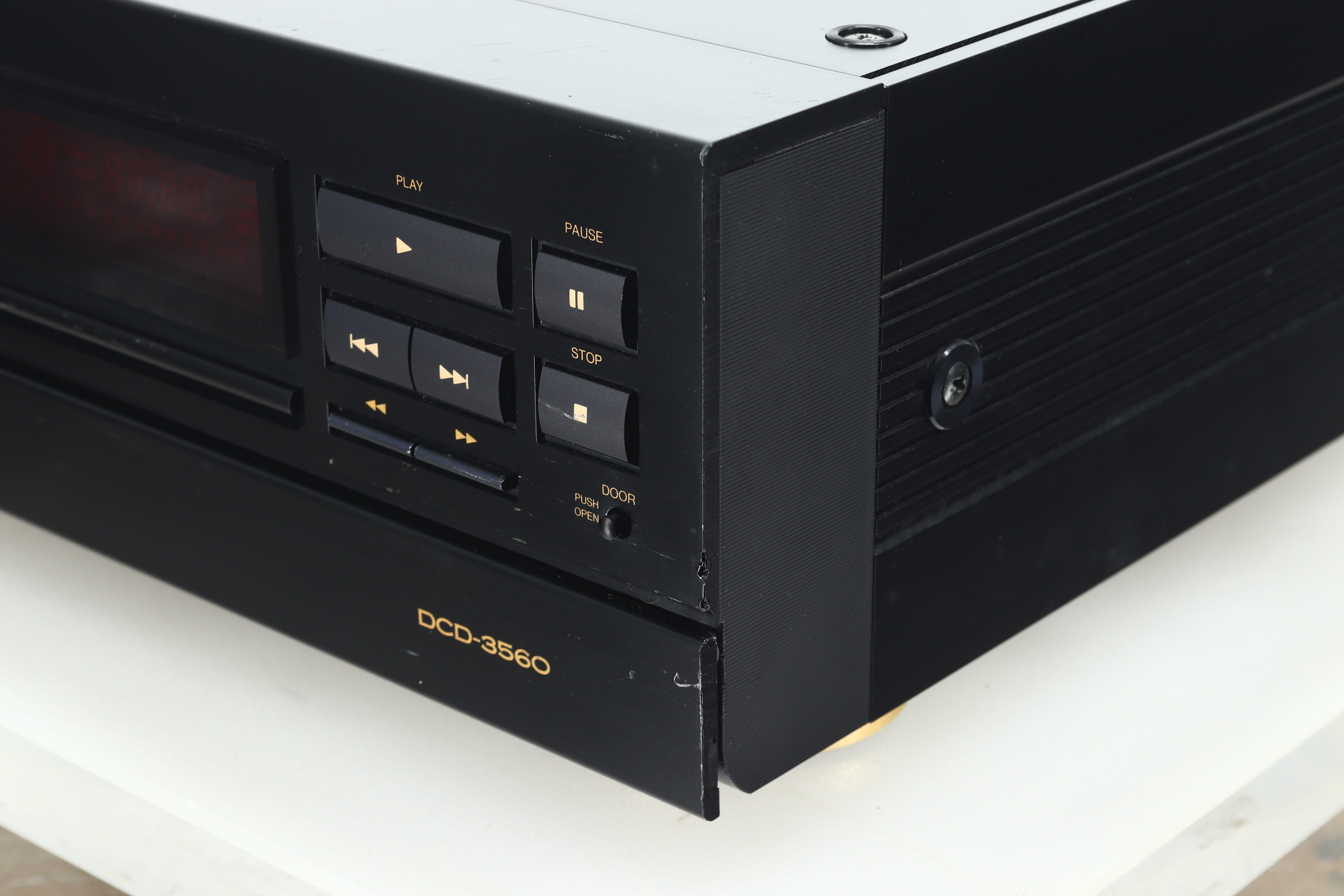

The DCD-3560 has a simple, high quality design, with functions not often used tucked behind a door or on the remote control unit.
Aside from the regular functions such as play, stop, and track buttons, the remote control unit also includes a numeric keypad for the direct search, direct program, and time search functions. These remote control functions greatly enhance the operability of the DCD-3560.

Number Of Channels: 2
Frequency Response: 2 - 20,000 Hz, ± 0.2 dB
Dynamic Range: 100 dB or greater
S/N Ratio: 120 dB (1 kHz)
Harmonic Distortion: 0.0015% (1 kHz)
Separation: 110 dB (1 kHz)
Wow/Flutter: Below measurable limits (± 0.001 % W peak)
Output Voltage: Fixed: 2.0 Vrms; Balanced type: 2 Vrms/1.0 kΩ load; Variable: 2.0Vrms/line out volume max. (Variable output voltage with no 600Q load on balanced type output)
Sampling Frequency: 44.1 kHz
Quantization Bit: 16-bit linear/channel
Transfer Bit Rate: 4.3218 Mb/sec.
Format: Digital audio interface AES EBU
Coaxial Output Voltage: 0.5 Vpp, 75 Ω
Optical Power: - 12 dBm
Light Wavelength: 650 nm
Power Supply: 50/60 Hz voltage is shown on rating label
Power Consumption: 32 W
Dimensions: 434 (W) x 390 (D) x 135 (H) mm
Weight: 17.0 kg
