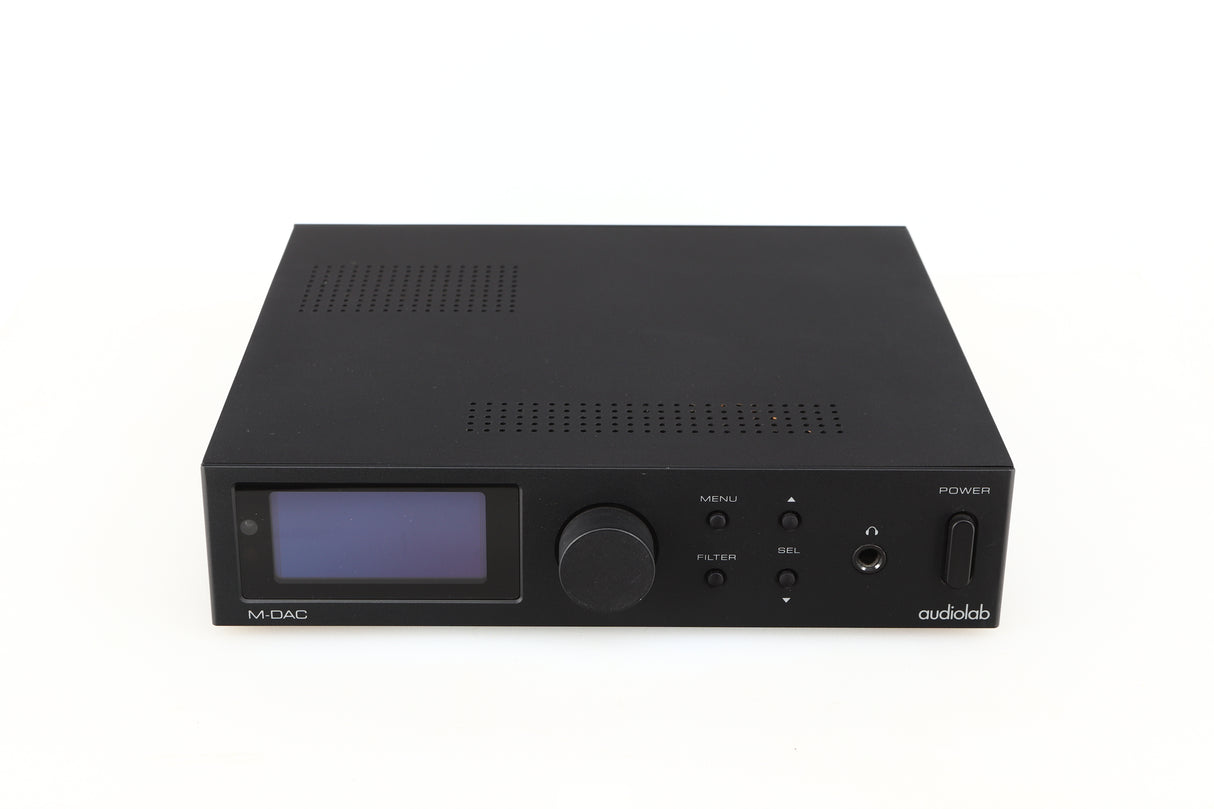

Audiolab M-DAC Digital Analogue Converter - Black

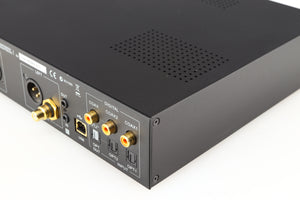

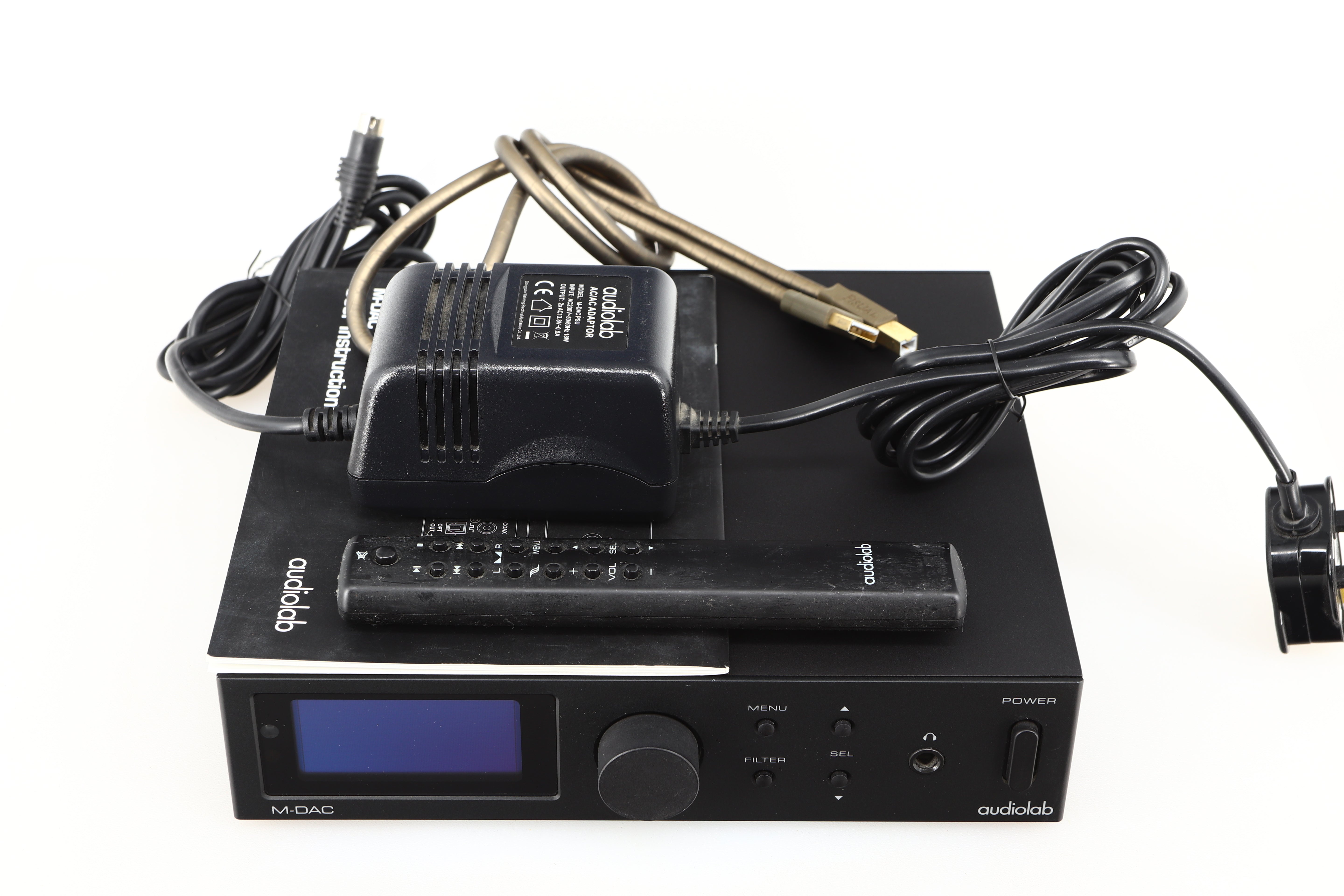

The multiple award winning Audiolab M DAC Digital to Analogue converter and pre-amp. The Audiolab M-DAC, an eagerly awaited, new standalone DAC from Audiolab finally makes its debut as a replacement for the award-winning 8000DAC introduced in 1992. The M-DAC is housed in a smart styling aluminium case with solid build and ample connectivity. Alongside the USB input with Asynchronous data processing, there are two each of coaxial and optical digital inputs, and one each of coaxial and optical digital outputs. Audio signal is provided via RCA single-ended and XLR balanced audio outputs. A wand like remote control handset allows you to switch inputs, select from preset digital filters and alter the display. The large clear screen allows you to see what input is being used and the sample rate being received. High-res 24-bit/192kHz music files can be played on the M-DAC via the coaxial input, while optical and USB inputs support 24-bit/96kHz data.

Asynchronous USB supporting 24-bit/96 kHz with remote control of PC / MAC Media Player via HID support
2.7″ high contrast OLED display
CD/DVD SPDIF subcode embedded Track and Time Display Advanced de-jittered optical and coaxial SPDIF output, with USB to SPDIF output.
26 internal regulated supply rails with 10 ultra-low noise, low impedance discrete regulators
7 user selectable digital filters

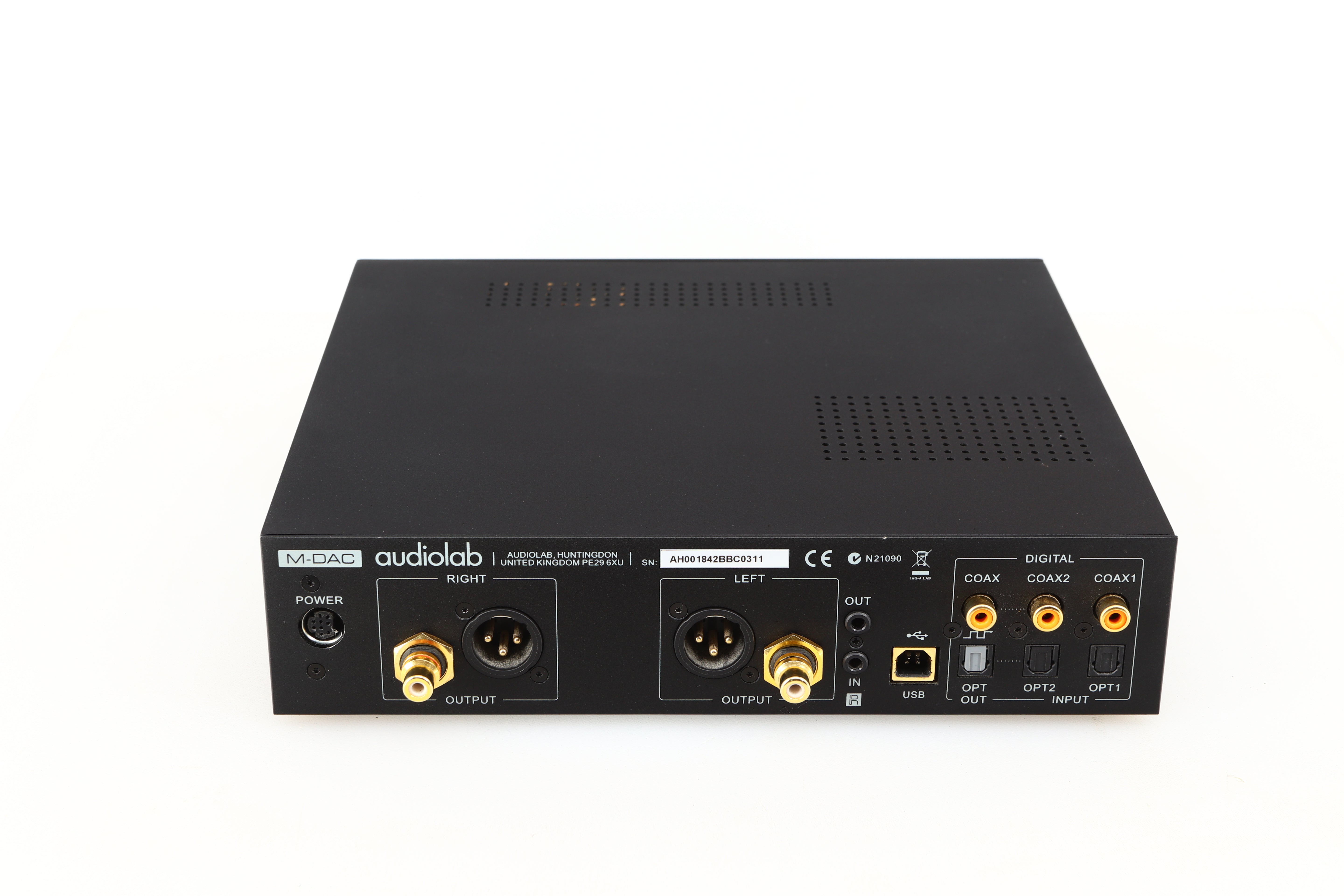

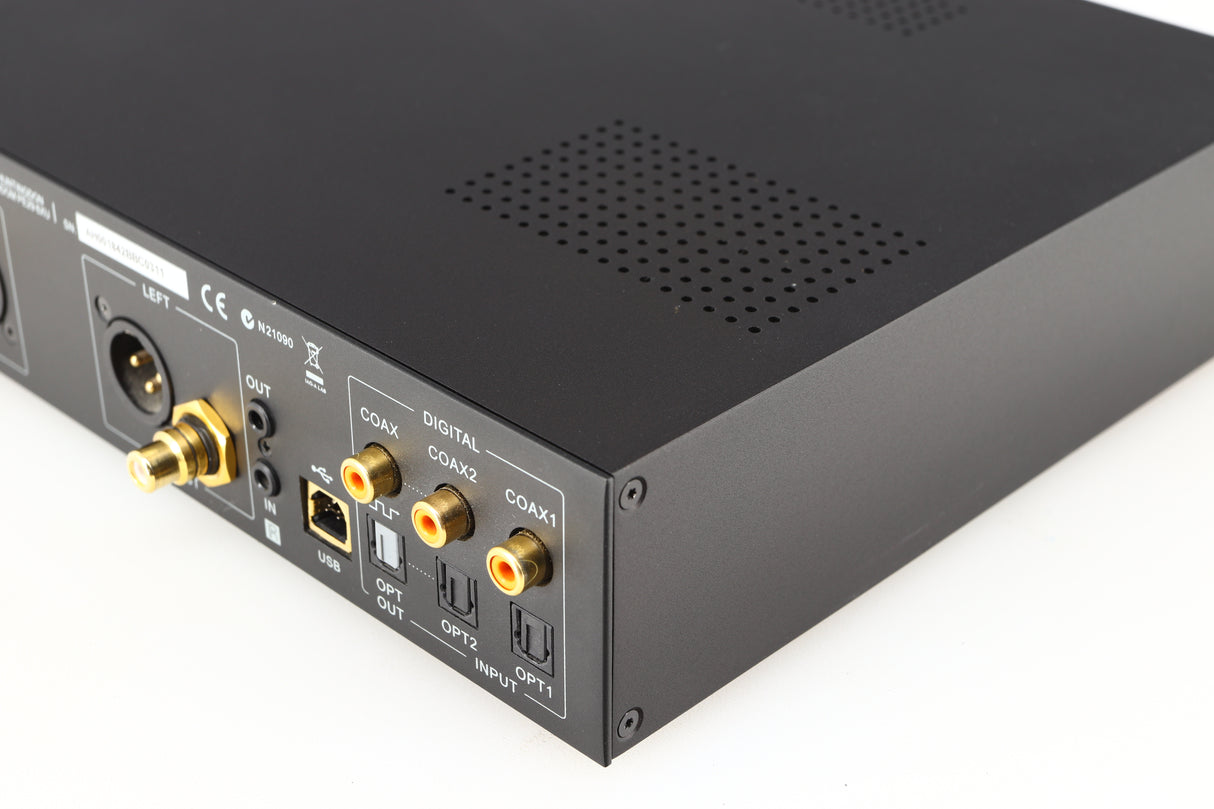

Digital Input: 2 x coaxial, 2 x TOSlink optical, 1 x USB
Digital Output: 1 x coaxial, 1x TOSlink optical
Output Voltage: RCA: 2.25 V RMS; XLR: 4.5 V RMS
Total Harmonic Distortion: RCA: < 0.002 %; XLR: < 0.0008 %
Frequency Response: 20 Hz – 20 kHz (± 0.2 dB)
Dynamic Range: RCA: > 115 dB; XLR: > 122 dB
Crosstalk: RCA: < – 120 dB; XLR: < – 130 dB
Dimensions: 250 (W) x 252 (D) x 59 (H) mm
Weight: 4.95 kg
