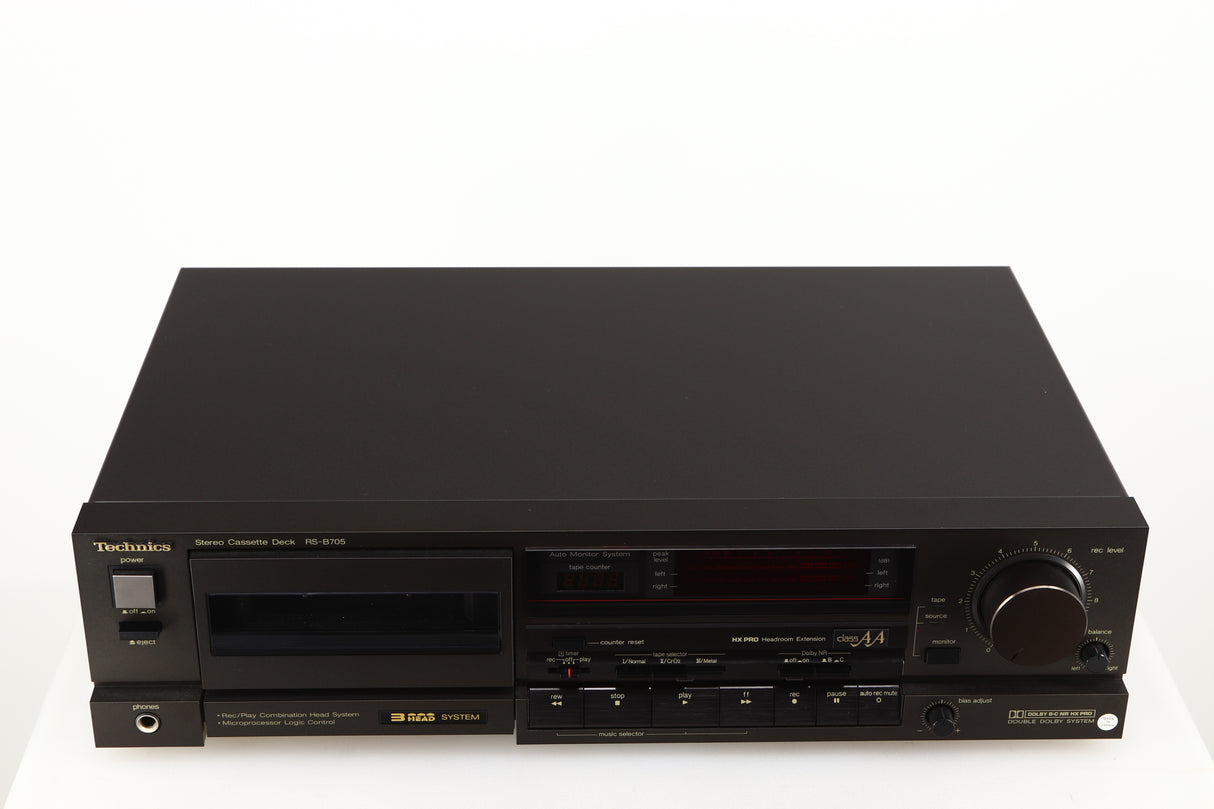

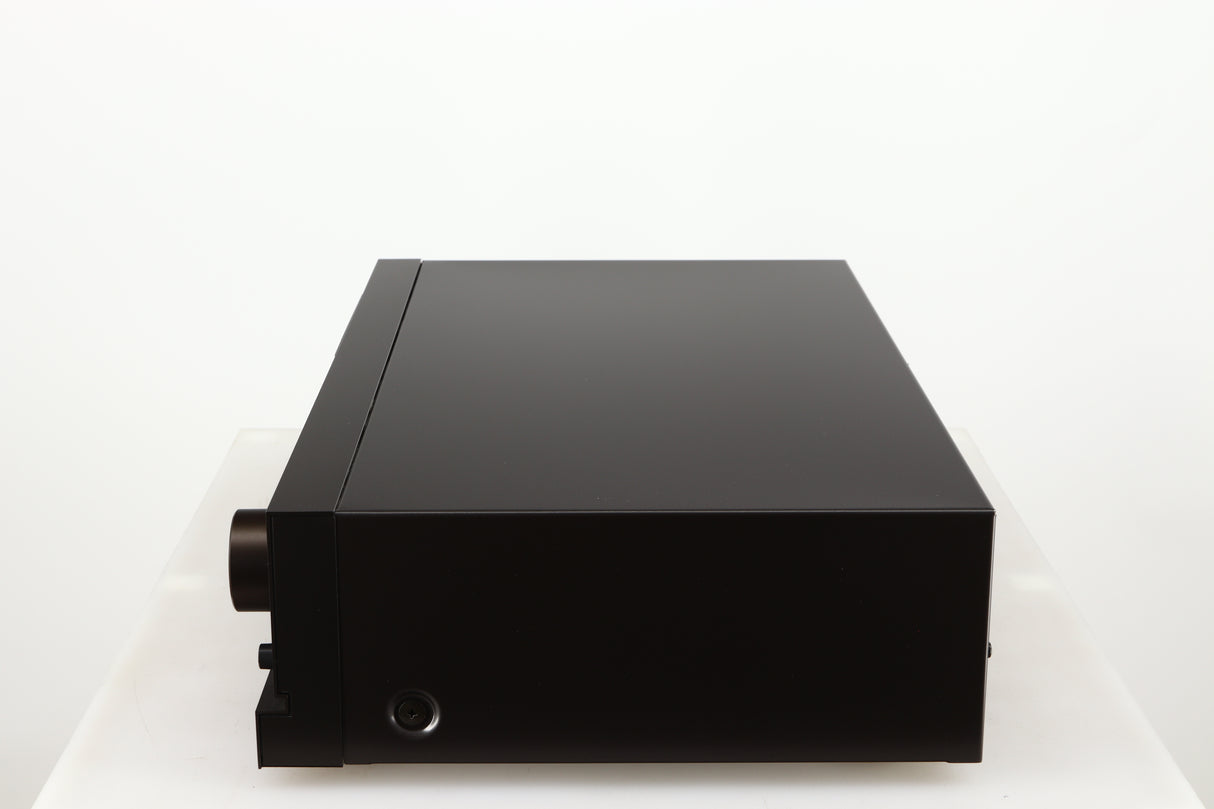

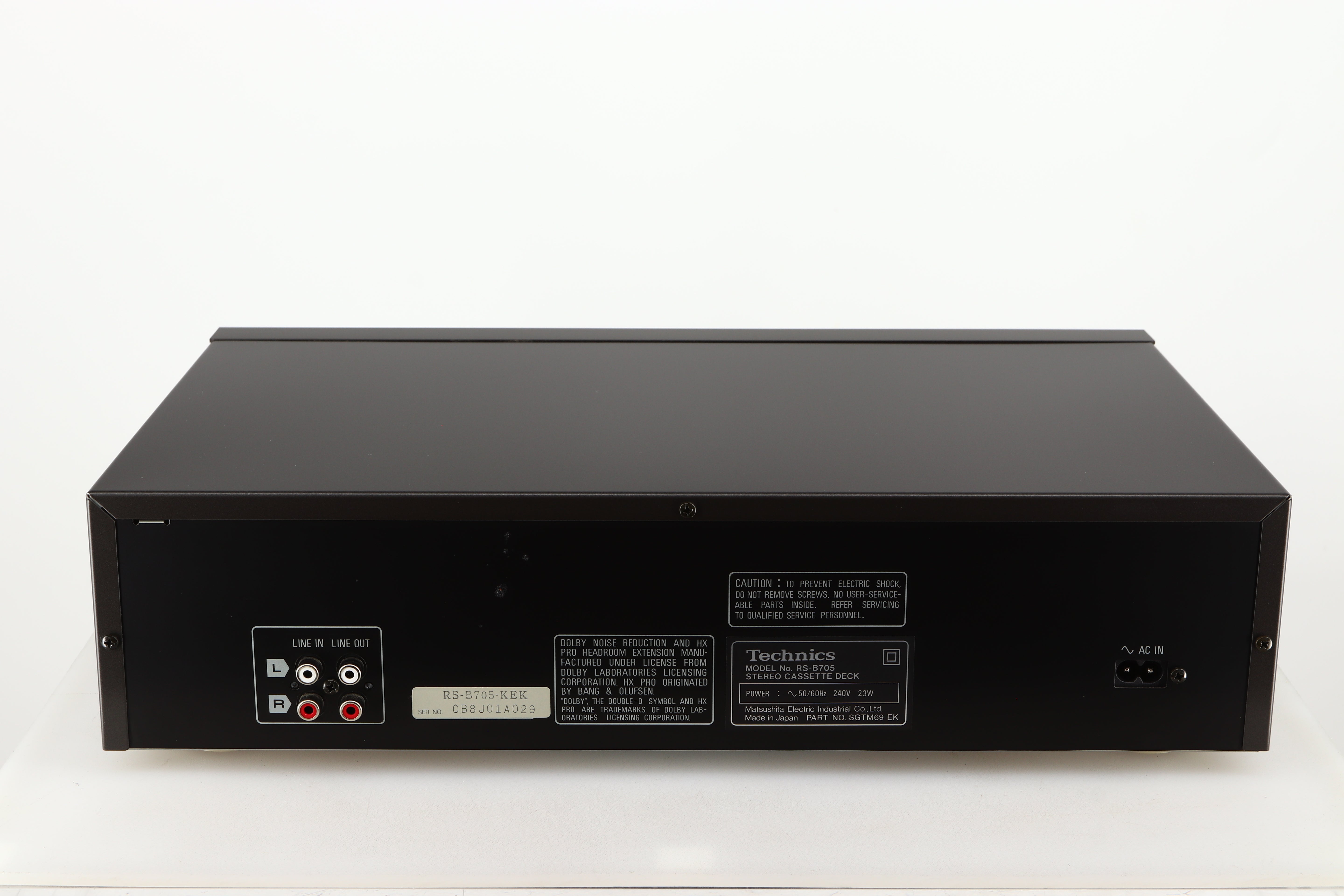

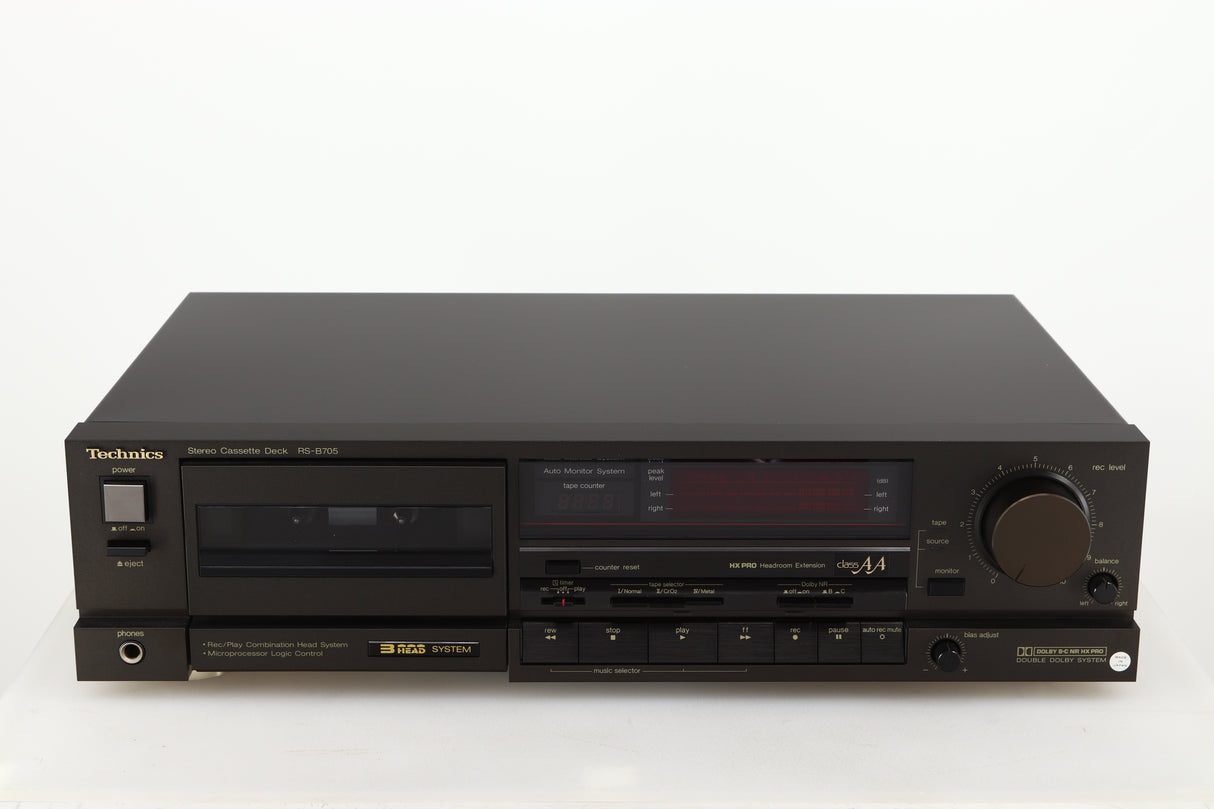

Technics RS-B705 Cassette Deck

Technics cassette decks are ideal for recording and playback of digital sources. They offer not only good sound, but also convenience and reliability.
The Dolby HX Pro system automatically optimizes bias for greater high frequency, and lower distortion levels during recording. Built-in dbx reduces tape hiss by expanding dynamic range to about 110 dB. Dolby B-C NR gives widespread noise reduction for compatibility with other systems. The result is ideal for digital source recording and completely compatible with your car audio, portable stereo, or other cassette deck system.
The three head system allows separate dedicated heads for erase, record and playback. Rather than compromise the design of one head for both record and playback the separate record head has a wide gap (4µ) to raise maximum output level while the playback head with a narrow gap (1µ) ensures good high frequency playback.
As the record and playback heads are separate it is possible to monitor the recording a split second after it has been made giving additional confidence in the results of an important recording.
To bring out the full potential of the tape transport and head systems, Technics’ new advanced decks feature the breakthrough Class AA circuit technology, already proven in Technics hi-fi amplifiers. By isolating voltage control from the current supply in the equaliser circuit Class AA helps assure that the recorded wave form is faithful to the input signal.

Features
Three Head System with full off tape monitoring
Dolby HX-PRO double B-C noise reduction system
Bias fine adjustment
Class AA record equalizer

Type: 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x combination record/playback, 1 x erase
Motor: 1 x capstan, 1 x reel
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 20 Hz to 21 kHz (Metal tape); 20 Hz to 20 kHz (CrO2); 20 Hz to 19 kHz (Normal)
Signal to Noise Ratio: 75 dB (Dolby C); 67 dB (Dolby B)
Wow and Flutter: 0.05%

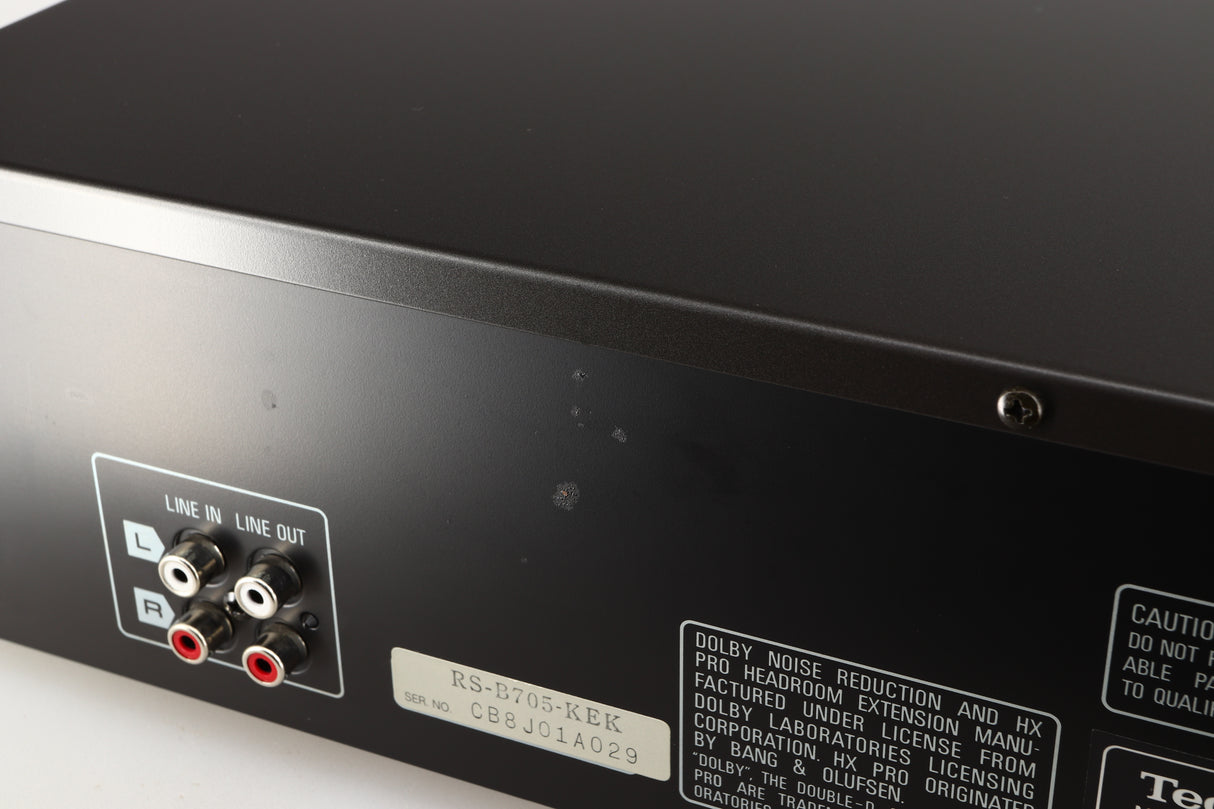

Input Sensitivity and Impedance: 60 mV/47 kΩ (line)
Output Voltage and Impedance: 400 mV/2.2 kΩ (line)

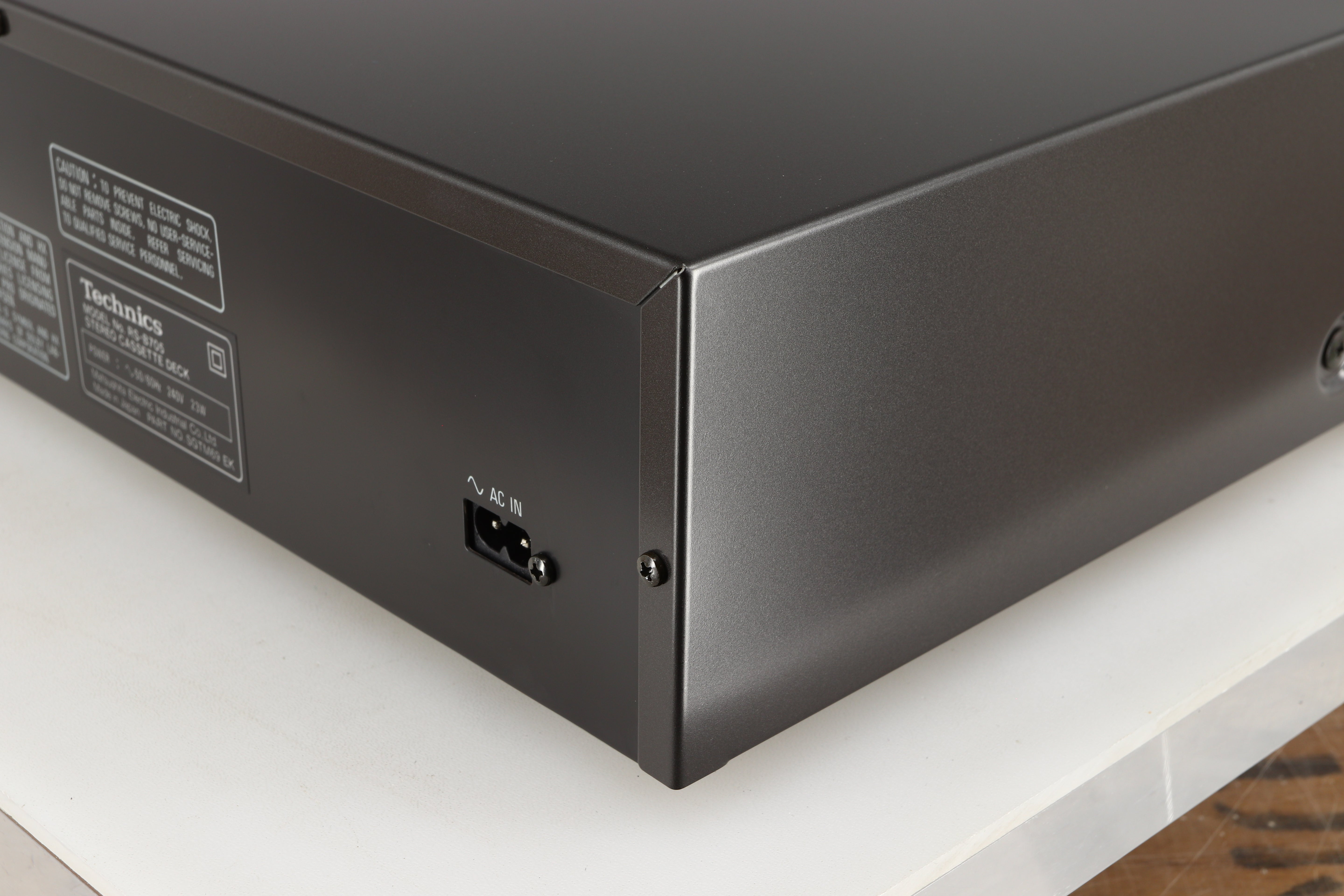

Power Supply: AC 50/60 Hz, 240 V
Power Consumption: 23 W

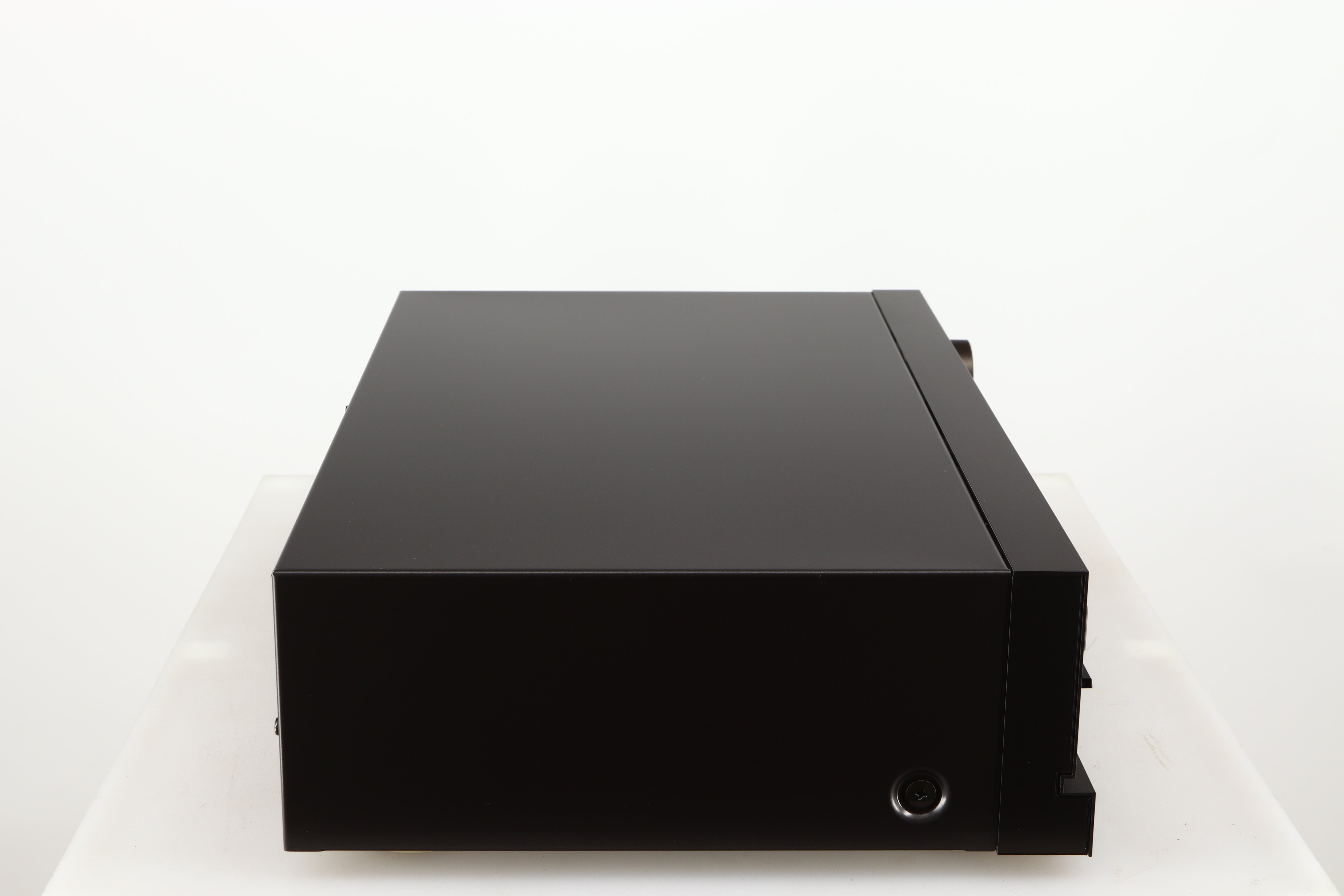

Dimensions: 430 (W) x 285 (D) x 109.5 (H) mm
Weight: 4.4 kg
