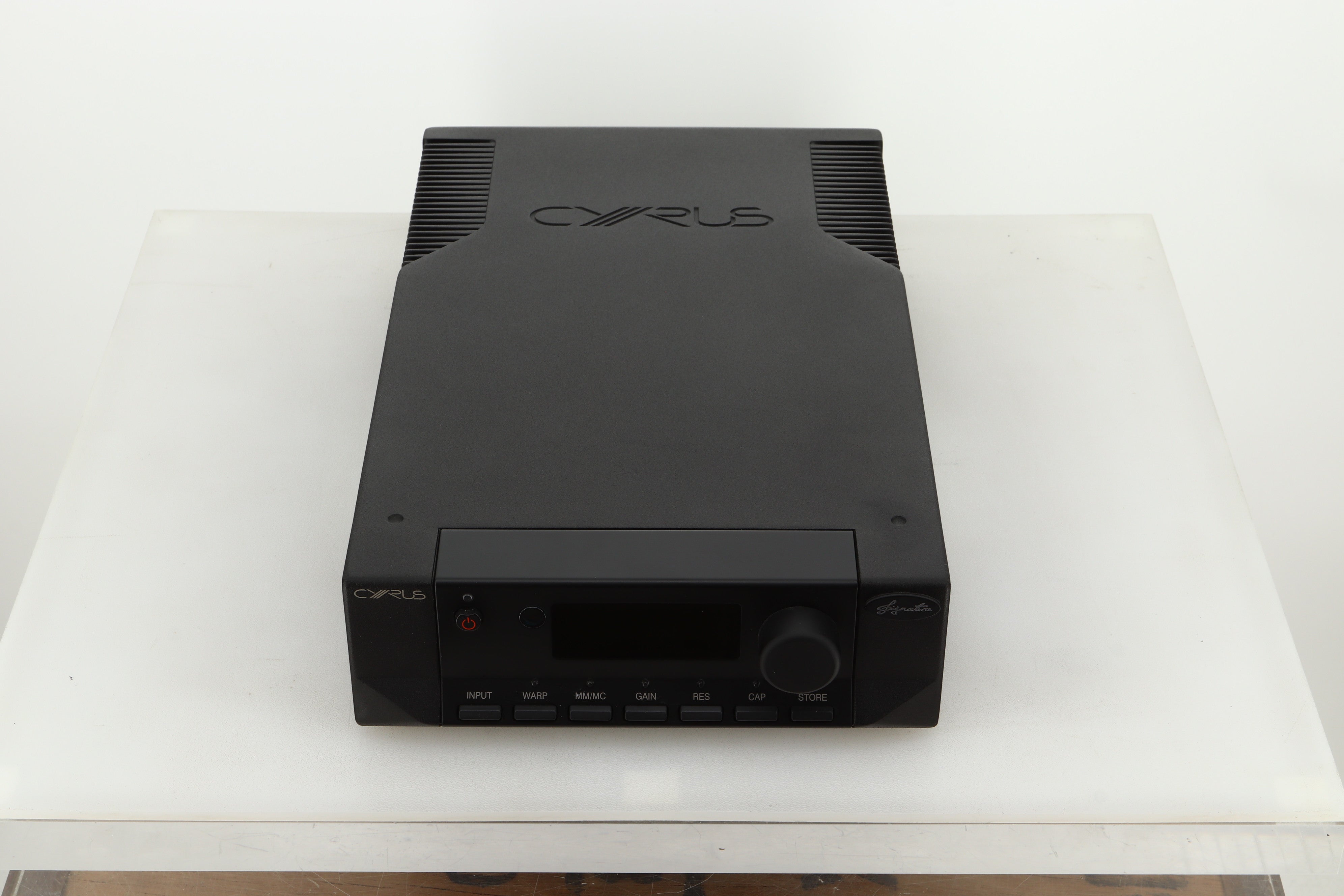

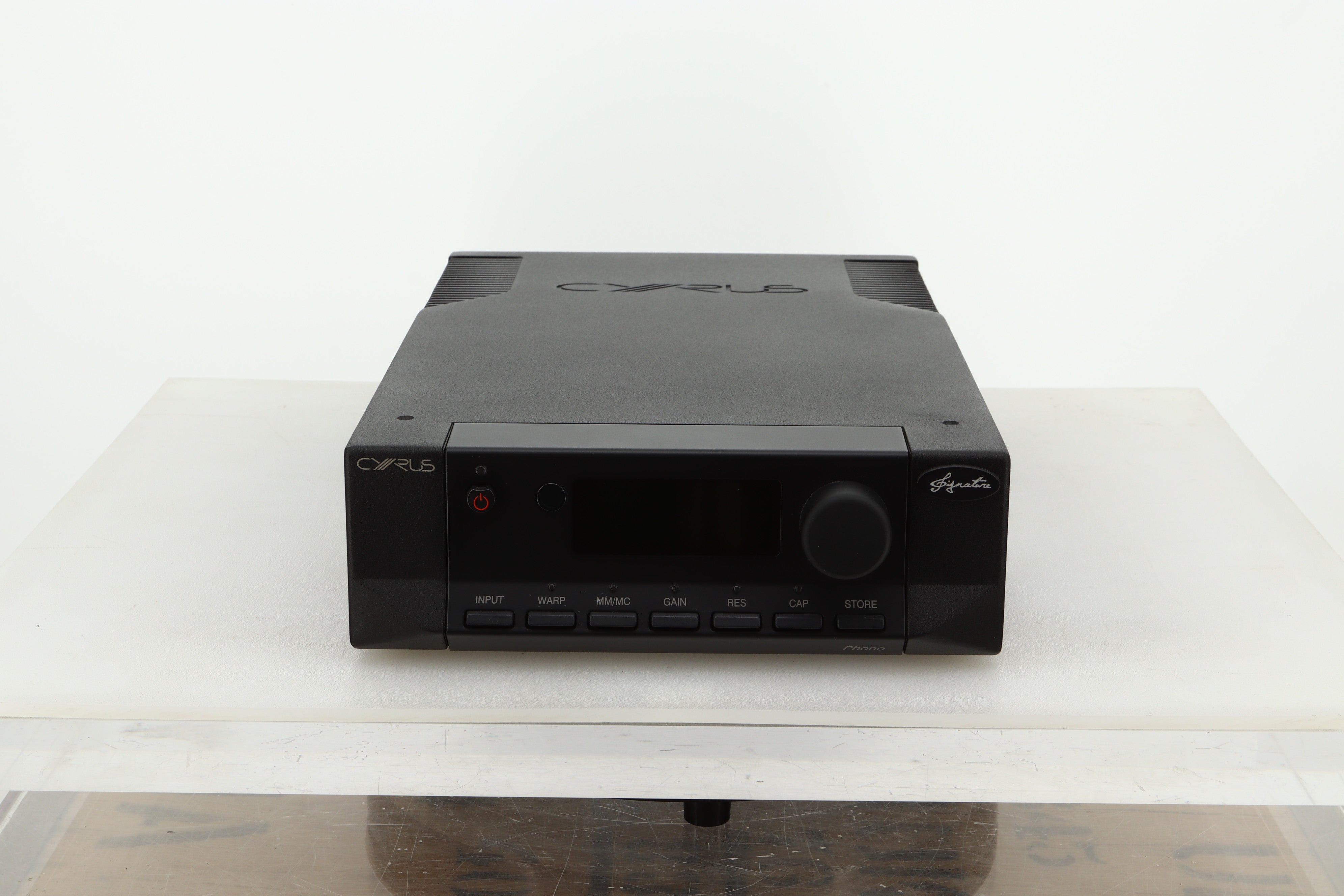

Cyrus Phono Signature Phonostage - Brushed Black

Our award-winning Phono Signature is lauded as one of the best phono stages at any price. The purity of the tiny signal produced from the stylus is preserved throughout the amplification journey, through a deep understanding of circuit design and our relentless pursuit of perfection. Music produced from a well-calibrated turntable, good stylus and the Cyrus Phono Signature is surely one of the finest experiences in audio.
A phono stage is one of the most critically sensitive products in hi-fi. Because the signals produced by the needle are so small, they need to be amplified many thousands of times. Consequently, the signal path has to be perfectly clear of inductive fields, each individual component has to be best in class and of the utmost quality. The rewards though, for getting it right, are superb.

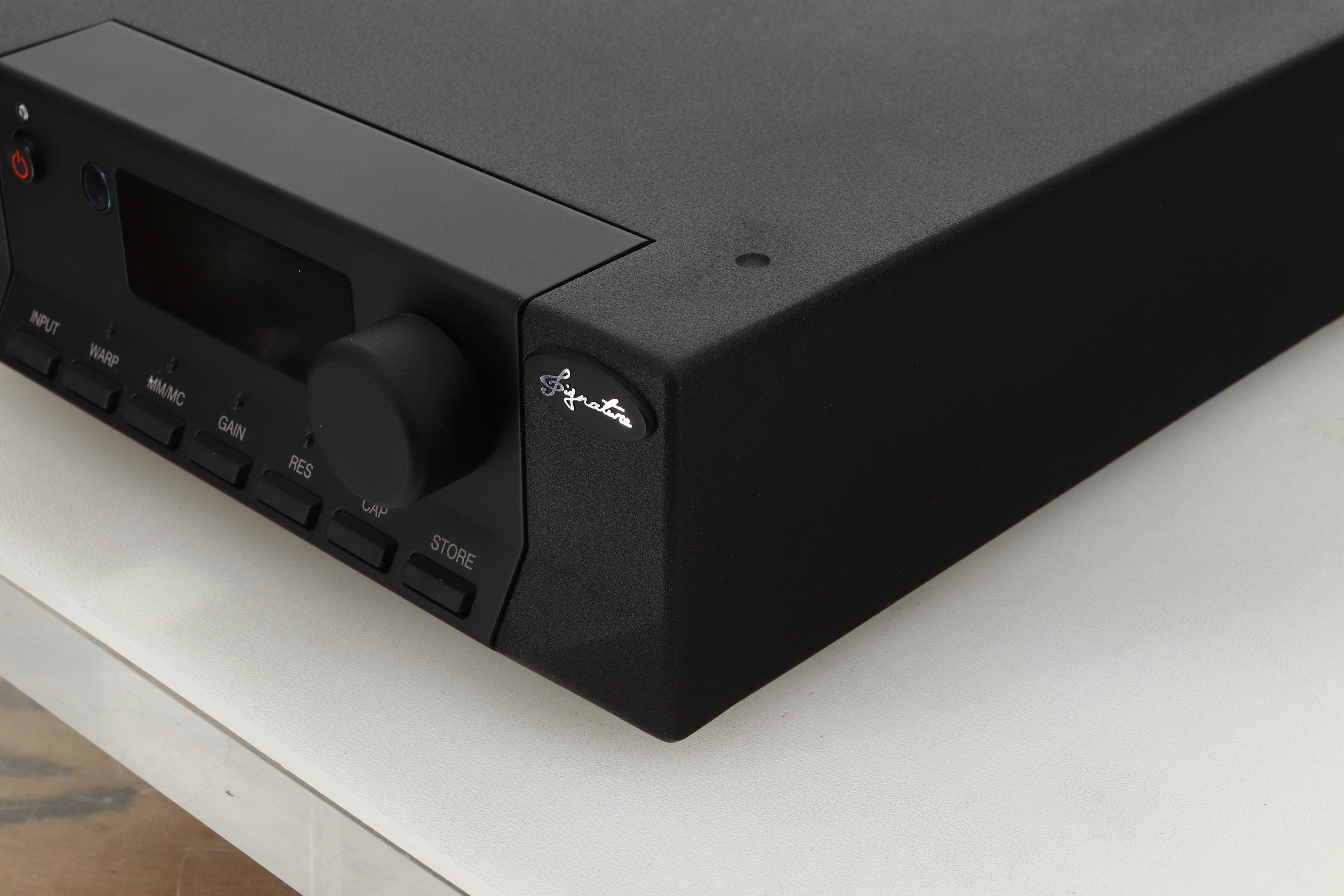

Cyrus’ Phono Signature has been designed to allow up to four turntables to be permanently connected because many vinyl enthusiasts enjoy multiple turntables, arms, or cartridges for different records. It is also possible to calibrate each input separately from the comfort of your armchair using the included remote control

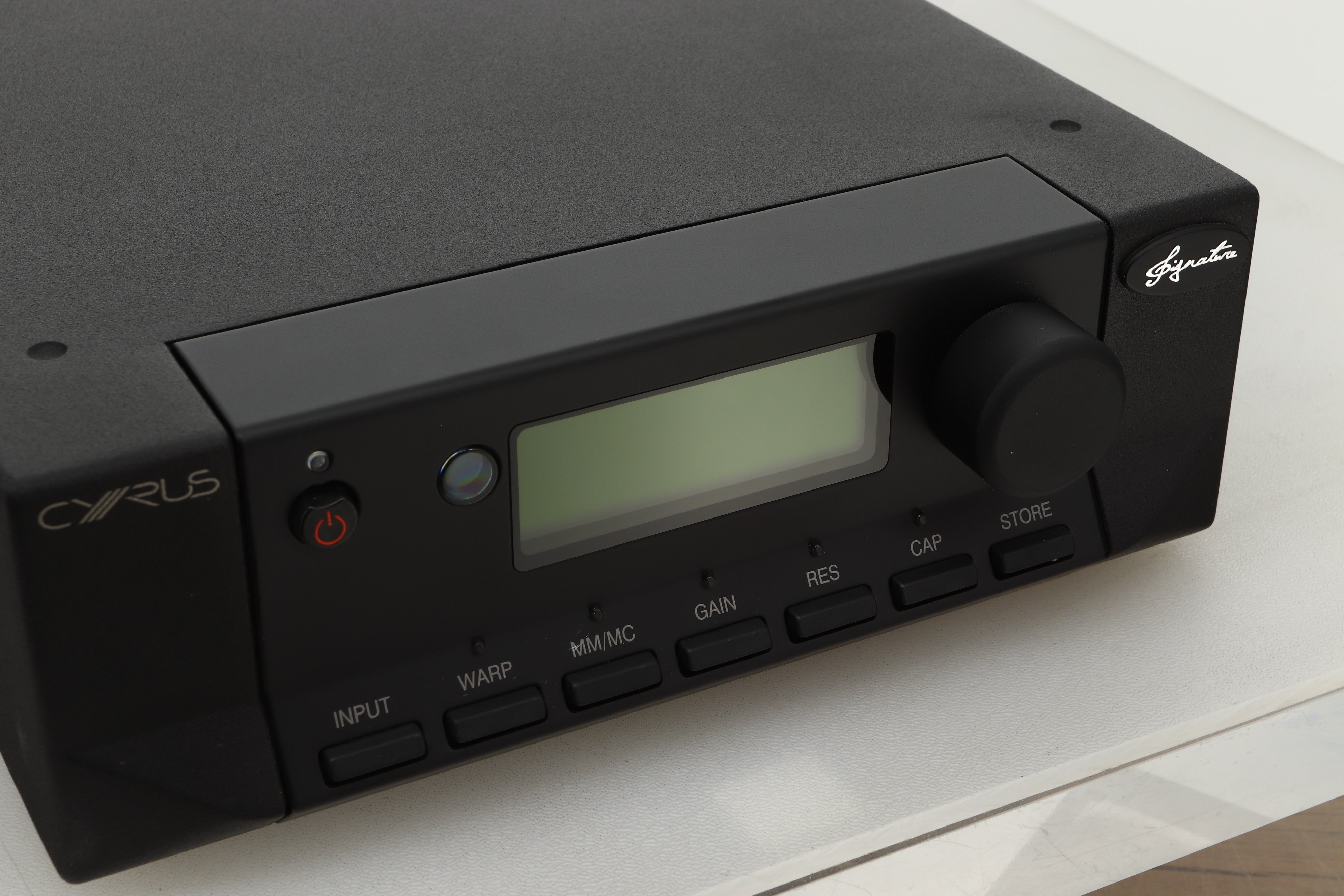

Each of the four inputs can be accurately matched to the exact specification of the cartridge and the acoustic preference of the user. Adjustment is provided for MC cartridges in, gain, resistance, and capacitance. In addition, a switchable warp filter is provided to maximise amplifier performance.

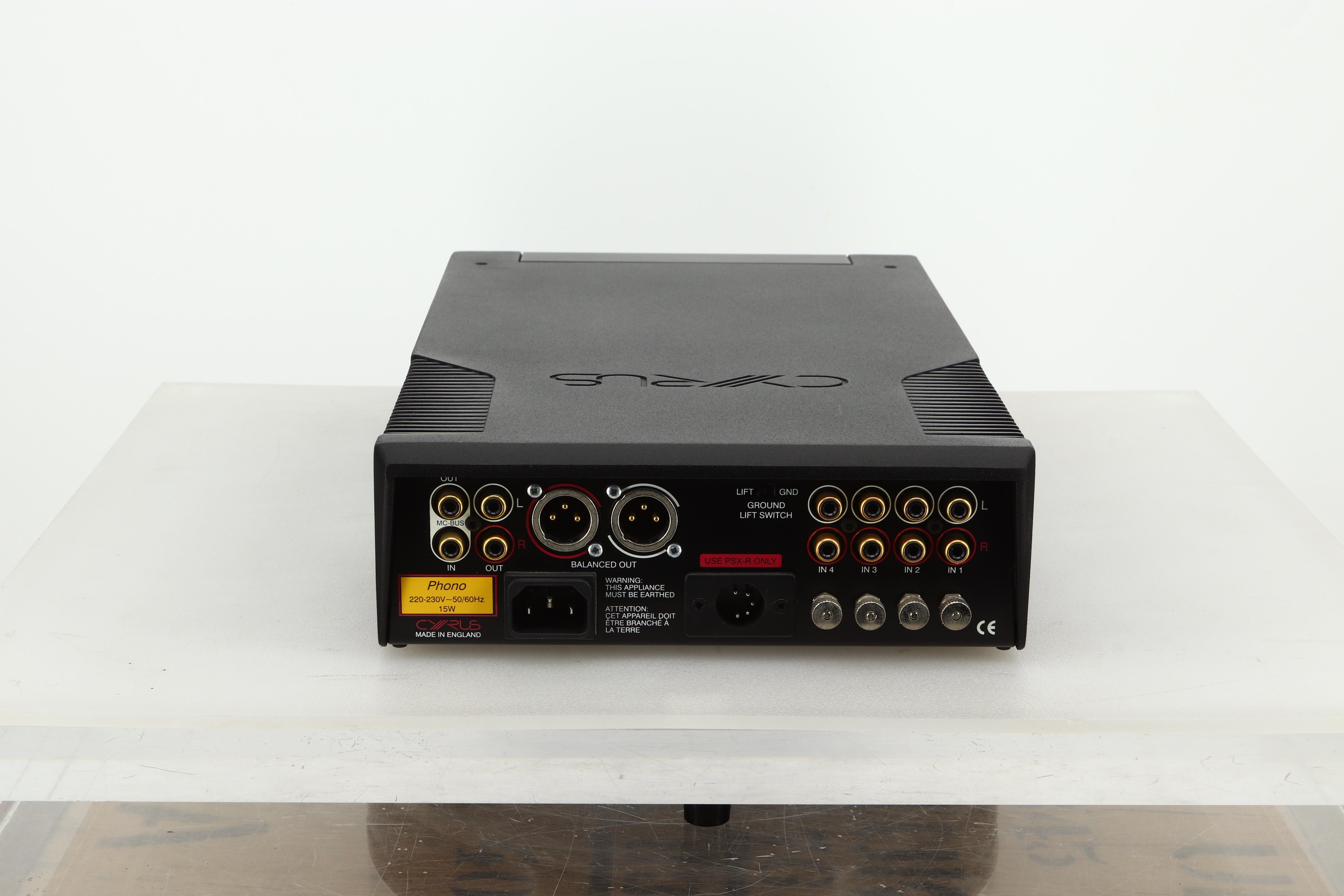

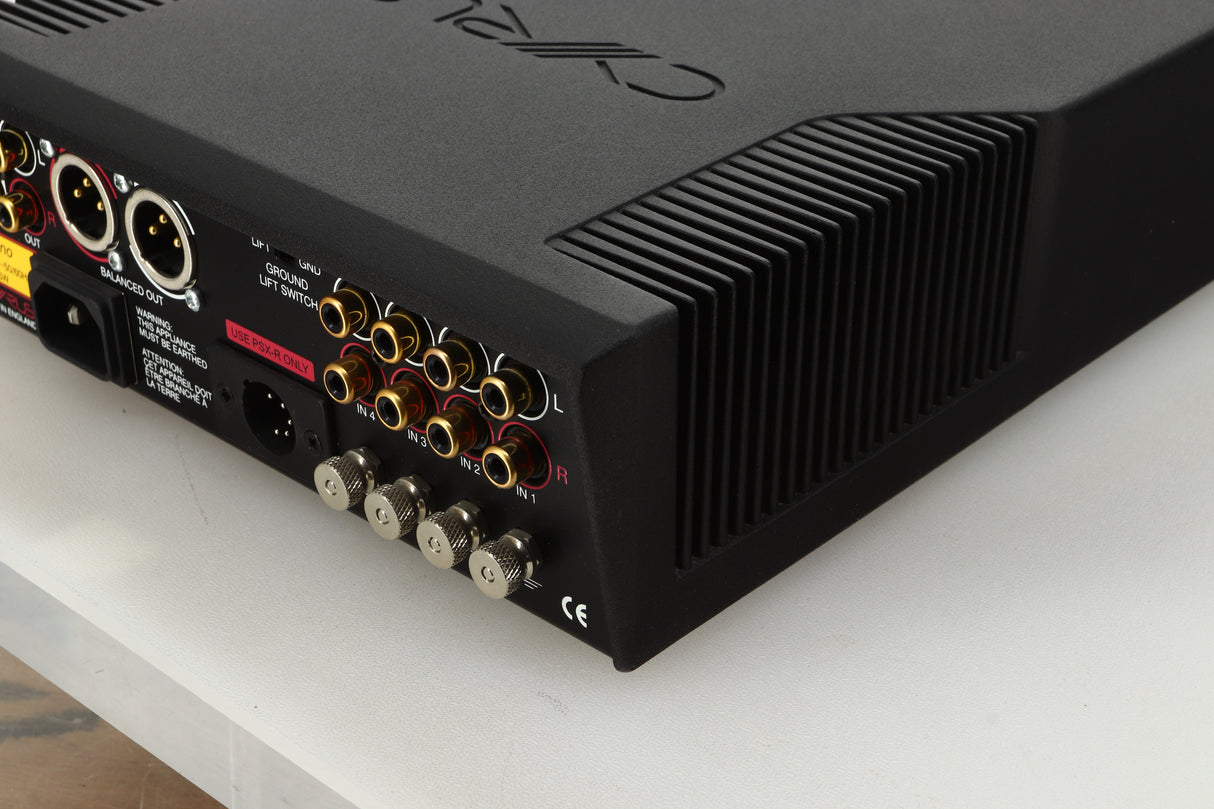

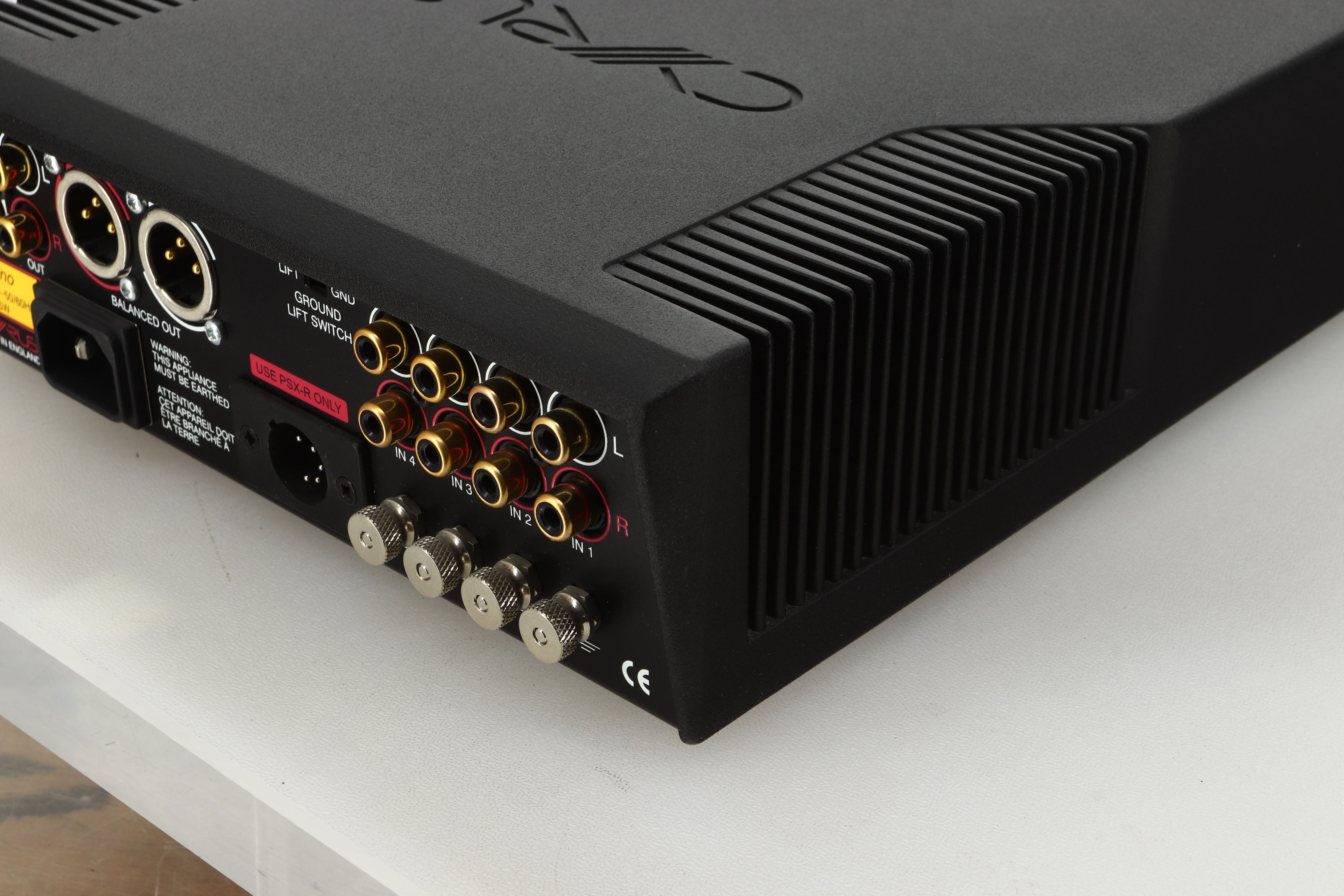

Inputs: Analogue RCA Phono - 4 pairs

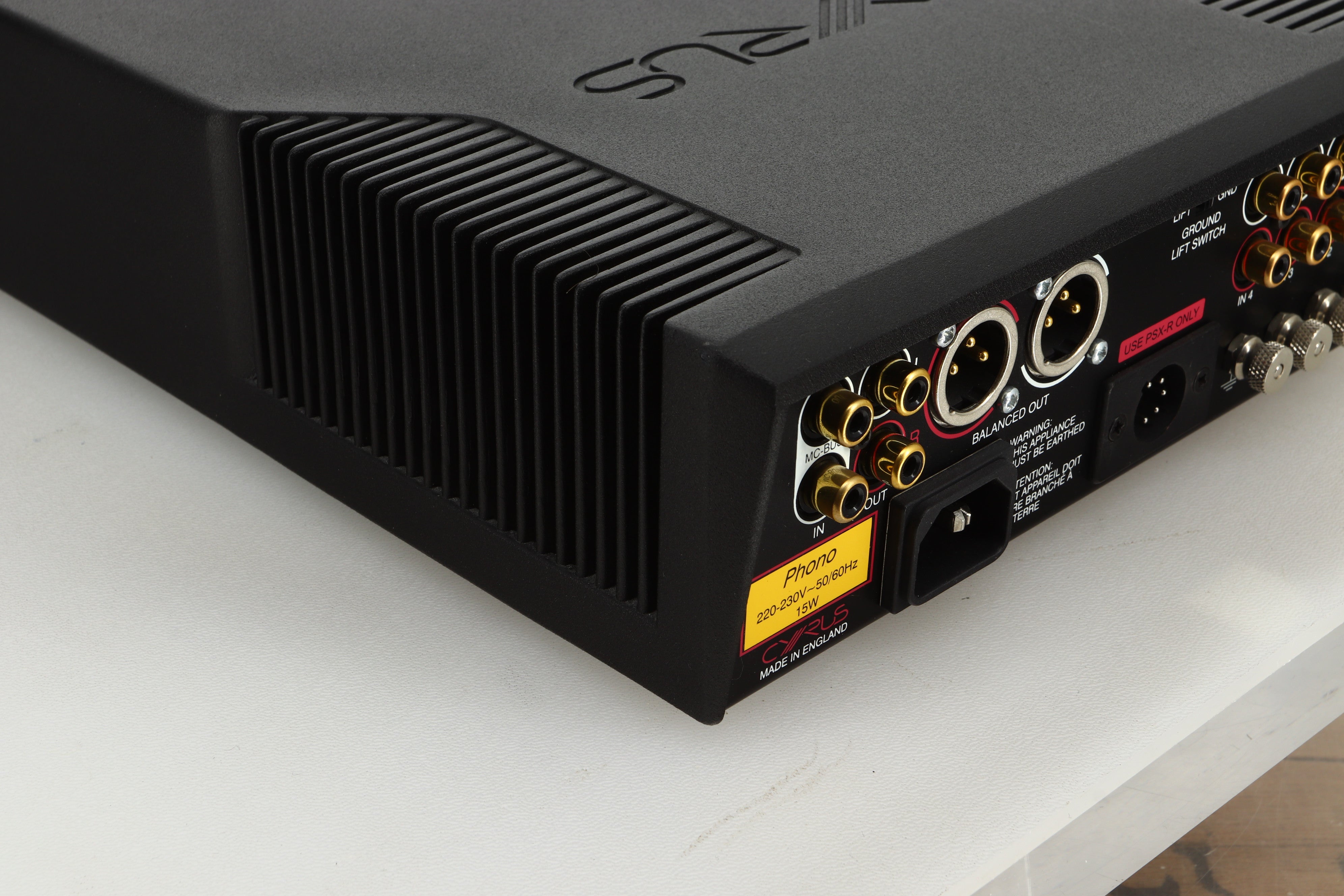

Output: Analogue RCA - 1 pair; XLR Balanced - 1 pair; PSX-R Upgrade Port - Yes; MC-BUS - Yes
Audio Performance
Output Voltage: 9 V
RIAA Filter Accuracy: ± 0.5 dB
Audio Performance (MM)
Input Sensitivity: 4 mV
Input Impedance: 47 kΩ
Total Harmonic Distortion: 0.001% (for 400 mV output)
Signal to Noise Ratio: - 87 dBA
Channel Separation: - 90 dB
Audio Performance (MC)
Input Sensitivity: 120 μV - 4 mV
Total Harmonic Distortion: 0.0018% (for 400 mV output)
Signal to Noise Ratio: - 79 dBA (60 dB gain)
Channel Separation: - 95 dB (1 kHz)
Power Consumption: 15 W (Maximum); < 0.5 W (Standby)

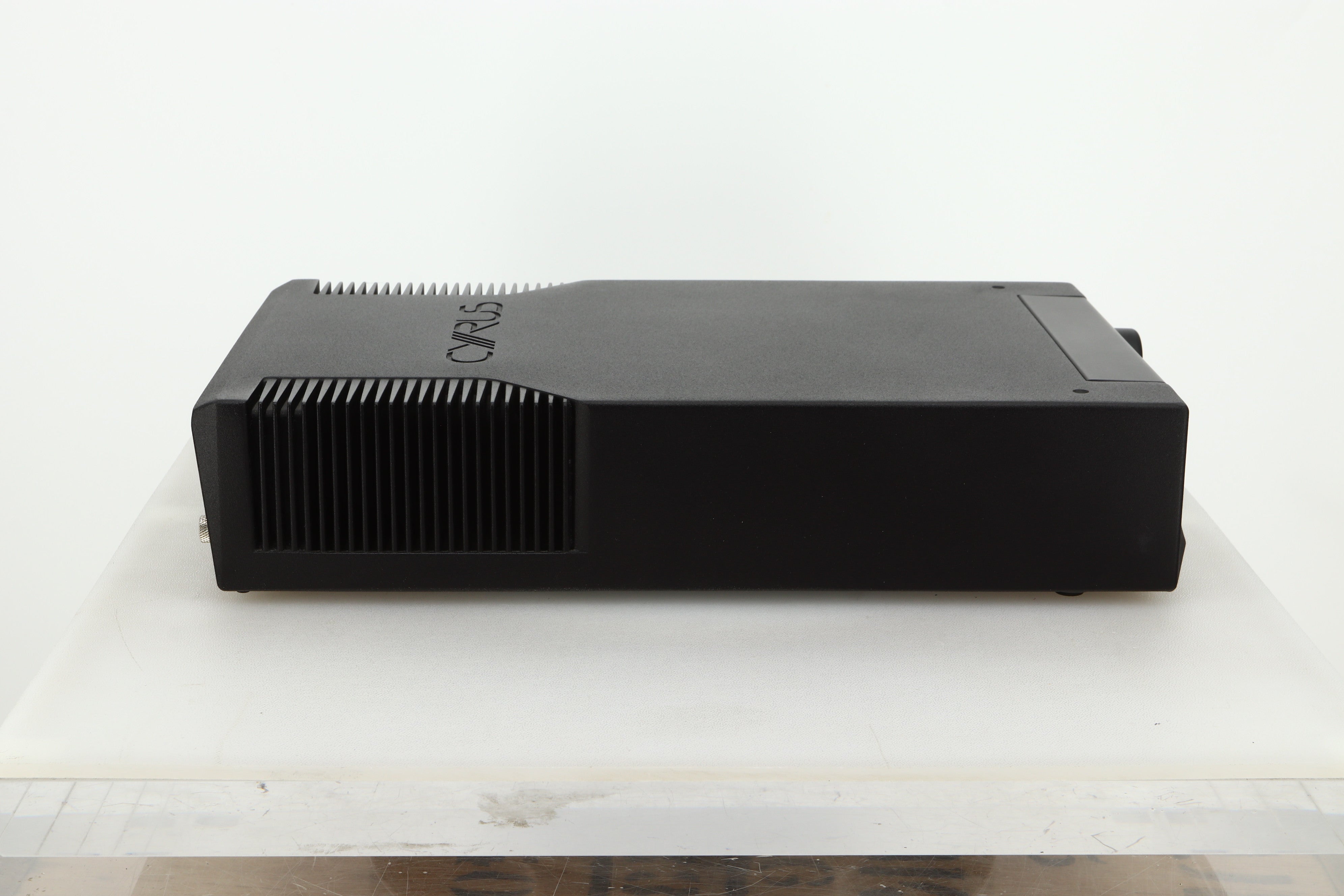

Material: Die cast chassis
Dimensions: 75 (H) x 215 (W) x 365 (D) mm
Weight: 4.1 kg
