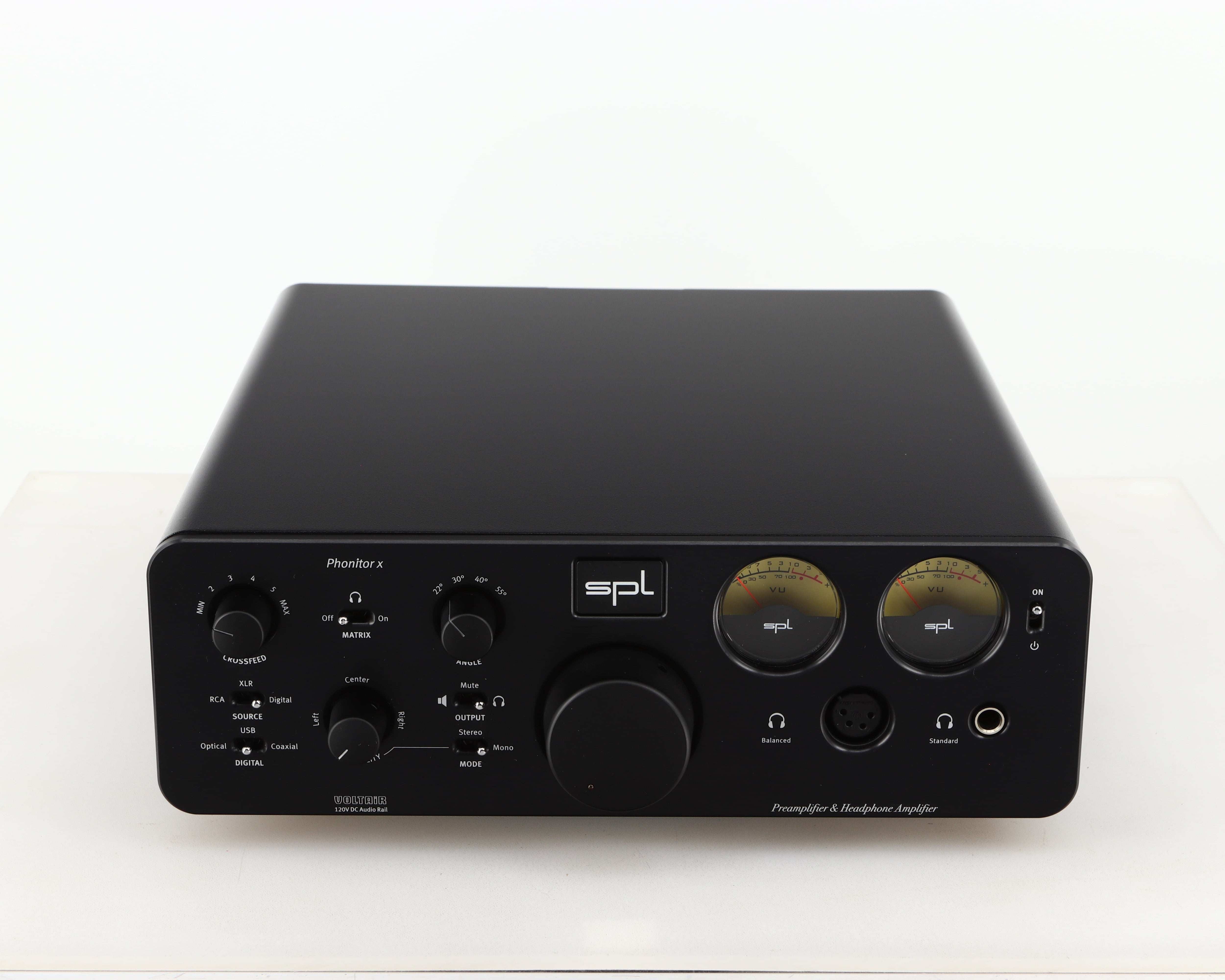

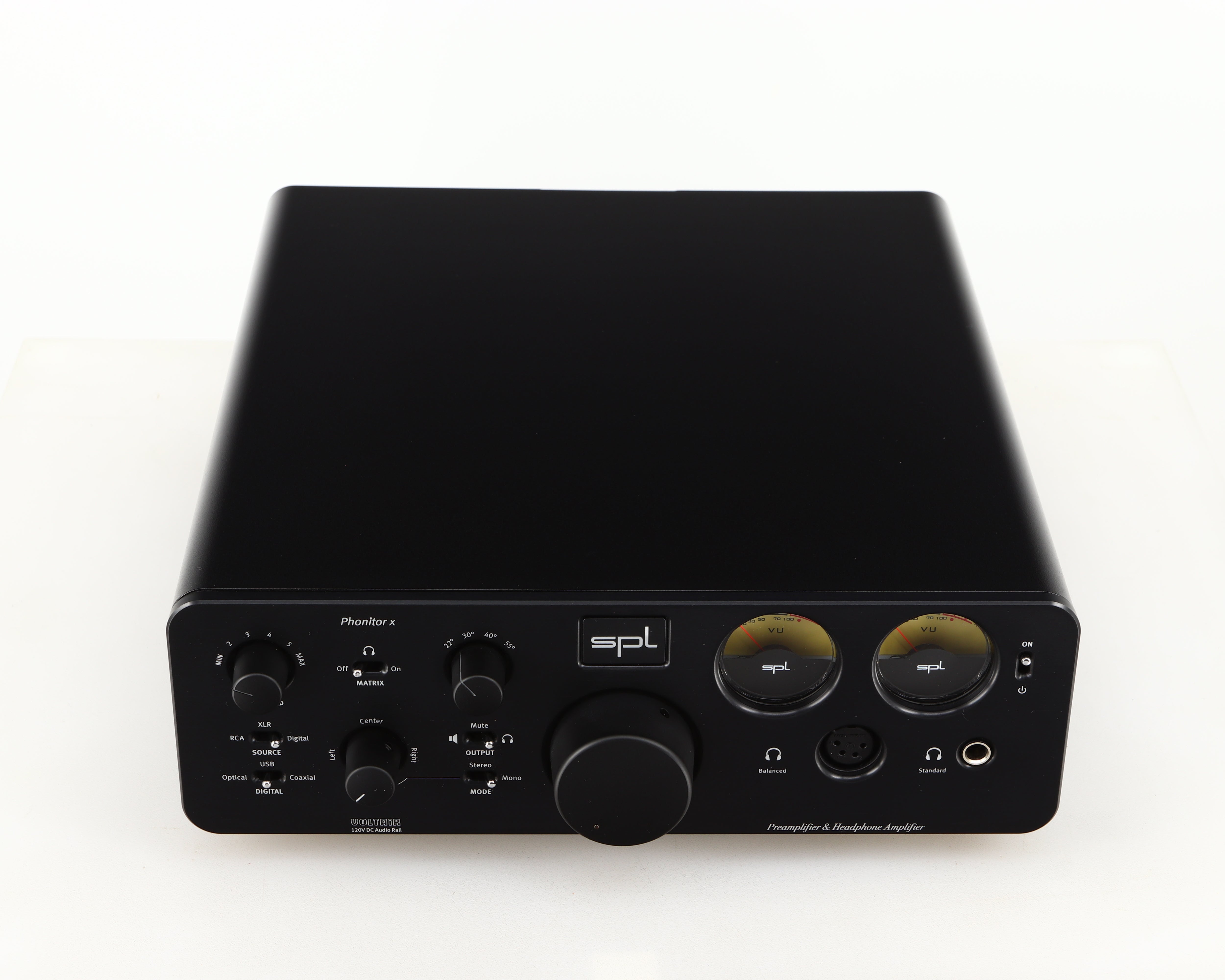

SPL Phonitor X Headphone Amplifier / Pre Amplifier / DAC - Black

The Phonitor x is both an outstanding headphone amplifier and an excellent preamplifier that can be used to directly drive power amplifiers or active speakers. With the optional DA converter, it not only plays from analogue sources, but also directly from digital sources.
The Phonitor Matrix allows speaker-like listening via headphones.
Thanks to VOLTAiR technology, it offers all this in the highest possible sound quality.

Features

• XLR (Balanced) input, RCA, and via the optional DAC768xs, USB, COAX, and OPTICAL.

• Stereo jack plug and for balanced-driven headphones using a 4-pol XLR jack.

• SPL Phonitor Matrix can correct false stereo image with an analogue circuitry.

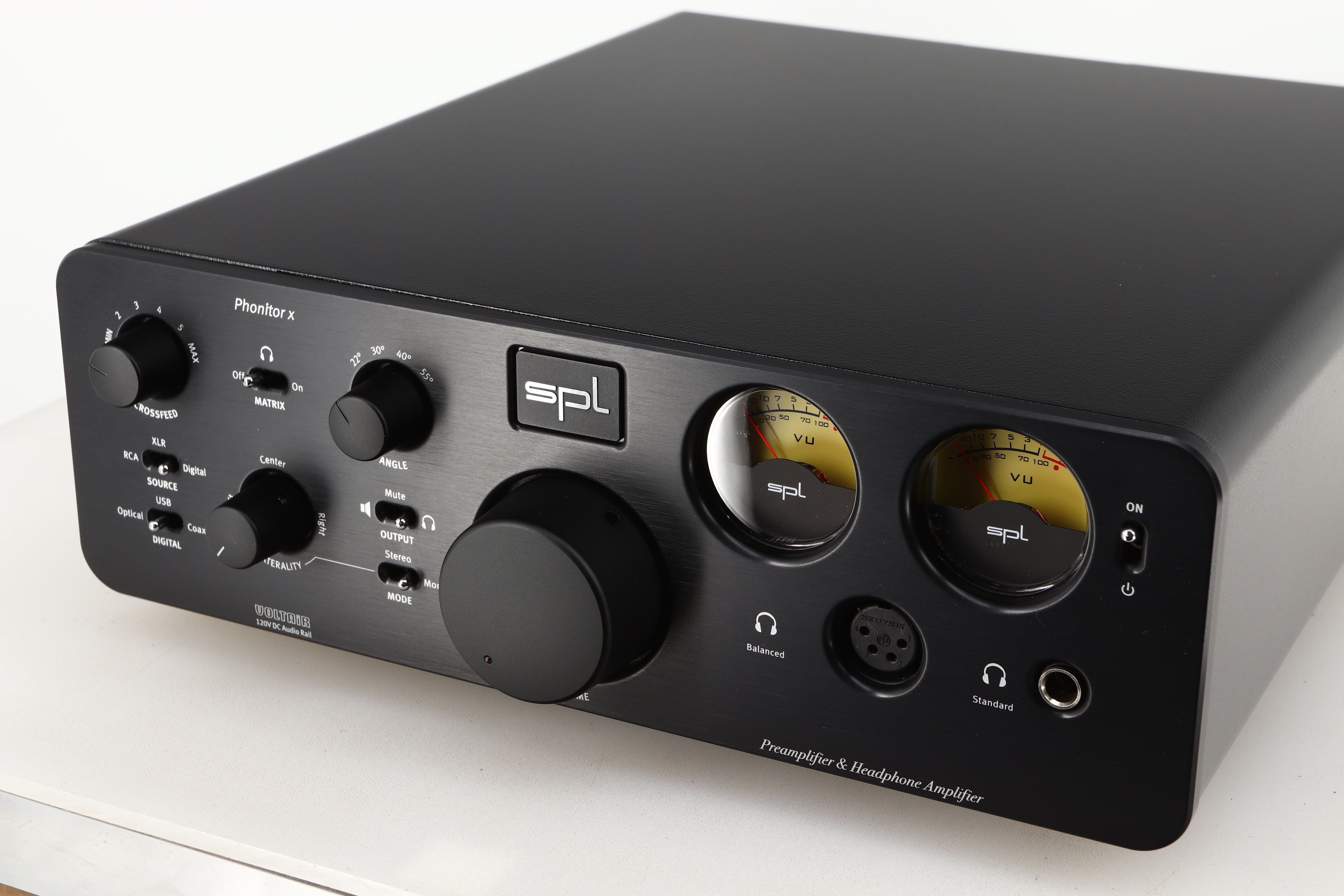

• Two mechanical VU meters visualize the input levels for the left and right audio channel.

GREAT SOUND – FOR ALL HEADPHONES

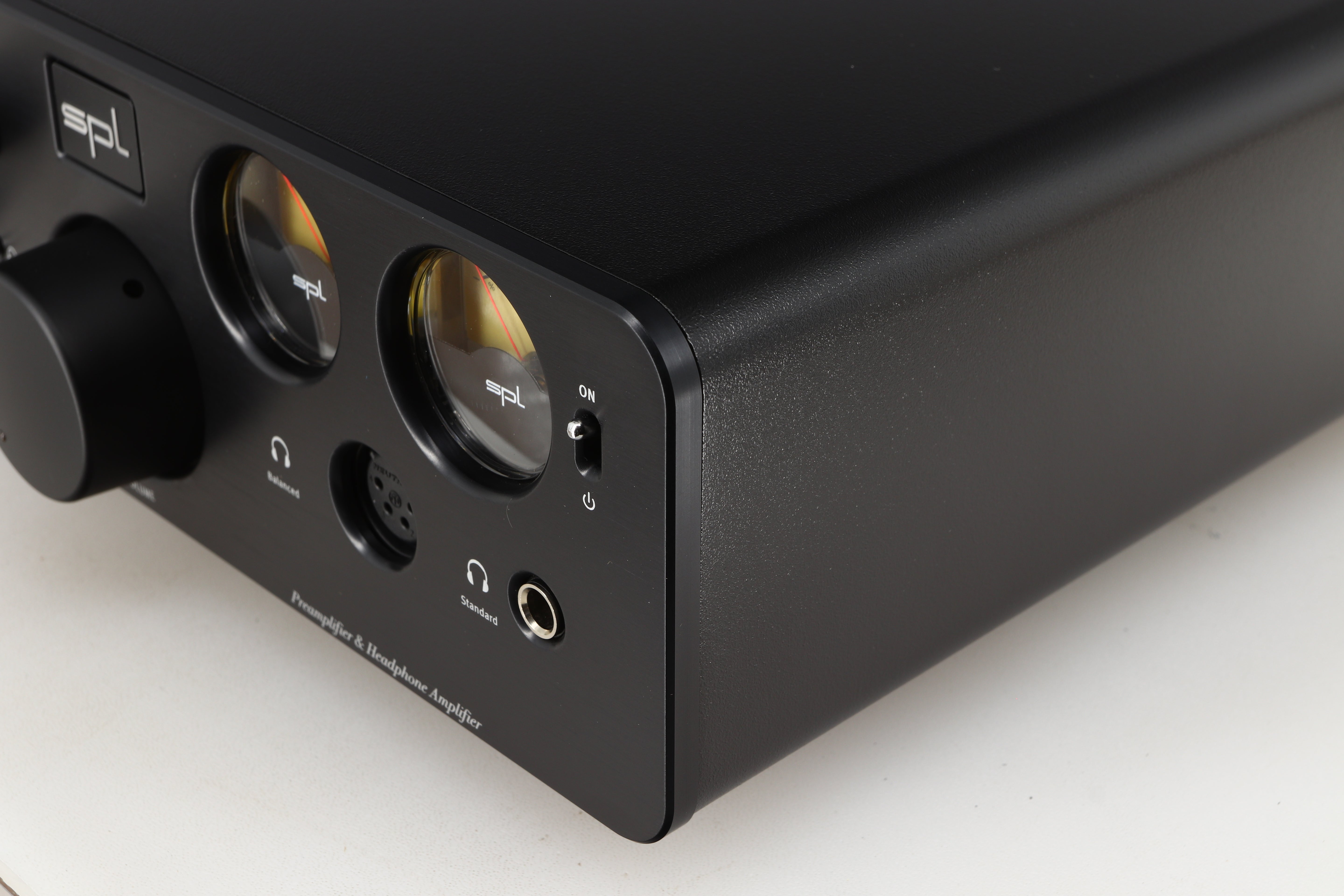

The Phonitor x offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a 4-pol XLR jack.
Thanks to the enormous output power, all headphones are driven effortlessly.
Thus, it plays out the advantages of the SPL VOLTAiR technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.

HEADPHONES OR SPEAKER
The Output switch turns the headphone amplifier into a preamplifier – simply switch from headphones to speakers.
In the centre position (mute), no signal reaches the outputs. The VU meters light up red.

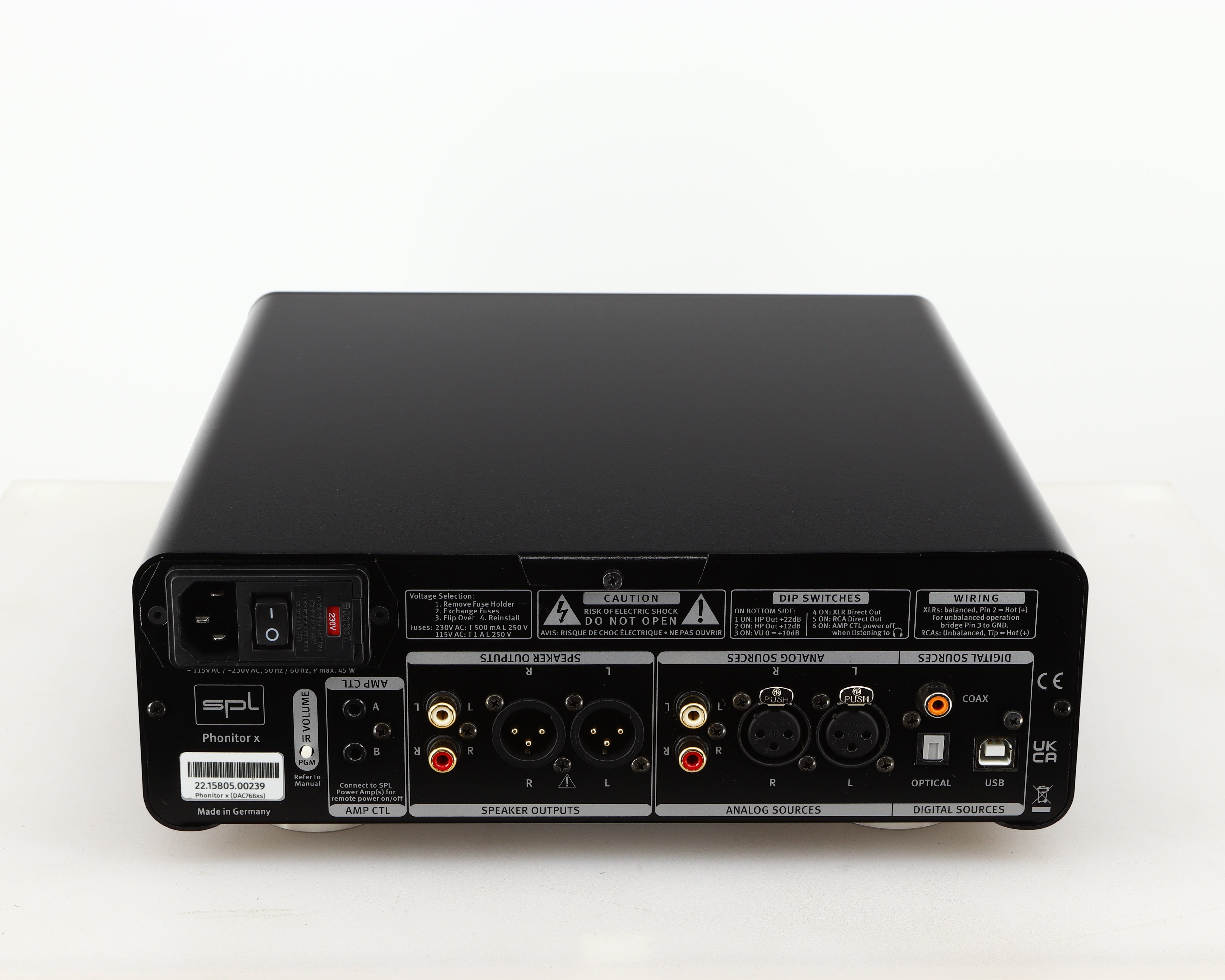

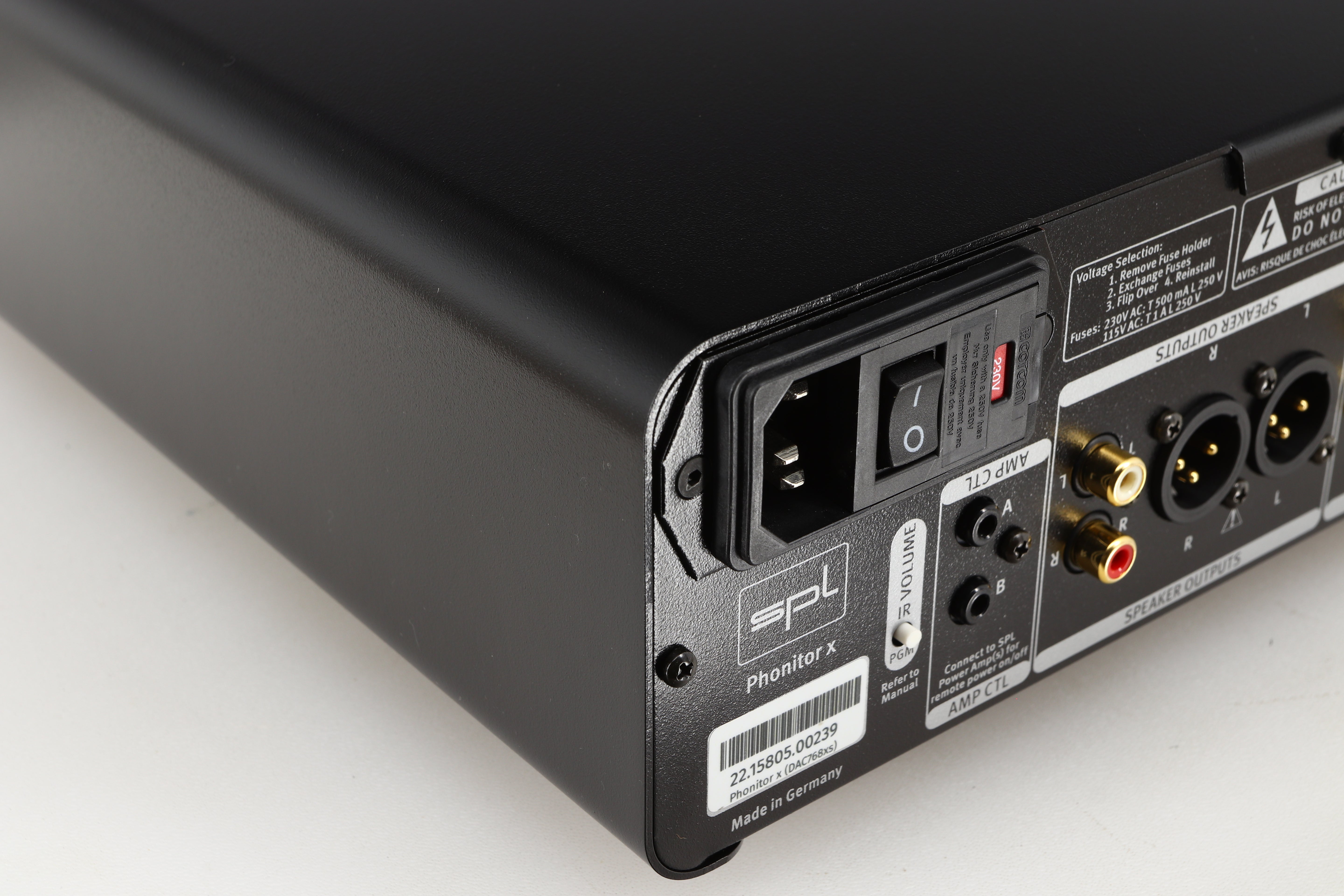

Connect to power amplifiers or active loudspeakers with balanced via XLR sockets – for long cable runs, and unbalanced via RCA sockets. The source signal is always present at both speaker outputs.
The standby mode of devices with 12V trigger input can be switched on and off via AMP CTL. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.

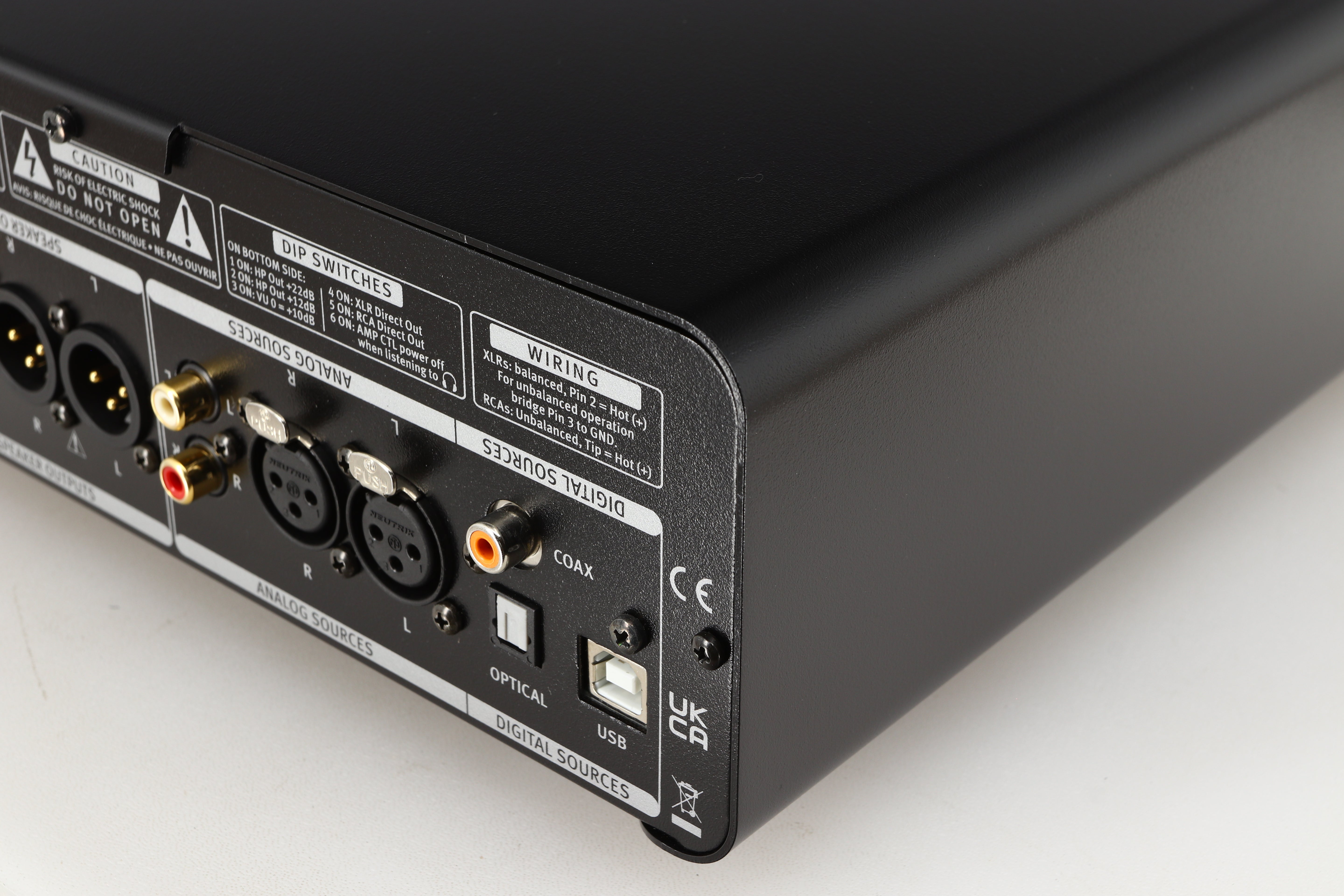

UP TO FIVE STEREO SOURCES CAN BE CONNECTED TO THE PHONITOR X:
XLR, RCA, and via the optional DAC768xs, USB, COAX, and OPTICAL.
The Phonitor x accepts a variety of different audio connections.
Balanced via XLR or unbalanced via RCA jacks.

OPTIONAL DAC
With the optional DAC768xs, three additional digital sources can be added. PCM audio is received in S/P-DIF format both coaxially (RCA) and optically (TOSlink F06).
Both PCM audio and DSD audio can be converted via USB.
The DAC automatically picks up the sampling rate and resolution of the digital playback source. No matter if a streamer, computer or CD player is connected. No further settings on the Phonitor x are necessary.
The converter chip in the optional digital-to-analogue converter is the highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip, which thanks to its architecture reproduces the finest sound details.
It converts PCM audio at 32-bit resolution and a sampling rate of up to 768 kHz, which is 16 times the resolution of a CD. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.
Unlike the DAC768, which is built into the Director Mk2 for example or available as an option for the Phonitor xe, the DAC768xs does not offer an AES/EBU digital input. The SPL DLP120 with VOLTAiR technology was also not included in the DAC768xs. Nevertheless, it offers a great performance that is unparalleled in this league.

CENTRE CONTROL
Finding the middle is not always easy. By our very nature, hearing can be leaning more to the left or more to the right. This is especially obvious when listening with headphones.
That’s why Phonitor x has the uniquely finely resolved laterality control. With it, the centre can be found perfectly.

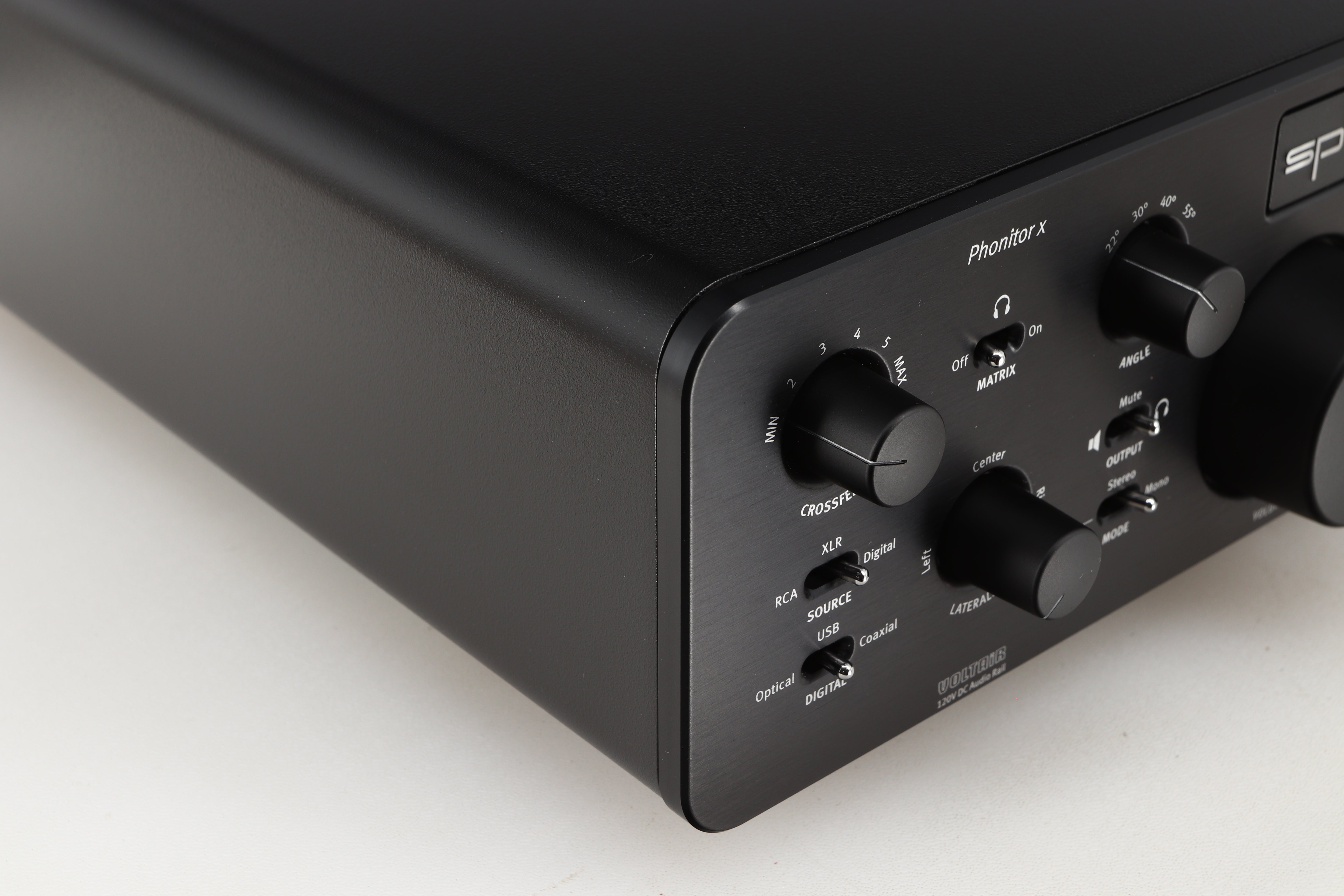

With the mode switch you can choose between stereo or mono playback. To the right, the laterality control is switched on.

THE REVOLUTION: PHONITOR-MATRIX
Thanks to the Phonitor Matrix, music can be experienced on headphones as if it was played on speakers. The tiring super stereo effect is a thing of the past.
Enjoy their music without listening fatigue and exactly the way it should be heard.
Music is normally produced and mixed for playback on stereo speakers.
Listening on headphones is different from listening on loudspeakers. The biggest difference is the lack of crossing signals of the sound signal from the left speaker to the right ear and from the right speaker to the left ear. These crossing signals are missing in conventional headphone listening, because there are no signals crossing from one side of the headphones to the other.
This results in an unnaturally wide stereo image and the various sound sources of the audio signal are not localized as the sound engineer intended them to. This effect is often referred to as “super stereo effect”. During conventional listening on headphones, our brain can balance the false representation of the playback to a certain extent – but this is very exhausting.
The SPL Phonitor Matrix can correct this false stereo image with an analogue circuitry. The Phonitor Matrix therefore not only ensures a correct representation of the stereo image, but also a relaxed listening experience.

CENTRE OF ATTENTION
To make the listening experience even more perfect, the level of the centre of the stereo image needs to be attenuated when the Phonitor Matrix is active. This ensures that not only the position of all sound sources is correct but also their volume.
In the Professional Fidelity Phonitor devices this value is set to a fixed attenuation of -1 dB, which is the best choice for getting an authentic representation of the sound stage.

THE VOLTAIR TECHNOLOGY
The 120V technology is SPL's reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In SPL's Professional Fidelity series, we refer to this unsurpassed technology as VOLTAiR technology.
The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers.
The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.
By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.
The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

Balanced Headphones Output (4-pol XLR - balanced)
Frequency Response: 10 Hz - 100 kHz
Dynamic Range: 130.5 dB
Total Harmonic Distortion: 0.00082%
Noise: A-weighted - 98 dBu
Output Impedance: 0.36 Ω
Damping Factor: 40 Ω - 180
Power Output: 1 kHz @ 1 % THD, 250 Ω: 2 x 5 W. 1 kHz @ 1 % THD, 32 Ω: 2 x 2.7 W
Standard Headphones Output (6.35 mm TRS Jack)
Frequency Response: 10 Hz - 100 kHz
Dynamic Range: 135.5 dB
Total Harmonic Distortion: 0.00082%
Noise: A-weighted - 103 dBu
Output Impedance: 0.18 Ω
Damping Factor: 40 Ω - 180
Power Output: 1 kHz @ 1 % THD, 250 Ω: 2 x 5 W. 1 kHz @ 1 % THD, 32 Ω: 2 x 2.7 W
Analogue Inputs: 1 x XLR (balanced); 1 x RCA
Digital Inputs:
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (TOSlink), PCM sample rates: 44.1/48/88.2/96
USB (B) - Encoded PCM (kHz): 44.1, 48 , 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768
DSD: DSD1 (DSD64), DSD2 (DSD128), DSD4 (DSD256)
Analogue Outputs: 1 x XLR (balanced); 1 x RCA; Balanced Headphones Output: 4-pol XLR
Dynamic Range: 135 dB
Frequency Range: 10 Hz - 100 kHz
Crosstalk: - 112 dBu
Total Harmonic Distortion + Noise: 0.00085%
Mains Voltage: 230 V AC / 50 Hz or 115 V AC / 60 Hz
Power Consumption: 40 VA (Maximum); 0.7 W (Stand-By)
Dimensions: 278 (W) x 300 (D) x 100 (H) mm
Weight: 4.4 kg
