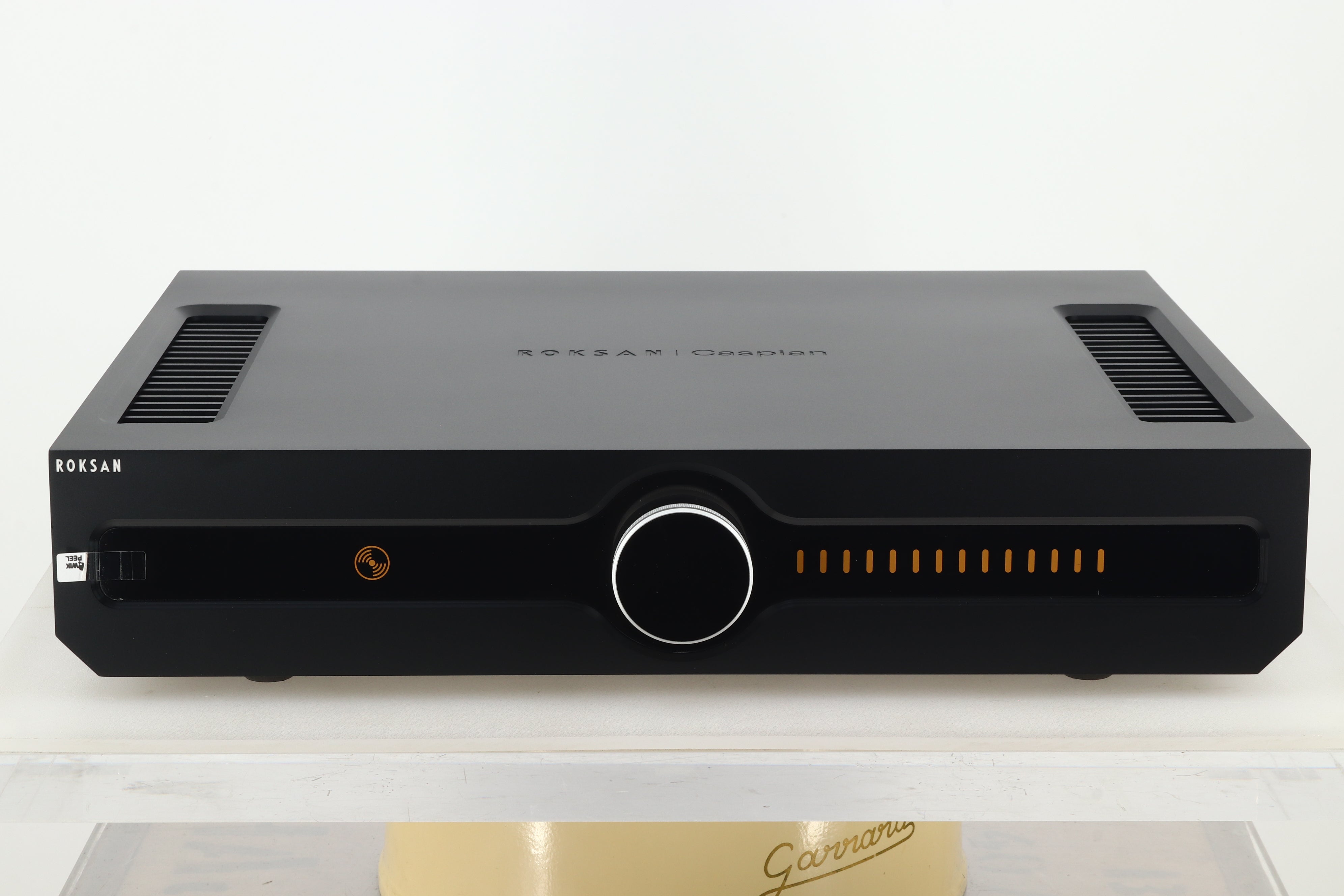

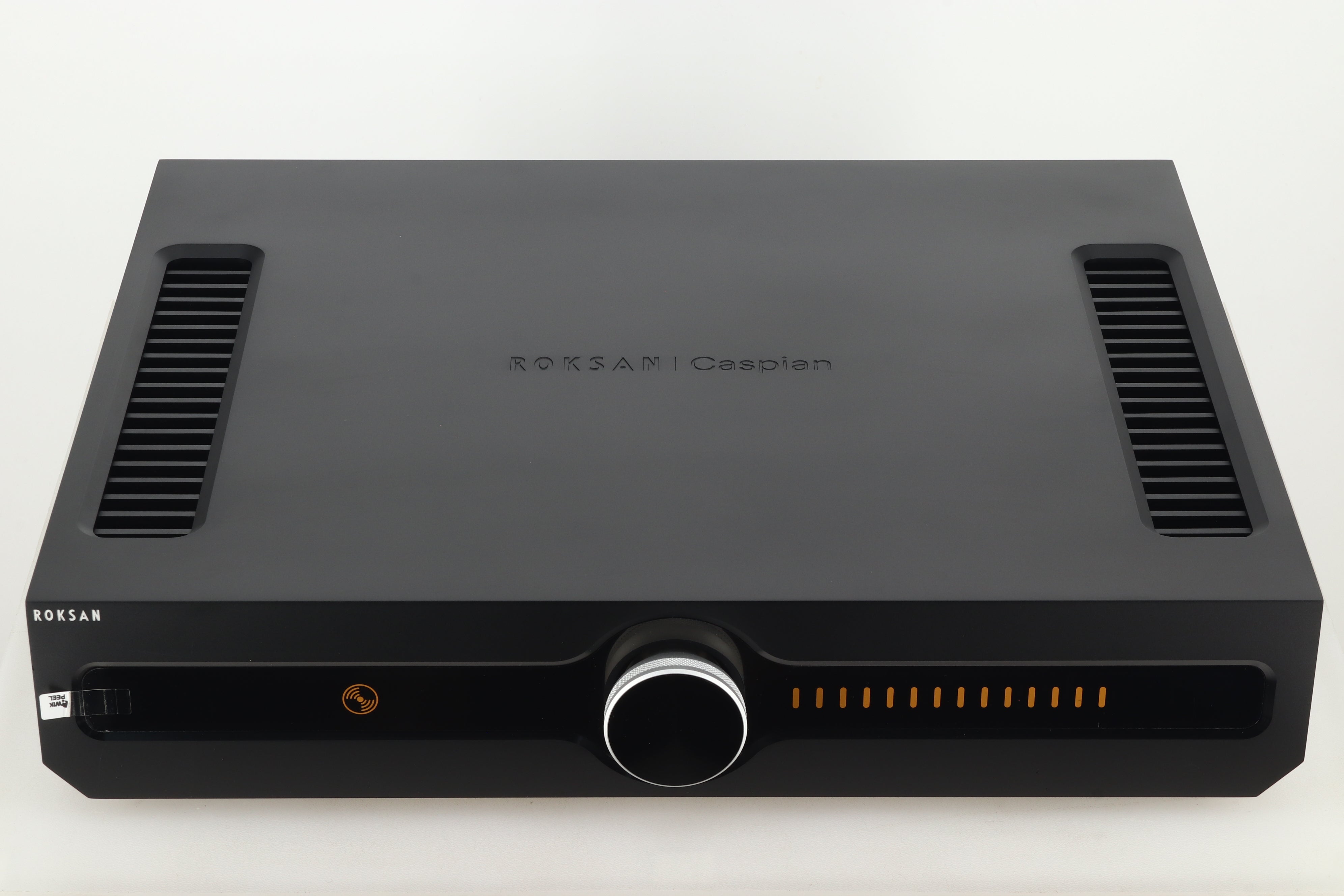

Roksan Caspian 4G Integrated Amplifier - Black

Caspian Series 4G is built around the concept of total high-fidelity performance. A classic range that never forgets its aim is to deliver a breath-taking sonic performance, coupled with true flexibility and versatility. Designed for the user.
Caspian Series 4G delivers total high-fidelity performance. Every part of these four unique products has been developed to deliver on that promise. Comprising Streaming Amplifier, Integrated Amplifier, Streaming Pre-Amplifier and Power Amplifier, the Caspian Series 4G provides all the options required for total performance.
Monitor Audio Group’s MaestroUnite app ensures both flexibility and ease of optimisation. It understands what components comprise a system and calculates the ideal setup in order to deliver the best possible performance. It does the hard work, so the user doesn’t have to.
The all-new Caspian Series 4G is a more-than-worthy addition to Roksan’s hallowed Caspian lineage. It successfully builds on the unique qualities that make Caspian highly respected electronics series.
Caspian Series 4G comprises four models, each of which builds on an advanced electronics platform and can integrate with each other and the system they sit within. Highly optimisable, and packed full of leading-edge engineering, Caspian Series 4G, extends the envelope of performance. Its sleek, modern design houses advanced electronics and powerful streaming and amplification. A truly versatile range, Caspian Series 4G will enhance any system with exceptional power, high-fidelity sound and intuitive usability.
Caspian Series 4G is an outstanding way to experience true high-fidelity audio. Designed for the user. Listen Again.
The Caspian Integrated Amplifier delivers total performance through its innovative Euphoria amplification architecture and advanced analogue connections, offering a flawless presentation of music via any source. The evolutionary Rapture DAC technology, for improved digital to analogue signal conversion, allows for a near perfect signal transfer, and ensures that the Euphoria dual amplification architecture delivers total performance from whatever source a user connects.
Setup via the intuitive MaestroUnite app, the Caspian Integrated Amplifier delivers extraordinary levels of detailed, high-fidelity sound.
Both the Caspian Streaming Amplifier and Integrated Amplifier come with an elegant and practical Roksan remote control to help users operate their device with ease.
Beautifully designed, its ergonomic, aluminium extruded design is perfectly weighted to sit comfortably in the hand. The buttons are clear and intuitive to use, helping the user navigate through the inputs and directly set pre-sets, as well as a host of standard operational features.

Features

105 Watts into 8 Ohms / 200 Watts into 4 Ohms of clean, precise power per channel
Euphoria: powerful dual-mono AB amplifier architecture for total power and control
Revolutionary Rapture DAC Technology for improved digital-to-analogue conversion
Advanced pre-amplifier ensures the signal transfer is kept as clean as possible
High-performance phono stage, individually calibrated to a tolerance previously thought impossible

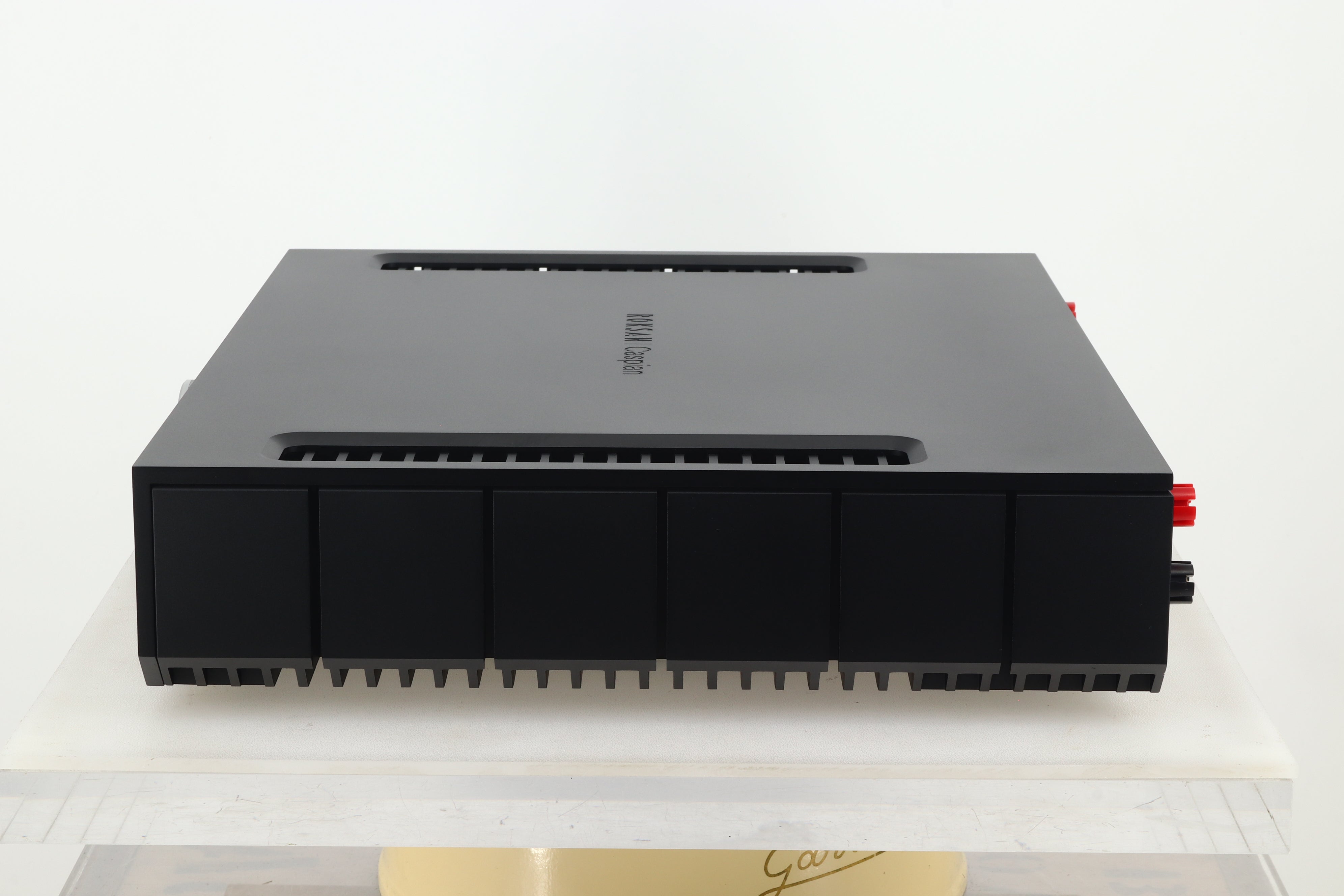

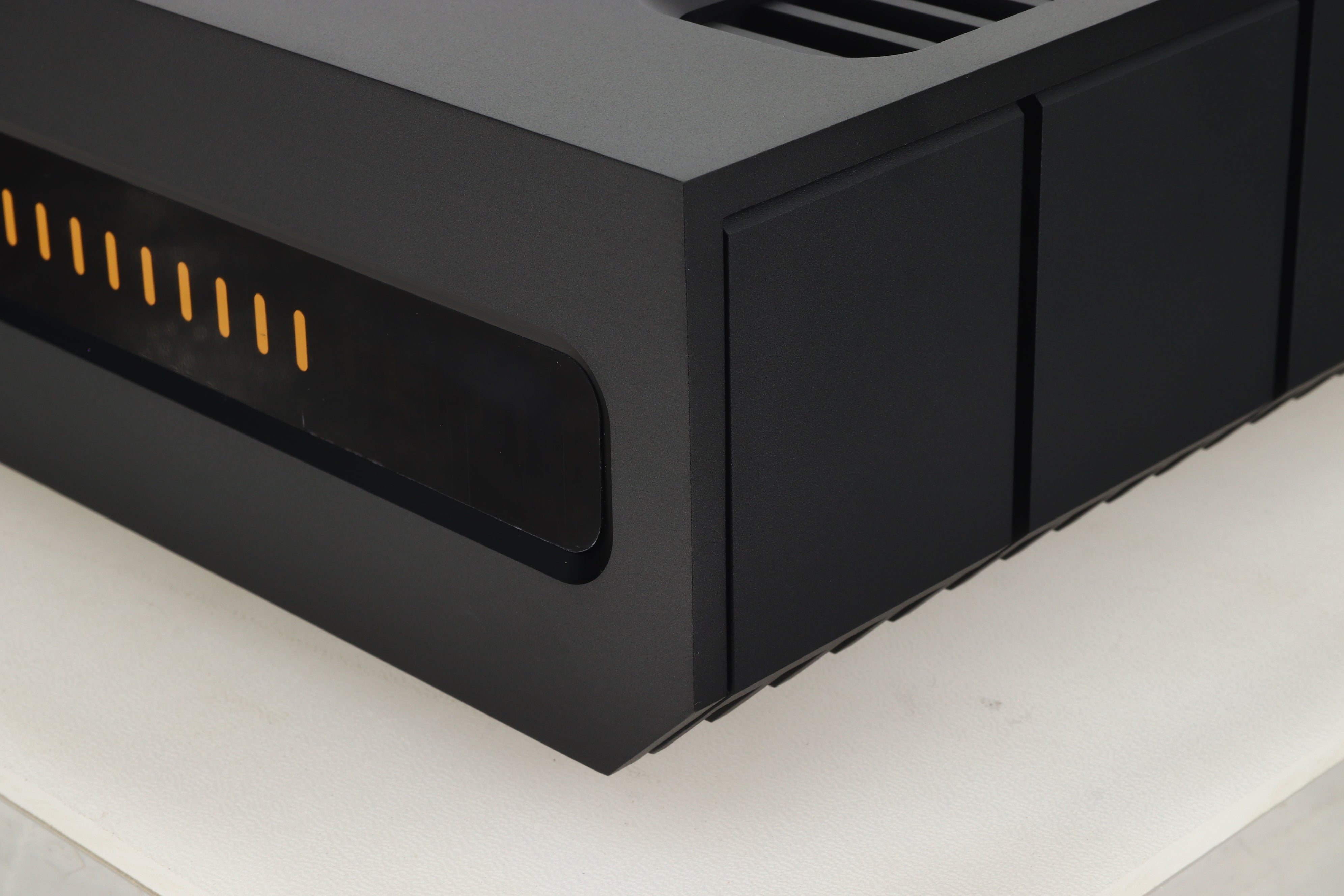

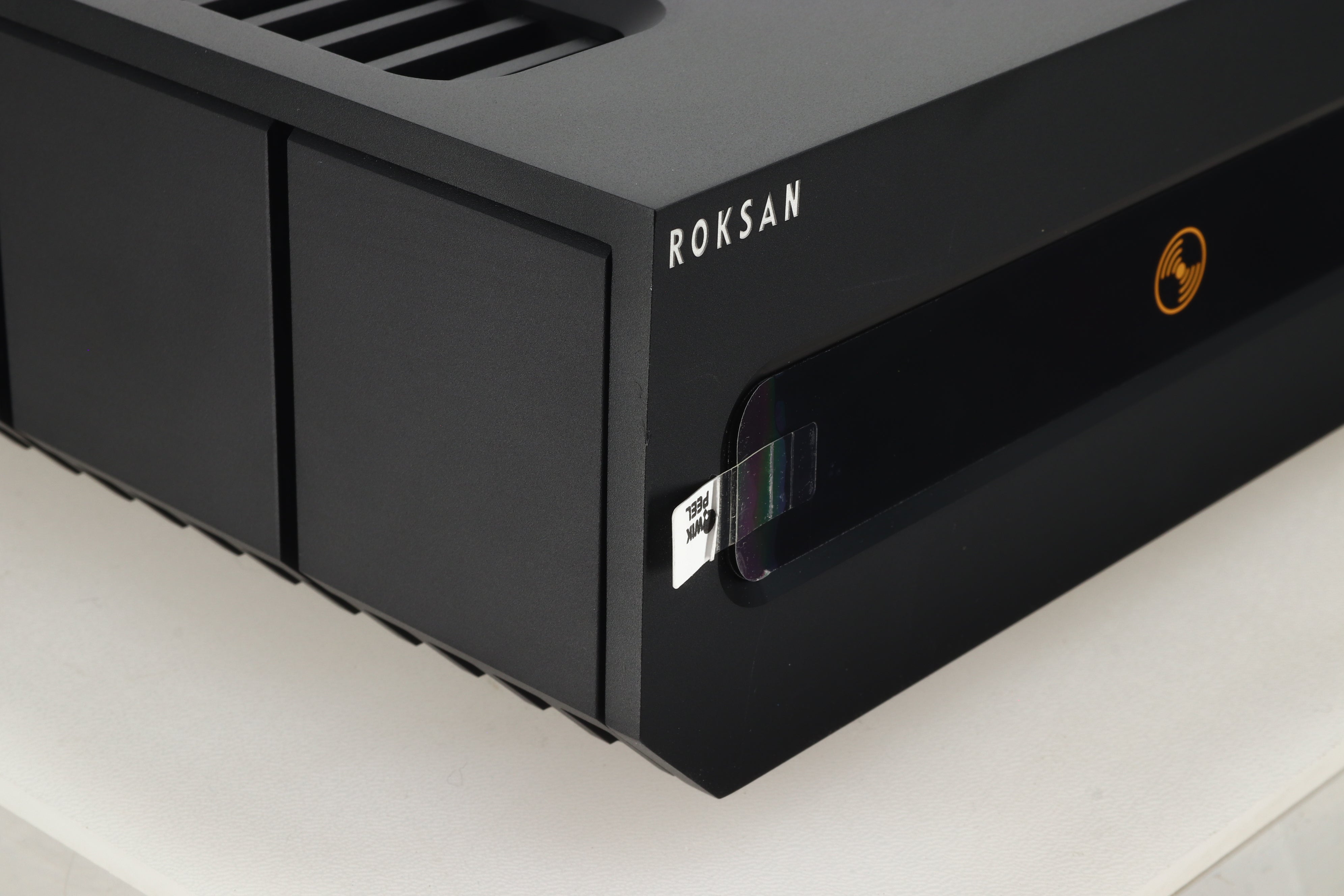

Machined and extruded 6mm thick aluminium casework with integrated heatsinks

Supports

RCA, XLR and subwoofer outputs
Bluetooth aptX™ and AAC audio codecs
MM and MC phono stages individually calibrated with cartridge profile support

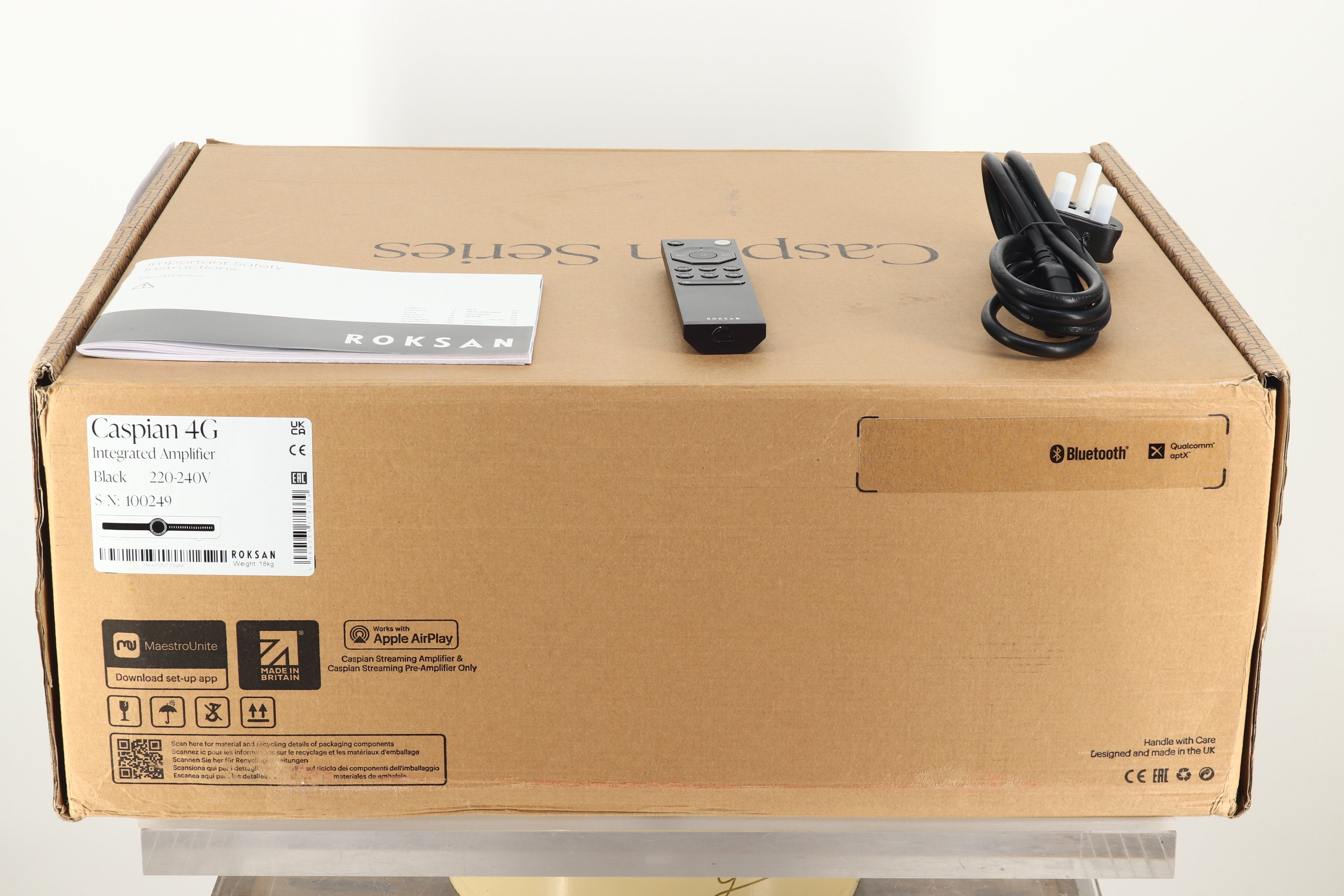

Included remote control for intuitive use and control

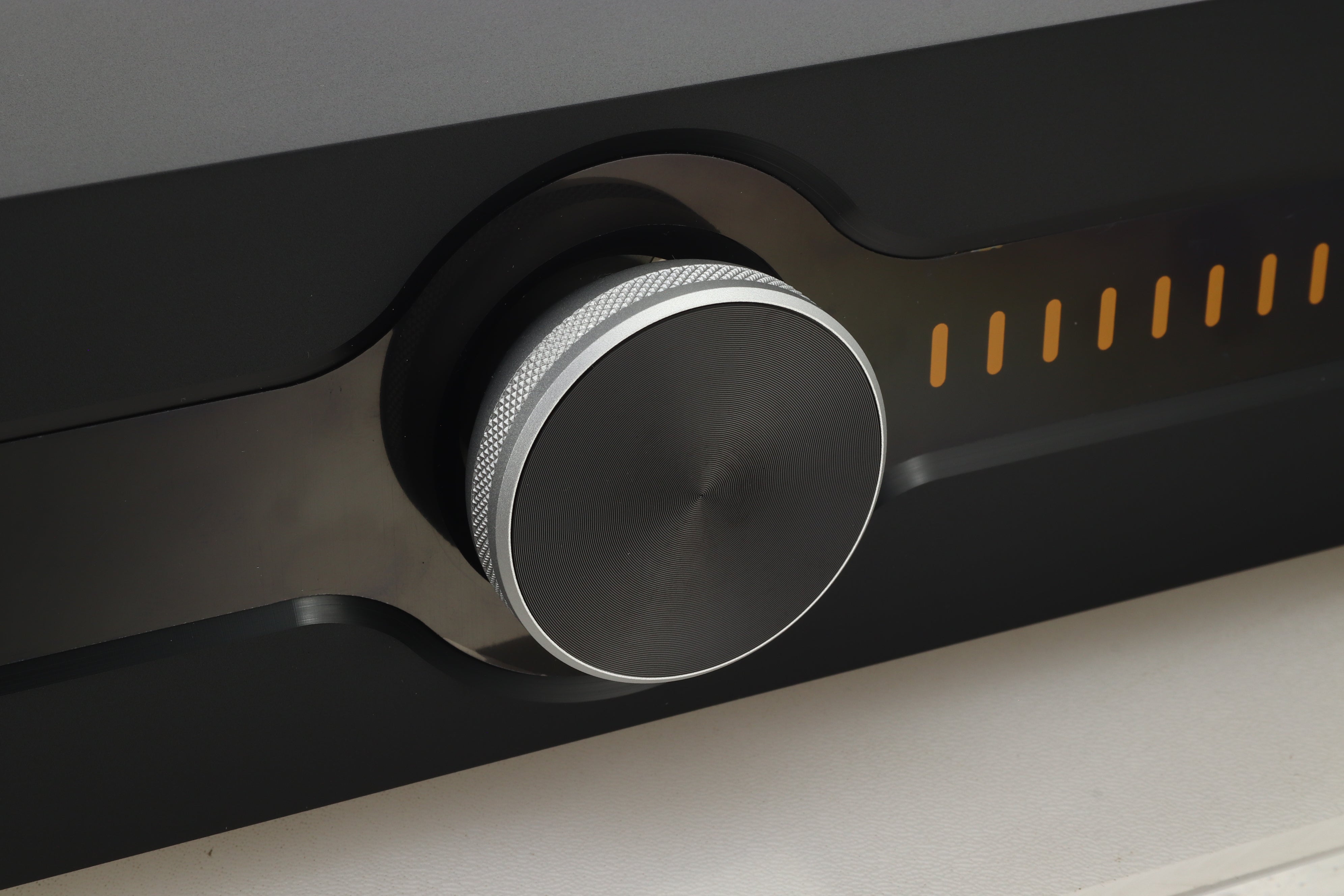

Clear front-panel display, single-touch UI with intelligent haptic feedback
Wi-Fi connectivity for software updates
MaestroUnite app for over-the-air updates, set up and control

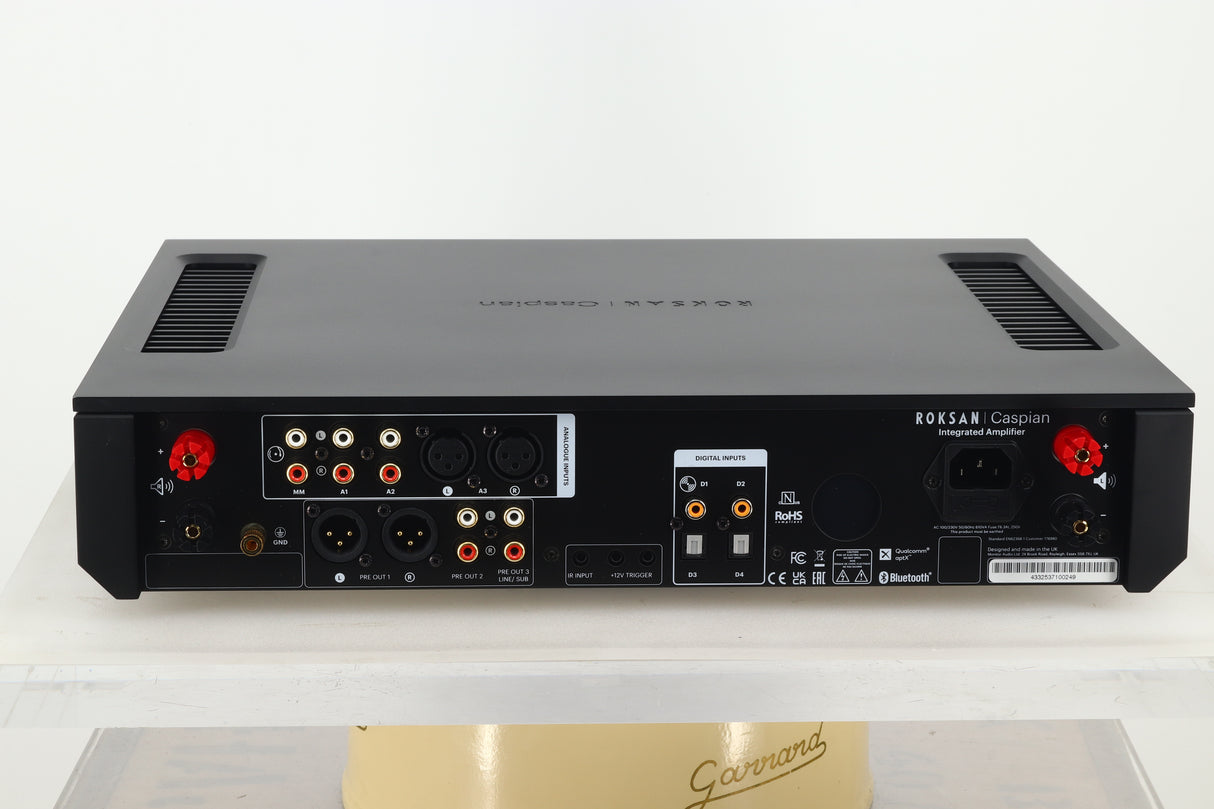

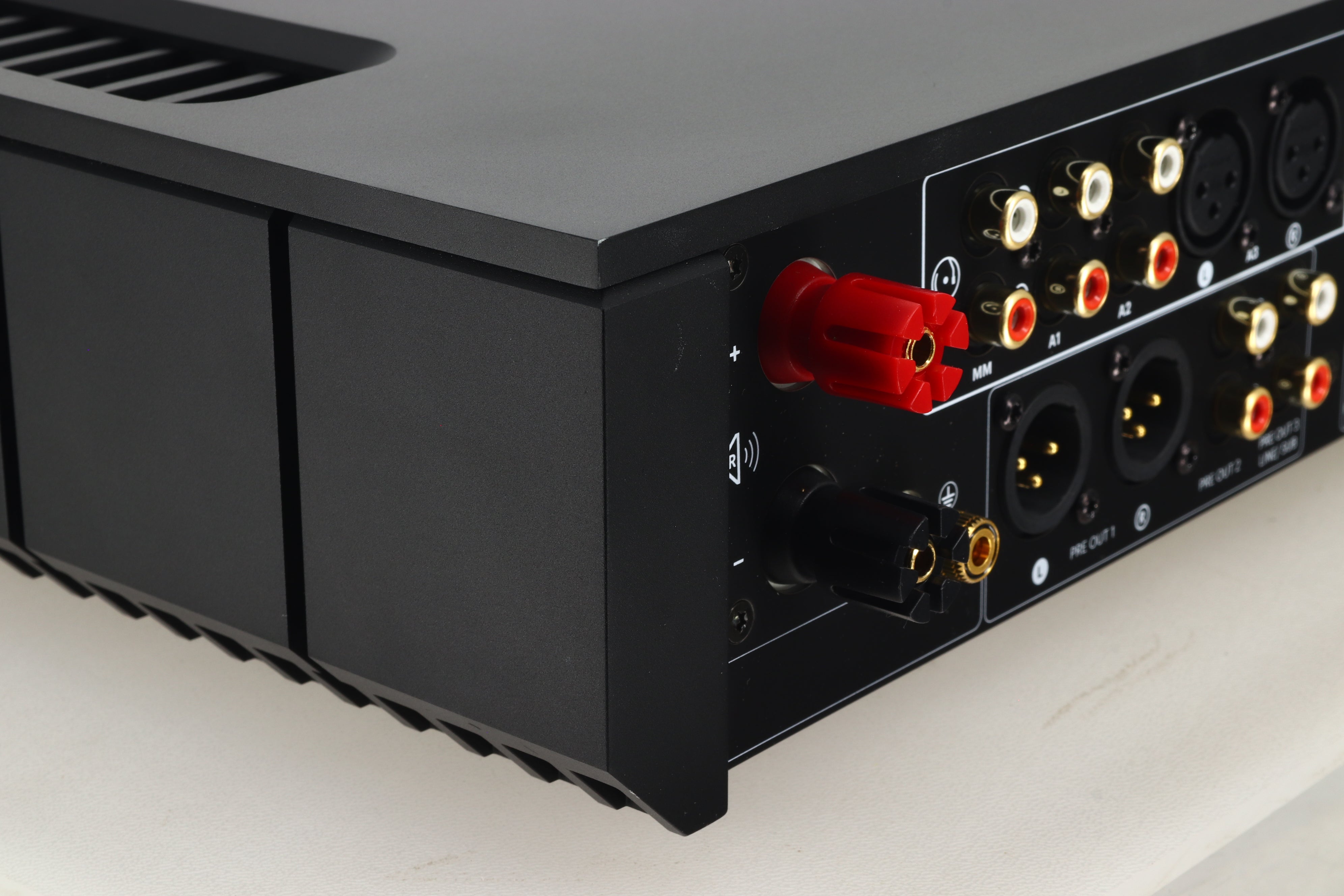

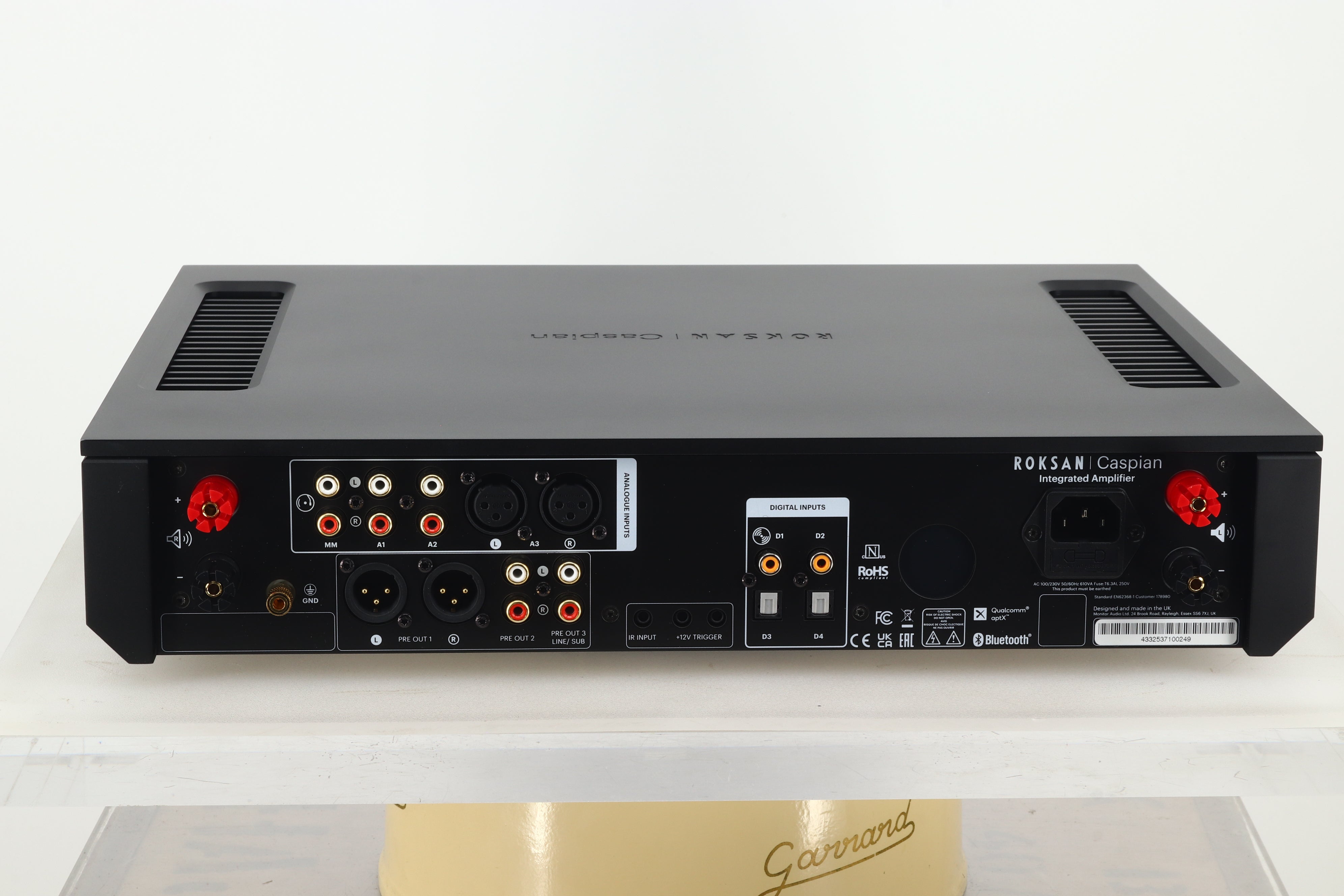

Analogue Inputs: 2x RCA Stereo (A1, A2), 1x Balanced XLR (A3)
Digital Inputs: 2x Coax (D1, D2), 2x Optical (D3, D4), Bluetooth Audio
Analogue Outputs: 1x Balanced XLR (Pre1), 1x RCA Stereo (Pre2), 1x RCA Stereo (Pre3)
Power Amplifier Section
Power Amplifier Technology: Dual Mono Euphoria Amplifier
Amplifier Class: AB
Output Power: 105 W into 8 0hms; 200 W into 4 0hms
Total Harmonic Distortion + Noise: < 0.007%, 1W @ 1kHz
Gain: 29 dB
Signal to Noise: > 85 dB
Gain Matching: < 0.5 dB
Frequency Linearity: ± 0.25 dB (20 Hz - 20 kHz)
Moving Magnet Phono Section
Gain: 53 dB
Gain Adjustment: Low (- 6 dB), Mid (0 dB default), High (+ 6 dB)
Input Impedance: 47 kOhms/100 pF
RIAA response accuracy: ± 0.3 dB 20 Hz - 20 kHz
Rapture DAC
DAC Technology: Dual Mono Balanced
Format Support: PCM
Sampling Rate: up to 24-bit/192 kHz
Pre-Amplifier Section - Amp, Pre 1, Pre 2
Volume Control Technology: Hybrid Digital Analogue
Volume Control Matching: < 0.25 dB
Total Harmonic Distortion + Noise: <0.0008% (3.9 Vrms, A-Weighted)
Signal to Noise Ratio: > 108 dB (3.9 Vrms, A-Weighted)
Maximum Output Level: 3.9 Vrms
Pre-Amplifier Section - Pre 3
Volume Control Technology: Digital
Volume Control Matching: < 0.25 dB
Total Harmonic Distortion + Noise: < 0.003% (3.9 Vrms, A-Weighted)
Signal to Noise Ratio: > 108 dB (3.9 Vrms, A-Weighted)
Maximum Output Level: 3.9 Vrms
Digital Inputs: up to 24-bit/192 kHz
Analogue Inputs Maximum Level: 6.7 Vrms
Nominal Mains Voltage: Auto-Selecting Power Supply, 100 - 120 VAC & 220 - 240 VAC
Power Consumption: Max 610VA, Standby 0.5W, Network Standby 2W (Standby Plus, allows fast boot)

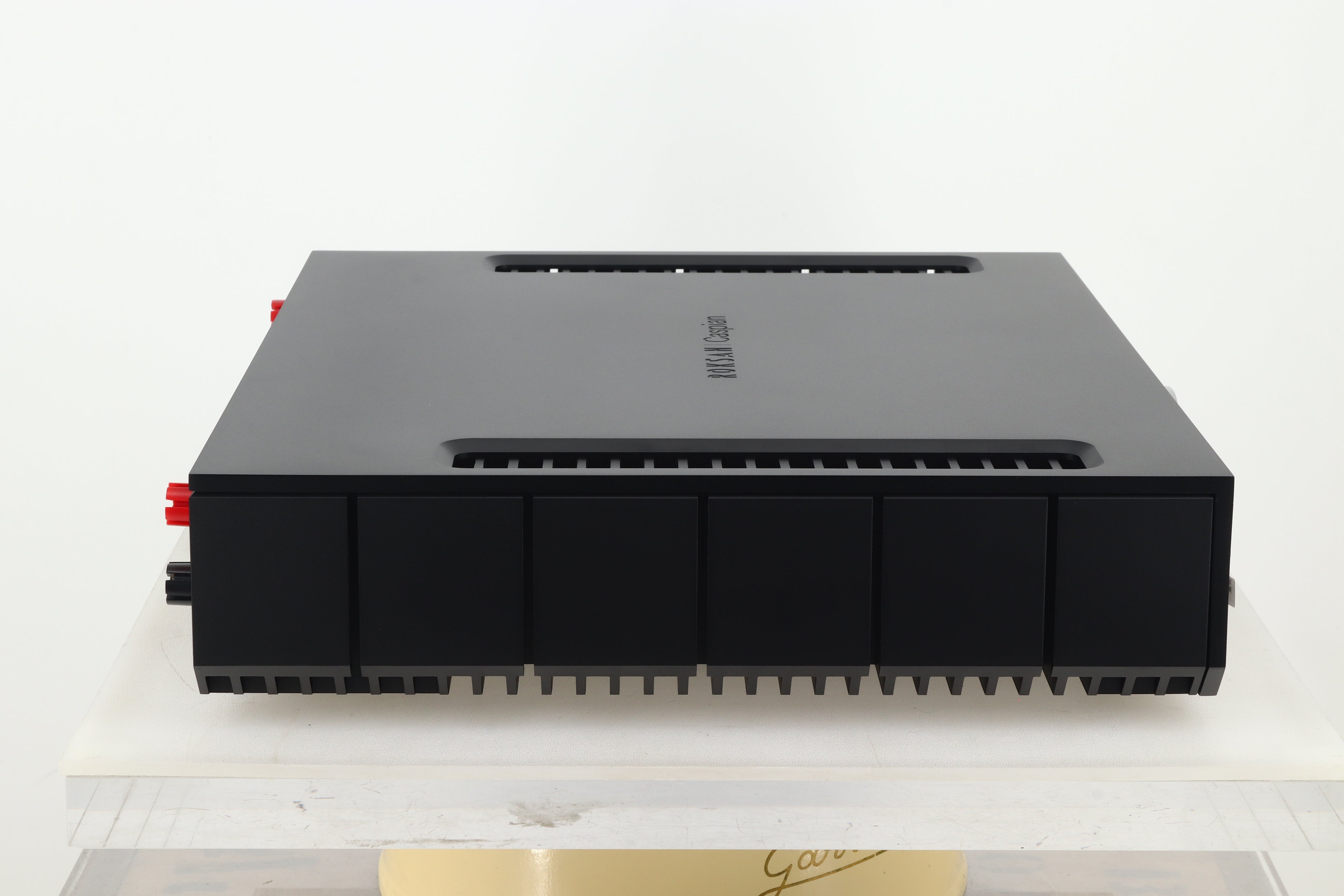

Construction: Extruded and machined Aluminium front & top cover with extruded Aluminium heatsinks
Dimensions: 432 (W) x 378 (D) x 93 (H) mm
Weight: 15.2 kg
