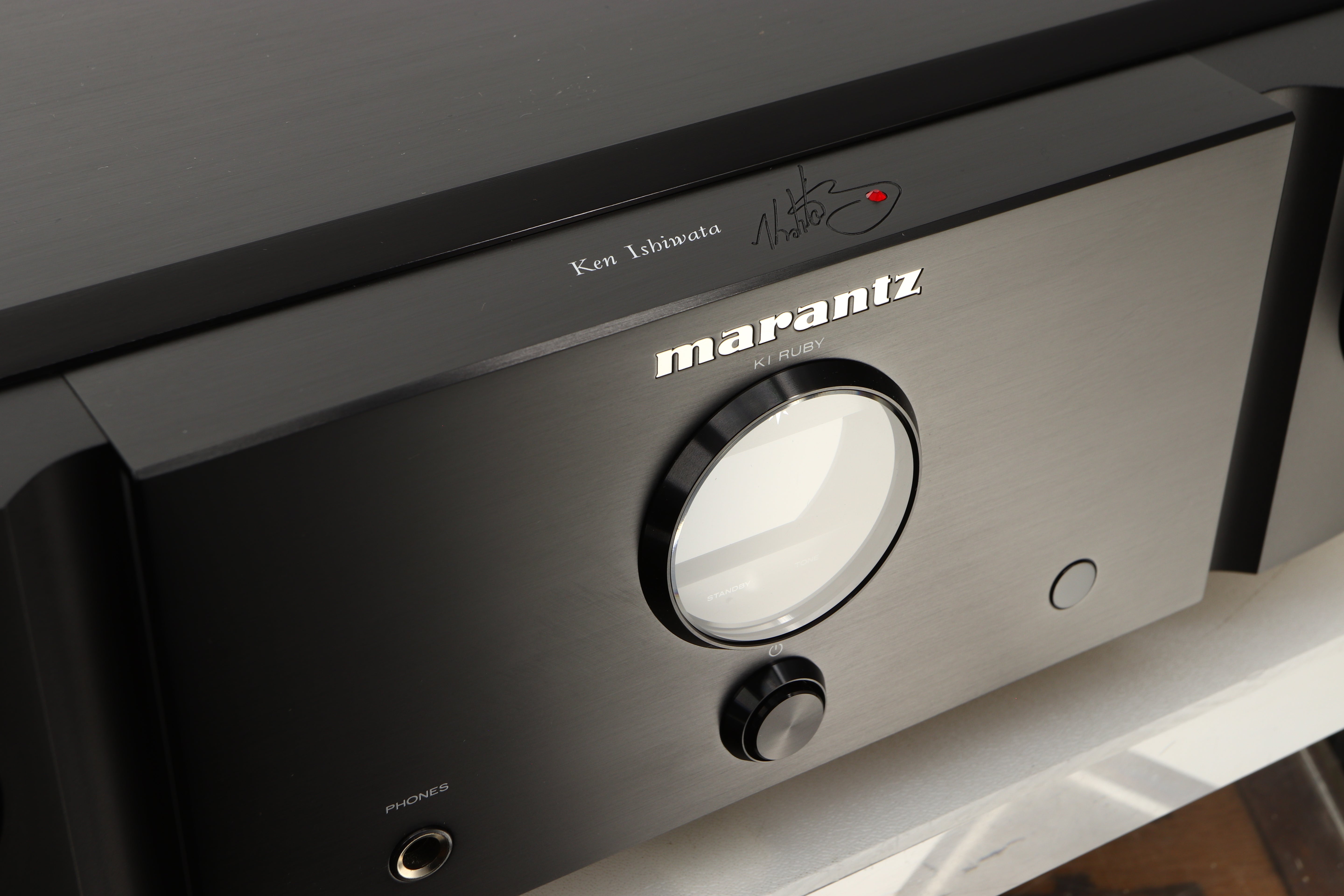

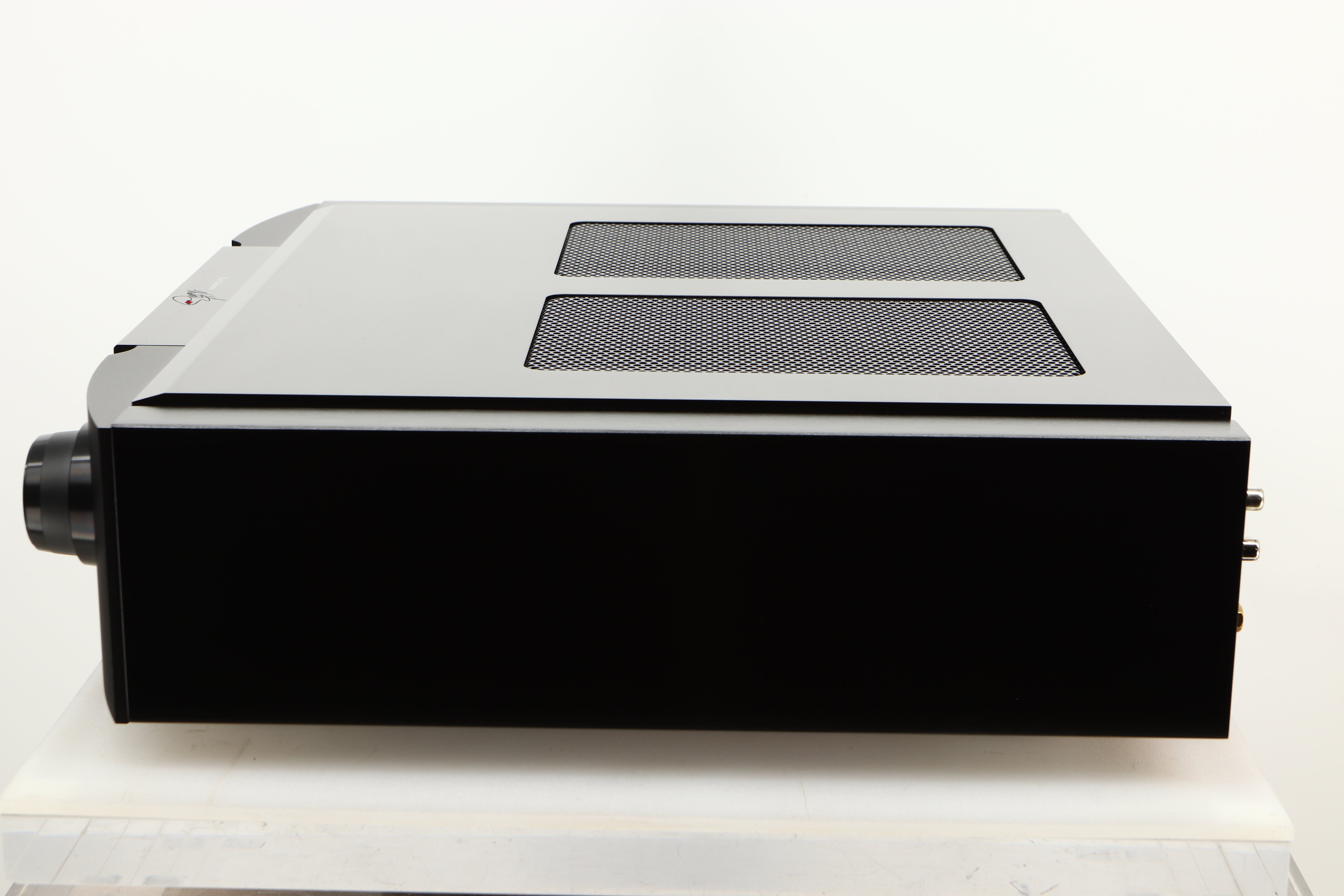

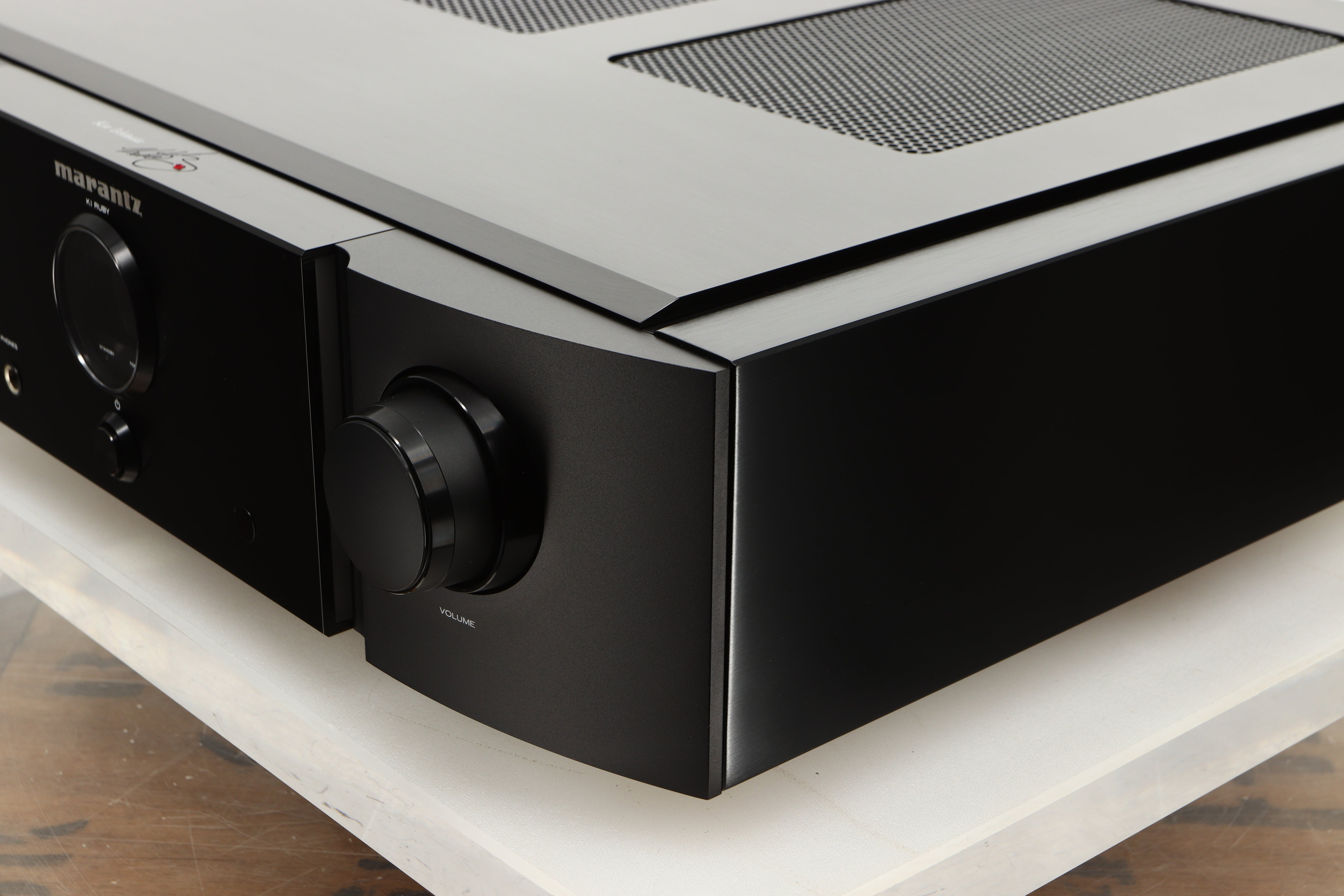

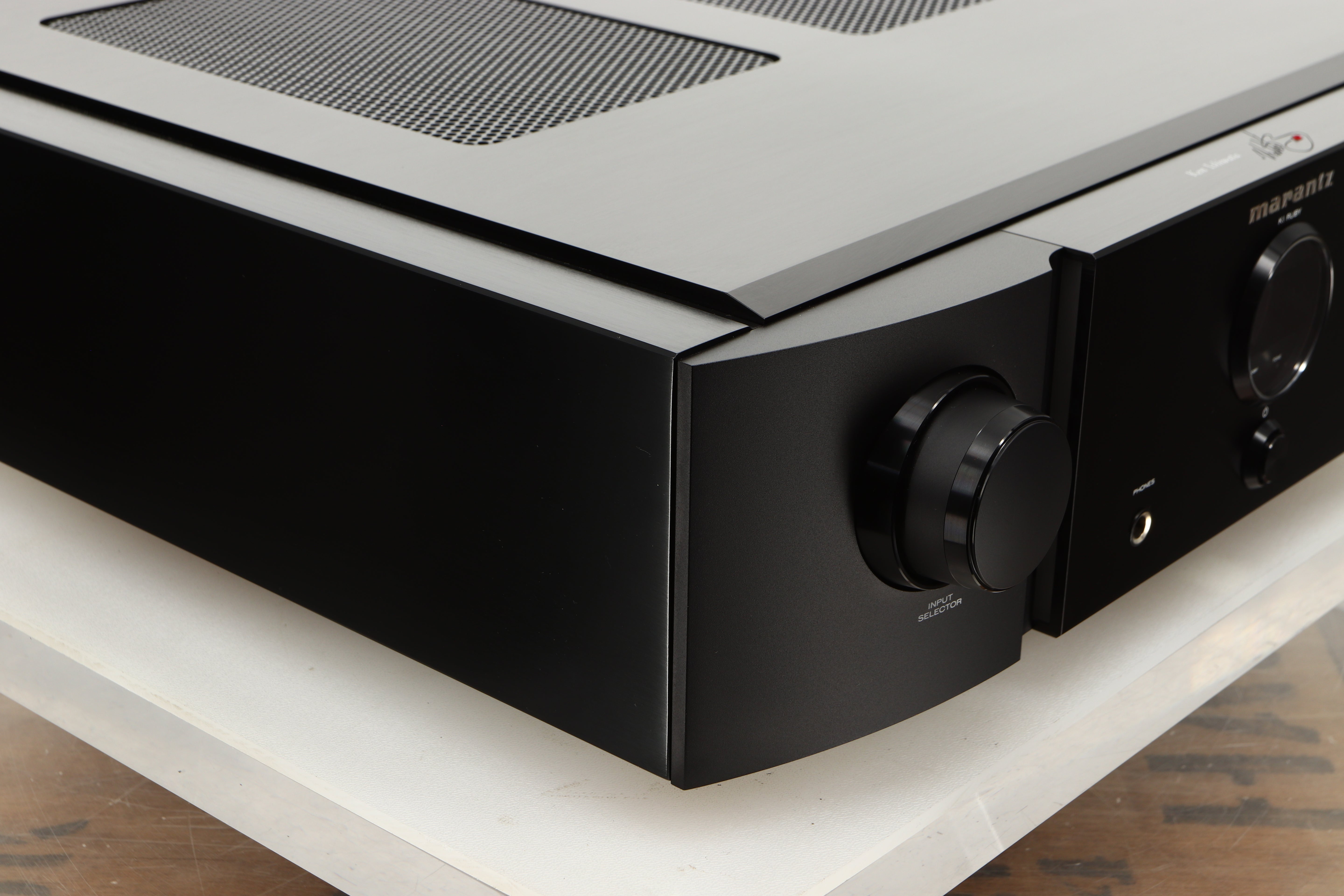

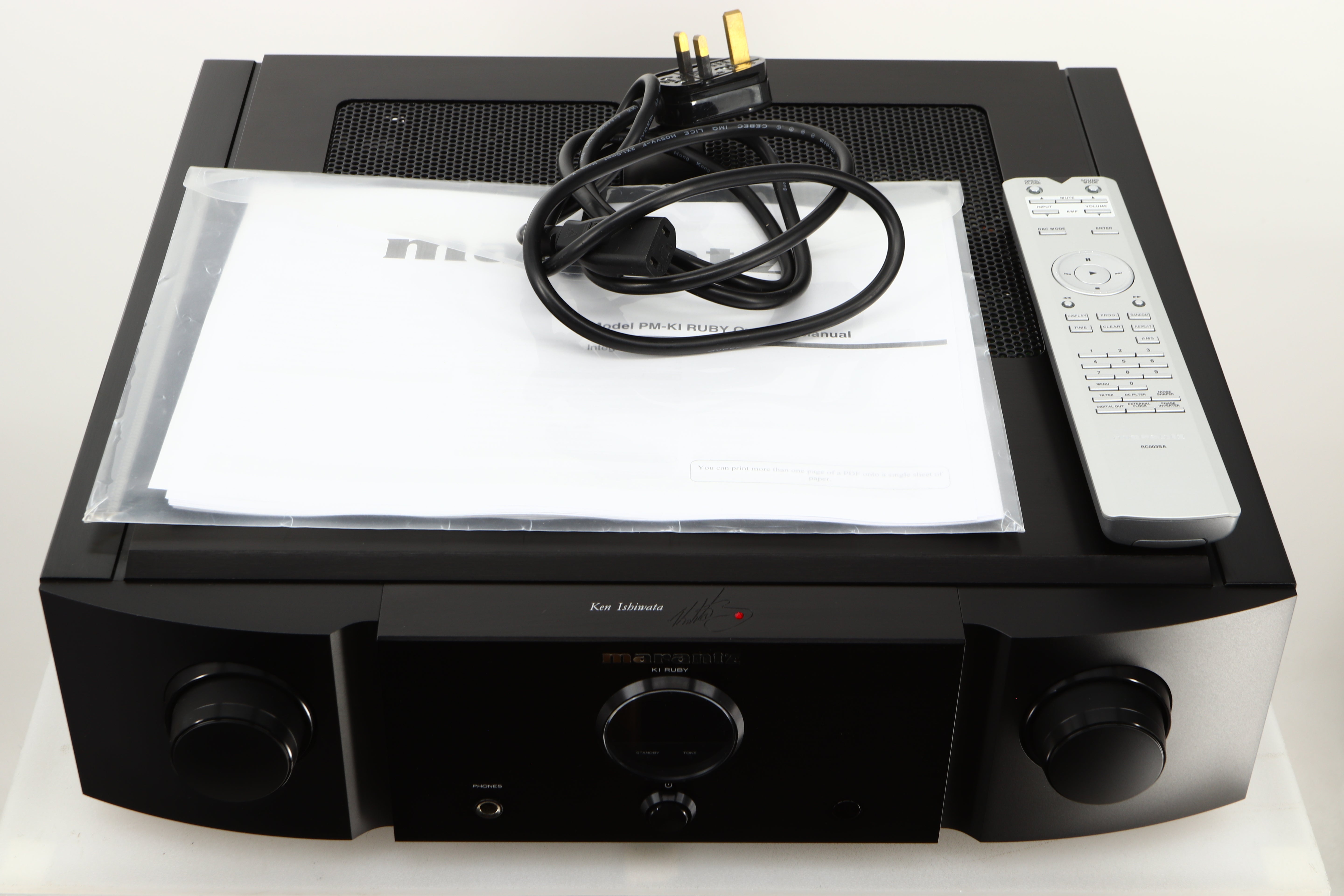

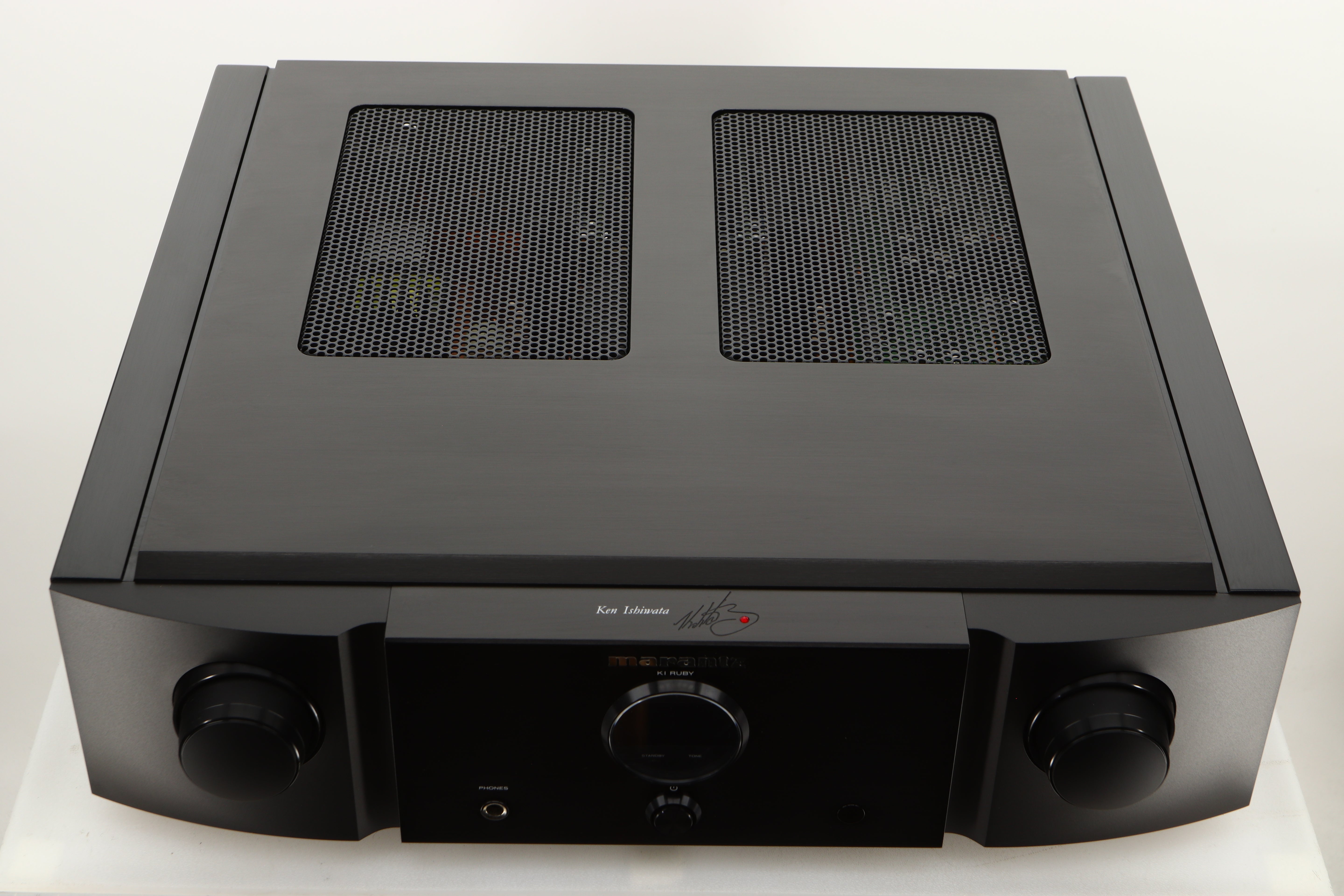

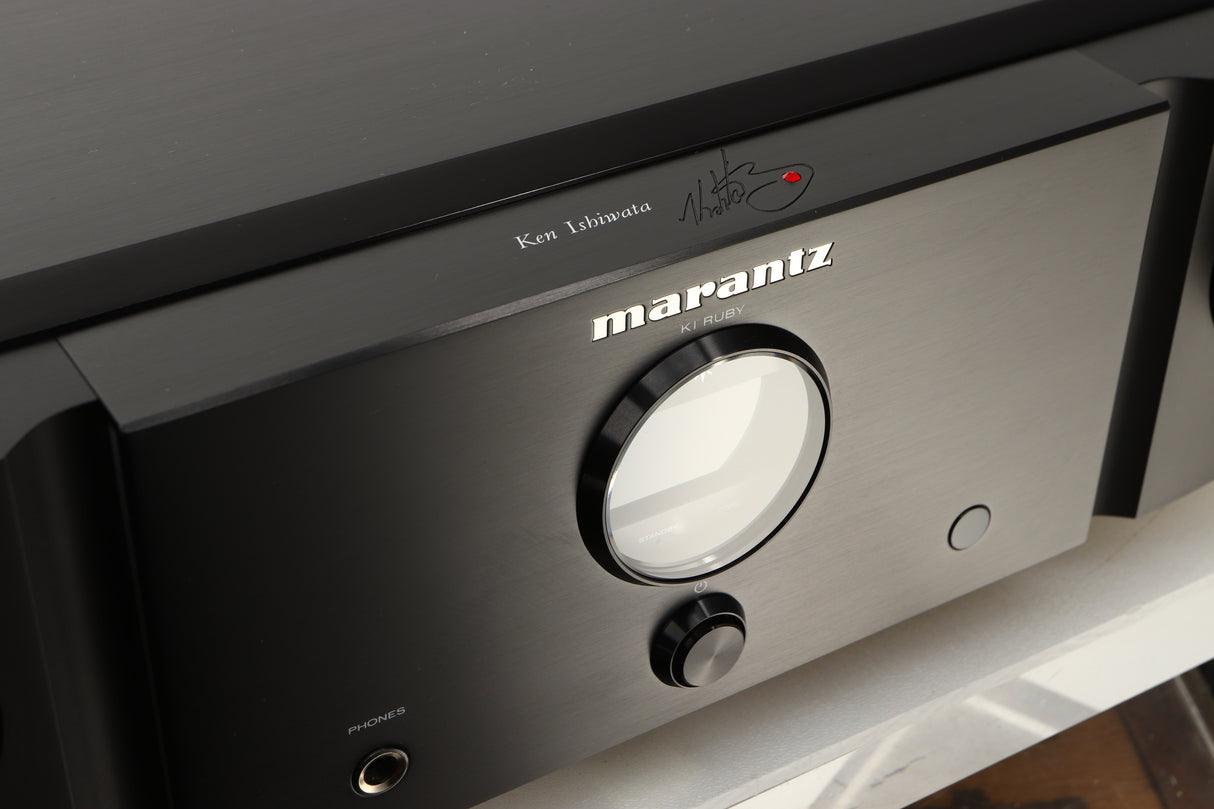

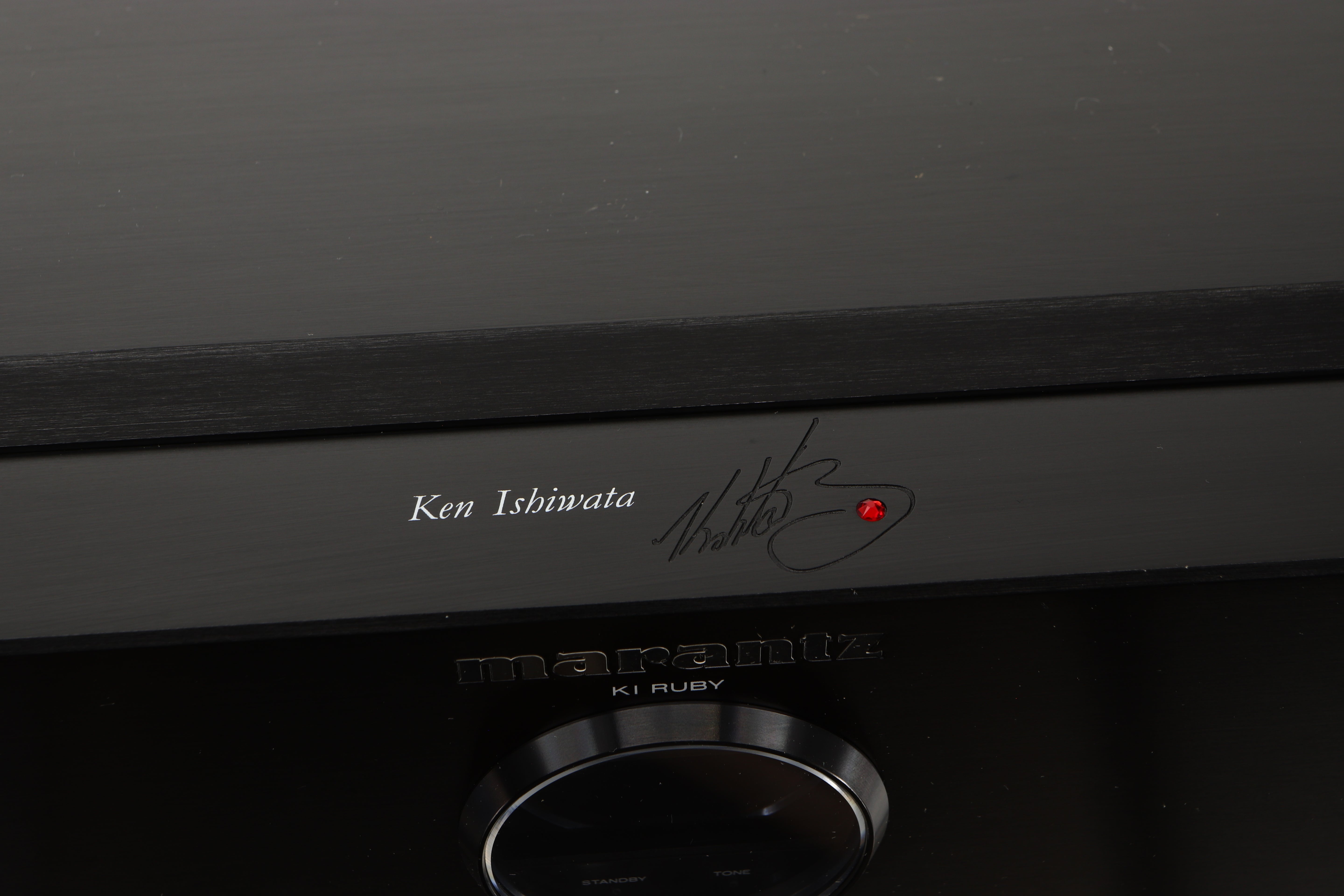

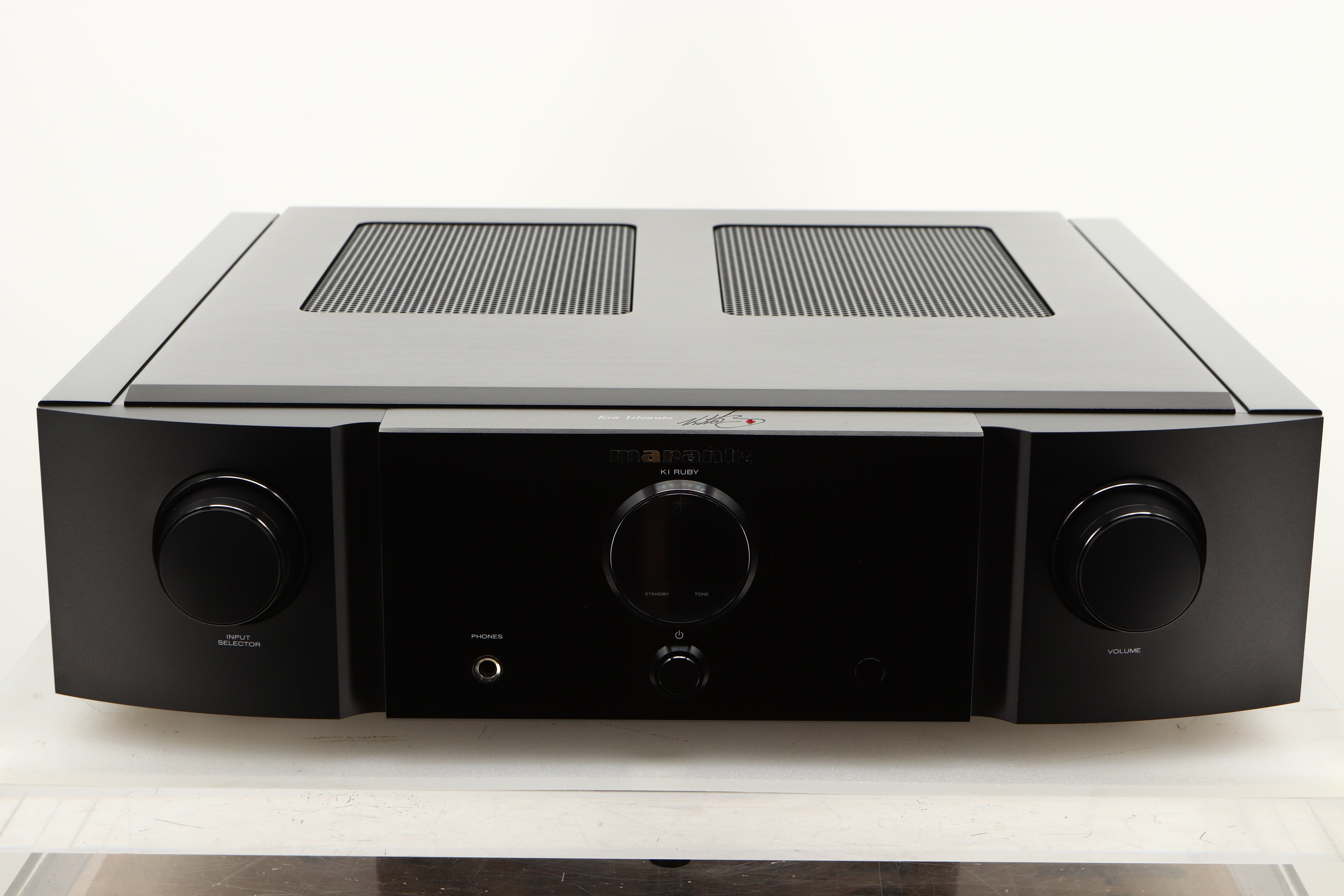

Marantz KI Ruby Integrated Amplifier

The Marantz PM-KI Ruby is a special edition Hi-Fi amplifier built with just one aim – audio performance – which is why it uses a fully discrete two-stage design with separate power supplies for the preamplifier and power amp section to reduce interference, and draws on the design of the flagship PM-10 amplifier with its moving coil/moving magnet phono stage. Also utilised is the newly-developed low-noise Marantz Musical Premium Phono EQ circuit, with both moving coil and moving magnet capability for today’s turntables.

Type: Solid-state, two-channel integrated amplifier with built-in phono stage, and headphone amplifier

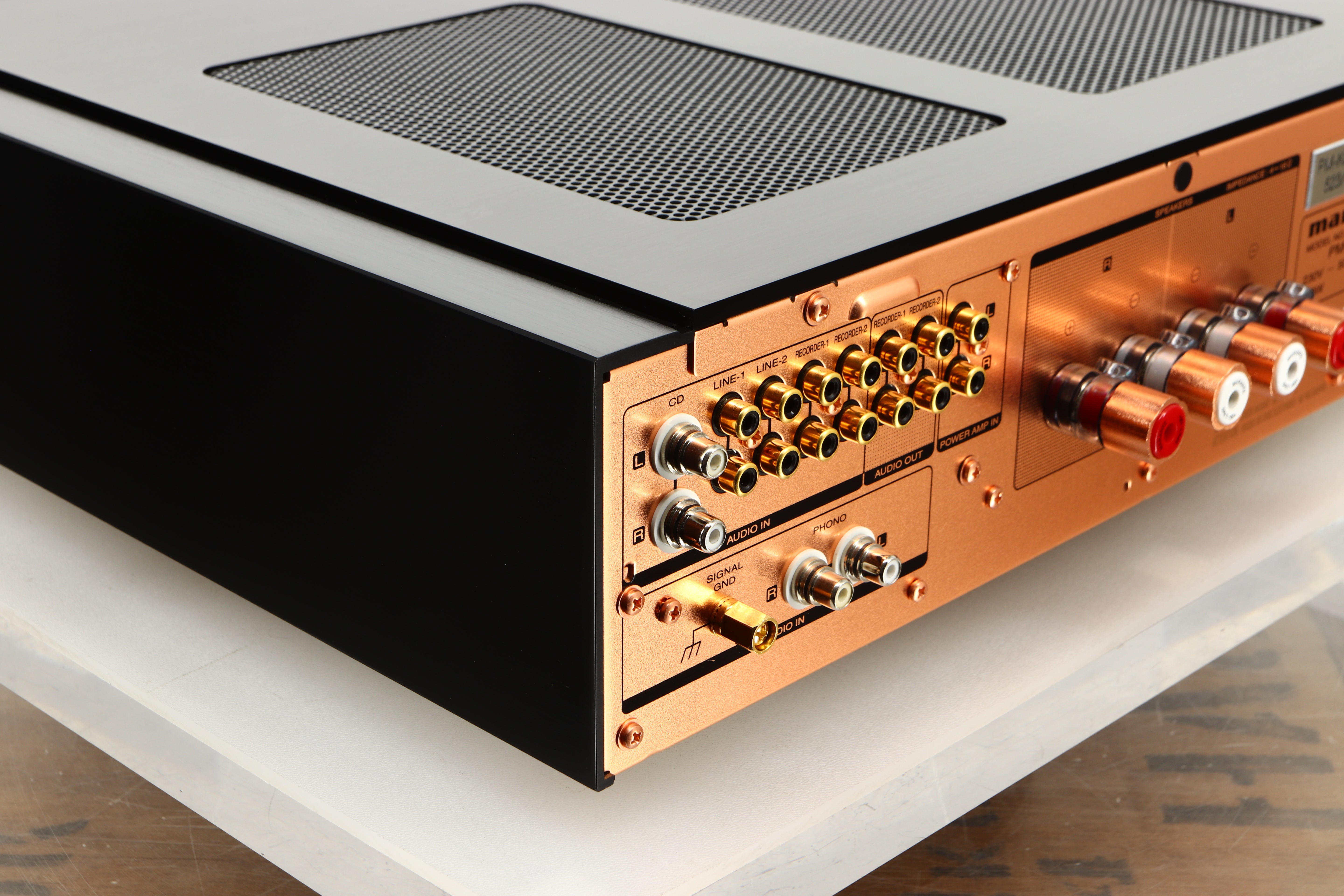

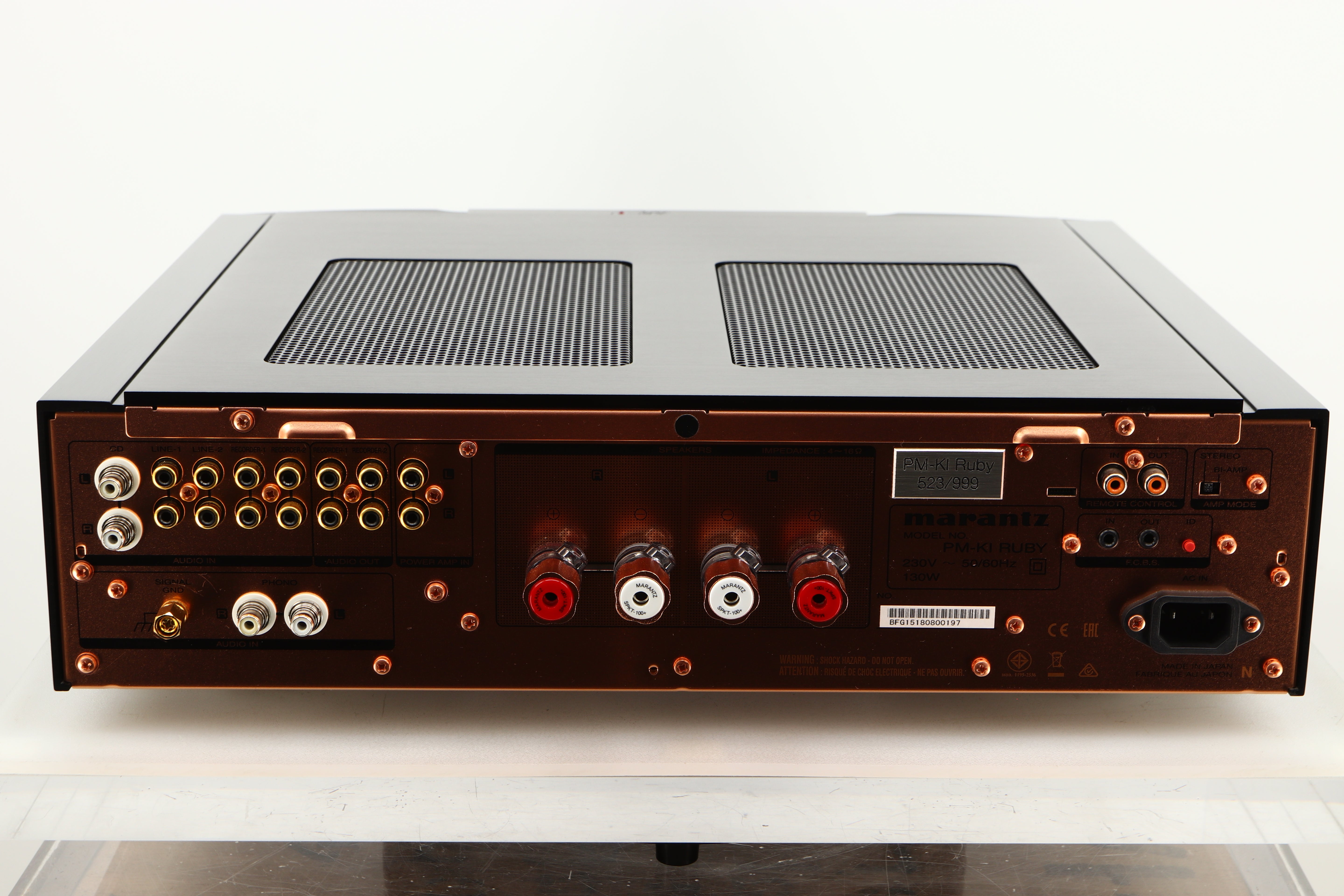

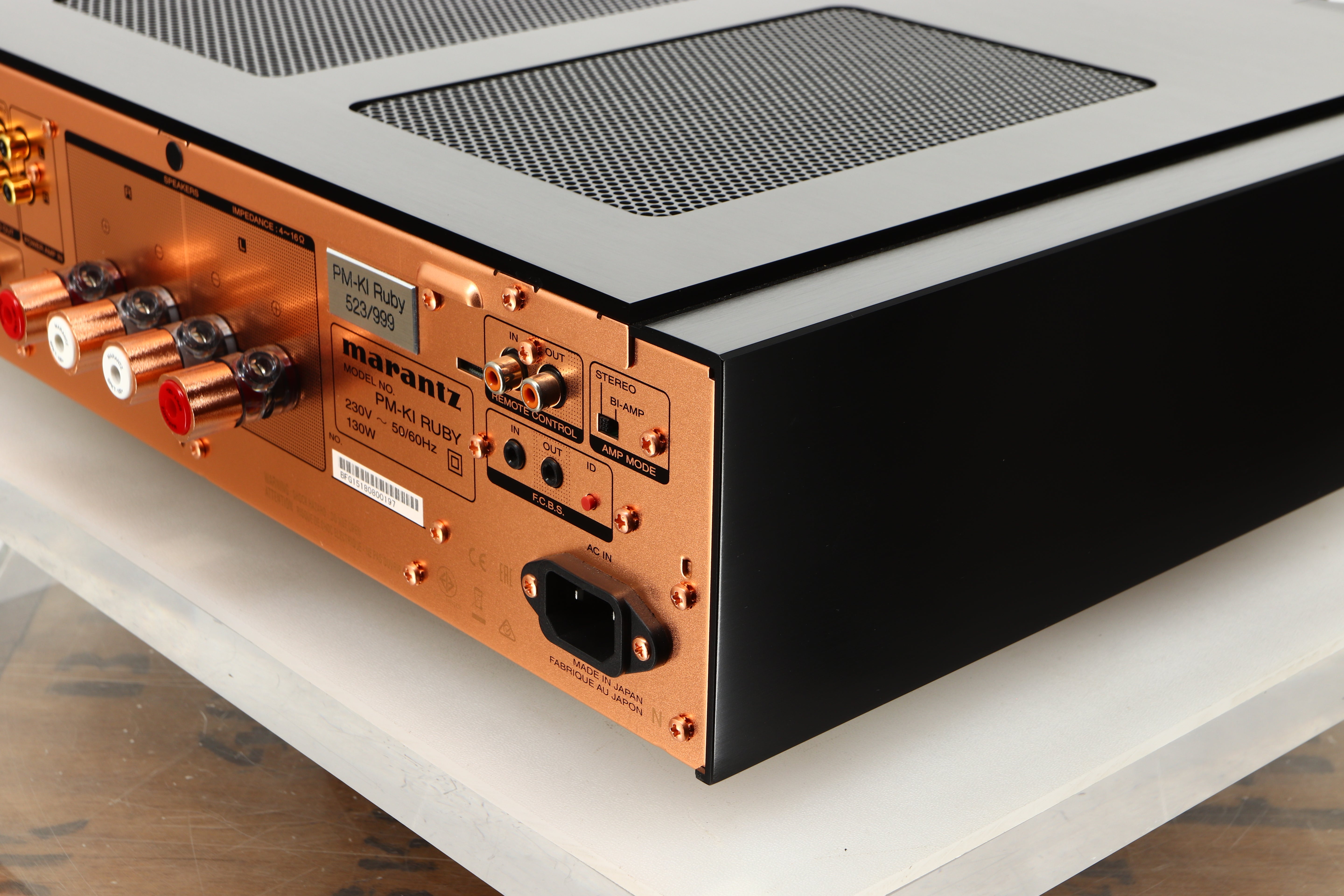

Analogue inputs: One MM/MC phono input (via RCA jacks), five single-ended line-level inputs (via RCA jacks), one preamp input (via RCA jacks)
Analogue outputs: Two tape outputs (via RCA jacks), one headphone output (via 6.35mm jack)
Input impedance: High-level: 220 mV/13 kΩ/kohms
Phono: MM 2.3 mV/39 kΩ/kohms, MC 250 µV / 100 Ω/ohms
Power amp: 1.1V/13 kOhms
Power Output: 100Wpc @ 8 Ohms, 200Wpc @ 4 Ohms
Distortion: THD 1 kHz, simultaneous drive of both channels, 100 W, 8 Ω/ohms load 0.005%.
Signal to Noise Ratio: line 107 dB (Rated output)

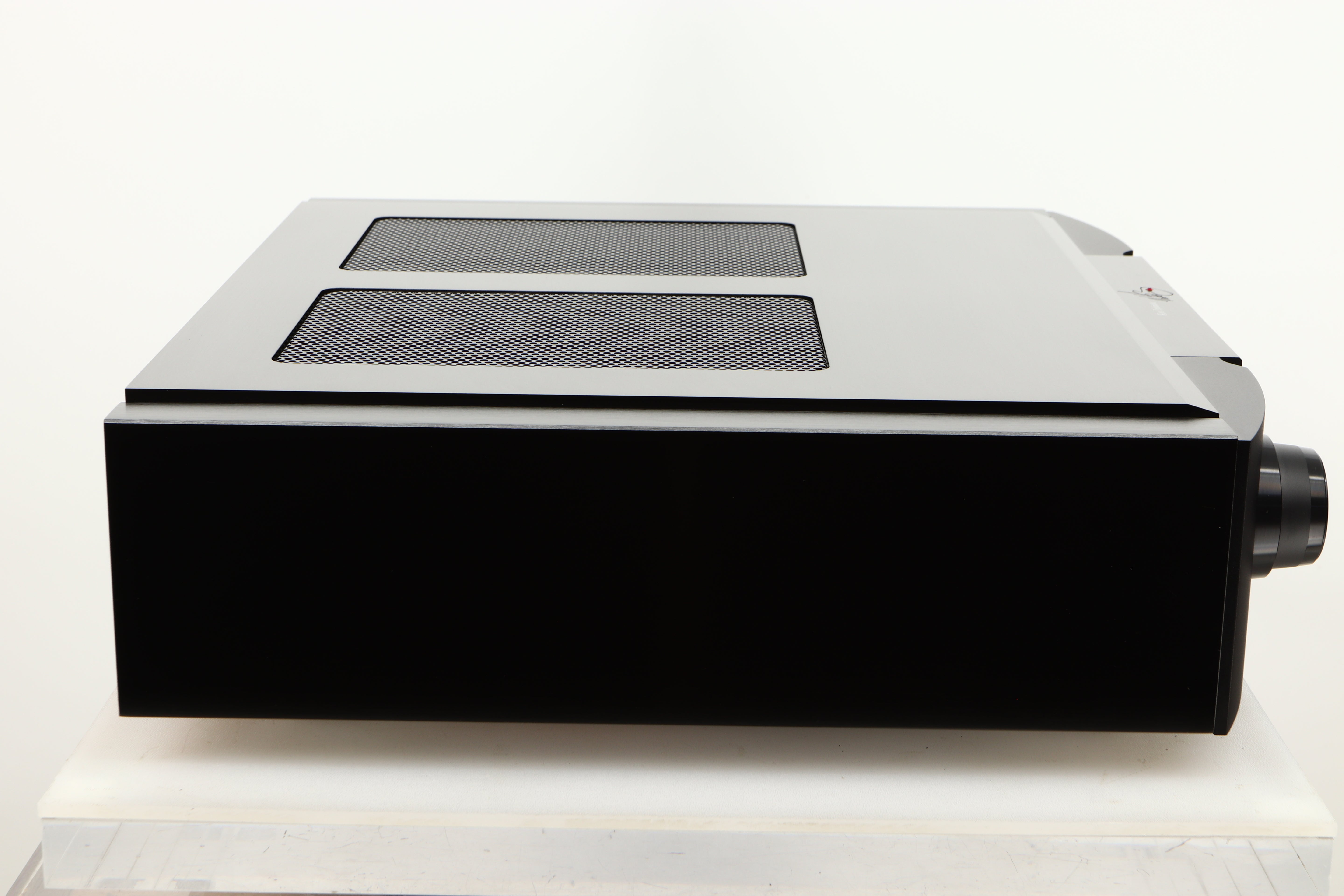

Dimensions (H×W×D): 127 ×440 ×453mm
Weight: 15.7kg
