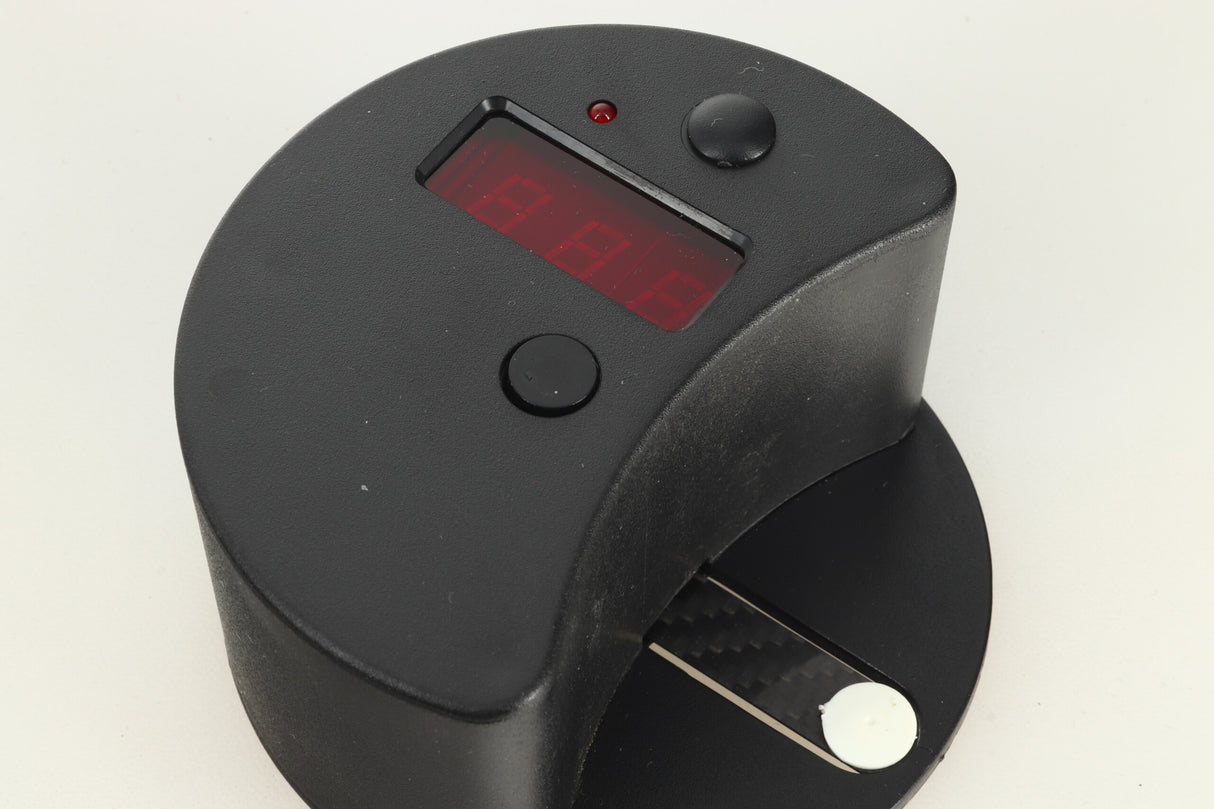

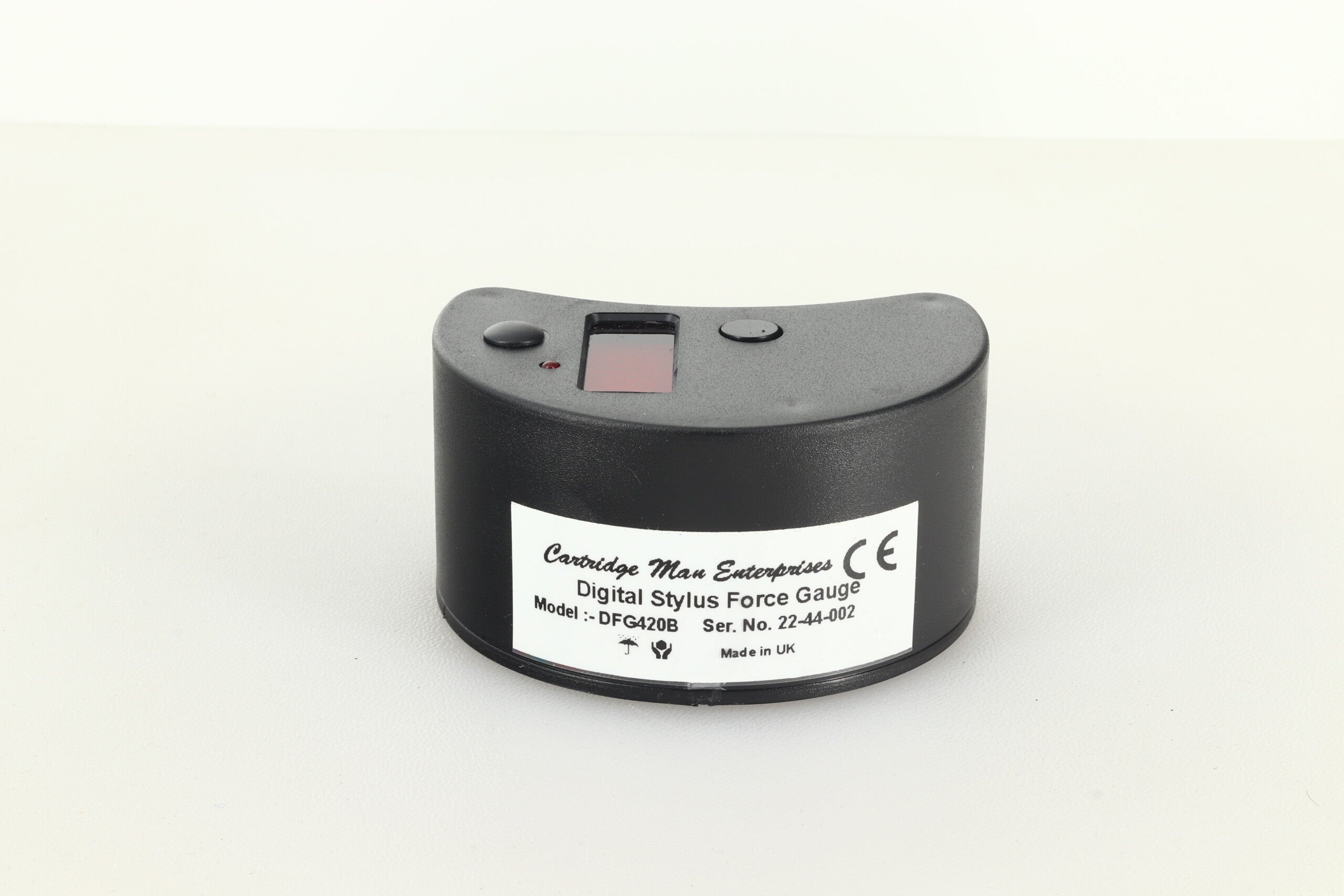

Cartridge Man Digital Stylus Tracking Force Gauge ( Euro )

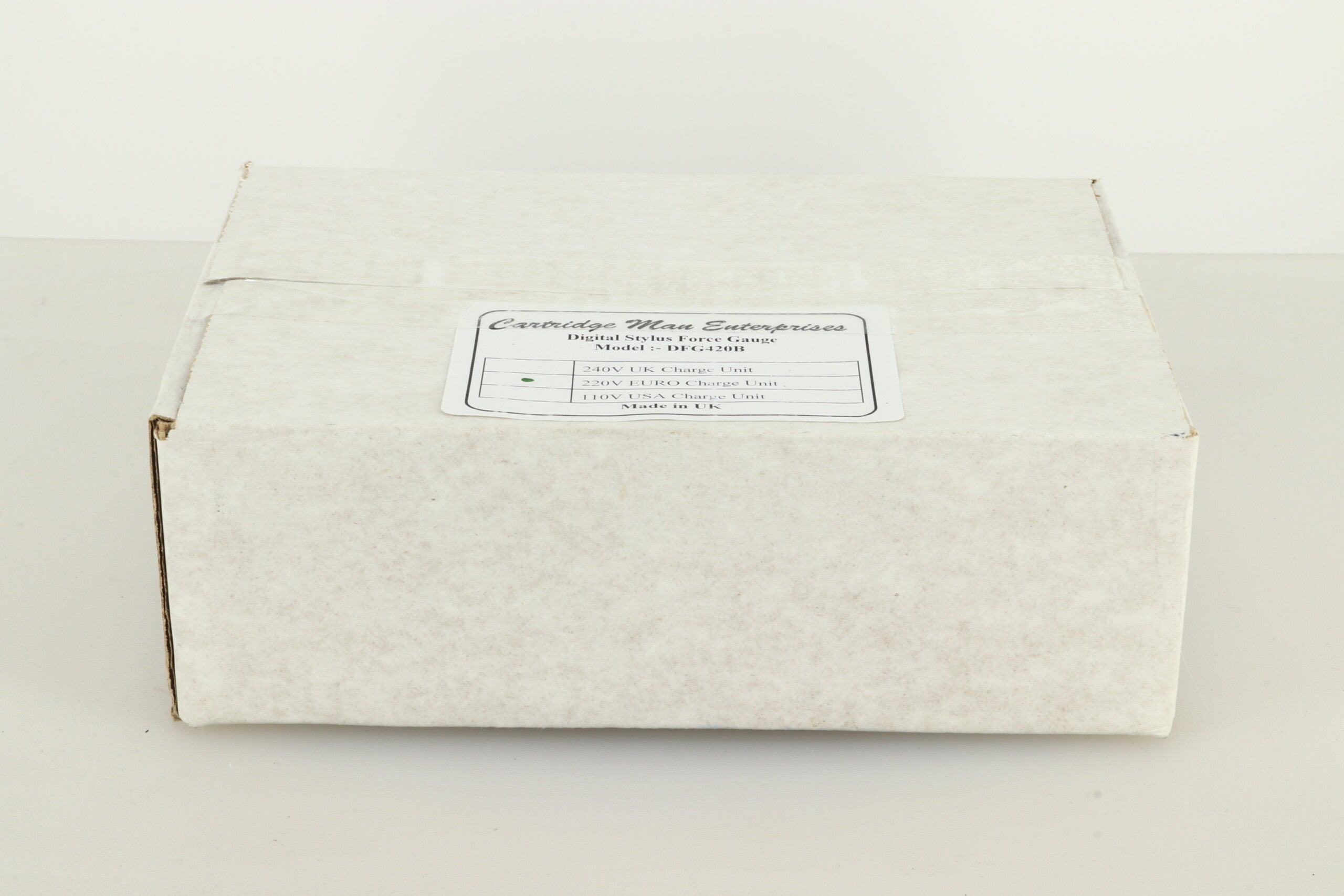

Here we have a very useful accessory in the form of a stylus force gauge from “The Cartridge Man”. It is in very good condition and is supplied in original factory packaging.
The Cartridge Man Says….

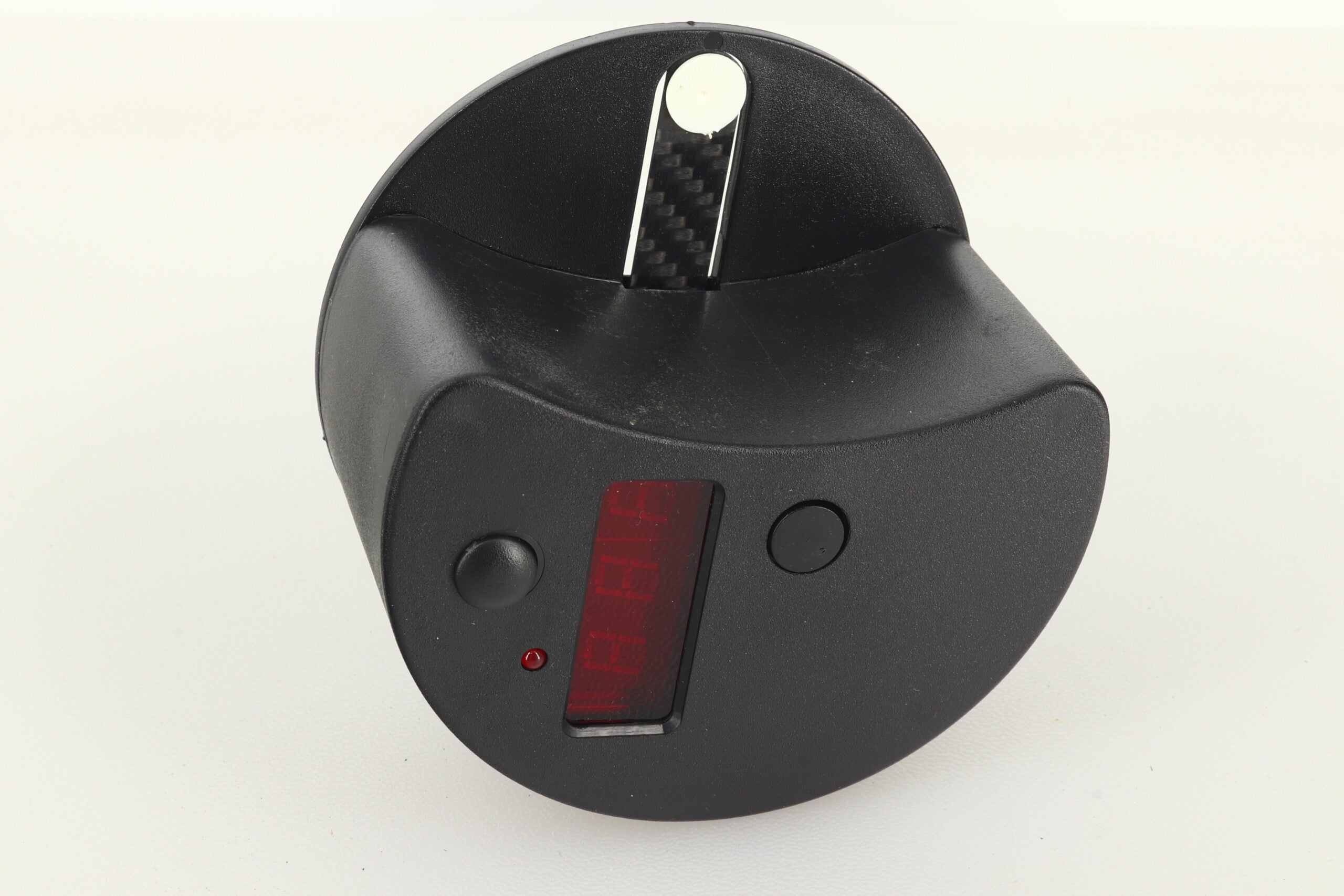

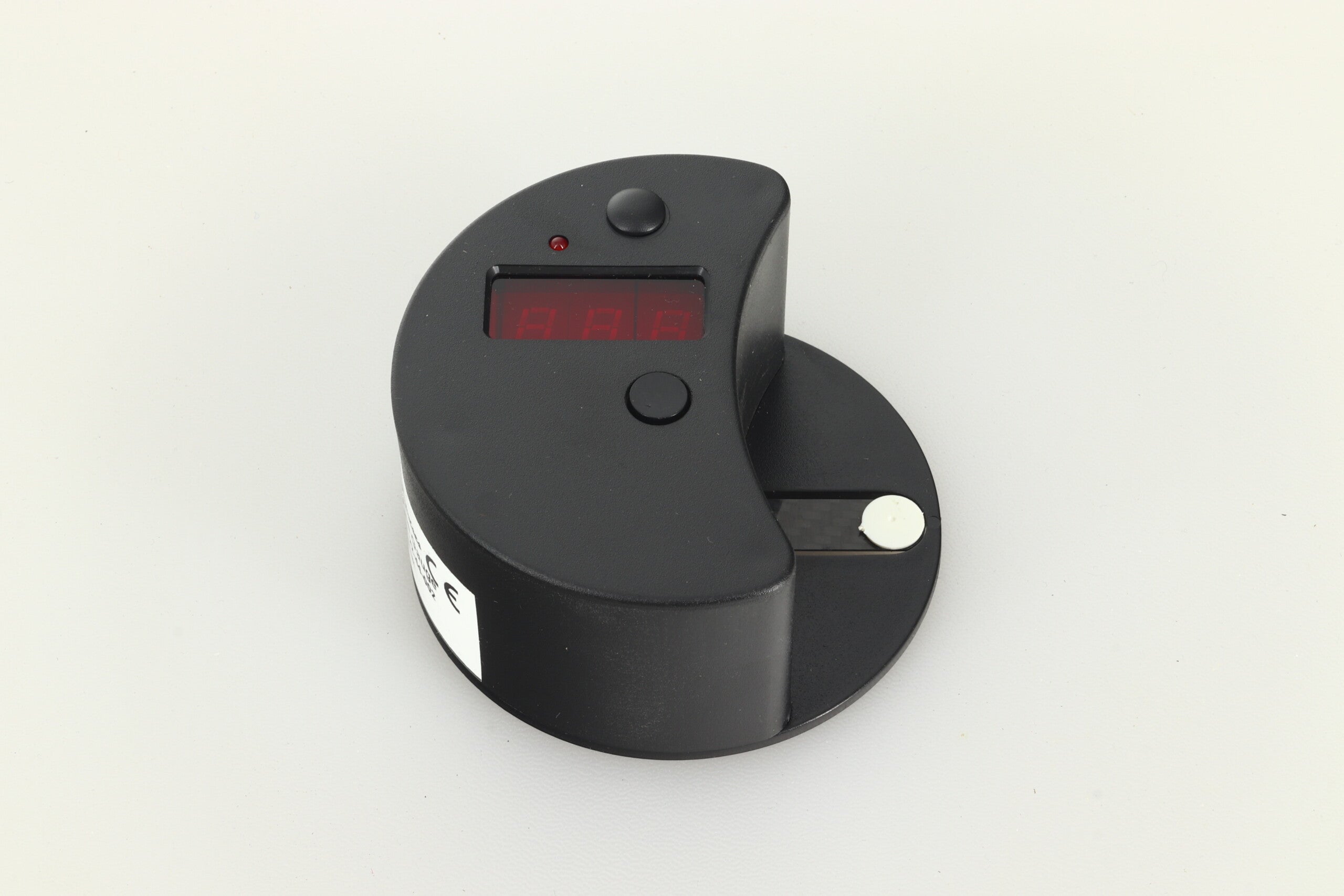

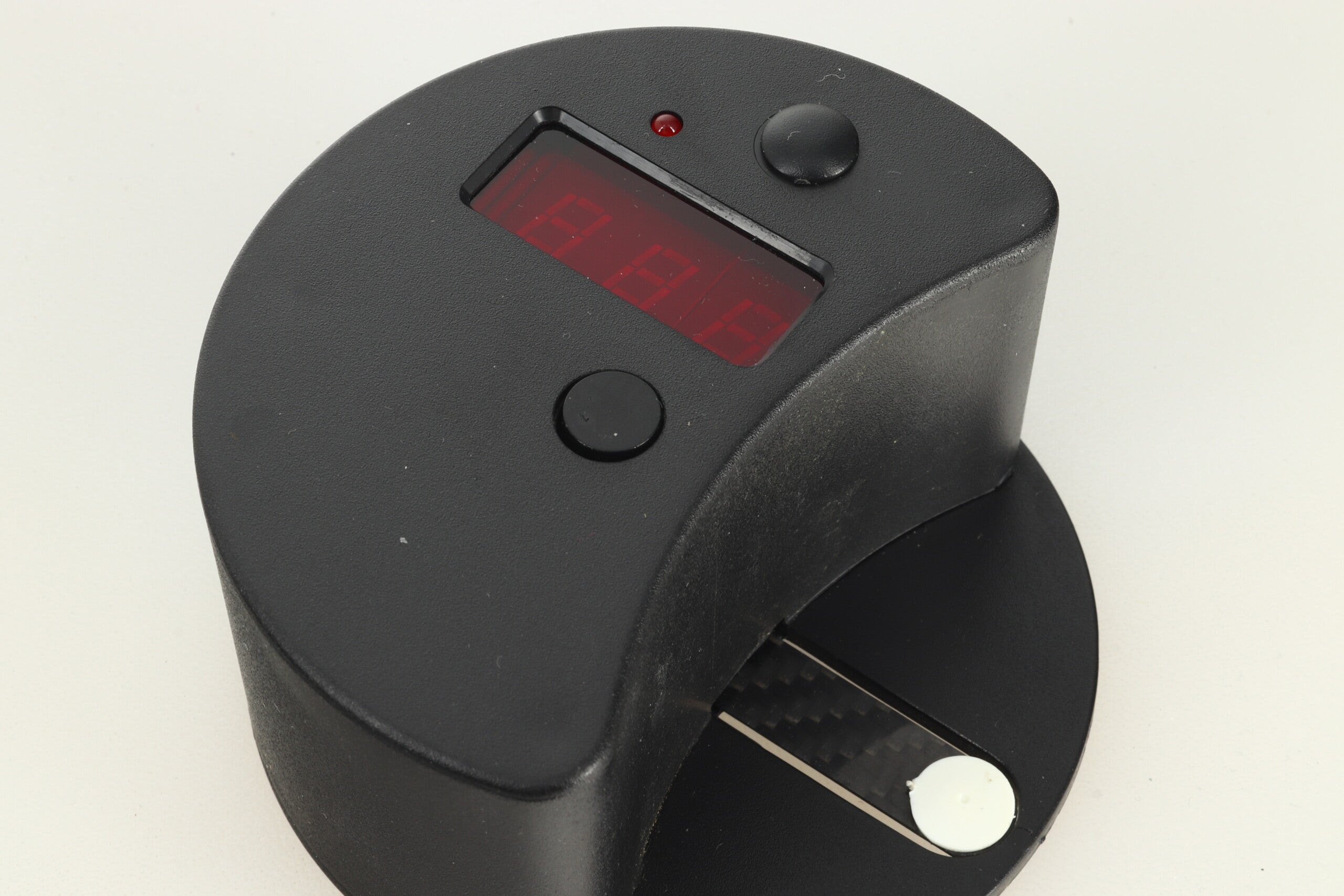

The Cartridge Man Digital Stylus Force Gauge is a highly accurate, enhanced measurement range and easy-to-use Digital Stylus Force Gauge. Ease of use is assured by means of an indented force contact pad and a three digit display. The result is presented in 0.02g with an operating range of 0.2 to 4.0 g. Measurement is automatic and requires no operator adjustments to be made. Construction of the measurement beam is of non-magnetic material. Power is derived from an internal rechargeable battery.

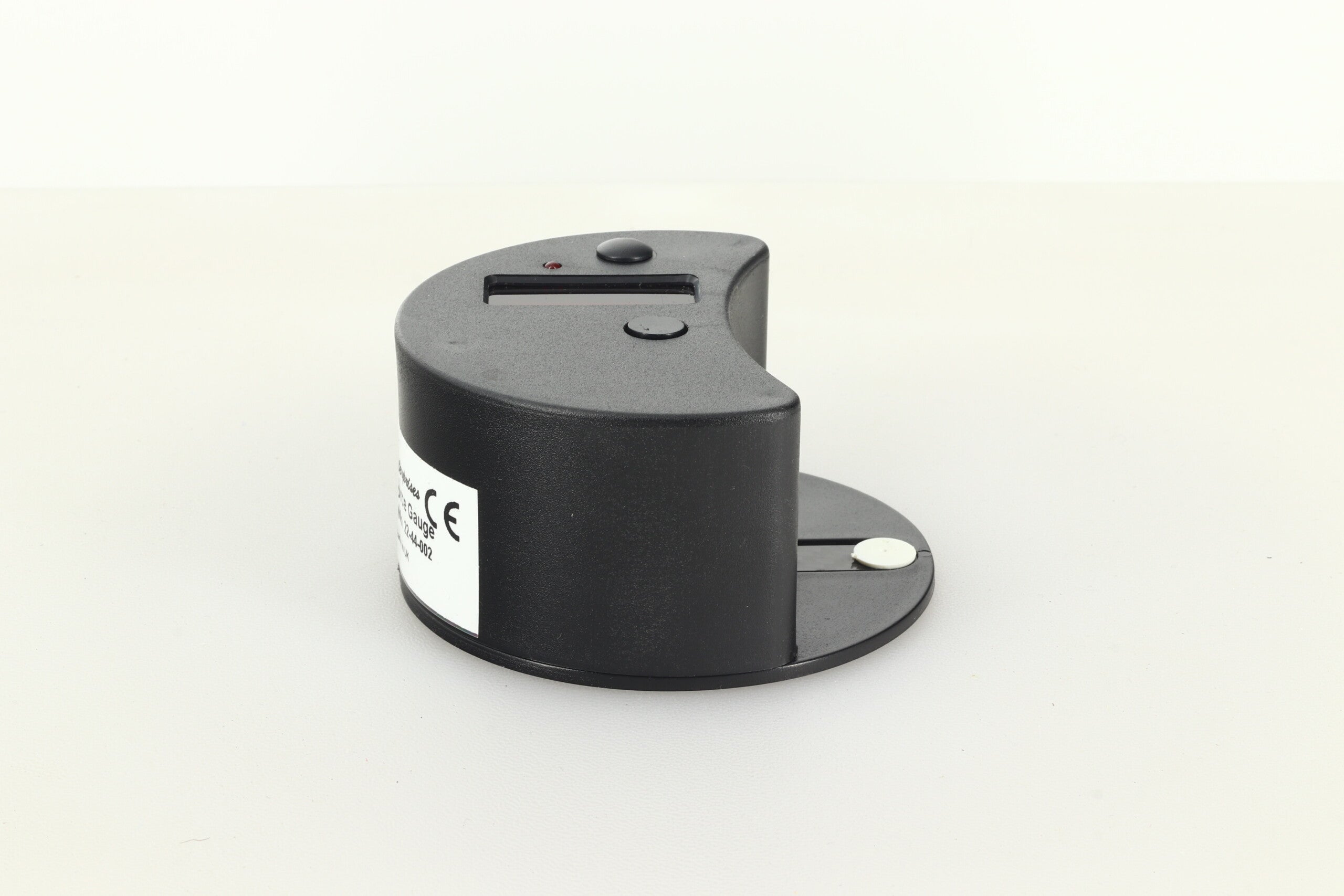

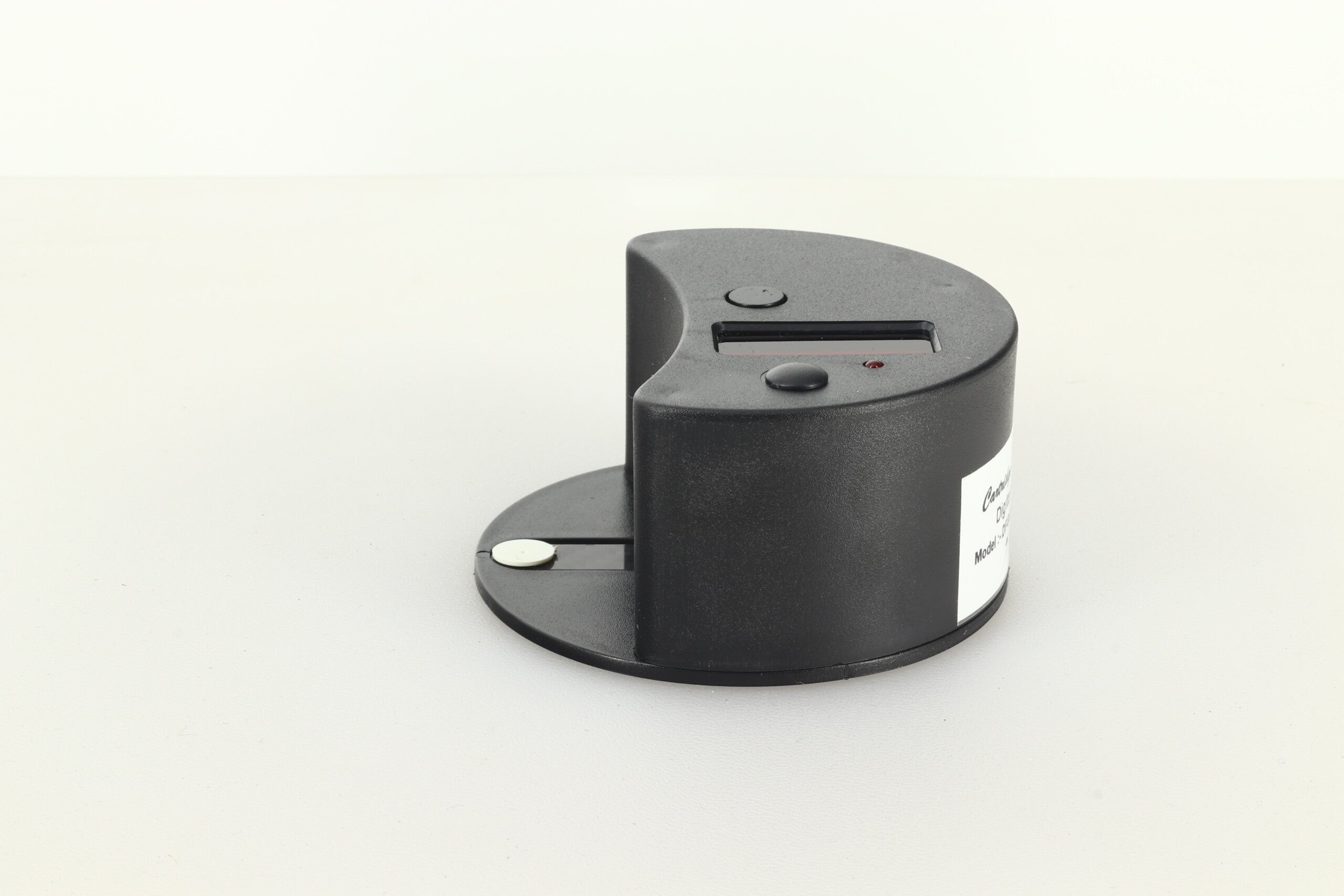

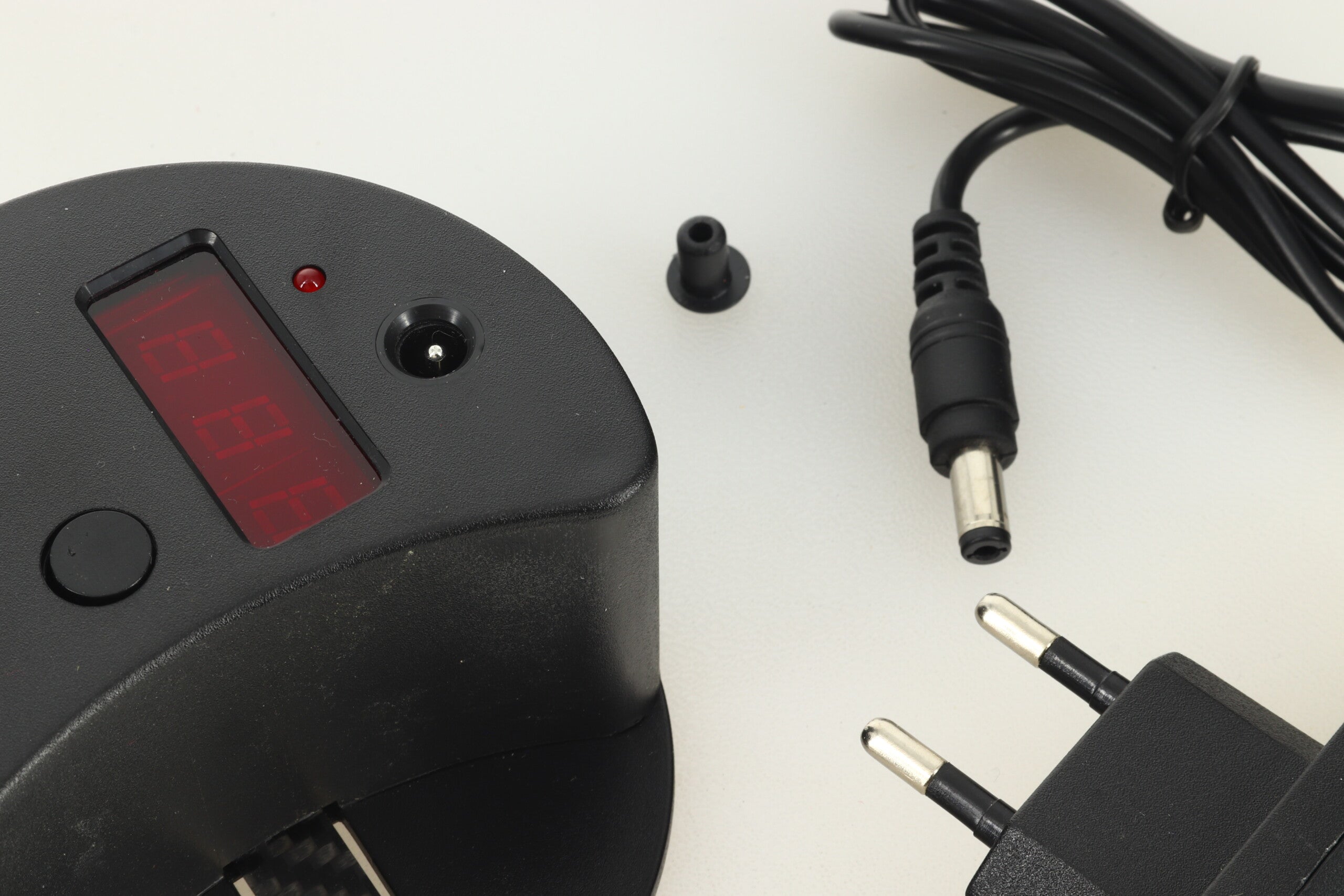

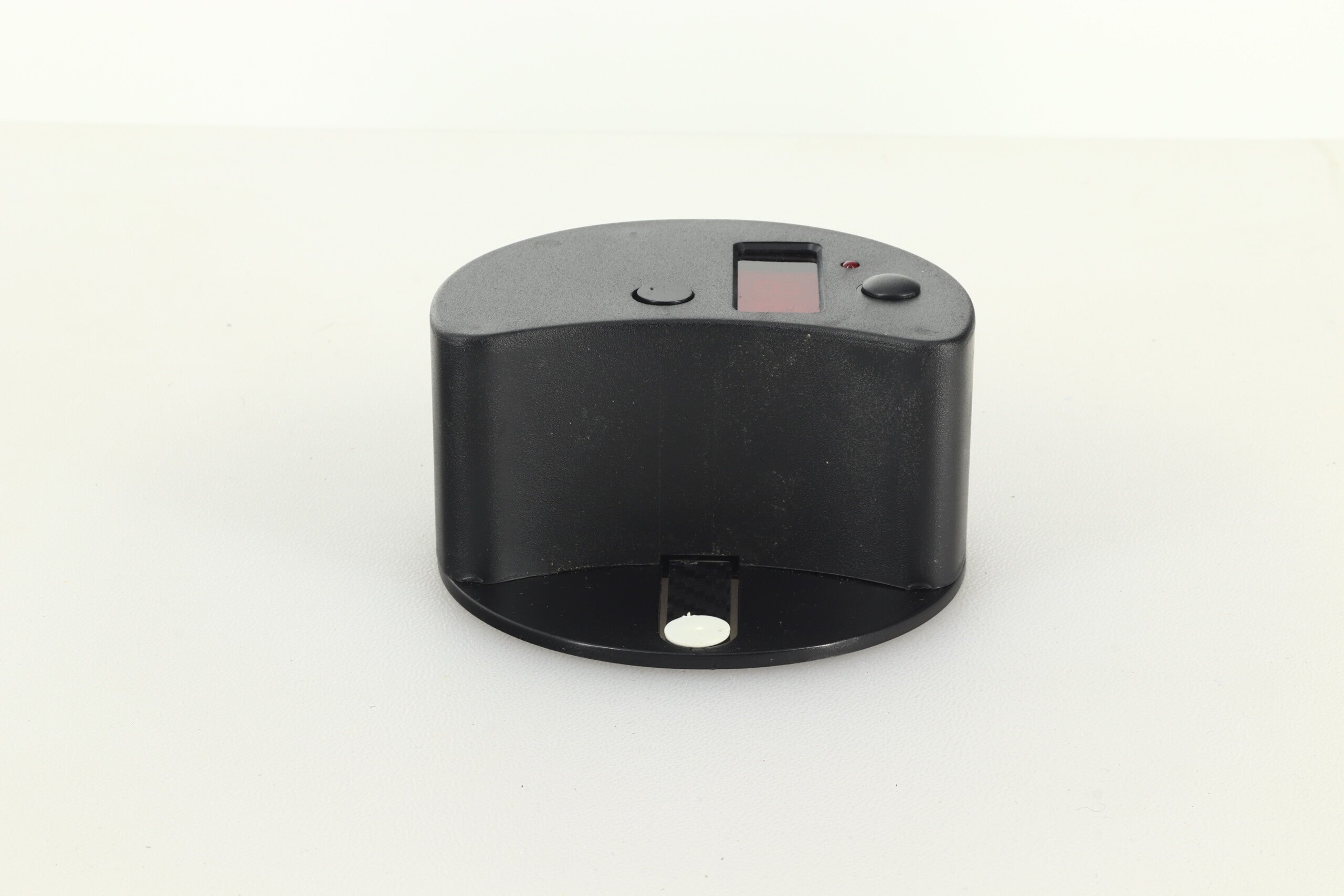

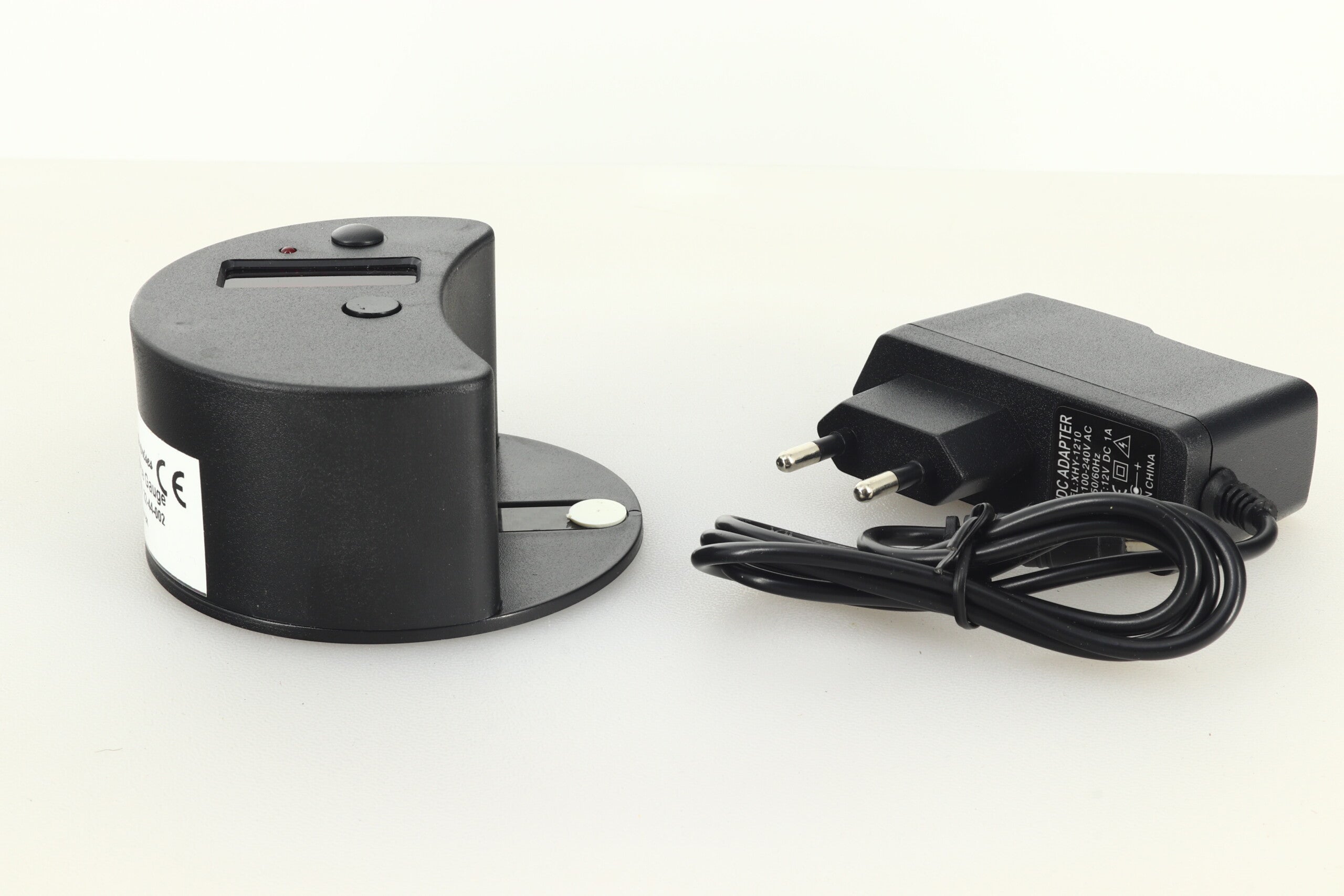

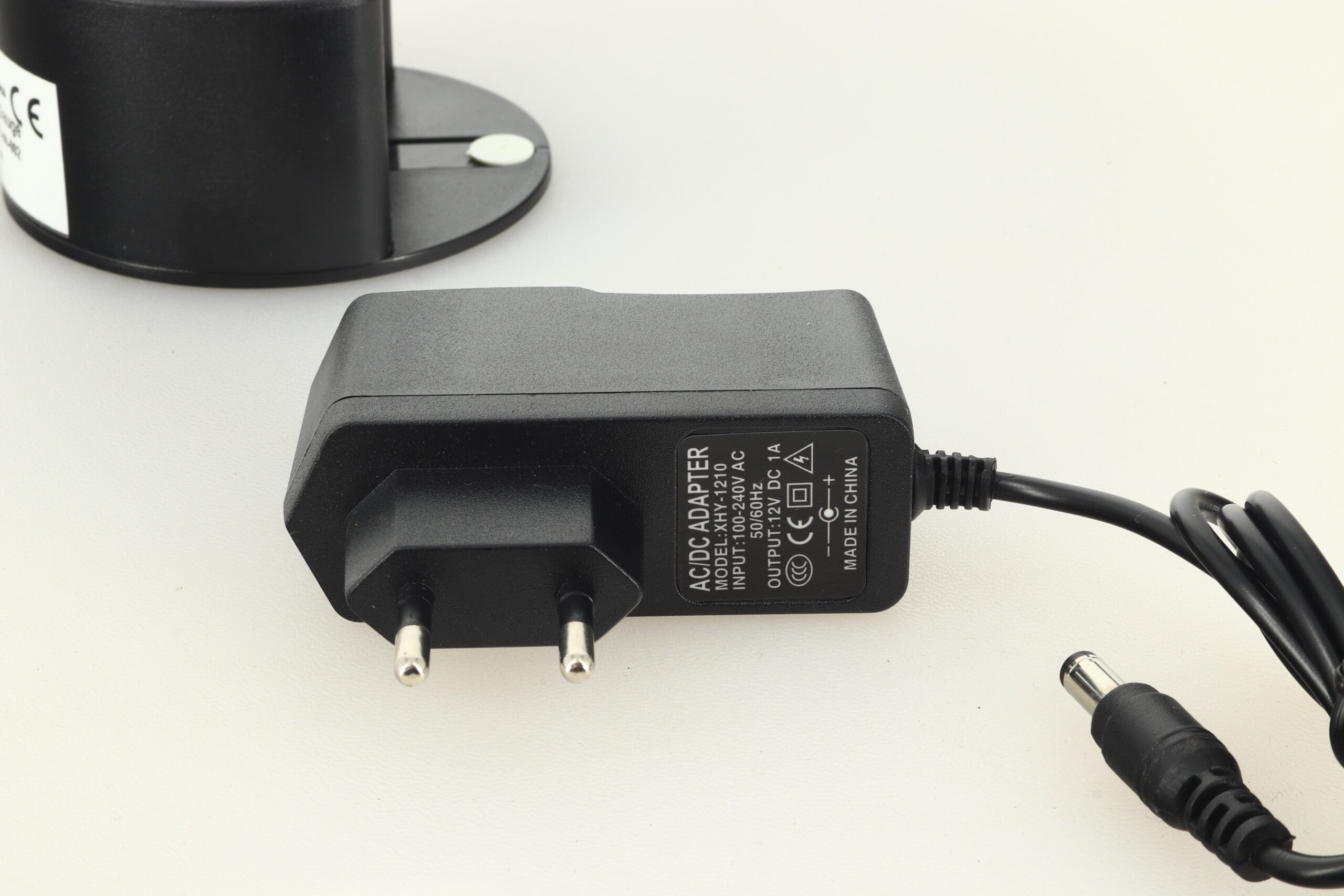

The Cartridge Man Digital Stylus Force Gauge is housed in a 4" diameter moulding that contains the strain-gauge mechanism, digital readout and rechargeable battery. Battery charger is supplied. Accurate to 1/50th of a gram over the range of 0-4 grams with auto zeroing after each use.
Failure to accurately set your track force will degrade sonic performance, increase mis-tracking and even damage the record and stylus. The Cartridge Man Digital Stylus Force Gauge is the Most Reliable and Spot-on Accurate Gauge Available!
Specifications:
Measurement range: 0.2 to 4.0 g
Accuracy: Better than 0.05 g over full adjustment range
Resolution: 0.02 g
Useable period: 30 minutes per full charge
Display: 3 digit LED
Status indication: Display test, battery low and voltage indication, nulling fault and overload.
Recharging cycle: 14 - 24 hours
Weight: 150 g nominal.
Dimensions: 45 mm (H) x 87 mm (DIA)

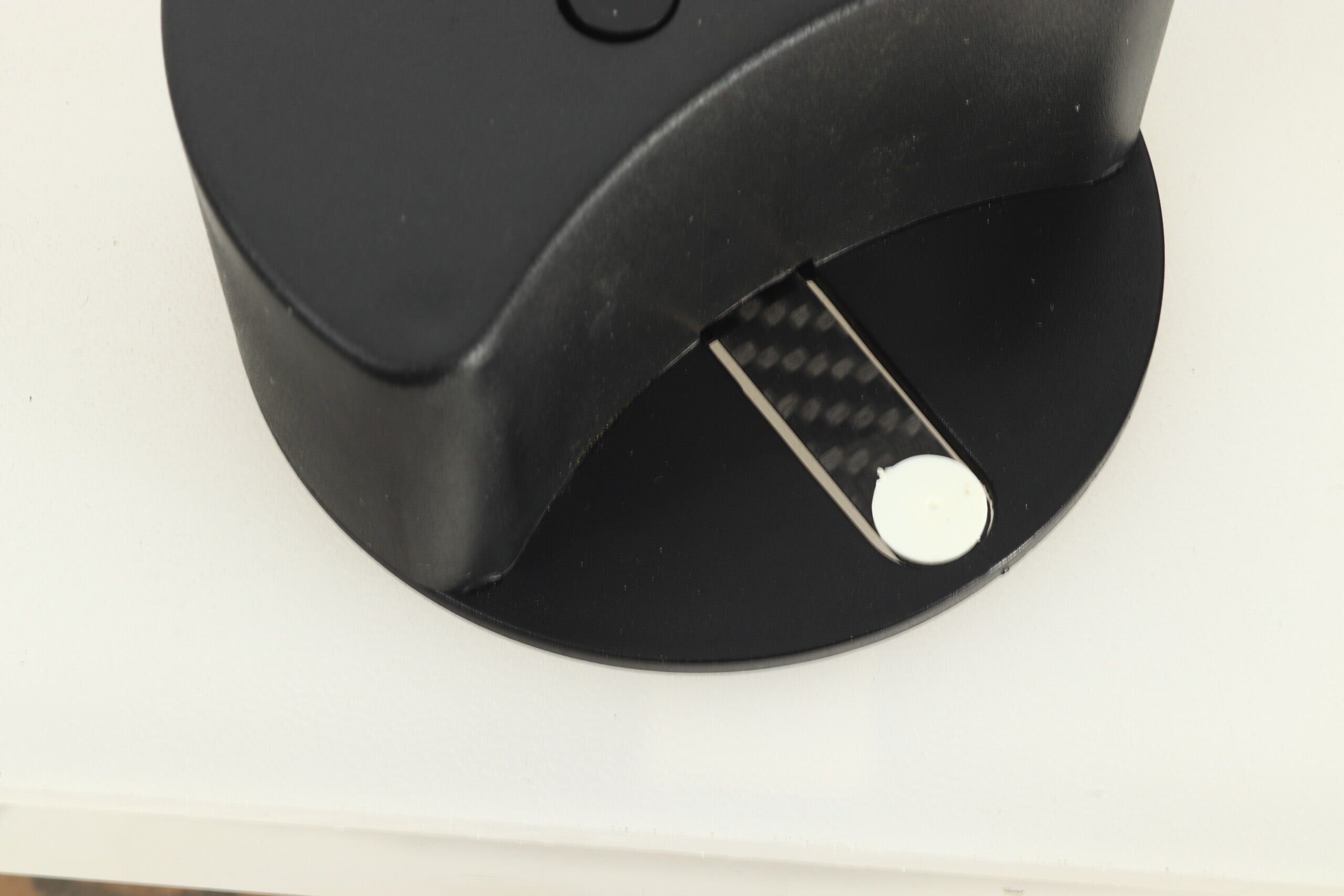

Construction: Non-magnetic force pad & cantilever, plastic housing with anti-slip feet
