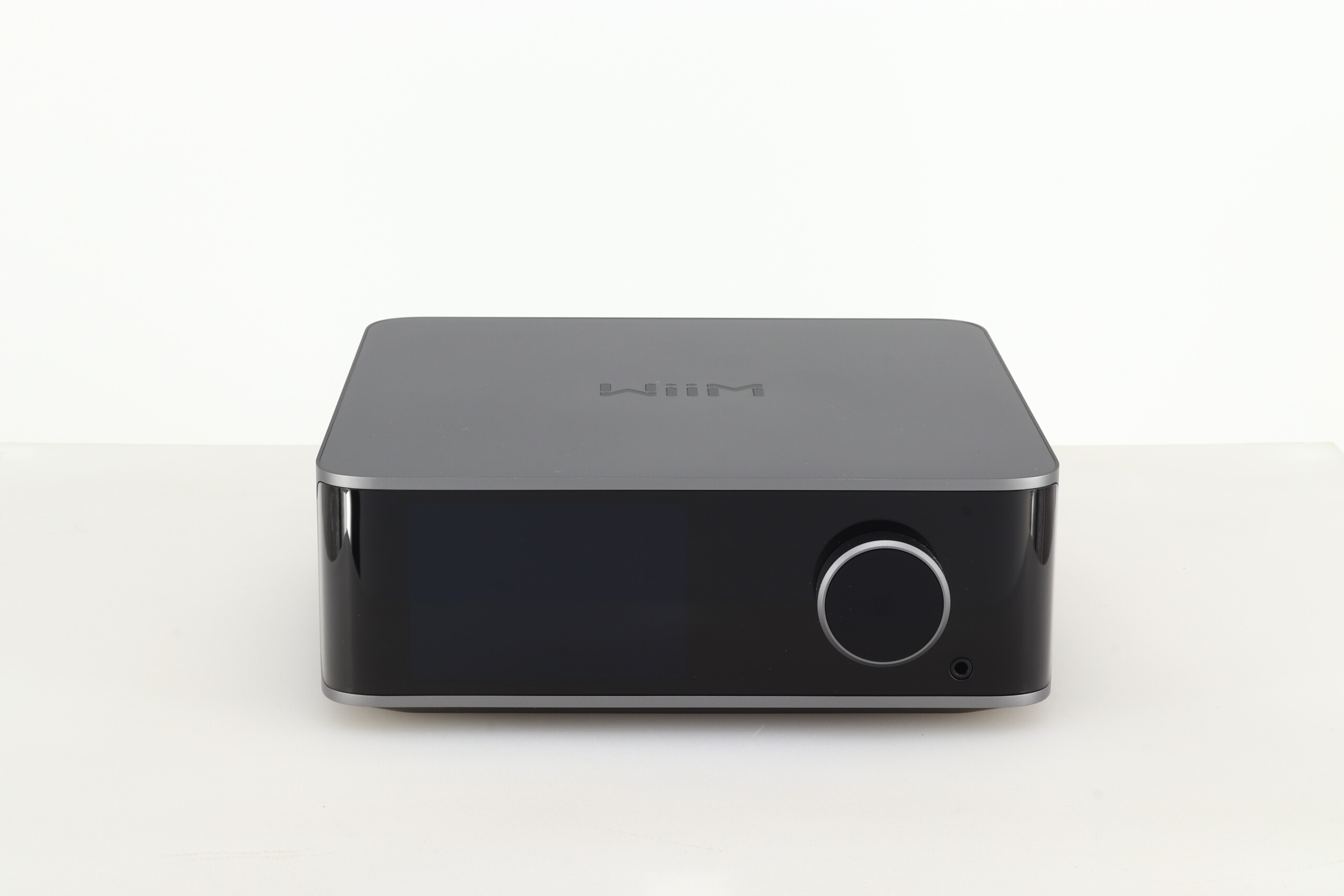

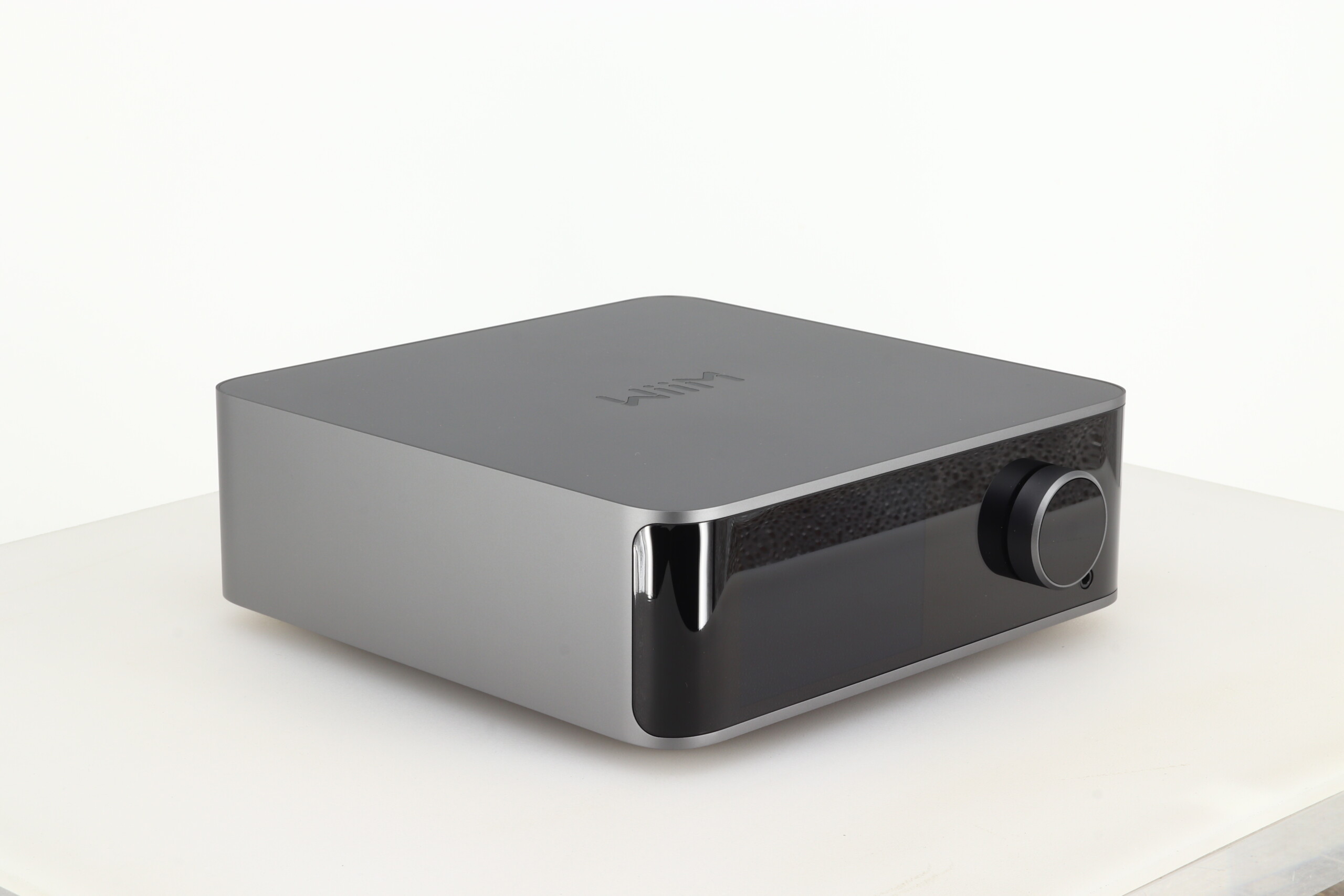

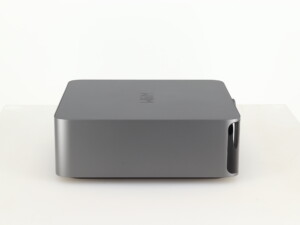

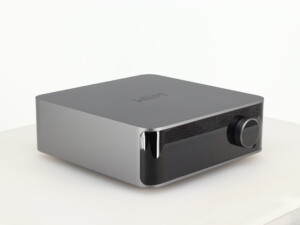

WiiM Ultra Streamer

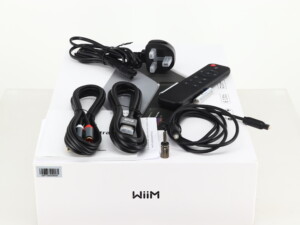

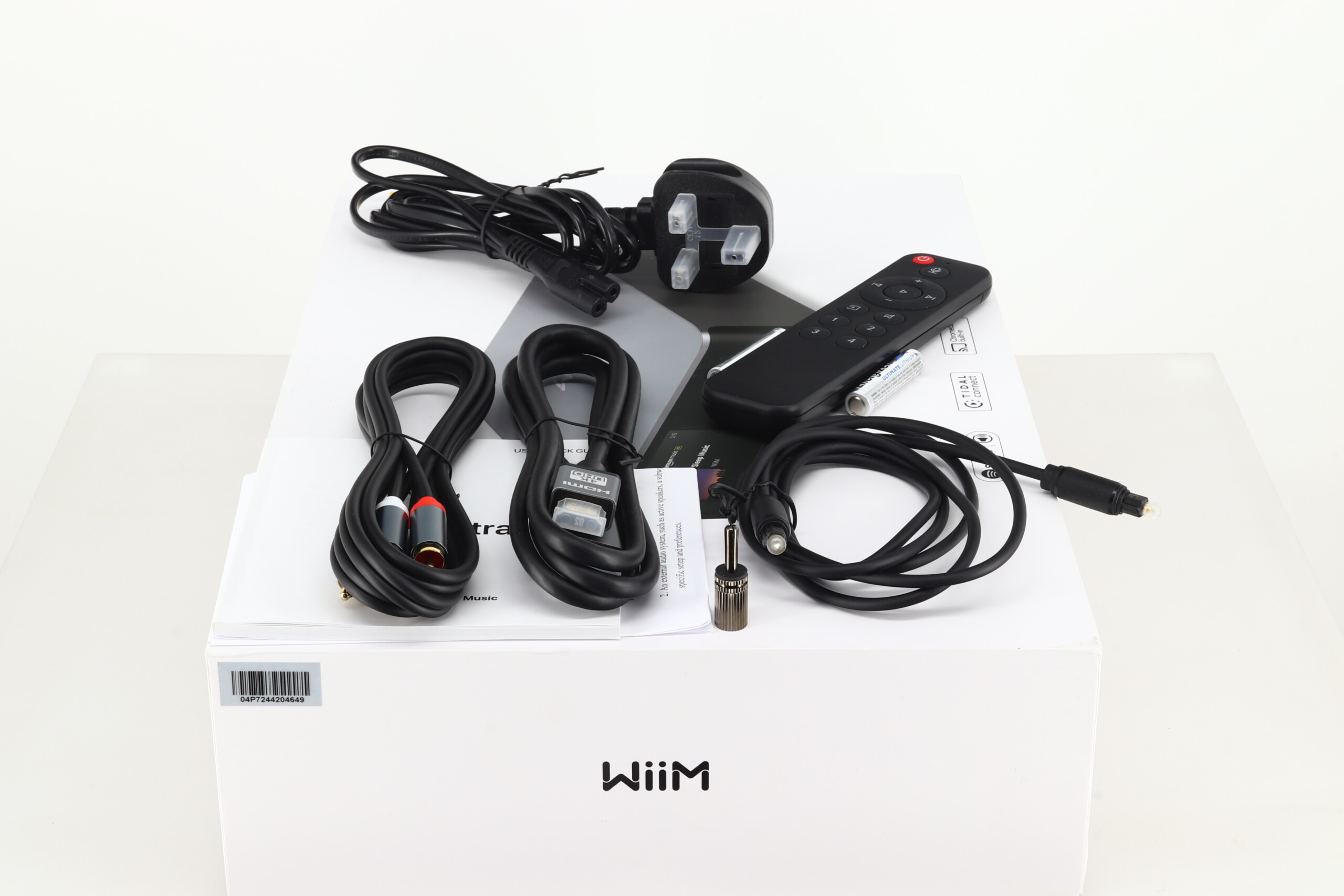

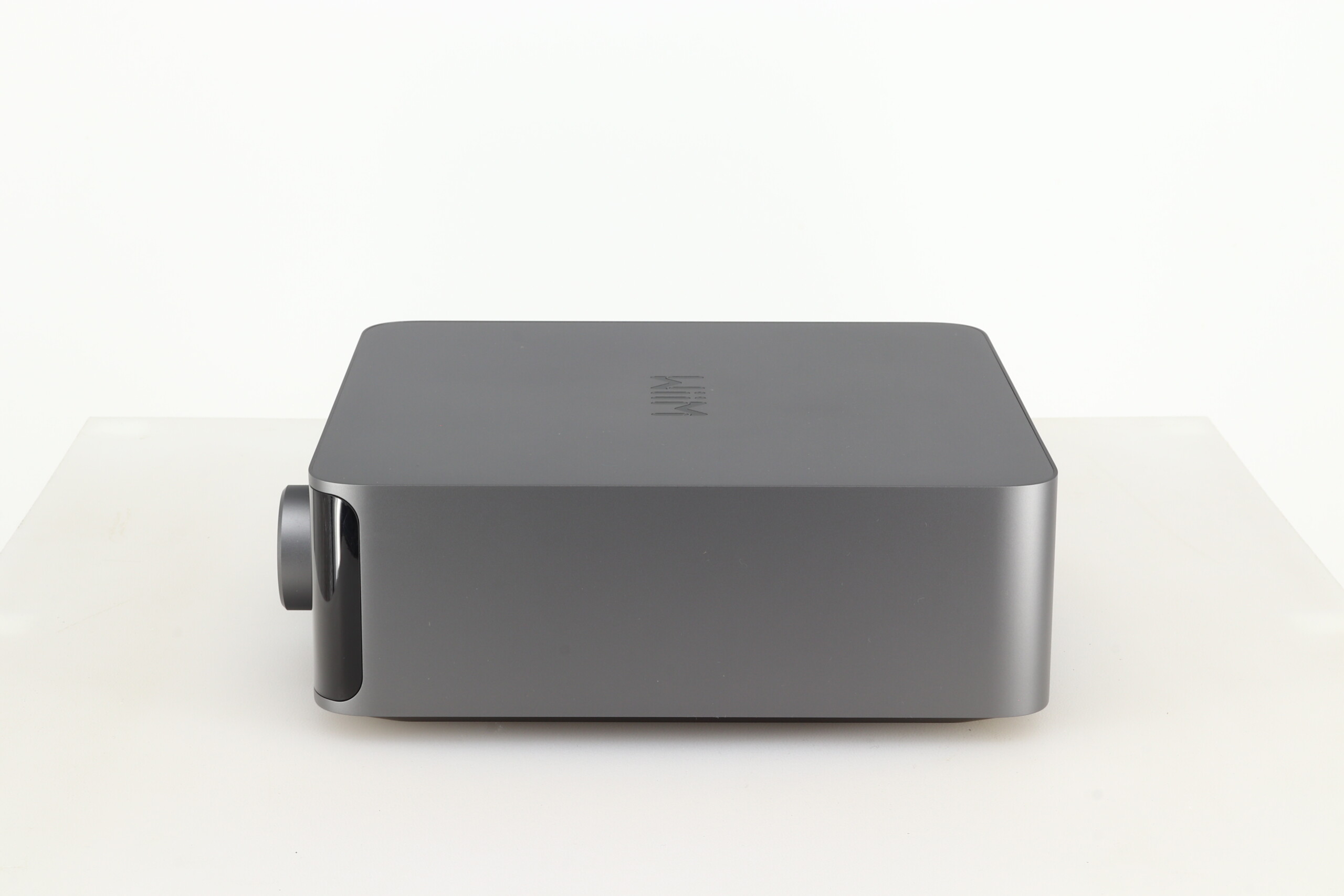

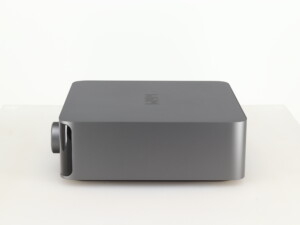

Here we have a nice simple and convenient way of adding music streaming to your existing hi-fi set-up. The Ultra from WiiM is not only a streamer but it has a digital to analogue converter and pre-amplifier built in to a relatively compact unit. It comes in very good condition, with original packaging, remote control, manual, HDMI cable, interconnect (RCA) cable, optical cable, mains cable and our standard three month warranty.
WiiM Say….
Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5″ glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.
Premium 32-bit/384 kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116 dB and an SNR of 121 dB for Line Out, up to – 99 dB THD+N and 119 dB SNR for headphone out.

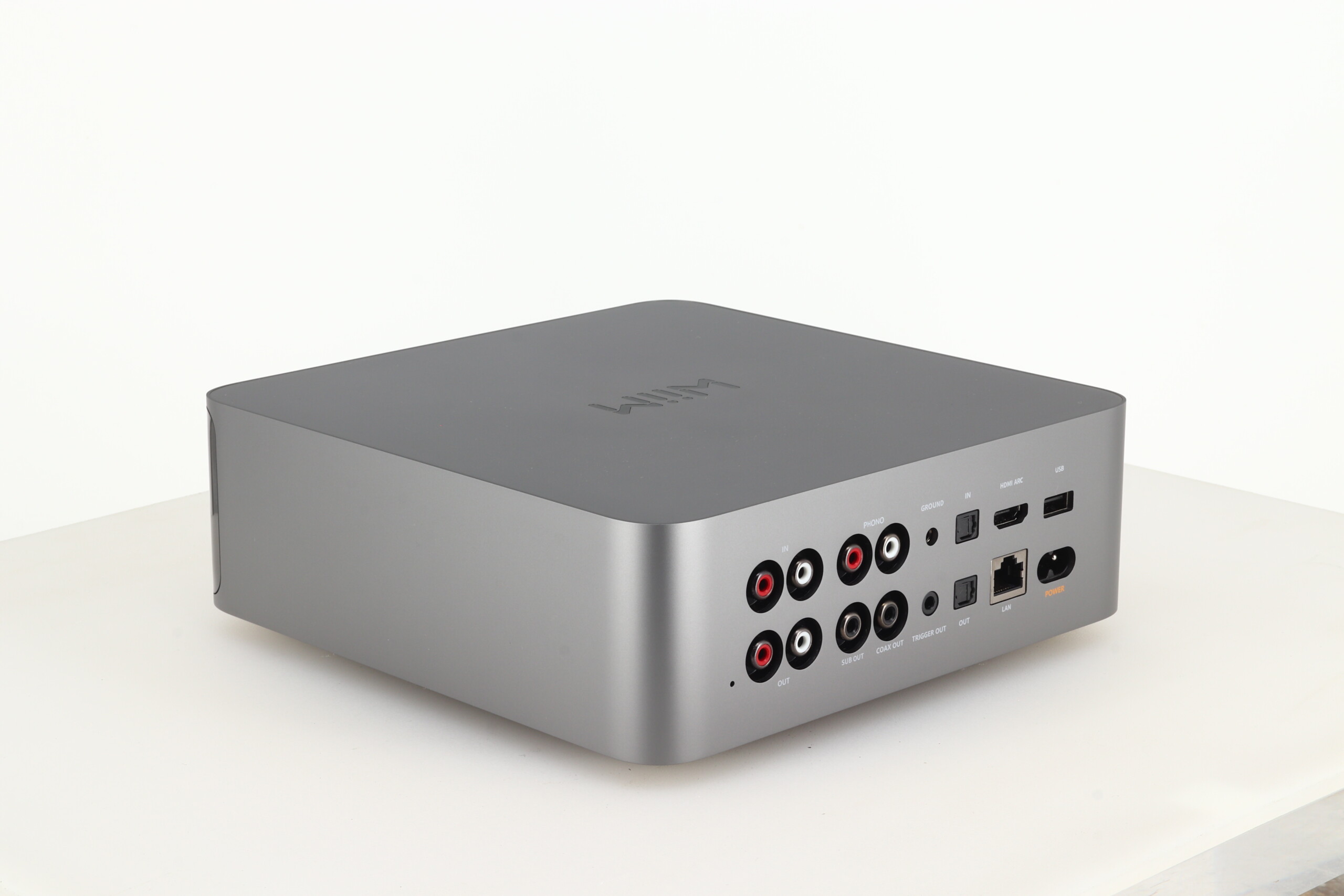

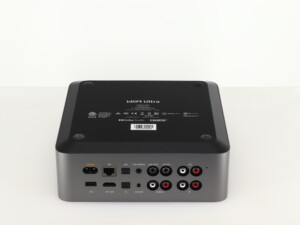

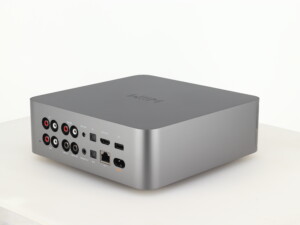

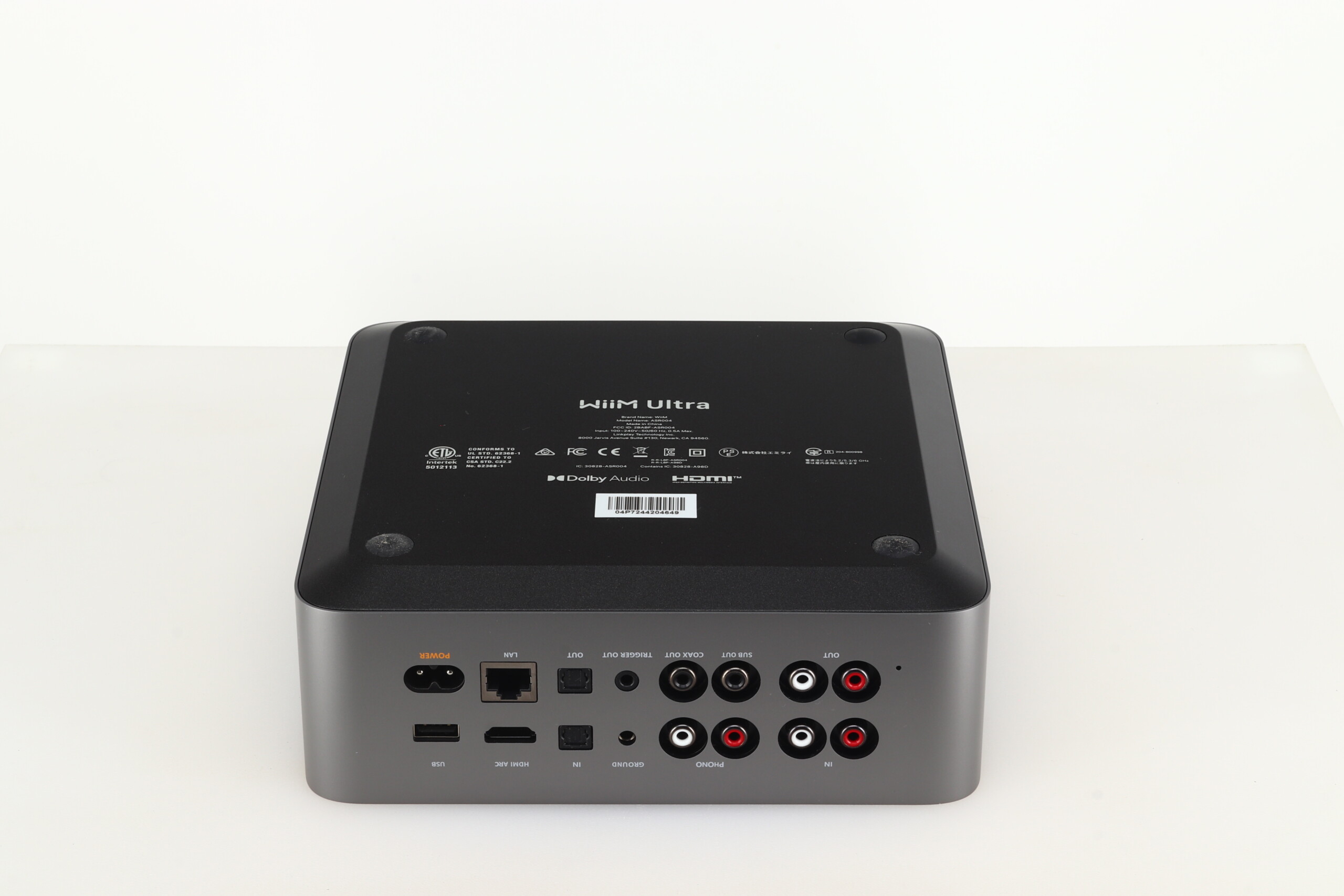

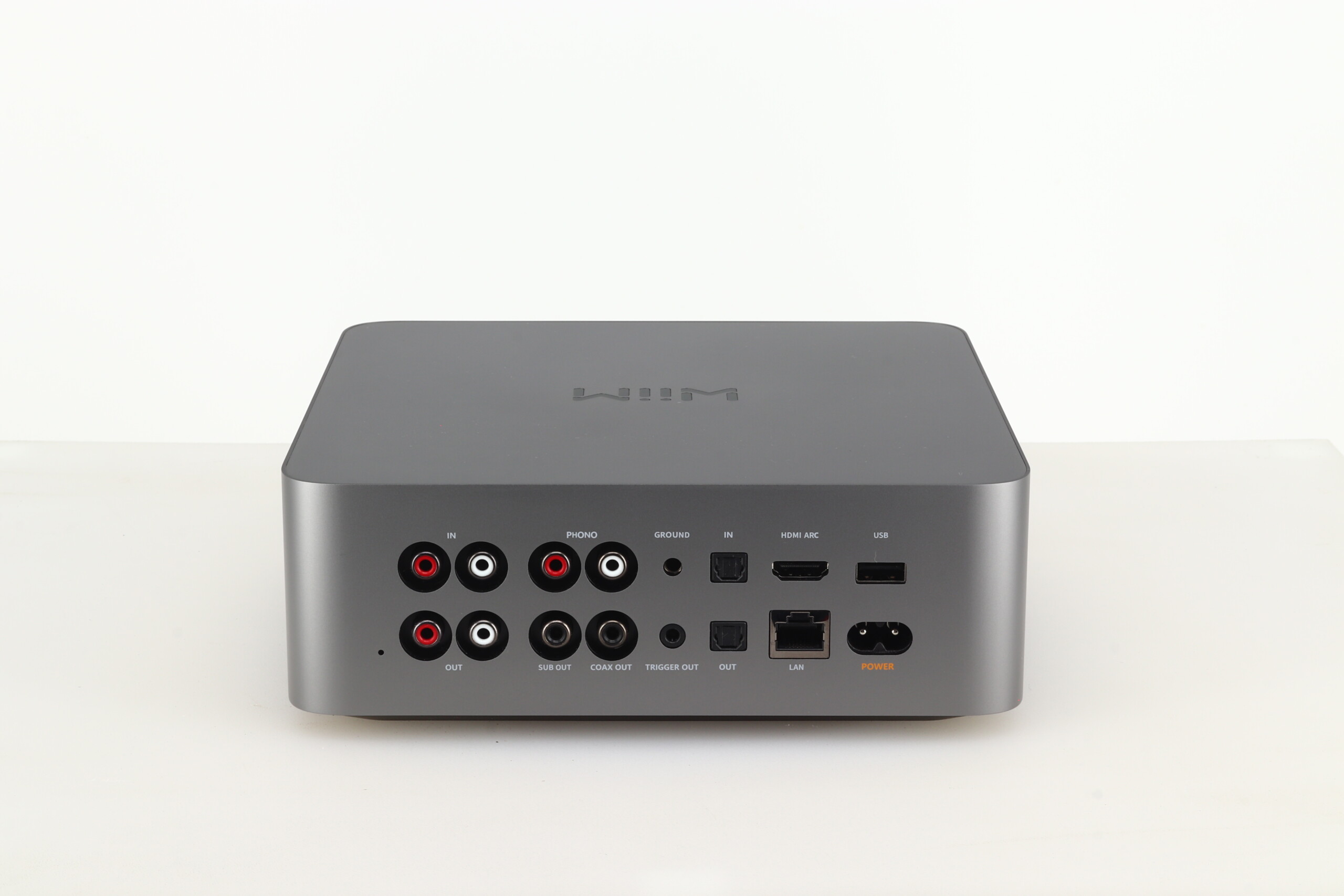

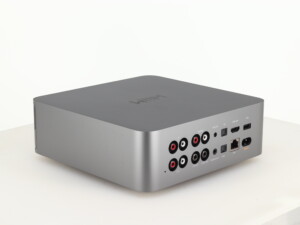

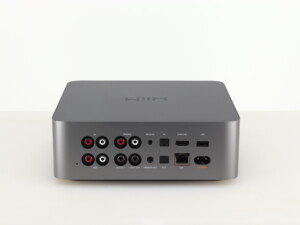

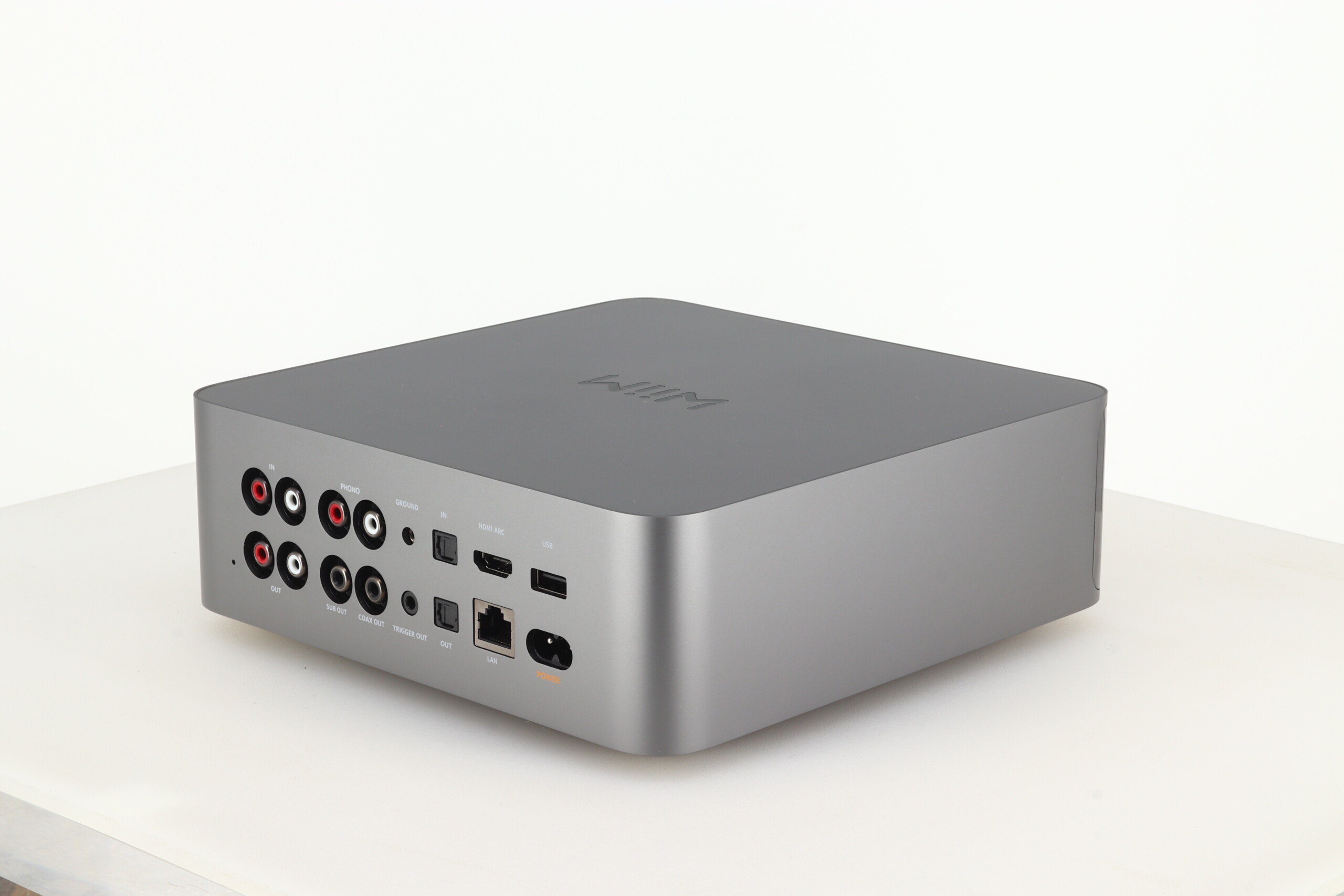

WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.

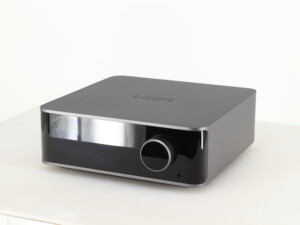

Features a 3.5″ vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user’s actions.
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favourite tunes, set alarms, and customize settings, all from one central hub.
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
Quickly enhance your entertainment with the WiiM Ultra’s HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.
Specifications:
Wireless Connectivity: Wi-Fi 6 (Upgradeable to Wi-Fi 6E via software update)
Bluetooth: BT 5.3
DAC IC: ESS ES9038 Q2M
Analog Out SNR: 121 dB
Total Harmonic Distortion + Noise: – 116 dB (0.00015%) (Analog Out)
Analog Input (ADC): Up to 192 kHz, 24-bit
CPU: Quad Core A53
Audio Input Ports:
HDMI ARC: Up to 192 kHz/24-bit, Supports Stereo PCM and Dolby Digital, but not DTS.
Optical In: Up to 192 kHz/24-bit, Supports Stereo PCM and Dolby Digital, but not DTS.
Line In: 2 Vrms, Analog signal, converted to digital via ADC (up to 192 kHz/24-bit)
Phono In (MM/MC): Gain: 41 dB MM / 59 dB MC; MM: THD+N – 75 dB, SNR 76 dB @ 5 mV; MC: THD+N – 58 dB, SNR 56 dB @ 0.5 mV; RIAA accuracy: < ± 0.5 dB / 20 Hz – 20 kHz
Audio Output Ports:
Line Out: Maximum output: 2.1 V RMS; SNR: 121 dB (A-WT); THD+N (1 kHz): 0.00018% (- 115 dB) for 44.1 kHz to 192 kHz; FR curve: +/- 0.05 dB
Optical Out: Up to 192 kHz / 24-bit
COAX Out: Up to 192 kHz / 24-bit
USB Out: Up to 192 kHz / 24-bit; UAC 2.0; DC 5 V/1.5 A power output
Headphone Out: 300 ohms: SNR (119 dB), THD+N (- 99 dB); 32 ohms: SNR (119 dB), THD+N (- 92 dB)
External USB Storage: Access personal media library and use it as a media server for other WiiM and DLNA devices. Support FAT32, NTFS, and EXT4 file systems.
12V Trigger Out: 3.5 mm port; Load-carrying capacity: DC 12 V/200 mA
LED: Four-color status LED – Red, Green, Blue, and White
Control: 3.5-inch touchscreen, volume knob, play/pause, setup, and more
Power Input 100 – 240 V AC input, 50/60 Hz, 0.5 A Max
Dimensions: 200 (W) x 211 (D) x 72 (H) mm
Weight: 1.42 kg
