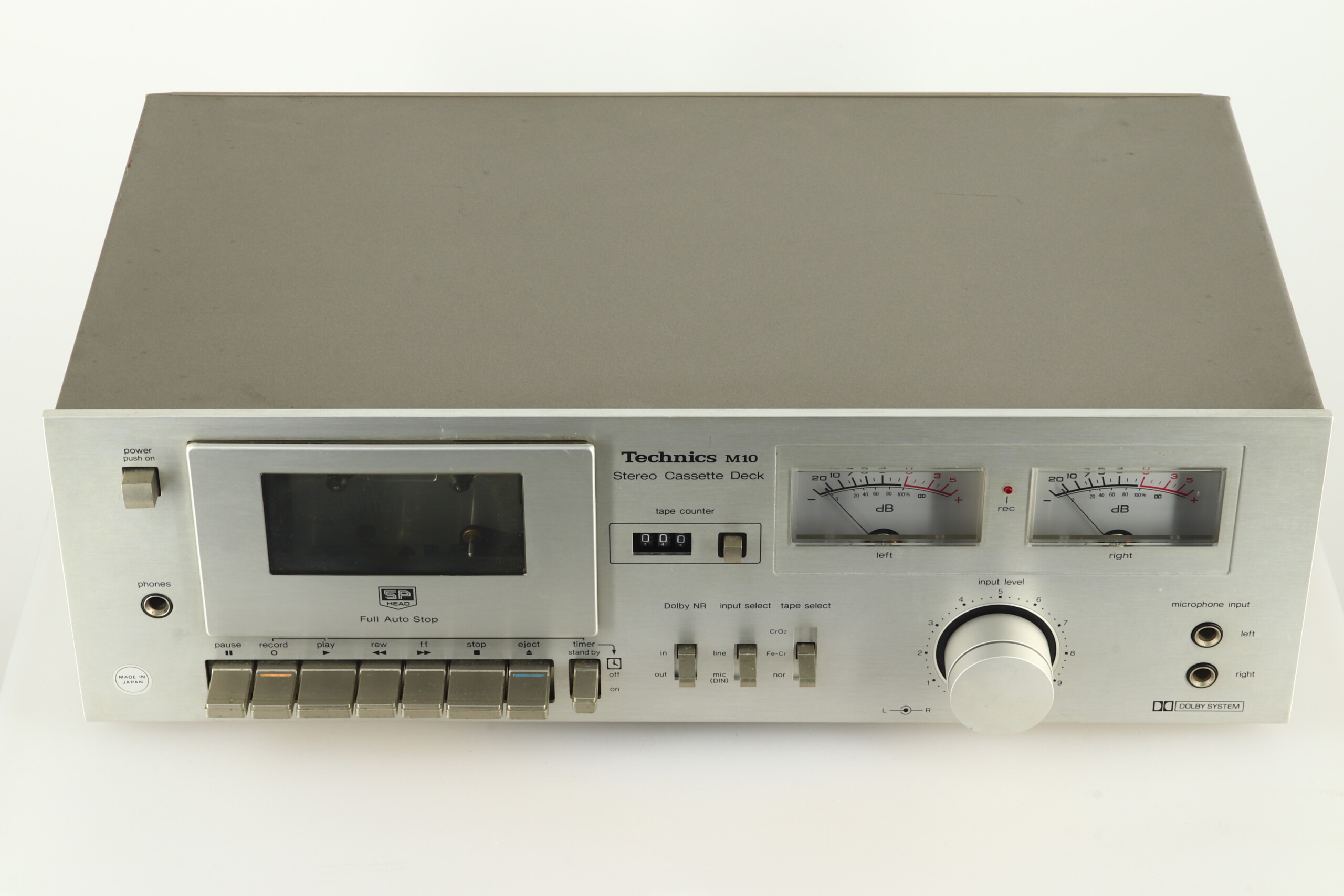

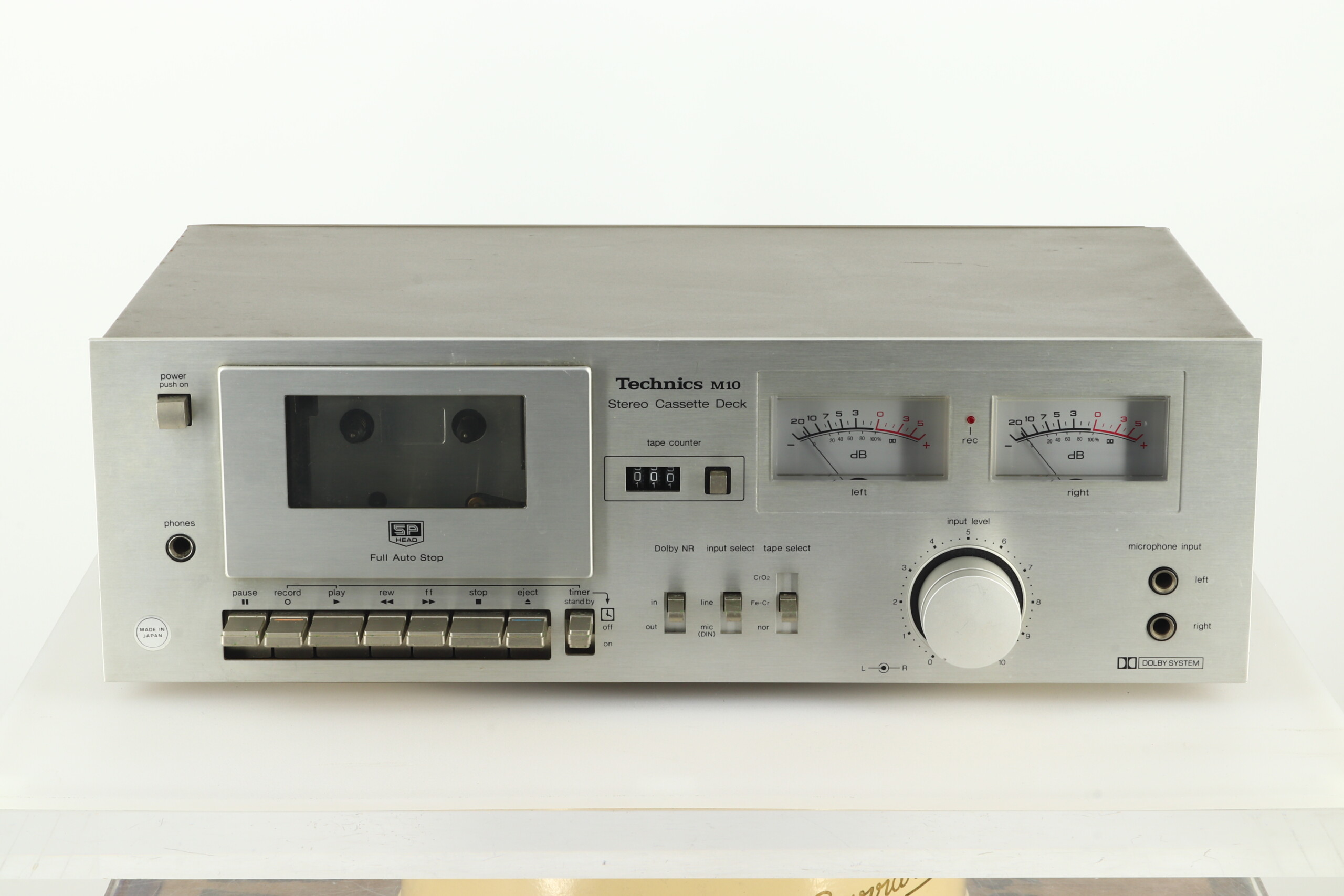

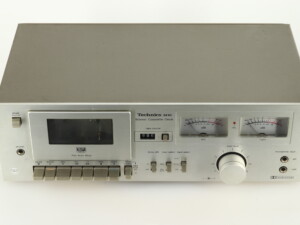

Technics RS-M10 Cassette Deck

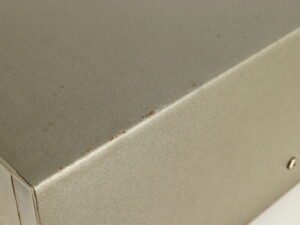

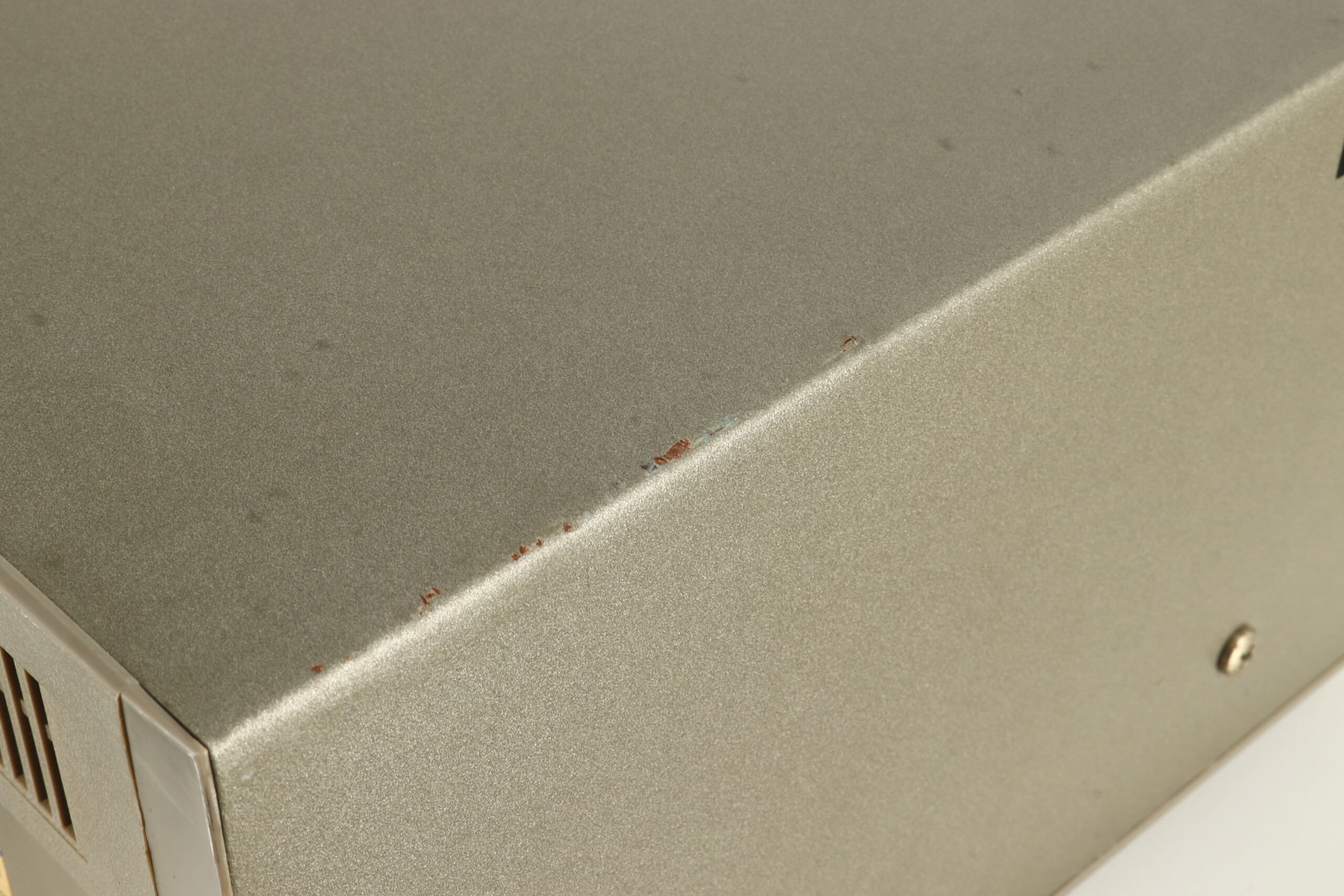

Introduced in 1979 by Technics, the RS-M10 stereo cassette deck came before the peak in pre-recorded cassette tapes and now, with the renewed interest in cassette tape, decks such as this are quite sought after. This example is in fully working condition, after being cleaned, and tested, although it does have some age-related cosmetic imperfections. It will come professionally packaged with our normal 3-month warranty.

Service data:

cleaned tape heads and path
checked speed : drift ~0%
W&F : >0.15%
torque : ~38g/cm

***********************************************************

Technics Specifications:
Type: Stereo cassette deck
Heads: Recording: LH Head; Erasing: double-gap ferrite heads
Motor: Electronic control DC motor
Track System: 4-track 2-channel stereo recording and playback
Tape Speed: 4.8 cm/s
Wow and Flutter: 0.06% (WRMS), ± 0.15% (DIN)
Frequency Response: CrO2/FeCr tape: 25 – 15,000 Hz; 30 – 14,000 Hz (DIN); Normal tape: 25 – 14,000 Hz; 30 – 13,000 Hz (DIN)
Signal-To-Noise Ratio: Dolby NR In: 66 dB (above 5 kHz); Dolby NR Out: 56 dB
Fast Forward And Rewind Time: Approx 86 seconds with C-60 cassette tape
Input: MIC: Sensitivity 0.25 mV, Input impedance 33 kΩ, Applicable microphone impedance 400 Ω – 10 kΩ; LINE: Sensitivity 60 mV, Input impedance 47 kΩ
Output: LINE: Output level 420 mV, Output impedance 1 kΩ or less, Load impedance 22 kΩ over; HEADPHONE: Output level 65 mV, Load impedance 8 Ω
Rec/pb connection: 5 P DIN type: Input sensitivity 1 mV, Impedance 82 kΩ Output level 420 mV, Impedance 47 kΩ
Bias Frequency: 80 kHz
Head: 2-head system: 1-SP head for record/playback; 1-double-gap ferrite head for erasure
Power Requirement: 240 V AC, 50 Hz
Power Consumption: 10 W
Dimensions: 430 (W) x 251 (D) x 142 (H) mm
Weight: 5.0 kg
