£185.00
Manufacturer : Project
Model : Tube Box DS
Serial Number : E 33211

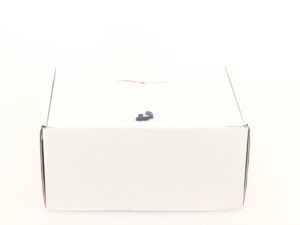

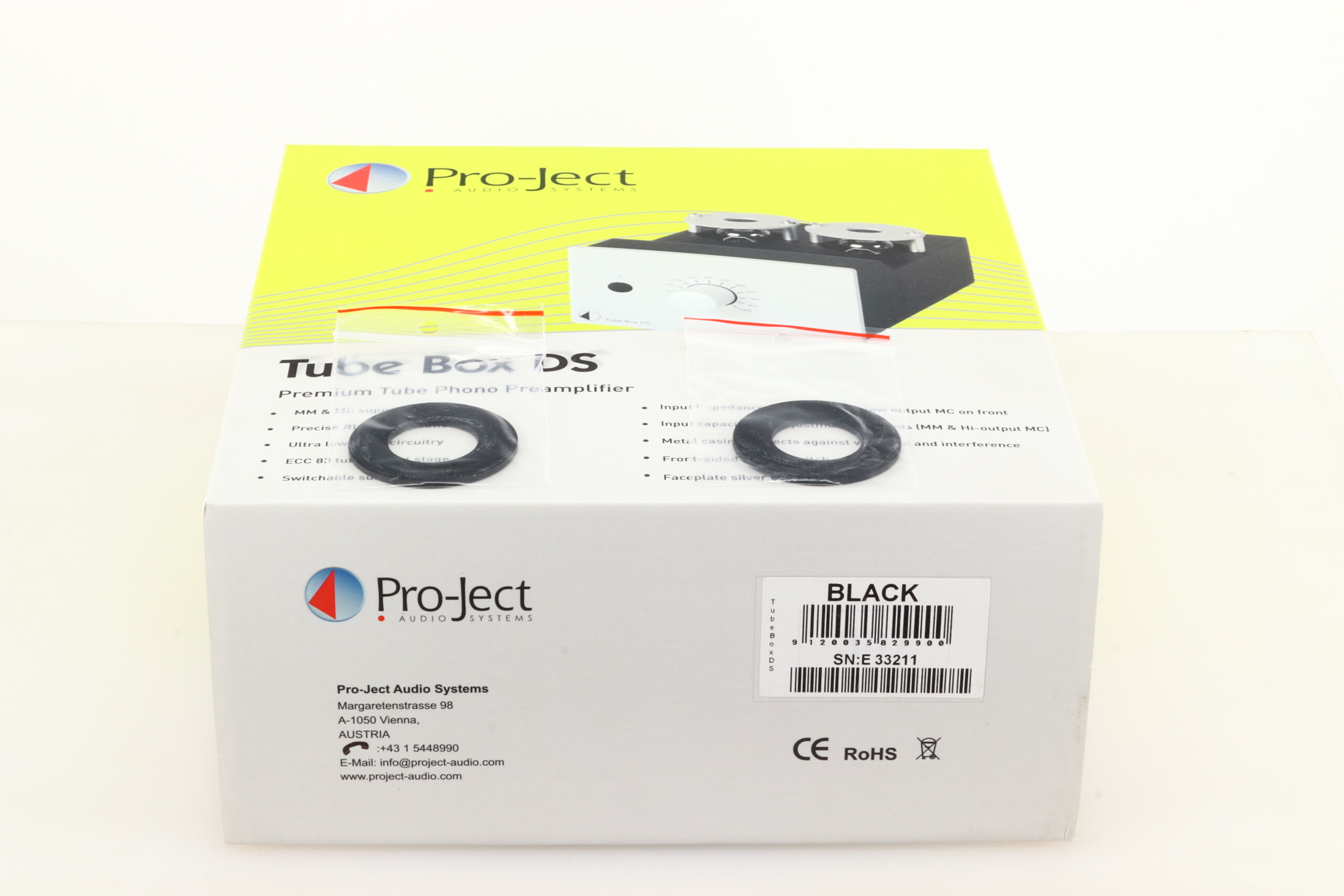

Packaging : Original

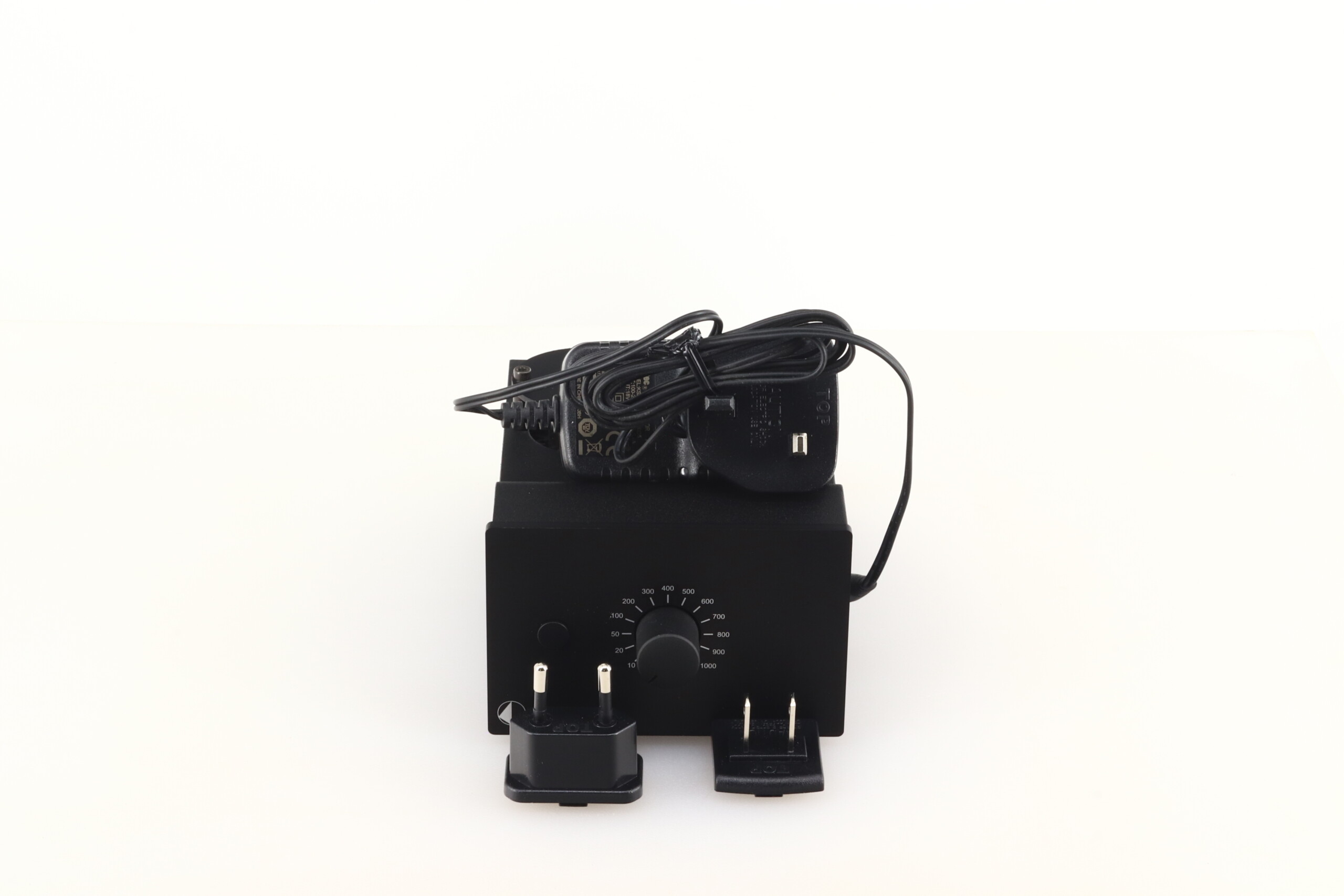

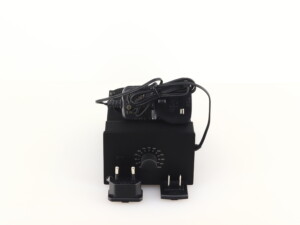

Accessories Included : Manual / PSU / 2x Schuko Plugs
Price When New : £500ish
Out of stock

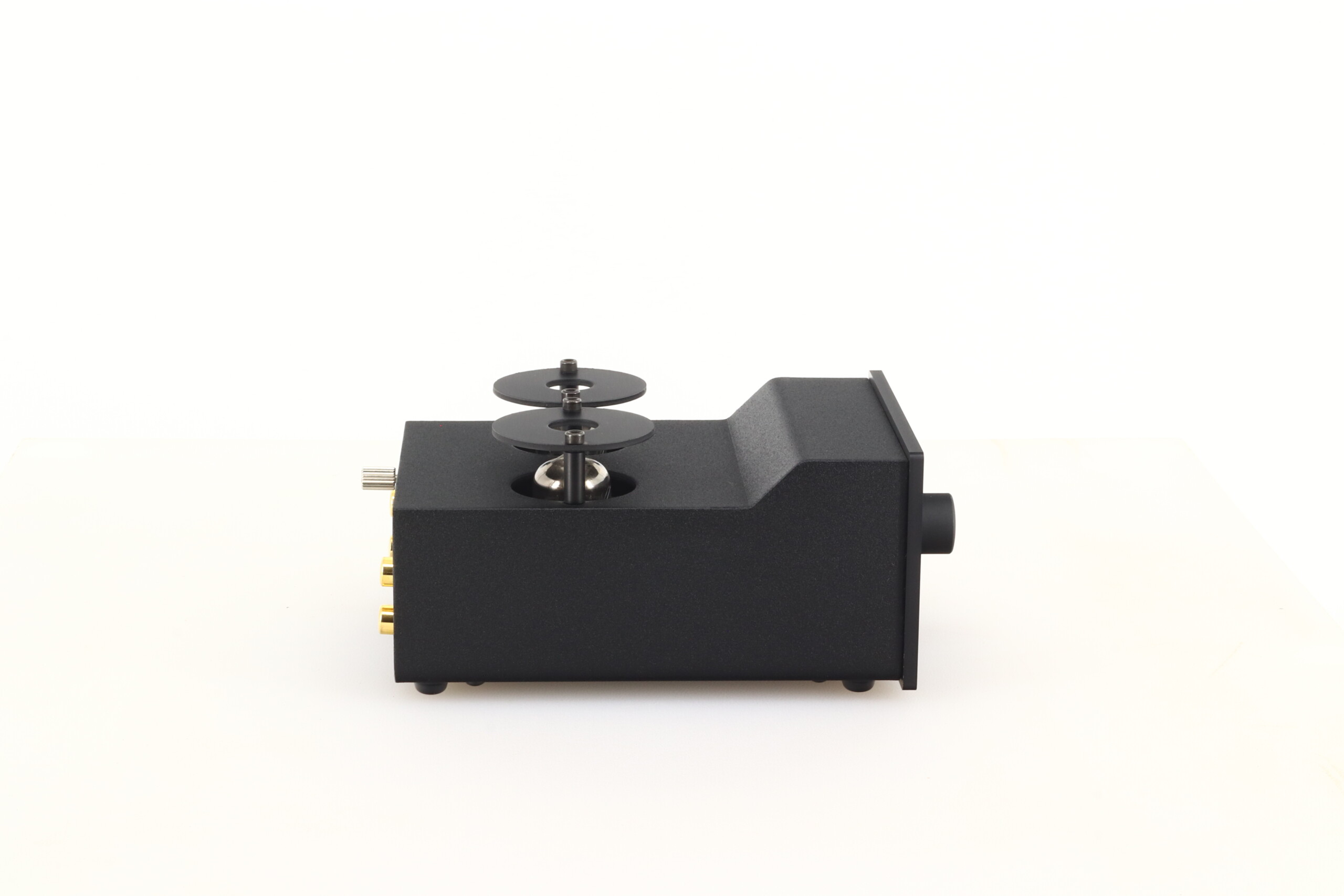

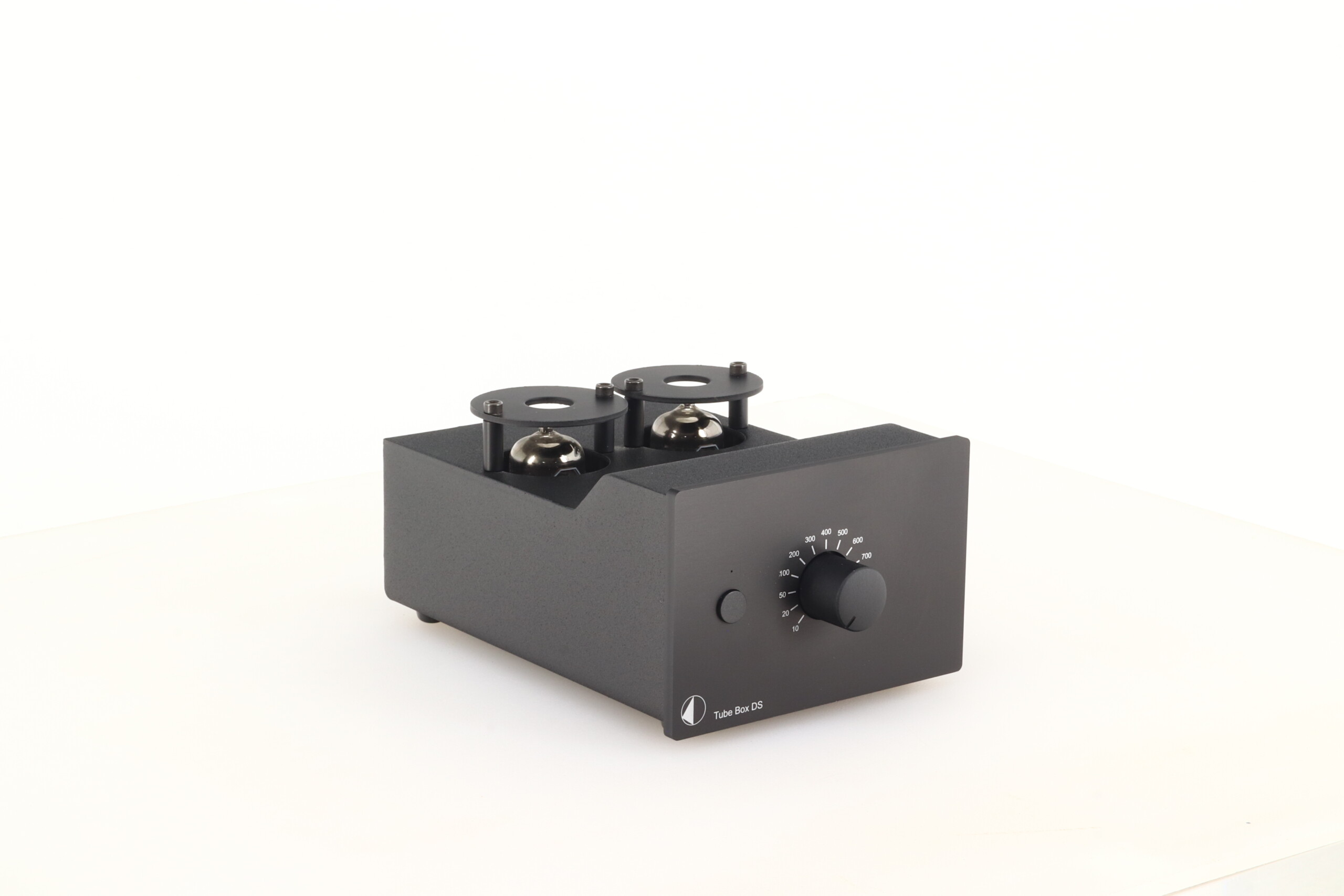

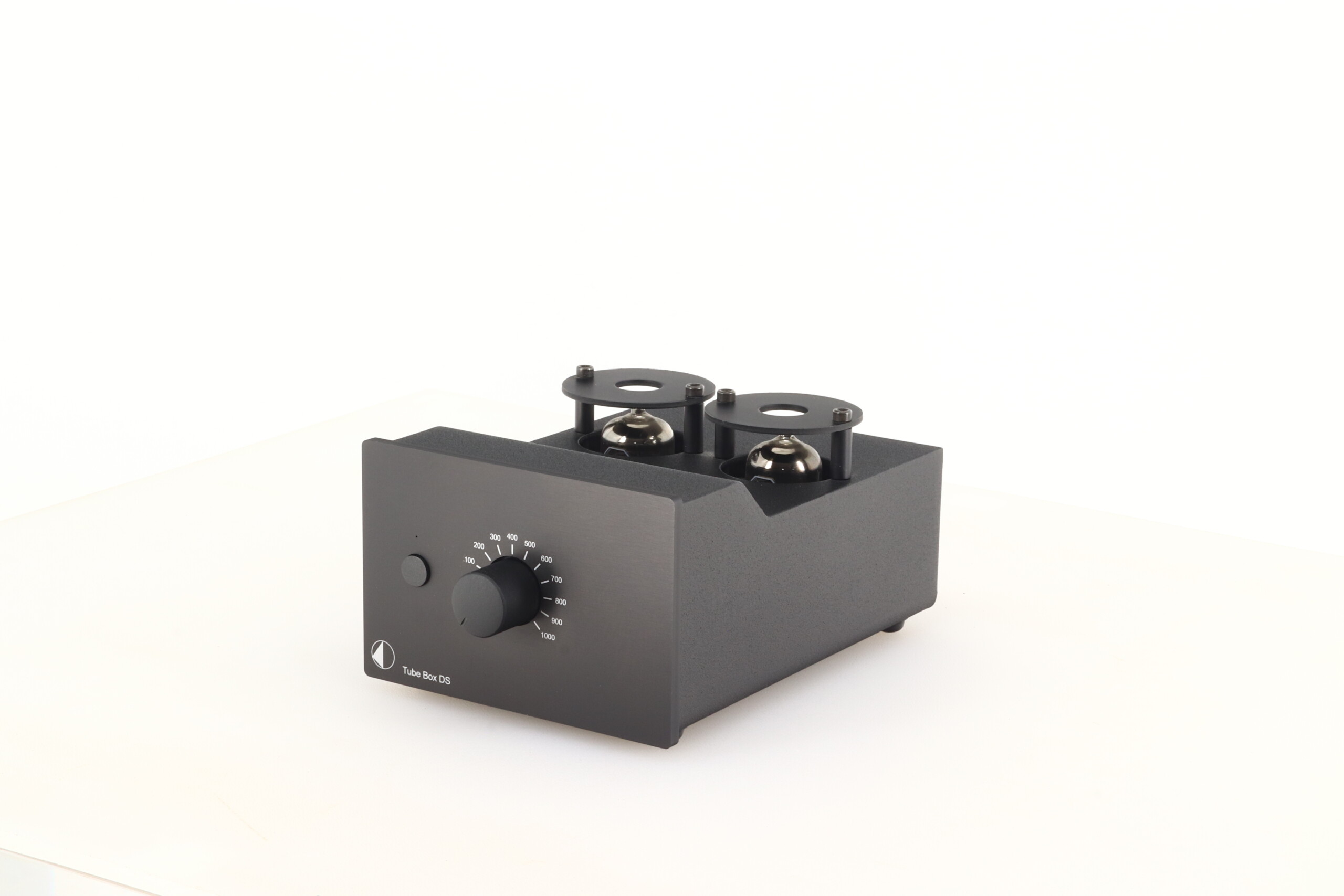

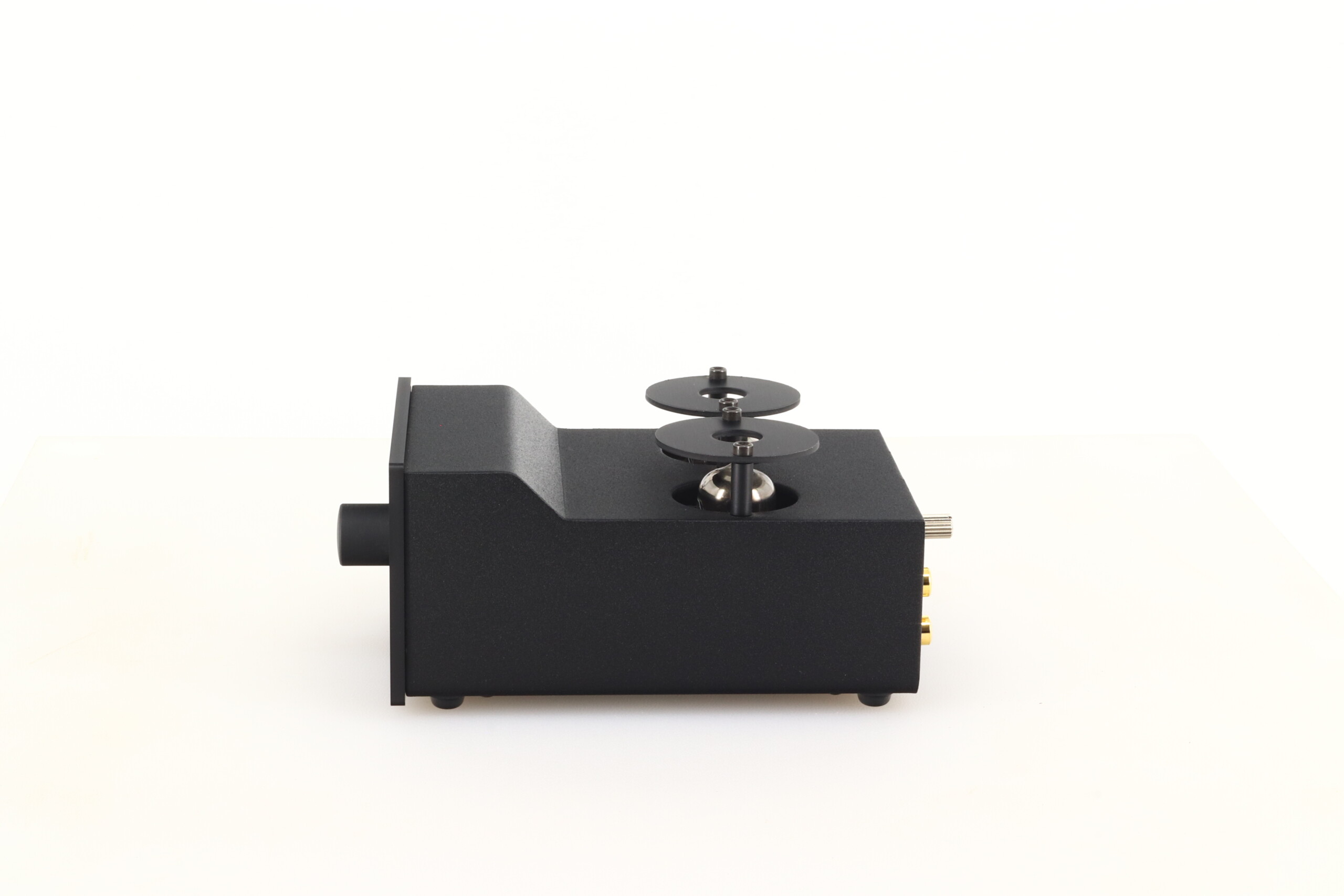

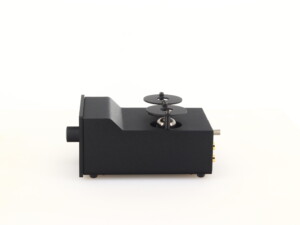

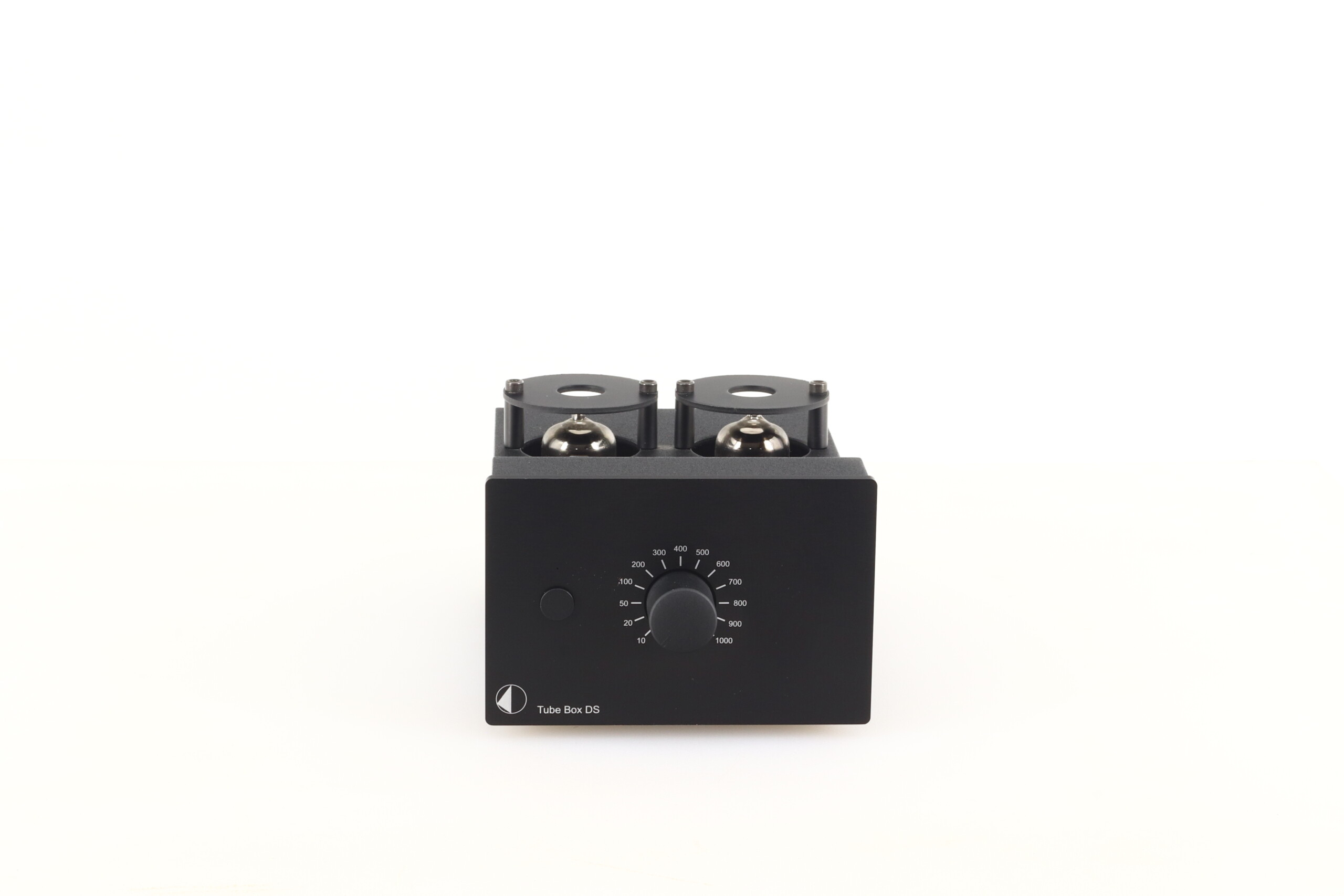

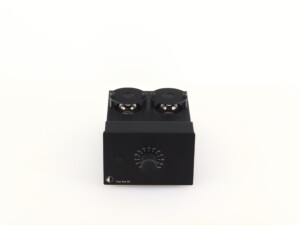

Here we have a neat solution for those wanting to add a phono stage to their amplification systems, with the added benefit of adding a little of that smooth valve sound. Our Tube Box DS from Pro-Ject is in very good condition and comes in original box with power supply unit, manual plus, our usual three month warranty.
Pro-Ject Say….
The Pro-Ject Tube Box DS is a valve-output phono pre-amplifier that offers improved performance over the original Tube Box S/E II, whilst maintaining an appealing price.
The Tube Box DS presents an impressive sound, making it a great audiophile upgrade for almost any mid-priced analogue hi-fi system. With a high-quality variable impedance dial and a switchable Sub-Sonic Filter, it can meet the needs of almost any MM or MC phono cartridge on the market. The carefully selected audiophile-grade components make it possible to enjoy your valuable vinyl collection like never before.
For cartridge matching, there is an extensive list of settings adjustment available. On top of the usual Gain and Capacitance adjustments, the Tube Box DS boasts a fully adjustable dial for attenuating the Input Impedance. This allows for perfect matching with almost any Moving Coil cartridge on the market, and it can even be adjusted during playback to tailor the sound perfectly to your preference.
The class-leading music reproduction qualities of the Tube Box DS deliver pure dynamics, full transparency, analogue warmth, bass texture, detail resolution and purity across all audible frequencies. All-in, it effectively brings a retro ethic to modern phono electronics.
This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. For the first time a variable selection of input impedance for MC cartridges can be done while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!
Key Features:

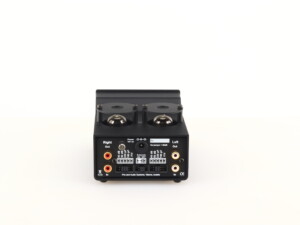

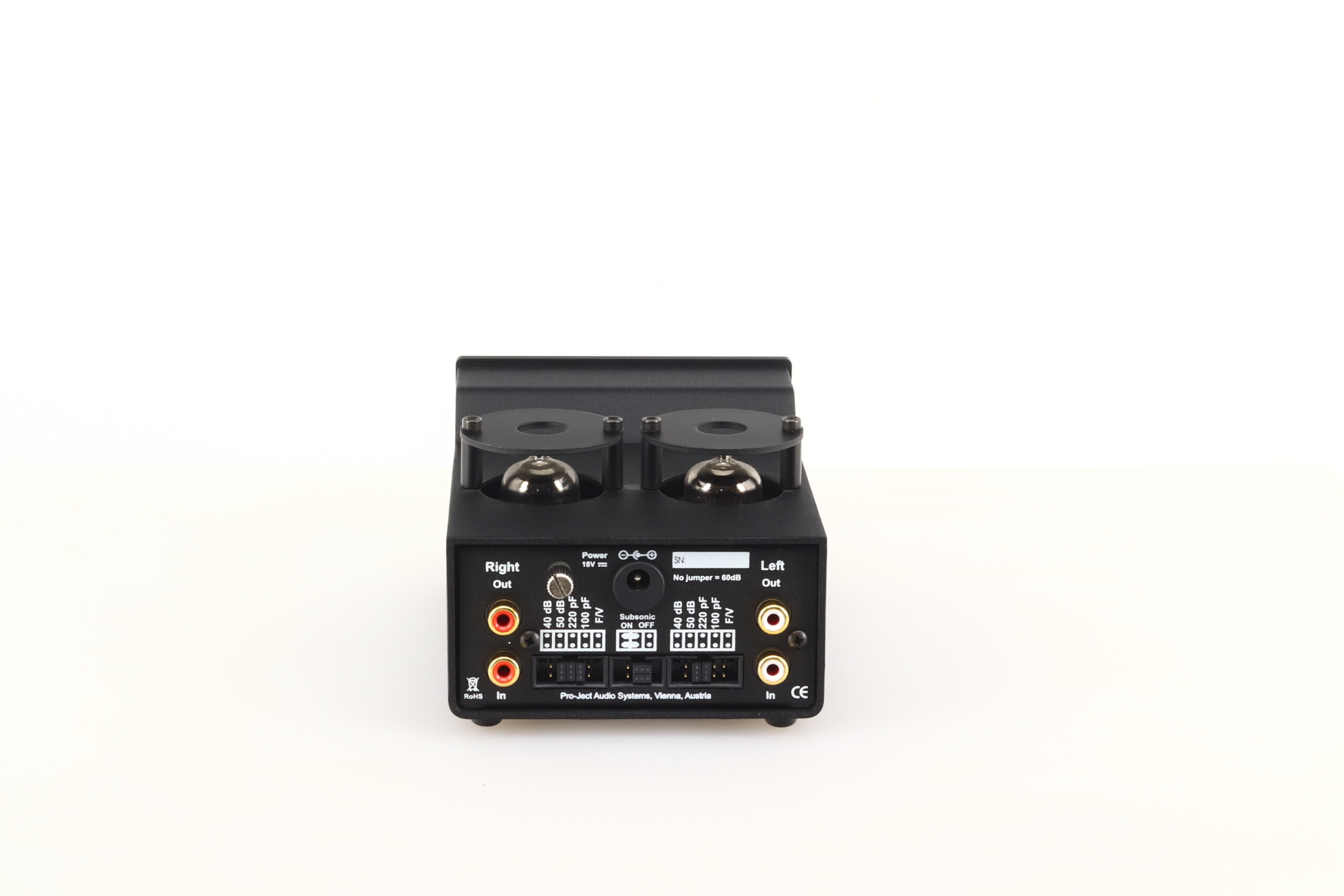

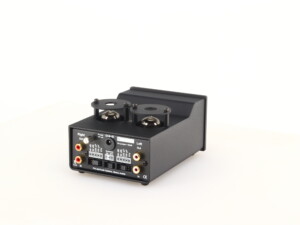

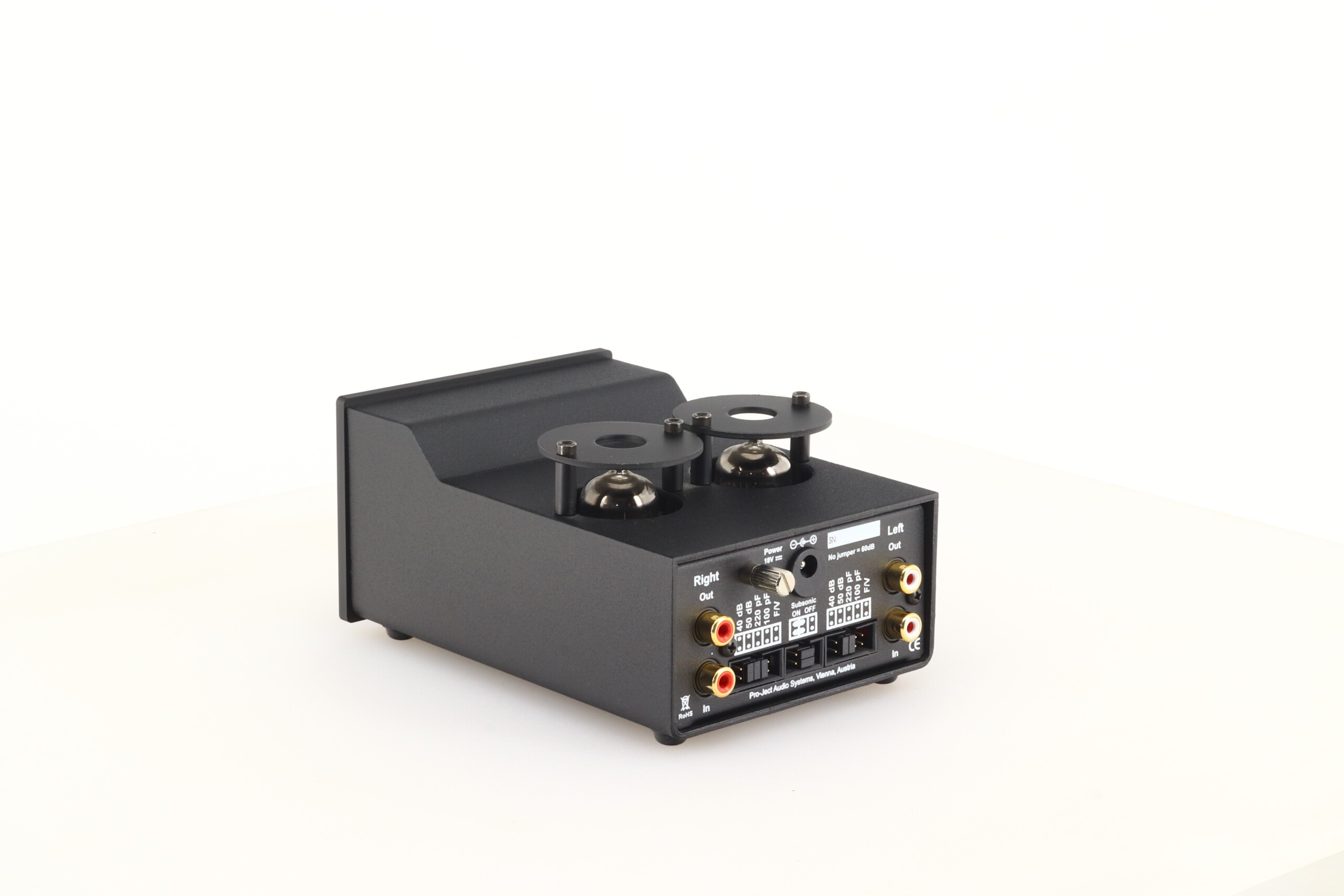

MM/MC switches on rear panel

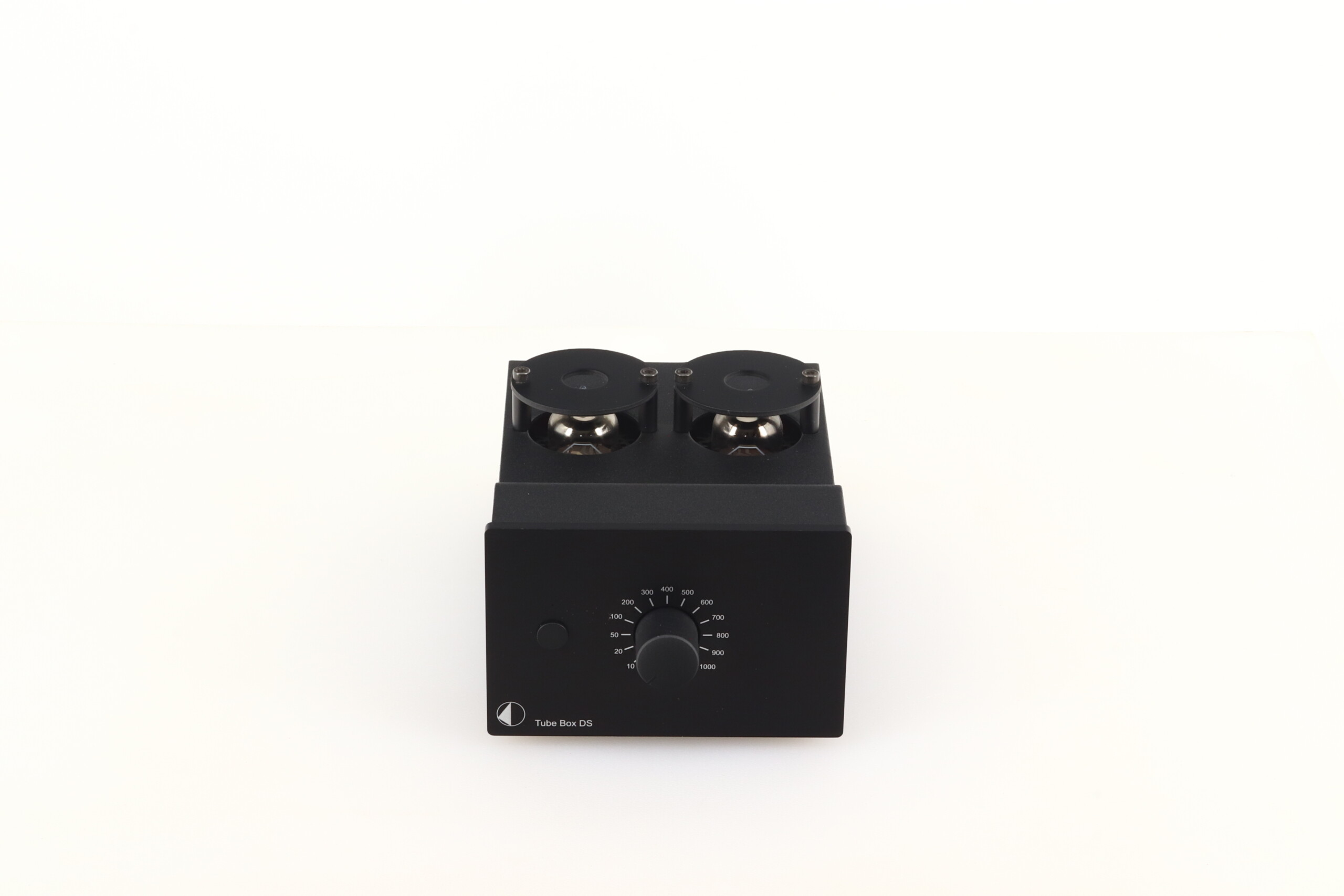

Unique continuously variable input impedance loading
Precise RIAA equalisation
Switchable Gain settings for MM and MC cartridges
Capacitance switch for MM cartridges
Switchable Sub-Sonic Filter
Dual-mono tube triode architecture
Premium ECC-83 Golden Pin Tubes
Ultra-low-noise semiconductors
SMD technology
Specifications:
Valve Complement: 2x ECC83 (12AX 7A)
Input Impedance Settings: MM: 47kΩ; MC: 10Ω to 1KΩ (Adjustable)
Capacitance Settings: 47pF, 147pF, 267pF or 367pF
Gain Settings: 40dB, 50dB or 60dB
Noise Floor: 93dB (A Weighted) (41dB Gain)
THD: MM: <0.1%
RIAA Accuracy: 20Hz – 20kHz / max. 0.5dB
Subsonic Filter: -18dB at 20Hz
Input: 1x Pair RCA / Phono Sockets
Line-Level Output: 1x Pair RCA / Phono Sockets
Power Consumption: 470mA DC
Outboard PSU: 18V / 1,000mA DC (UK Plug)
Dimensions: 103 (W) x 144 (D) x 72 (H) mm
Weight: 1100g
