Naim NAP 250 Power Amplifier (1990)

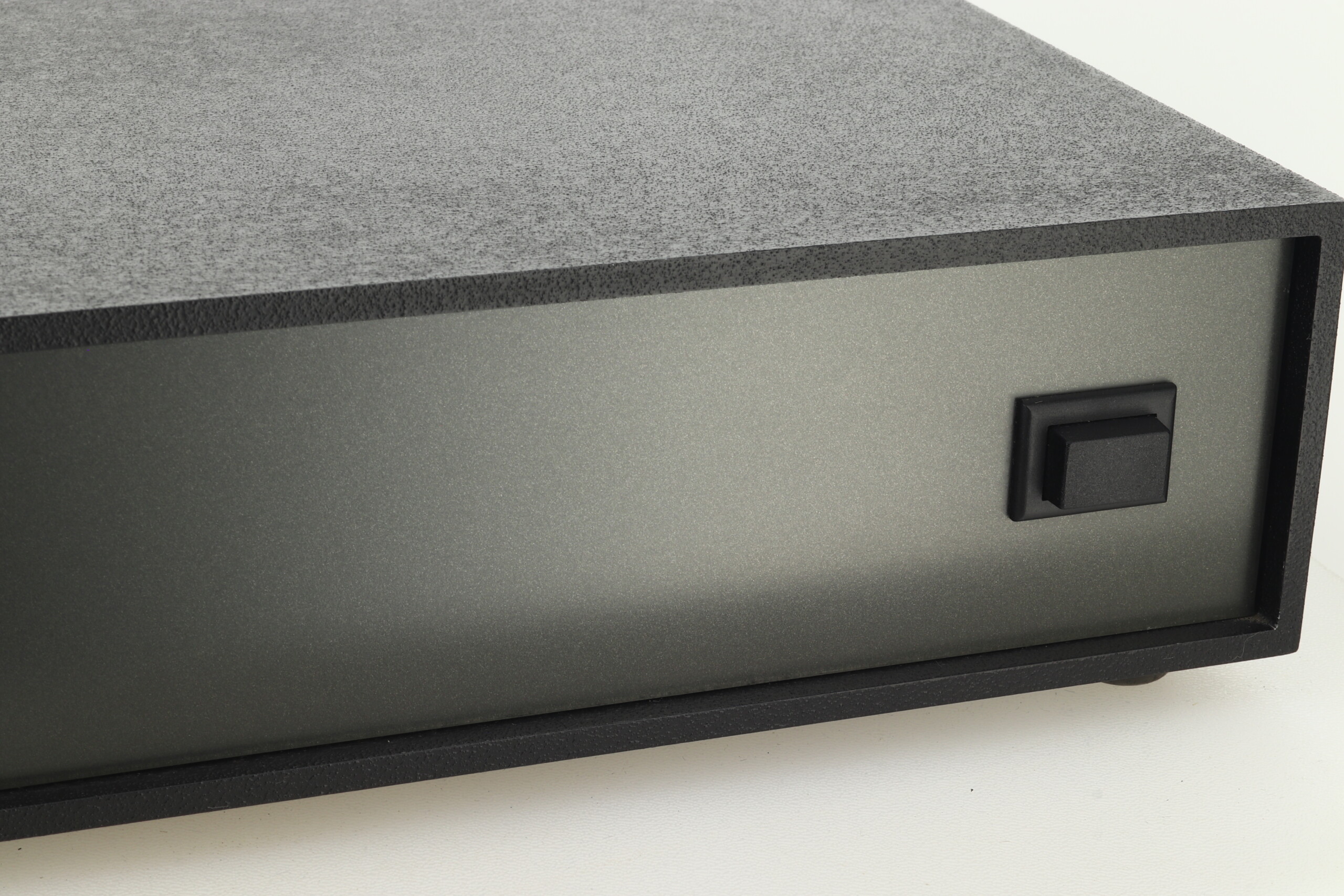

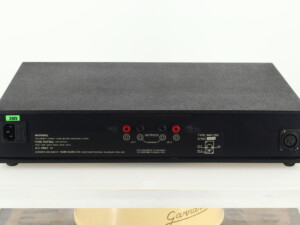

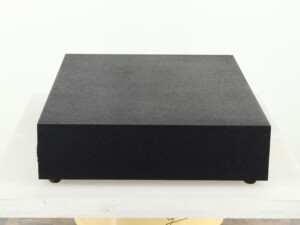

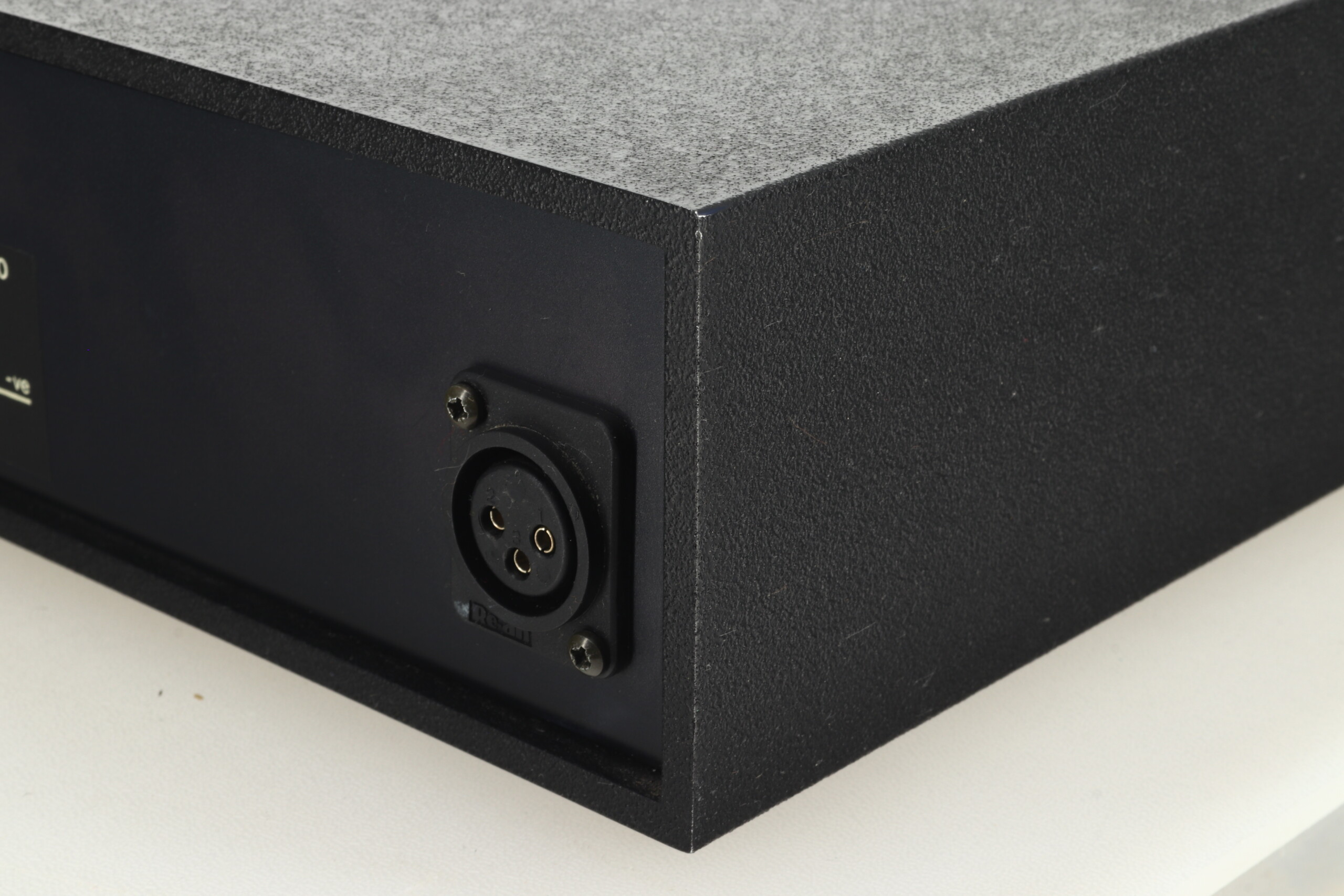

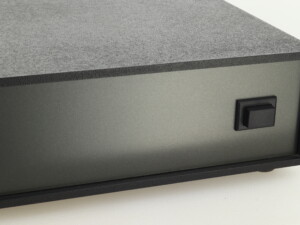

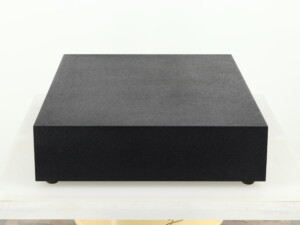

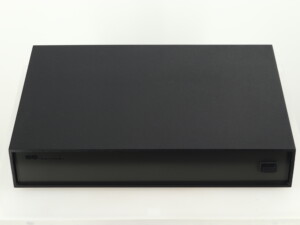

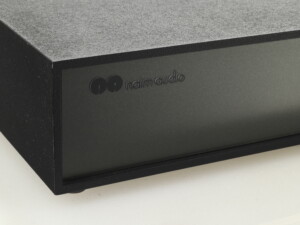

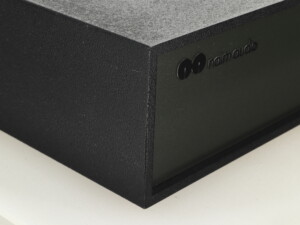

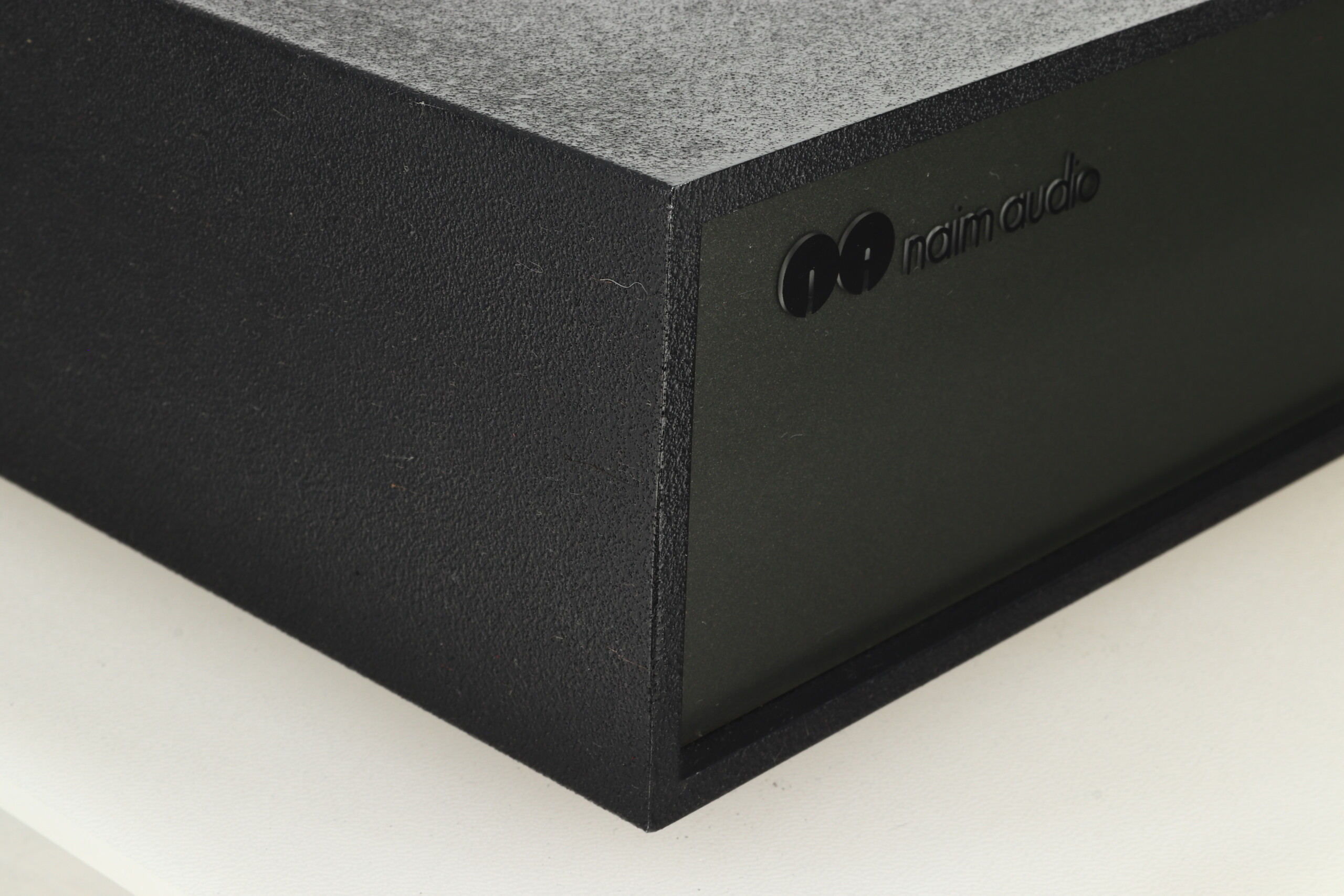

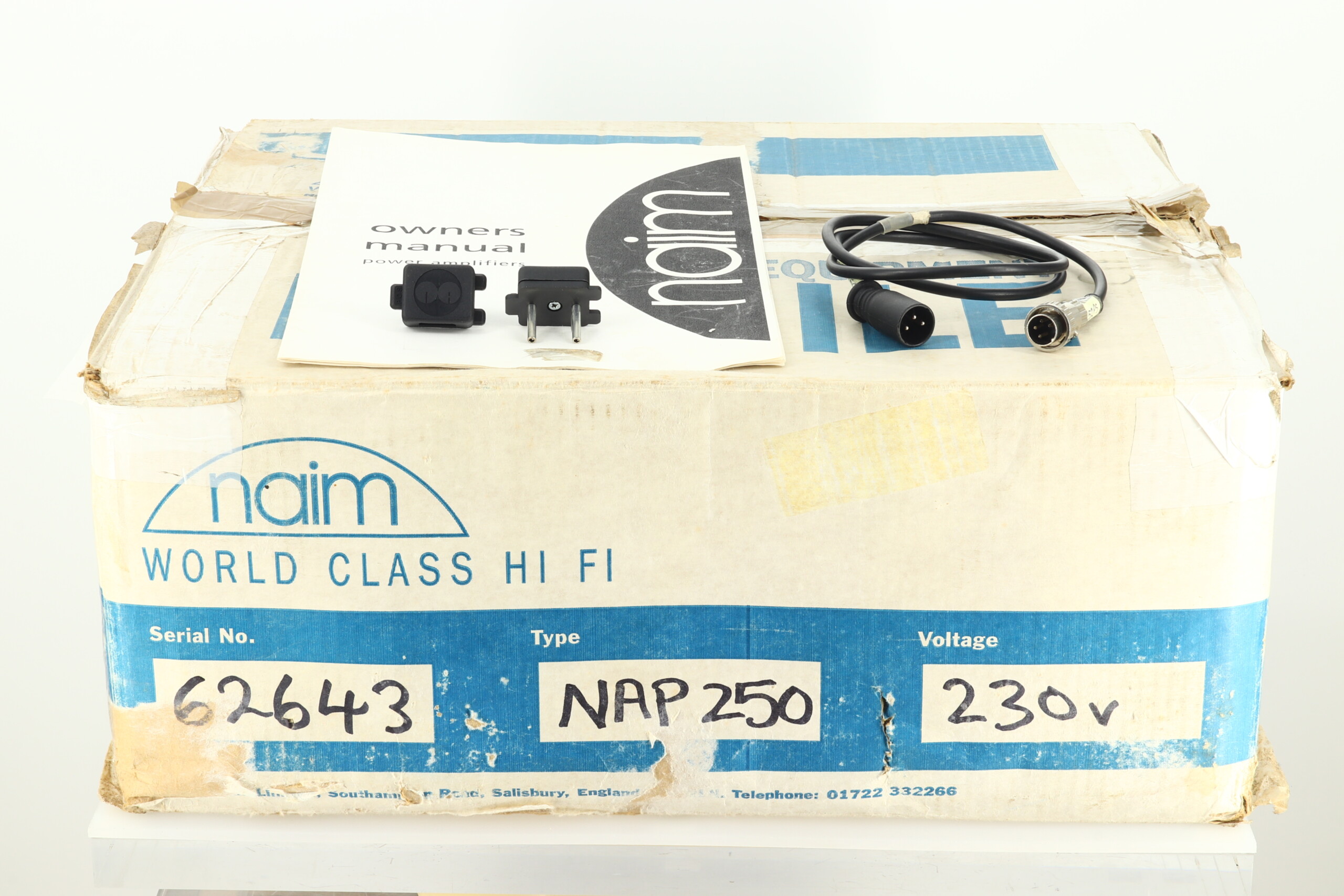

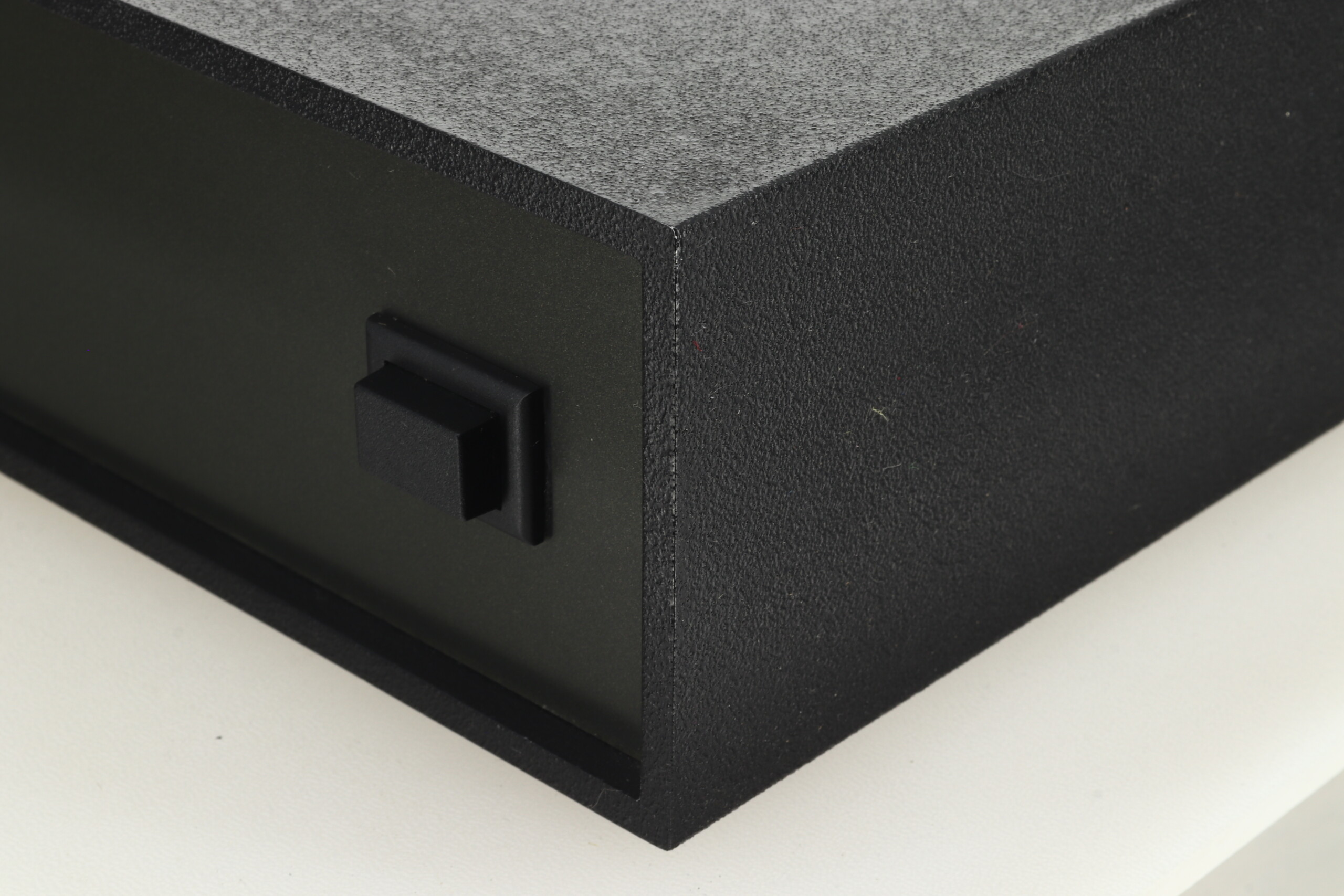

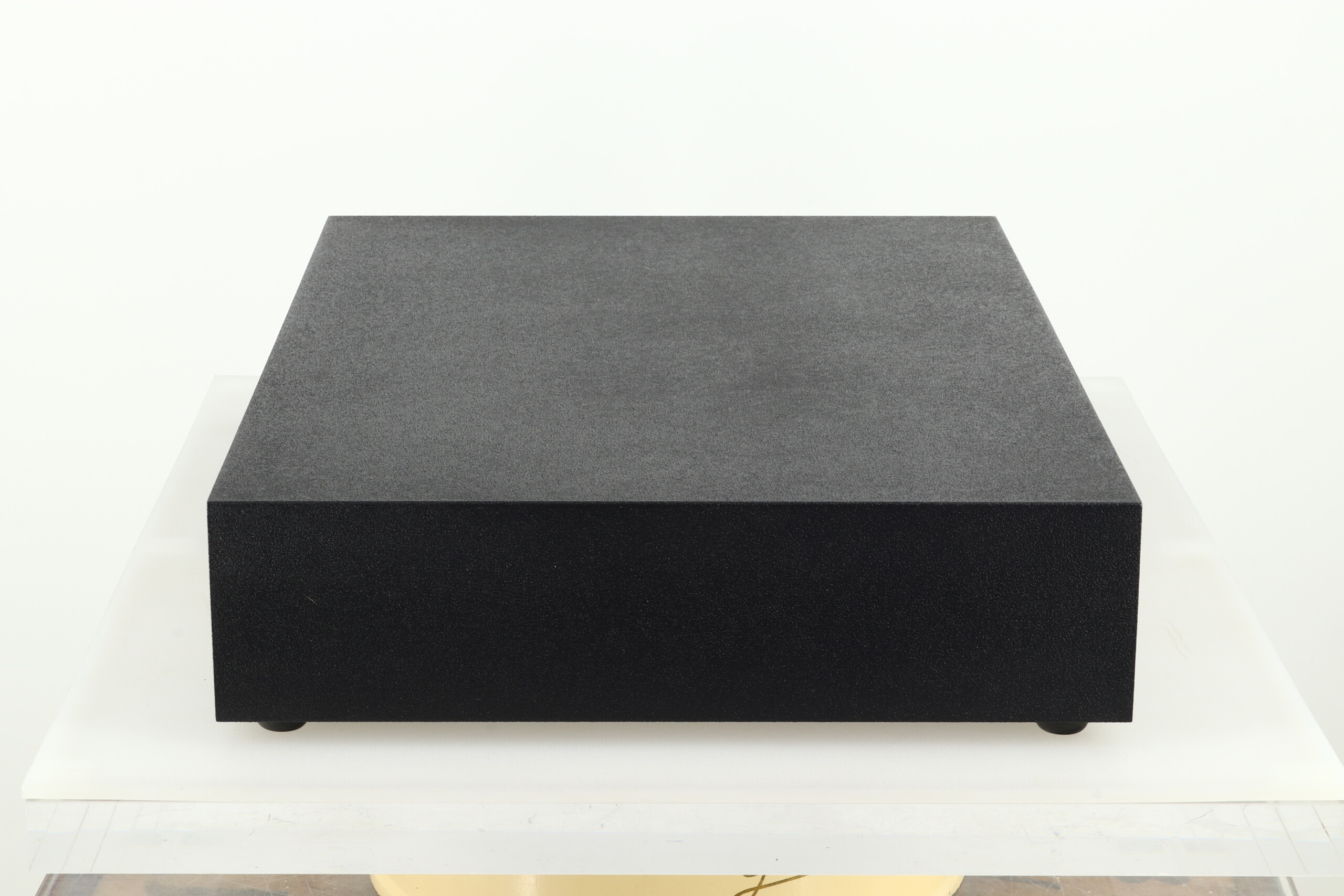

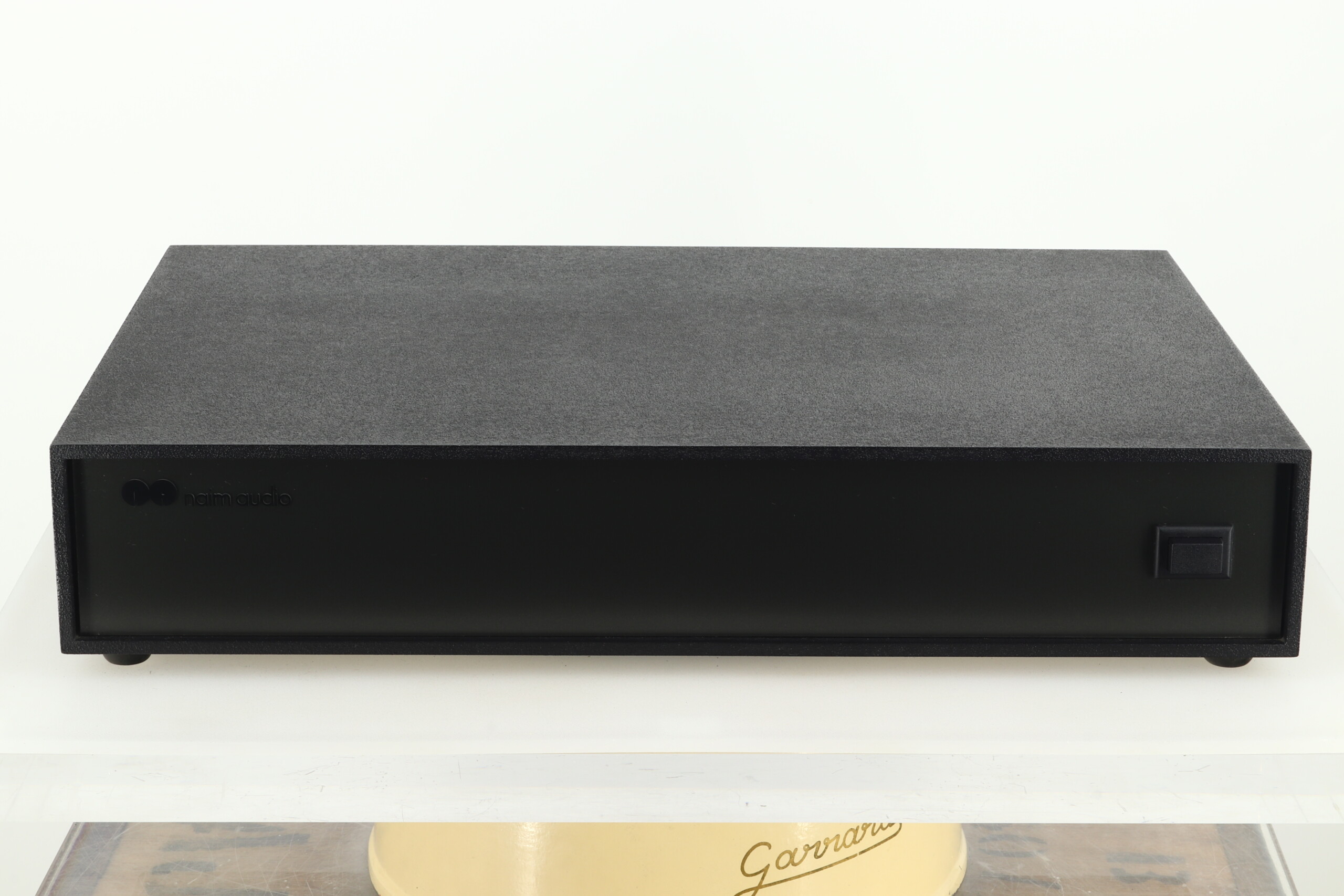

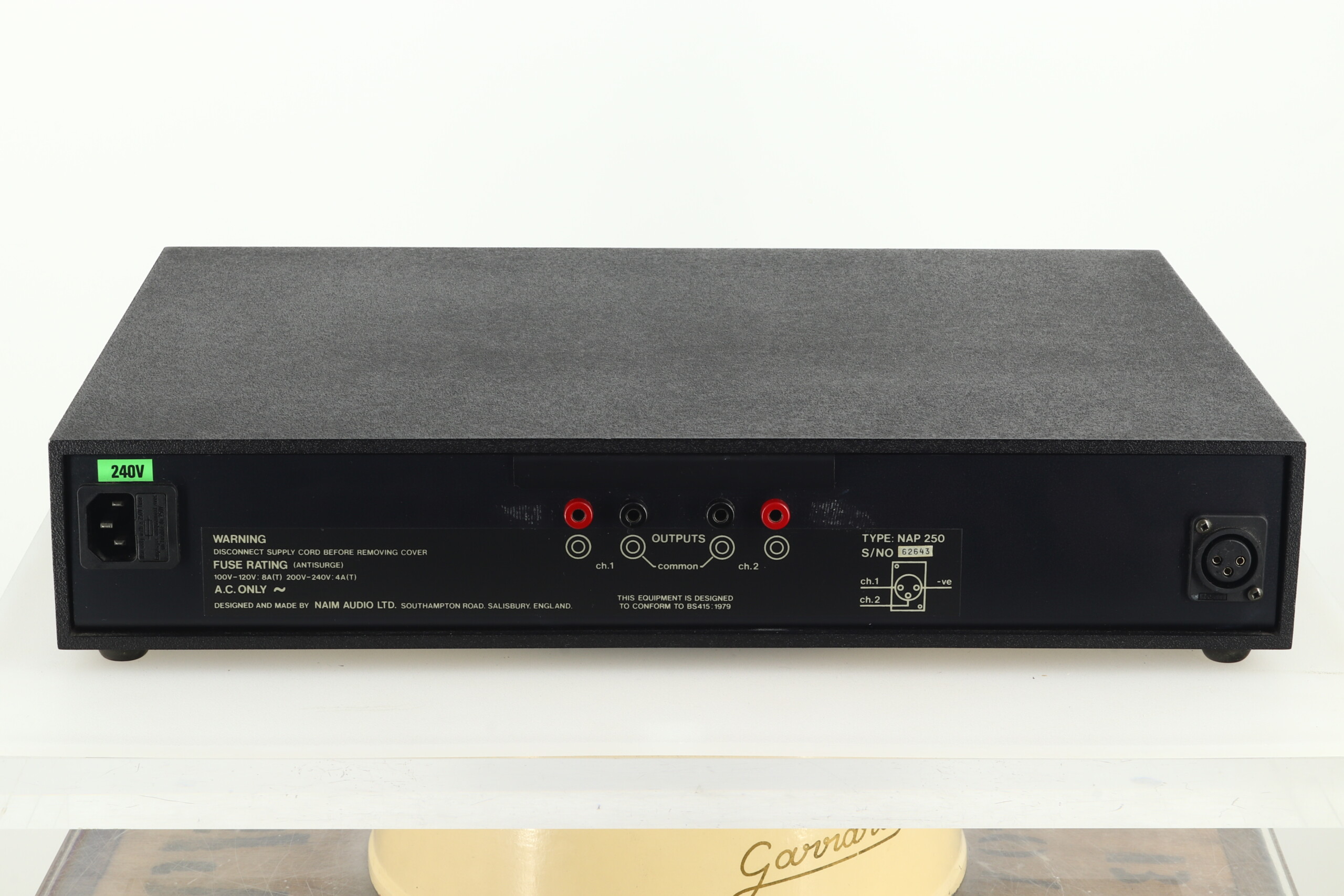

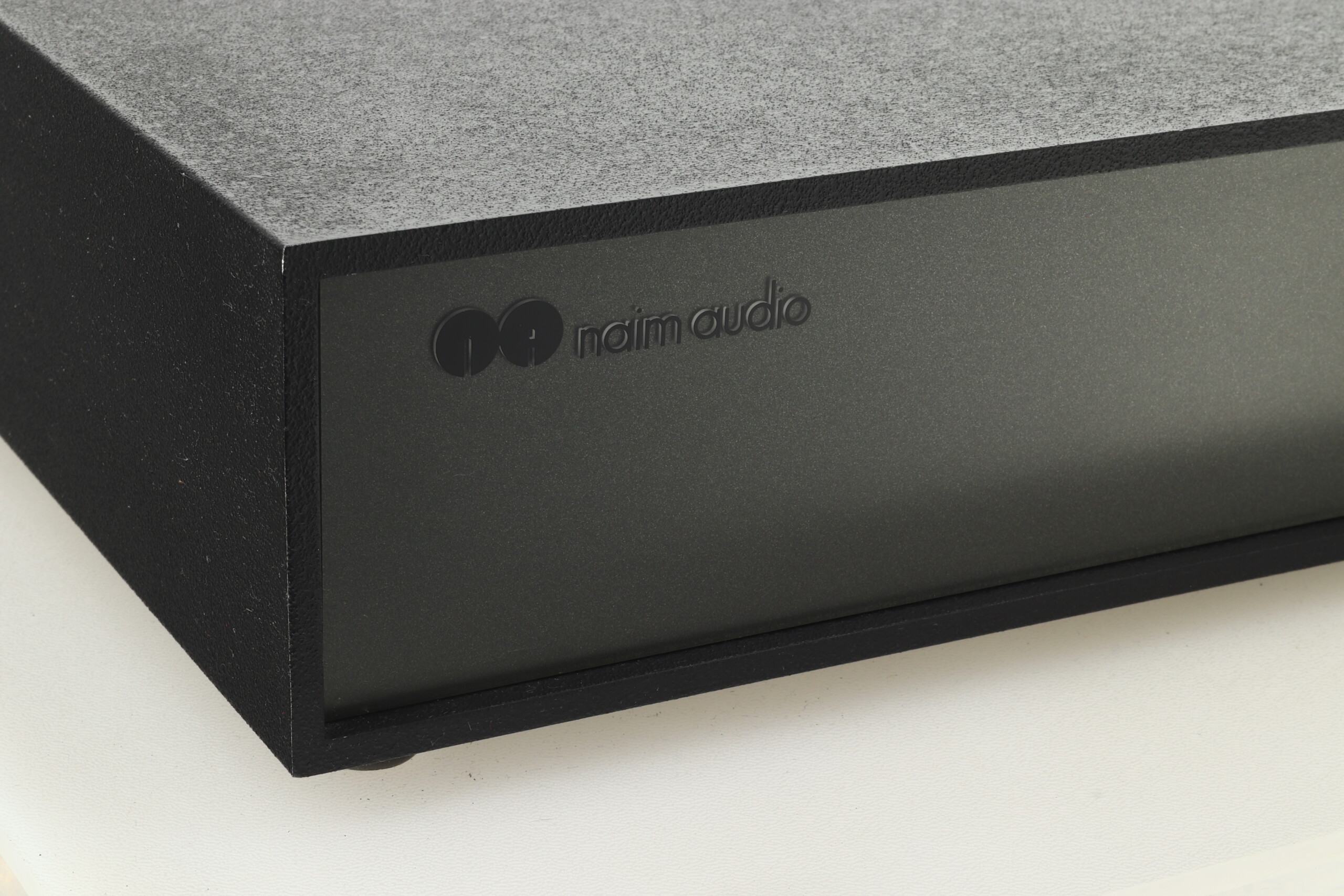

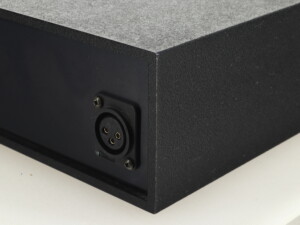

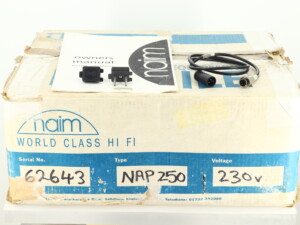

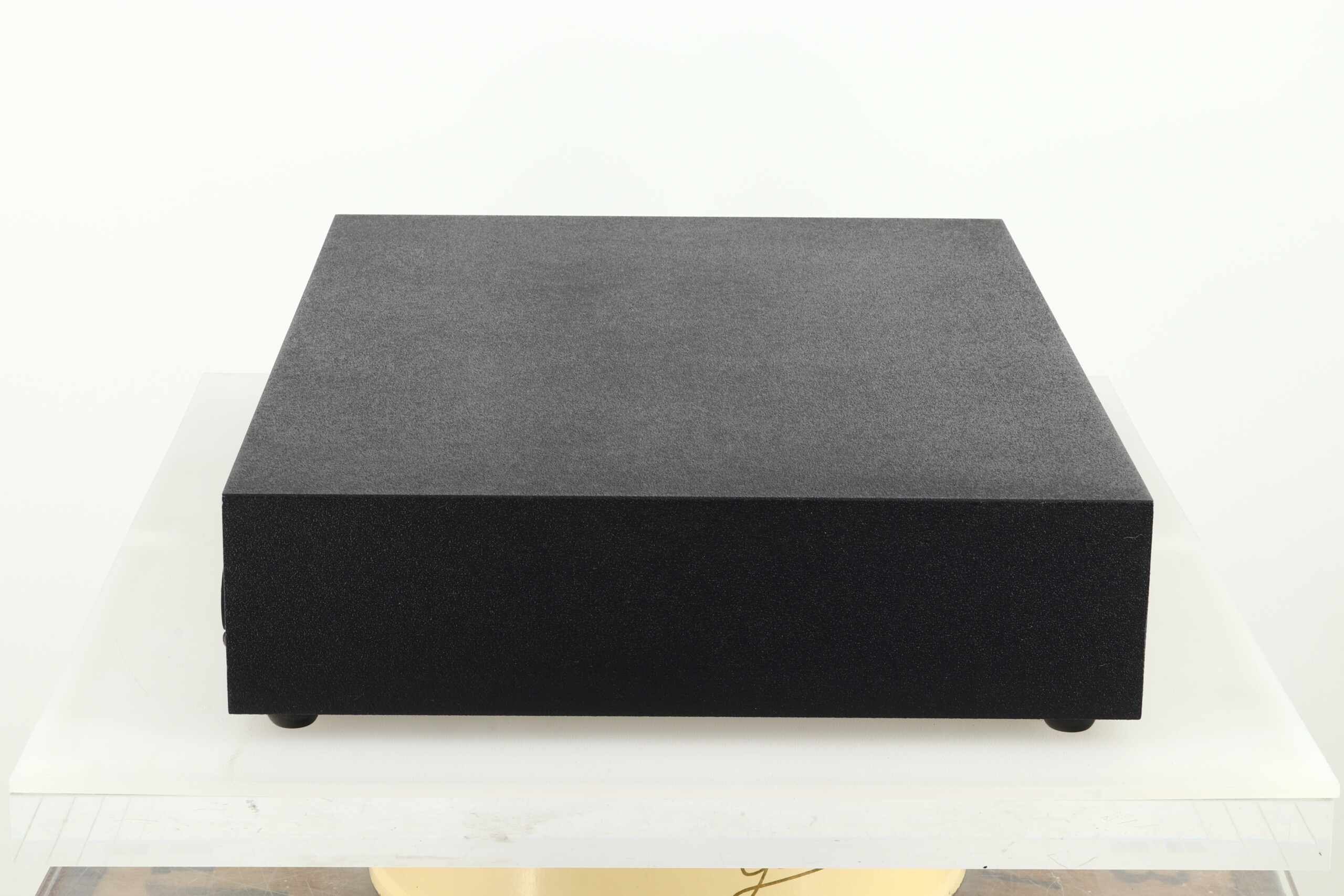

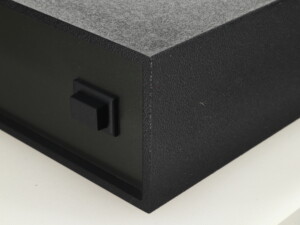

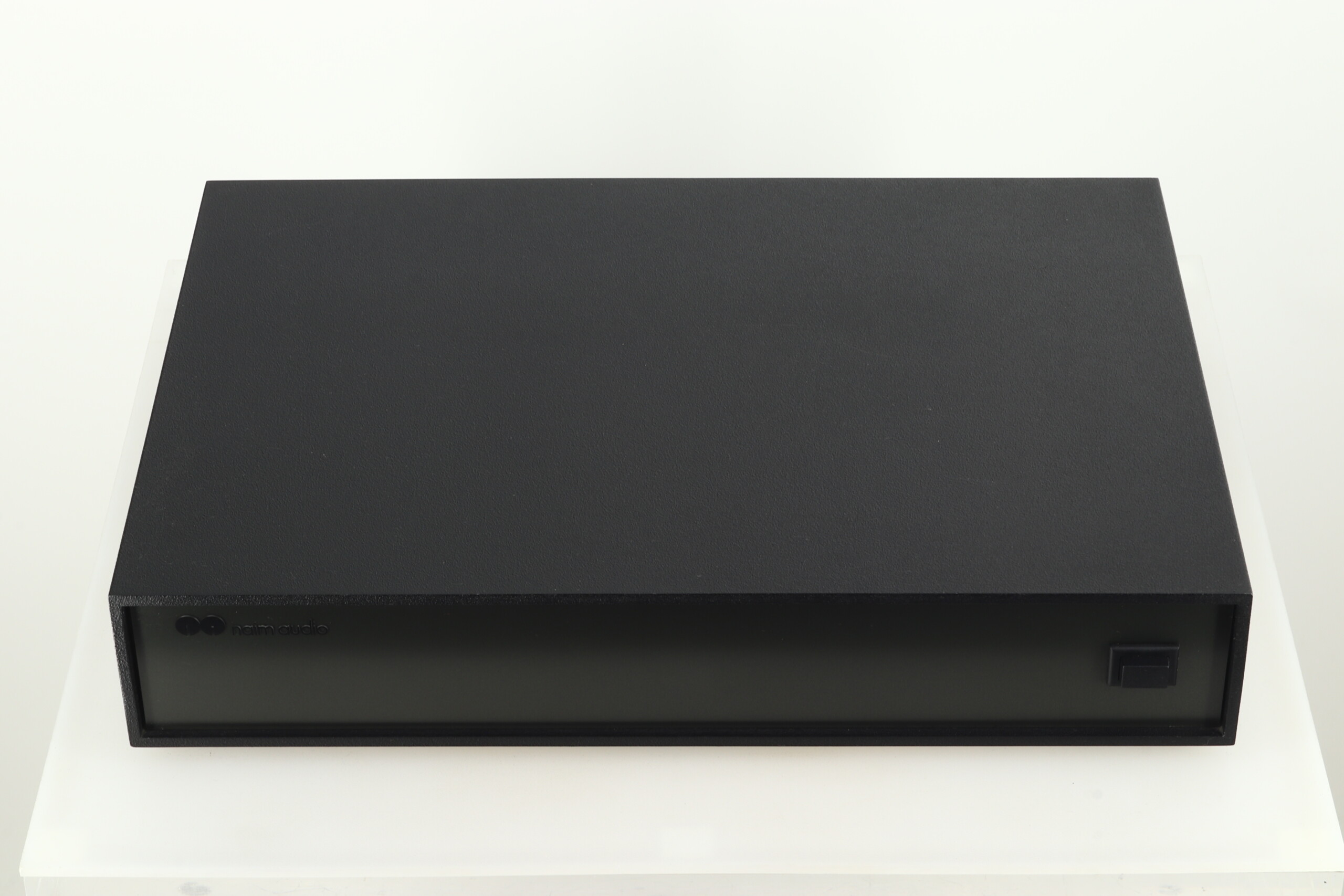

Here we have a classic ‘Olive’ finish power amplifier from British specialist Naim Audio. A very good example of the amazing NAP 250, produced in 1990, supplied in its original packaging, mains cable, XLR – 4 pin DIN cable and with our usual three month warranty.
Naim Say….
The NAP 250 is Naim’s uniquely evolved and refined classic amplifier, that uses a very large high quality toroidal transformers. Power transformer design is a very specialised field, and our transformers are the result of many years of closely co-operative development with our manufacturers. The 250 has four regulated power supplies each of which is rated at 40 volts and able to deliver more than 15 amps. The highest quality components are used throughout, with great attention to detail construction. Our exceptionally fast and robust output transistors are made for us to our own specifications. Our standard protection circuitry is augmented by a power supply trip which operates if 18 amps is demanded for more than 10 micro-seconds. Heatsink temperature is monitored by a thermal cut-out which resets automatically.
Specifications:
Power Output: 70 W per channel into 8Ω
Transient: 400 VA
Voltage Gain: +29 dB
Input Impedance: 22 KΩ
Frequency Response: -3 dB at 3 Hz & 40 kHz

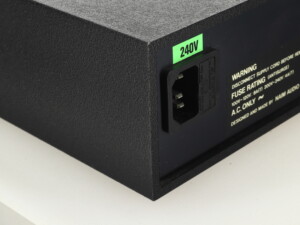

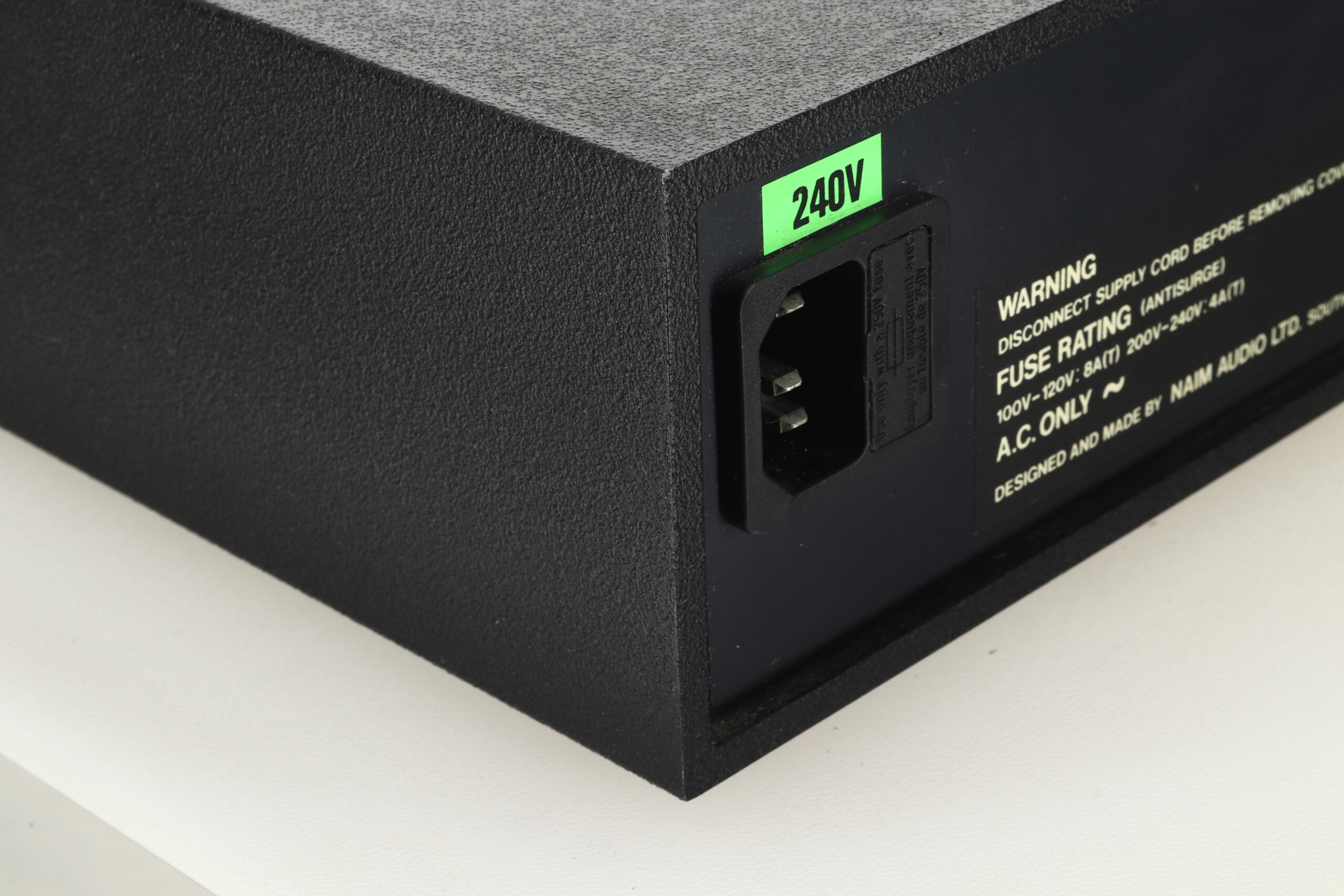

Mains Supply: 100 V, 110 V, 120 V, 200 V, 220 V or 240 V, 50 or 60 Hz
Dimensions: 460 (W) x 300 (D) x 76 (H) mm

For a little back story about the NAP 250 from Hi-Fi Choice magazine please click here
