Moon by SimAudio 110LP V2 Phonostage – Black

£445.00

Manufacturer : Simaudio
Model : Moon 110LP V2
Serial Number : V5846486
Packaging : Original

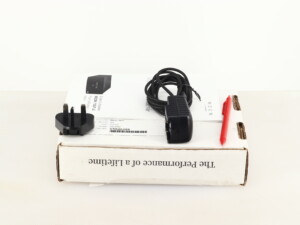

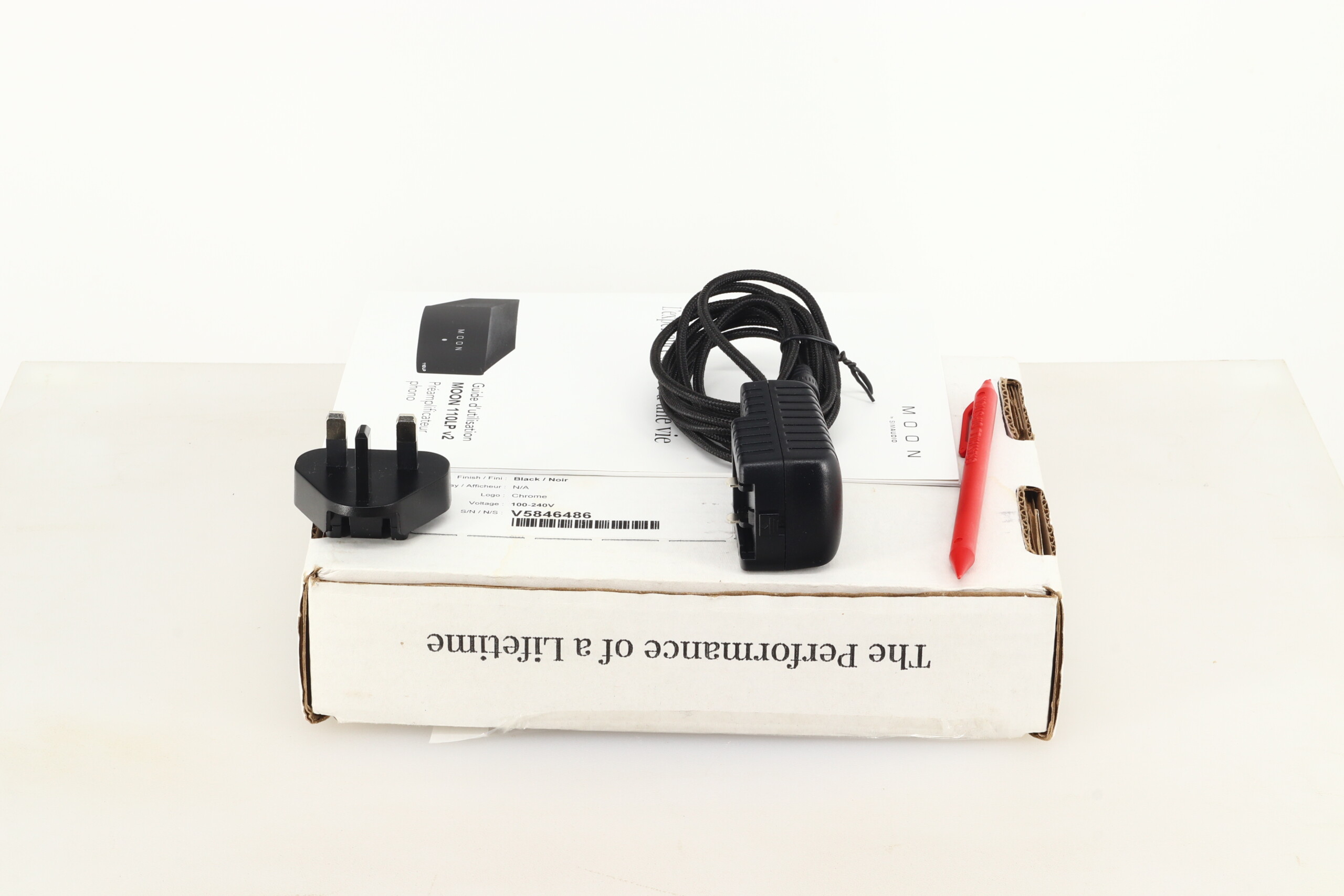

Accessories Included : Manual / PSU / Dipswitch Settings Tool
Price When New :

1 in stock

SKU: V5846486 Category:
Description

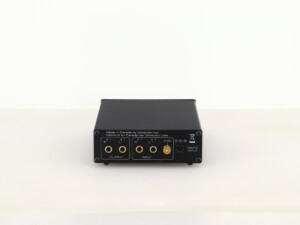

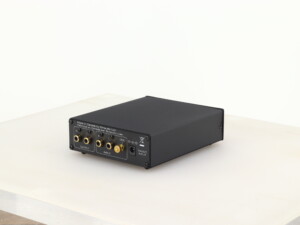

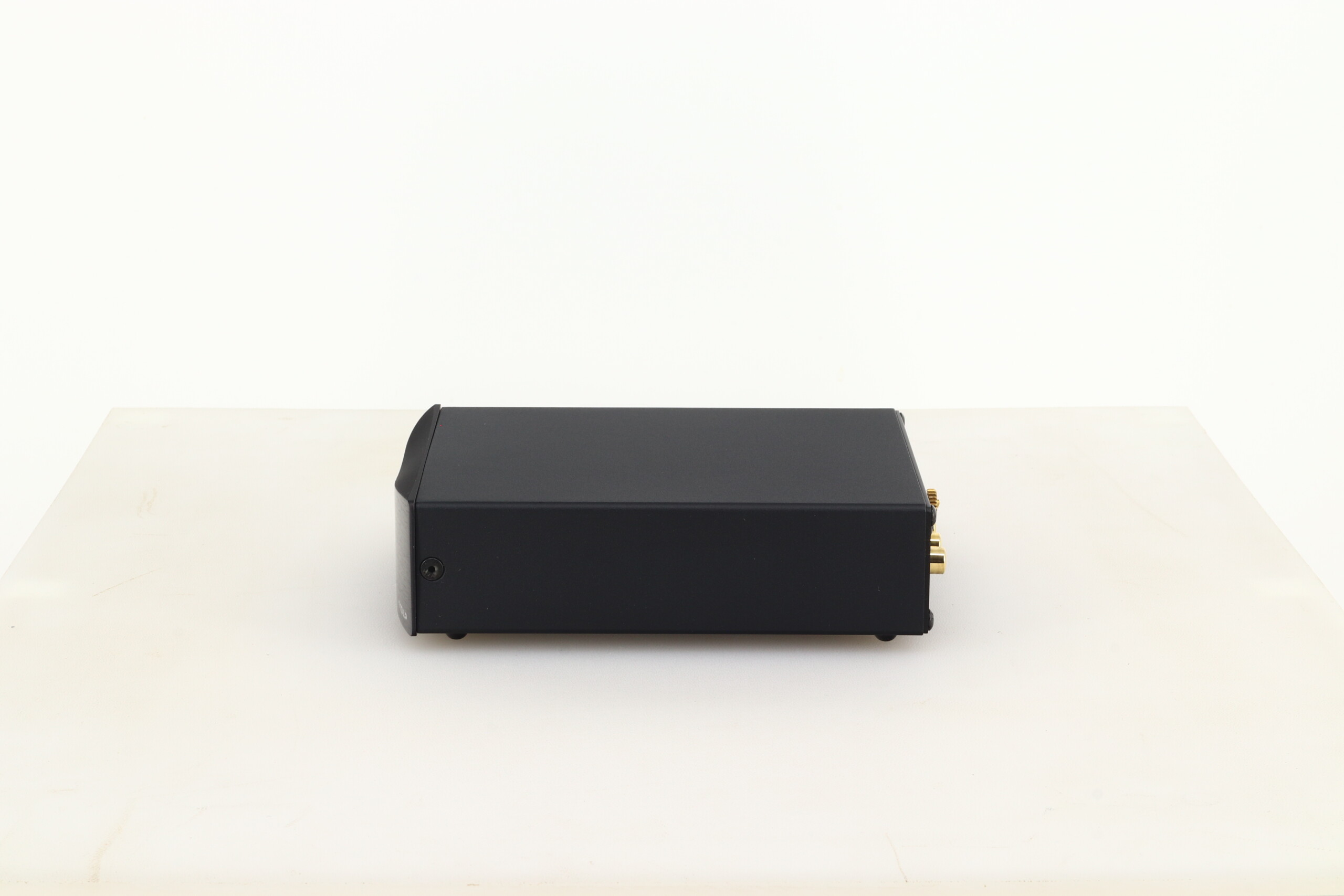

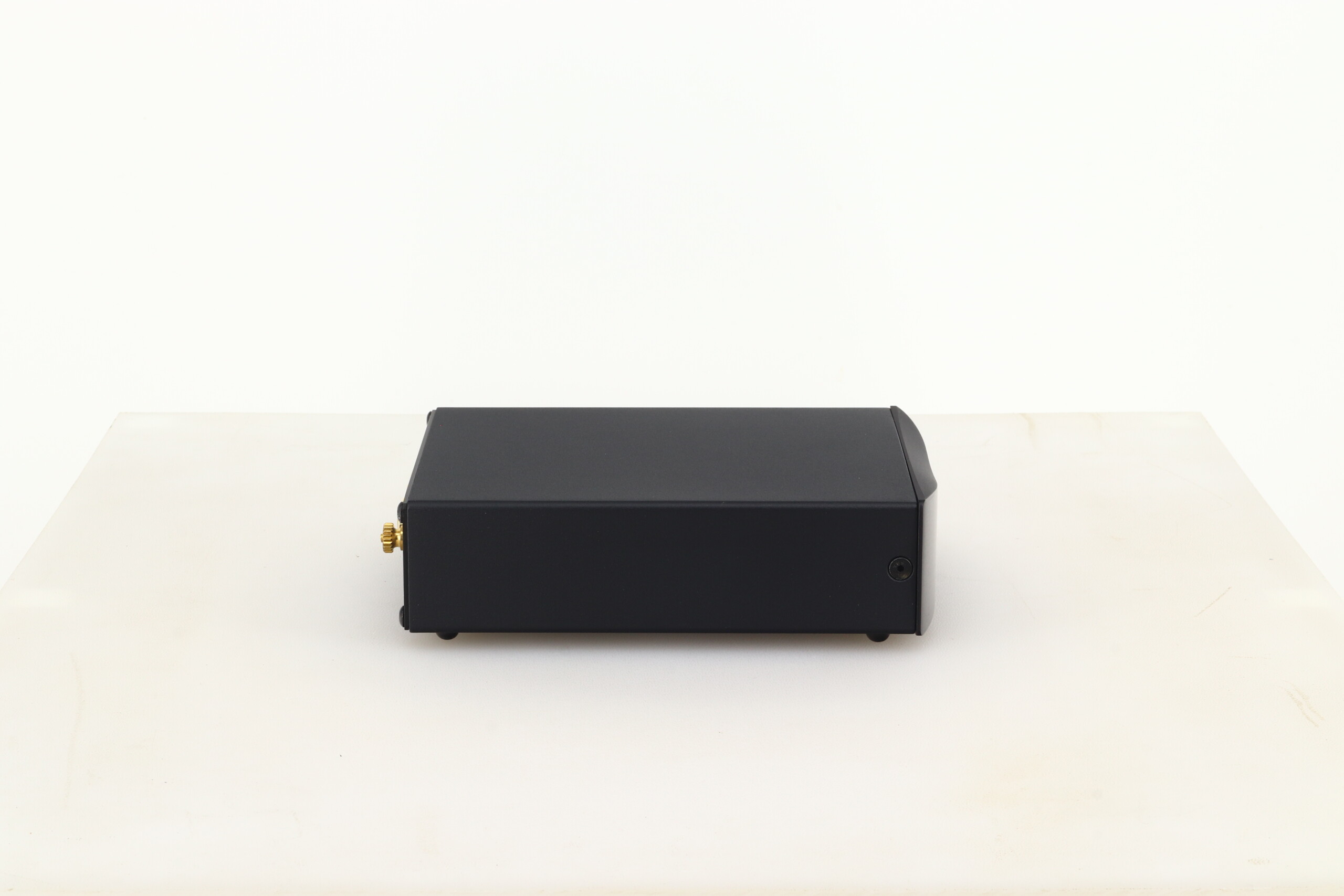

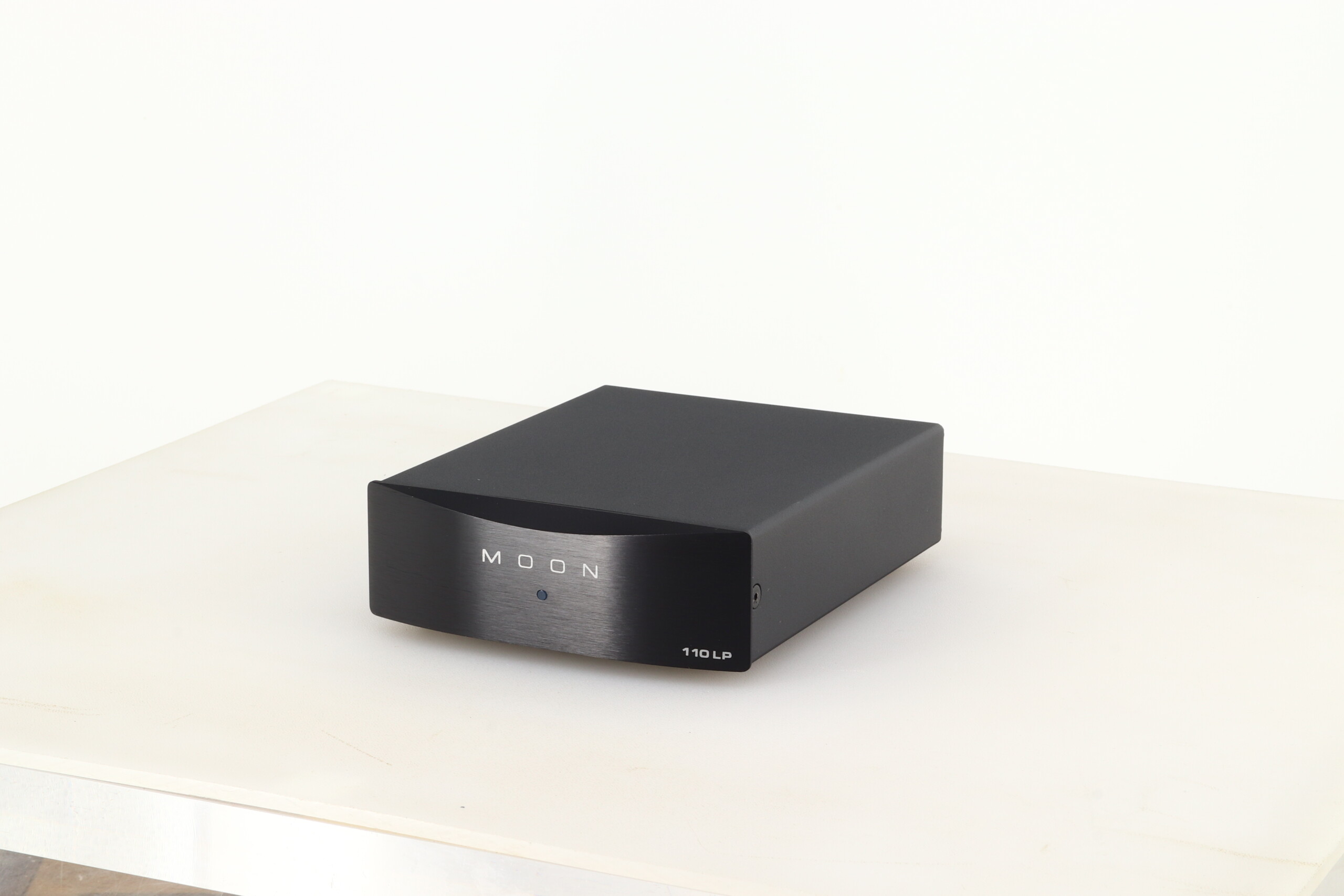

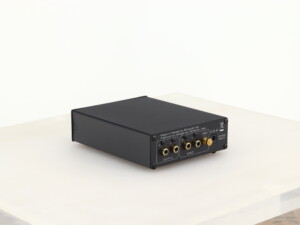

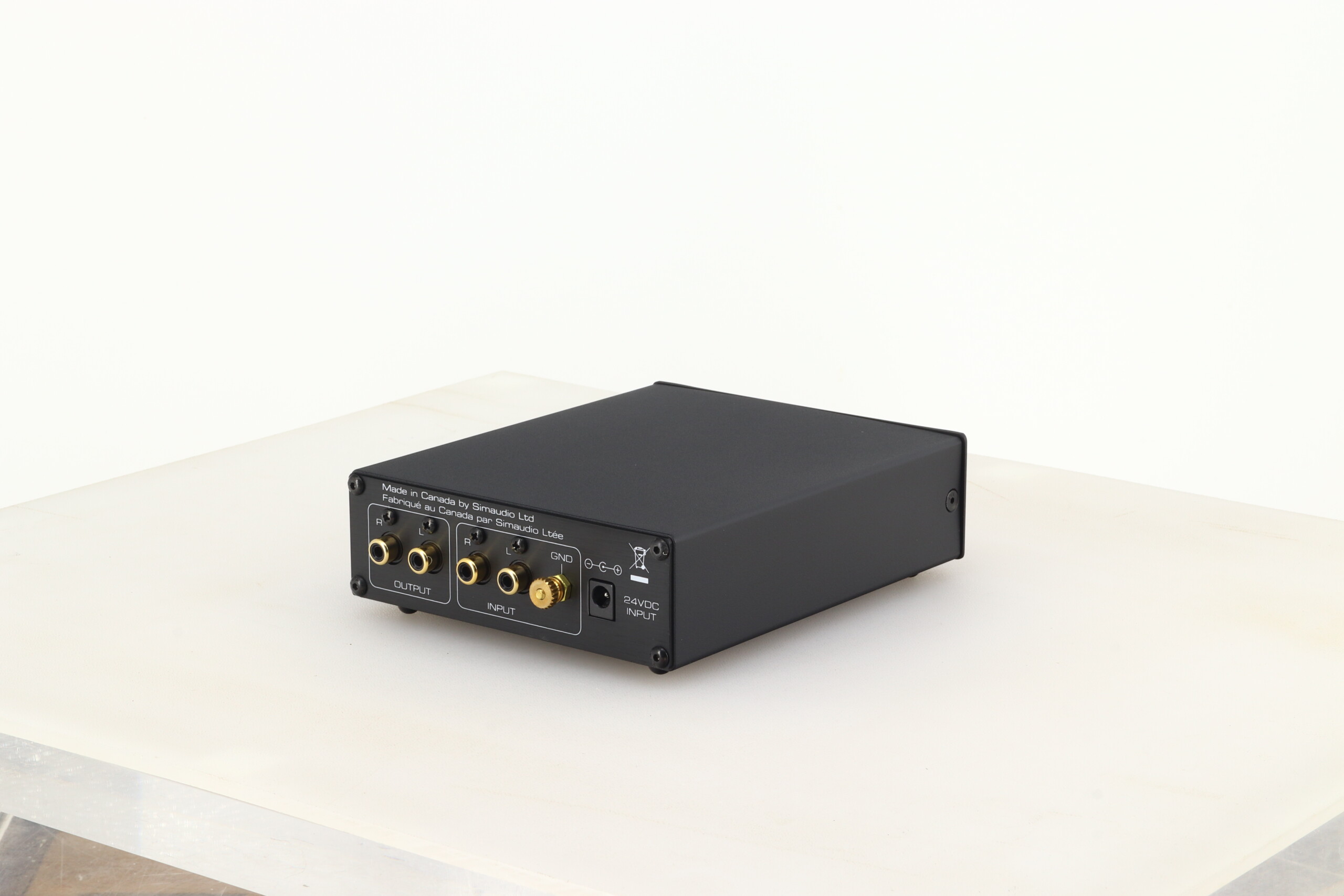

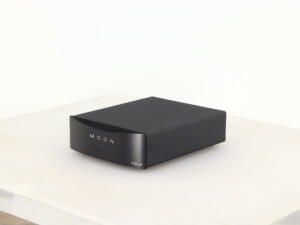

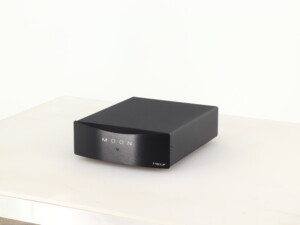

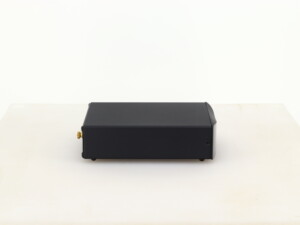

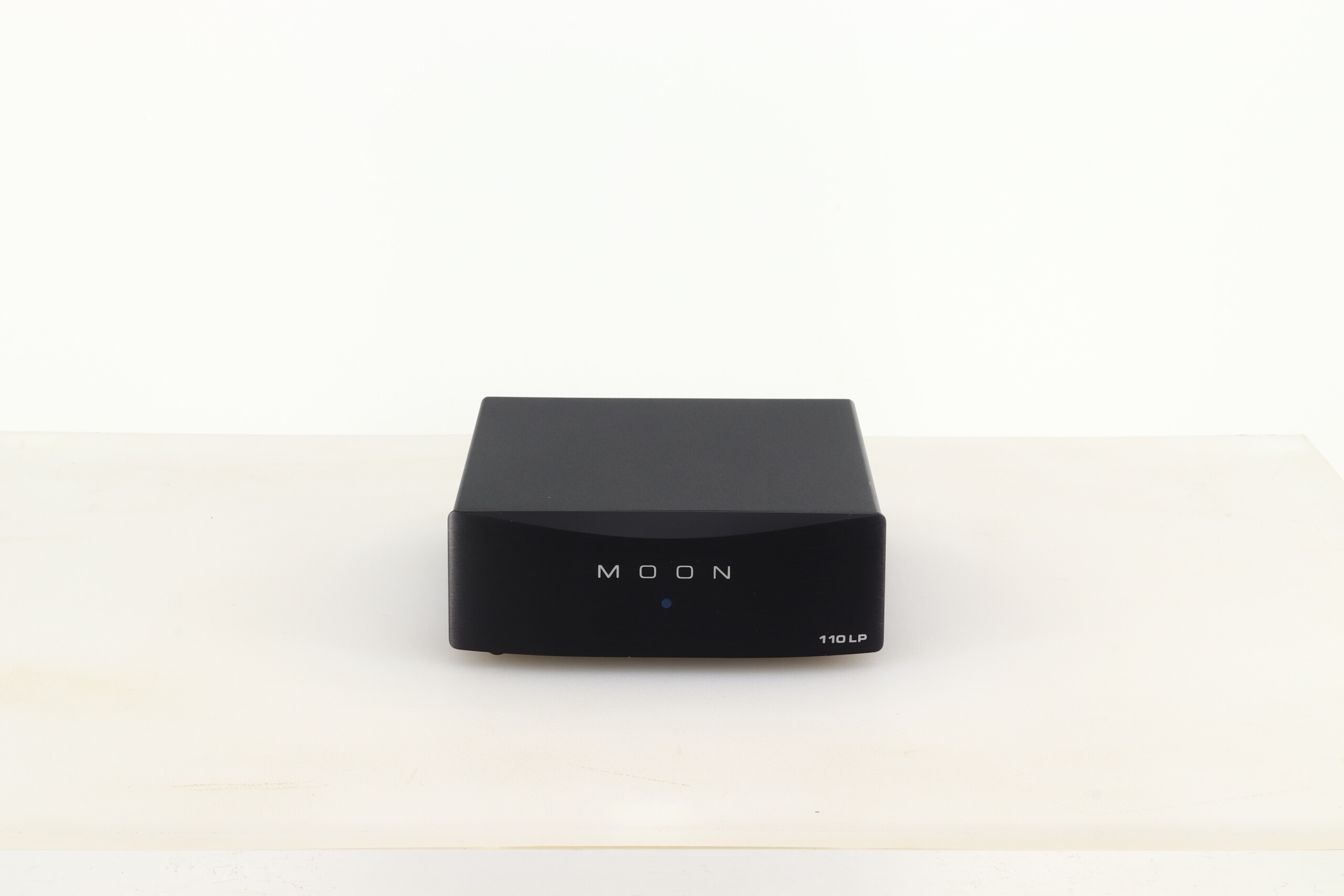

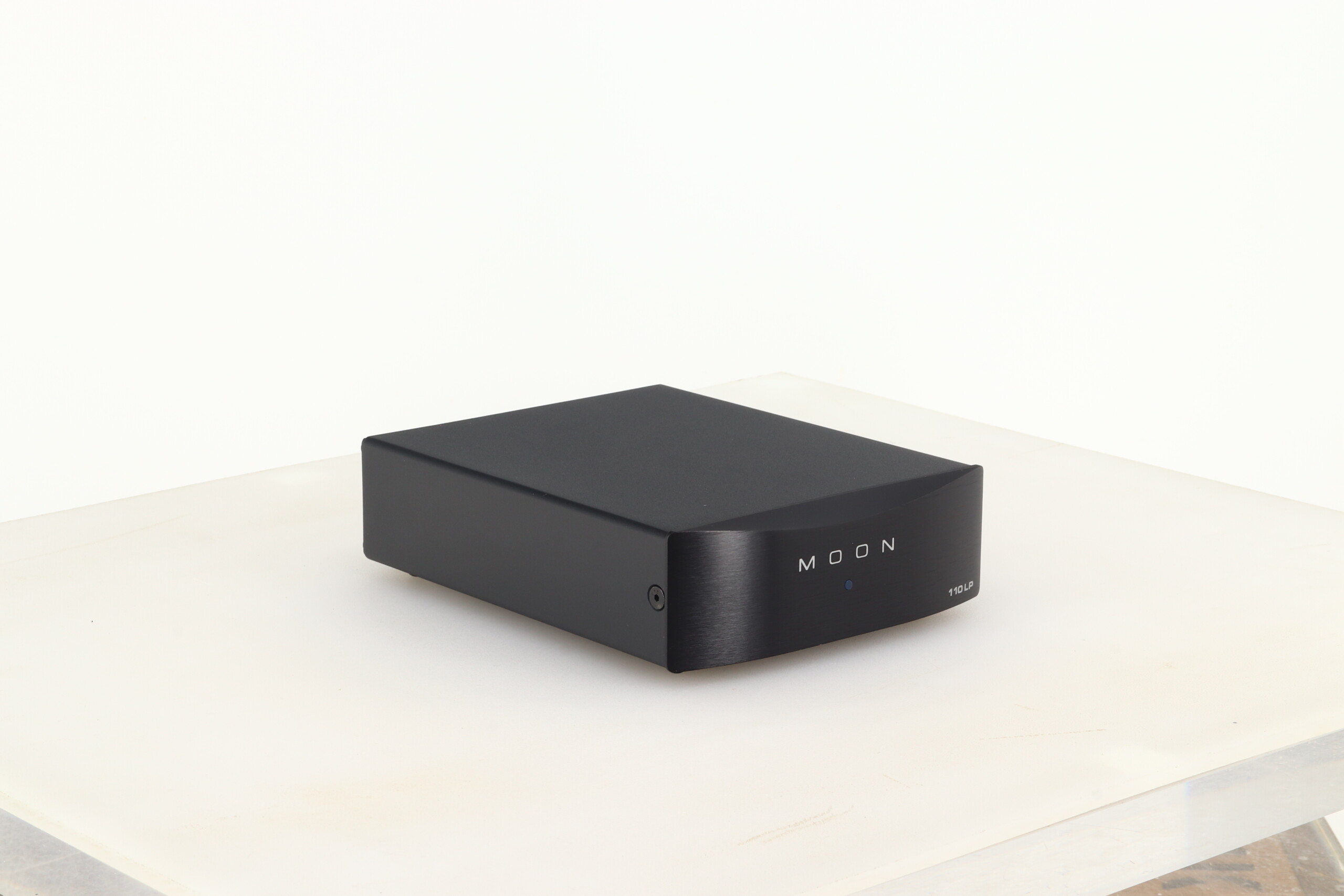

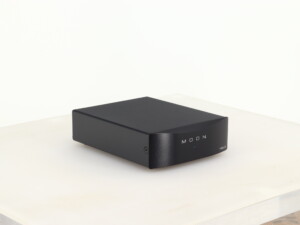

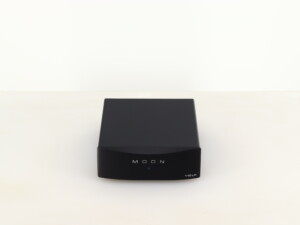

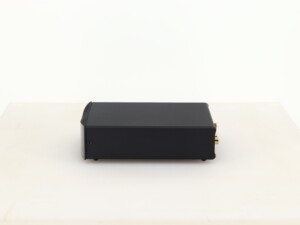

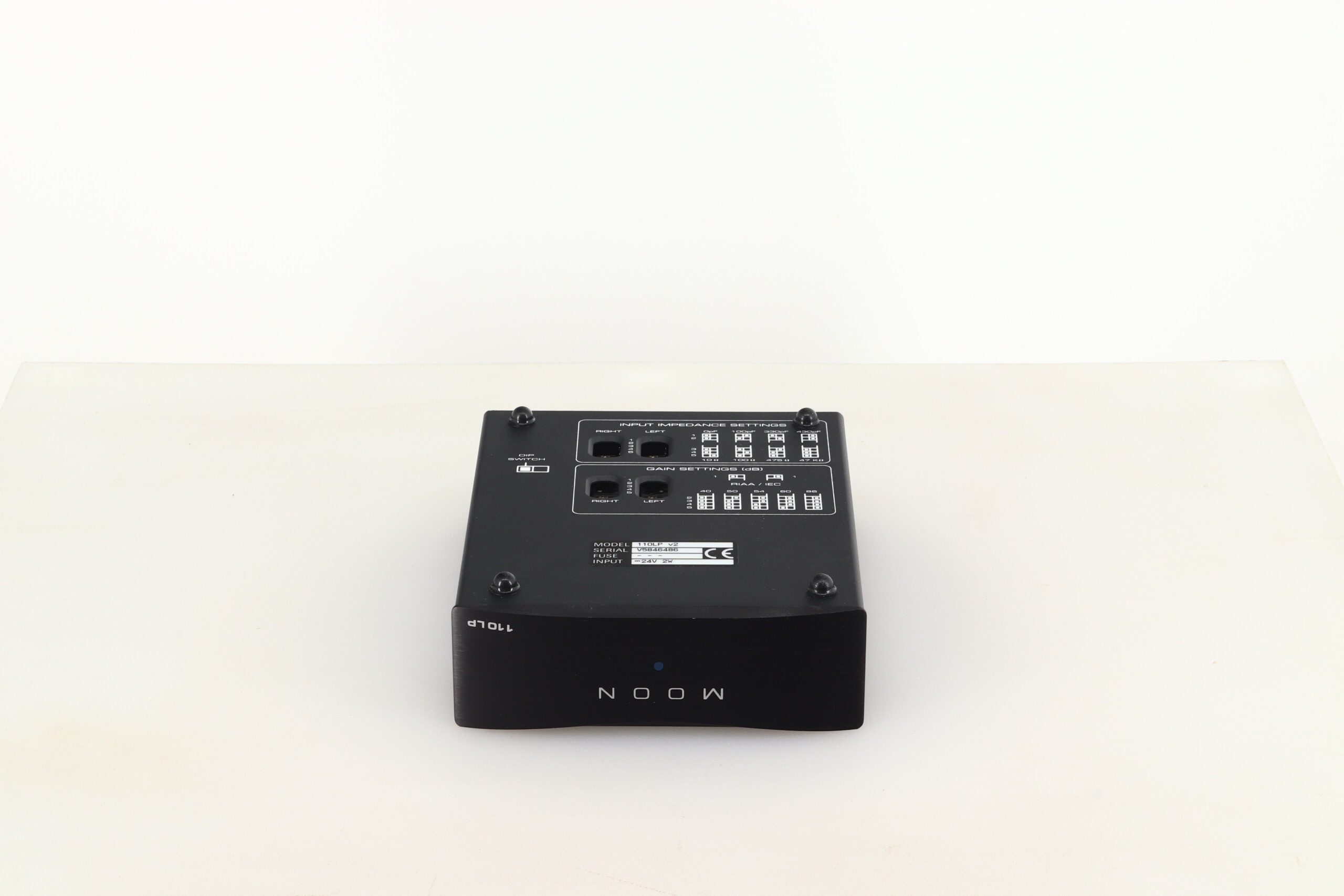

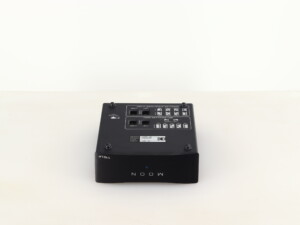

Here we have an example of the Moon 110LP v2 Phonostage from Canadian Hi-Fi specialists SimAudio. It is in good condition with a couple of minor blemishes – please refer to photographs. It will be supplied in original packaging along with power supply unit, manual, dipswitch settings tool and our regular three month warranty.
SimAudio Say….
The MOON 110LP v2 simplifies and improves the playback of vinyl records. Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability. With a new slimline design, 24V power supply and further adjustment options to perfectly match it to your cartridge setup, the MOON 110LP v2 is both attractive and easy to set up.
Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies. Your records will never have sounded so good.
Features:
Four layer PCB tracings using pure copper for low impedance characteristics
Inductive DC Filtering for a significantly lower noise floor

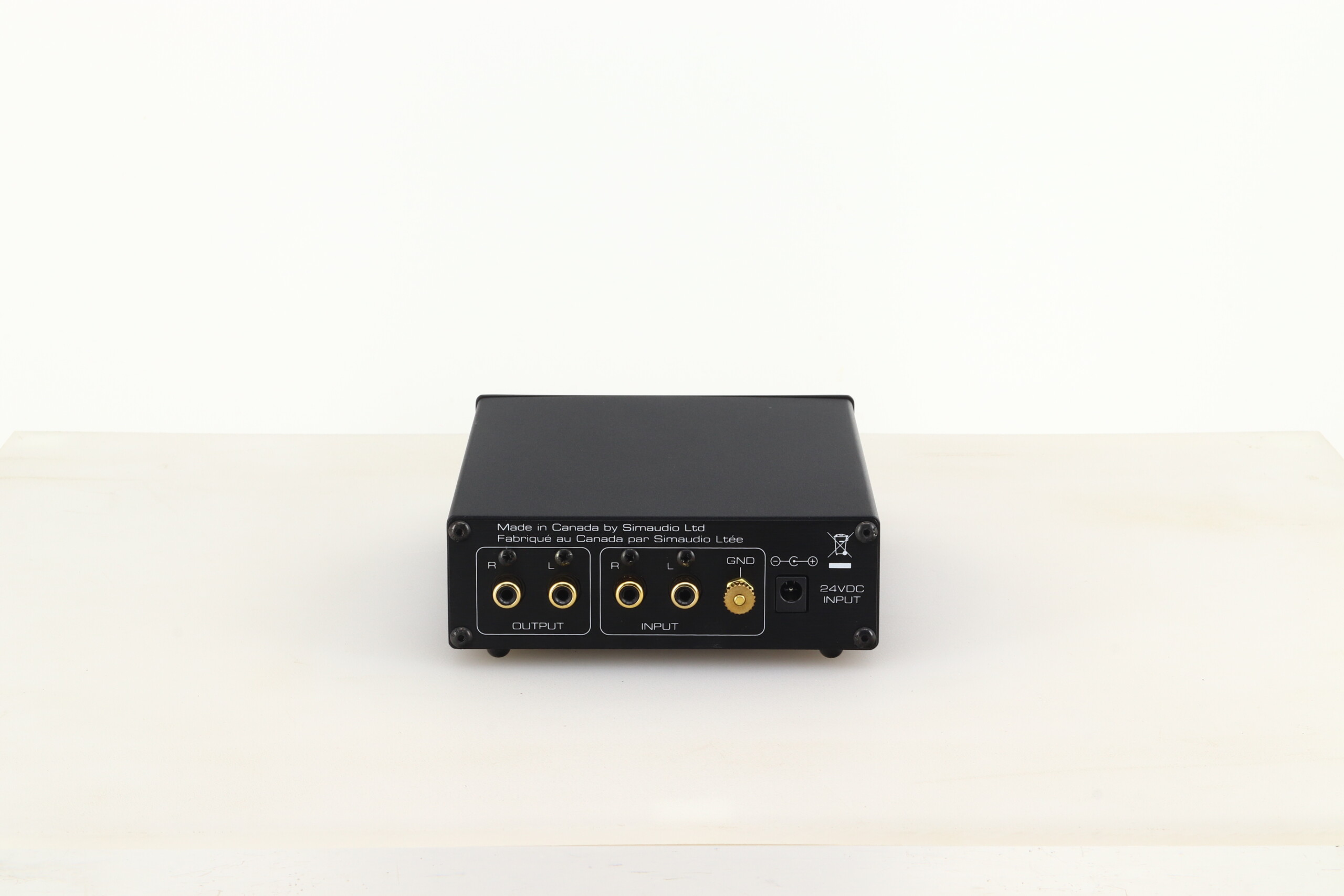

Compact, rigid all-aluminium chassis with gold-plated RCA connectors
Designed to be powered up at all times for optimal performance
Specifications:
Total Harmonic Distortion: 0.002% @ 20 Hz – 20 kHz
Intermodulation Distortion: 0.002%
Frequency Response: 20 Hz – 20 kHz ± 0.5 dB
Crosstalk: – 100 dB @ 1 kHz
Output Impedance: 75 Ω
Impedance Loading: 47 kΩ, 475 Ω, 100 Ω, 10 Ω
Capacitance Loading: 0 pF, 100 pF, 330 pF, 430 pF
Gain Settings: 40 dB, 50 dB, 54 dB, 60 dB, 66 dB (MM & MC)
Overload Margin: 22 dB @ 40 dB gain; 18 dB @ 66 dB gain (both between 20 Hz – 20 kHz)
Signal/Noise Ratio: 104 dB (full scale @ 40dB gain); 87 dB (full scale @ 60dB gain)
Dimensions: 127 (W) x 165 (D) x 42 (H) mm

Reviews

To read a review from What Hi-Fi? magazine please click HERE
