Linn Akurate DSM/3 Streamer – Silver

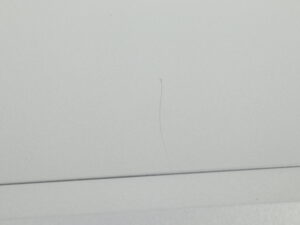

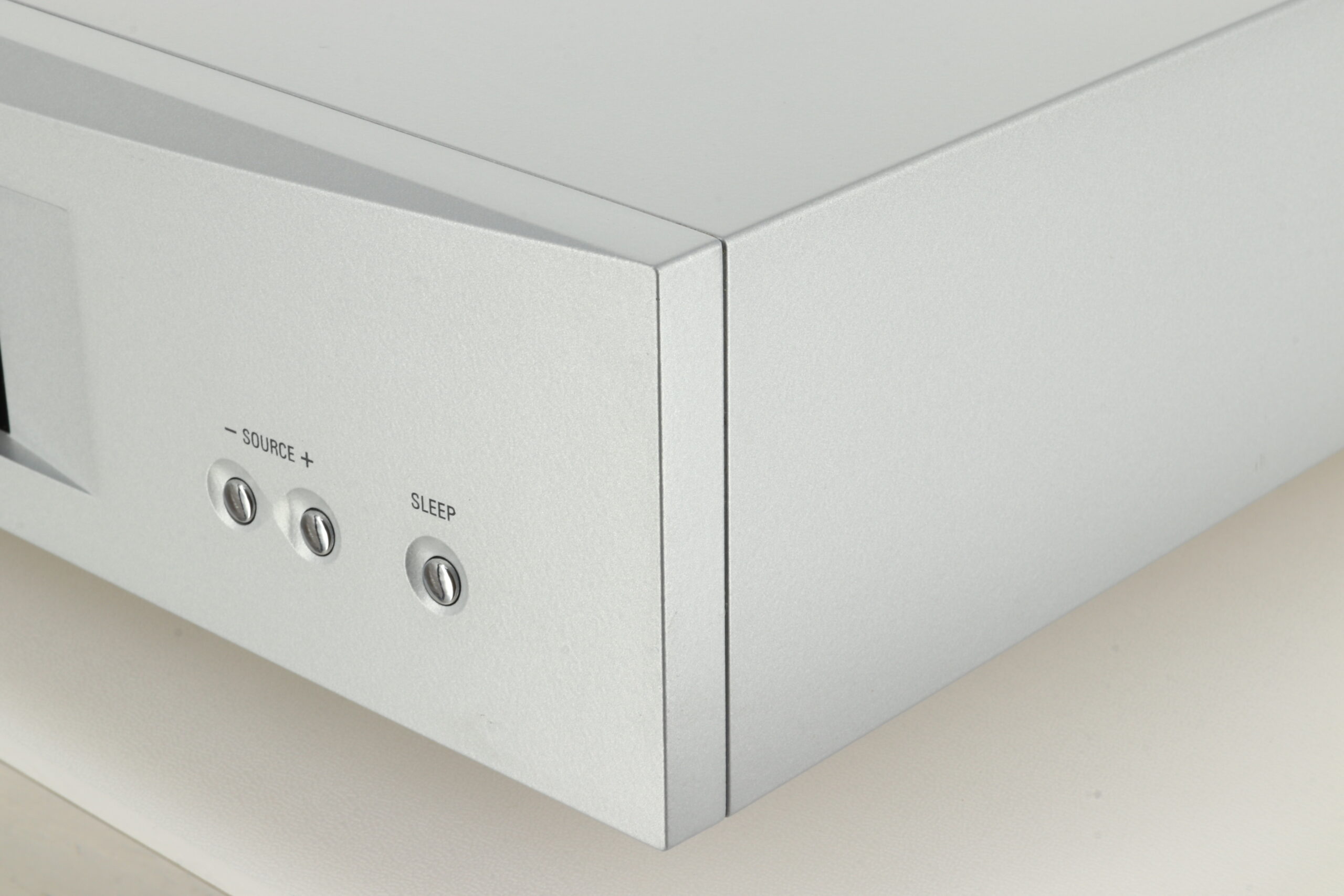

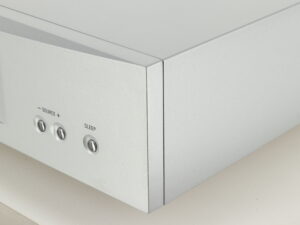

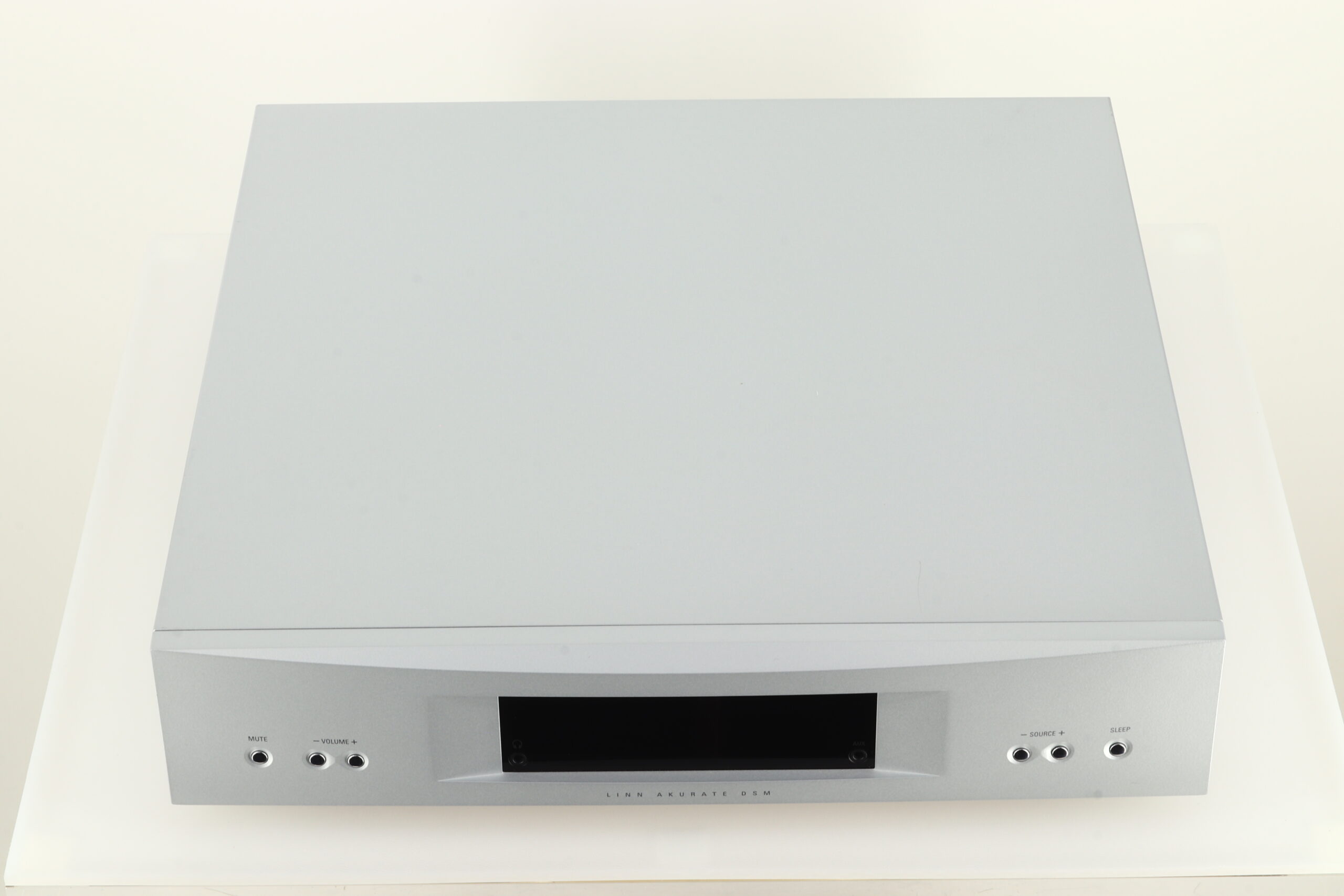

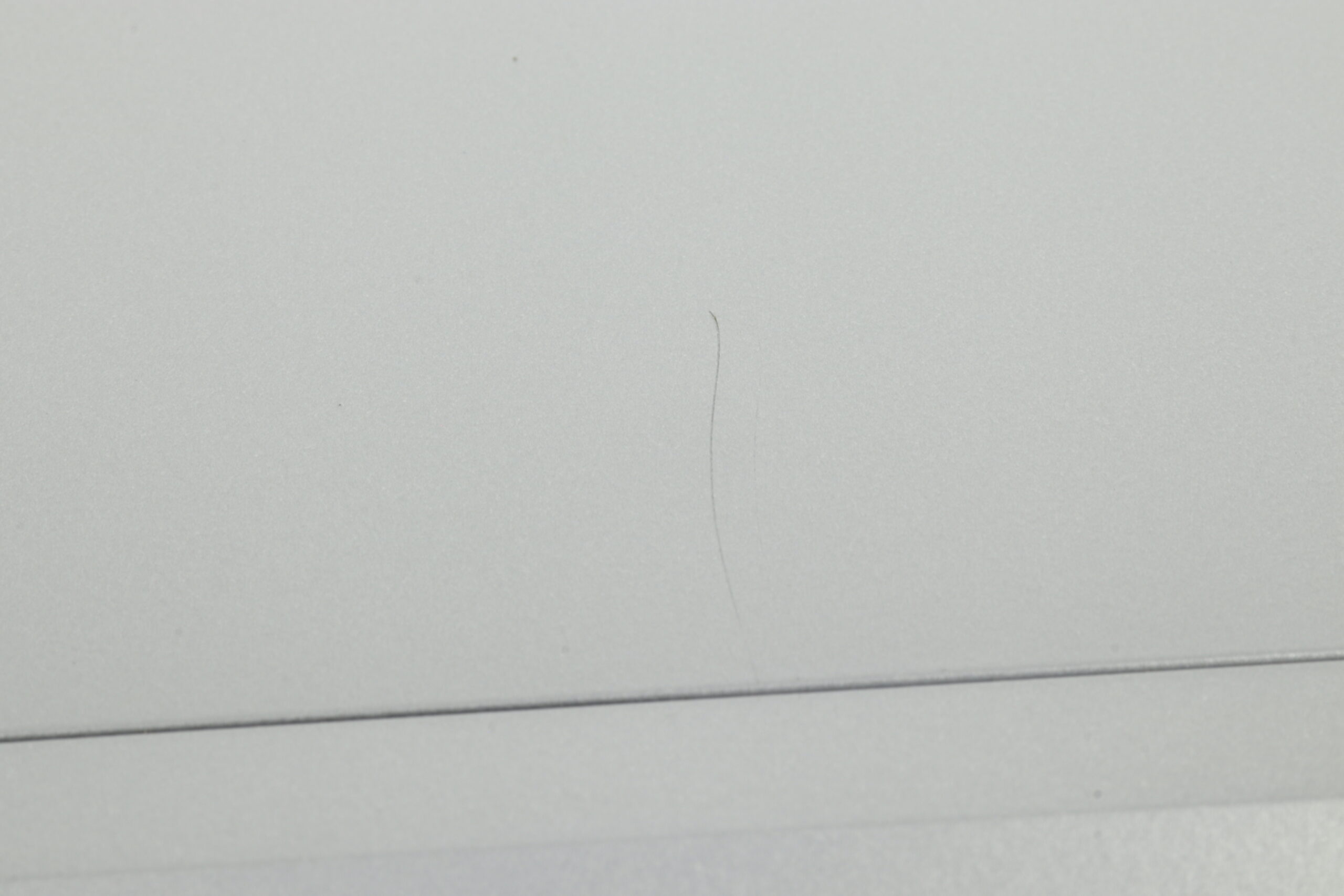

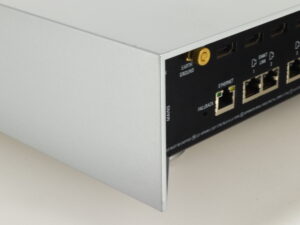

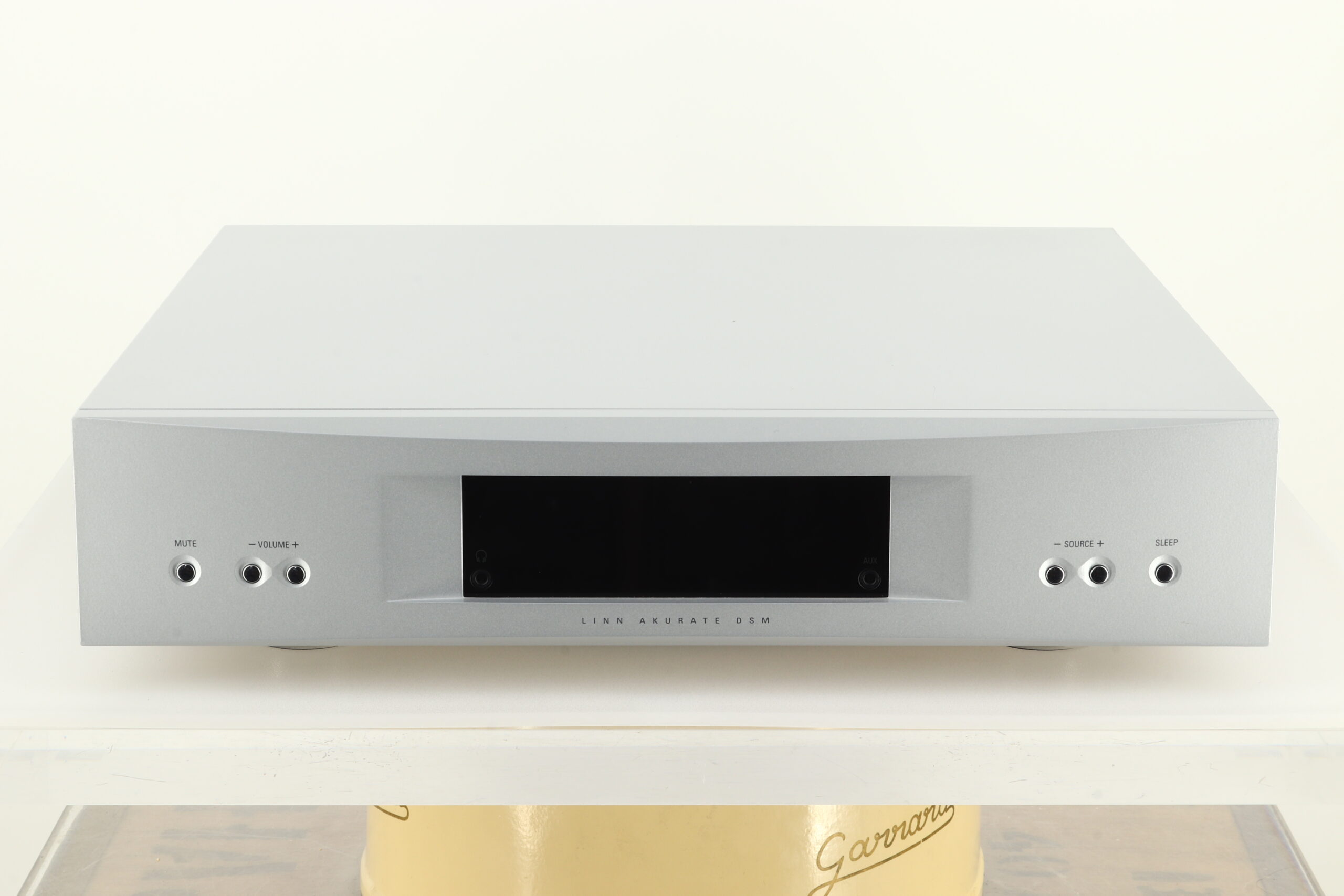

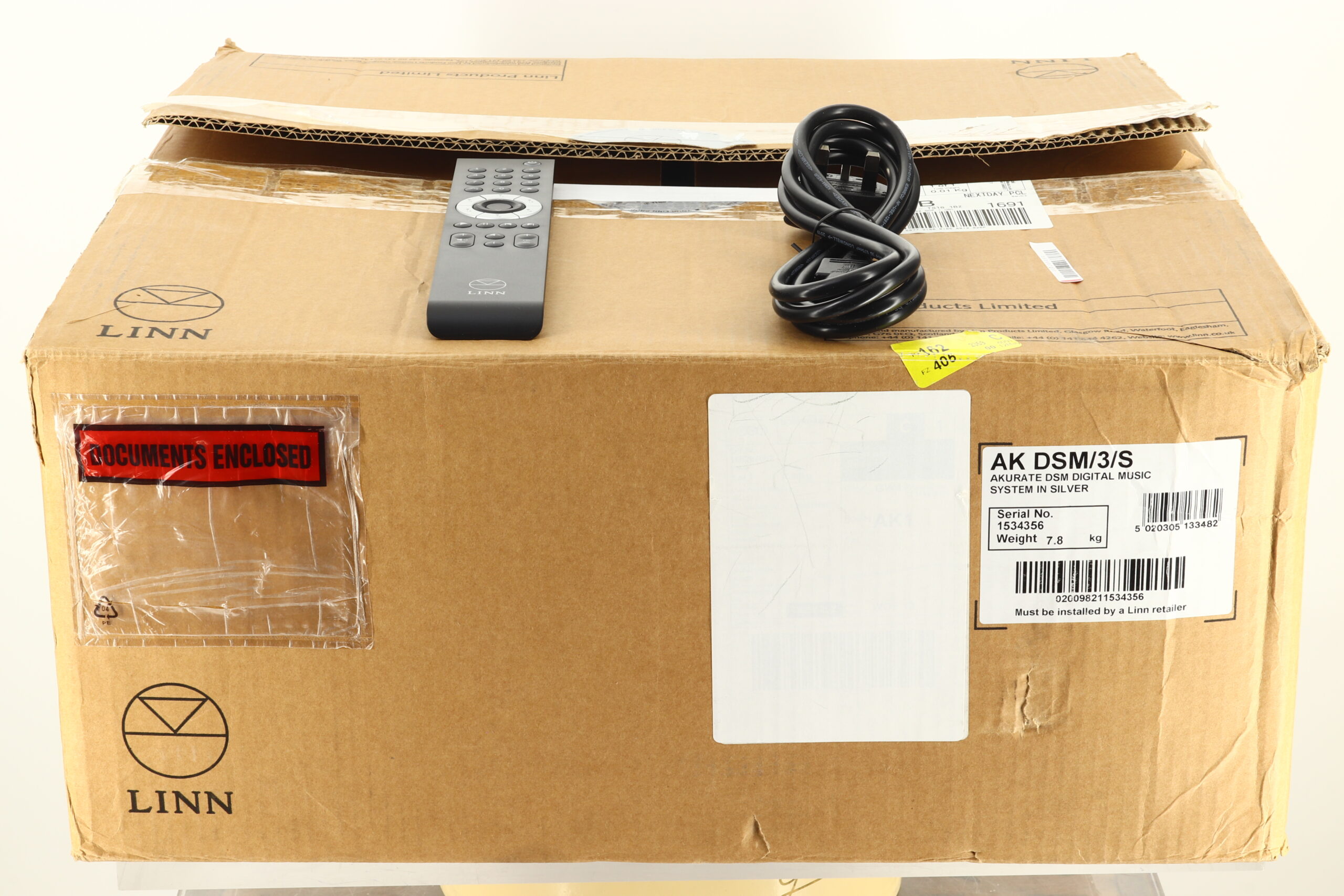

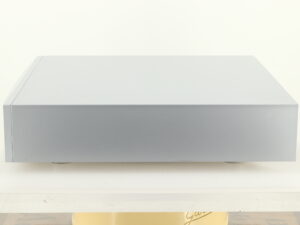

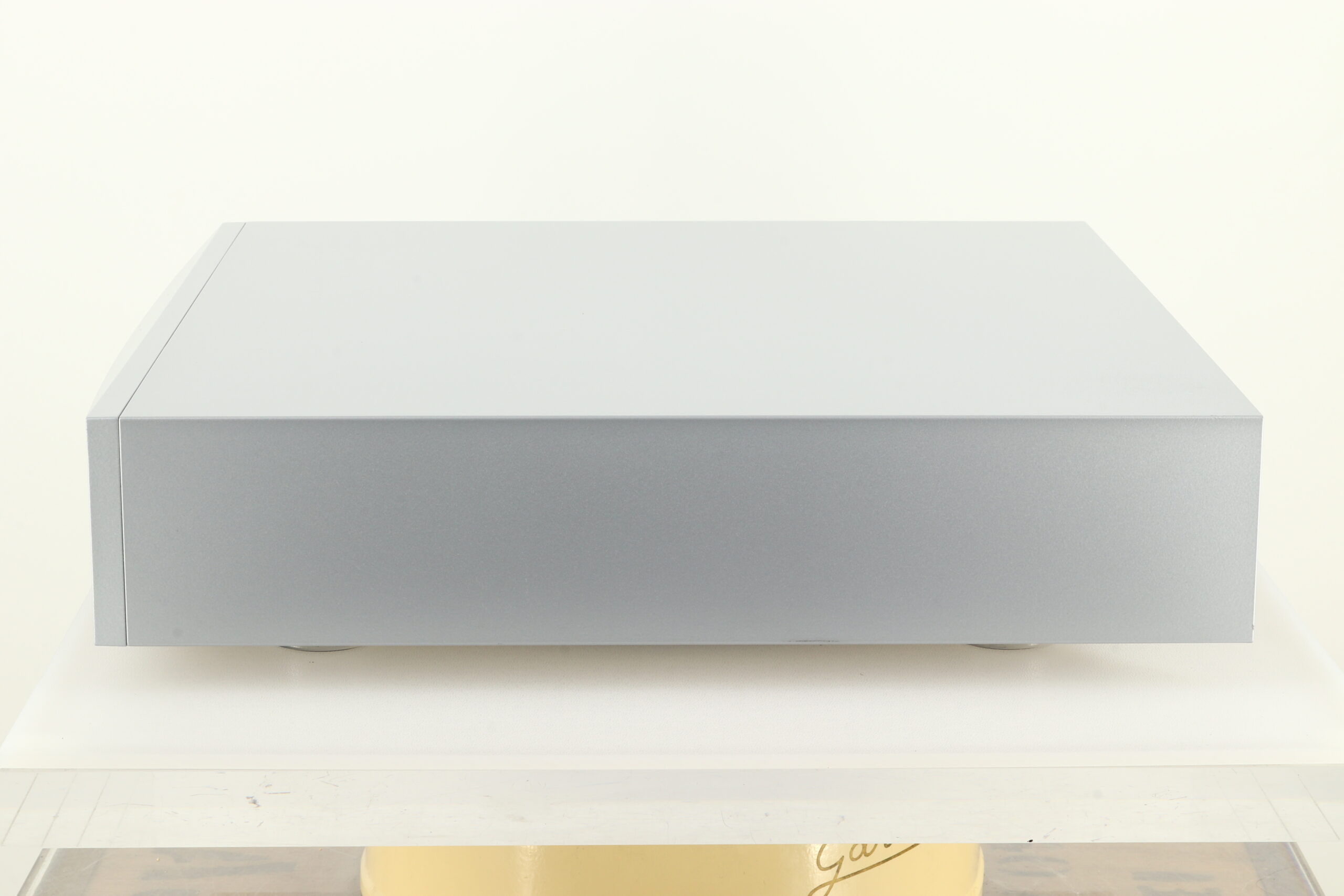

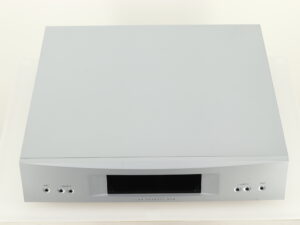

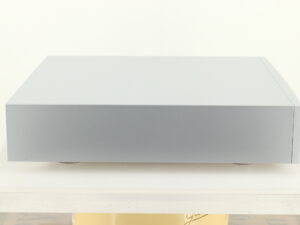

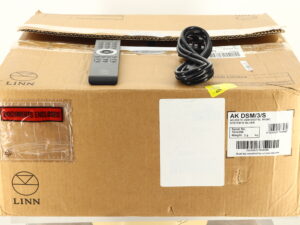

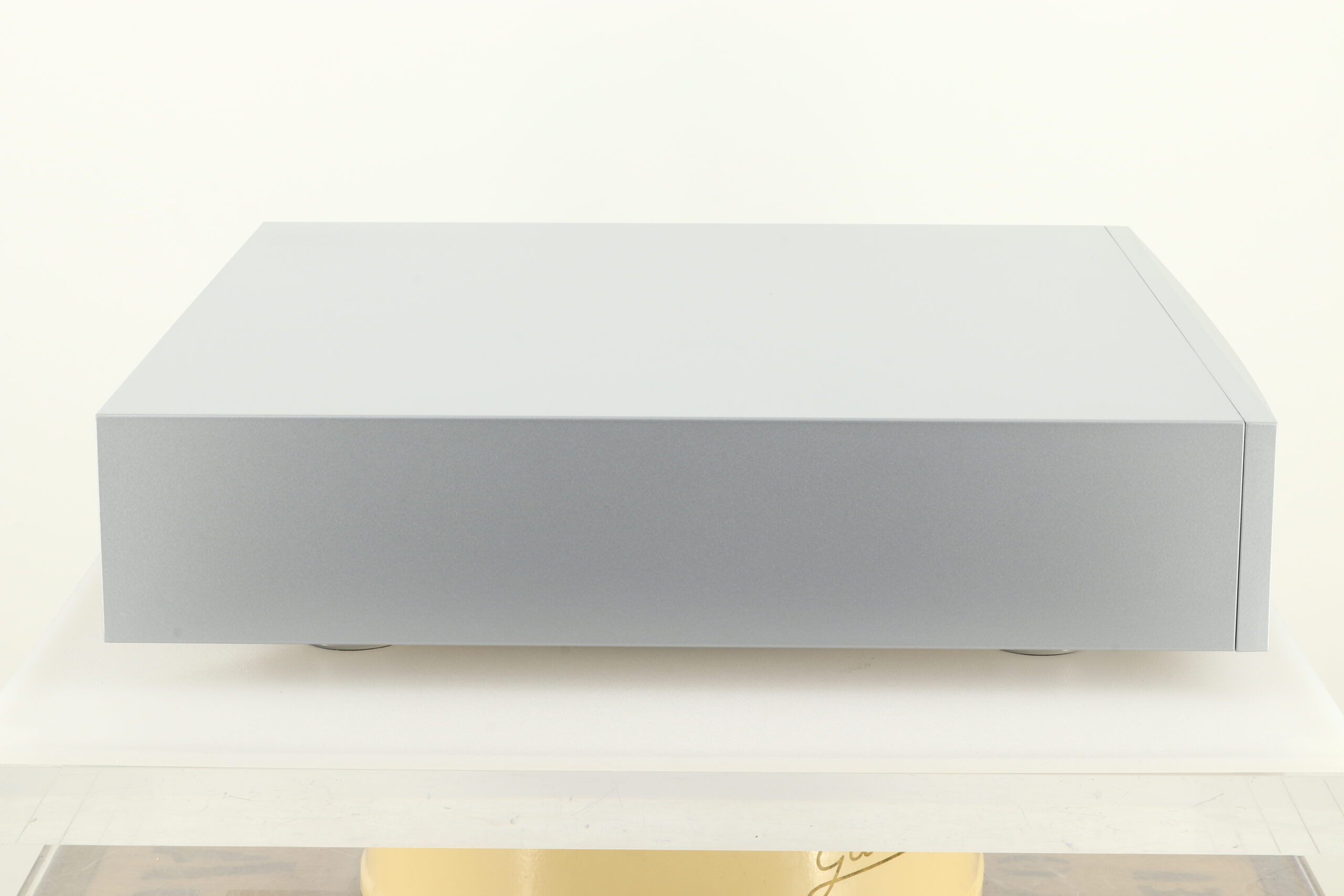

Here we have an Akurate DSM Integrated Network Music Player and Pre-amp from Scottish company Linn. It is very good condition and comes supplied in original factory packaging along with remote control, mains cable and our regular three month warranty.
Linn Say….
Rediscover your music collection with Akurate DSM, a network music player and pre-amp that will reignite your passion for music.
Listen to your favourite albums and enjoy exceptional dynamic range and musical detail. With enough analogue and digital inputs to connect any audio source, Akurate DSM will bring music, movies, TV and games to life like never before. Akurate DSM supports all popular digital music types, excelling with the highest quality recording format, Studio Master. You will also enjoy higher quality from your CDs or digital music collection. Play internet radio streams and podcasts through Akurate DSM and discover the difference a truly high fidelity digital music player can make to the latest online and on-demand music services.
Using standard analogue outputs, Akurate DSM can be connected to any power amplifier or Aktiv speaker, plus with Linn Exakt Link connections, it’s Exakt-ready for future system upgrades.
With analogue and digital inputs, you can connect any audio or video source and make it sound incredible. Any digital sources will sound better as they benefit from the superior DAC and custom Linn up-sampling of the audio.
Akurate DSM can be controlled using your preferred touchscreen device with Linn’s own control app. Browse your whole music collection and instantly access online music and movie content through your existing wi-fi home network.
Features:
Plays digital music over a standard Ethernet network
Built-in pre-amplifier with separate analogue and digital volume control circuits for each type of source
Decodes FLAC, WAV, Apple Lossless (ALAC), MP3, WMA, AIFF, AAC and OGG audio formats with up to 24-bit 192 kHz
native sample rate
Streams internet radio, podcasts and ‘listen again’ broadcasts
14 inputs (Analogue (XLR/RCA), HDMI, S/PDIF, Toslink) for connection and up-sampling of additional sources

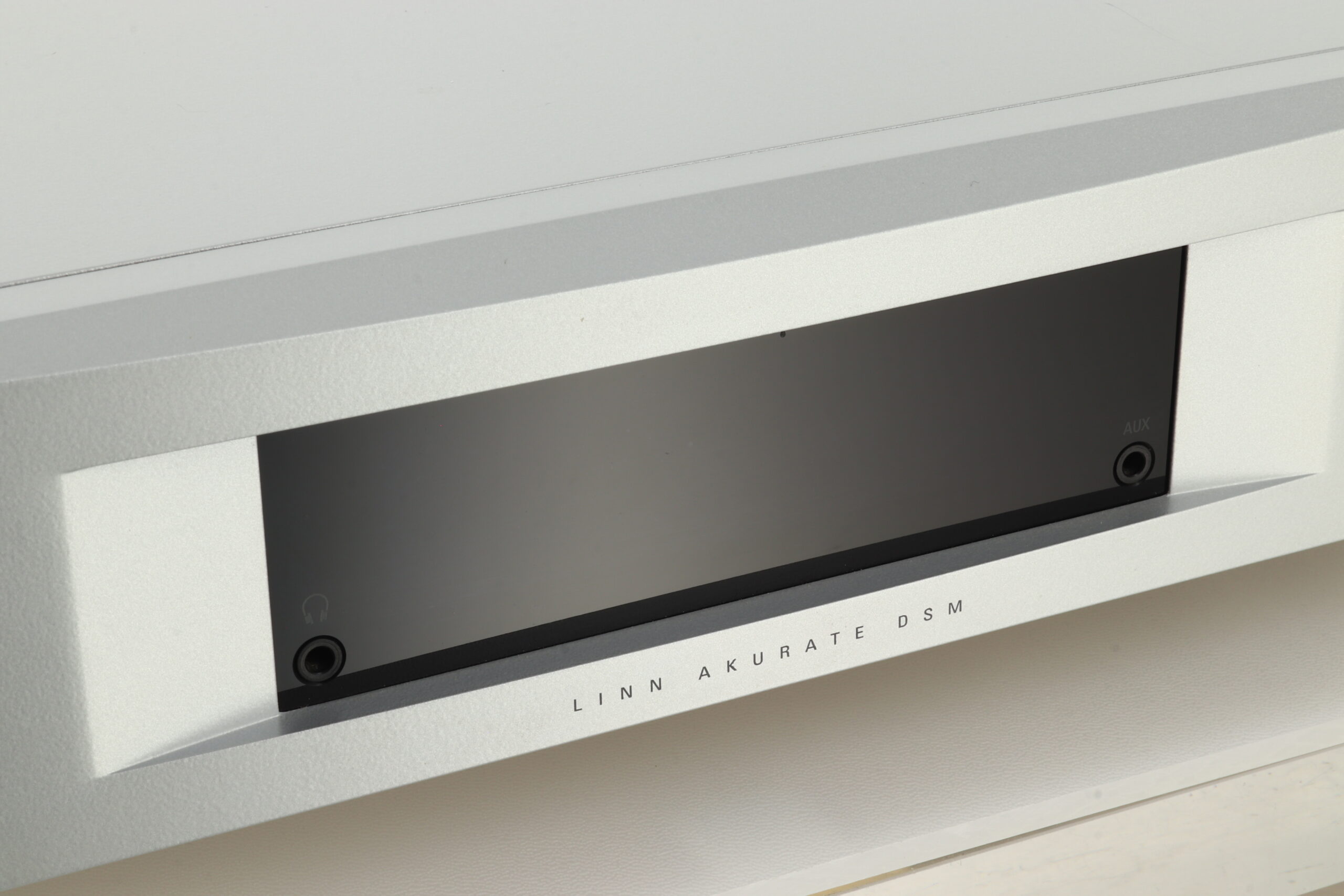

AUX input on front for easy connection of portable devices
Headphone output
Linn Dynamik Switch Mode Power Supply (SMPS)
Specifications:
Type: Network music player and pre-amplifier with Exakt Link
Supported File Types: FLAC, Apple Lossless (ALAC), WAV, MP3, WMA (except lossless), AIFF, AAC, OGG
Word Depths: 16 – 24 bits
Audio Sample Rates: 7.35 k, 8 k, 11.025 k, 12 k, 14.7 k, 16 k, 22.05 k, 24 k, 29.4 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 k
Control Protocol: Compatible with UPnP™ media servers, UPnP™ AV 1.0 control points

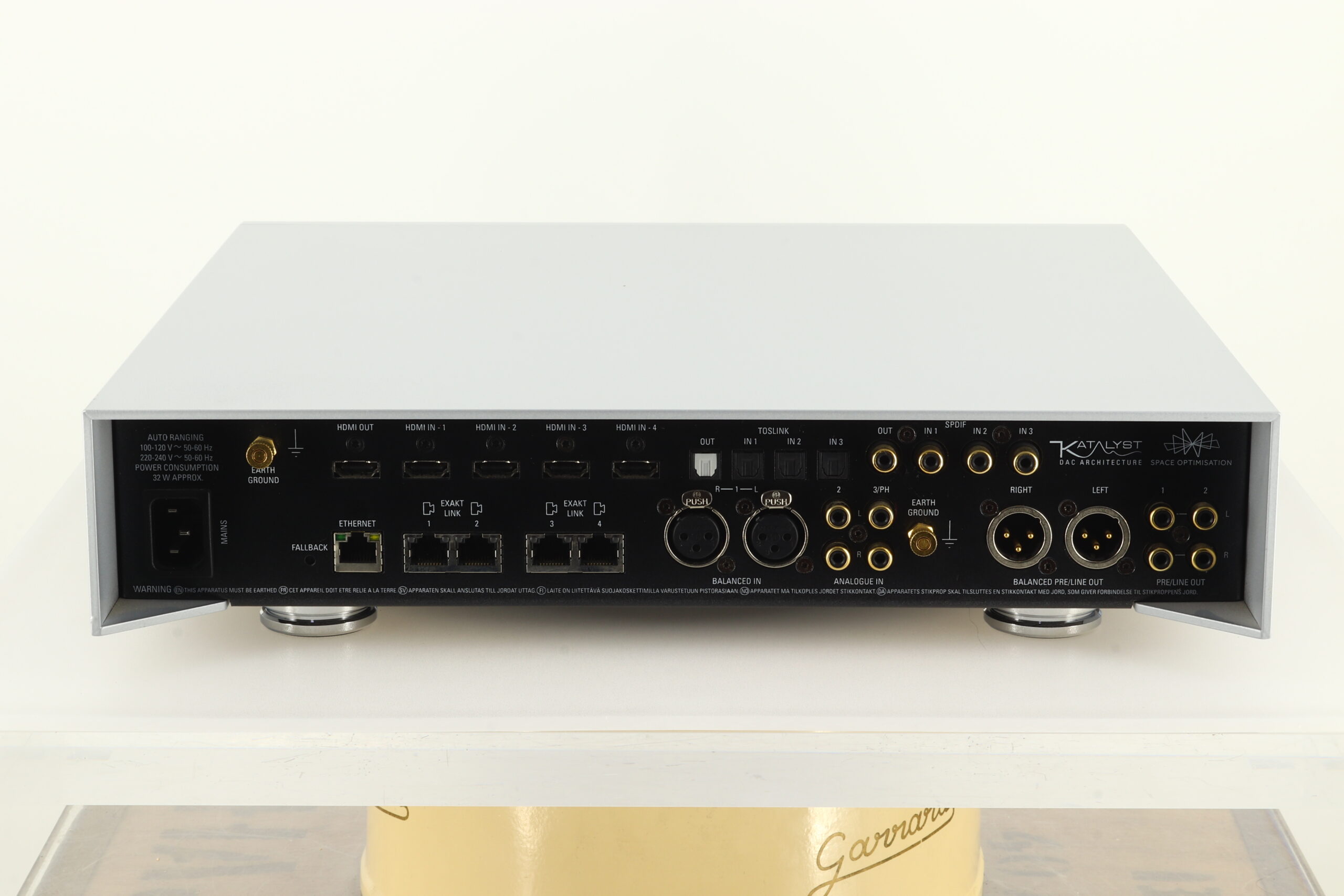

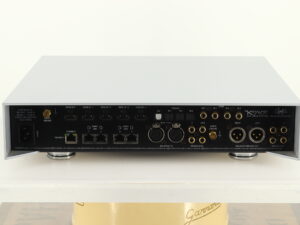

Analogue Inputs: 1 x Balanced XLR (pair); 1 x RCA Inputs (Line Level): 1 x RCA Inputs (Line Level/MM/MC Configurable); 1 x 3.5mm Stereo Aux Input

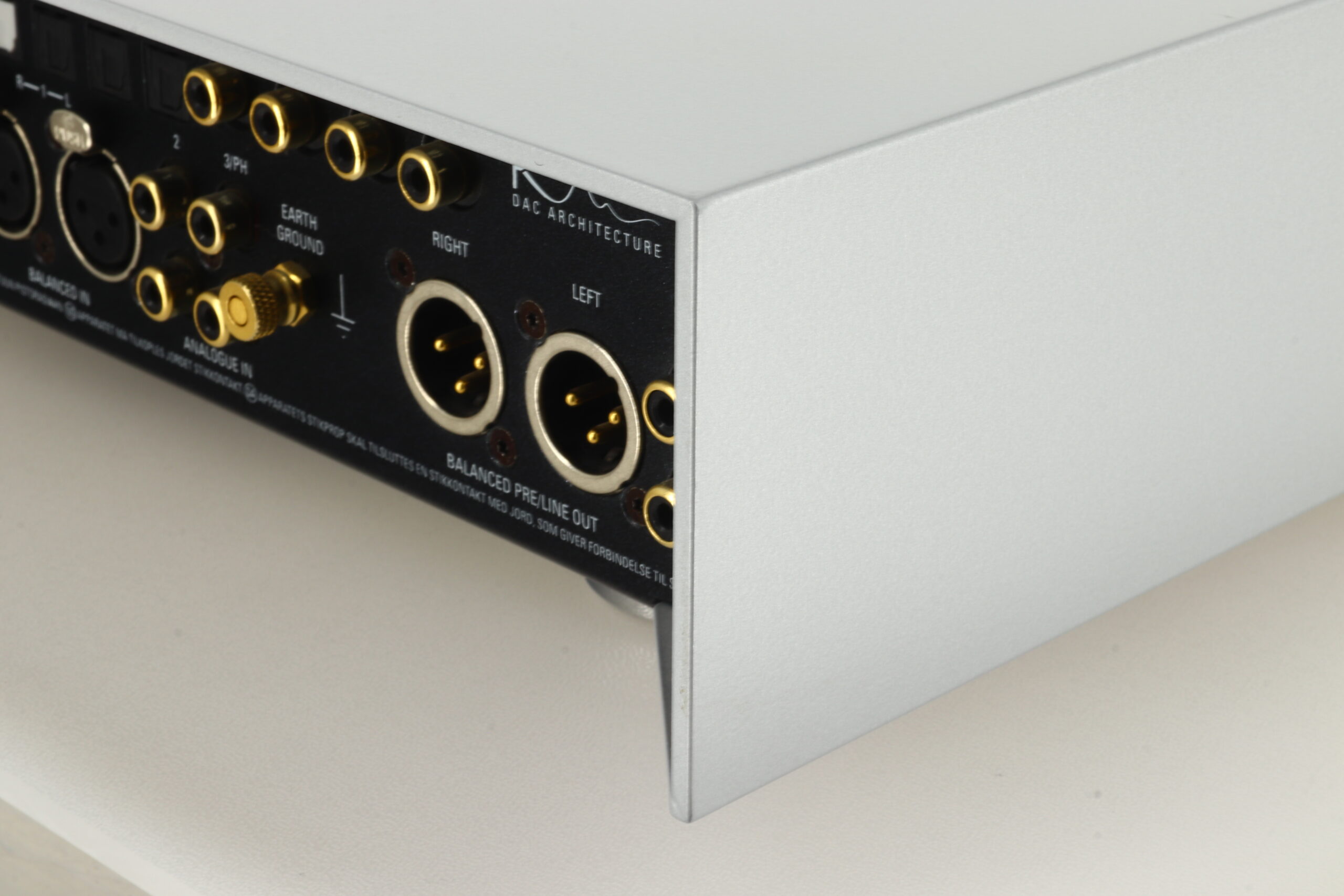

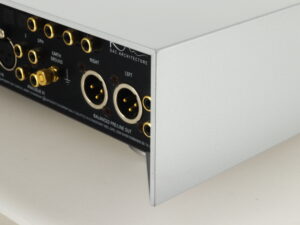

Analogue Outputs: 1 x Balanced XLR (pair); 1 x RCA Inputs (Line Level); 1 x 3.5mm Stereo Headphone
HDMI Inputs: 4 x HDMI Type A
HDMI Outputs: 1 x HDMI Type A
S/PDIF In: 3 x RCA phono
S/PDIF Out: 1 x RCA phono
Optical In: 2 x TOSLINK (JIS F05)
Optical Out: 1 x TOSLINK (JIS F05)

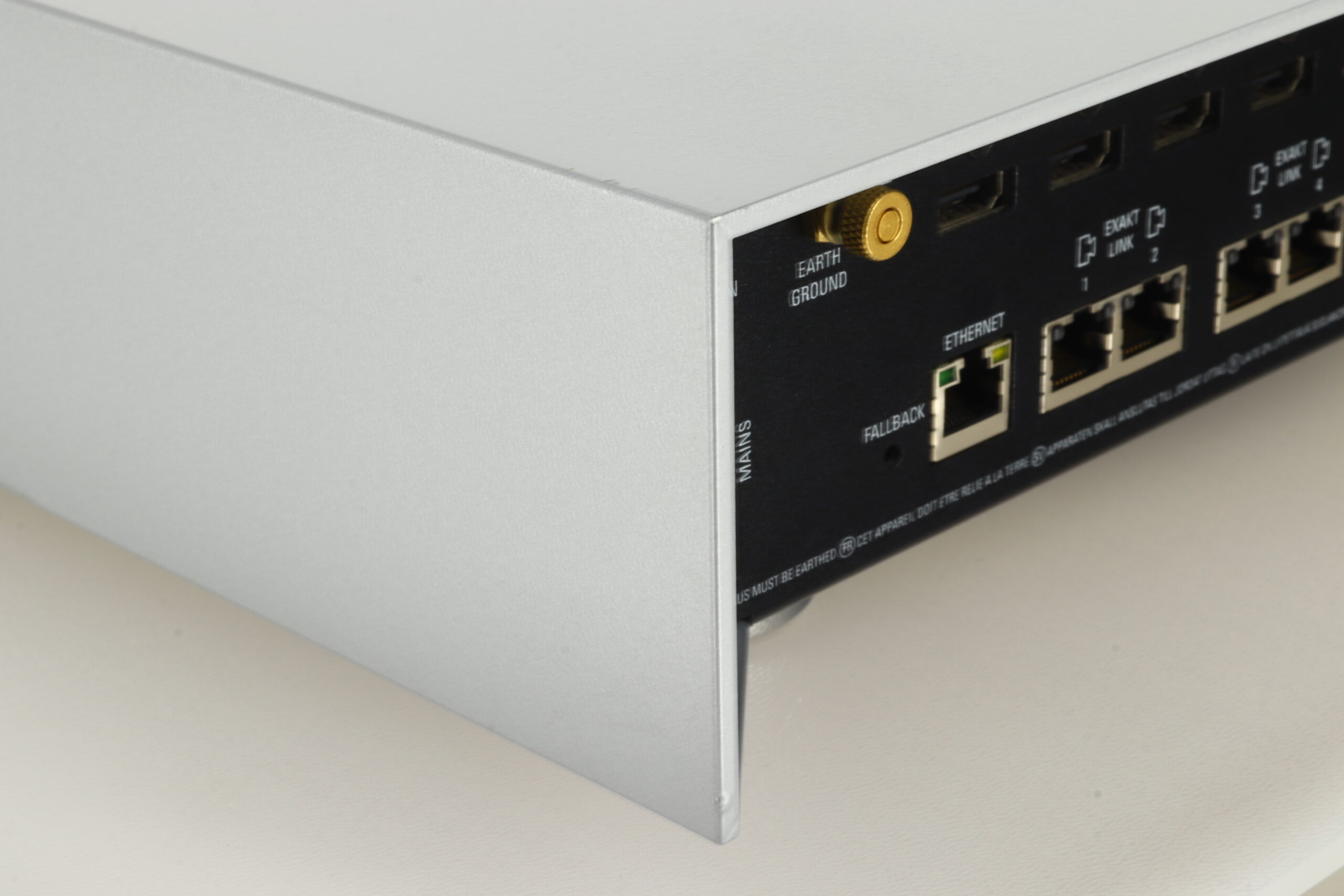

Exakt Links: 4 x RJ45
Ethernet: 100Base-T RJ45
Analogue Input
XLR Inputs:
Input Sensitivity: Can be selected from 2/4/8 V RMS
Input Impedance: 7.8 kΩ
Coupling: Transformer/Direct
RCA Inputs (Line Level):
Input Sensitivity: Can be selected from 1/2/4 V RMS
Input Impedance: 7.8 kΩ
RCA Inputs (MM):
Max Input Voltage: 70.0 mv @ 1 kHz
Gain: + 40 dB @ 1 kHz
Input Impedance: 47 kΩ/68 pF
Signal-To-Noise Ratio: Better than 90 dB
RCA Inputs (MC):
Max Input Voltage: 5.0 mv @ 1 kHz (High gain Setting)
Gain: + 64 dB @ 1 kHz (High gain Setting); + 54 dB @ 1 kHz (Low gain Setting)
Input Impedance: 180 Ω/10 nF
Signal-To-Noise Ratio: Better than 90 dB
Aux Input (Line Level):
Input Sensitivity: Can be selected from 1/2/4 V RMS
Input Impedance: 10 kΩ
Analogue Output:
Output Attenuation: Can be selected from 0 dB/- 12 dB/- 24 dB
XLR Output Level: 4v rms (0 dB FS @ Volume 80)
XLR Output Impedance: 300 R
XLR Output Coupling: Direct Coupled
RCA Output Level: 2v rms (0dBFS @ Volume 80)
RCA Output Impedance: 300 R
RCA Output Coupling: Direct Coupled
H/Phone Output Level: 2 v rms (0 dB FS @ Volume 80)
Analogue-to-Digital Conversion:
Sample Rate: 192 kHz 24-bit
Headroom to Clipping: + 1.2 dB
Volume Control:
Analogue Source Direct: Gain Range – 80 dB to + 20 dB
Analogue Source Direct: Gain Resolution 1 dB
Unity Gain at Volume 80
SPDIF Digital Input Levels:
Min. Input voltage 0.3 V (when terminated with 75 Ω)
Input Impedance: 75 Ω
Power Supply: Dynamik PSU
Mains Supply Frequency: 50 – 60 Hz
Mains Input Voltage: 100 – 120 VAC; (auto-sensing) 200 – 240 VAC
Power Consumption: Sleep 26 W (HDMI disabled); Sleep 27W (HDMI enabled); Active 30W
Dimensions: 380 (W) x 380 (D) x 91 (H) mm
Weight: 5.8 kg
