iFi Micro iDSD Signature DAC / Headphone Amplifier

£325.00

Manufacturer : iFi
Model : Micro IDSD Signature
Serial Number : 2014002101
Packaging : Original

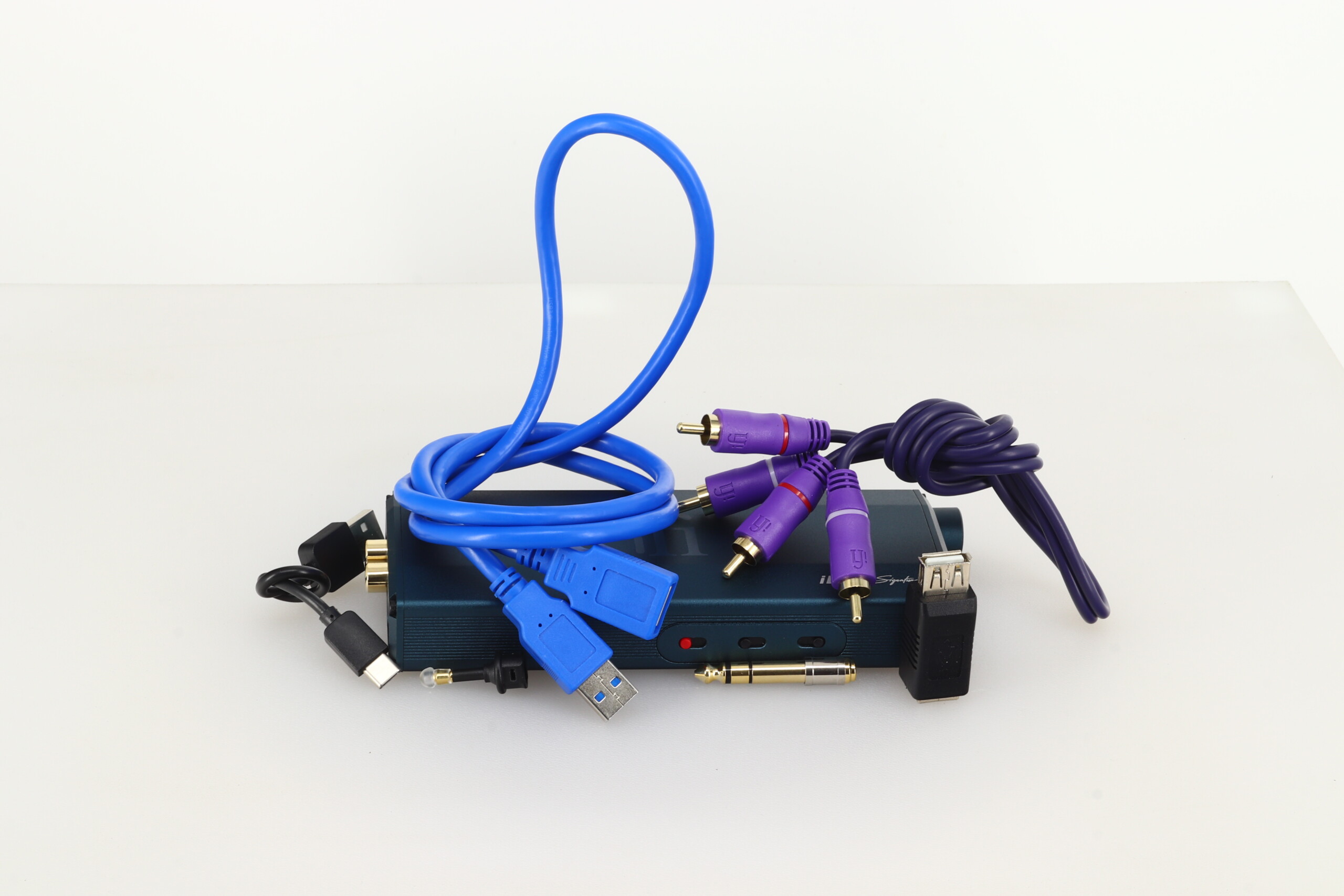

Accessories Included : USB Cable / Manual / Interconnect / Adaptor / USB Adaptor
Price When New :

1 in stock

SKU: 2014002101 Category:
Description

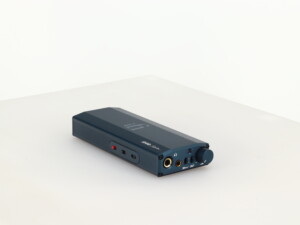

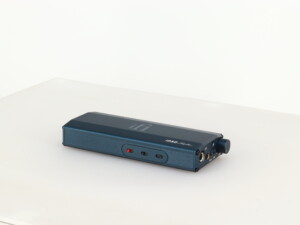

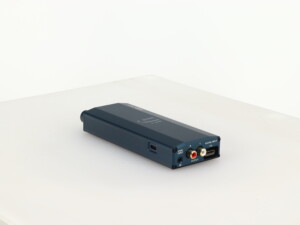

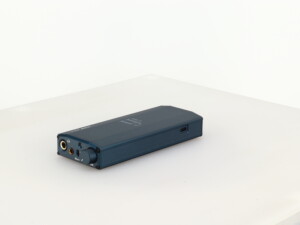

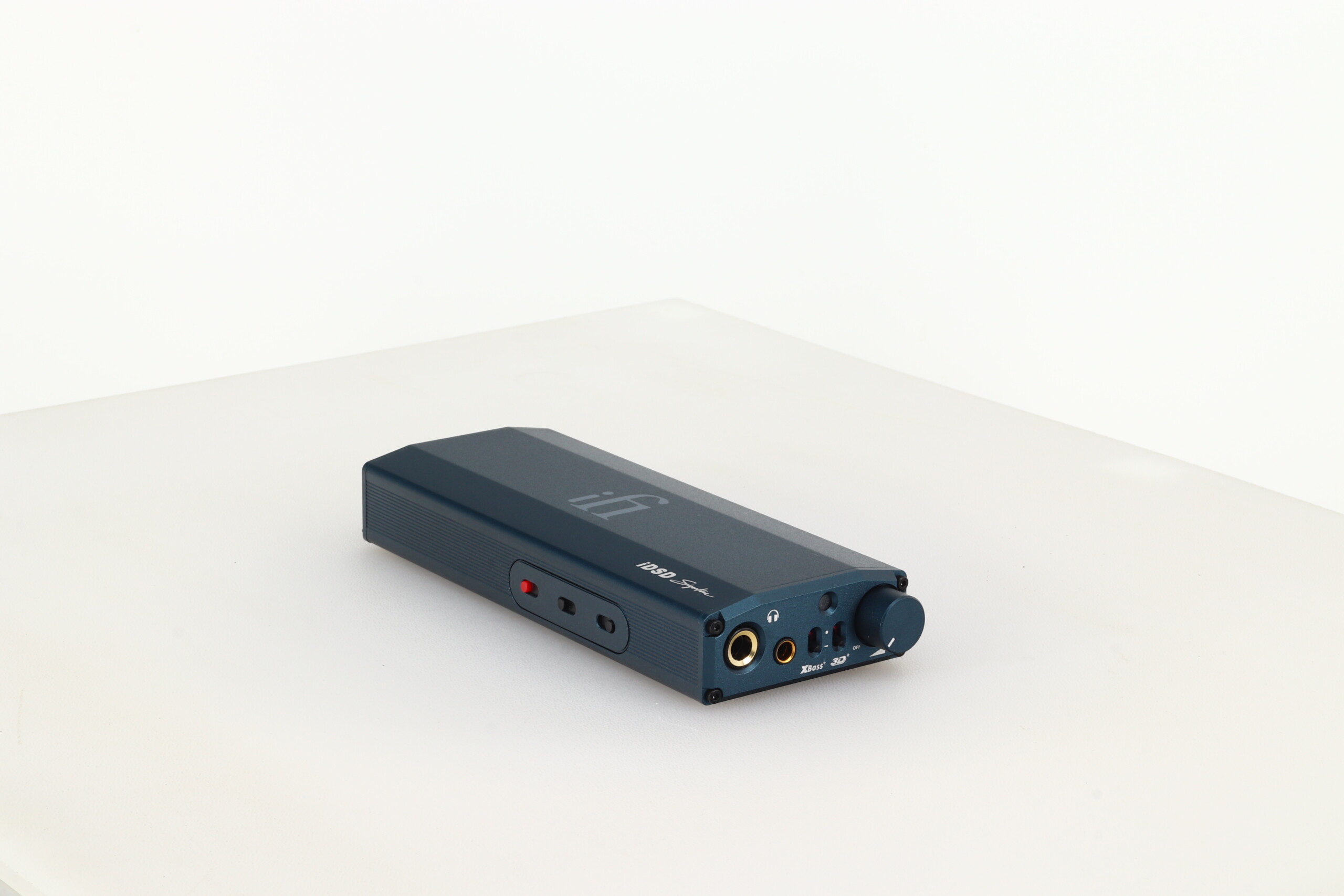

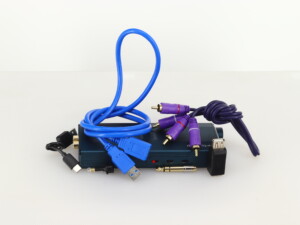

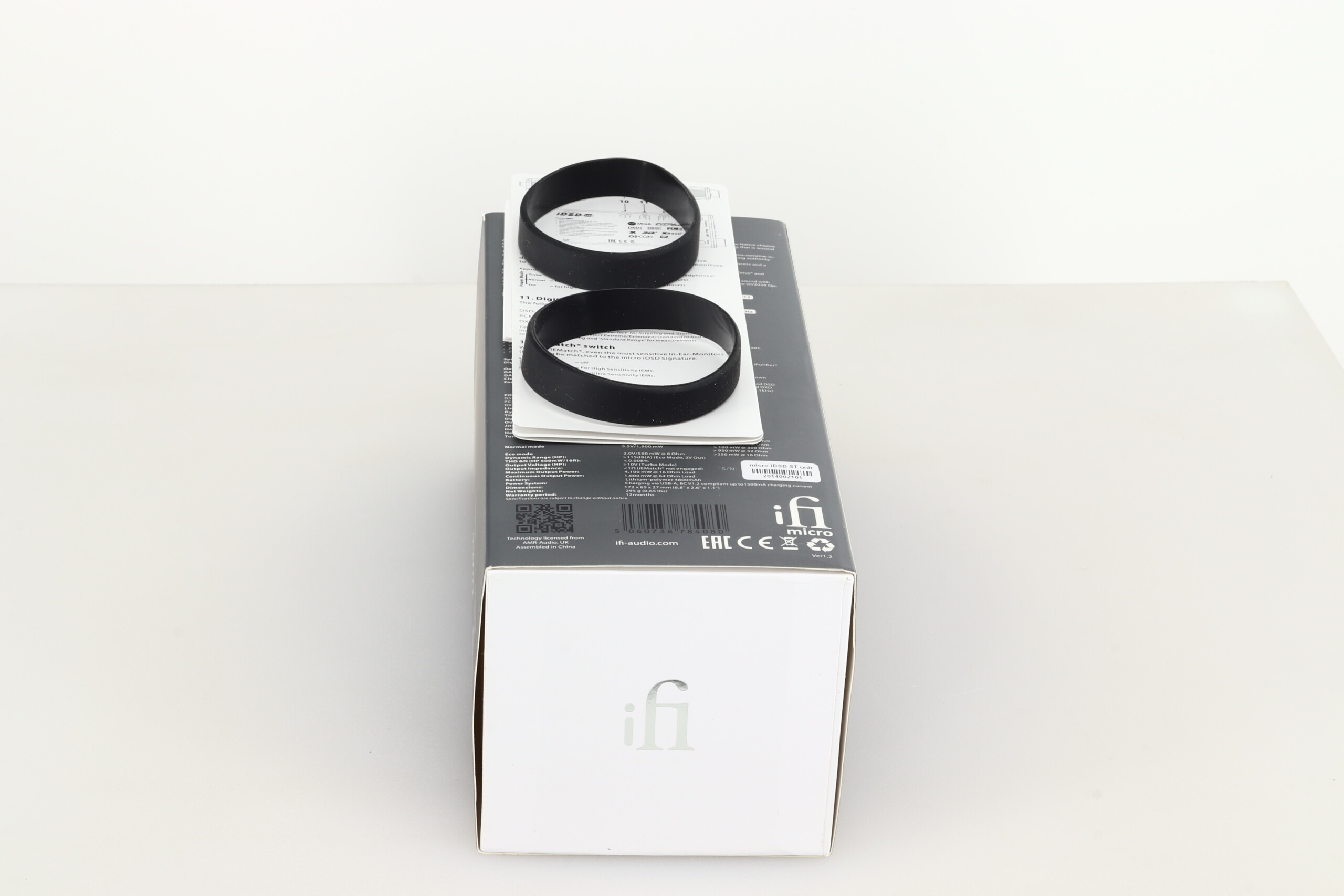

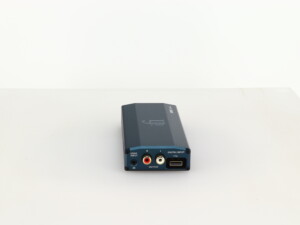

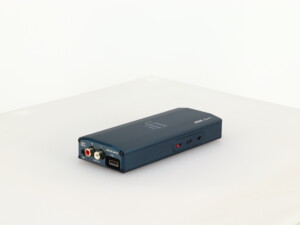

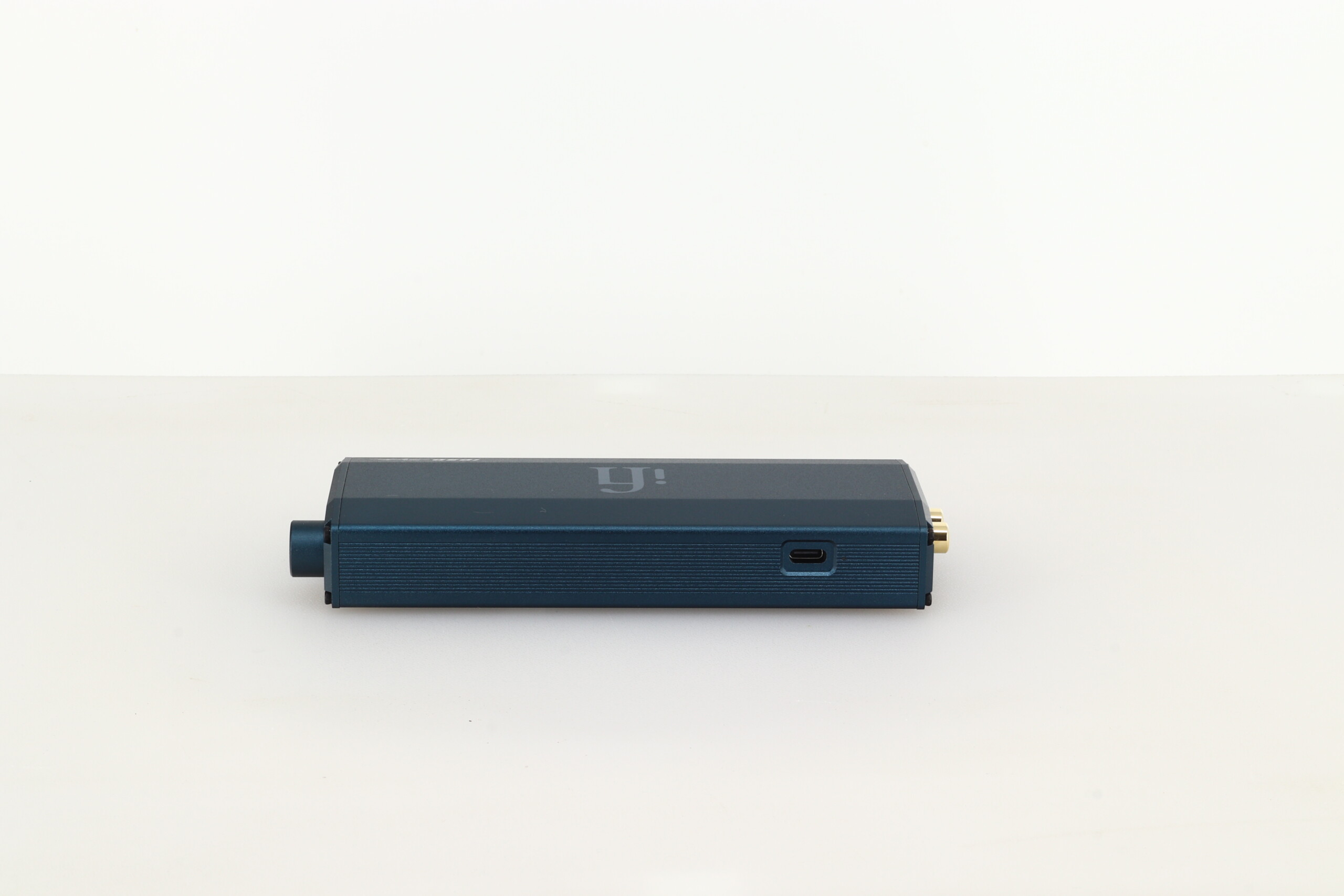

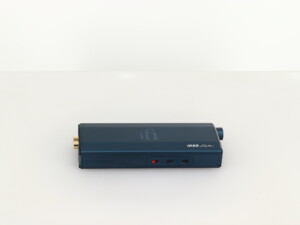

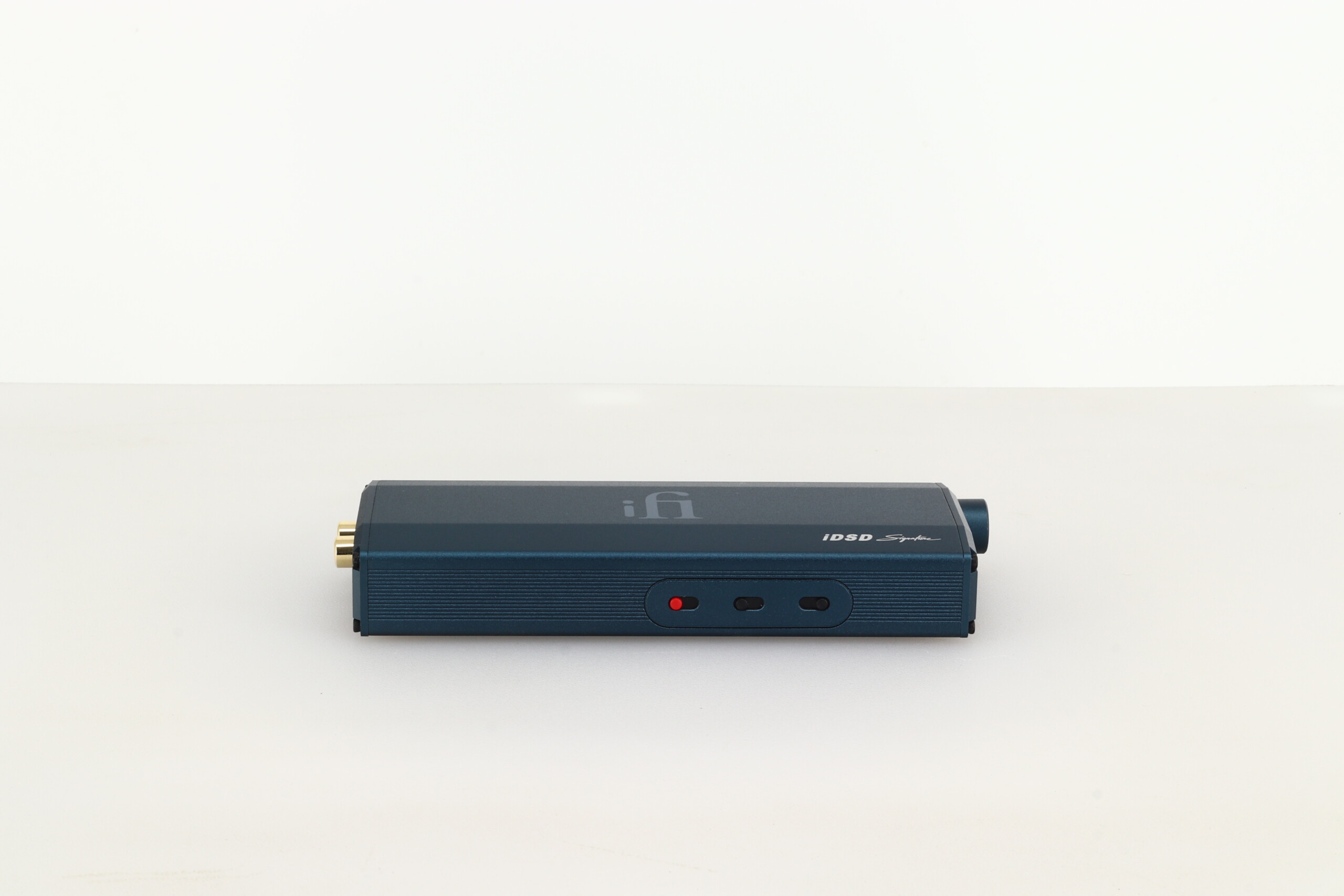

Here we have a portable digital to analogue converter / headphone amplifier from specialist British company ifi audio. Coming in very good condition and supplied in original factory packaging it also comes with manual, cables, adaptors as shown, plus our standard three month warranty.
ifi Audio Say….
Sporting a Space Blue finish and powered by a built-in rechargeable battery, the micro iDSD Signature is a transportable DAC/headphone amp that’s ready for anything that the universe throws at it.
Battery power means it’s ultra-clean with ultra-stable DC power and avoids the pitfalls of AC mains – dips, spike and noise-inducing RFI/EMI pollution.
And with up to 12 hours playing time, depending on the headphones and performance mode engaged, it feels like you could take it to the moon and back.
Based around two Burr-Brown DAC chips in a custom ‘interleaved’ configuration, the digital engine has four pairs of differential signals – two pairs per channel.
The micro iDSD Signature handles up to PCM 768, DSD 512, 2xDXD and MQA. All this is done natively. Both PCM and DSD remain ‘bit-perfect’.
Features:
Octa-DSD512/PCM768 and 2X DXD.
Dual-Core Native DSD/PCM Burr-Brown® chipset.
Fully balanced 4.4mm output with (4,100mW).
Performance boosting Direct-Drive® and Headamp Turbo®.
Zero Jitter/Femto clock system upgraded for lower phase-noise/jitter.
Digital engine upgraded with iFi custom ultra-low noise Op-Amp Ov2028.
Analogue section upgraded with iFi custom ultra-low noise Op-Amp Ov2627.
Ultra-low impedance OS-CON polymer capacitors and Panasonic Audiograde ECPU film capacitors.
Performance-tuned 3D+® and XBass+®.
Turbo/Normal/Eco modes.
Specifications:

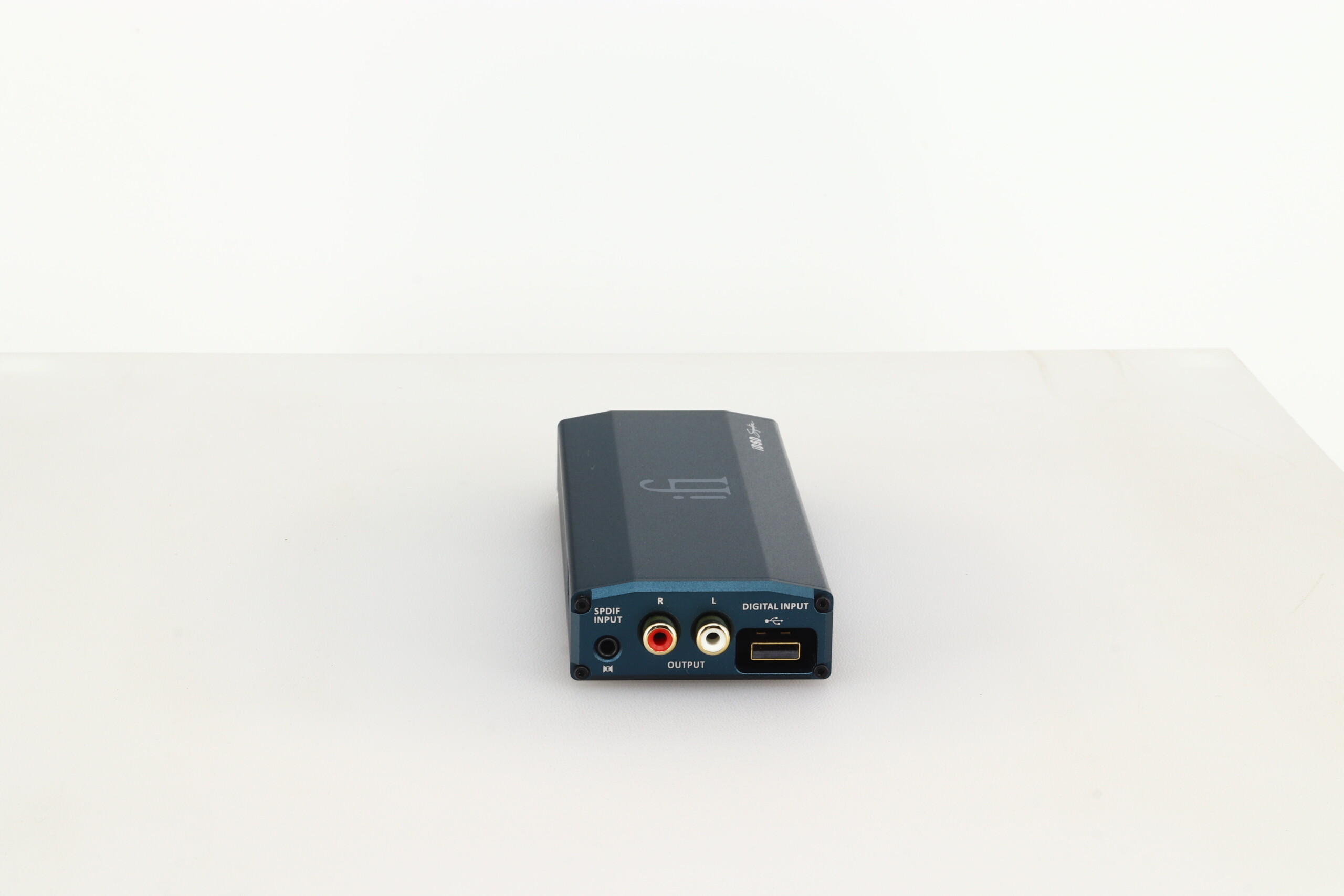

Digital Inputs: USB 3.0 type A “OTG” Socket(USB2.0 compatible/with iPurifier® technology built-in )/S-PDIF (3.5mm coaxial/optical)

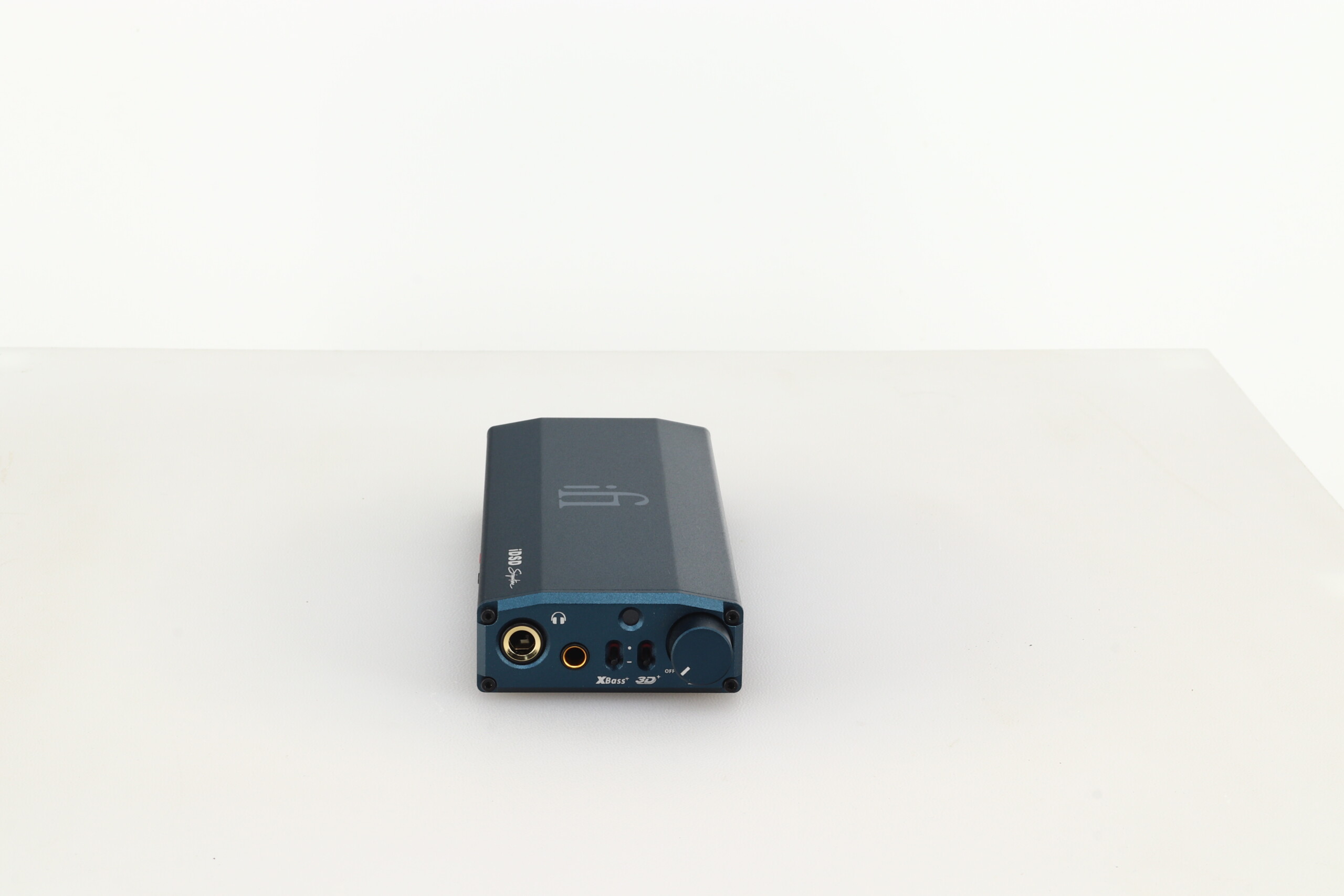

Output: Balanced: 4.4 mm; S-E: 6.3 mm/RCA
DAC section
DAC: Bit-Perfect DSD & DXD, PCM DAC by Dual-core Burr Brown
Clock: Ultra-low jitter GMT Femtosecond Clock
Formats: DSD512/256/128/64, Octa/Quad/Double/Single-Speed DSD; DXD (768/705.6/384/352.8kHz), Double/Single-Speed DXD; PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz); MQA
Filters:
DSD: Extreme/Extended/Standard Bandwidth
PCM: Bit-Perfect/Minimum-Phase/Standard
DXD: Bit-Perfect Processing
Line Output
Dynamic Range (Line): > 117 dB(A)
THD & N (0dBFS Line): < 0.003%
Output Voltage (Line): > 2 V
Output Impedance: < 240 Ω
Jitter (correlated): Below AP2 test set limit
Headamp Section Headphone Power Output
Turbo mode
Power (max): Power (continuous): > 1,560 mW @ 64 Ohm; > 166 mW @ 600 Ohm
Normal mode
Power (max): 5.5 V/1,900 mW
Power (continuous): > 100 mW @ 300 Ohm; > 950 mW @ 32 Ohm
Eco mode
Power (max): 2.0 V/500 mW @ 8 Ohm
Power (continuous): > 250 mW @ 16 Ohm
Dynamic Range (HP): > 115 dB(A) (Eco Mode, 2 V Out)
THD &N (HP 500mW/16R): < 0.008%
Output Voltage (HP): > 10 V (Turbo Mode)
Output Impedance: < 1 Ω (iE Match not engaged)
Maximum Output Power: 4,100 mW @ 16 Ohm Load
Continuous Output Power: 1,000 mW @ 64 Ohm Load
Battery: Lithium-polymer 4800 mAh
Power System: Charging via USB-C, BC V1.2 compliant up to1500 mA charging current
Dimensions: 172 x 67 x 27 mm
Weights: 295 g
